JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh

Export reference
From $19,417
MSRP ¥13.98M CNY
Wheelbase:: 3380mm
Cargo box volume:: 8
Model code (announced):: HFC5030XXYEV13W
Cab length:: 5.46m
GVWR:: 3ton
Max. speed:: 90km/h
JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh exterior
View more photos (7)
CLTC range: 316km
Motor 1 Brand: JAC Motors
Curb Weight: 1.66ton
Rated payload: 1.21ton

Overview

The JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh is a Electric Panel Van featuring 316km battery/range, JAC Motors motor, 1.21t payload and 8 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5030XXYEV13W
Wheelbase: 3380mm
Cab length: 5.46m
Cab width: 1.86m
Cab height: 2.05m
CLTC range: 316km
Curb Weight: 1.66ton
Rated payload: 1.21ton
GVWR: 3ton
Max. speed: 90km/h
Front/rear suspension: 0.78/1.3m
Version: V8 Ningde Dream Chaser Edition
Energy Type: Electric
electric motor
Motor 1 Brand: JAC Motors
Motor 1 Model: TZ180XSJ100
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 77kW
Electronic Control
ECU Brand: Anhui JAC
Battery/Charging
Charging method: DC fast charge / slow charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 53.58kWh
Body parameters
Cargo box volume: 8
Max body depth: 3.08
Max body width: 1.74
Cargo Box Height: 1.44
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Body-on-frame
Seat count: 2Seats
Door Parameters
Tailgate type: double doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT 12PR
Rear Wheel Specification: 195/70R15LT 12PR
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
Heated Rearview Mirror:
Steering Wheel Material: Plastic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: leather
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:

Photos

Exterior3

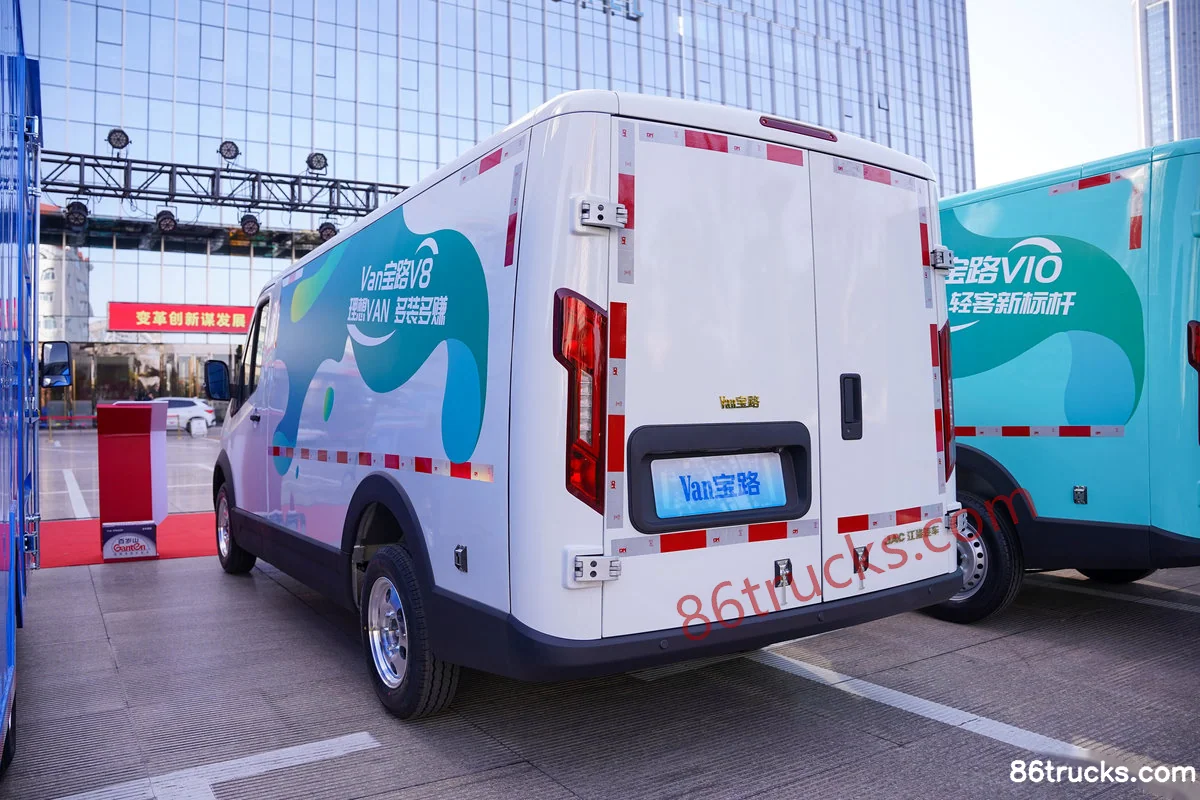

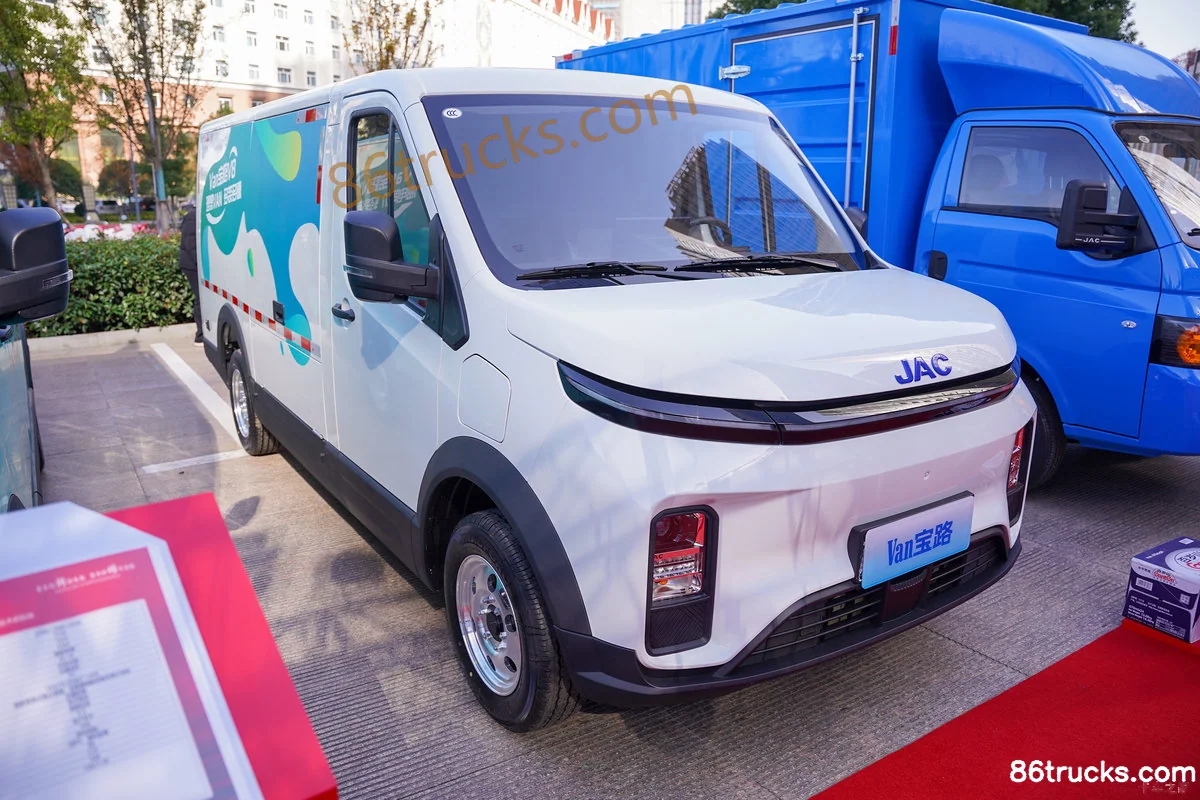

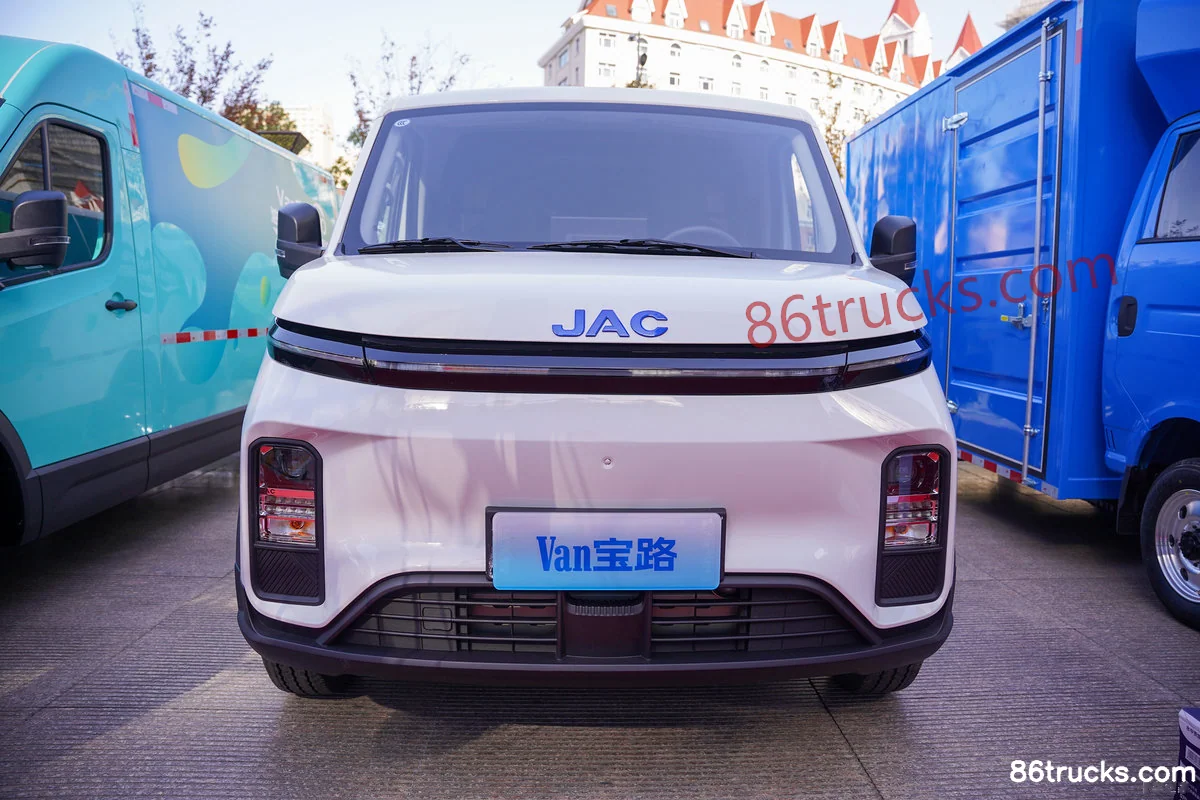

JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Exterior (1) | 86Trucks JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Exterior (2) | 86Trucks JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Exterior (3) | 86Trucks

Chassis1

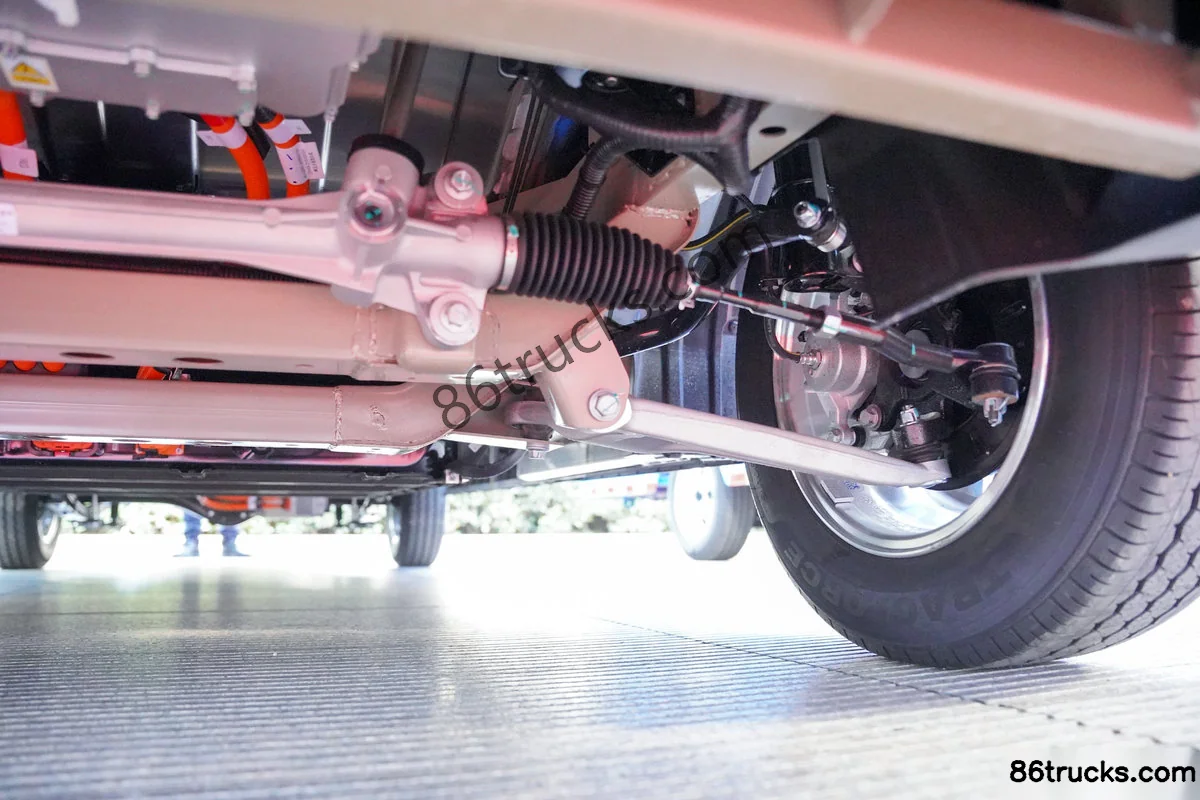

JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Chassis (1) | 86Trucks

Chassis3

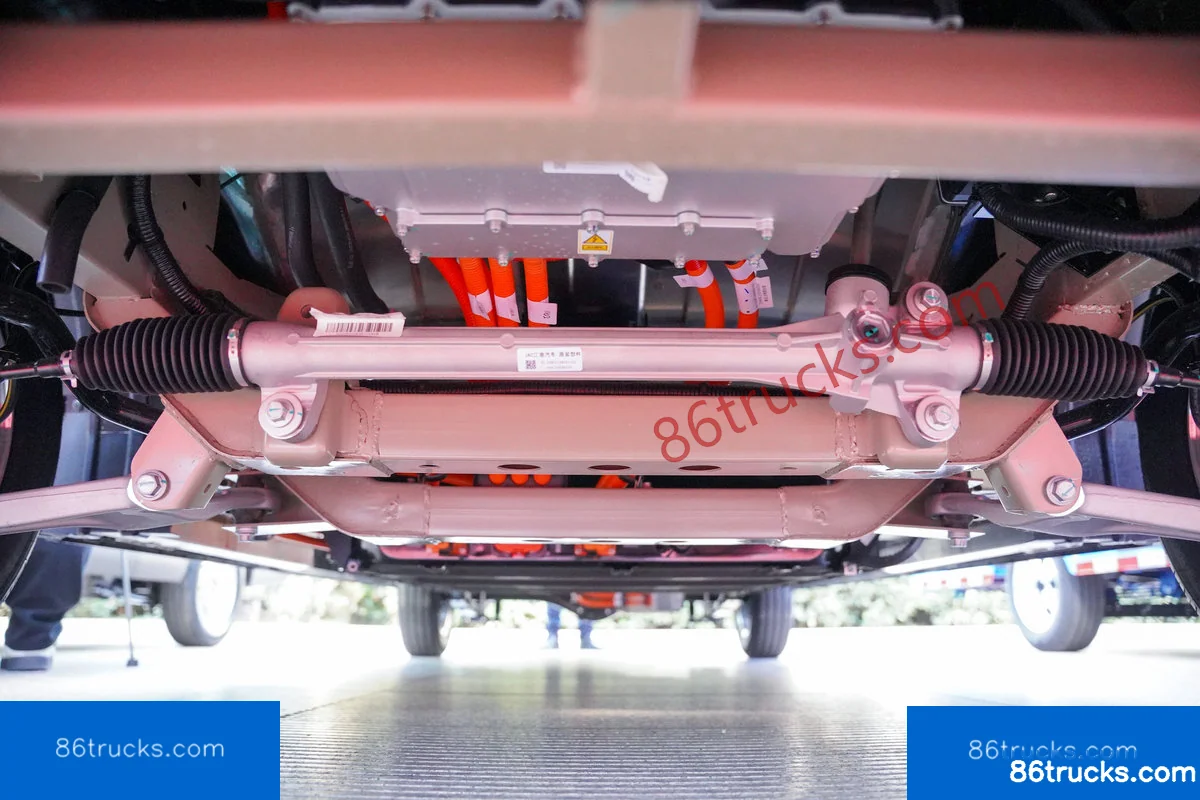

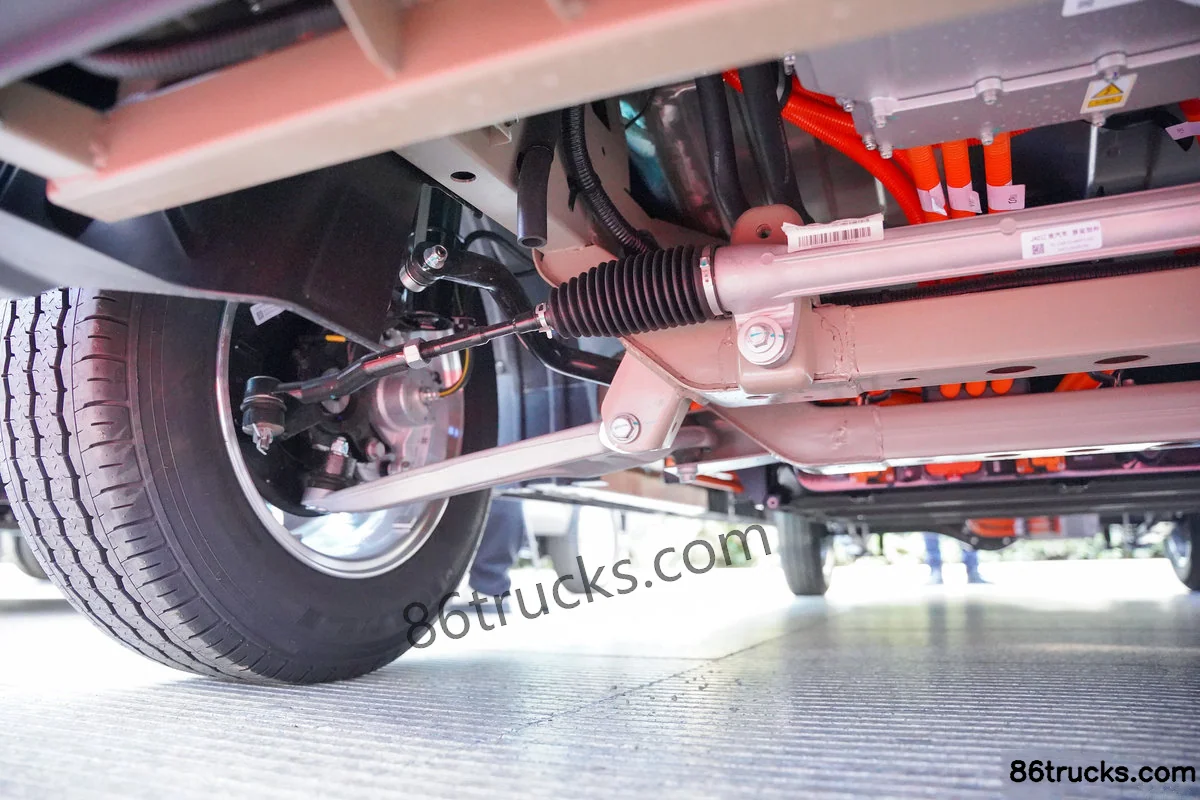

JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Chassis (1) | 86Trucks JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Chassis (2) | 86Trucks JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh Chassis (3) | 86Trucks

7 photos

FAQ

What is the export price of JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh, and what does it include?

JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh export reference is about From $19,417; MSRP is ¥13.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh suited for?

JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh differ from other variants in the same series?

JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh belongs to JAC Van Baolu (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Van Baolu V8 Ningde Dream Chaser Edition 2-Seat 5.46m Electric Van 53.58kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
