Dayun 13.75m Van Semi-Trailer

Export reference
From $14,792
MSRP ¥10.65M CNY
Cab width:: 2.55m
suspension:: 4-leaf leaf spring
Fifth Wheel Pin:: 90#
Design load capacity:: 40ton
Cab height:: 2.5m
Wheel brand:: Better / Rishang
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Curb Weight: 8.5ton
Cab length: 13.75m
Tire brand: Giti

Overview

The Dayun 13.75m Van Semi-Trailer is a van semi-trailer featuring Fuhua Wosheng 400,000 km maintenance-free axle-axle setup, 8.5ton GVW, 13.75m length and 40ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 40ton
Cab length: 13.75m
Cab width: 2.55m
Cab height: 2.5m
Curb Weight: 8.5ton
Chassis Specs
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Number of Axles: 3
Axle Load Rating: 13T
Wheel brand: Better / Rishang
Number of wheels: 12
suspension: 4-leaf leaf spring
Wheel Material: Steel
Parts & accessories
Fifth Wheel Pin: 90#
Outrigger: aluminum landing gear
Toolbox:
Spare Tire Carrier:
ABS: Kemi 4S/3M
Body Parameters
Frame material: T700
frame rail height: 480mm
Web Plate: 5mm
upper wing panel: 8mm
Lower Wing Plate: 10mm
Other notes
Other: Number of doors: 6, flower rack type: two/three-layer side opening removable, other types optional, rear door type: same as side, other types optional, side guard: aluminum, air tank: aluminum, ladder: 1
Tire
Tire brand: Giti
Tire Size: 12R22.5
Number of tires: 12pcs

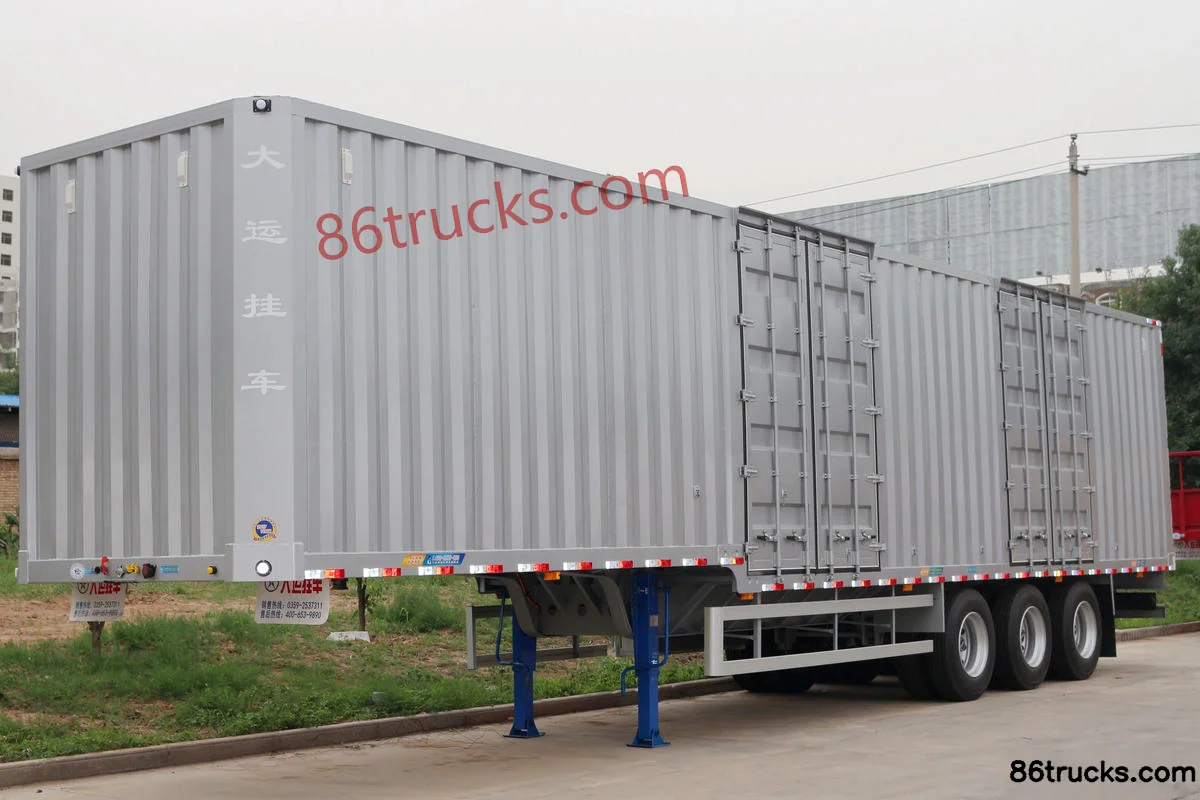

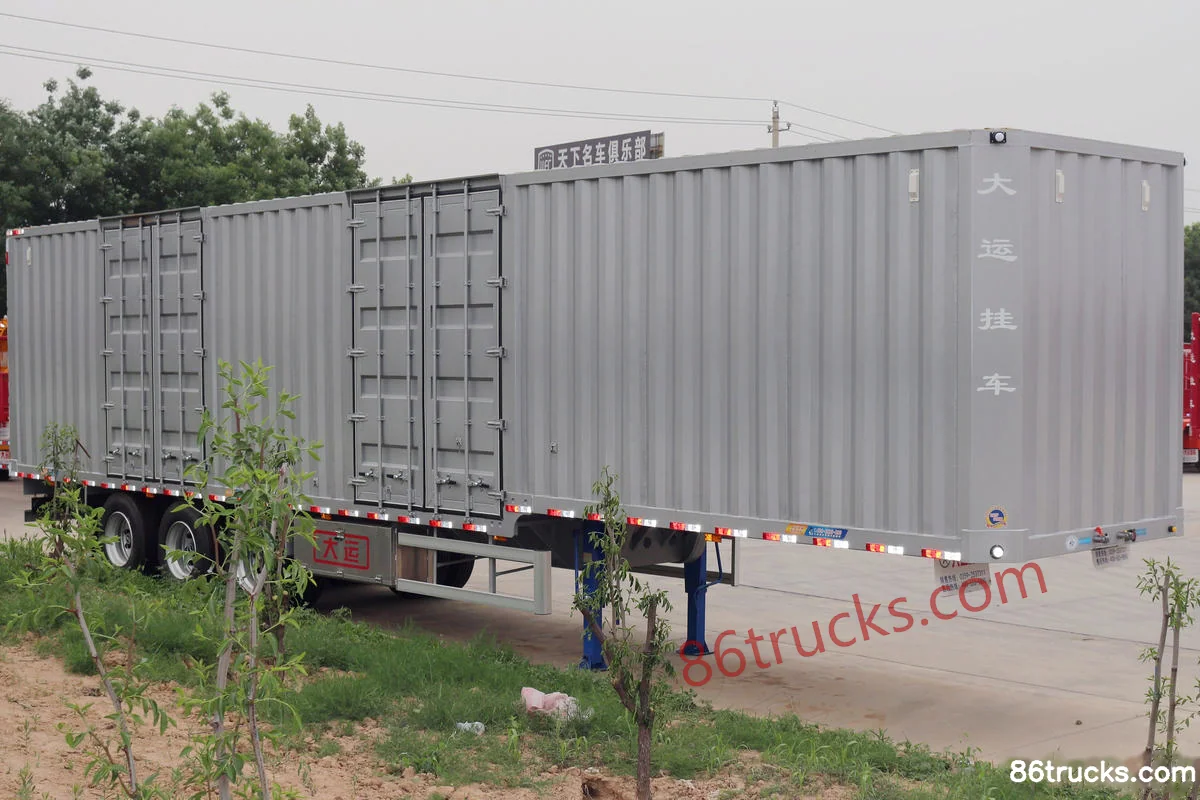

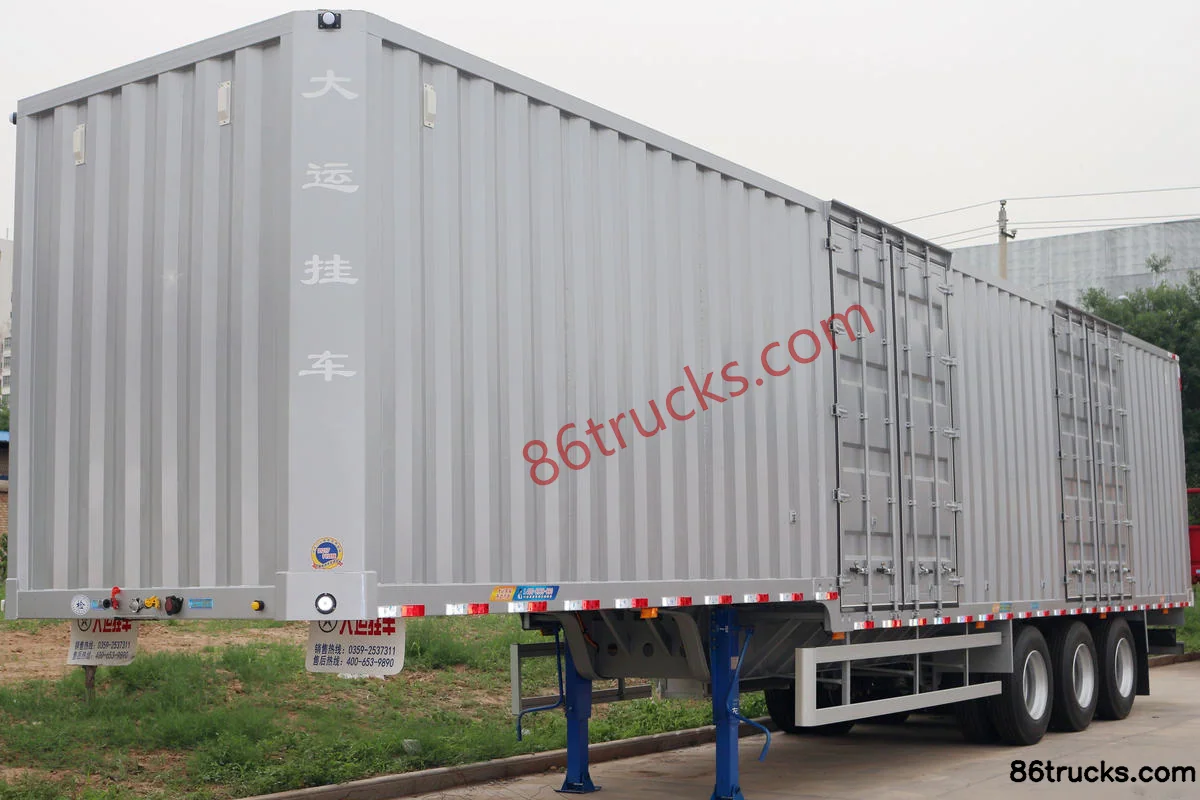

Photos

Exterior3

3 photos

FAQ

What is the export price of Dayun 13.75m Van Semi-Trailer, and what does it include?

Dayun 13.75m Van Semi-Trailer export reference is about From $14,792; MSRP is ¥10.65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dayun 13.75m Van Semi-Trailer suited for?

Dayun 13.75m Van Semi-Trailer is a van semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun 13.75m Van Semi-Trailer differ from other variants in the same series?

Dayun 13.75m Van Semi-Trailer belongs to Dayun 13.75m Semi-trailer (van semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun 13.75m Van Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun 13.75m Van Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
