CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels)

Export reference
From $19,778
MSRP ¥14.24M CNY
Rated payload:: 1.49ton
Wheelbase:: 3700mm
Cargo box type:: stake body
Model code (announced):: GHT1031DBEV2
Type:: Cargo Trucks
Box length class:: 3.8m
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: Jian'an, Sichuan
Curb Weight: 1.8ton

Overview

The CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels) is a mini truck featuring 280km battery/range, Jian'an, Sichuan motor, 4X2 (6 wheels) drive and 1.49t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): GHT1031DBEV2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3700mm
Box length class: 3.8m
Cab length: 5.98m
Cab width: 1.94m
Cab height: 2.065m
CLTC range: 280km
Curb Weight: 1.8ton
Rated payload: 1.49ton
GVWR: 3.42ton
Max. speed: 80km/h
Origin: Zunyi, Guizhou
tonnage class: mini truck
Version: Chuangfuxing
Energy Type: Electric
electric motor
Motor 1 Brand: Jian'an, Sichuan
Motor 1 Model: TZ180XS022C
Motor Type: Permanent magnet synchronous motor
total rated power: 45kW
Peak power: 110kW
total peak torque: 220N·m
total rated torque: 103N·m
Battery/Charging
Battery Brand: FinDreams
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 313.6V
fast charge time:
Battery capacity: 50.5kWh
Energy Density: 140.33
Battery total voltage: 367.5V
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.825m
Cargo box width: 1.85m
Cargo box height: 0.37m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1065kg
rear axle allowable load: 2355kg
Tire
Tire Size: 185R15LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual

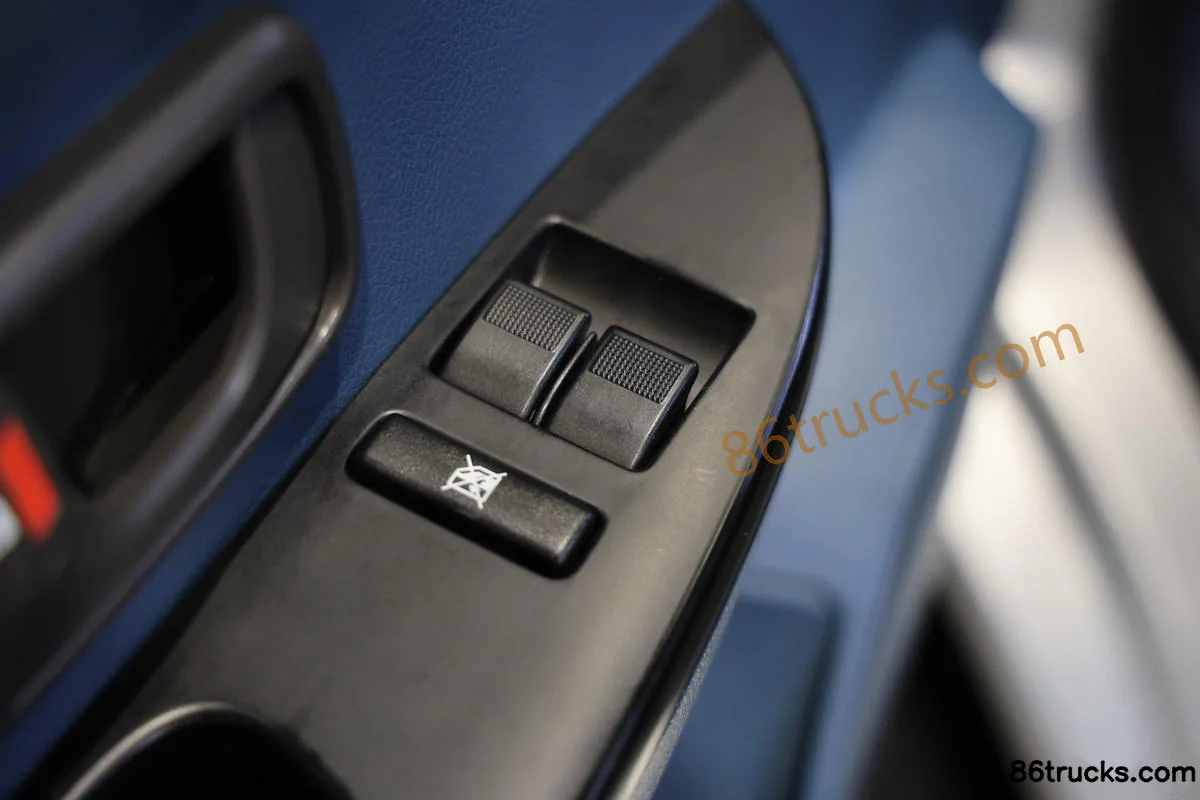

Power Windows:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

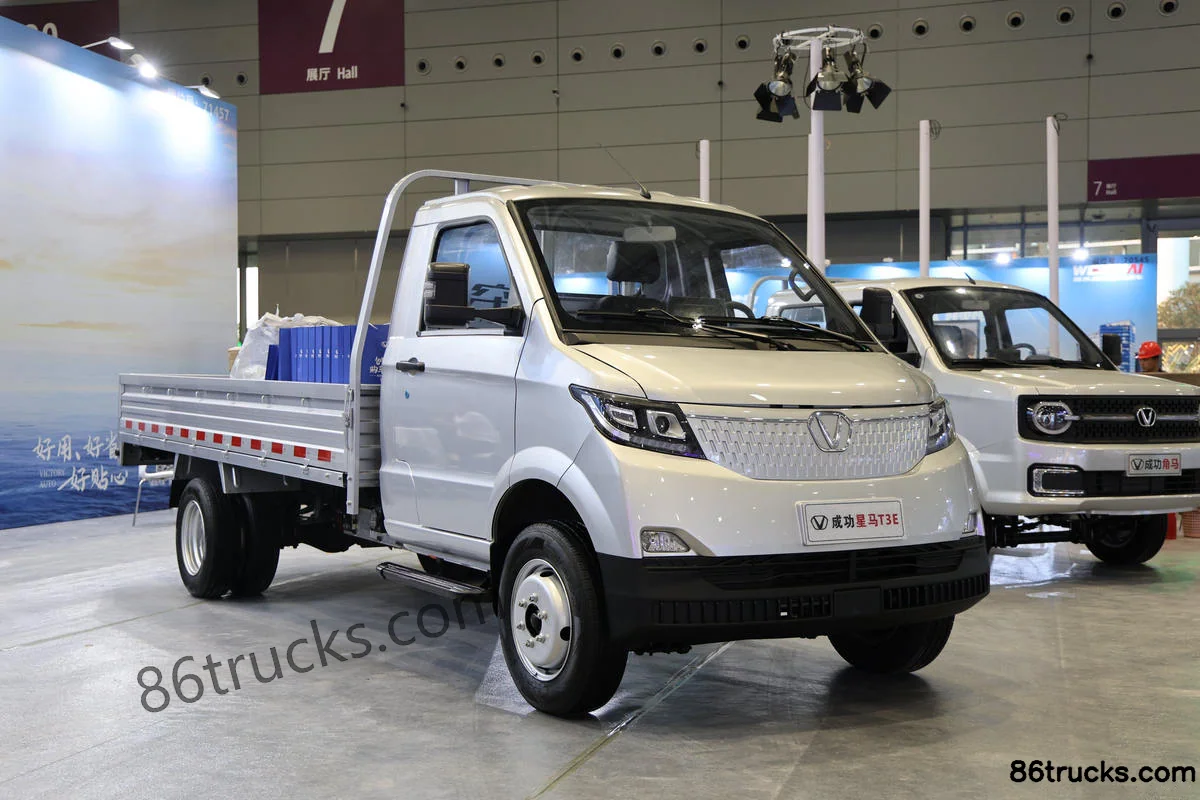

Exterior3

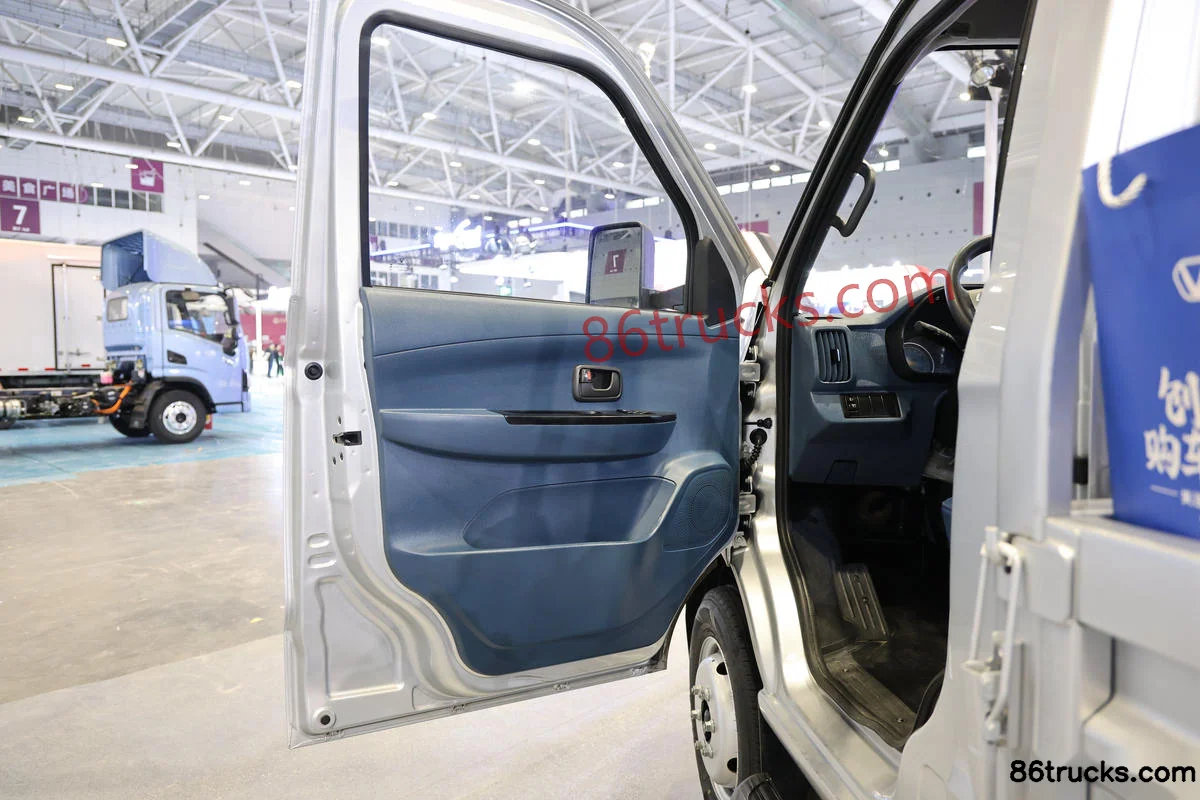

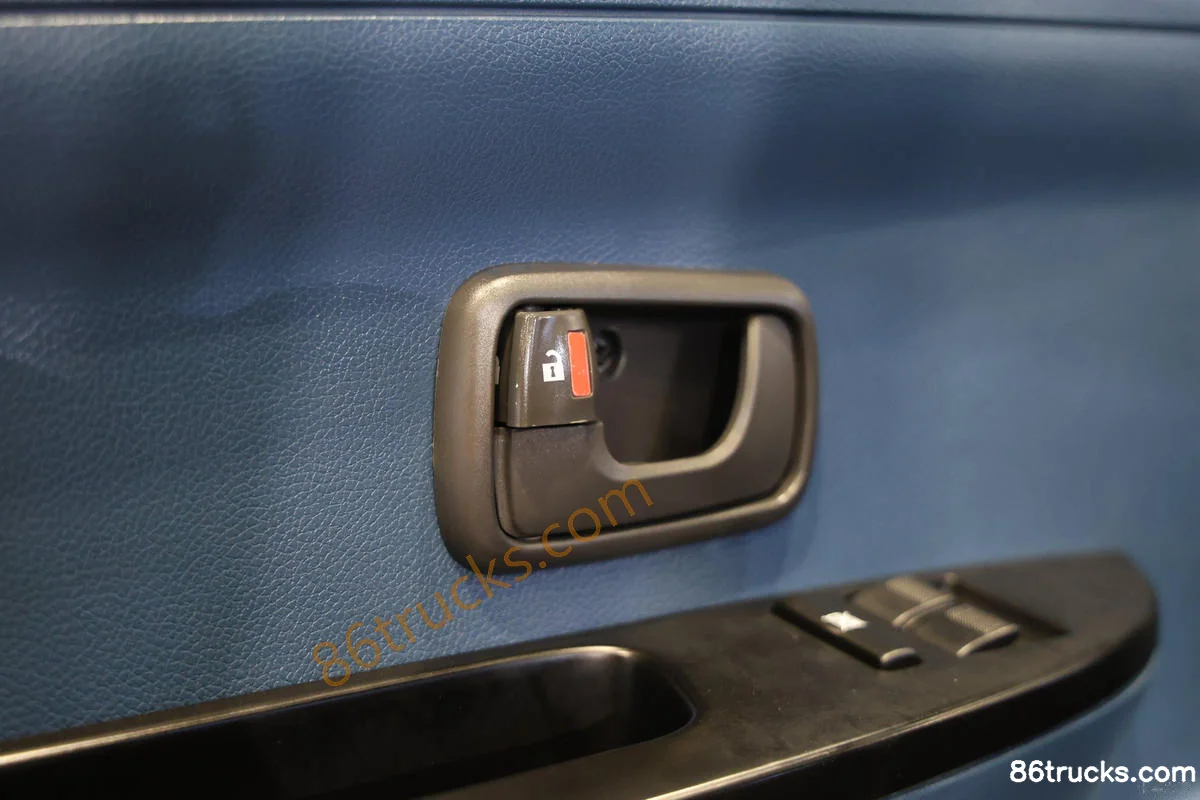

Cab3

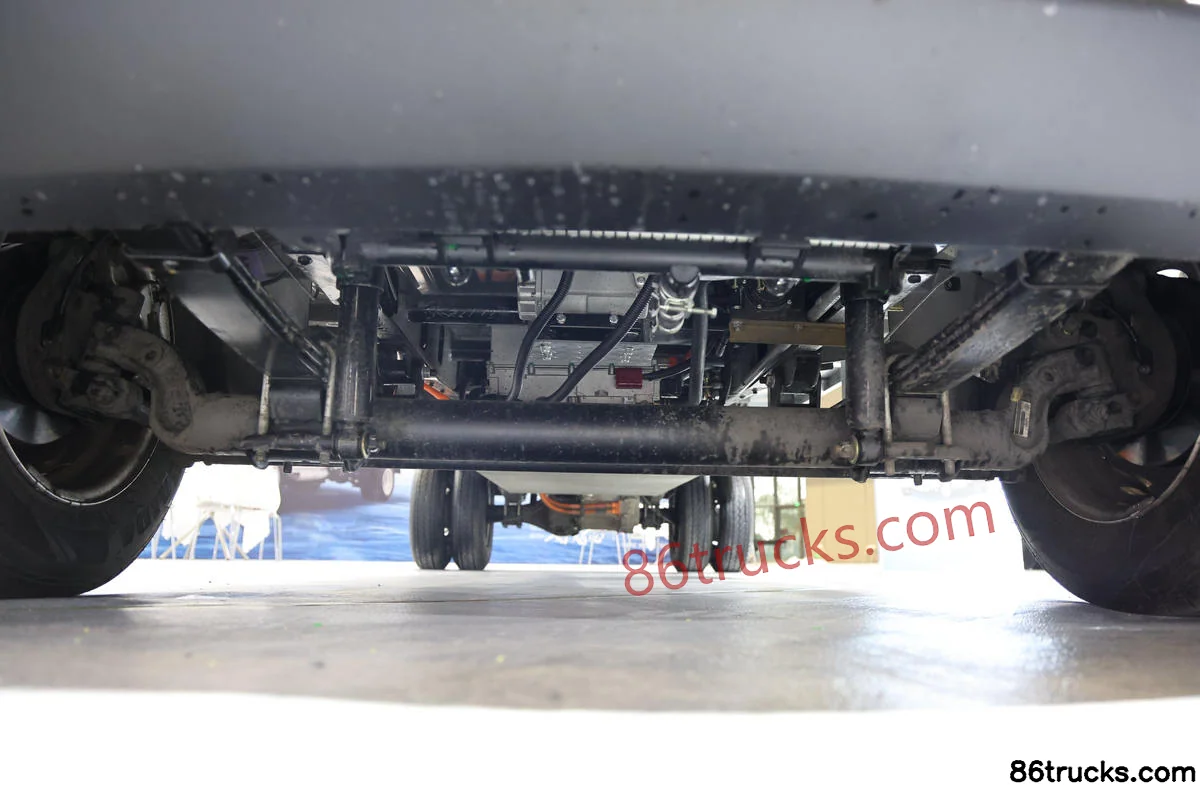

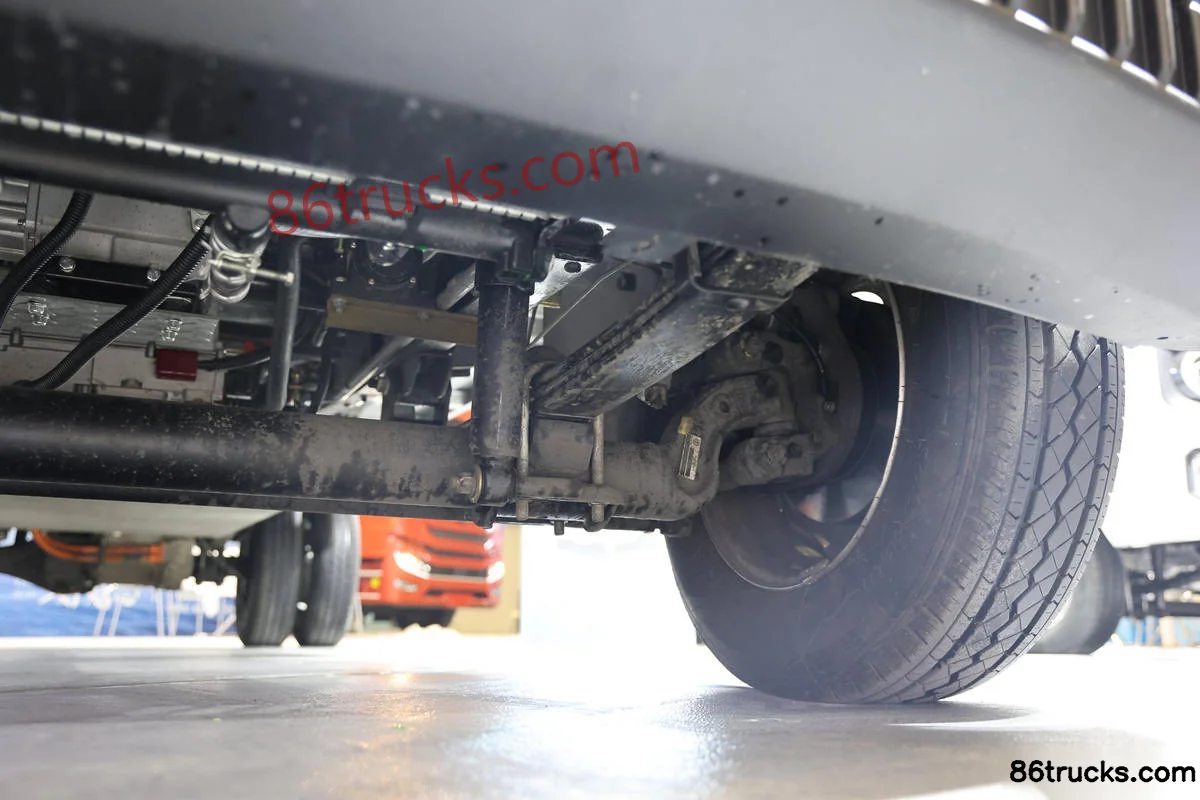

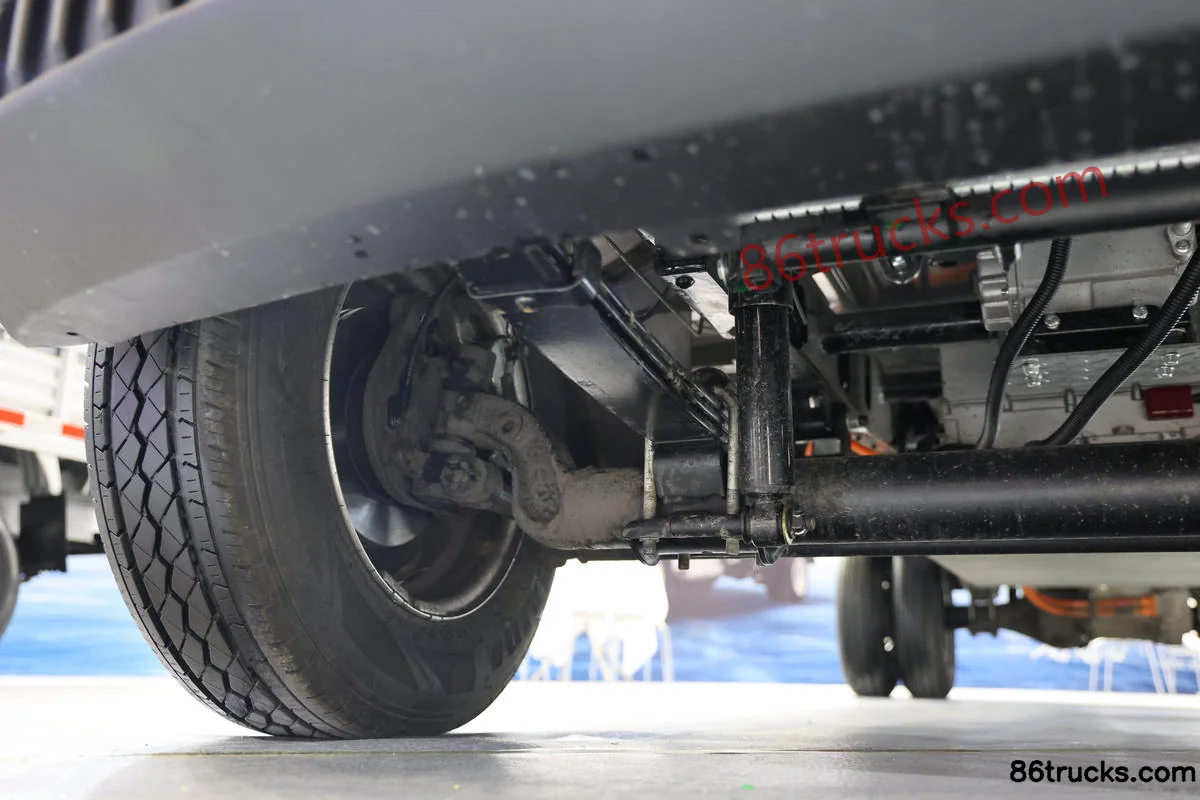

Chassis3

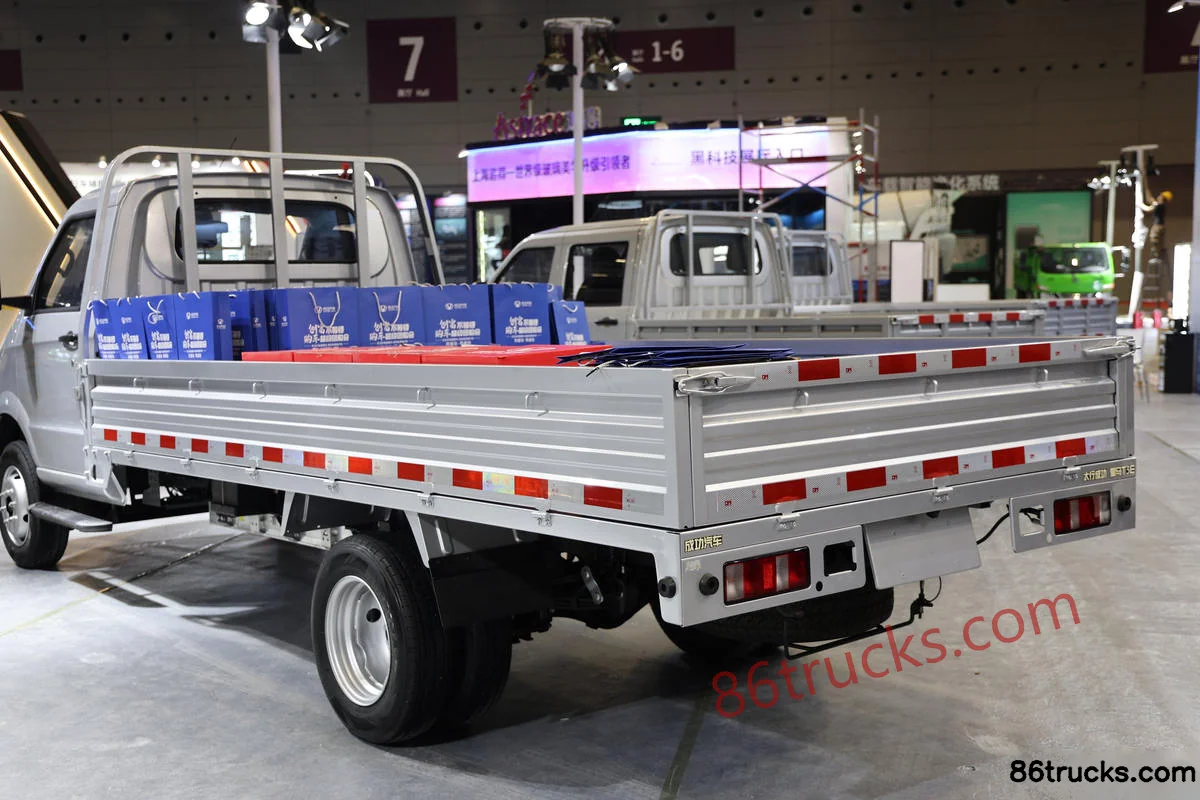

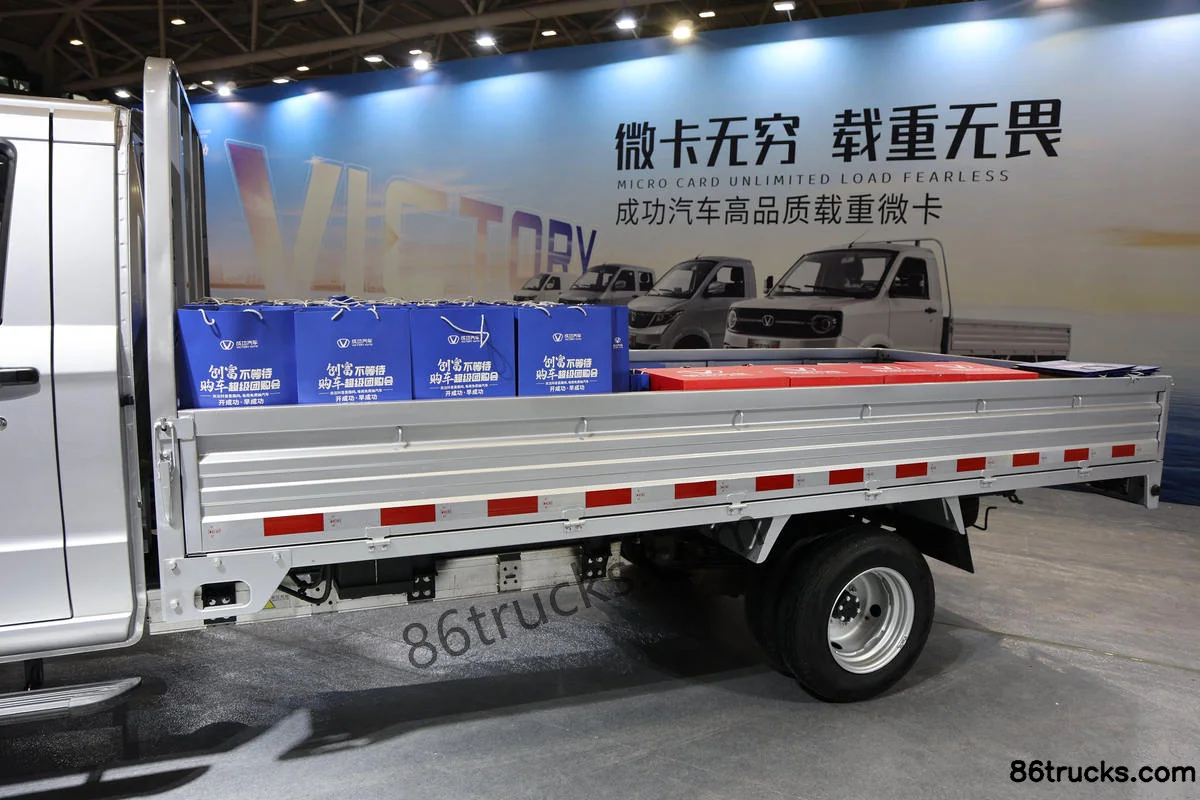

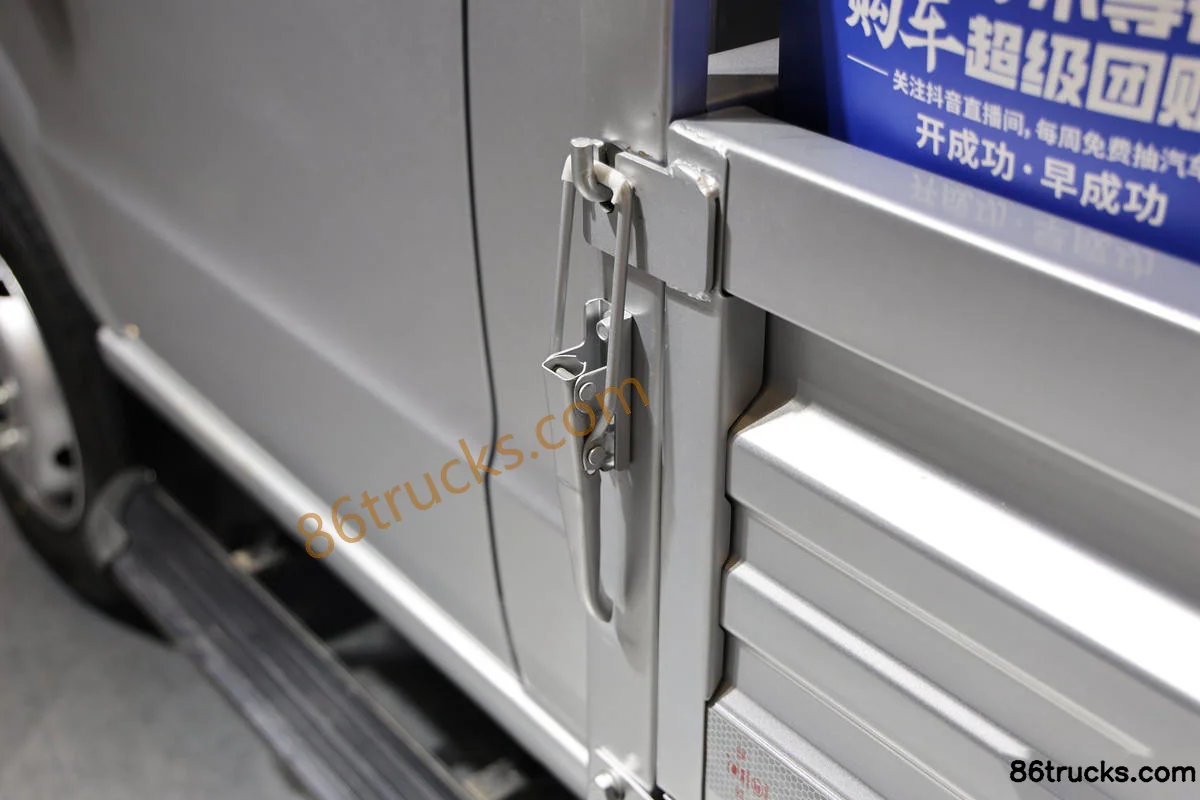

Body3

12 photos

FAQ

What is the export price of CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels), and what does it include?

CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels) export reference is about From $19,778; MSRP is ¥14.24M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels)?

Key specs of CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels) suited for?

CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels) differ from other variants in the same series?

CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels) belongs to CHENGGONG AUTO Xingma T3E Mini Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CHENGGONG AUTO Xingma T3E Chuangfuxing Hydraulic Brake 3.825m Single Row Pure Electric Panel Van Micro Truck BYD 50.5kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
