Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.195ton
Wheelbase:: 3308mm
Cargo box volume:: 18.52m³
Model code (announced):: DFA5040XXYEBEV4
Type:: enclosed cargo truck
Box length class:: 4.2m
Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Dongfeng
Curb Weight: 3.17ton

Overview

The Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) is a Light Truck featuring 300km battery/range, Dongfeng motor, 4X2 (6 wheels) drive and 1.195t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFA5040XXYEBEV4
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.15m
Cab height: 3.13m
CLTC range: 300km
Curb Weight: 3.17ton
Rated payload: 1.195ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Dongfeng
Motor 1 Model: TZ228XS035DN01
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 115kW
total rated torque: 135N·m
total peak torque: 350N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.46kWh
Energy Density: 153.18
Cargo box parameters
Cargo box volume: 18.52m³
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 1850mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1630kg
rear axle description: 3.5T
rear axle allowable load: 2865kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:

Photos

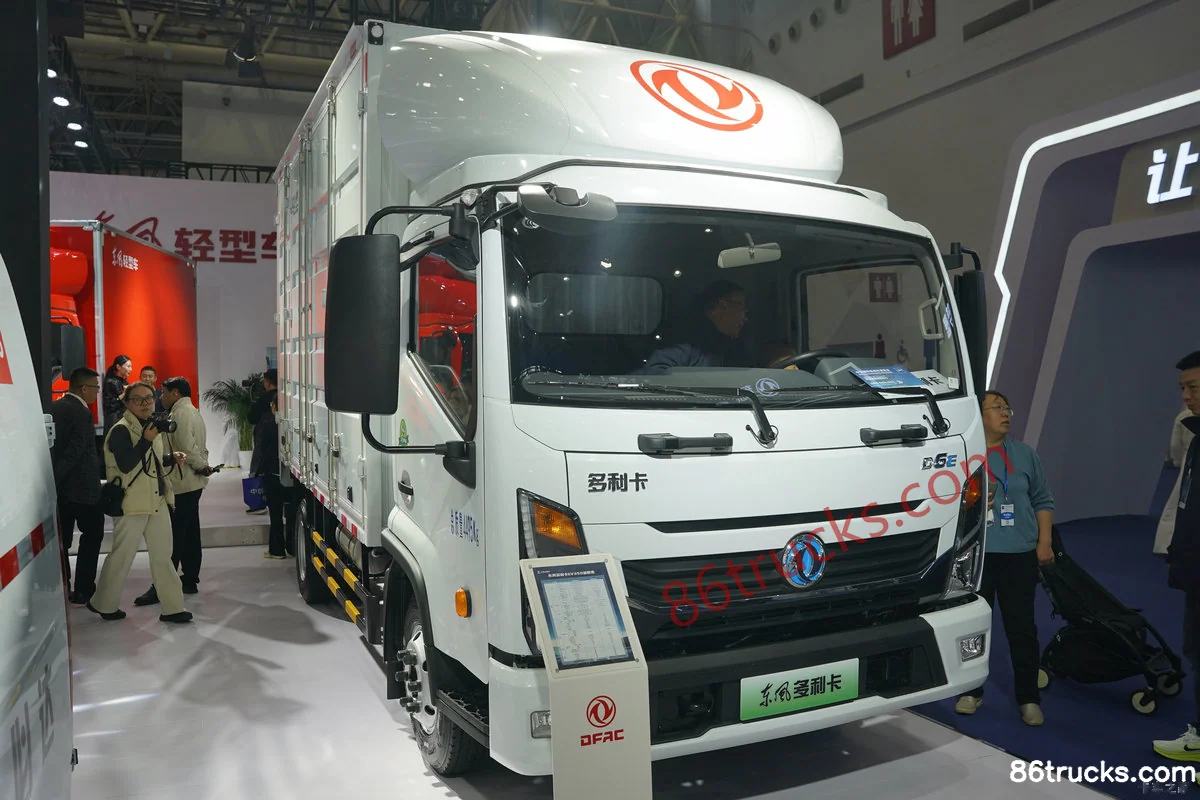

Exterior3

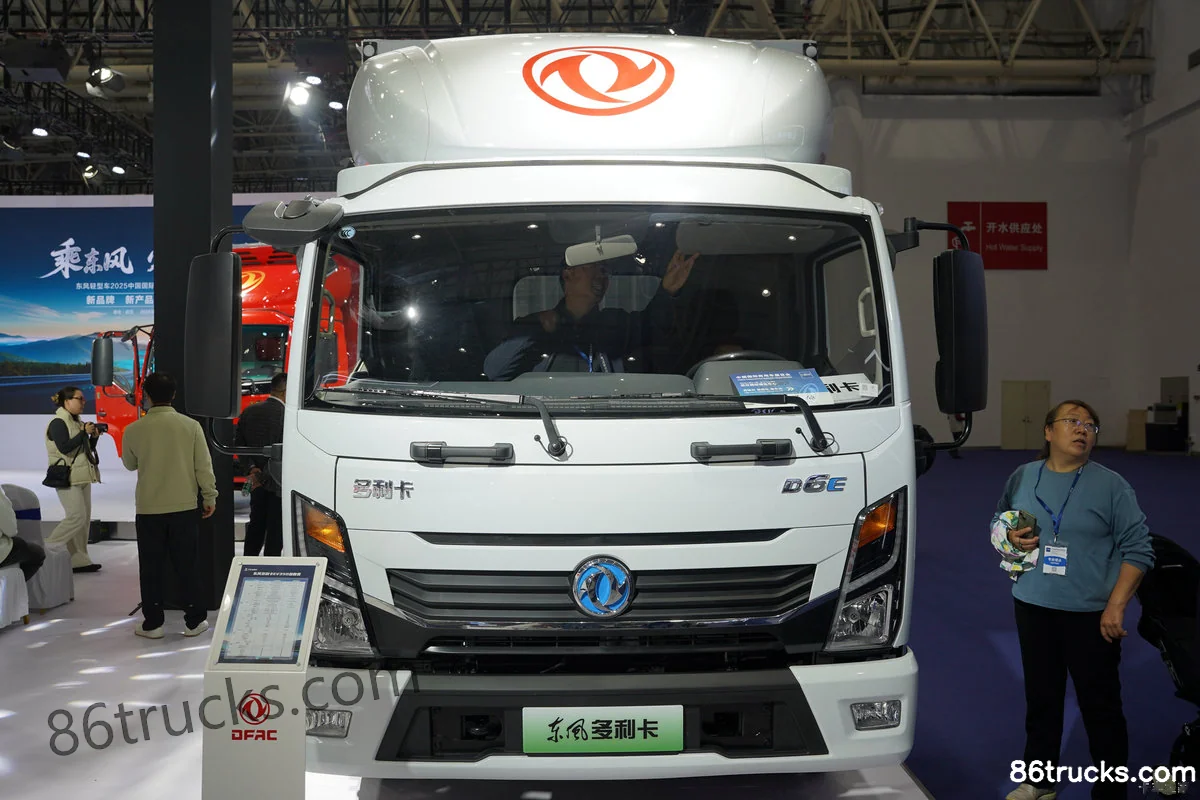

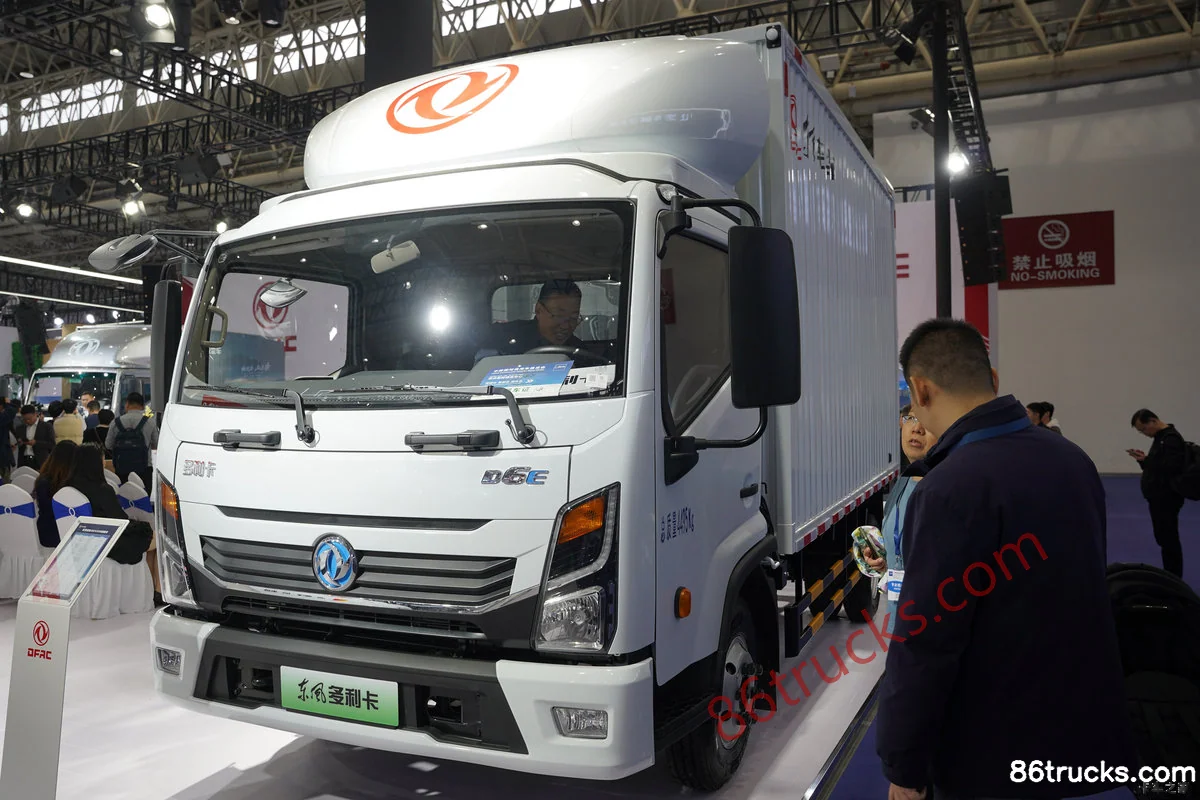

Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Exterior (1) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Exterior (2) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Exterior (3) | 86Trucks

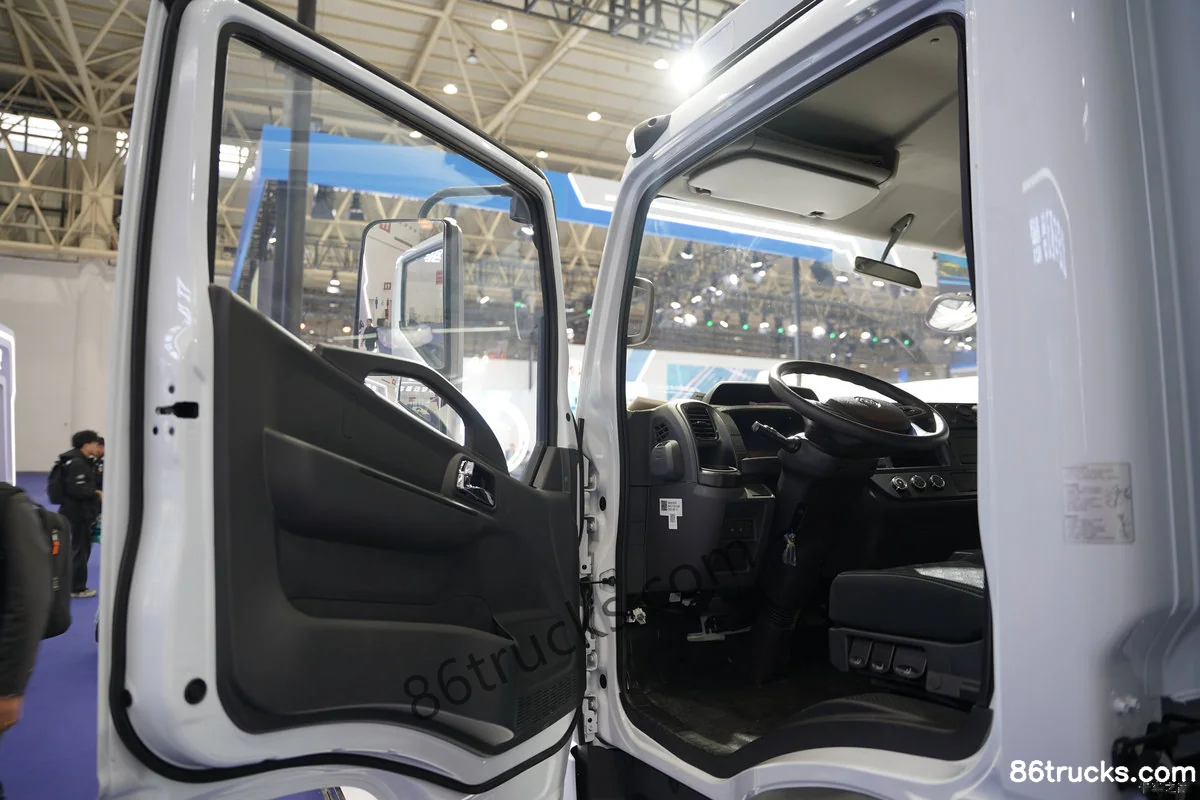

Cab3

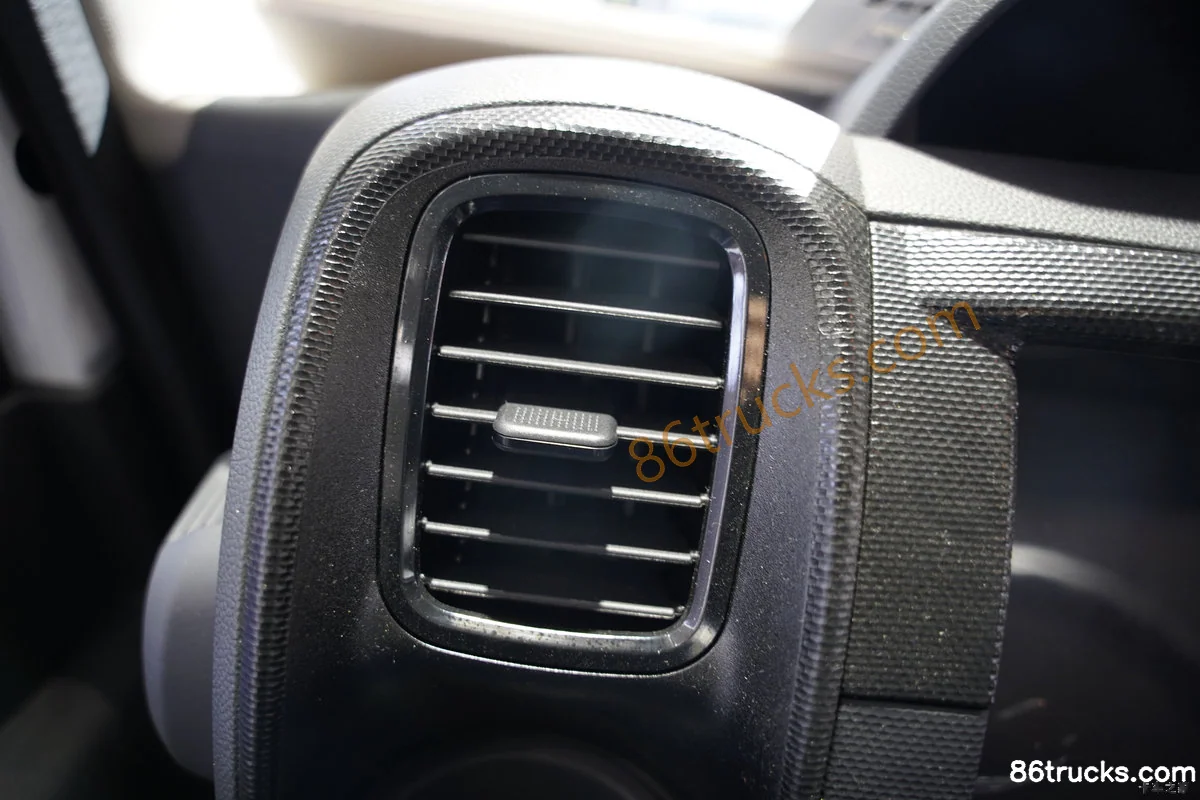

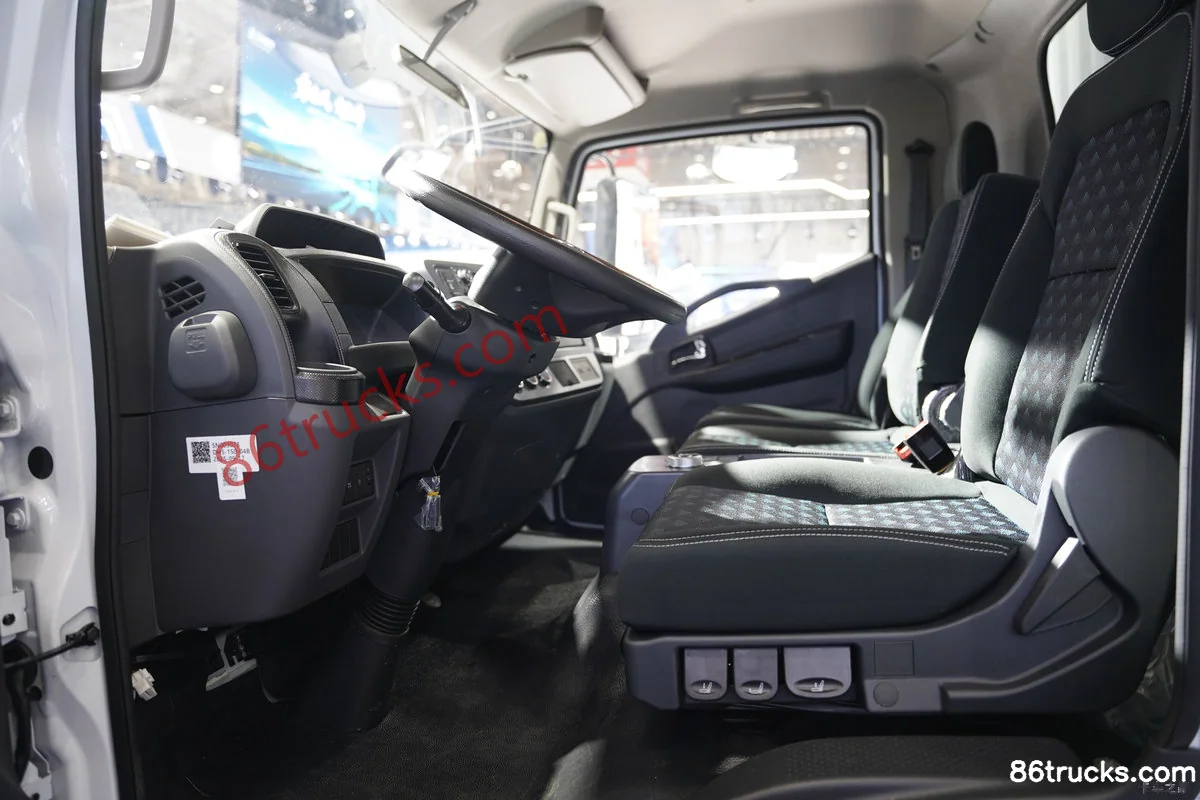

Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Cab (1) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Cab (2) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Cab (3) | 86Trucks

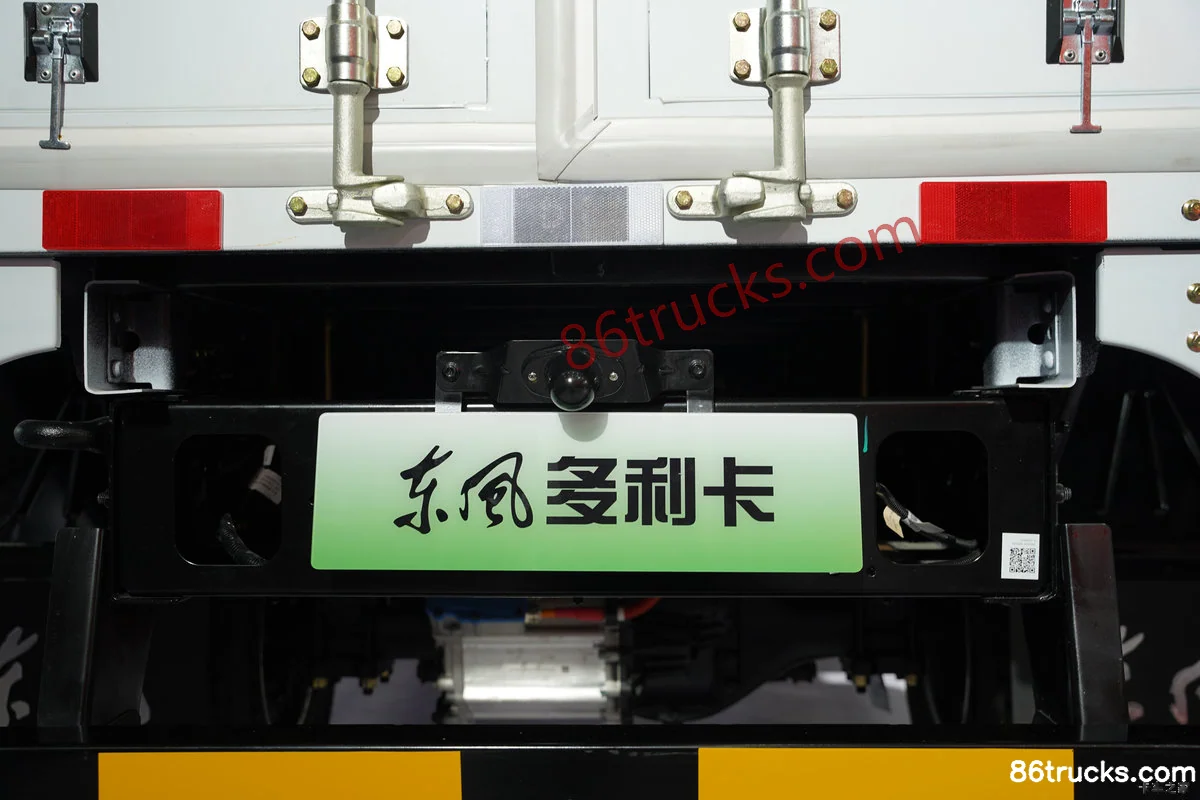

Chassis3

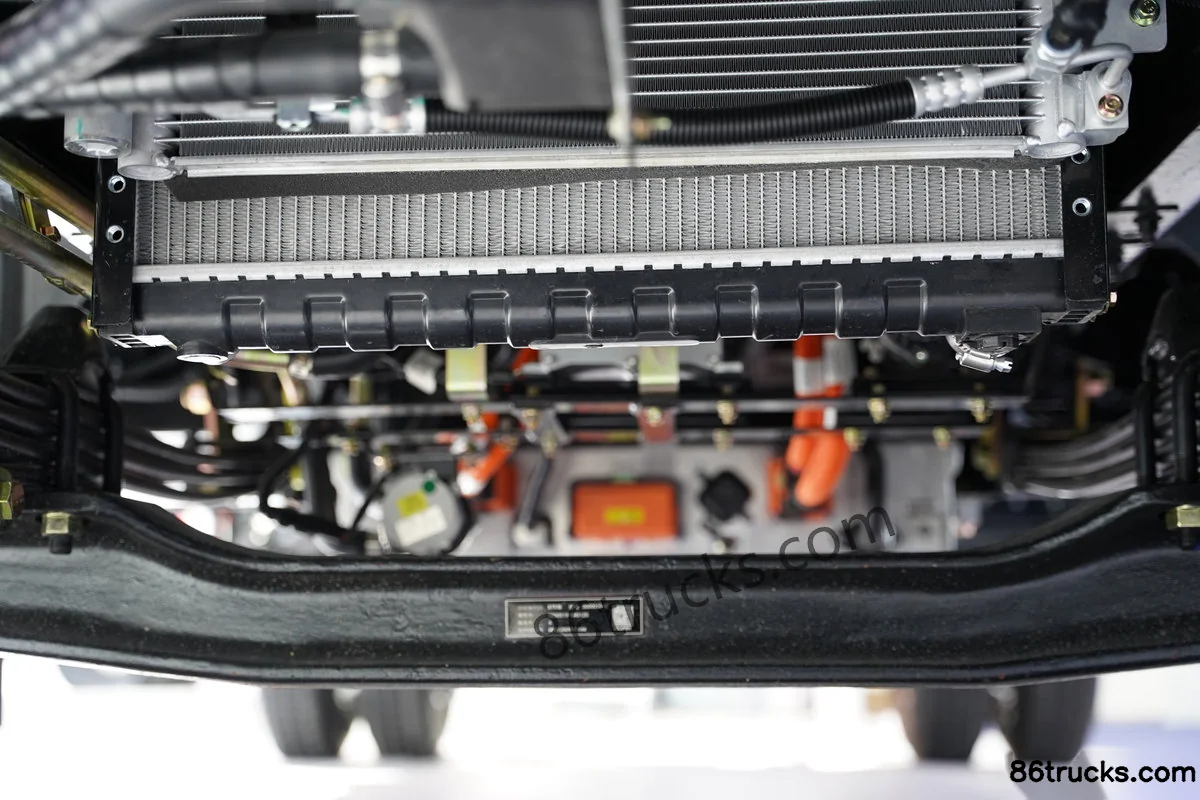

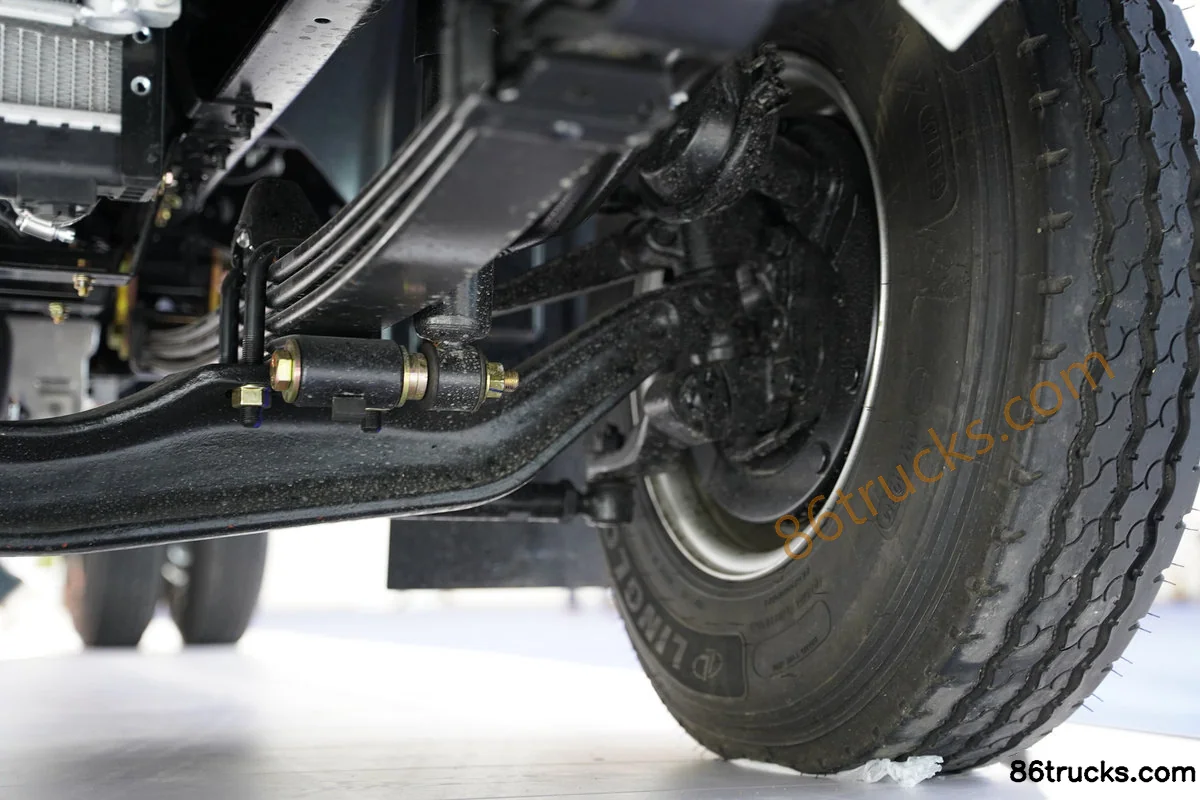

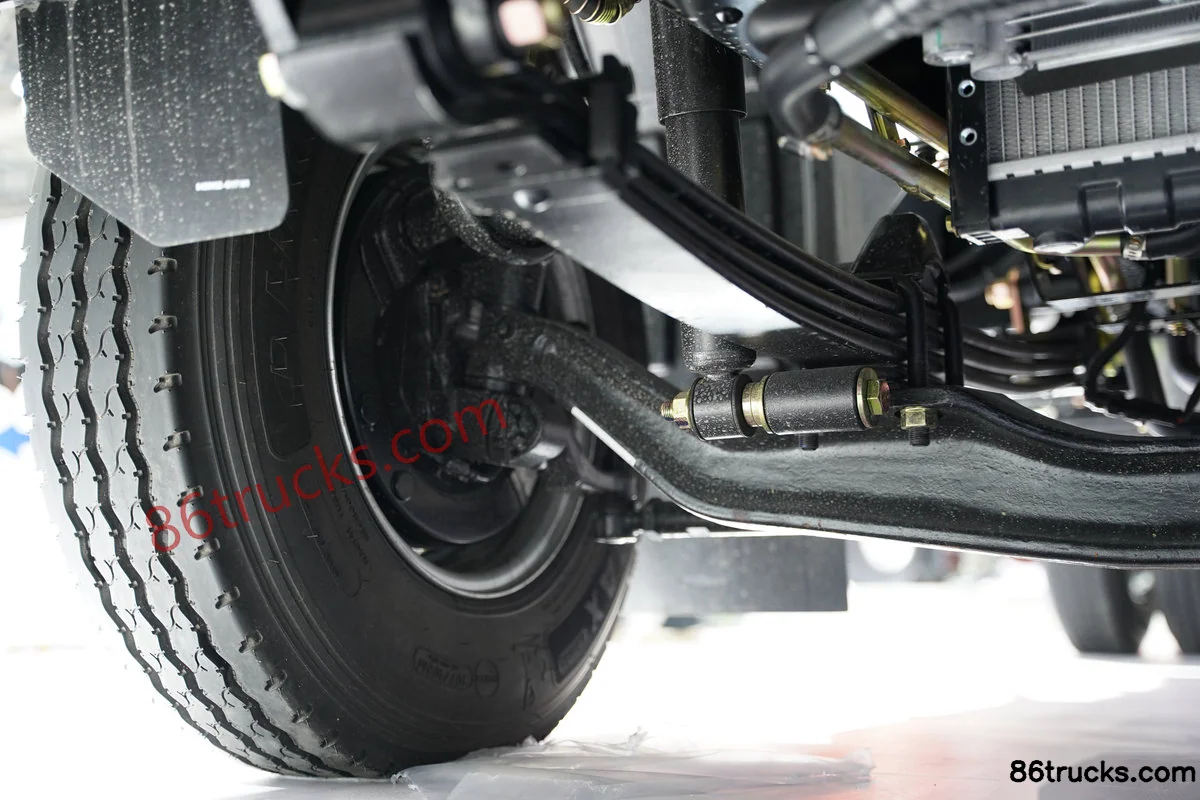

Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Chassis (1) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Chassis (2) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Chassis (3) | 86Trucks

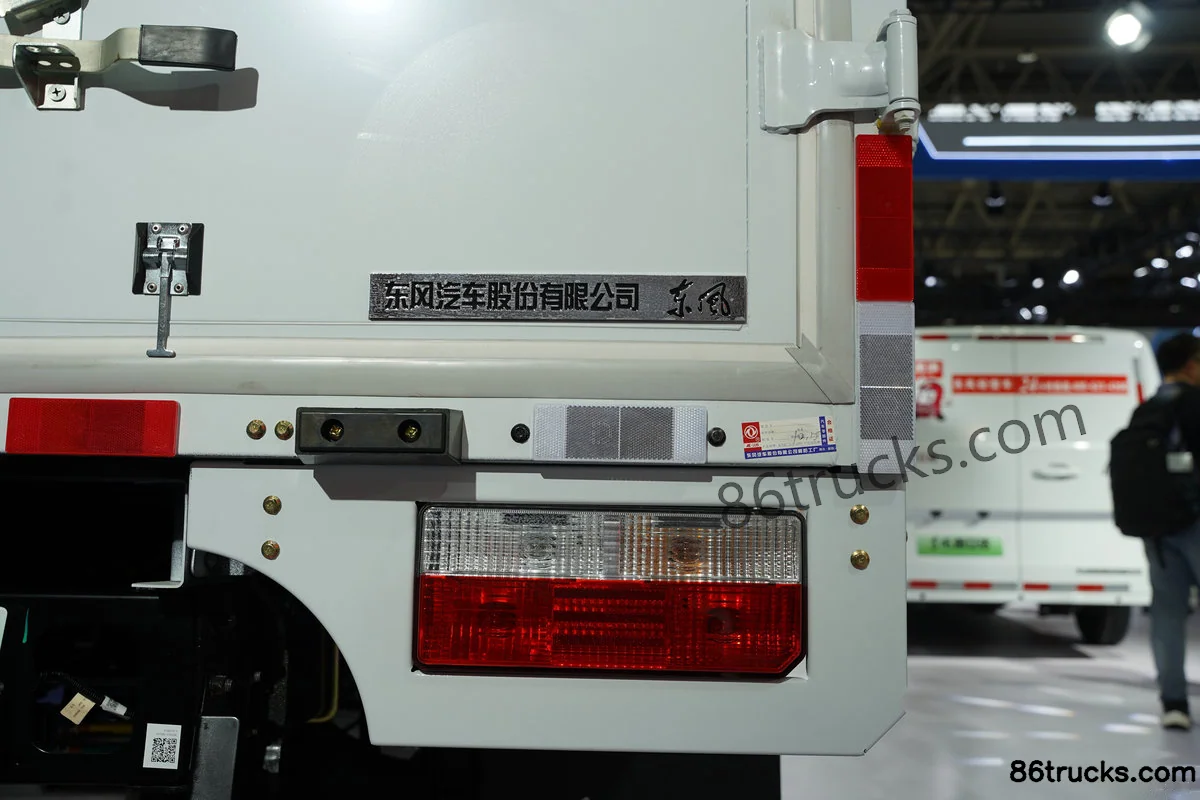

Body3

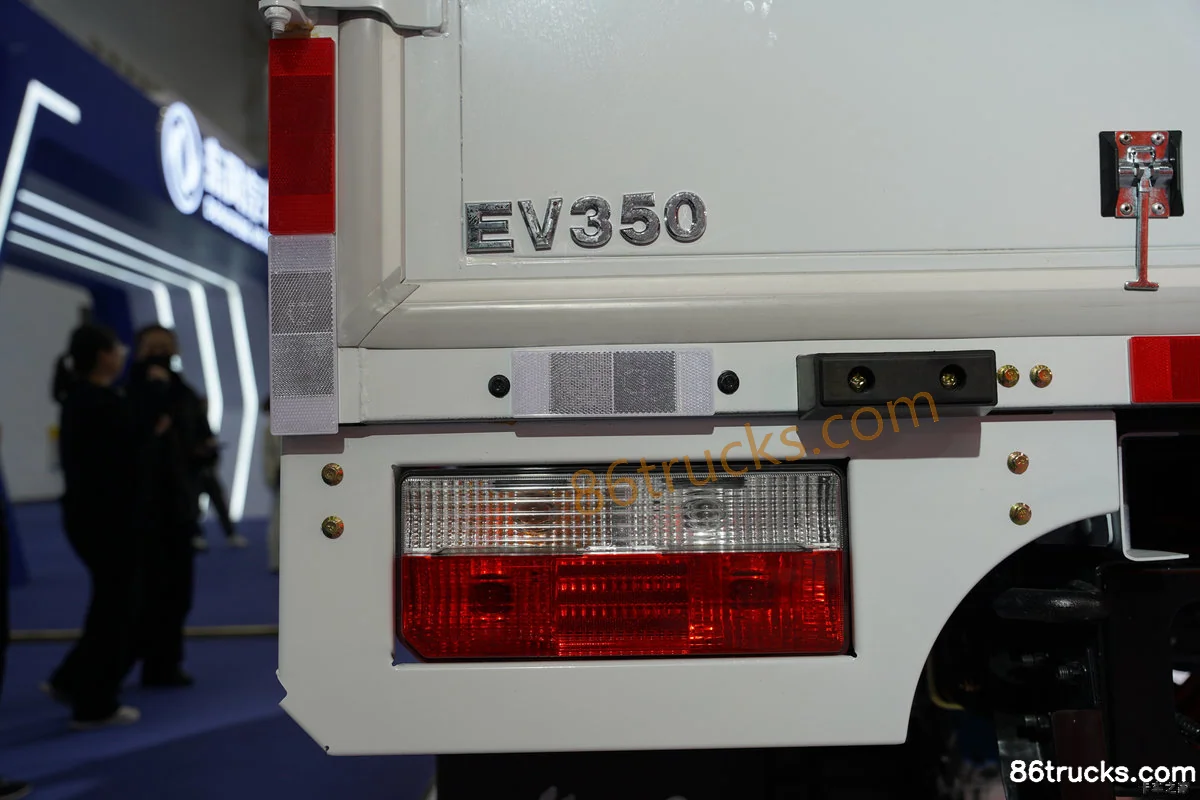

Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Body (1) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Body (2) | 86Trucks Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels)?

Key specs of Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) suited for?

Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) differ from other variants in the same series?

Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels) belongs to Dongfeng EV350 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng EV350 4.2m Single Row Pure Electric Box Van, CATL 100.46kWh, 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
