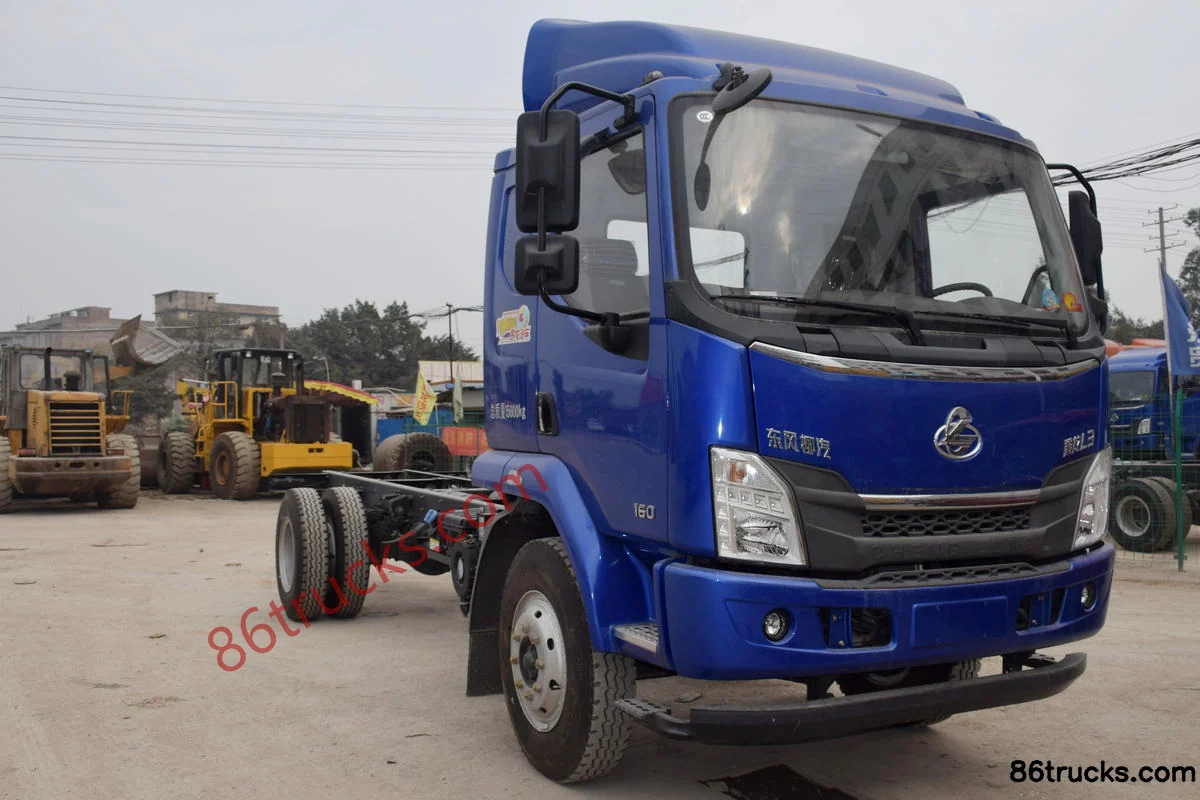

Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck

Export reference
From $17,917
MSRP ¥12.9M CNY
Horsepower: 170
Emission: China V
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.505ton
seating capacity: 3Personnel
Rated payload: 7.9ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck is a Medium-duty truck featuring 7.7m cargo length, Wing Van cargo body, 3Personnel volume and 7.9t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 170 hp, 4X2 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5161XYKM3AB
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.7m
engine: YuchaiYC4S170-50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 9.55m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 1940mm
rear track: 1800mm
Curb Weight: 7.505ton
Rated payload: 7.9ton
GVWR: 15.6ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 26°
departure angle: 11°
market segment: Urban Distribution
Remarks: Semi-floating cab suspension, hydraulic mechanical tilt, laminated glass, all-new interior, LCD digital instrument cluster, MP3, automatic slack adjuster
Front/rear suspension: 1.34/2.56m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S170-50
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.767L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 7.7m
Cargo box width: 2.46m
Cargo box height: 2.65m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: L31
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 3T
Front axle allowable load: 5600kg
Frame Dimensions: 231(6)mm
Steering gear: Domestic
rear axle description: 7T
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 8/9+5
clutch: Φ395
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
Radio:
smart configuration
Cruise control (CCS):

Photos

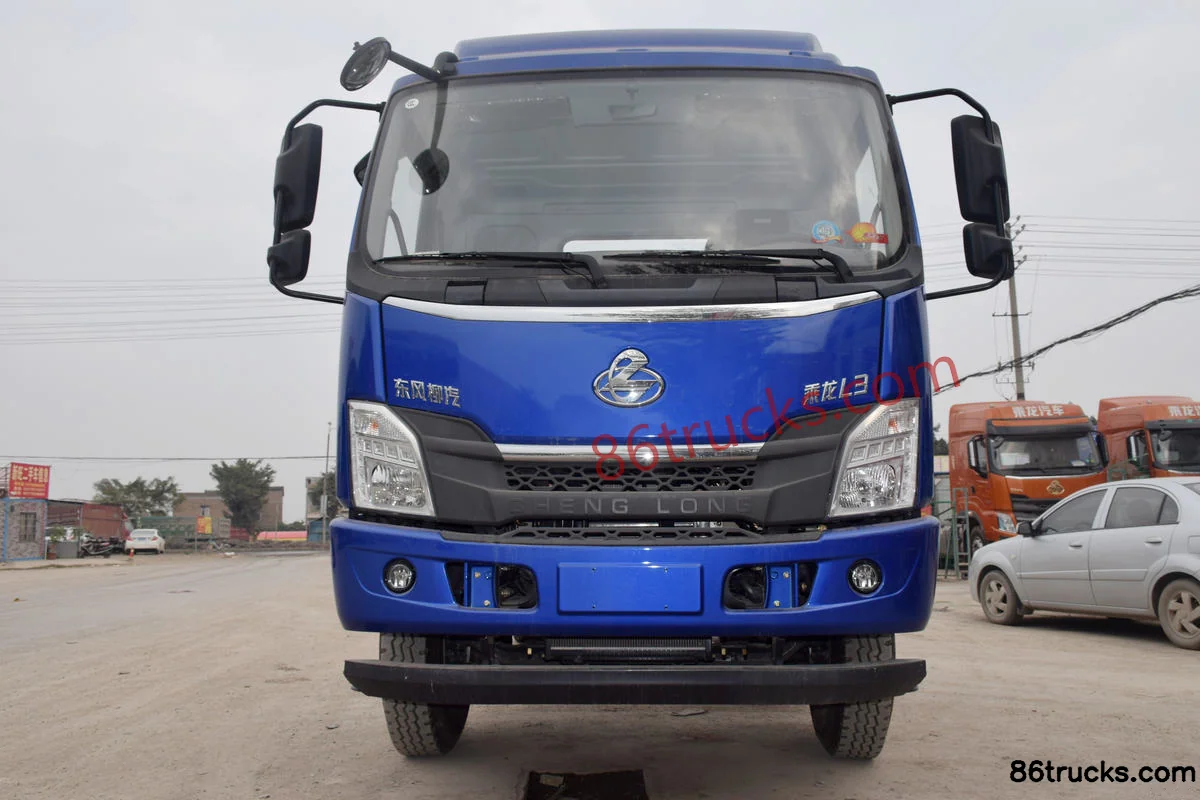

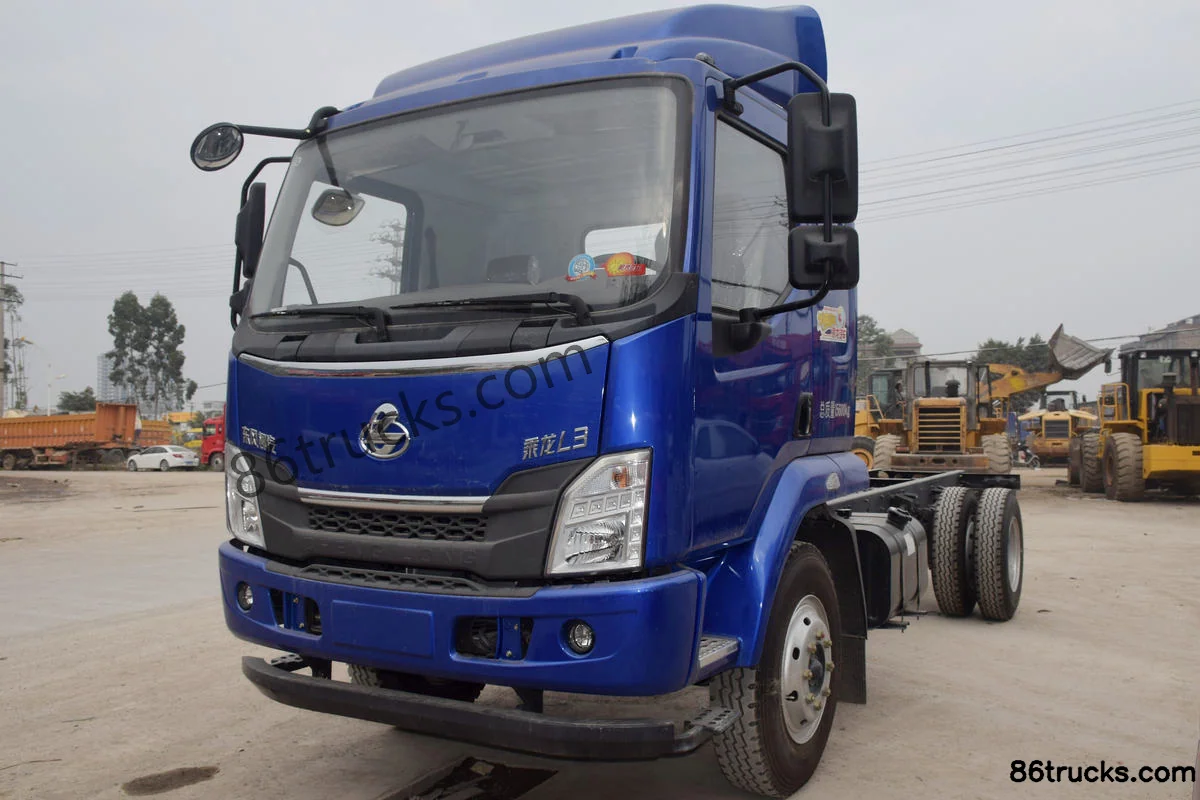

Exterior3

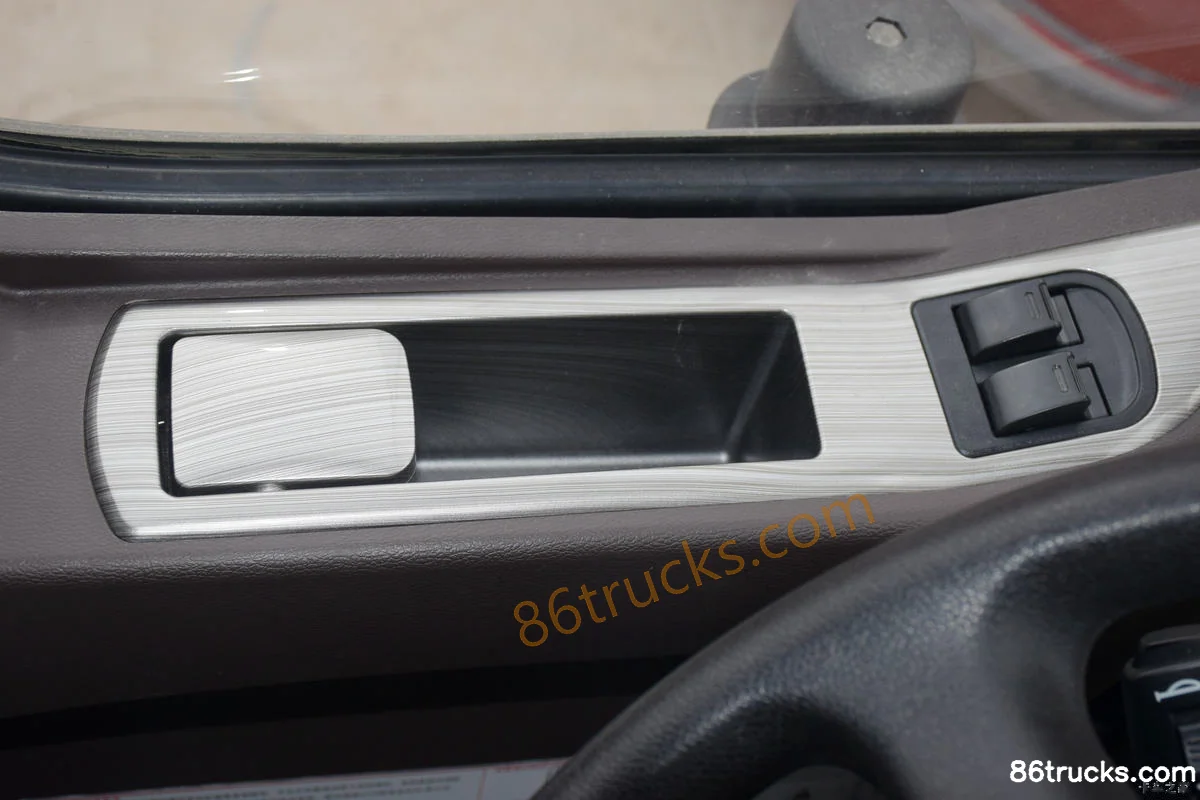

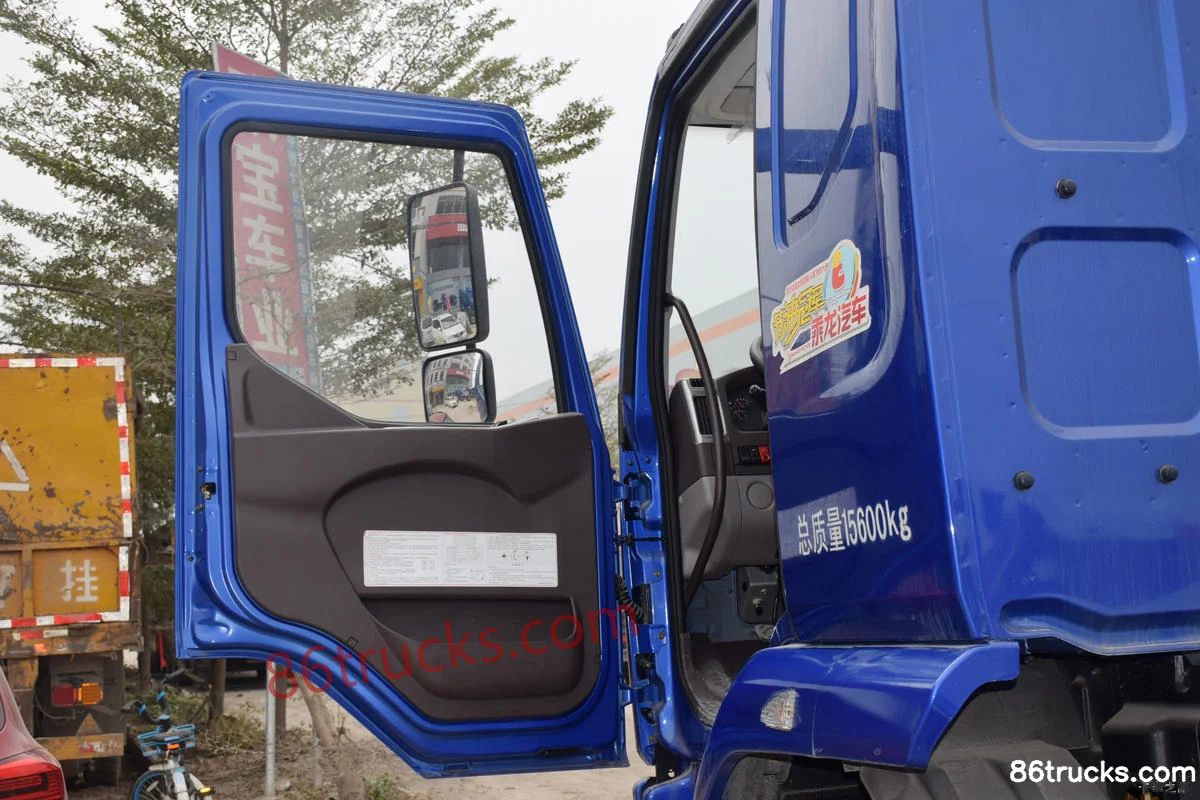

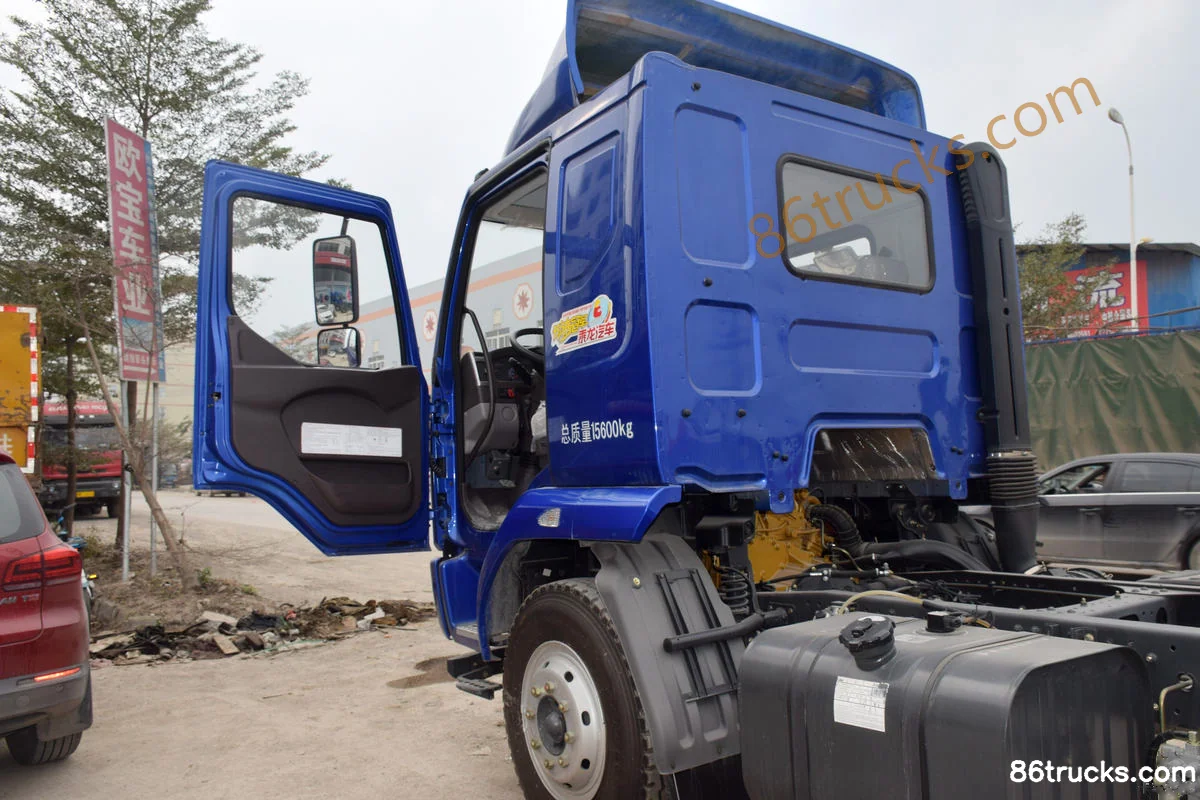

Cab3

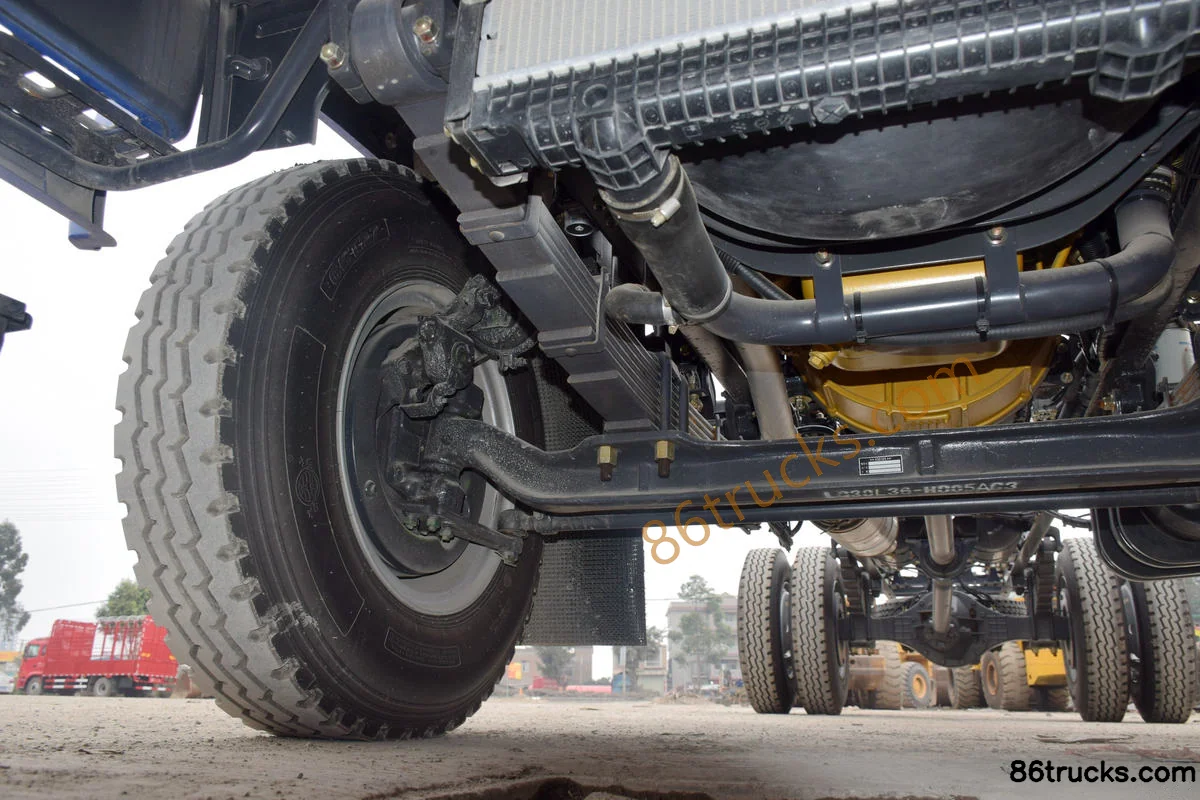

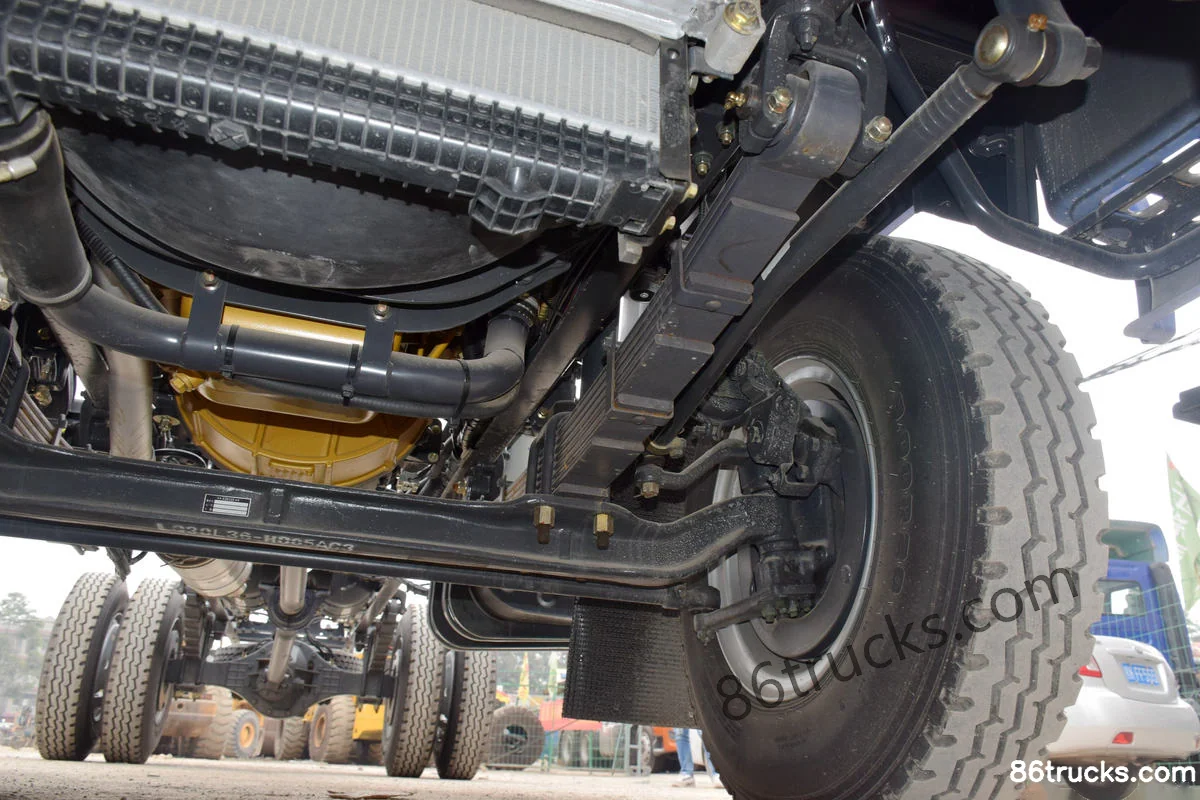

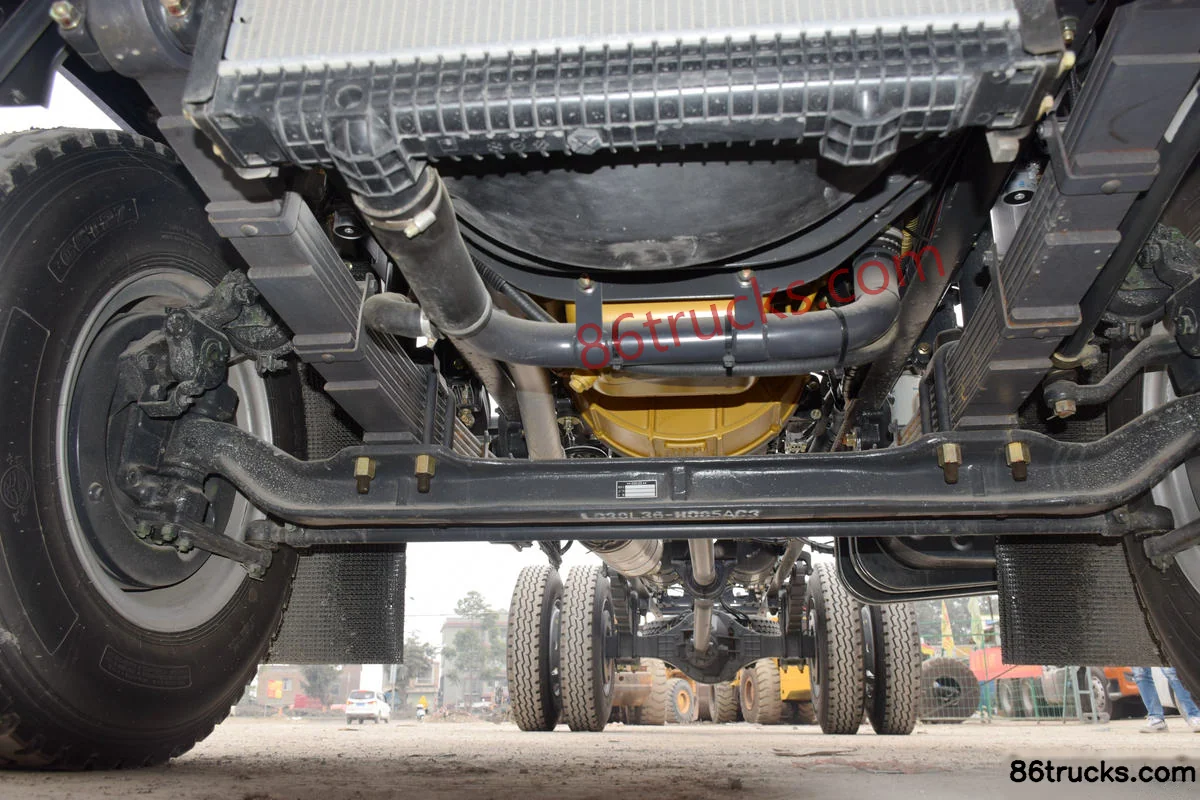

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck, and what does it include?

Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck export reference is about From $17,917; MSRP is ¥12.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck?

Key specs of Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck suited for?

Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck belongs to Dongfeng L3 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong L3 170 hp 4X2(6 wheels) 7.7m Crew Cab Wing Opening Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
