Luoxiang 13.75m Low Flatbed Semi-Trailer

Export reference
MSRP N/A
Cab width:: 3m
suspension:: Leaf spring
Design load capacity:: 6.5ton
Cab height:: 1.5m
Wheel brand:: Maxion
Brake chamber:: Ruili 4 single 2 double
Axle Brand: Fuhua
Curb Weight: 33.5ton
Cab length: 13.75m
Spare Tire Carrier: 2pcs

Overview

The Luoxiang Trailer Luoxiang 13.75m Low Flatbed Semi-Trailer is a Low-bed Semi-trailer featuring Fuhua-axle setup, 33.5ton GVW, 13.75m length and 6.5ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 6.5ton
Cab length: 13.75m
Cab width: 3m
Cab height: 1.5m
Curb Weight: 33.5ton
Chassis Specs
Axle Brand: Fuhua
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Wheel brand: Maxion
Number of wheels: 12
suspension: Leaf spring
Wheel Material: Steel rim
Parts & accessories
Brake chamber: Ruili 4 single 2 double
Outrigger: 16T single-action
ratchet tie-down: 50pcs
Spare Tire Carrier: 2pcs
ABS: Kemi
Body Parameters
Frame material: B750L
Web Plate: 5mm
frame rail height: 470mm
Floor Board: Anti-slip 2.0mm
upper wing panel: 10mm
Lower Wing Plate: 10mm
Side beam: high-strength bent 3.0
Other notes
Lead time for customization: 15 days
Tire
Tire brand: Goodyear
Tire Size: 8.25-20 16PR
Number of tires: 12pcs

Photos

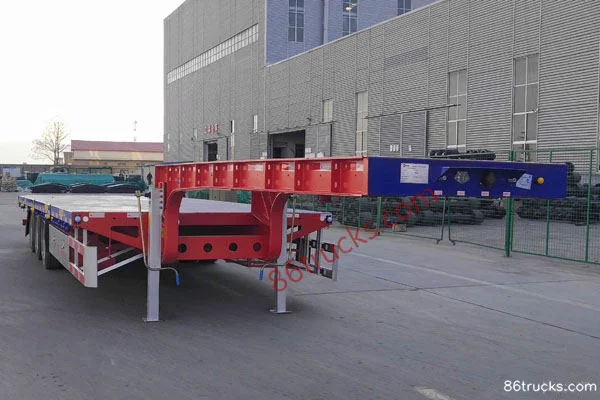

Exterior1

1 photos

FAQ

What transport jobs is Luoxiang 13.75m Low Flatbed Semi-Trailer suited for?

Luoxiang 13.75m Low Flatbed Semi-Trailer is a Low-bed Semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Luoxiang 13.75m Low Flatbed Semi-Trailer differ from other variants in the same series?

Luoxiang 13.75m Low Flatbed Semi-Trailer belongs to Luoxiang Trailer 13.75m Series (Low-bed Semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Luoxiang 13.75m Low Flatbed Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Luoxiang 13.75m Low Flatbed Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
