Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake)

Export reference
MSRP N/A
Horsepower: 120
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.21ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 8PR
Fuel tank capacity: 100L
Rated payload: 1.09ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.015×2.1×2.1m

Overview

The Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake) is a Refrigerated Truck featuring 4.015×2.1×2.1m cargo body, 100L volume, 1.09t payload and 5.995×2.27×2.97m cab. On the powertrain side, it comes with 120 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.27×2.97m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Jiulongpo, Chongqing
Wheelbase: 3360mm
Front track width: 1640mm
rear track: 1655mm
Curb Weight: 3.21ton
Rated payload: 1.09ton
GVWR: 4.495ton
Max. speed: 105km/h
Front/rear suspension: 1.12/1.525m
Energy Type: Diesel
Engine parameters
Engine Model: Qingling Isuzu4KH1CN6LB
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.999L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 290N·m
Cargo box parameters
Cargo box dimensions: 4.015×2.1×2.1m
Cargo box width: 2.1m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: QL5043XLCBUHAJ
Body Brand: Qingling
Chassis Specs
Chassis Brand: Qingling Isuzu
Chassis Series: IsuzuKV100
Chassis Model: QL1043BUHAY
Leaf spring count: 6/6+6,8/6+5,3/3+2
Transmission Parameters
Number of gears: 5Gear
Transmission Model: IsuzuMSB-5MT
fuel tank
Fuel tank capacity: 100L
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake

Photos

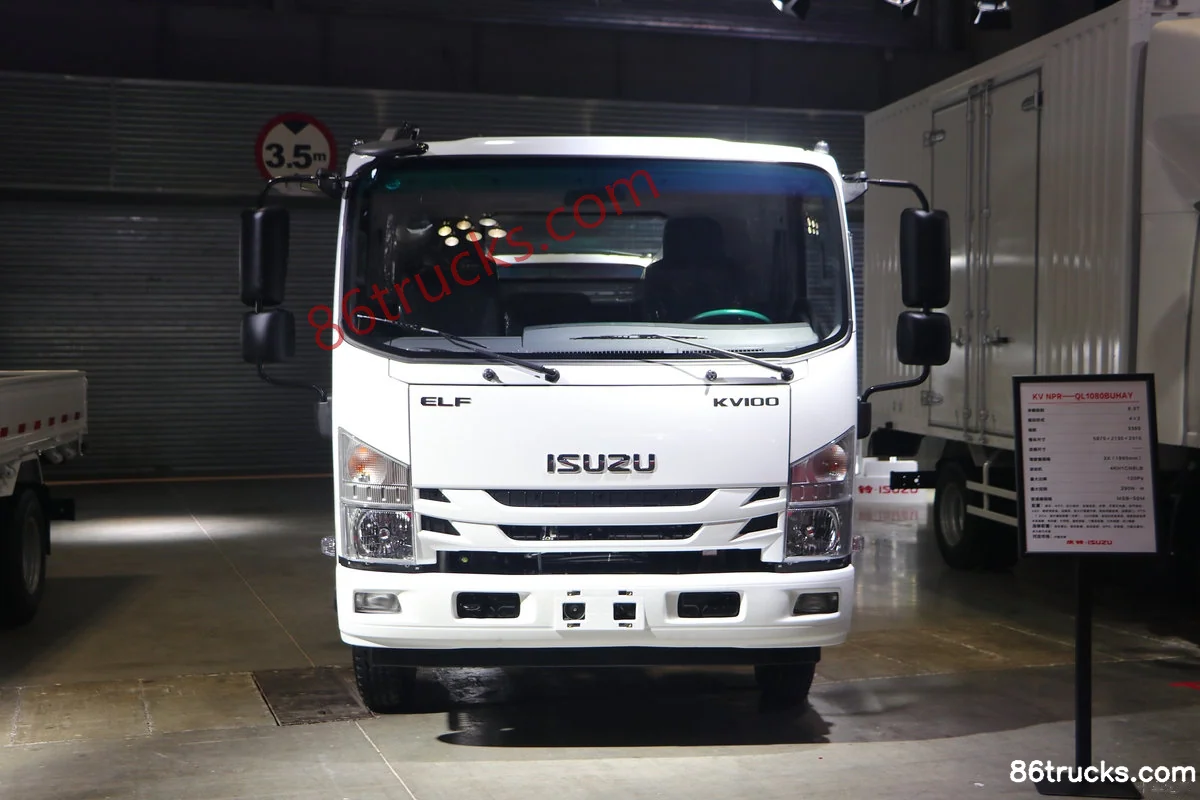

Exterior1

1 photos

FAQ

What emission standard does Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake)?

Key specs of Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake): Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake) suited for?

Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake) differ from other variants in the same series?

Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake) belongs to Qingling IsuzuKV100 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV100 120hp 4X2(6 wheels) 4.015m Refrigerated Truck (Air Brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
