Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh

Export reference
From $23,444
MSRP ¥16.88M CNY
Wheelbase:: 3350mm
Cargo box volume:: 7.2
Model code (announced):: BJ5038XXYEV4
Cab length:: 5.395m
GVWR:: 2.81ton
Max. speed:: 80km/h
Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh exterior
View more photos (12)
CLTC range: 290km
Motor 1 Brand: Foton
Curb Weight: 1.425ton
Rated payload: 1.255ton

Overview

The Tuyano Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh is a Electric Panel Van featuring 290km battery/range, Foton motor, 1.255t payload and 7.2 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5038XXYEV4
Wheelbase: 3350mm
Cab length: 5.395m
Cab width: 1.78m
Cab height: 1.955m
CLTC range: 290km
Curb Weight: 1.425ton
Rated payload: 1.255ton
GVWR: 2.81ton
Max. speed: 80km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP070A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total rated torque: 75N·m
total peak torque: 180N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast/Slow Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38.64kWh
fast charge time: 0.7h
Battery total voltage: 309.12V
Body parameters
Cargo box volume: 7.2
Max body depth: 3.01
Max body width: 1.71
Cargo Box Height: 1.4
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15LT
Rear Wheel Specification: 185/65R15LT
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:

Photos

Exterior3

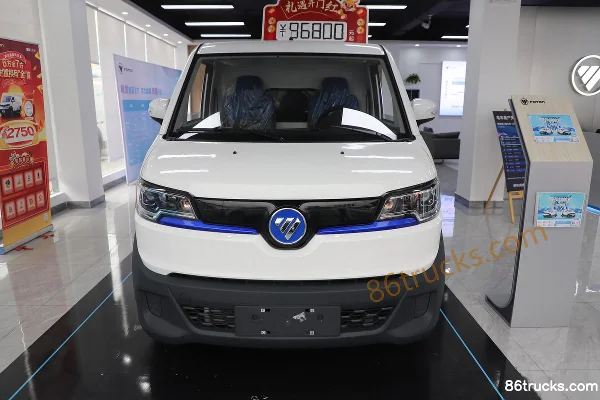

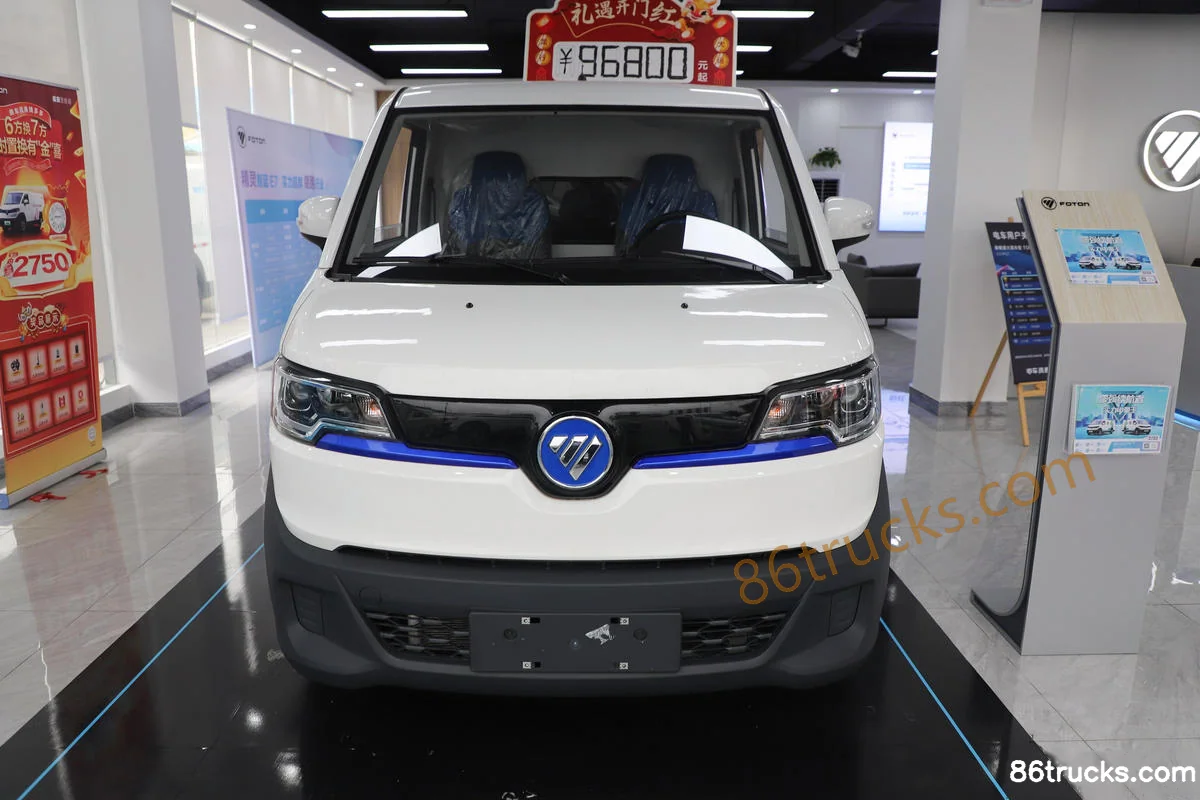

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Exterior (1) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Exterior (2) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Exterior (3) | 86Trucks

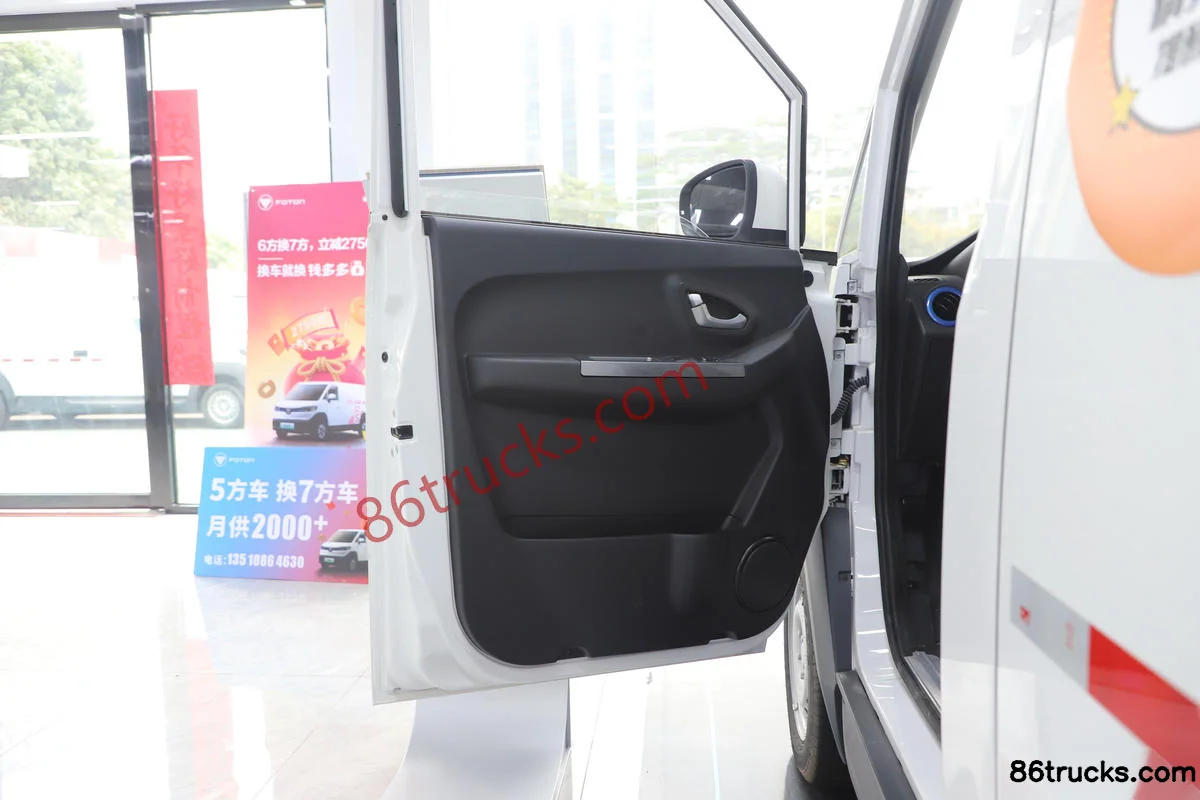

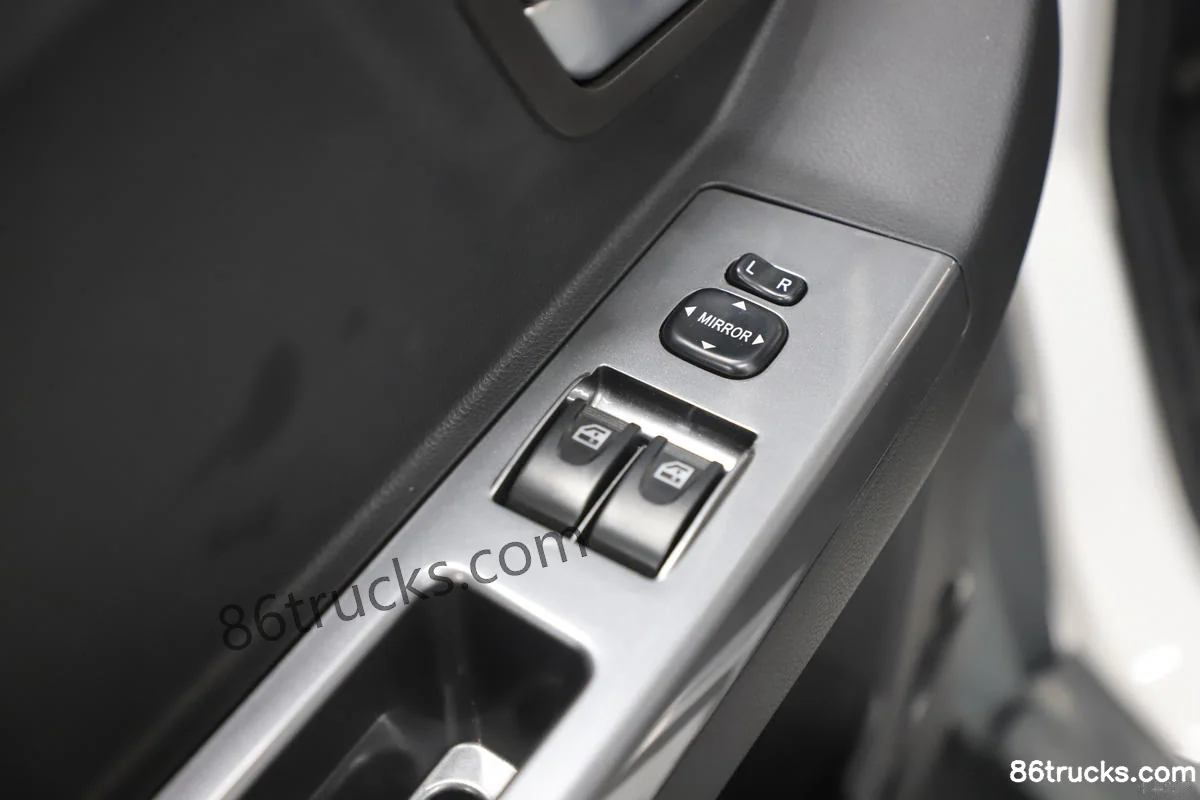

Cab3

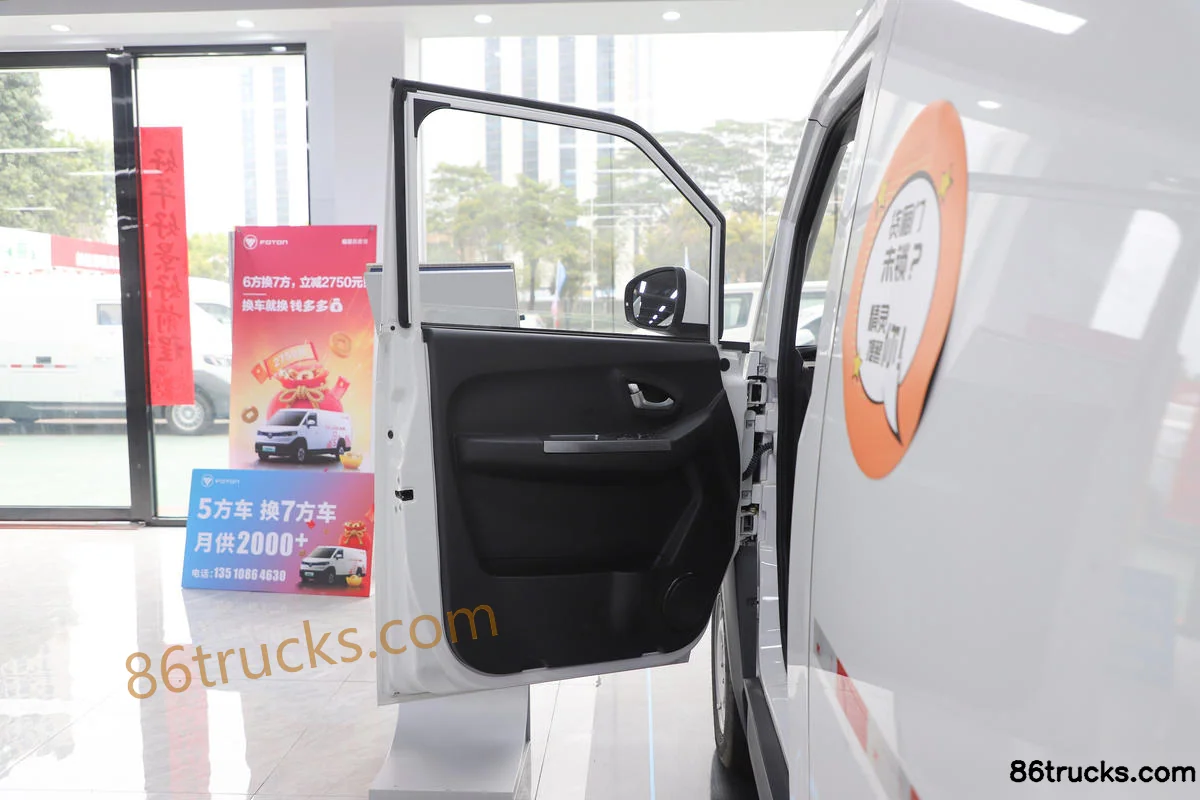

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Cab (1) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Cab (2) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Cab (3) | 86Trucks

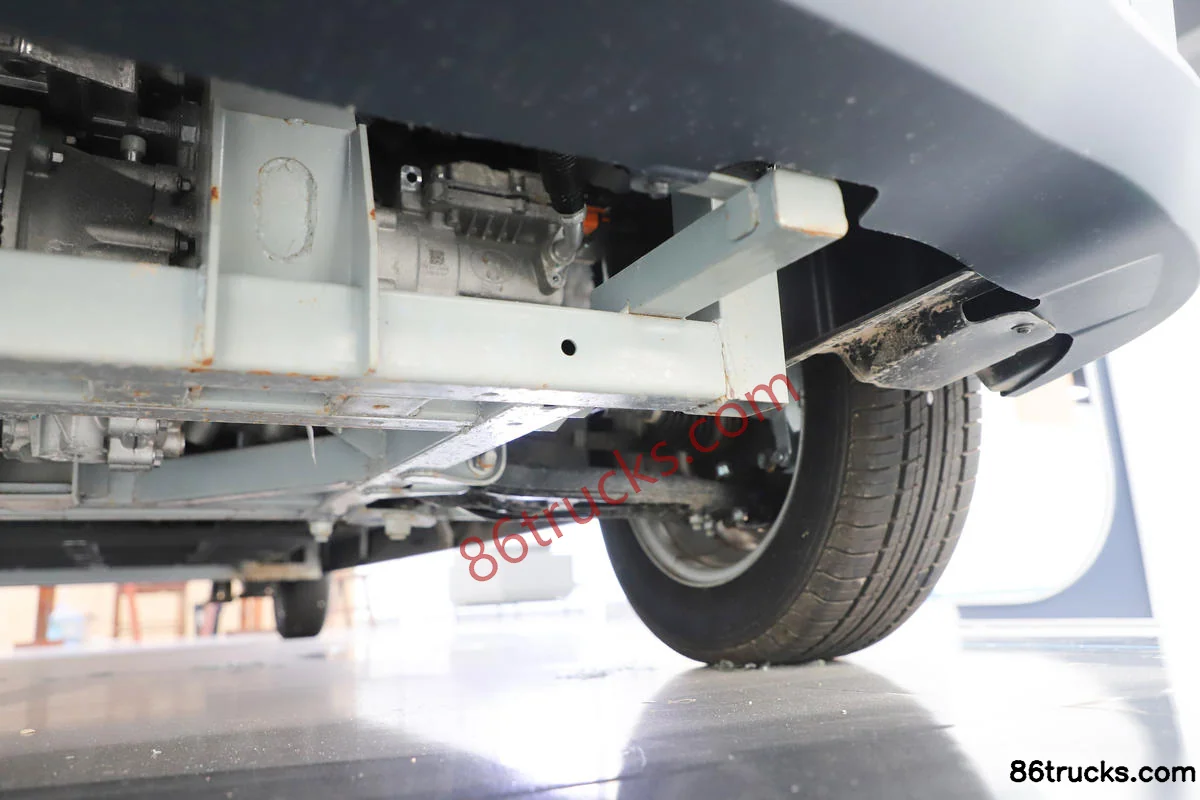

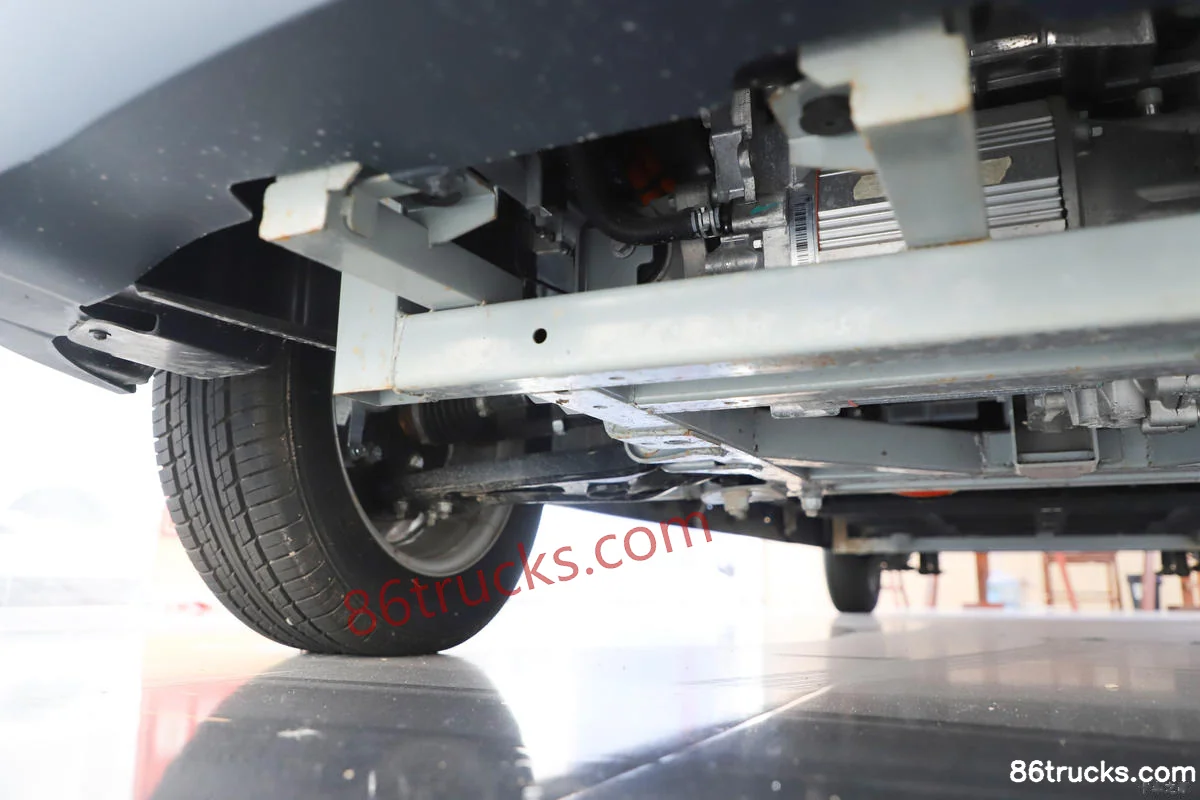

Chassis3

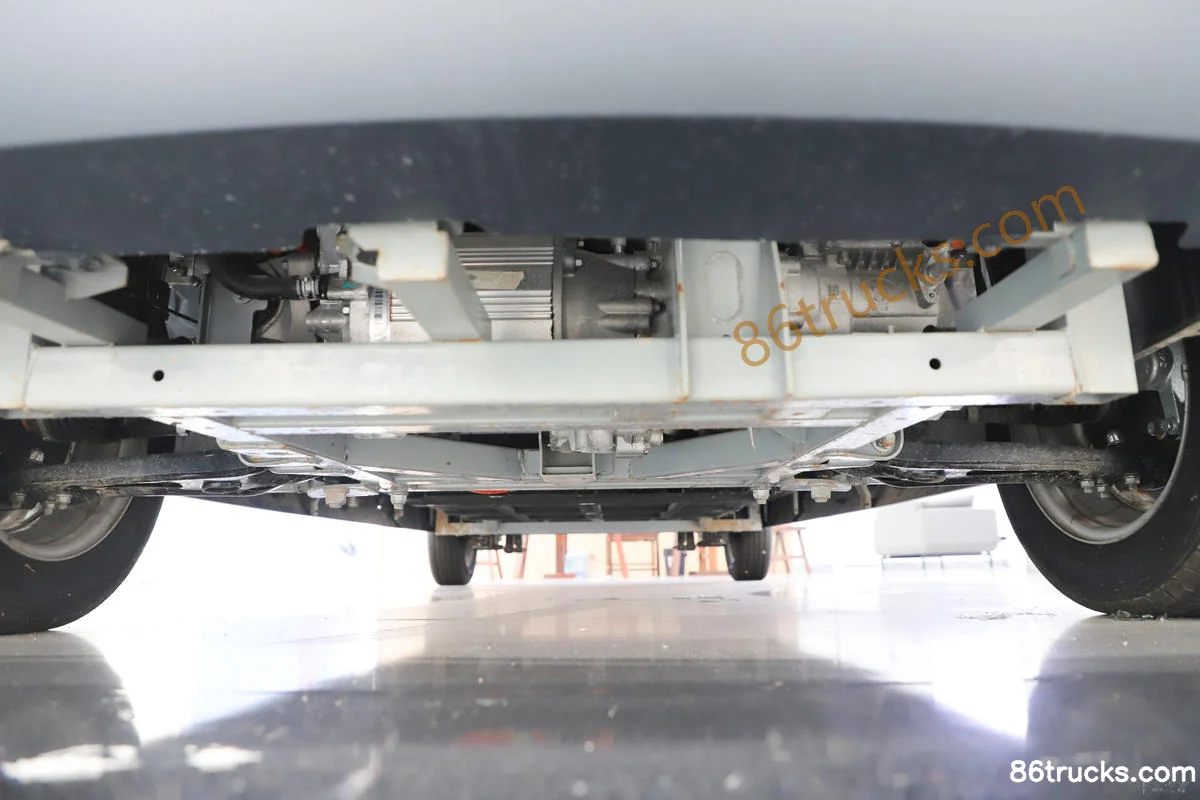

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Chassis (1) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Chassis (2) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Chassis (3) | 86Trucks

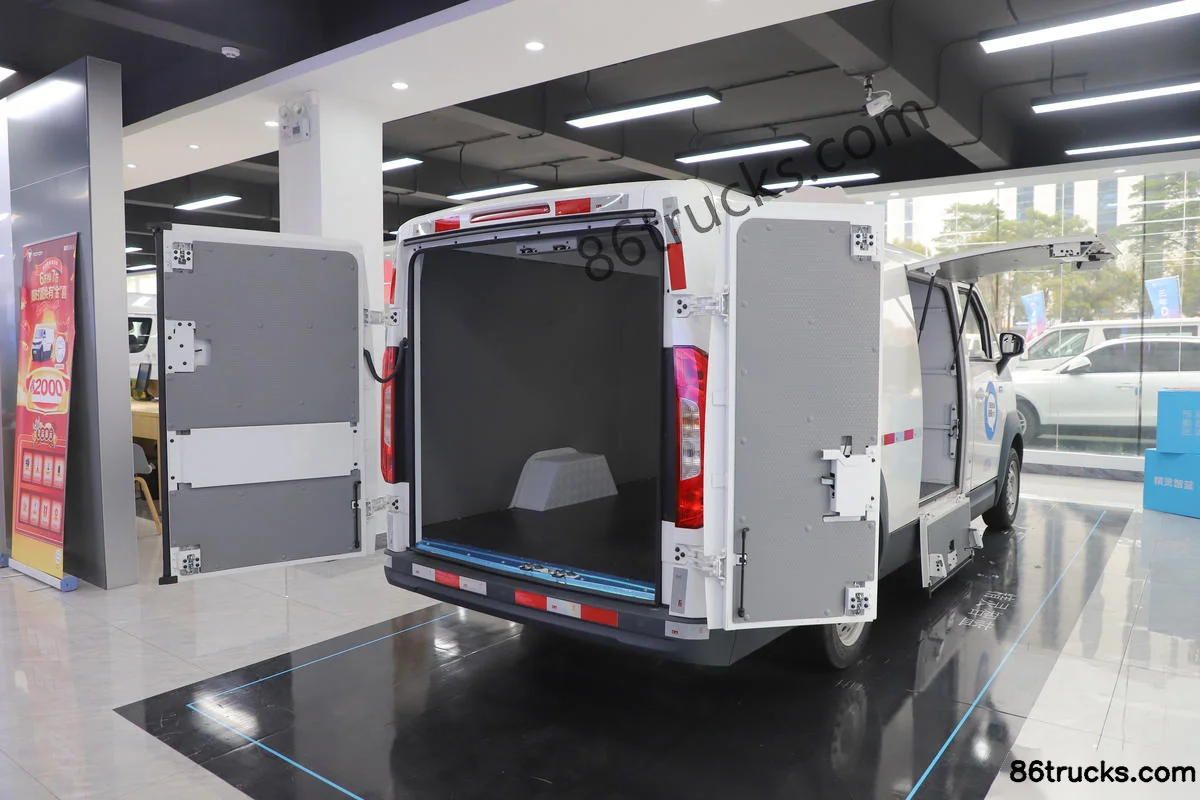

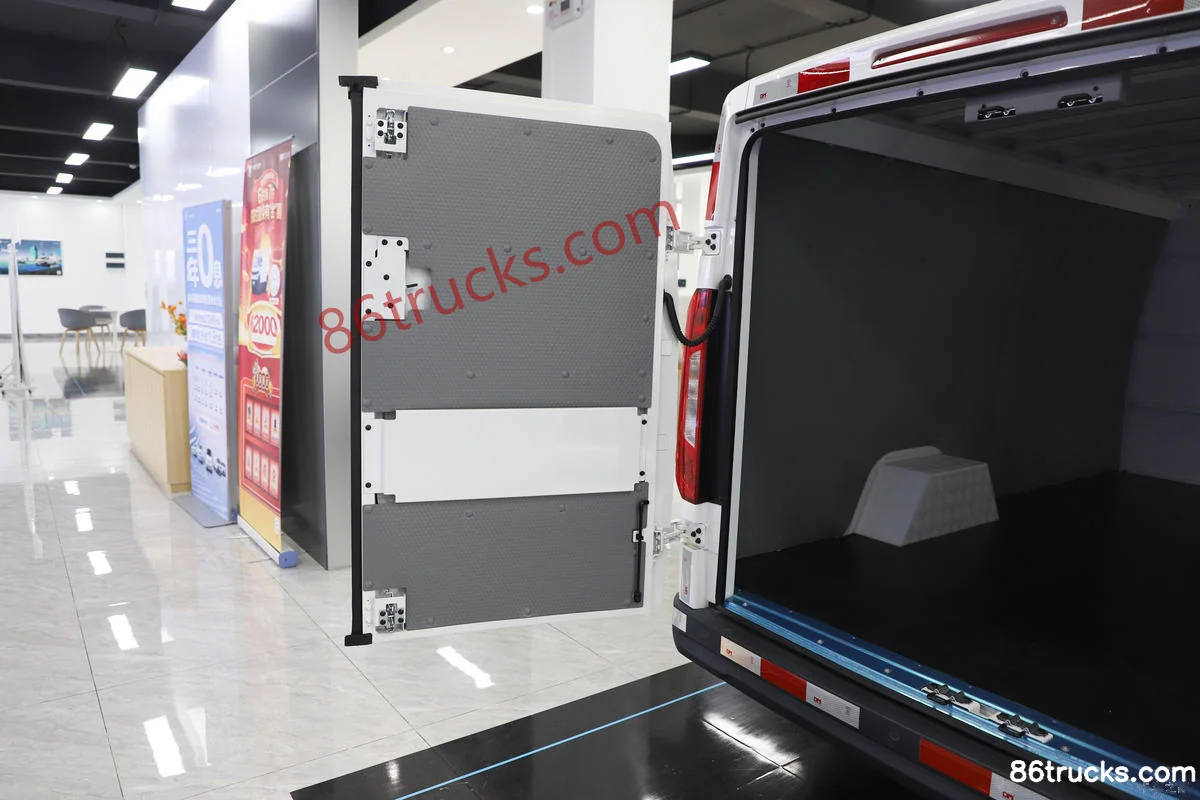

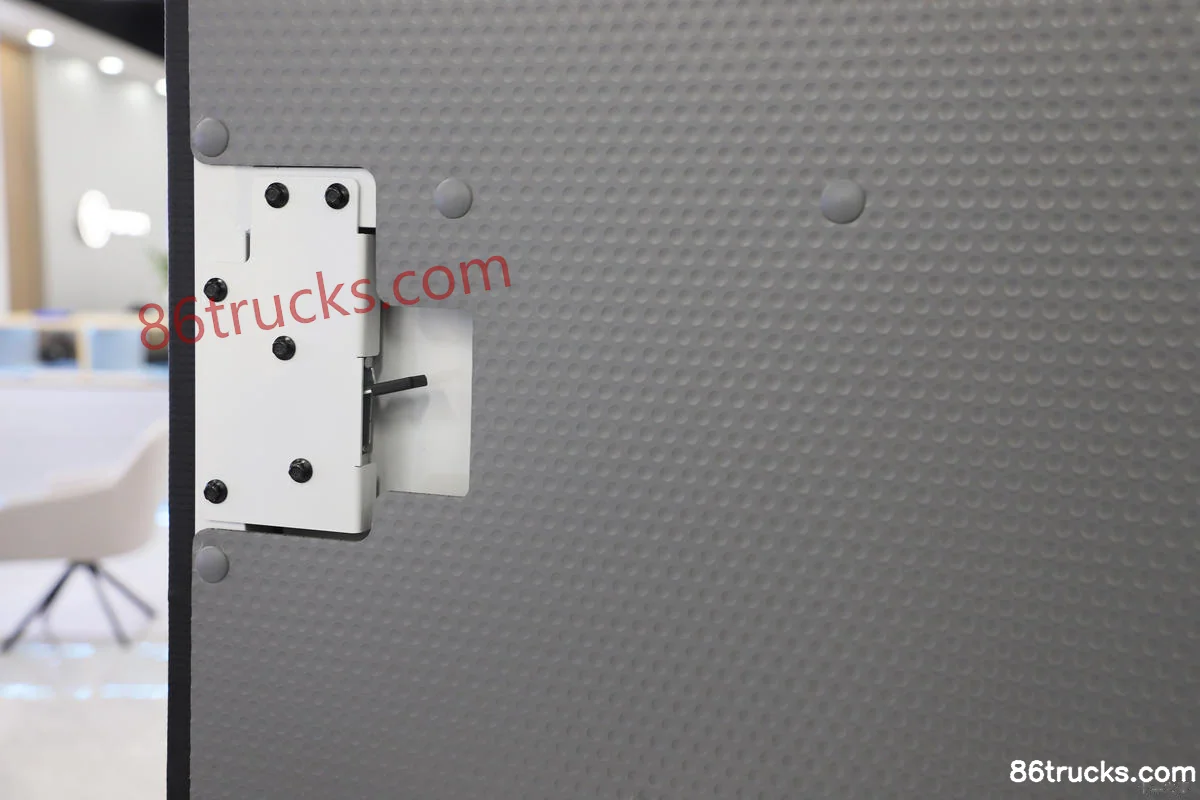

Cargo Box3

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Cargo Box (1) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Cargo Box (2) | 86Trucks Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh, and what does it include?

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh export reference is about From $23,444; MSRP is ¥16.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh suited for?

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh differ from other variants in the same series?

Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh belongs to Zhilan Elf (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Zhinan Blue Zhinan Elf E7 5.395m Pure Electric Enclosed Van 38.64kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
