BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels)

Export reference
From $20,111
MSRP ¥14.48M CNY
Curb Weight:: 3.25ton
Rated payload:: 1.05ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Emission: China IV
Model code (announced):: BYD5040CCYHEV1
Drive 4X2 (6 wheels)
Battery Brand: BYD
Motor 1 Brand: FinDreams
Horsepower 141

Overview

The BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) is a Light Truck featuring BYD battery/range, FinDreams motor, 4X2 (6 wheels) drive and 1.05t payload. On the powertrain side, it comes with 141 hp.

China IV 141 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BYD5040CCYHEV1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4m
Cab length: 5.995m
Cab width: 2.16m
Cab height: 3.15m
Curb Weight: 3.25ton
Rated payload: 1.05ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Huai'an, Jiangsu
tonnage class: Light Truck
Remarks: LED headlight
Version: Tech Edition
Energy Type: Hybrid
electric motor
Motor 1 Brand: FinDreams
Motor 1 Model: TZ200XSY
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 70kW
Peak power: 150kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: BYD
Battery type: blade battery
Battery capacity: 18.3kWh
Engine parameters
Engine Model: BYD476ZQG
Number of cylinders: 4cylinder
Displacement: 1.497L
Emission standard: China IV
Max output power: 104kW
Max hp: 141Horsepower
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.03m
Cargo box width: 2.1m
Cab parameters
Cab width: 2050mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle allowable load: 2020kg
rear axle allowable load: 2475kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

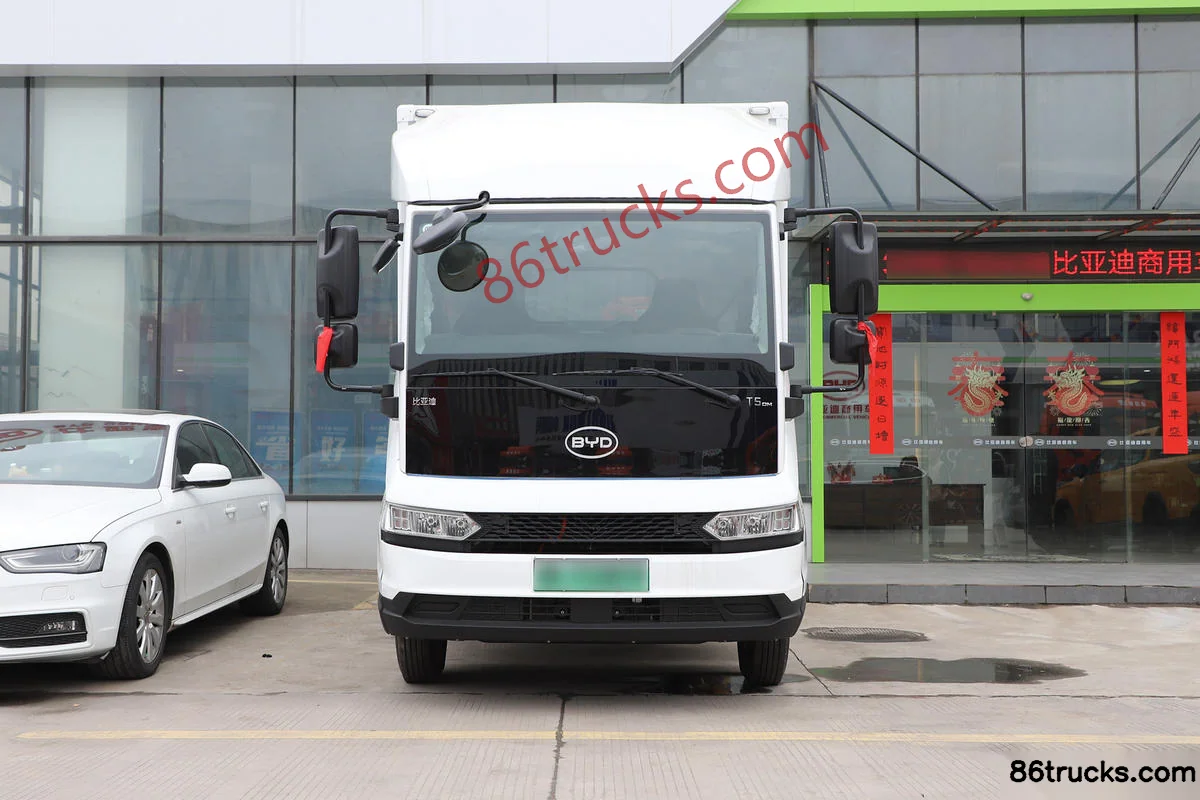

Exterior1

1 photos

FAQ

What is the export price of BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels), and what does it include?

BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) export reference is about From $20,111; MSRP is ¥14.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels)?

Key specs of BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 141 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) suited for?

BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) differ from other variants in the same series?

BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels) belongs to BYD T5 light-duty truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T5DM Tech Edition 4.5T 4.03m single-row plug-in range-extended hybrid stake truck 18.3kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
