Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis

Export reference
MSRP N/A
Horsepower: 143
Emission: China V
Fuel: Diesel
Engine: Chaochai4BK
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Shenyang Jinbei Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Chaochai4BK engine, 143 hp, 4X2 (6 wheels) drive and China V emissions.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SY1045HRFS
Type: Chassis
Drive type: 4X2
Wheelbase: 3350mm
Box length class: 4.2m
engine: ChaochaiCY4BK151
transmission: WLYWLY6T50JB
Rear Axle Ratio: 4.11
Cab length: 5.995m
Cab width: 2.5m
Cab height: 2.355m
Front track width: 1689mm
rear track: 1650mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 115km/h
Origin: Shenyang, Liaoning
tonnage class: Light Truck
Approach angle: 21°
departure angle: 20°
market segment: Building materials, agricultural products
Front/rear suspension: 1.16/1.485m
Energy Type: Diesel

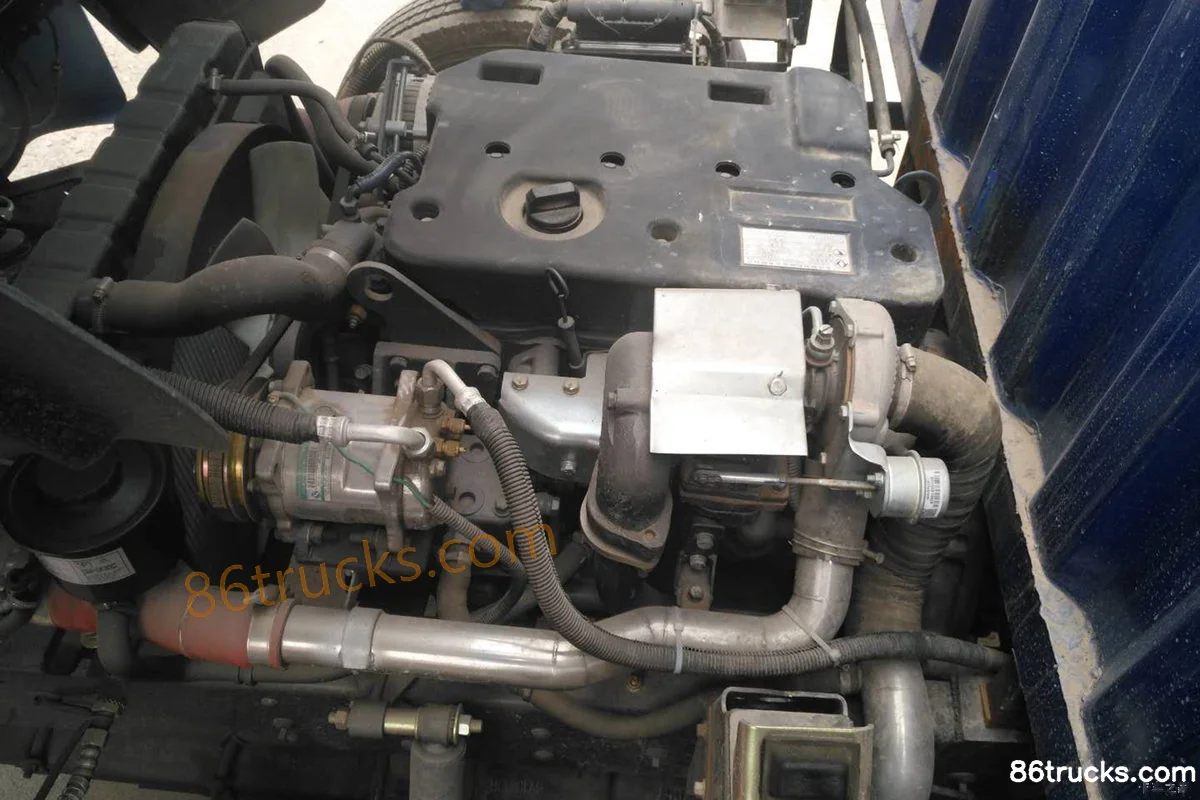

Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4BK151
Engine info: Chaochai4BK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR
Transmission Parameters
Transmission Model: WLYWLY6T50JB
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.3m
Cargo box height: 0.43m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Yunying
Cab width: 2000mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1665kg
rear axle description: 1068
rear axle allowable load: 2830kg
Axle ratio: 4.11
Leaf spring count: 8/9+3
Tire
Tire Size: 7.00-16 8PR,7.50-16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

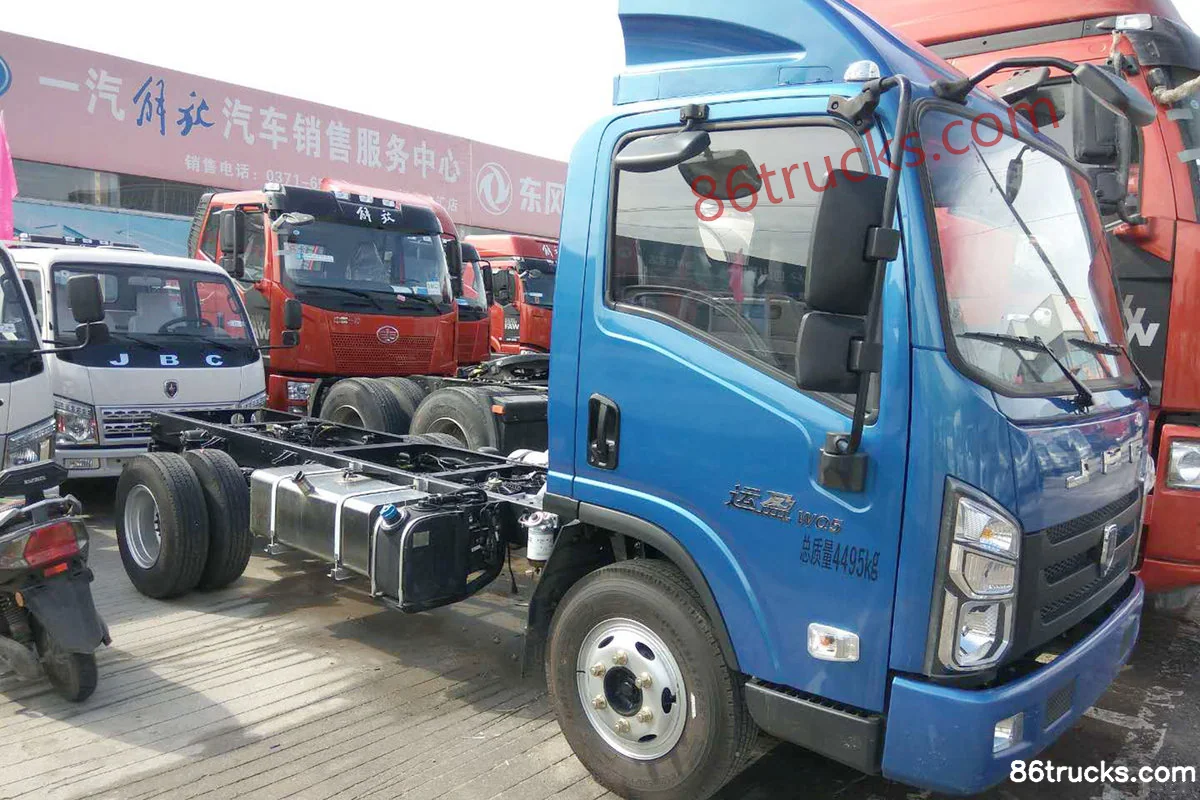

Exterior1

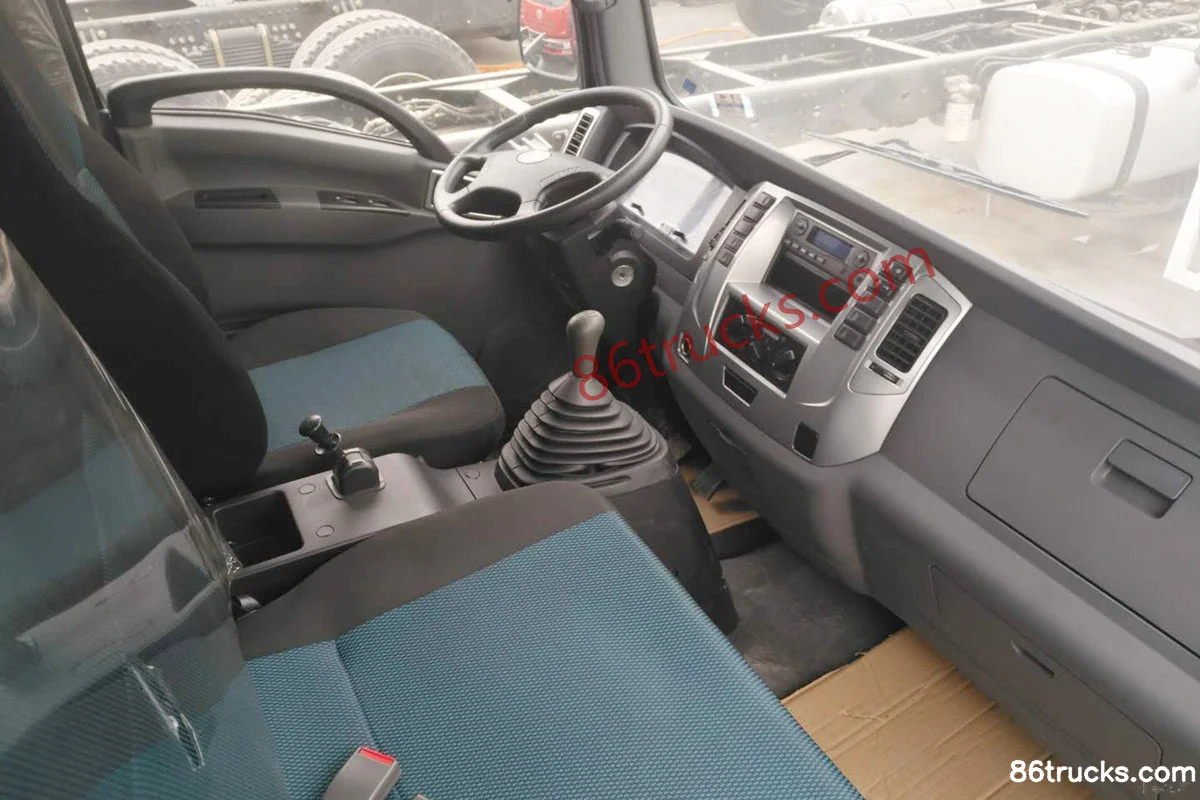

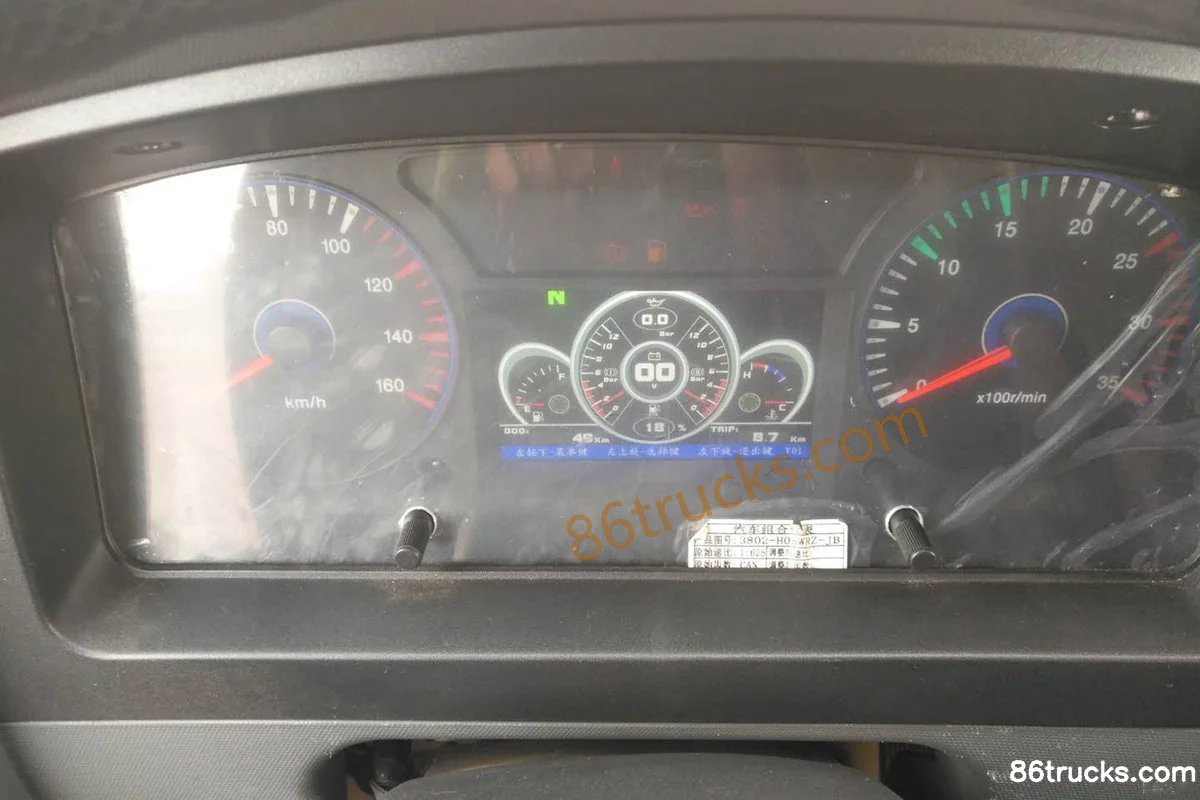

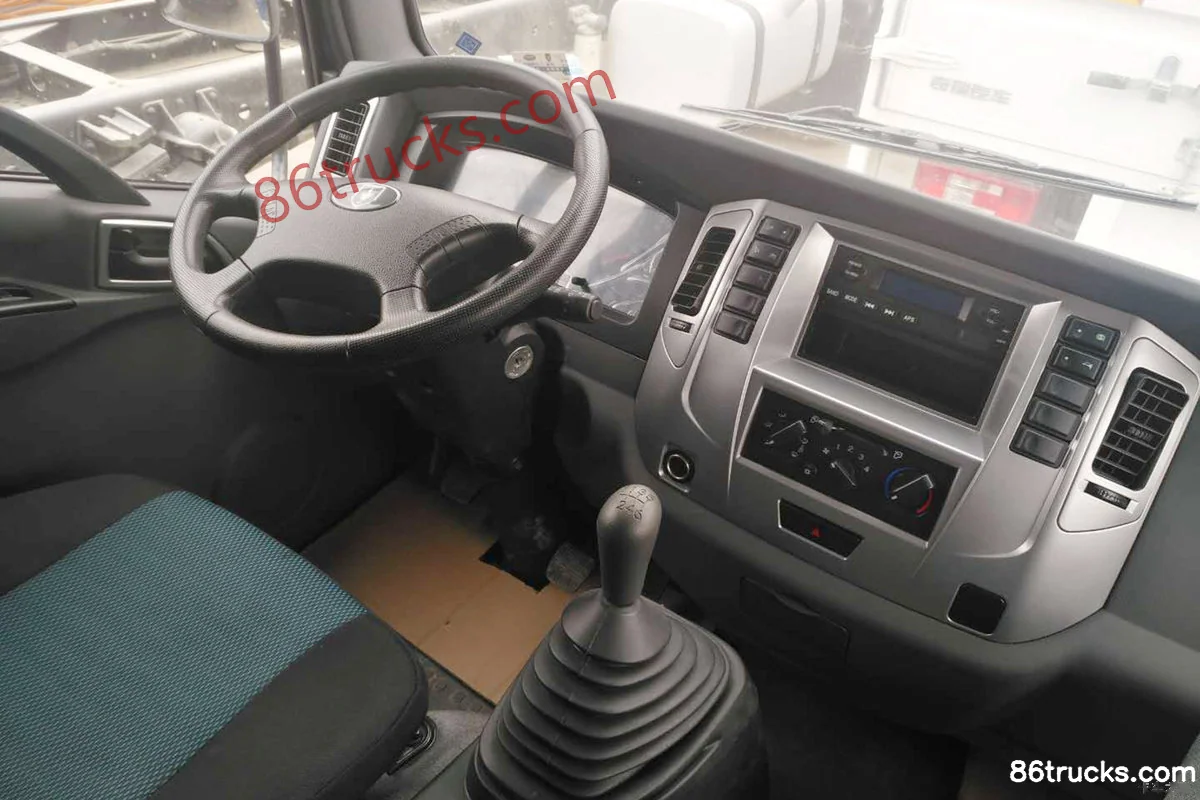

Cab3

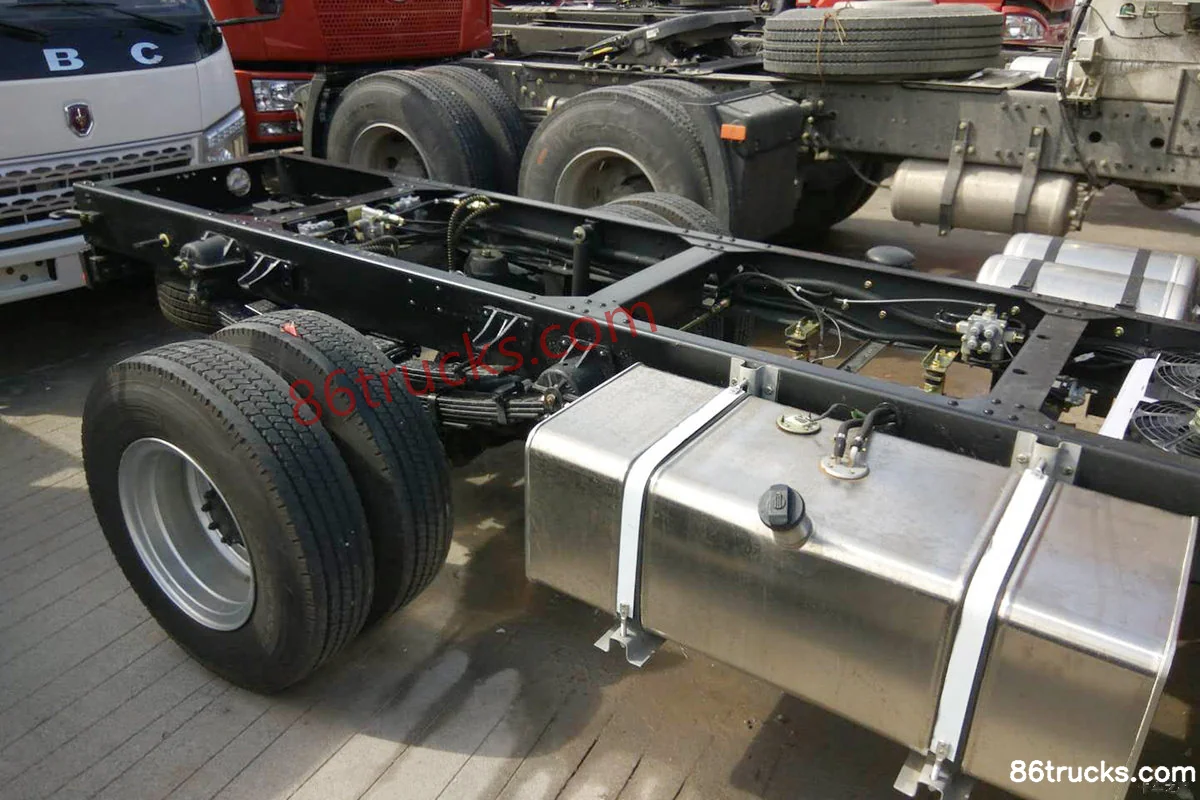

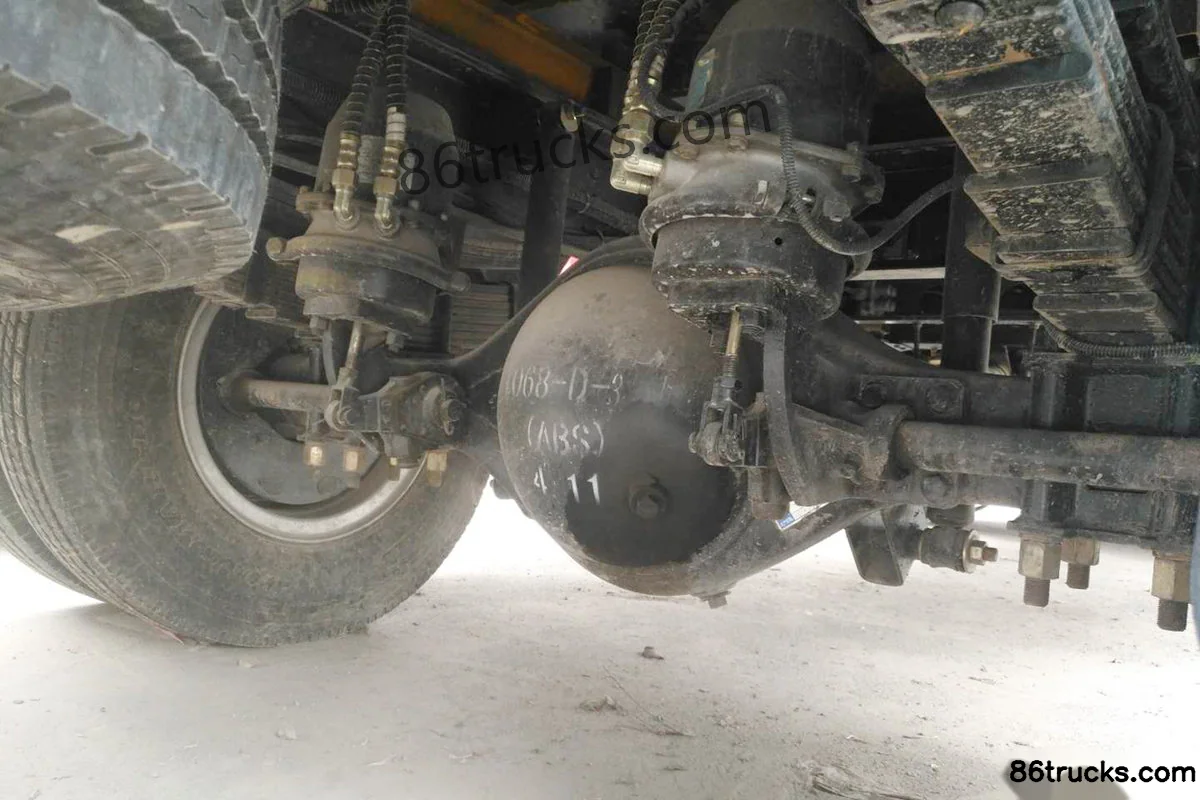

Chassis3

7 photos

FAQ

What emission standard does Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis?

Key specs of Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis: Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4BK; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis suited for?

Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis differ from other variants in the same series?

Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis belongs to Jinbei Yunying Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei Yunying W Series 143 hp 4X2(6 wheels) 4.18m single-row flatbed light truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
