Dongxu 13m Flatbed Semi-Trailer

Export reference
From $10,000
MSRP ¥7.2M CNY
Cab width:: 2.55m
suspension:: 60-axle suspension
Fifth Wheel Pin:: 90
Design load capacity:: 50ton
Cab height:: 3.99m
Wheel brand:: Zhengyu
Axle Brand: Fuhua
Curb Weight: 6.5ton
Cab length: 13m
Spare Tire Carrier: 1 piecepcs

Overview

The Dongxu Trailer Dongxu 13m Flatbed Semi-Trailer is a flatbed semi-trailer featuring Fuhua-axle setup, 6.5ton GVW, 13m length and 50ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 50ton
Cab length: 13m
Cab width: 2.55m
Cab height: 3.99m
Curb Weight: 6.5ton
Chassis Specs
Axle Brand: Fuhua
Number of Axles: 3
Axle Load Rating: 13T;16T
Wheel brand: Zhengyu
Number of wheels: 12
suspension: 60-axle suspension
Wheel Material: High strength
Parts & accessories
Fifth Wheel Pin: 90
Brake chamber: Ruili 6 Double
Outrigger: Yahua
Toolbox: 1 piecepcs
Spare Tire Carrier: 1 piecepcs
ABS: Kemi
Body Parameters
Frame material: Baosteel 750
Floor Board: 3mm
frame rail height: 480mm
upper wing panel: 8mm
Lower Wing Plate: 10mm
Side beam: 14
Other notes
Lead time for customization: 15 days
warranty period: 1 year
warranty method: Arrival at factory
Tire
Tire brand: Chaoyang
Tire Size: 12R
Number of tires: 12pcs

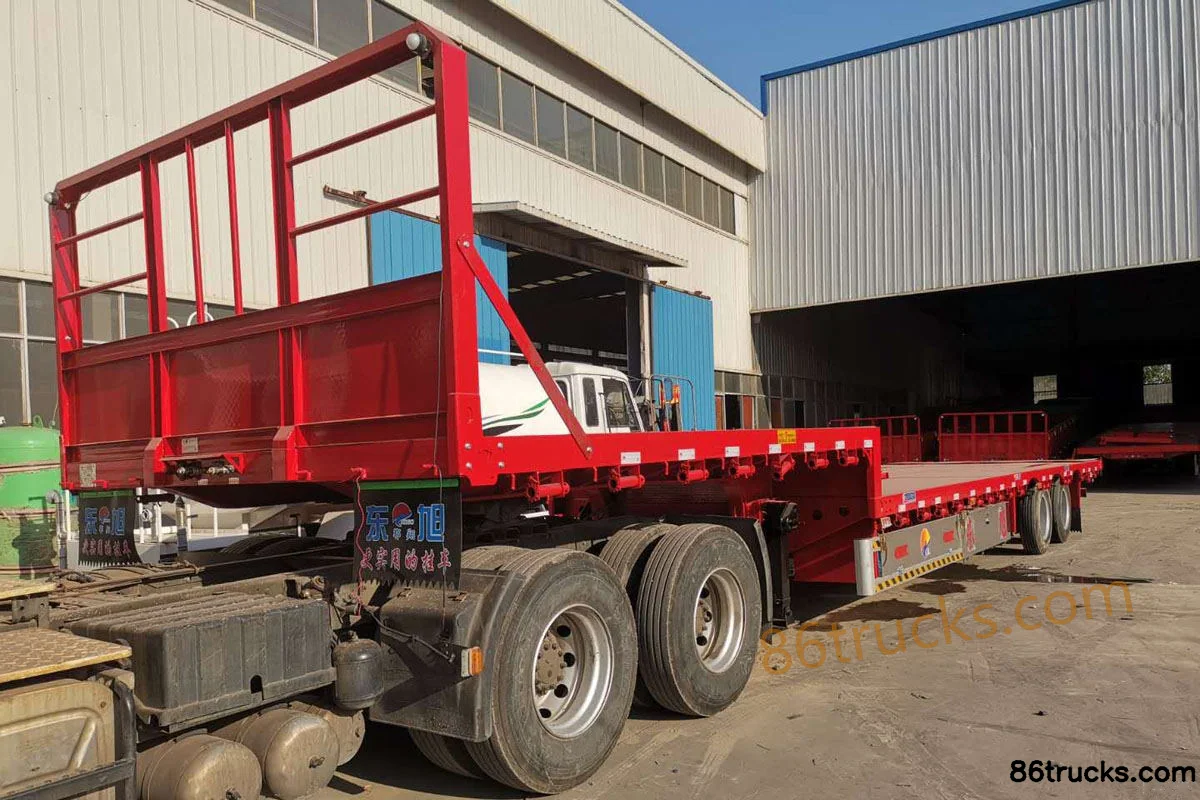

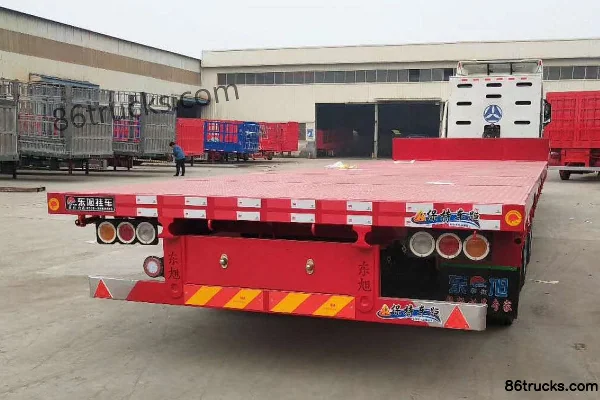

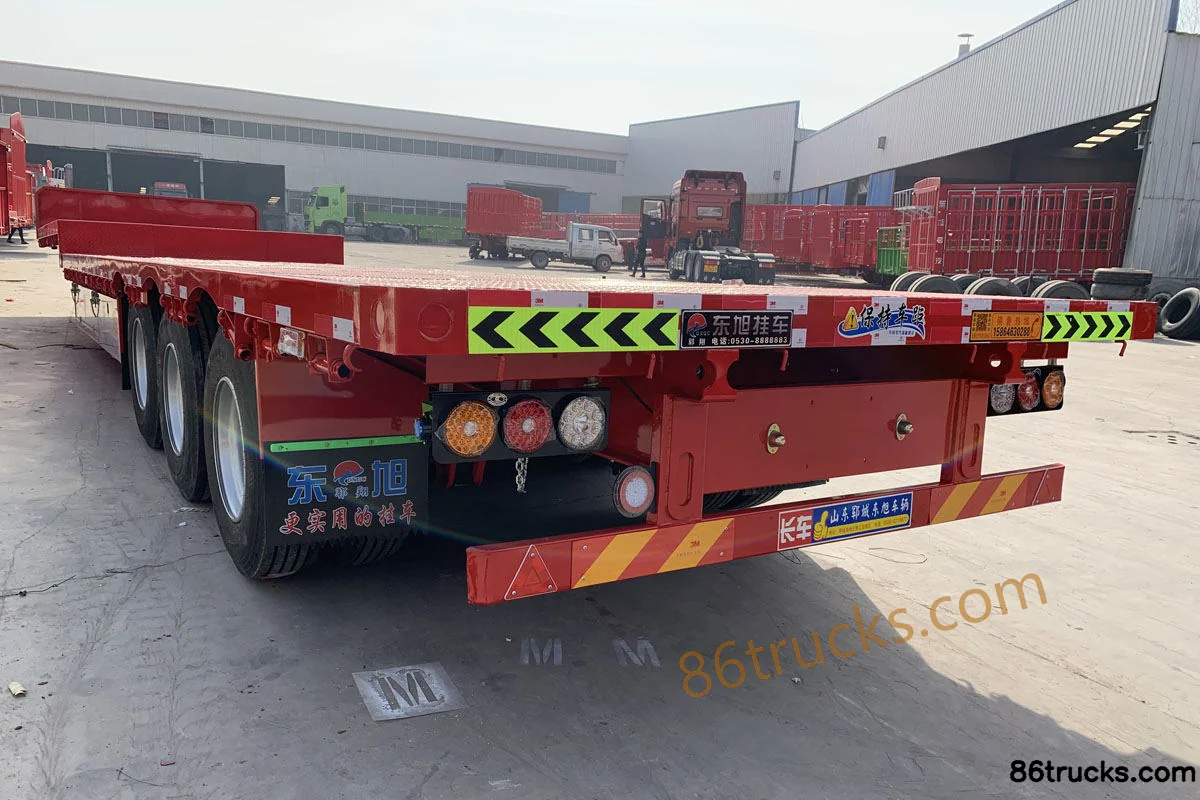

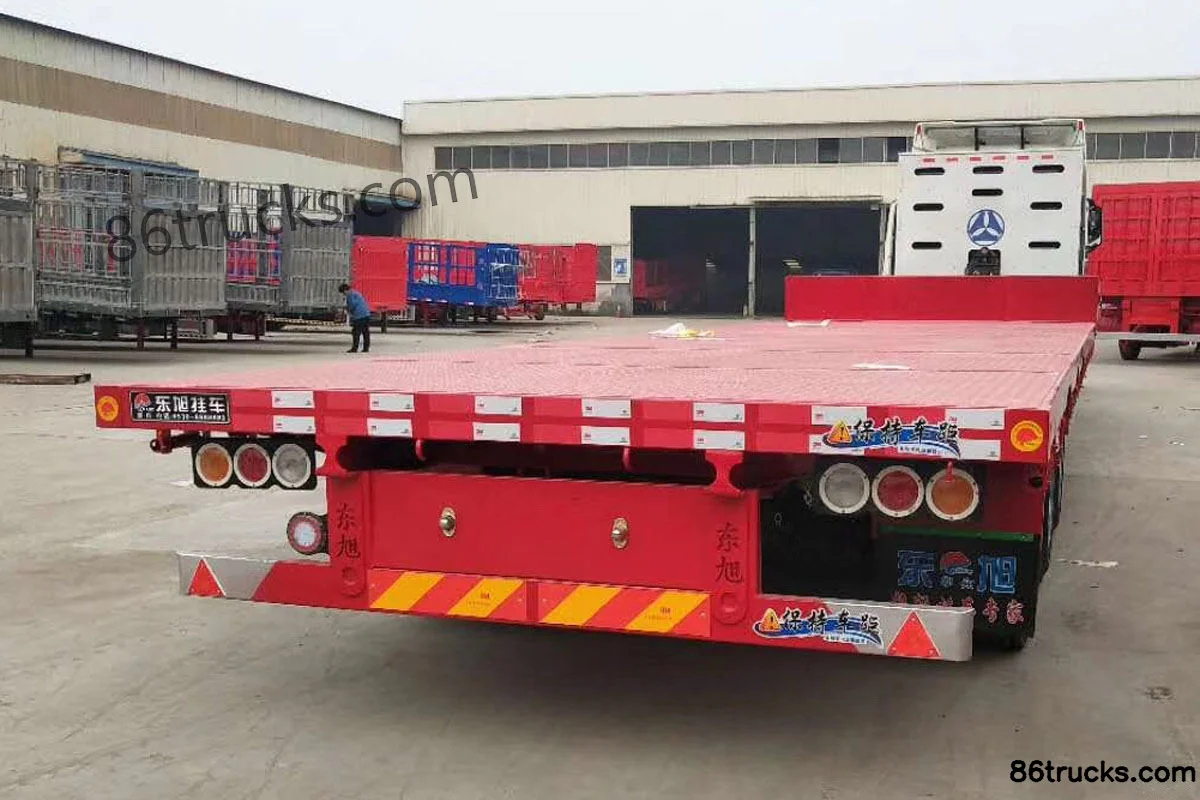

Photos

Exterior3

3 photos

FAQ

What is the export price of Dongxu 13m Flatbed Semi-Trailer, and what does it include?

Dongxu 13m Flatbed Semi-Trailer export reference is about From $10,000; MSRP is ¥7.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dongxu 13m Flatbed Semi-Trailer suited for?

Dongxu 13m Flatbed Semi-Trailer is a flatbed semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongxu 13m Flatbed Semi-Trailer differ from other variants in the same series?

Dongxu 13m Flatbed Semi-Trailer belongs to Dongxu Trailer 8-13m Series (flatbed semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongxu 13m Flatbed Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongxu 13m Flatbed Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
