JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis)

Export reference
MSRP N/A
Wheelbase:: 3360mm
Cab dimensions:: 5.995×1.86×2.205m
Type:: Explosives Transport Truck
Front/rear track width:: 1440/1425mm
GVWR:: 7.35ton
Max. speed:: 80km/h
Drive 4X2 (6 wheels)
Horsepower 116
Emission China IV
Fuel Diesel

Overview

The JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis) is a Explosives Transport Truck featuring 7.35t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 116 hp, China IV emissions and Diesel fuel.

China IV 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×1.86×2.205m
Type: Explosives Transport Truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: 1440/1425mm
GVWR: 7.35ton
Max. speed: 80km/h
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Body Parameters
Other special notes: This chassis can also be used for chemical liquid tankers and liquefied gas tankers.
Body Brand: JAC
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2C
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.8L
Emission standard: China IV
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 250N·m
Max torque speed: 1800-2800rpm
Rated speed: 3600rpm
Chassis Specs
Chassis Brand: JAC
Chassis Series: Shuailing Q3
Chassis Model: HFC1070P73K5C3Z
rear axle description: Front axle 2T / rear axle 2.5T
Leaf spring count: 7/4+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Lu'an LC5T30
Tire
Tire Size: 7.00R16 14PR
Number of tires: 6pcs

Photos

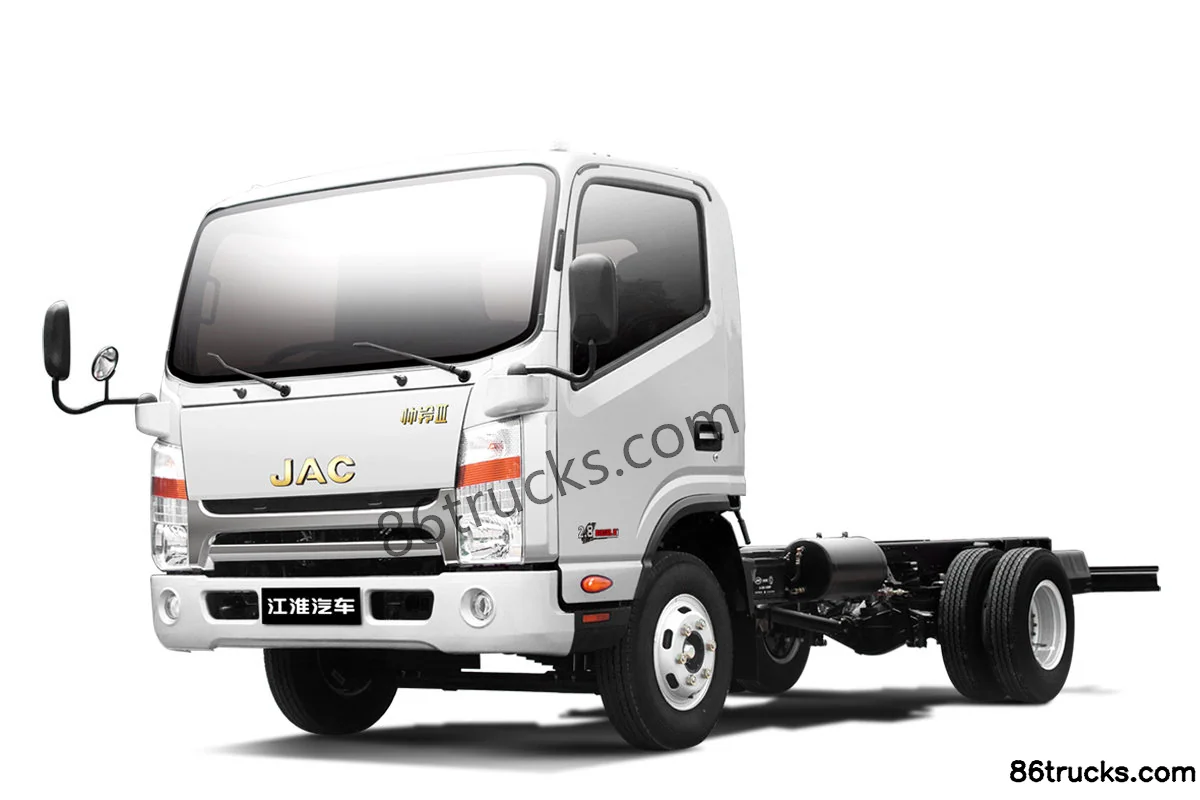

Exterior1

1 photos

FAQ

What emission standard does JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis)?

Key specs of JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis): Drive: 4x2; Horsepower: 116 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis) suited for?

JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis) differ from other variants in the same series?

JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis) belongs to JAC Q3 light truck (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing Q3 116 hp 4X2(6 wheels) Explosive Material Transport Truck (Narrow Body Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
