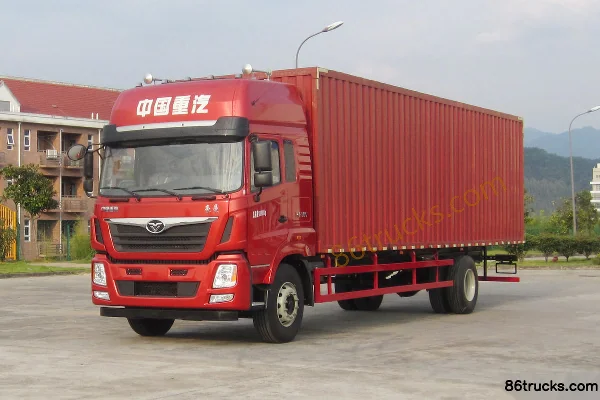

Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck

Export reference
From $26,278
MSRP ¥18.92M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: WeichaiWP4.6
Transmission: WLY
Curb Weight:: 7.97ton
seating capacity: 3Personnel
Rated payload: 9.835ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck is a Medium-duty truck featuring 6.75m cargo length, Van body cargo body, 3Personnel volume and 9.835t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.6 engine, 220 hp, 4X2 (6 wheels) drive and China V emissions.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5188XXYF10EB2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 6.8m
engine: WeichaiWP4.6NQ220E50
transmission: WLYWLY9TS90
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.545m
Cab height: 3.98m
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 7.97ton
Rated payload: 9.835ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 20.5°
departure angle: 16°
market segment: Urban Distribution
Remarks: 4.33, 5.286 rear axle ratio
Front/rear suspension: 1.43/2.37m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E50
Engine info: WeichaiWP4.6
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: WLYWLY9TS90
Transmission Brand: WLY
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.75m
Cargo box width: 2.45m
Cargo box height: 2.5m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: D13F Semi-floating
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 145
Front axle allowable load: 6500kg
Frame Dimensions: 232 single-layermm
rear axle description: 1118
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 11/9+8,9/11+8,8/10+8,7/9+6
Tire
Tire Size: 10.00R20,11R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck, and what does it include?

Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck export reference is about From $26,278; MSRP is ¥18.92M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck?

Key specs of Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP4.6; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck suited for?

Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck differ from other variants in the same series?

Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck belongs to Sinotruk H5 near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MANH5 Medium Truck 220 hp 4X2(6 wheels) 6.75m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
