FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck

Export reference
From $44,444
MSRP ¥32M CNY
Horsepower: 260
Emission: China VI
Fuel: Compressed Natural Gas (CNG)
Engine: Yuchai6.9L
Transmission: Fast Gear
Curb Weight:: 7.88ton
seating capacity: 2Personnel
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck is a Medium-duty truck featuring 6.7m cargo length, stake body cargo body, 2Personnel volume and 9.99t payload. On the powertrain side, it comes with a Yuchai6.9L engine, 260 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 260 Compressed Natural Gas (CNG) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1180P28K8L2NE6A90
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.7m
engine: YuchaiYCA07260N-60
transmission: Fast Gear8JSX105TC
Rear Axle Ratio: 4.333
Cab length: 9m
Cab width: 2.55m
Cab height: 3.185m
Front track width: 1946mm
rear track: 1860mm
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 14°
Front/rear suspension: 1.41/2.29m
Energy Type: Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCA07260N-60
Engine info: Yuchai6.9L
Number of cylinders: 6cylinder
fuel type: Compressed Natural Gas (CNG)
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 1000N·m
Max torque speed: 1200-1700rpm
Rated speed: 2100rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC
Transmission Parameters
Transmission Model: Fast Gear8JSX105TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters

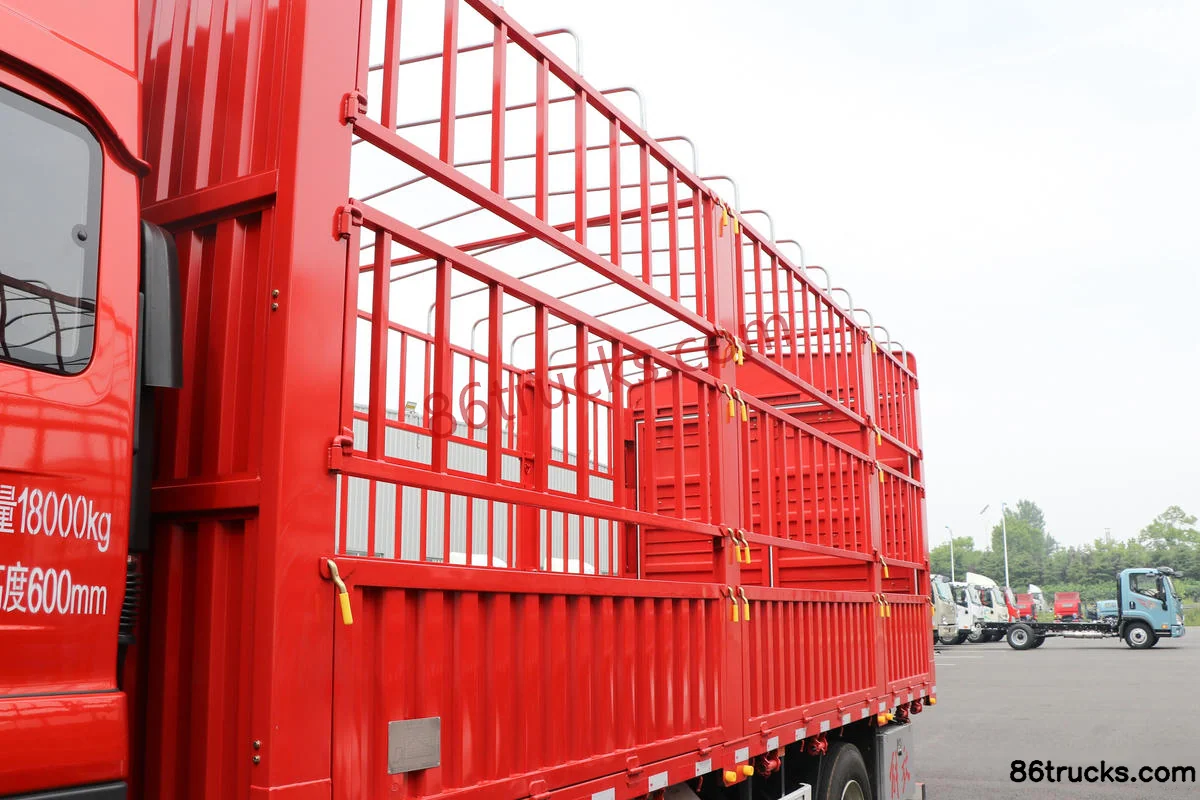

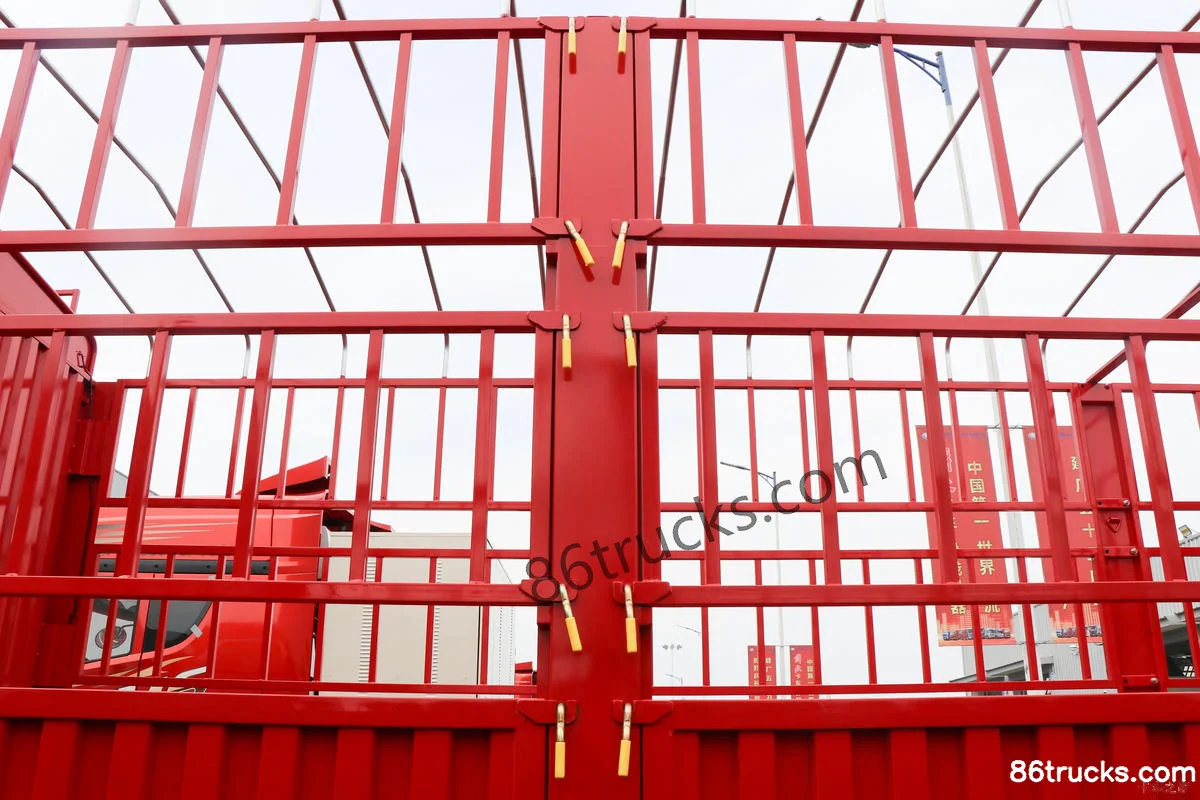

Cargo box type: stake body
Cargo box length: 6.7m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4
Cab parameters
Cab: JK6 high-roof double-bunk full-floating cab
Cab width: 2300mm
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 237*75*(6.5+4)mm
rear axle description: 378 cast axle (widened brake shoes)
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+3
Tire

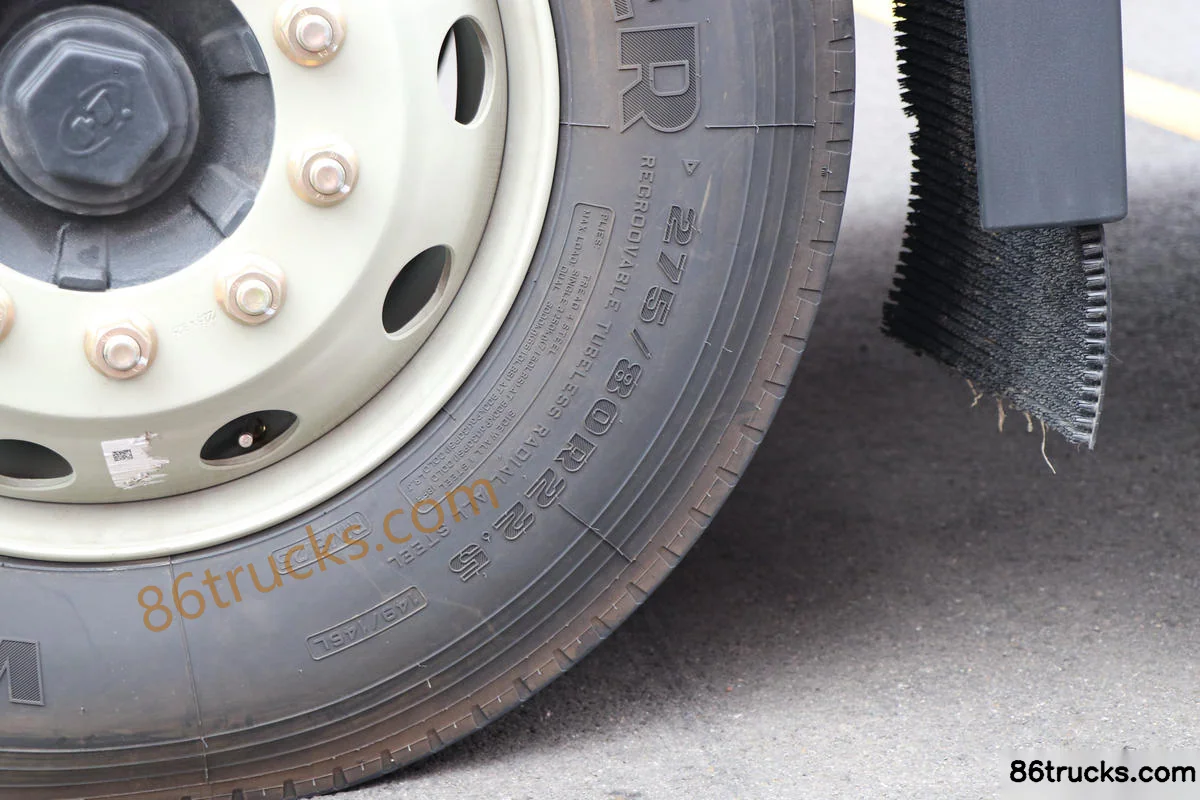

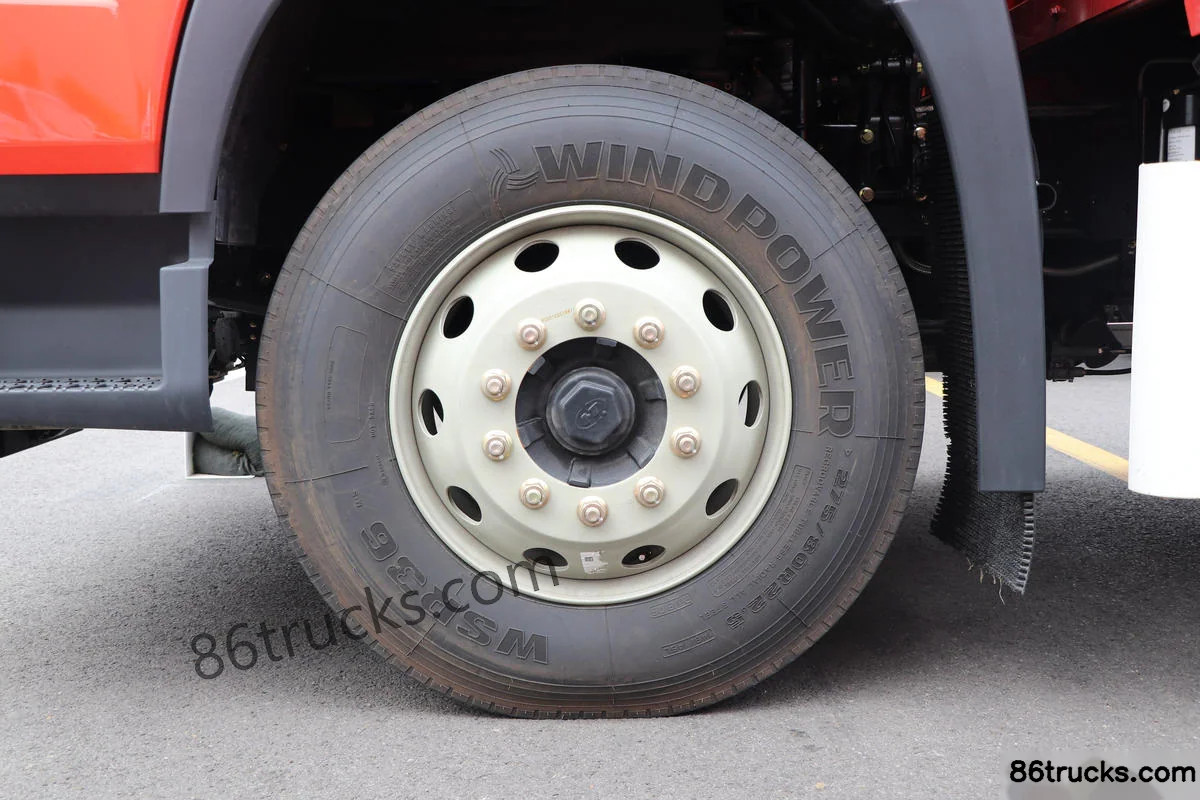

Tire Size: 275/80R22.5-18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

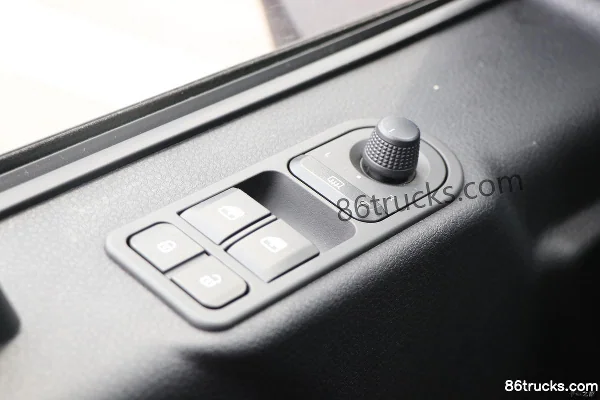

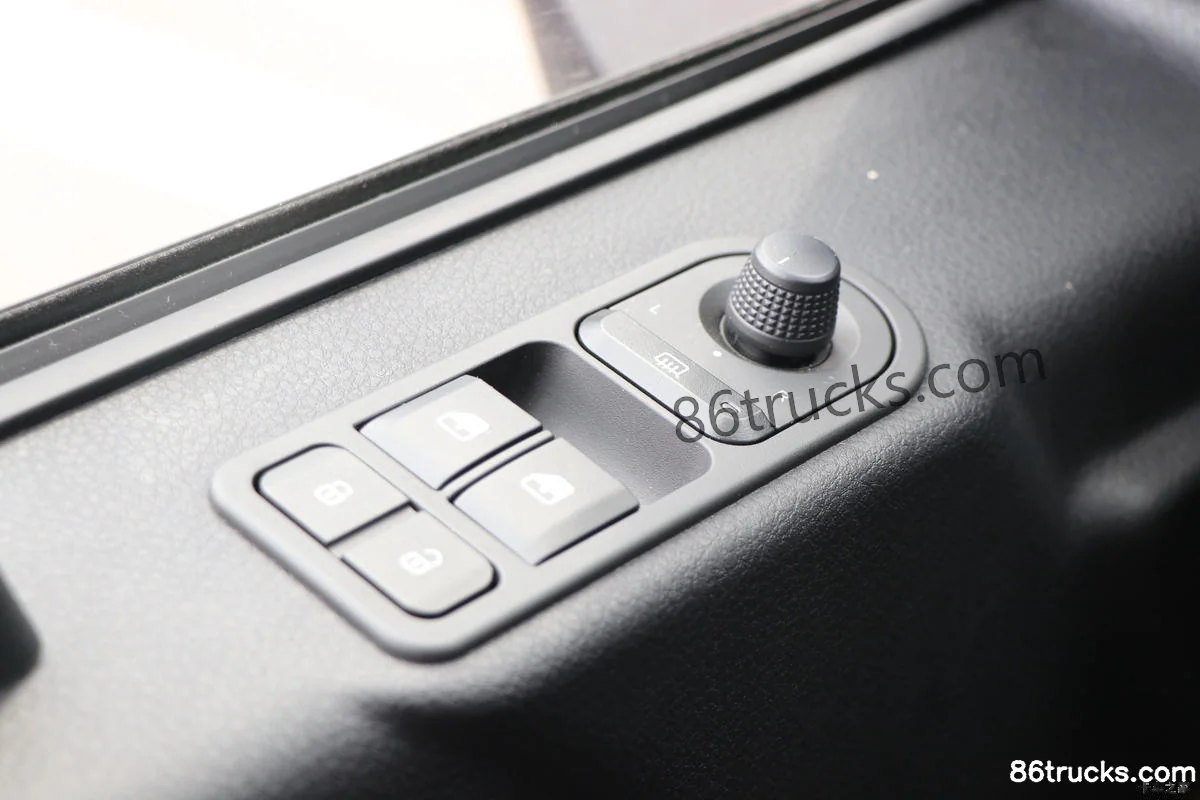

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Multimedia features
Center Console Color Screen:
LCD instrument cluster:

Photos

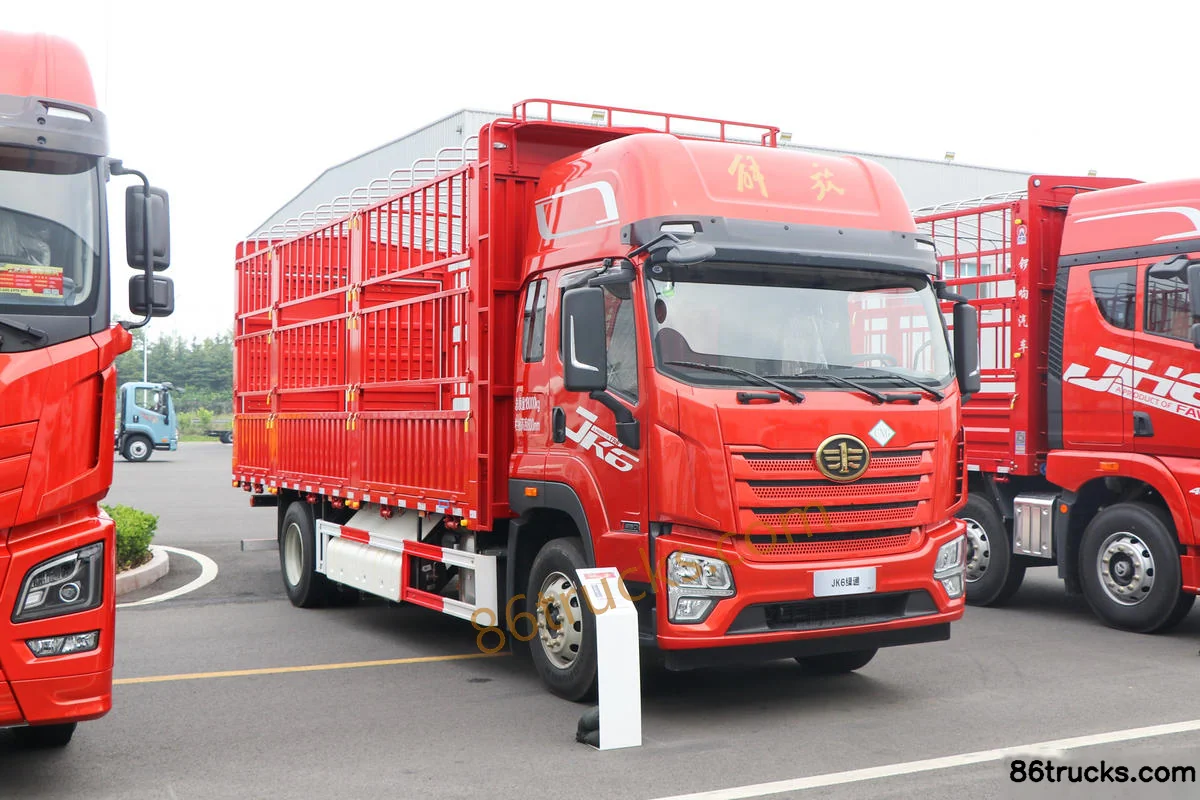

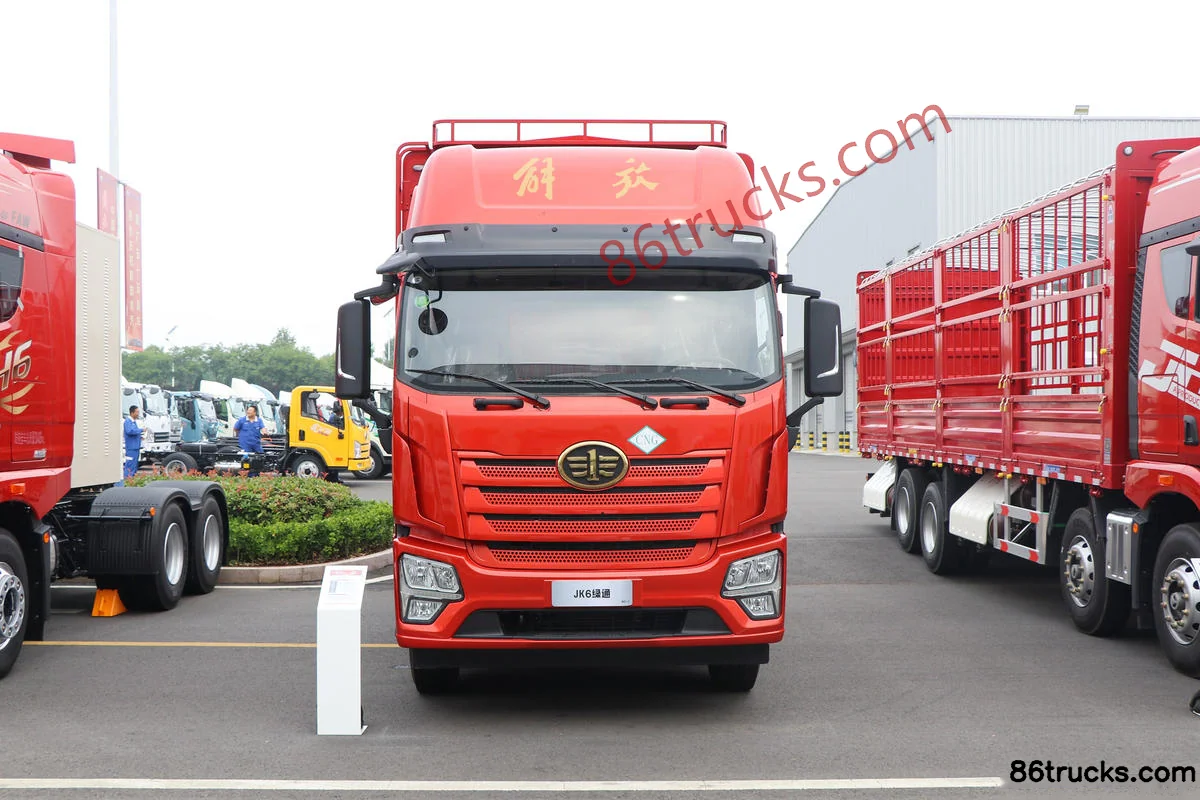

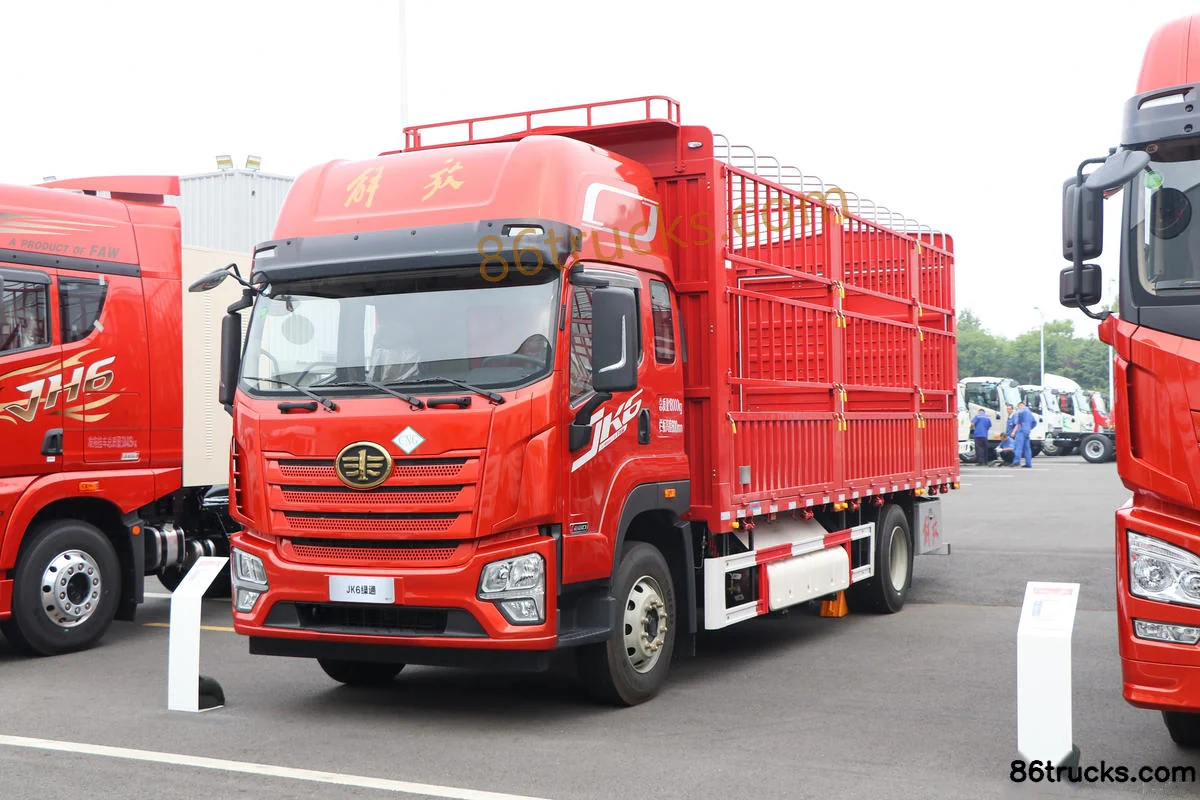

Exterior3

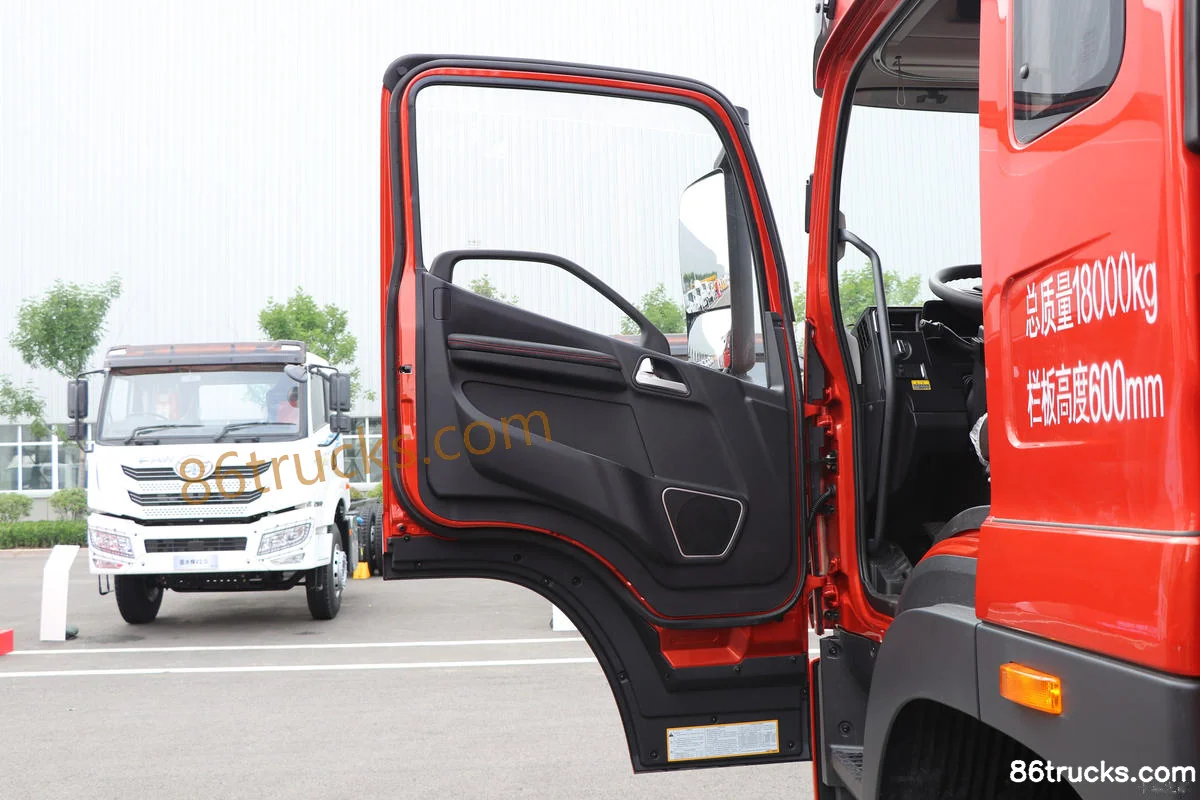

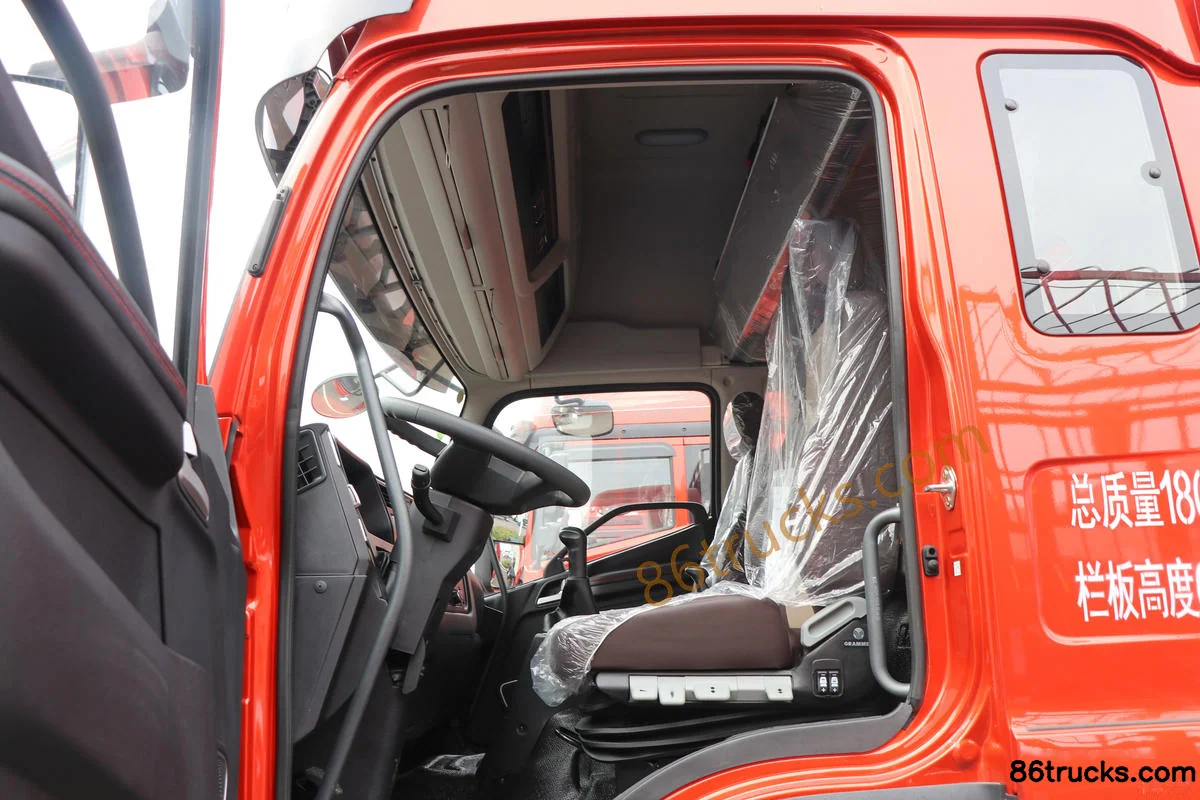

Cab3

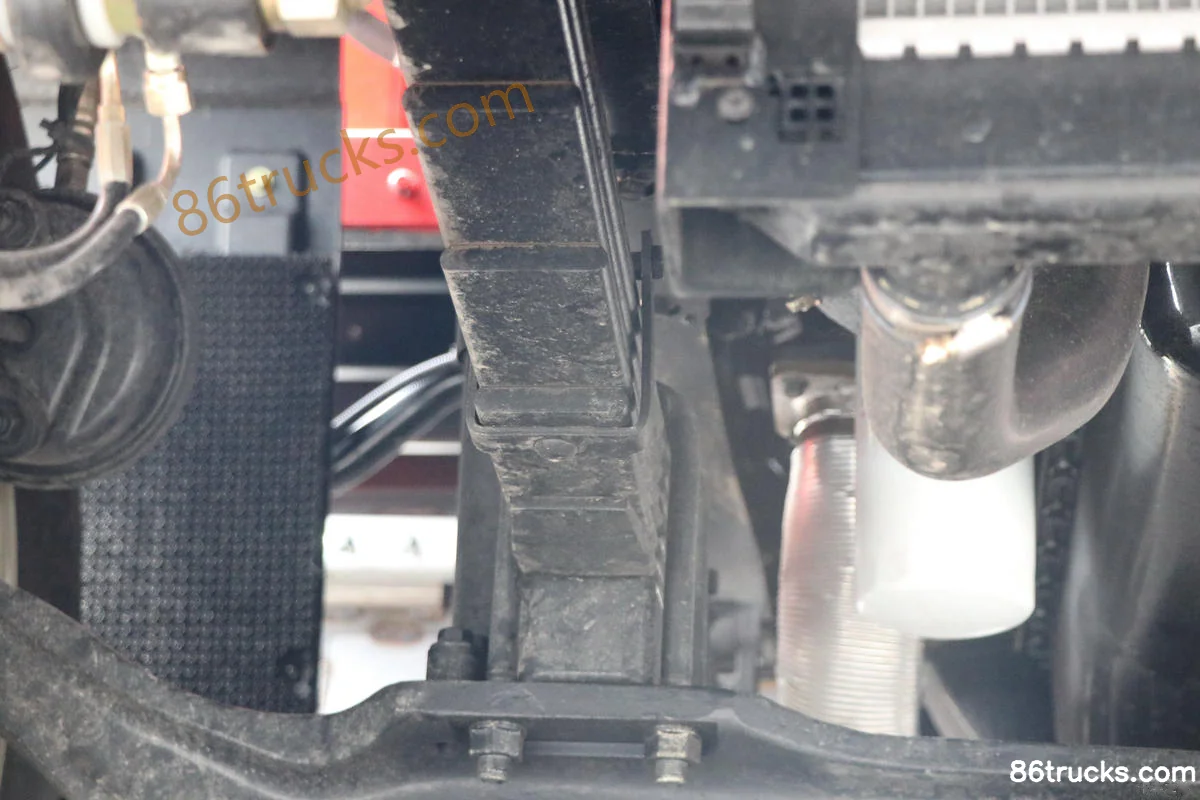

Chassis3

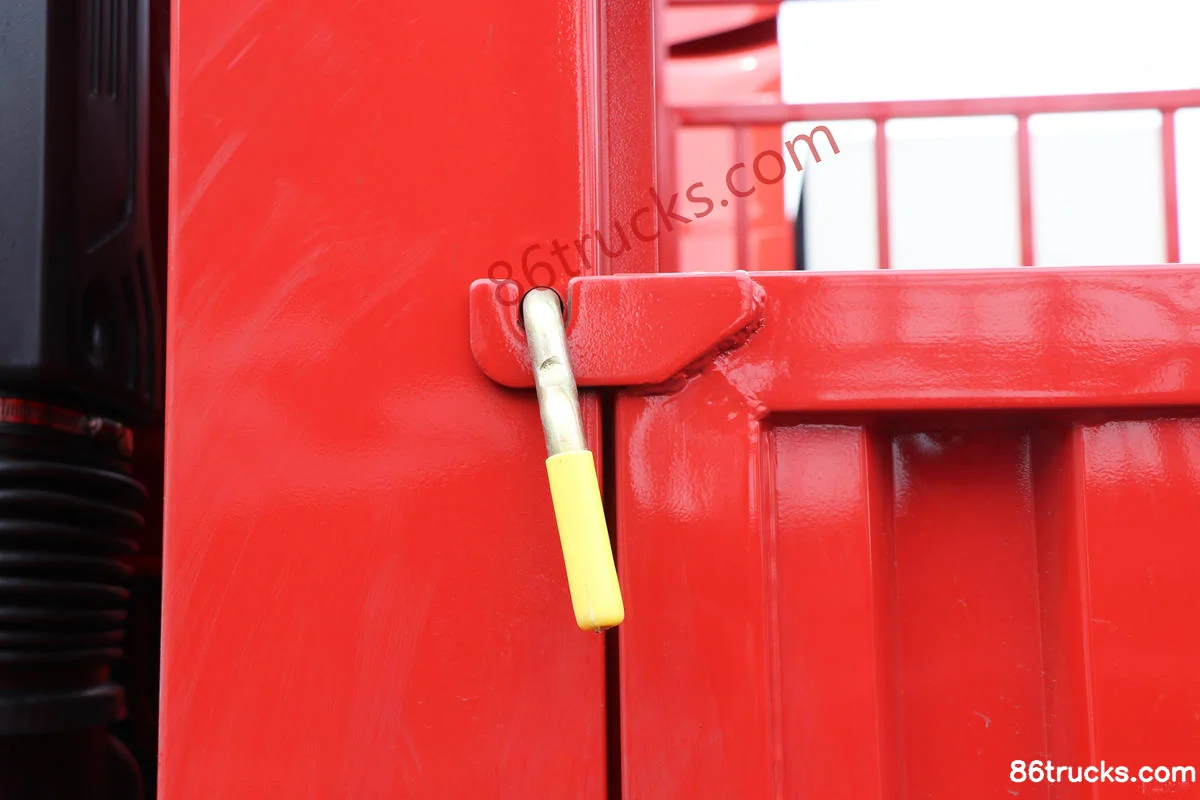

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck, and what does it include?

FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck export reference is about From $44,444; MSRP is ¥32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck?

Key specs of FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck: Drive: 4x2; Horsepower: 260 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG); Engine: Yuchai6.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck suited for?

FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck belongs to FAW Jiefang QingdaoJK6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Medium Truck 260hp CNG 4X2(6 wheels) 6.7m Flatbed Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
