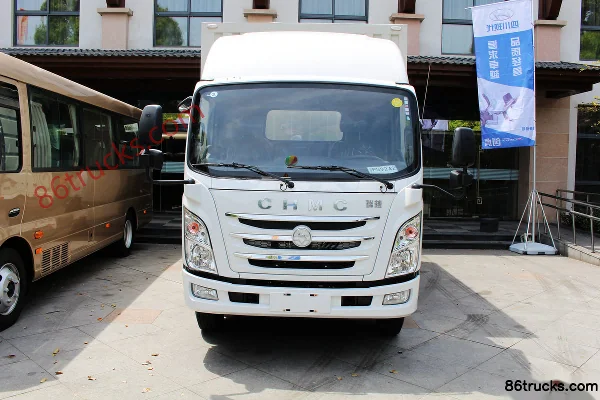

Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck

Export reference
From $17,778
MSRP ¥12.8M CNY
Horsepower: 109
Emission: China IV
Fuel: Diesel
Engine: Isuzu493
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.46ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck is a Light Truck featuring 3.83m cargo length, Van body cargo body, 3Personnel volume and 1.46t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 109 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ5040XXYZDB33M
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: IsuzuJE493ZLQ4
transmission: WLY5-speed
Cab length: 5.995m
Cab width: 2.17m
Cab height: 3.1m
Front track width: 1620mm
rear track: 1540mm
Curb Weight: 2.72ton
Rated payload: 1.46ton
GVWR: 4.375ton
Max. speed: 110km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Urban Distribution
Front/rear suspension: 1.11/1.585m
Energy Type: Diesel
Engine parameters
Engine Brand: Jiangxi Isuzu
Engine Model: IsuzuJE493ZLQ4
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 2000rpm
Rated speed: 3600rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: WLY5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.83m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1660kg
rear axle description: 3.5T rear axle
rear axle allowable load: 2715kg
Leaf spring count: 3/9+7
Tire
Tire Size: 7.00-16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck, and what does it include?

Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck export reference is about From $17,778; MSRP is ¥12.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck?

Key specs of Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Engine: Isuzu493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck suited for?

Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck differ from other variants in the same series?

Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck belongs to Sichuan Hyundai Ruiyue Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sichuan Hyundai Ruiyue 109 hp 4X2(6 wheels) 3.8 m Double Row Box Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
