JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)

Export reference
MSRP N/A
Horsepower: 122
Emission: China VI
Fuel: Diesel
Engine: JMC Tengbao 3.0
Curb Weight:: 2.32ton
Wheelbase:: 2800mm
seating capacity: 5Personnel
Rated payload: 1.85ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) is a Light Truck featuring 2.755m cargo length, stake body cargo body, 5Personnel volume and 1.85t payload. On the powertrain side, it comes with a JMC Tengbao 3.0 engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1041TSCB26
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 2.8m
engine: JMCJX493ZLQ6A
transmission: 5-speed manual
Cab length: 5.41m
Cab width: 1.94m
Cab height: 2.15m
Front track width: 1400mm
rear track: 1425mm
Curb Weight: 2.32ton
Rated payload: 1.85ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
Front/rear suspension: 1.075/1.56m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ6A
Engine info: JMC Tengbao 3.0
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 330N·m
Max torque speed: 2100rpm
Rated speed: 3600rpm
Engine Type: High-pressure common rail
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.755m
Cargo box width: 1.85m
Cargo box height: 0.38m
*Cargo box interior width: 1.8500000238419
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1445kg
rear axle allowable load: 3050kg
Leaf spring count: 7/6+5
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:

Photos

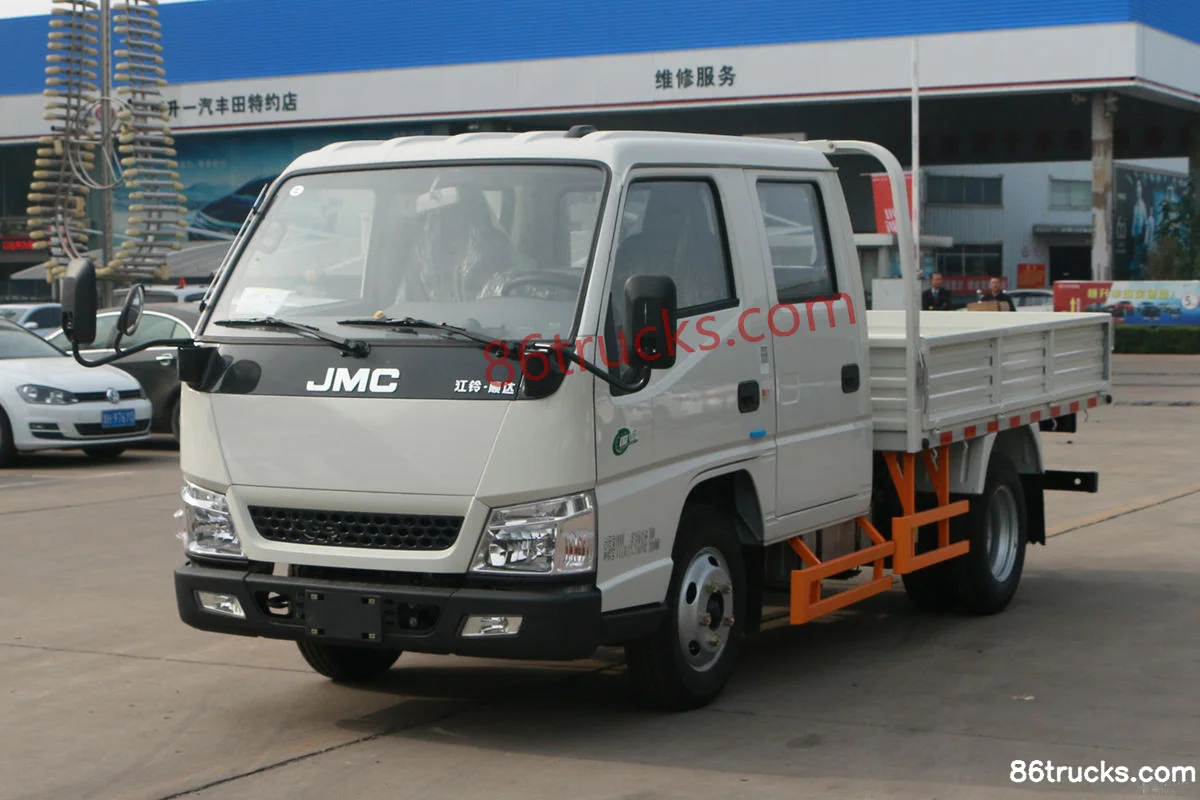

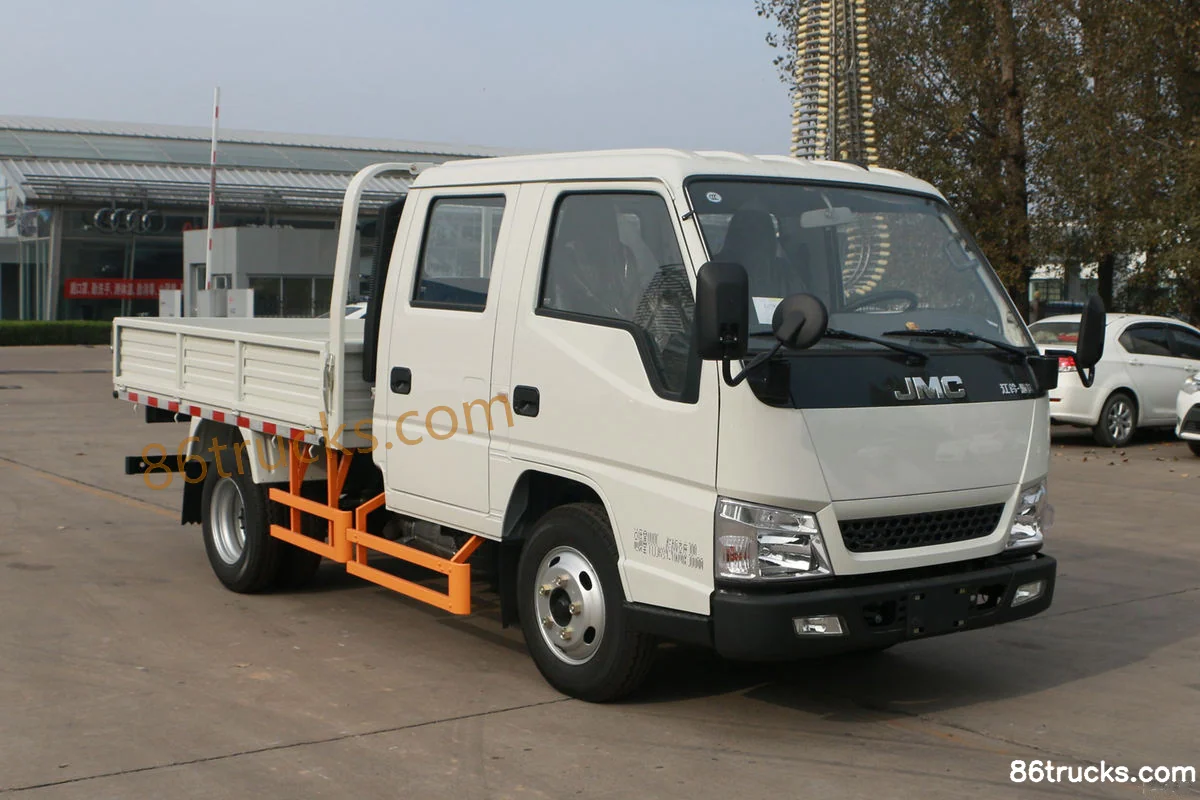

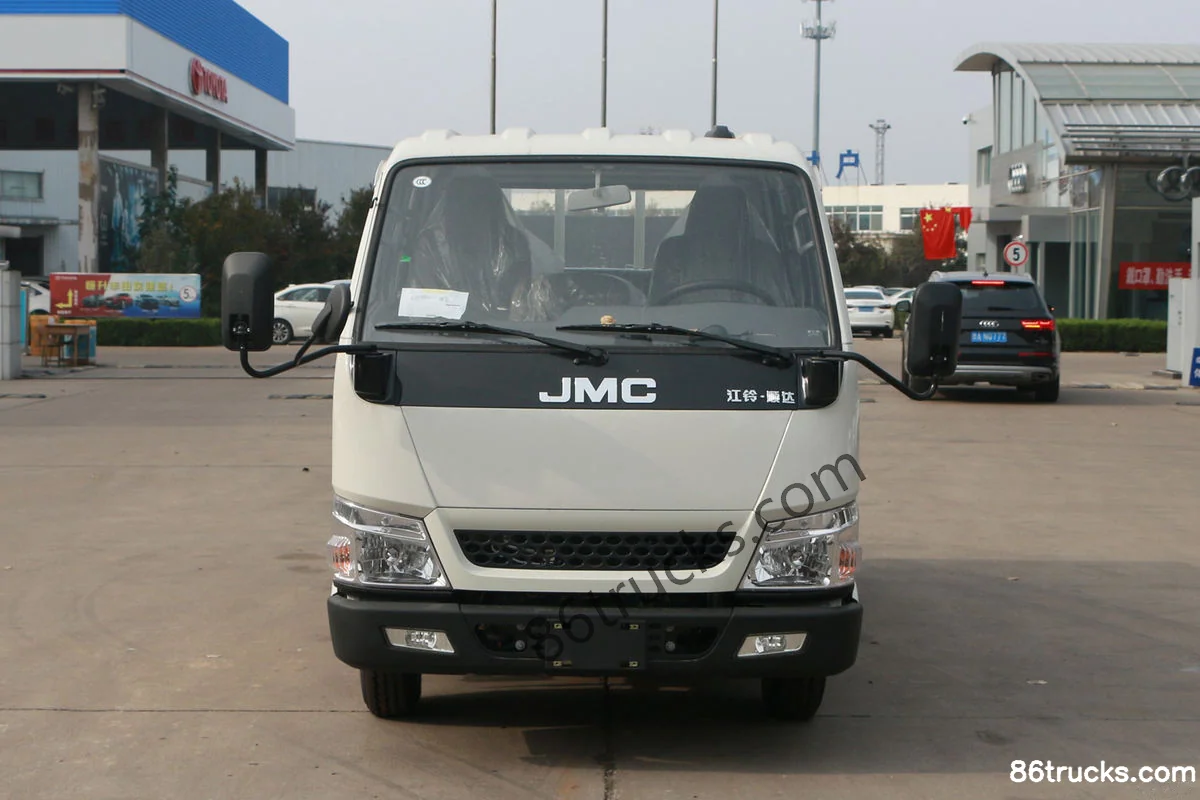

Exterior3

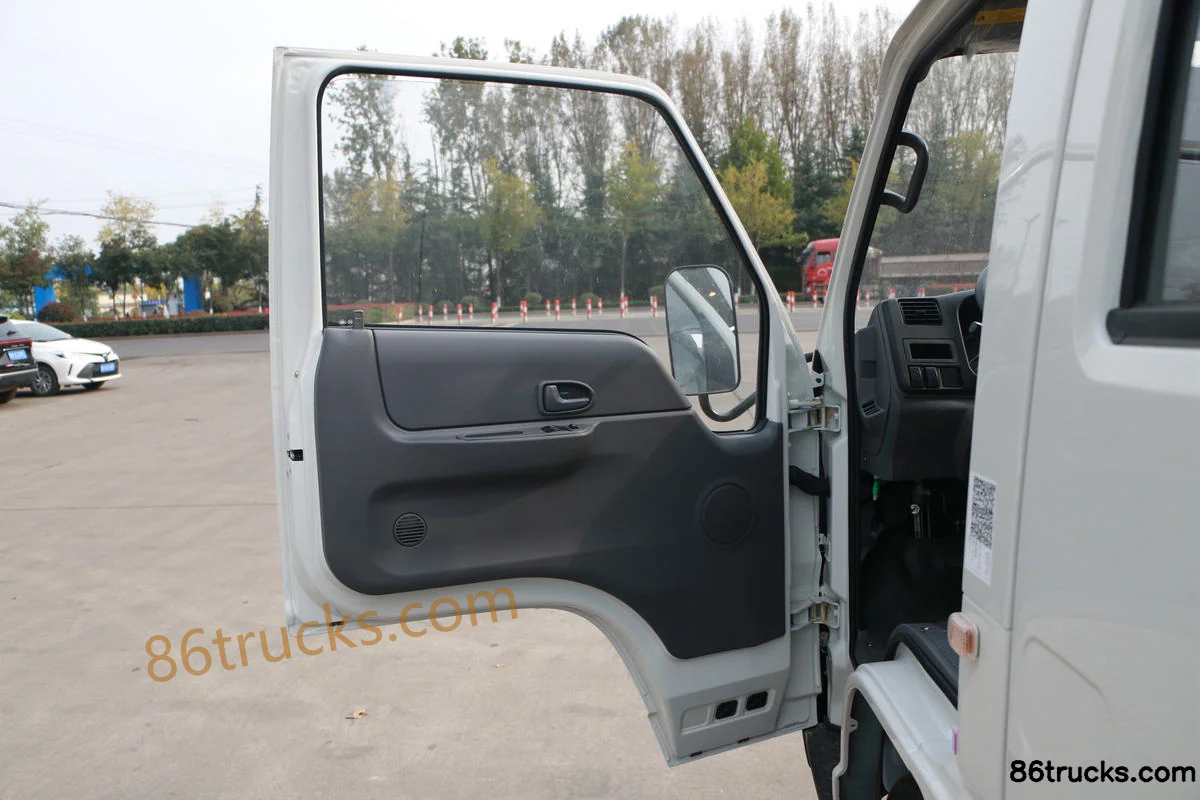

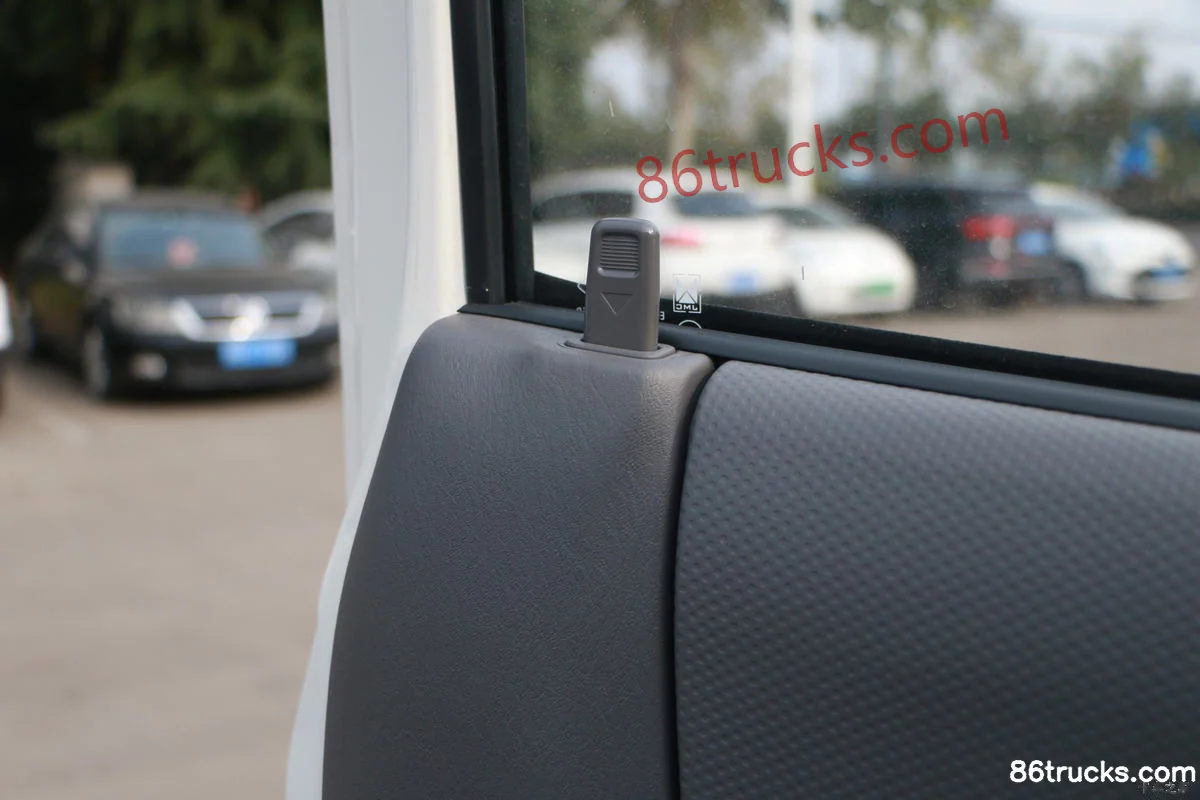

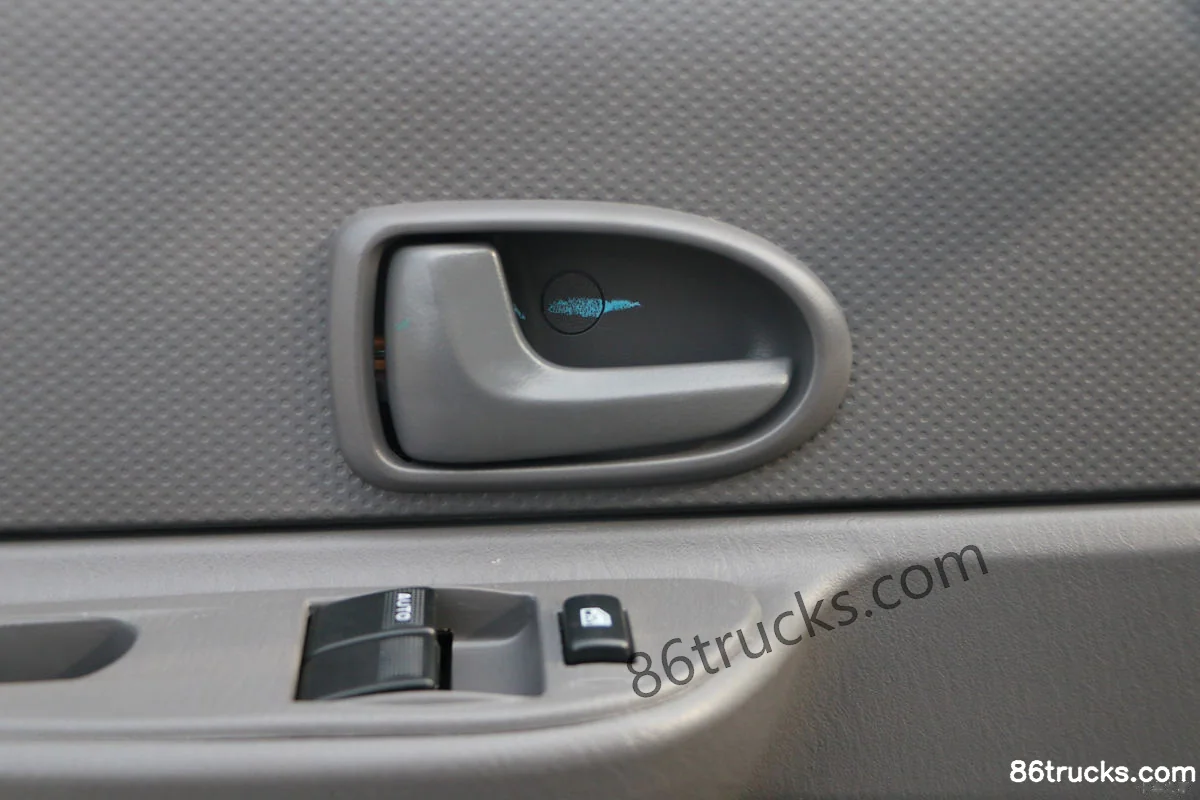

Cab3

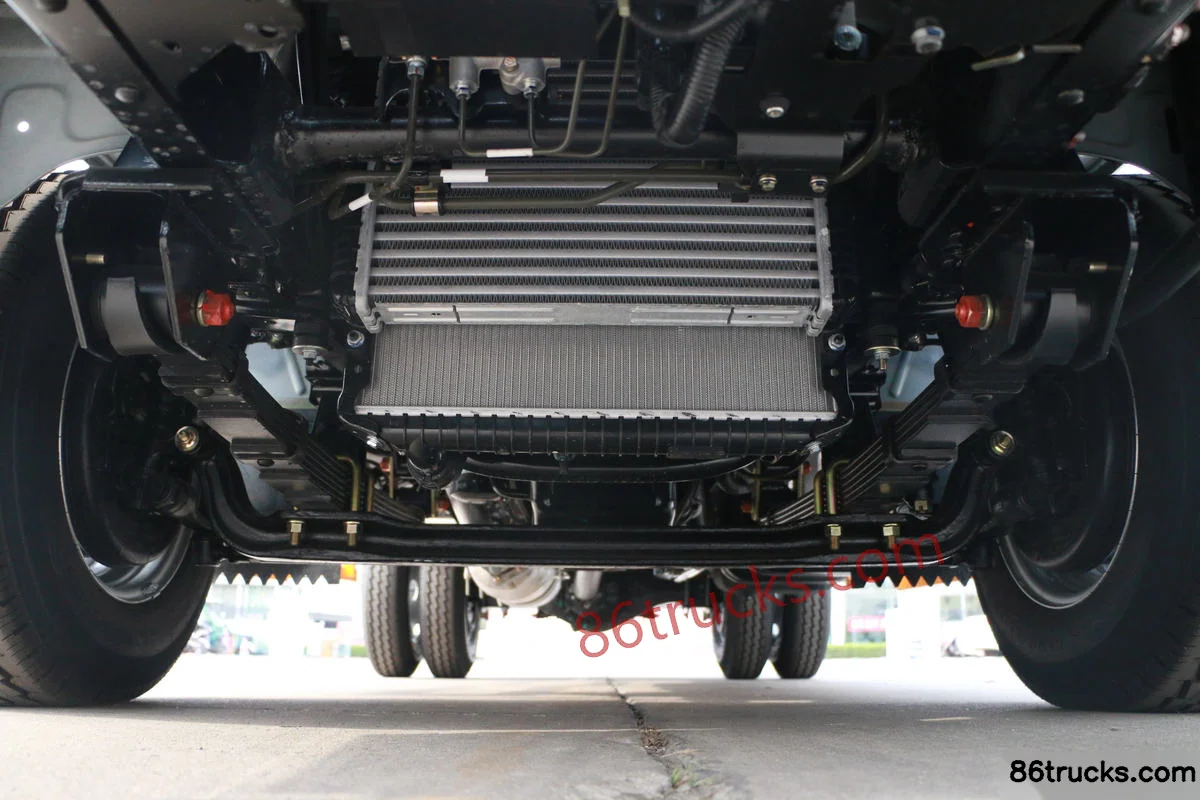

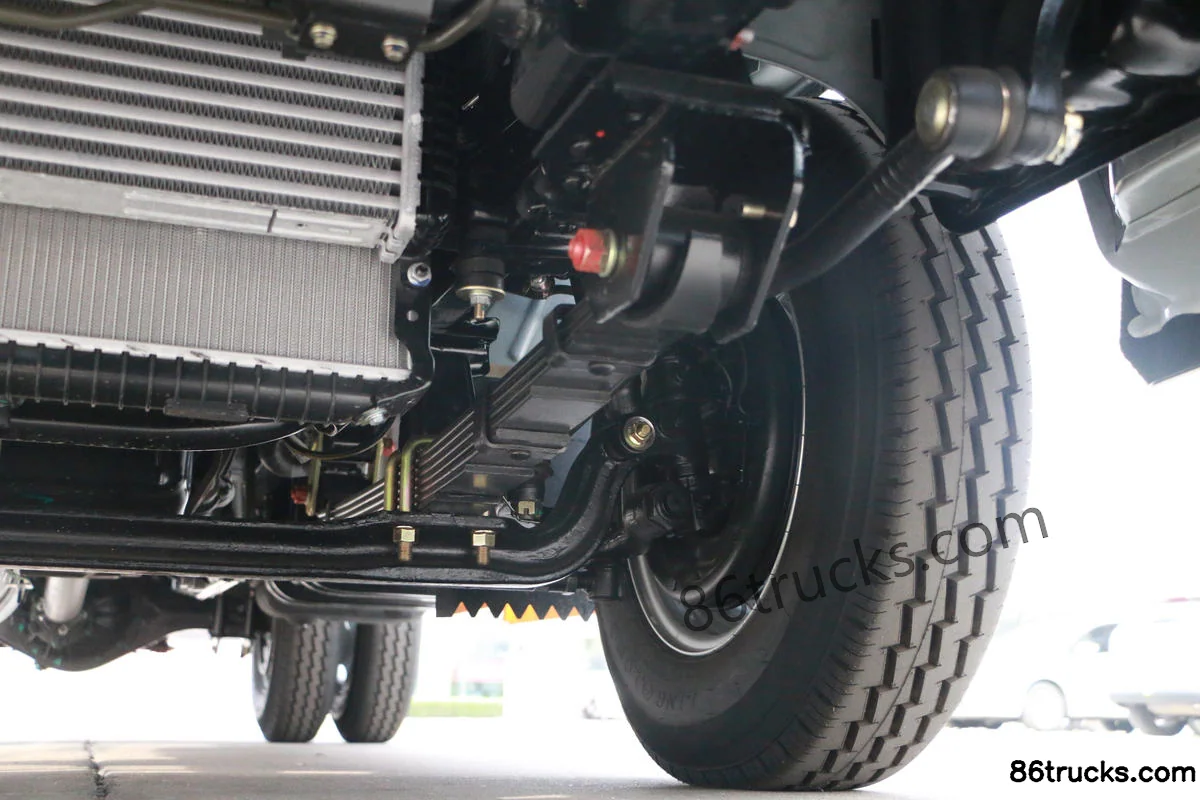

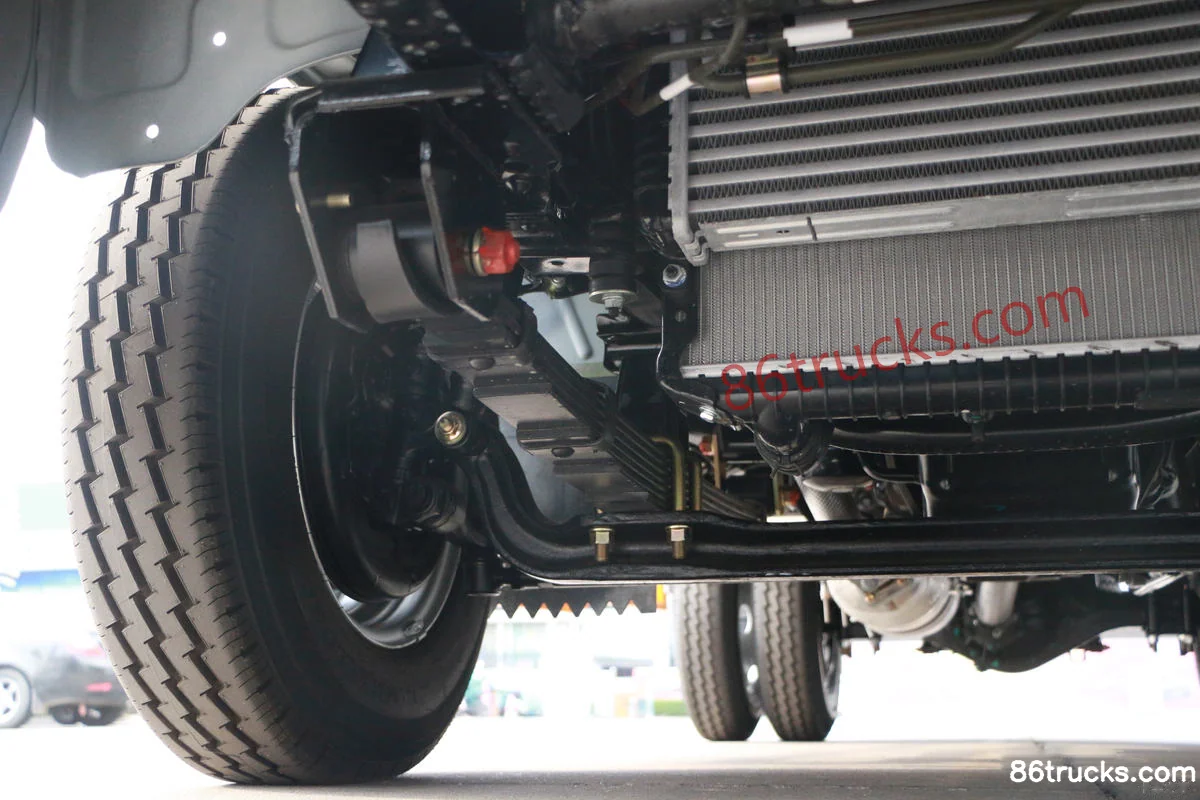

Chassis3

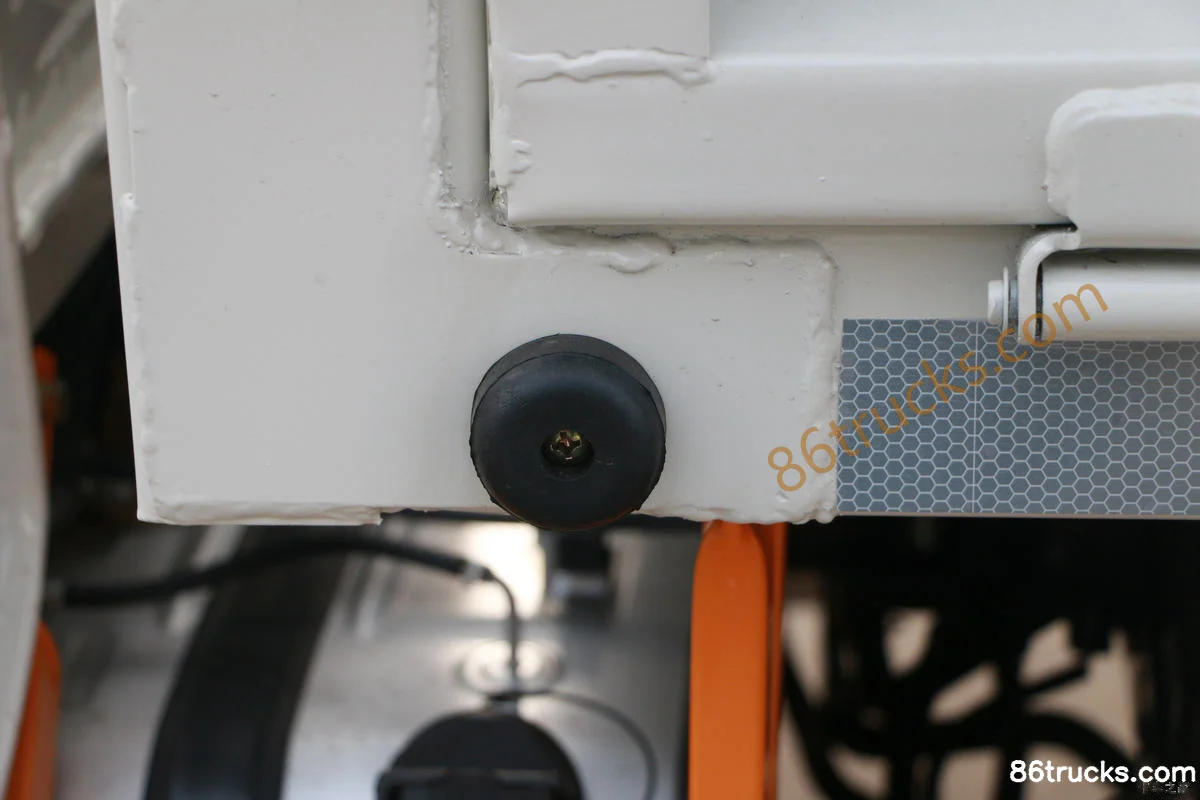

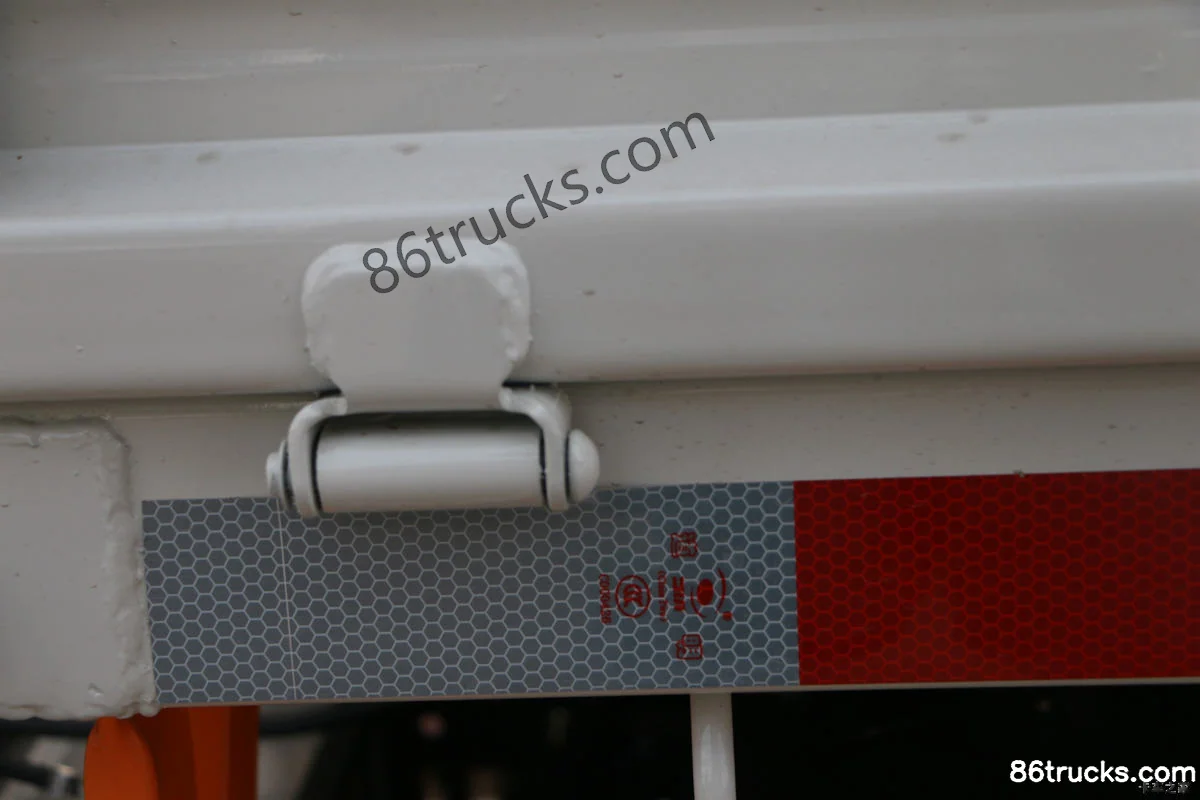

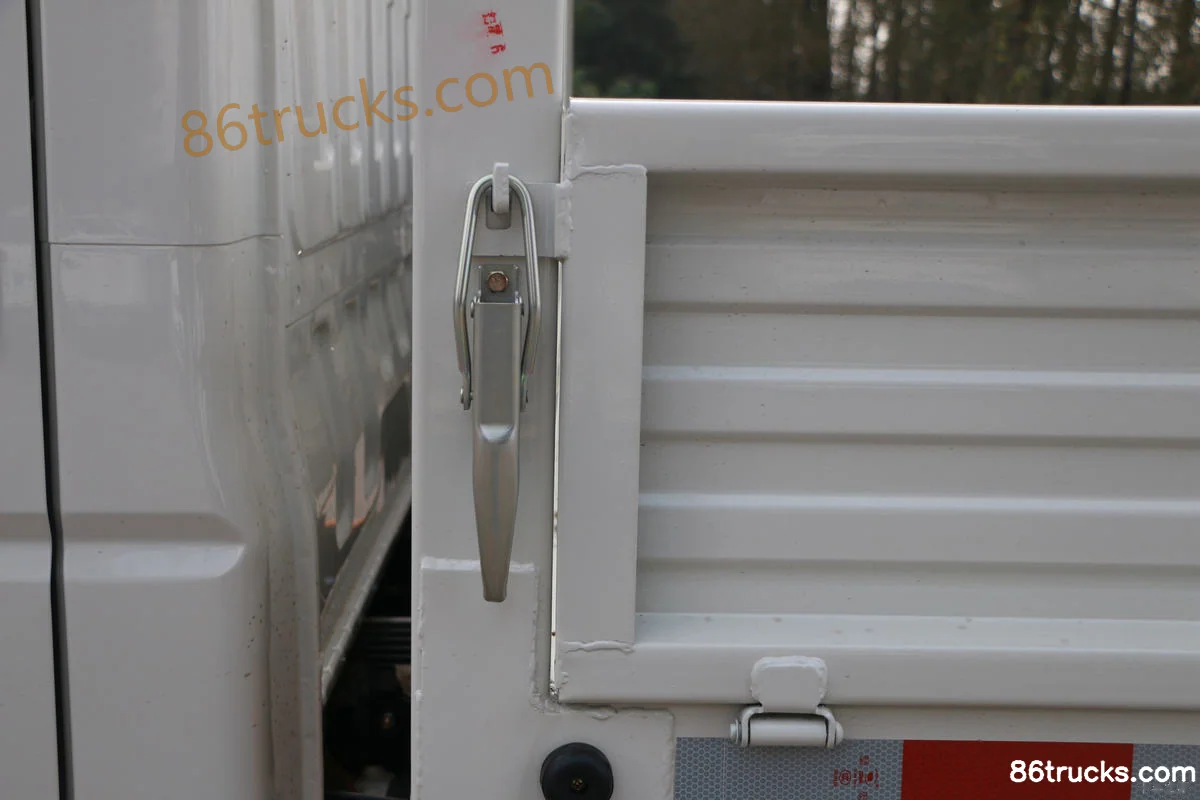

Body3

12 photos

FAQ

What emission standard does JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)?

Key specs of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI): Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel; Engine: JMC Tengbao 3.0. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) suited for?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) differ from other variants in the same series?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) belongs to JMC Shunda narrow-body light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
