Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 11.94ton
Wheelbase:: 1800+3000mm
Tire Size:: 10.00-20,10.00R20,11.00-20,11.00R20
Rated payload: 12.93ton
Drive 6X2 (8 wheels)
Horsepower 210
Cargo box type: Dump type

Overview

The Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck is a Medium-duty truck featuring 12.93t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.21-40 engine, 210 hp, China IV emissions and Sinotruk transmission.

China IV 210 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3251H30CGD1
Drive type: 6X2
Wheelbase: 1800+3000mm
engine: SinotrukMC07.21-40
transmission: SinotrukHW12710
Rear Axle Ratio: 5.286
Cab length: 7.57m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2035/2035mm
rear track: 1850mm
Curb Weight: 11.94ton
Rated payload: 12.93ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Medium-duty truck
Approach angle: 13°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.21-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China IV
Max output power: 151kW
Max hp: 210Horsepower
Max torque: 830N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW12710
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 1.3m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/7000kg
Frame Dimensions: 280mm
rear axle allowable load: 11500kg
Axle ratio: 5.286
Leaf spring count: 9/9/10+7,10/10/12+9
clutch: Φ430
Tire
Tire Size: 10.00-20,10.00R20,11.00-20,11.00R20
Number of tires: 8pcs

Photos

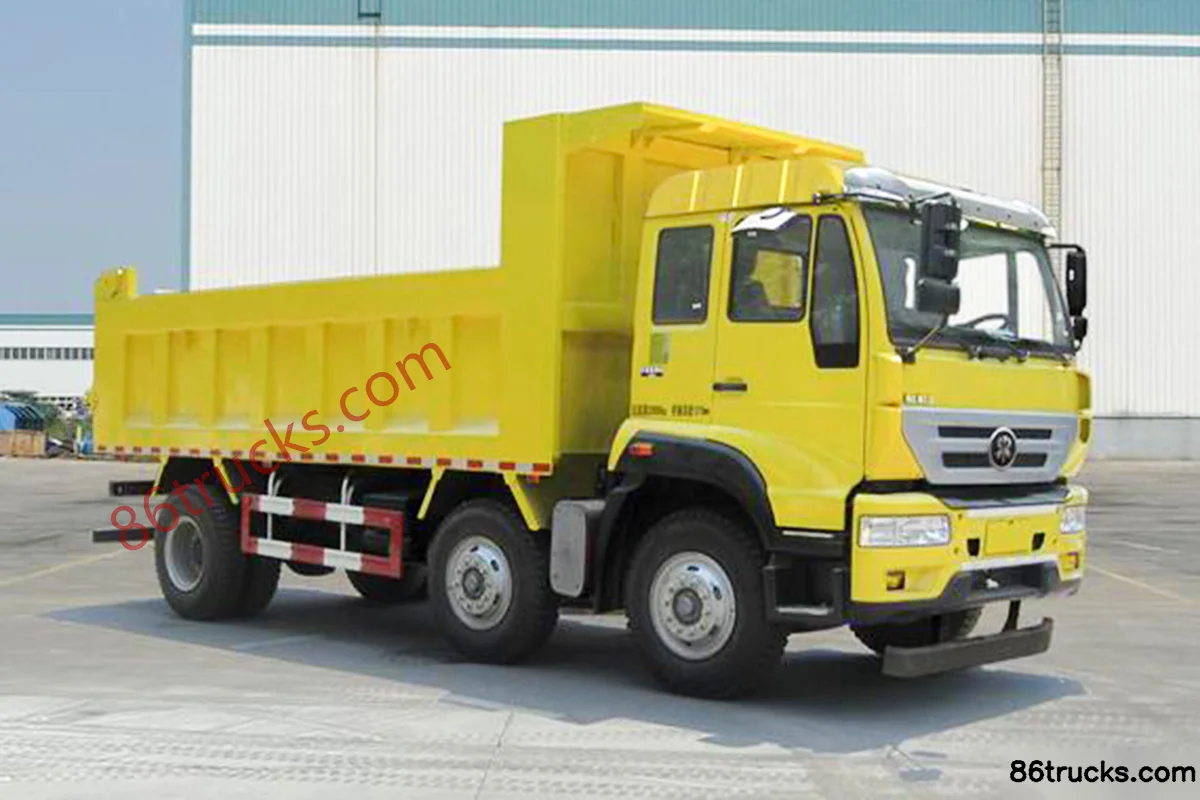

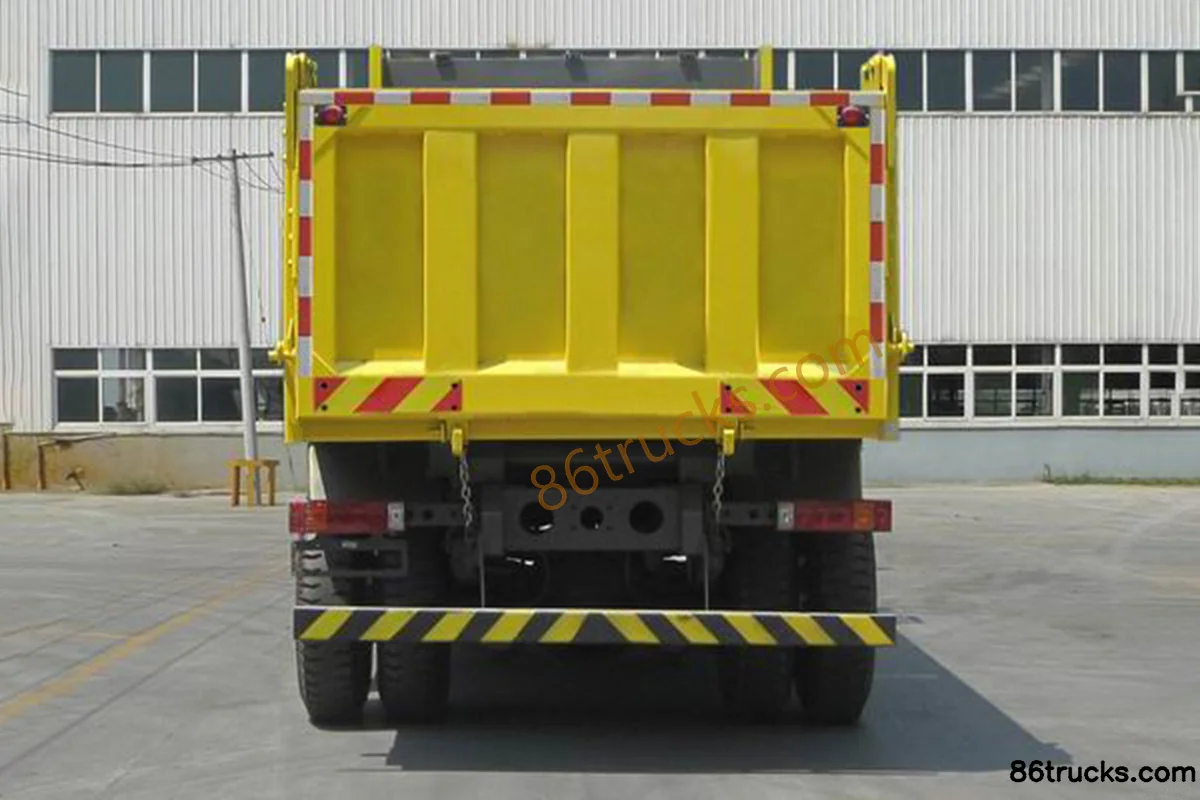

Exterior2

2 photos

FAQ

What emission standard does Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck?

Key specs of Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck: Drive: 6x2; Horsepower: 210 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck suited for?

Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck differ from other variants in the same series?

Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck belongs to Sinotruk M5G Quasi-heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr M5G Medium Truck 206 hp 6X2(8 wheels) 5.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
