Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.015ton
Wheelbase:: 1750+2200mm
Tire Size:: 11.00R20 18PR
Rated payload: 15.99ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck is a Light Truck featuring 15.99t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3256L06Y2D5
Drive type: 6X2
Wheelbase: 1750+2200mm
engine: YuchaiYC4EG220-50
transmission: Fast Gear10JS90
Rear Axle Ratio: 5.286
Cab length: 6.79m
Cab width: 2.41m
Cab height: 2.8m
Front track width: 1760/1760mm
rear track: 1725mm
Curb Weight: 8.015ton
Rated payload: 15.99ton
GVWR: 25ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 25°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear10JS90
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.2m
Cargo box height: 1.2m
Chassis Specs
Front axle allowable load: 6990/6990kg
rear axle allowable load: 11020kg
Axle ratio: 5.286
Leaf spring count: 9/9/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

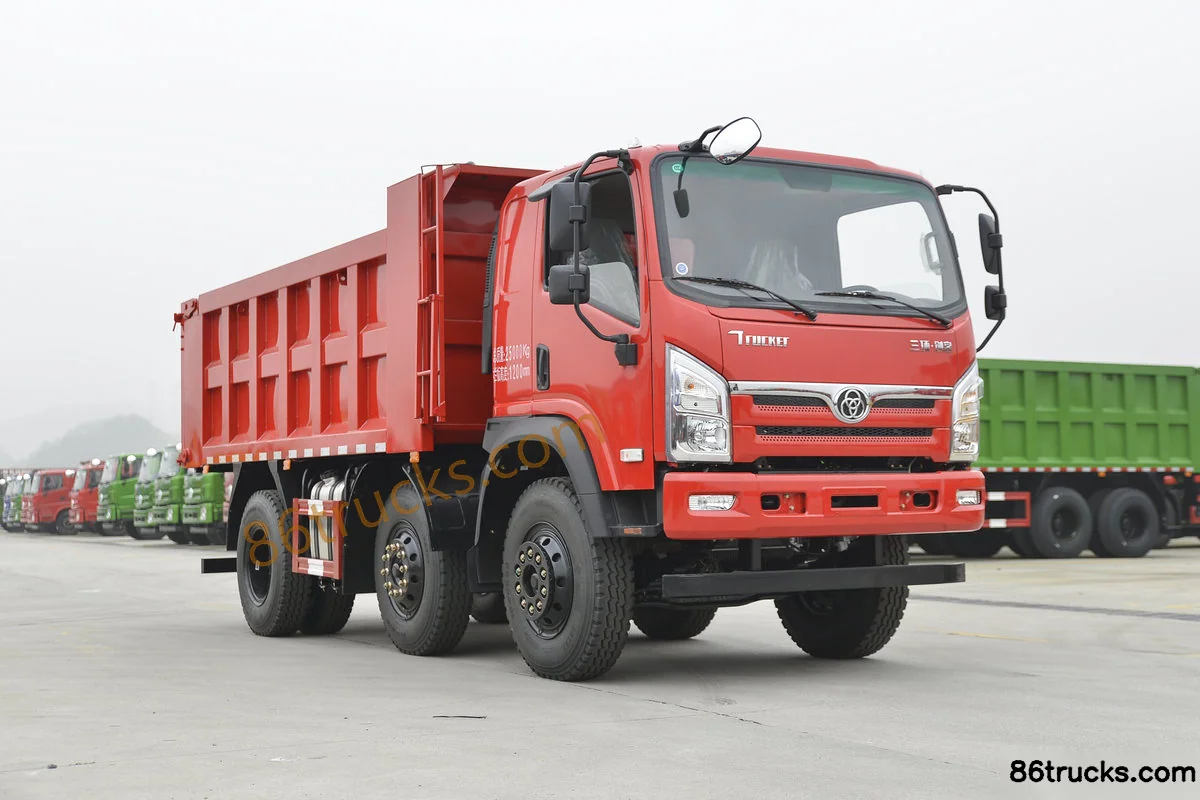

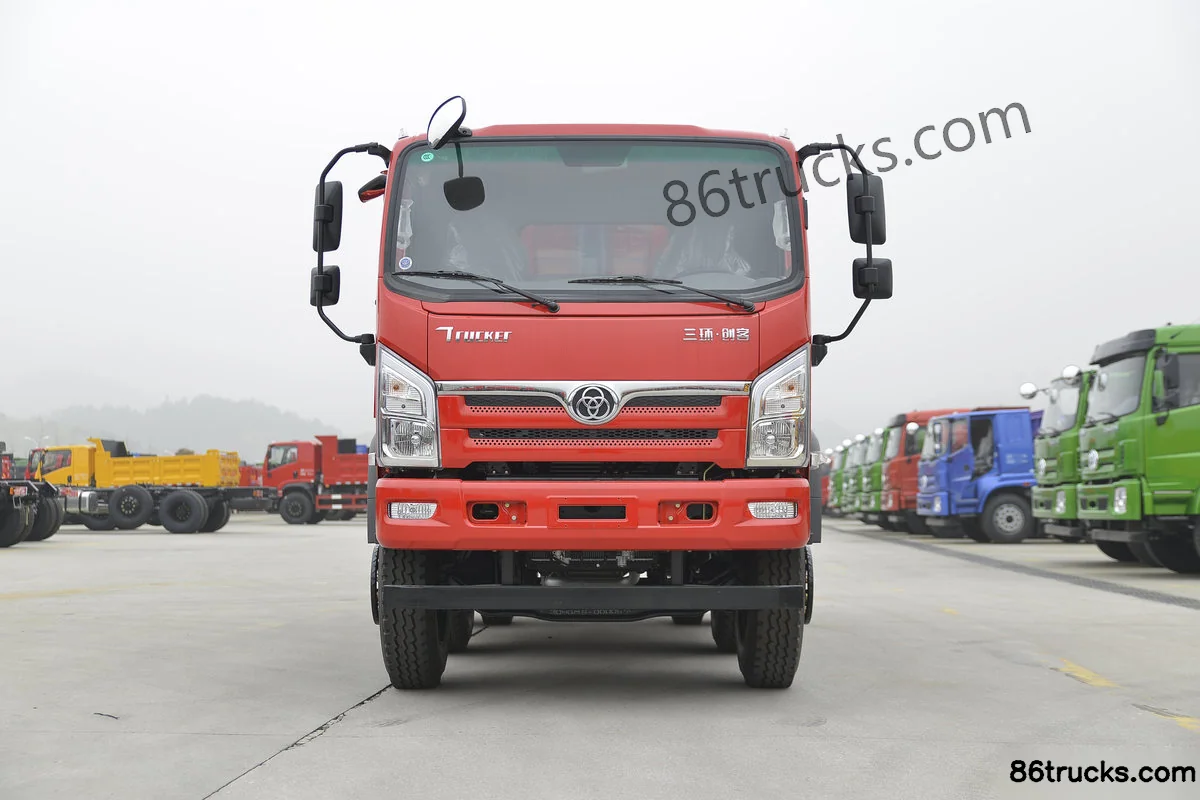

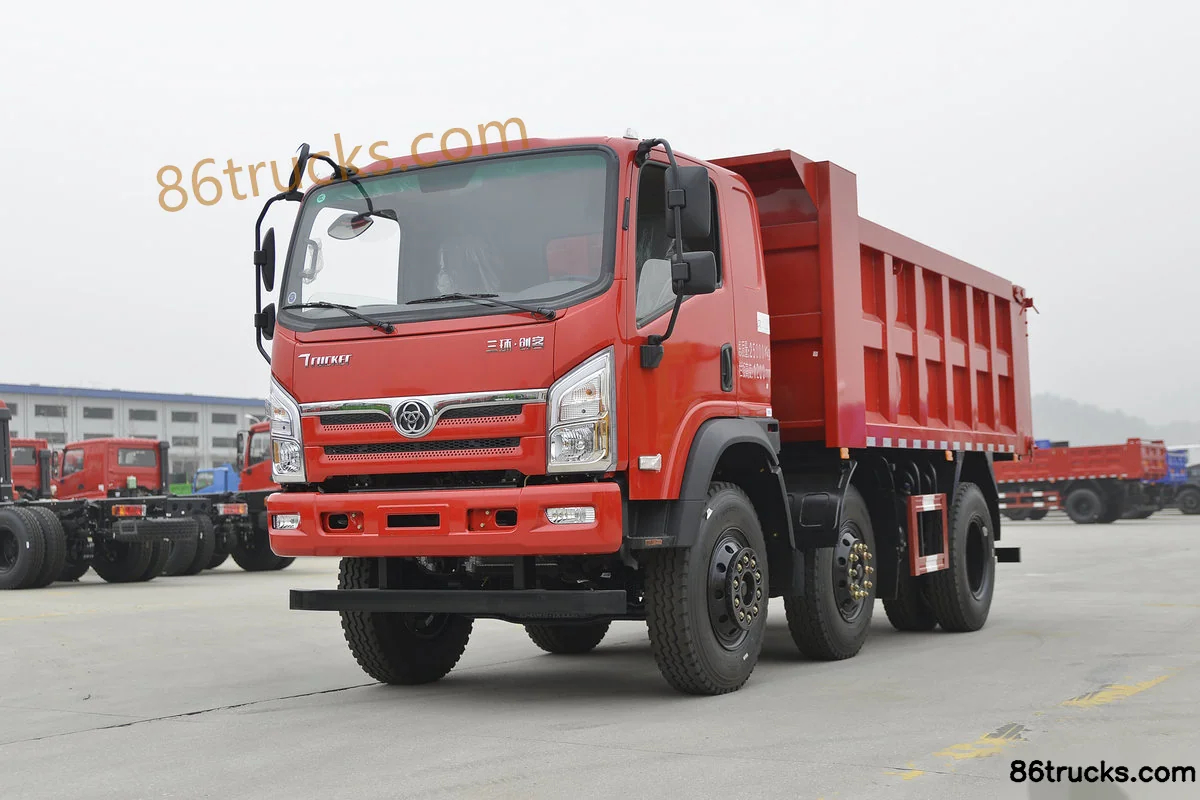

Exterior3

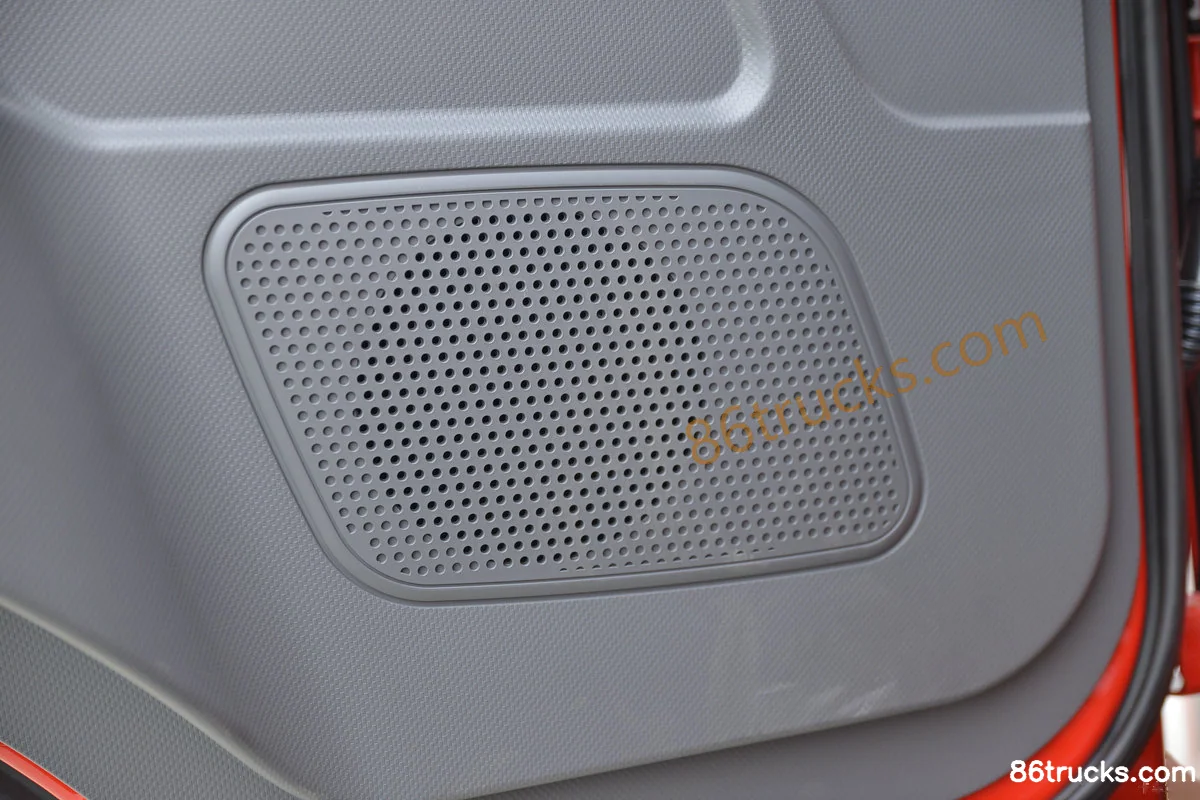

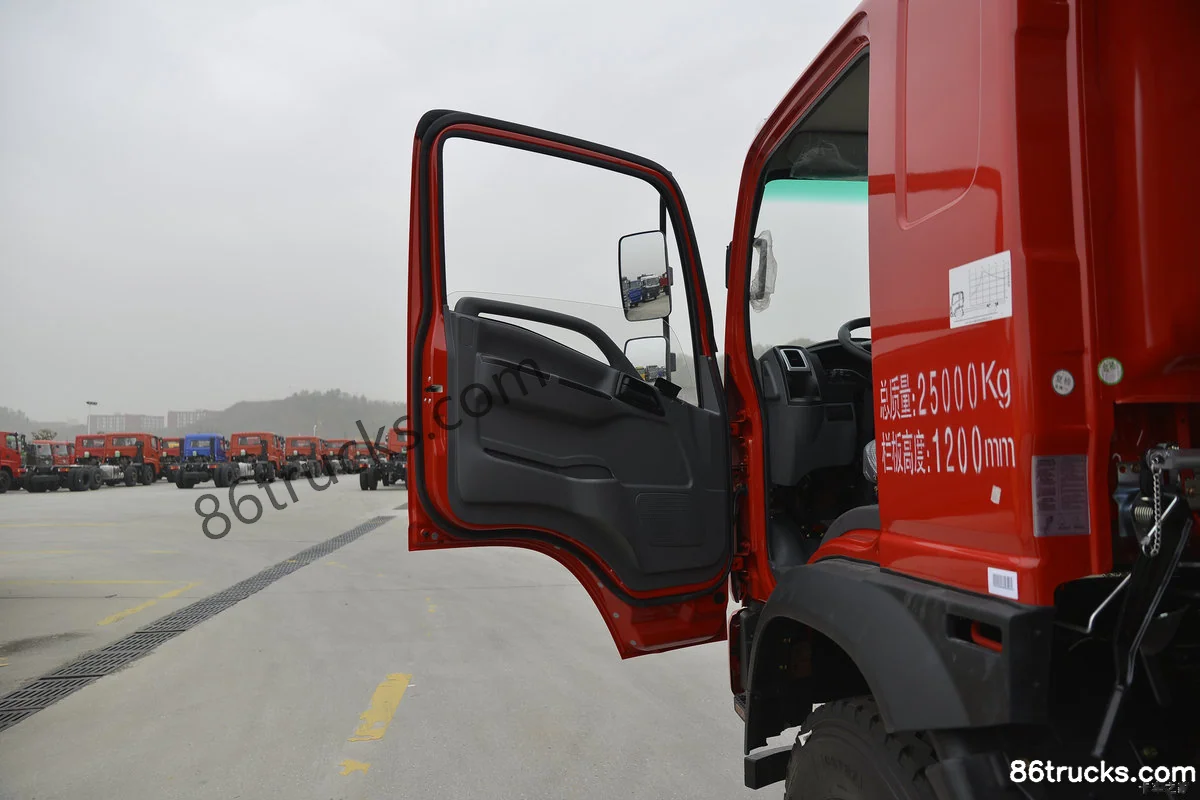

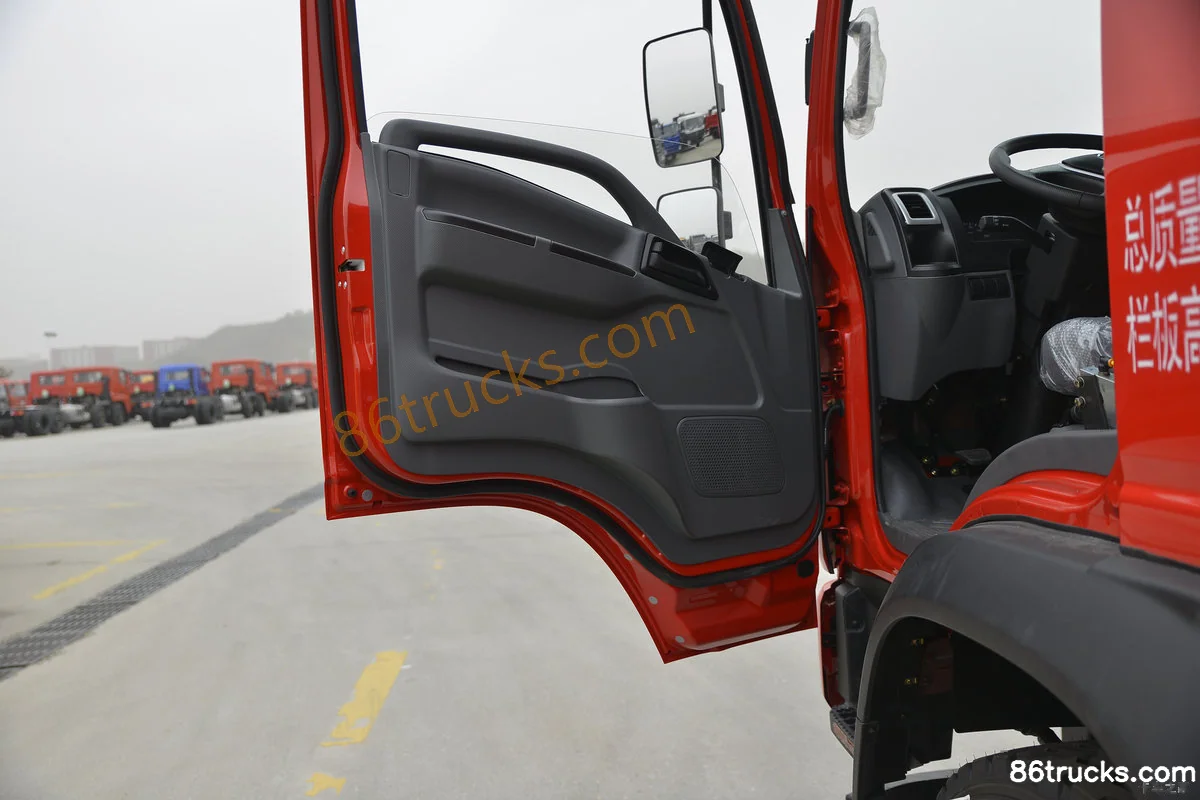

Cab3

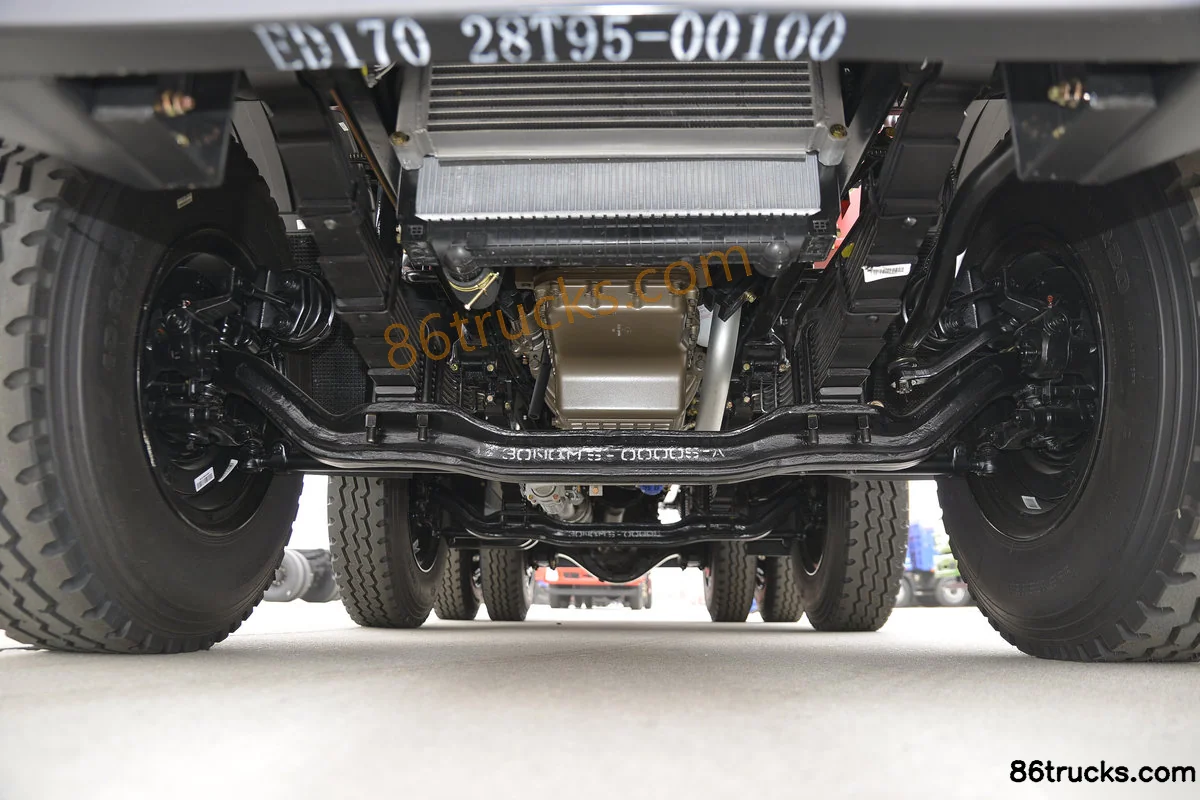

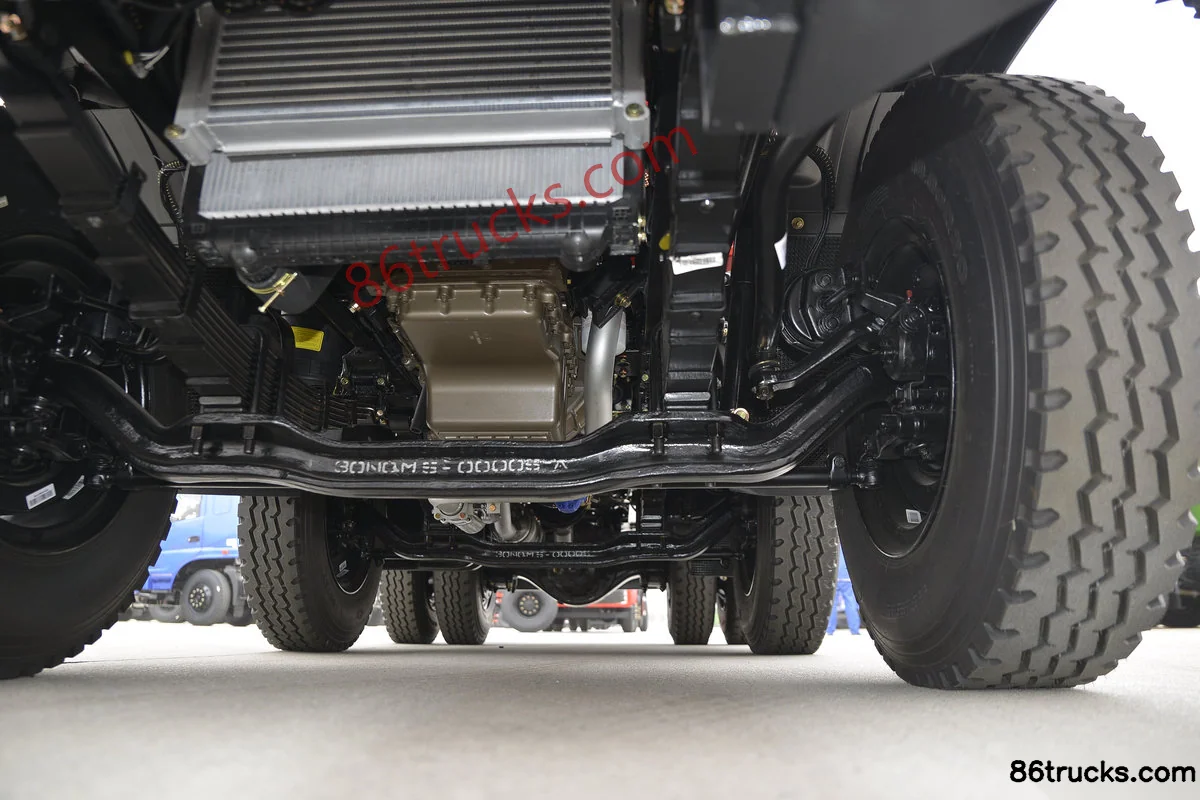

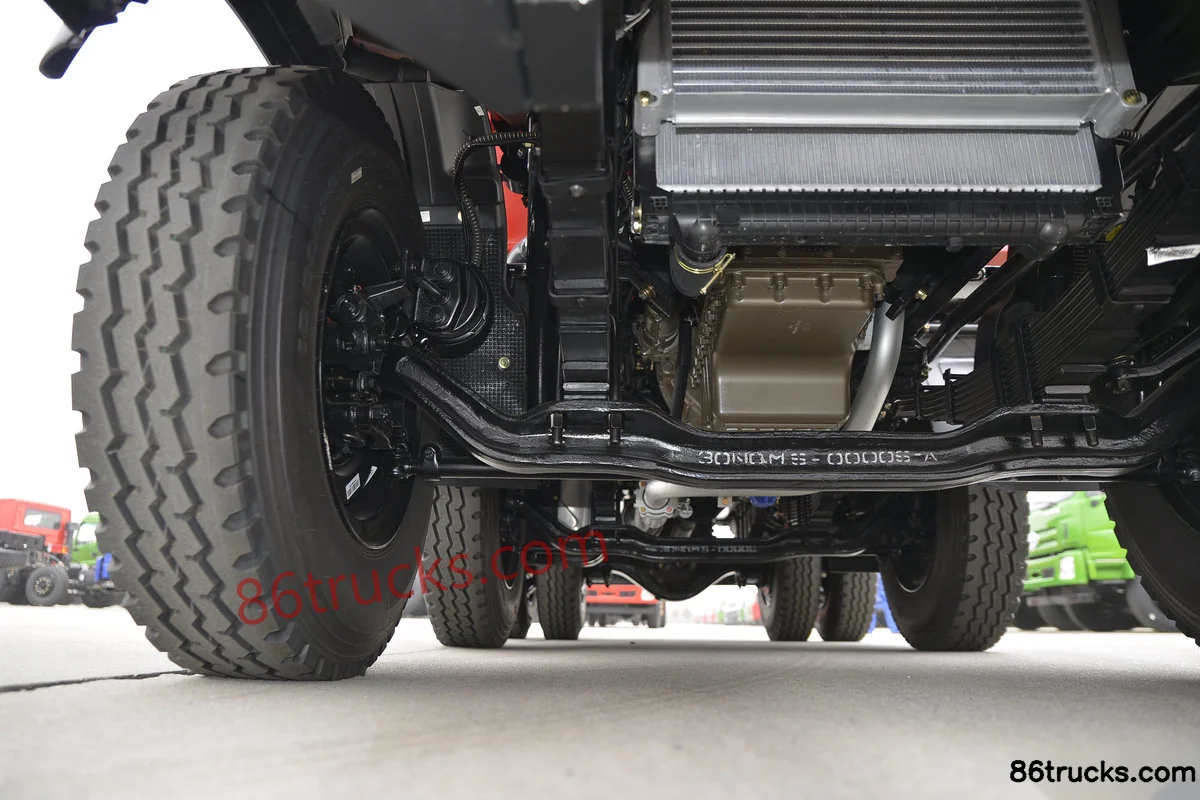

Chassis3

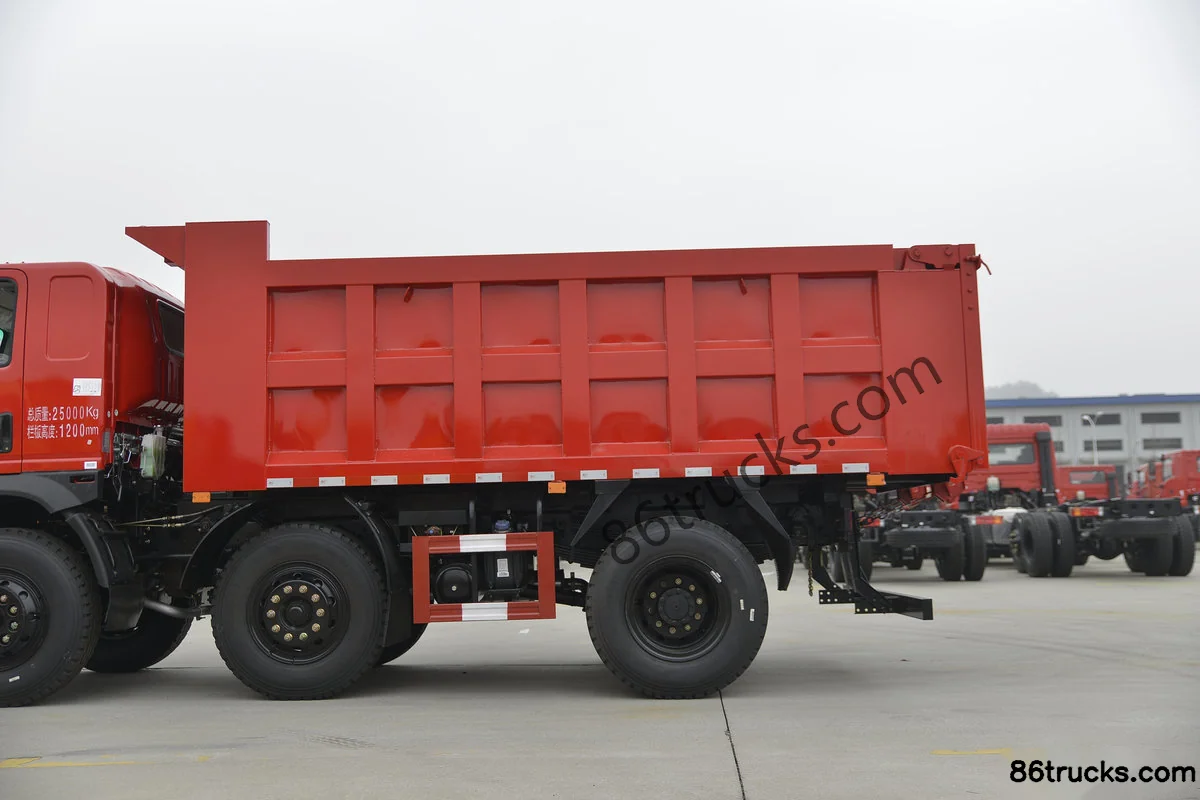

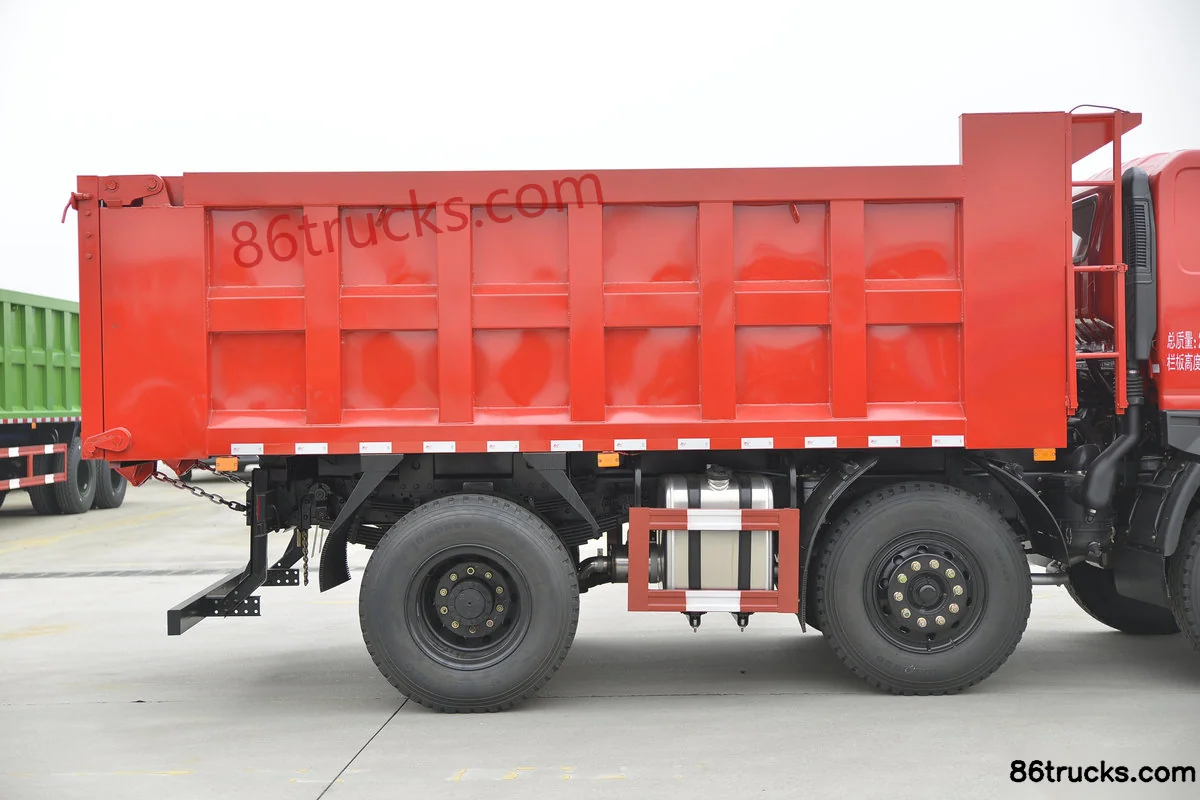

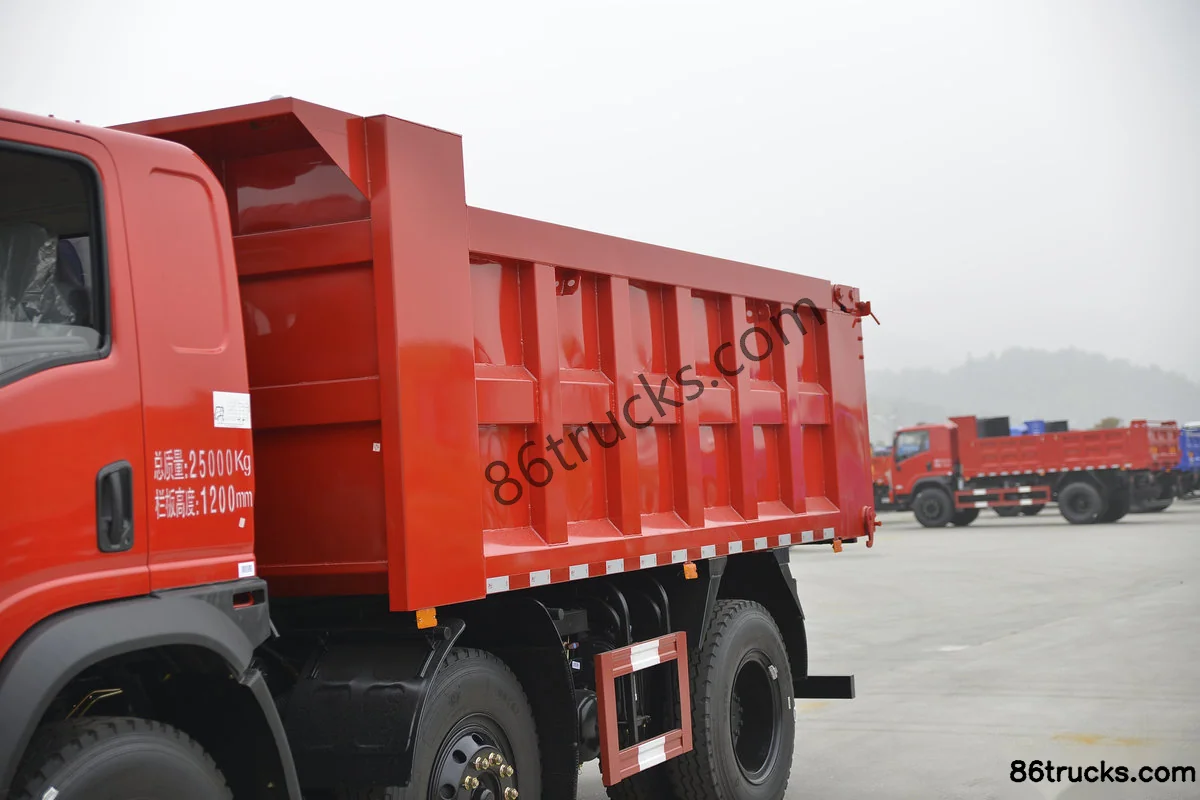

Body3

12 photos

FAQ

What emission standard does Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck?

Key specs of Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck suited for?

Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 220 hp 6X2(8 wheels) 4.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
