JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh

Export reference
MSRP N/A
Rated payload:: 8.32ton
Wheelbase:: 7150mm
Cargo box type:: Van body
Model code (announced):: HFC5187XXYFCEV01
Type:: enclosed cargo truck
Box length class:: 9.8m
JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: 盟固利
Motor 1 Brand: Lv Kong
Curb Weight: 9.55ton

Overview

The JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh is a Medium-duty truck featuring 盟固利 battery/range, Lv Kong motor, 4X2 (6 wheels) drive and 8.32t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5187XXYFCEV01
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7150mm
Box length class: 9.8m
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Curb Weight: 9.55ton
Rated payload: 8.32ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Energy Type: Hydrogen
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM1113
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hydrogen
total rated power: 100kW
Peak power: 200kW
Battery/Charging
Battery Brand: 盟固利
Battery type: Lithium manganate battery
Battery capacity: 50.45kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.8m
Cargo box width: 2.48m
Cargo box height: 2.8m
Cab parameters
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

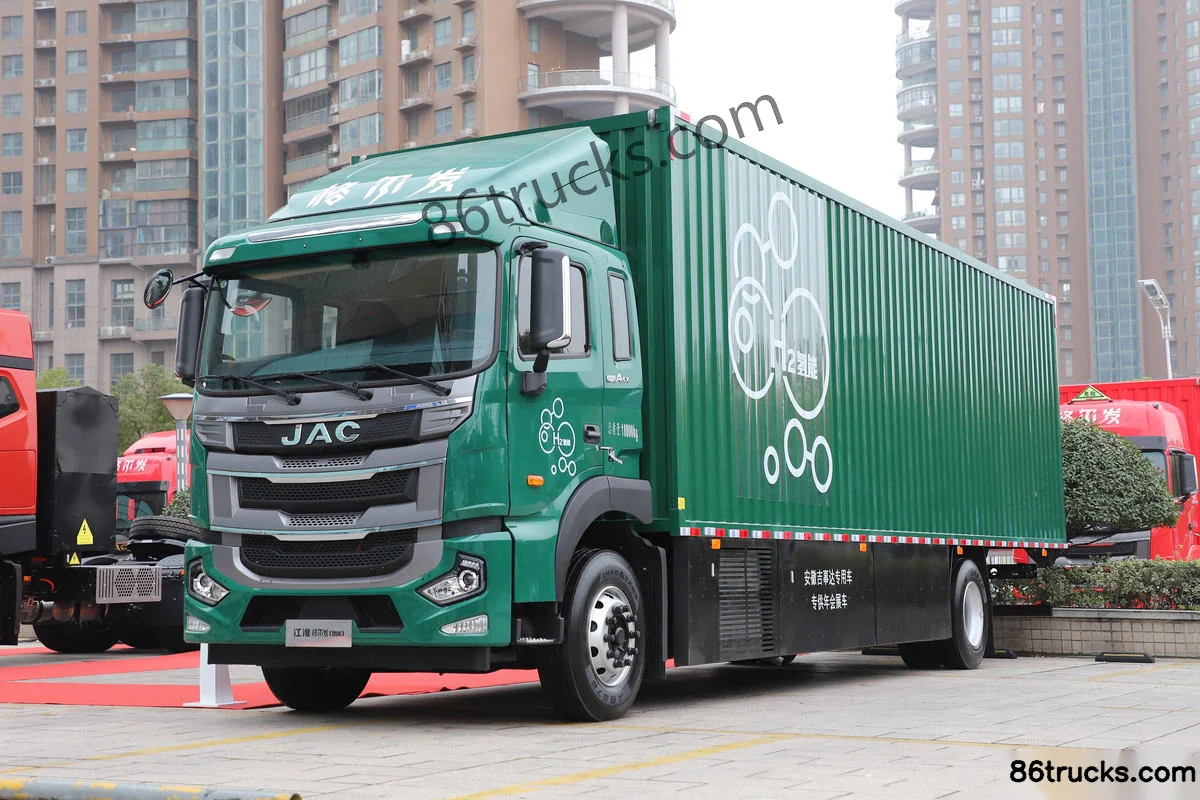

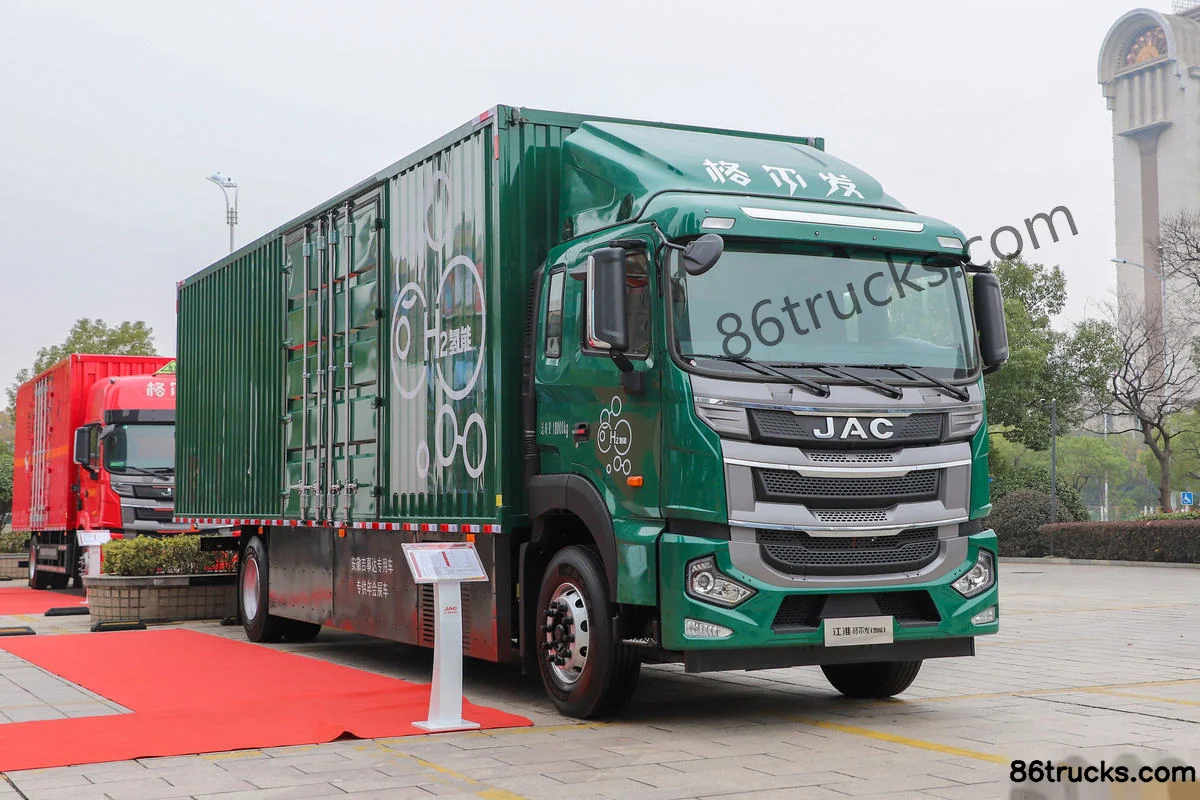

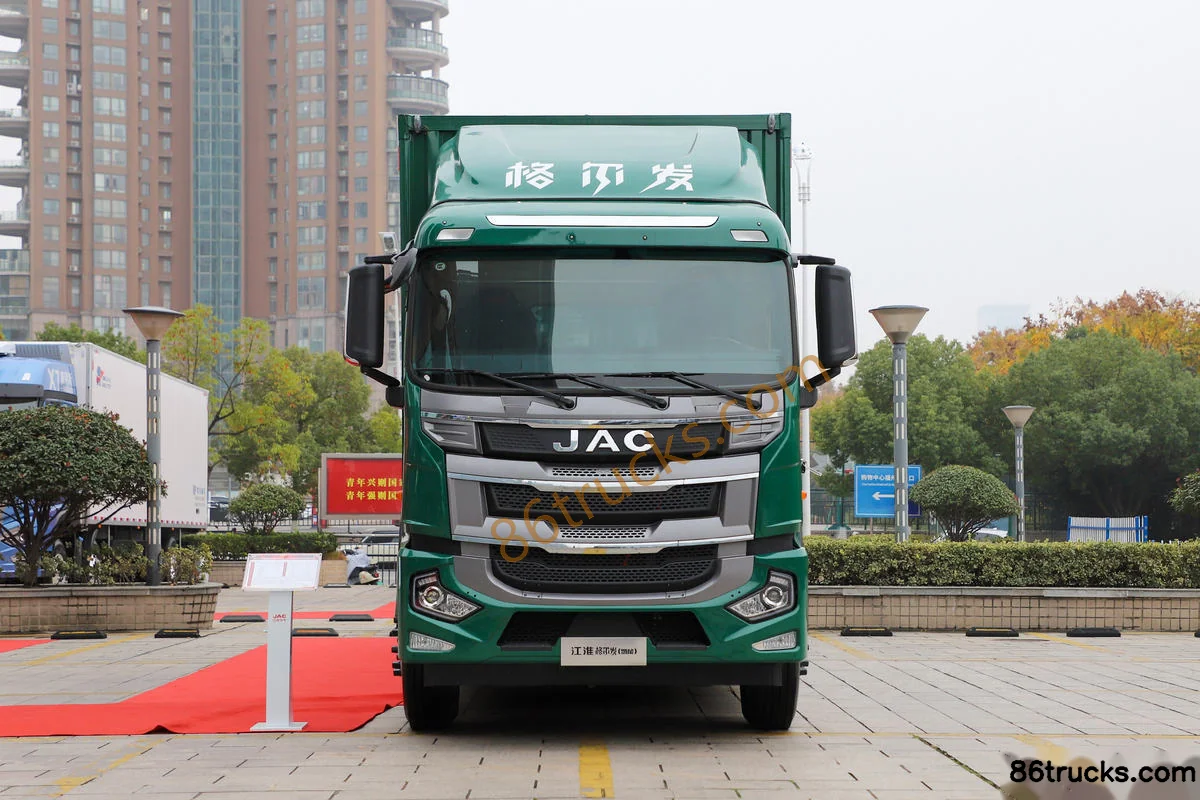

JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Exterior (1) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Exterior (2) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Exterior (3) | 86Trucks

Interior3

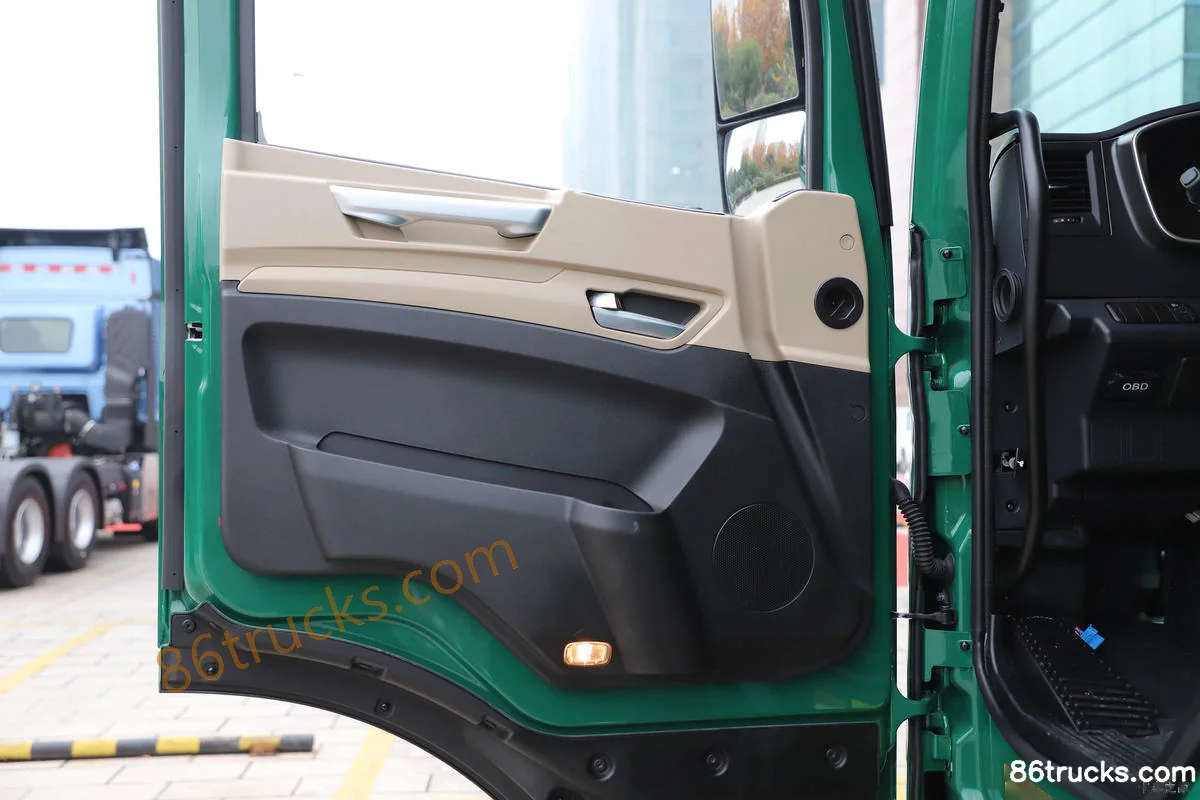

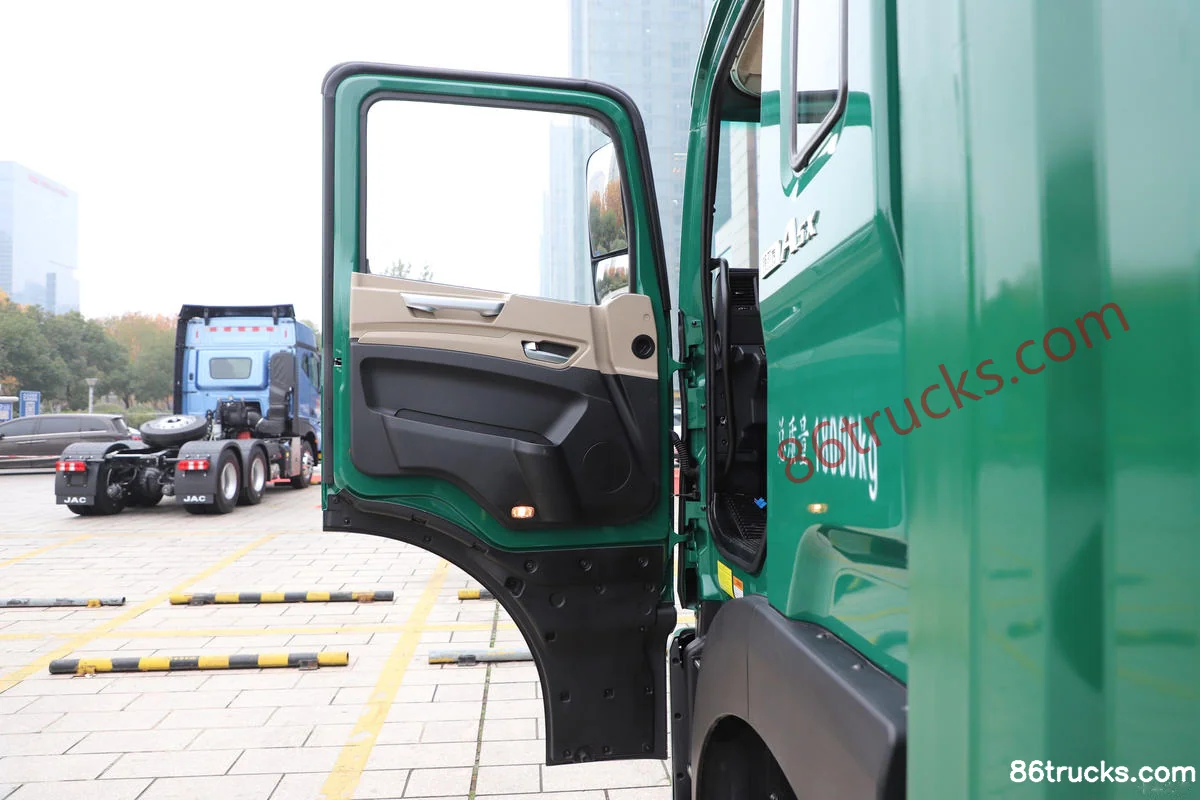

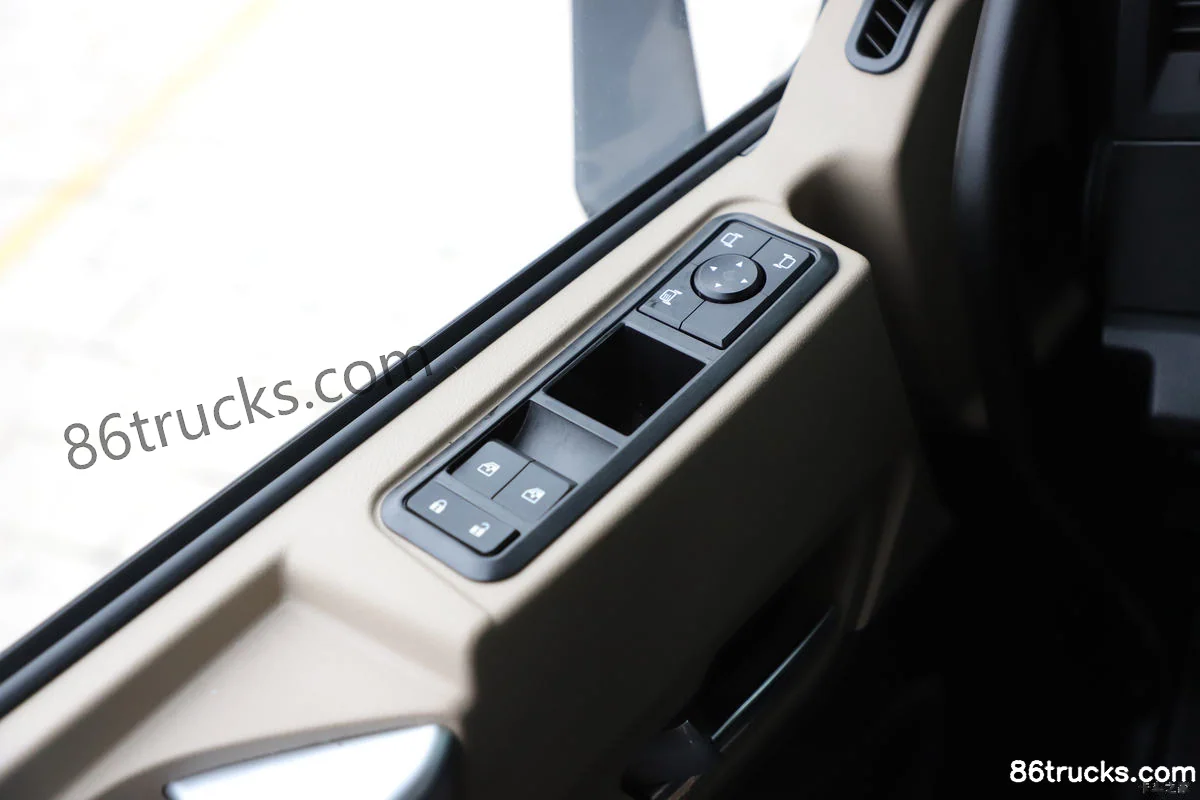

JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Interior (1) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Interior (2) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Interior (3) | 86Trucks

Chassis3

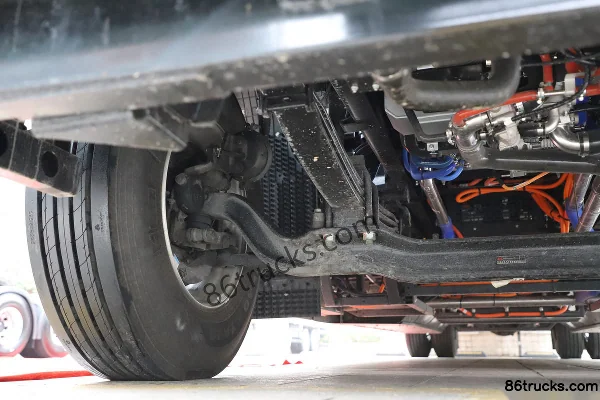

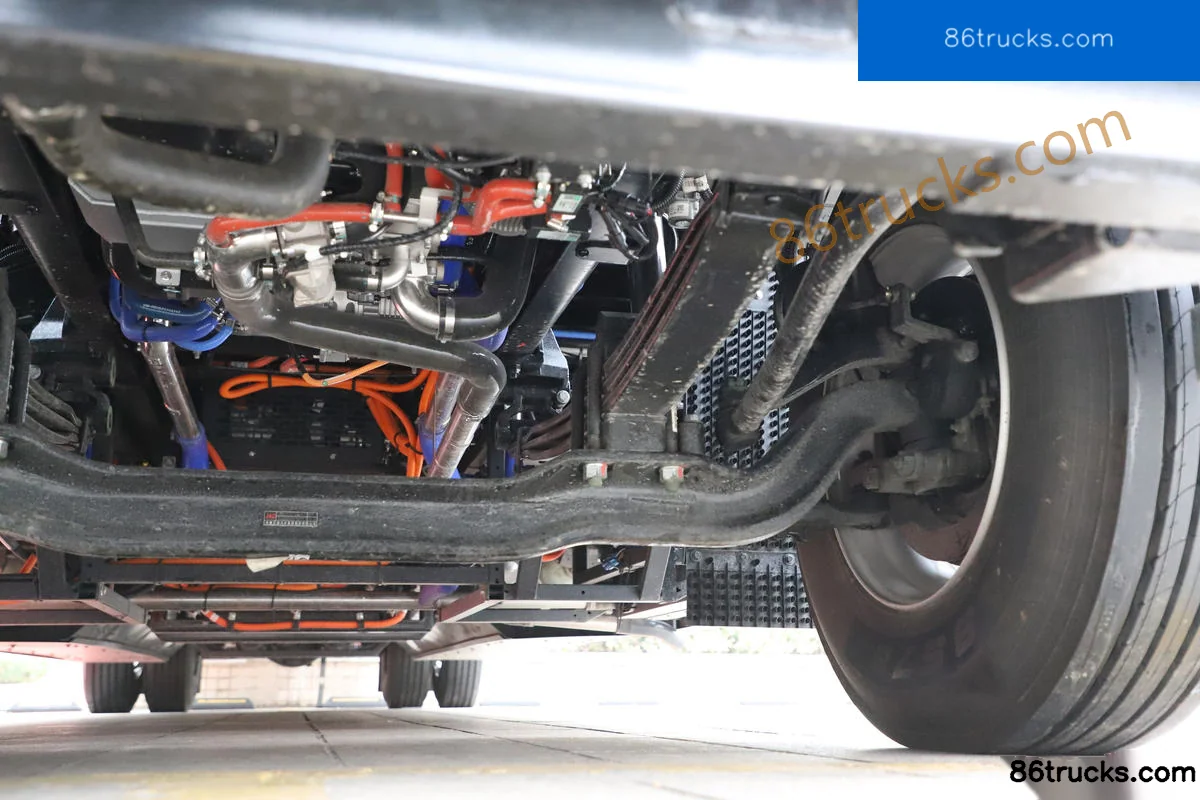

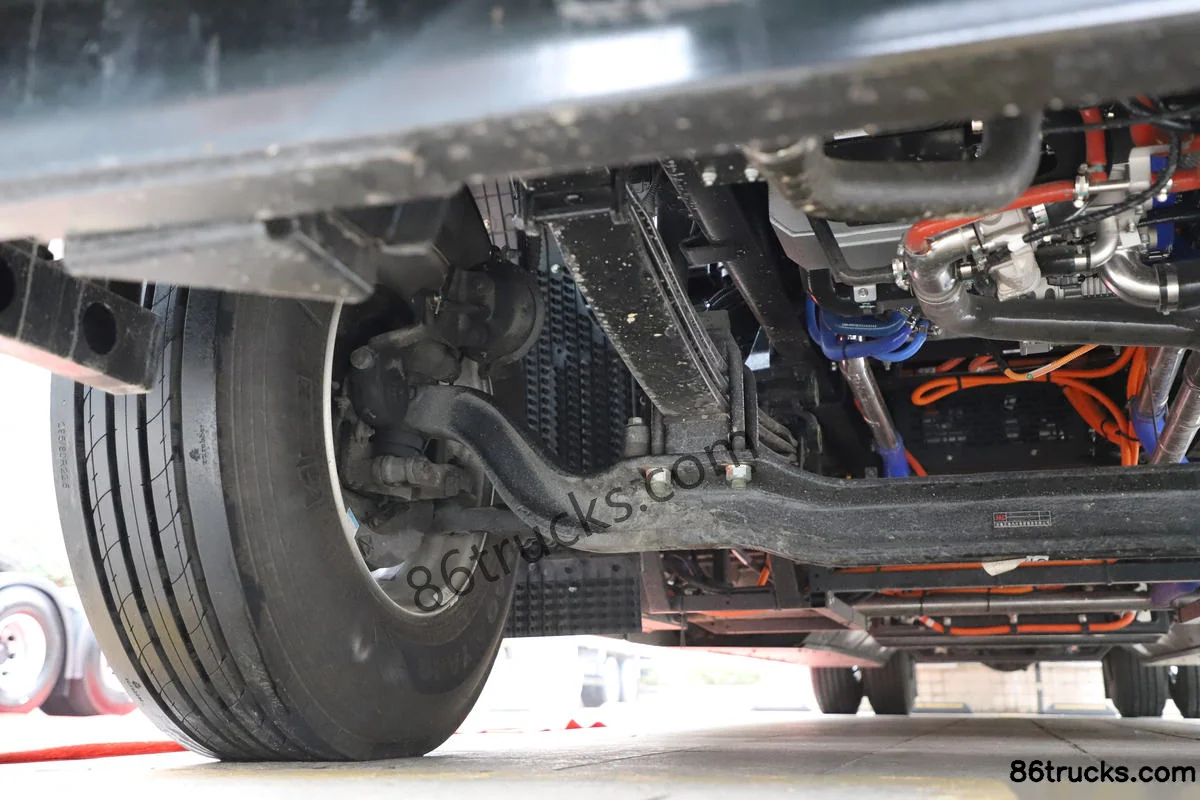

JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Chassis (1) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Chassis (2) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Chassis (3) | 86Trucks

Body3

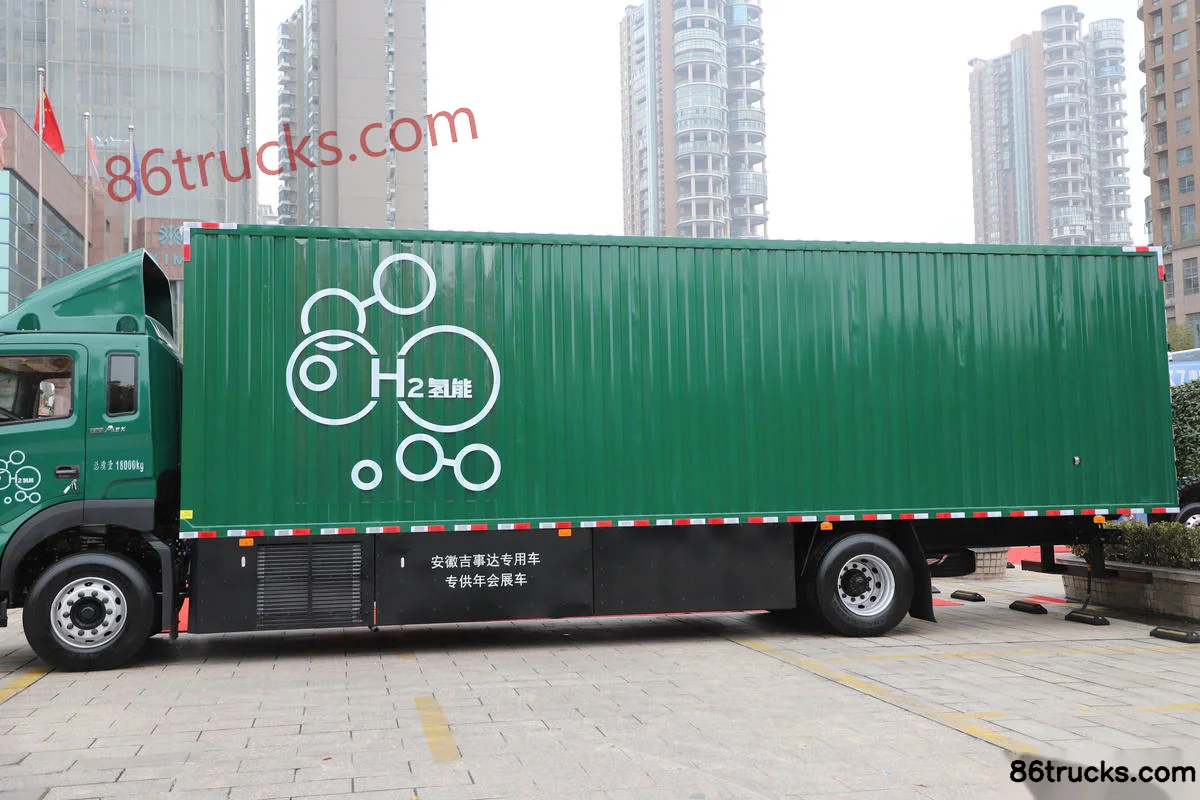

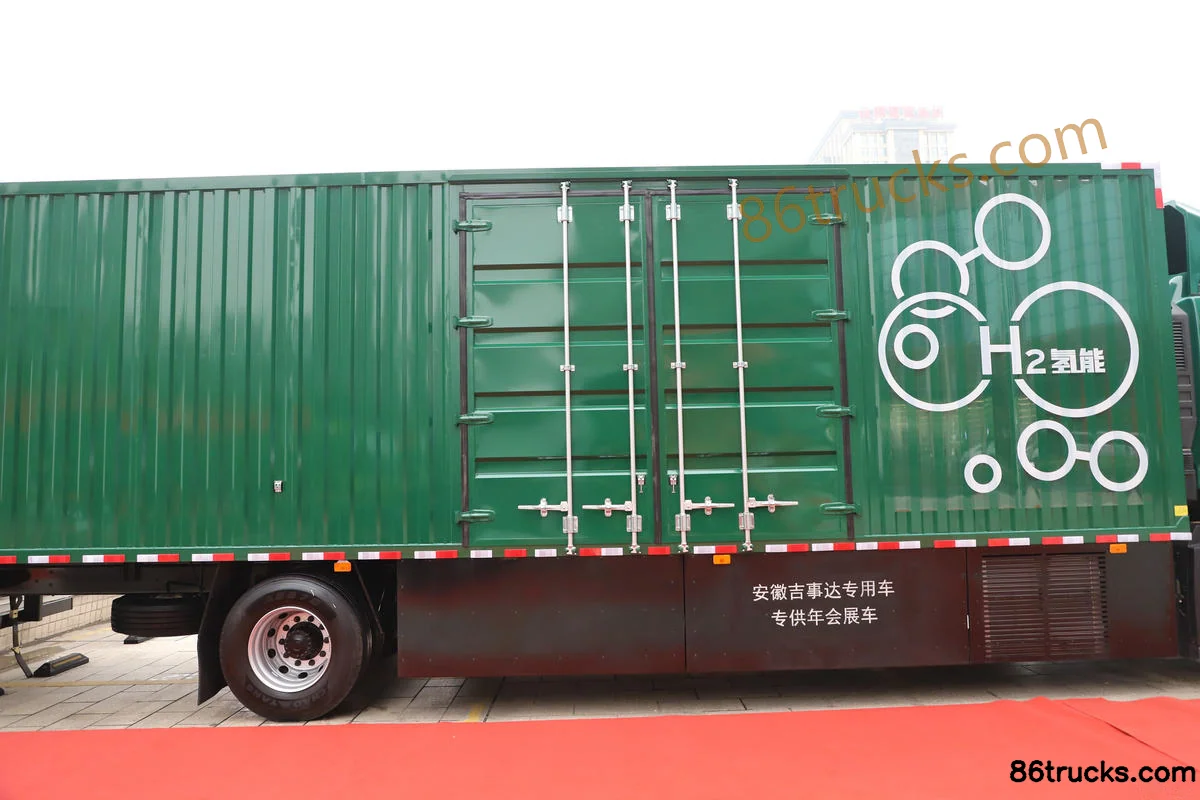

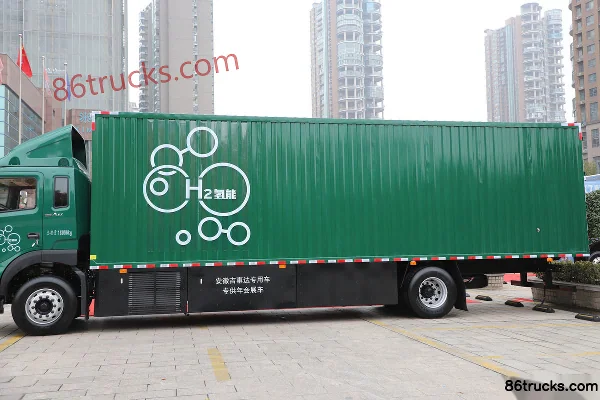

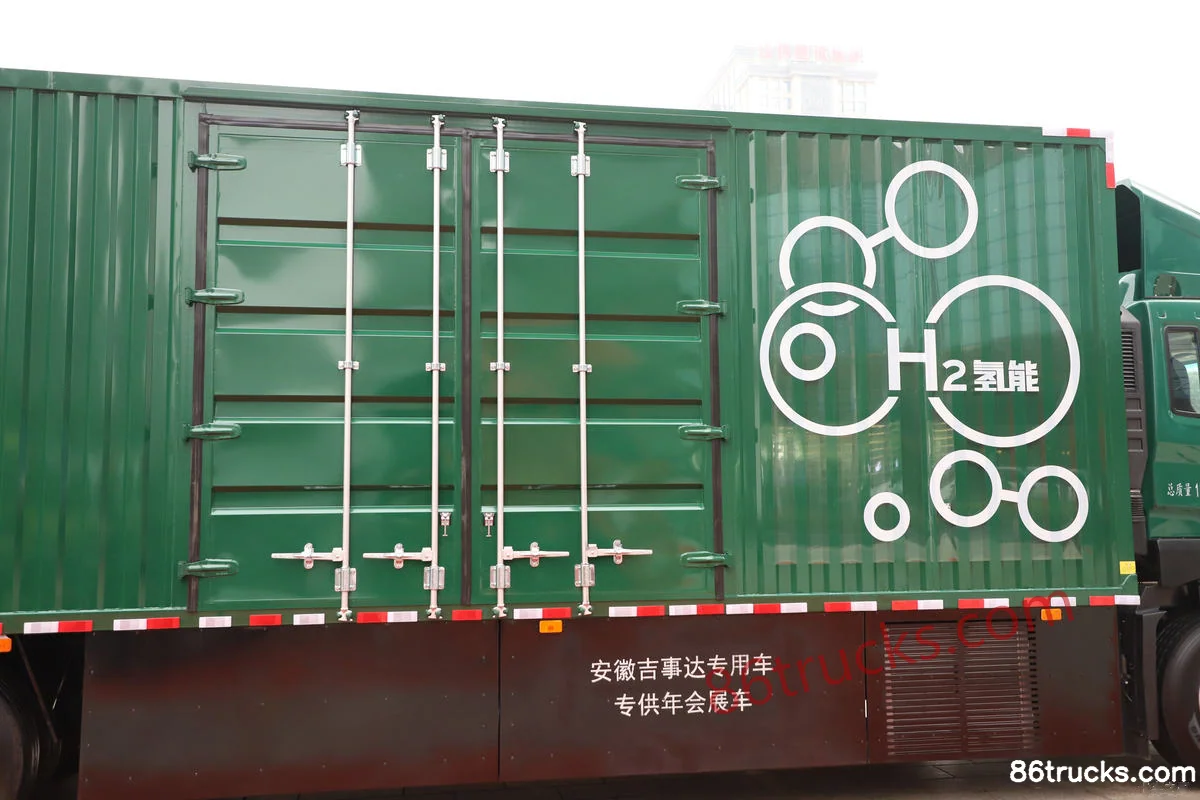

JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Body (1) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Body (2) | 86Trucks JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh?

Key specs of JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh suited for?

JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh differ from other variants in the same series?

JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh belongs to JAC Gallop A5 Heavy Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5X Heavy Truck 18T 4X2(6 wheels) 9.8m Fuel Cell Box Cargo Truck 50.45kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
