Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck

Export reference
From $40,111
MSRP ¥28.88M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.26ton
Wheelbase:: 3600+1350mm
Tire Size:: 12.00R20

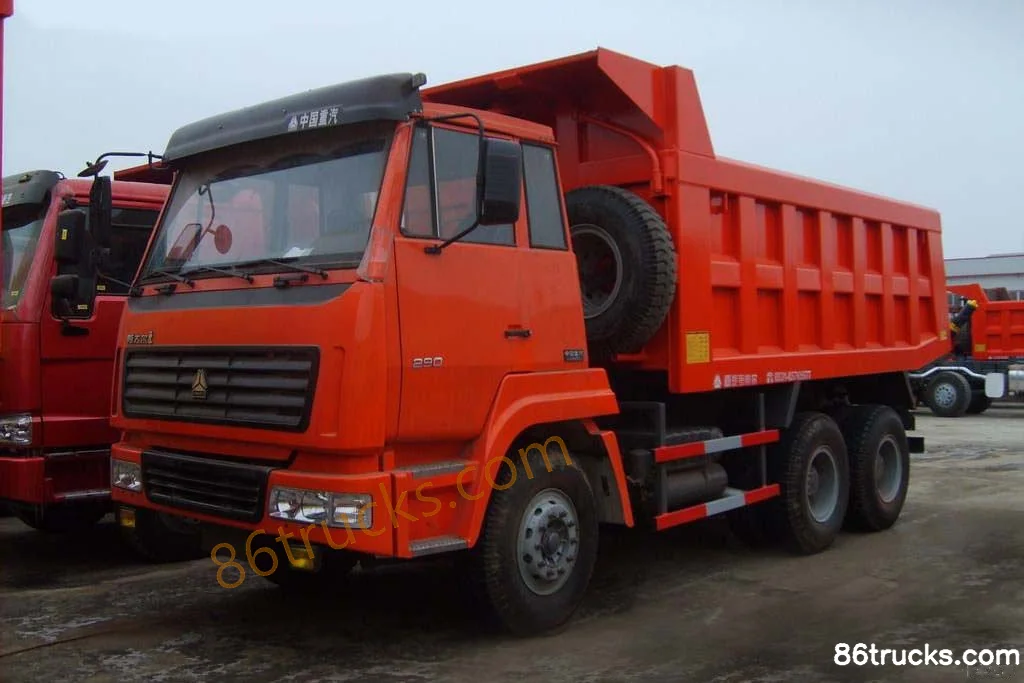

Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck exterior
View more photos (1)
Rated payload: 12.61ton
Drive 6X4 (10 wheels)
Horsepower 300
Cargo box type: Rear-dump body

Overview

The Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck is a Heavy truck featuring 12.61t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukWD615.97E engine, 300 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 300 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3256M3646C
Drive type: 6X4
Wheelbase: 3600+1350mm
engine: SinotrukWD615.97E
transmission: SinotrukHW5710
Rear Axle Ratio: 4.77
Cab length: 8.155m
Cab width: 2.496m
Cab height: 3.5m
Front track width: 2022/2041mm
rear track: 1830/1830mm
Curb Weight: 12.26ton
Rated payload: 12.61ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 26°
Remarks: This vehicle is only available with a second-class chassis with a wheelbase of 3600+1350 mm. The Steyr King semi-high-top cab is optional, corresponding to a vehicle length of 8155 mm, an internal cargo box length of 5400 mm, a box height of 1200 mm, and a rear overhang of 1645 mm. An environmentally friendly covered cargo box is optional, with a top cover weight of 300 kg (included in curb weight). Vehicle length, box length, box height, and rear overhang correspond one-to-one. When the box is lifted at the front, the overall vehicle height is 3500 mm.
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukWD615.97E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1250N·m
Max torque speed: 1100-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Transmission Parameters
Transmission Model: SinotrukHW5710
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.2m
fuel tank
Fuel tank capacity: 180L
Chassis Specs
rear axle description: AC16
rear axle allowable load: 16000kg
Axle ratio: 4.77
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

Exterior1

Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck, and what does it include?

Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck export reference is about From $40,111; MSRP is ¥28.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck?

Key specs of Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck: Drive: 6x4; Horsepower: 300 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck suited for?

Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck differ from other variants in the same series?

Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck belongs to Sinotruk King Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr King Heavy Truck 300 hp 6X4(10 wheels) 5.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
