Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh

Export reference
From $28,722
MSRP ¥20.68M CNY
Wheelbase:: 3450mm
Cargo box volume:: 7.2
Model code (announced):: KMC5033XXYBEVA305M
Cab length:: 5.265m
GVWR:: 3.15ton
Max. speed:: 90km/h
Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh exterior
View more photos (12)
CLTC range: 230km
Motor 1 Brand: Lingdian
Curb Weight: 1.66ton
Rated payload: 1.36ton

Overview

The Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh is a Electric Panel Van featuring 230km battery/range, Lingdian motor, 1.36t payload and 7.2 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC5033XXYBEVA305M
Wheelbase: 3450mm
Cab length: 5.265m
Cab width: 1.77m
Cab height: 2.065m
CLTC range: 230km
Curb Weight: 1.66ton
Rated payload: 1.36ton
GVWR: 3.15ton
Max. speed: 90km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Lingdian
Motor 1 Model: TZ185XSTY3206
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total peak torque: 230N·m
total rated torque: 80N·m
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: CATL
Battery type: Lithium-ion battery
Battery capacity: 41.86kWh
Battery total voltage: 334.88V
Energy Density: 137.6
Battery Model: CB320
Body parameters
Cargo box volume: 7.2
Max body depth: 3.07
Max body width: 1.55
Cargo Box Height: 1.35
Body Parameters
Seat count: 2Seats
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195R14C
Rear Wheel Specification: 195R14C
Safety features
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:

Photos

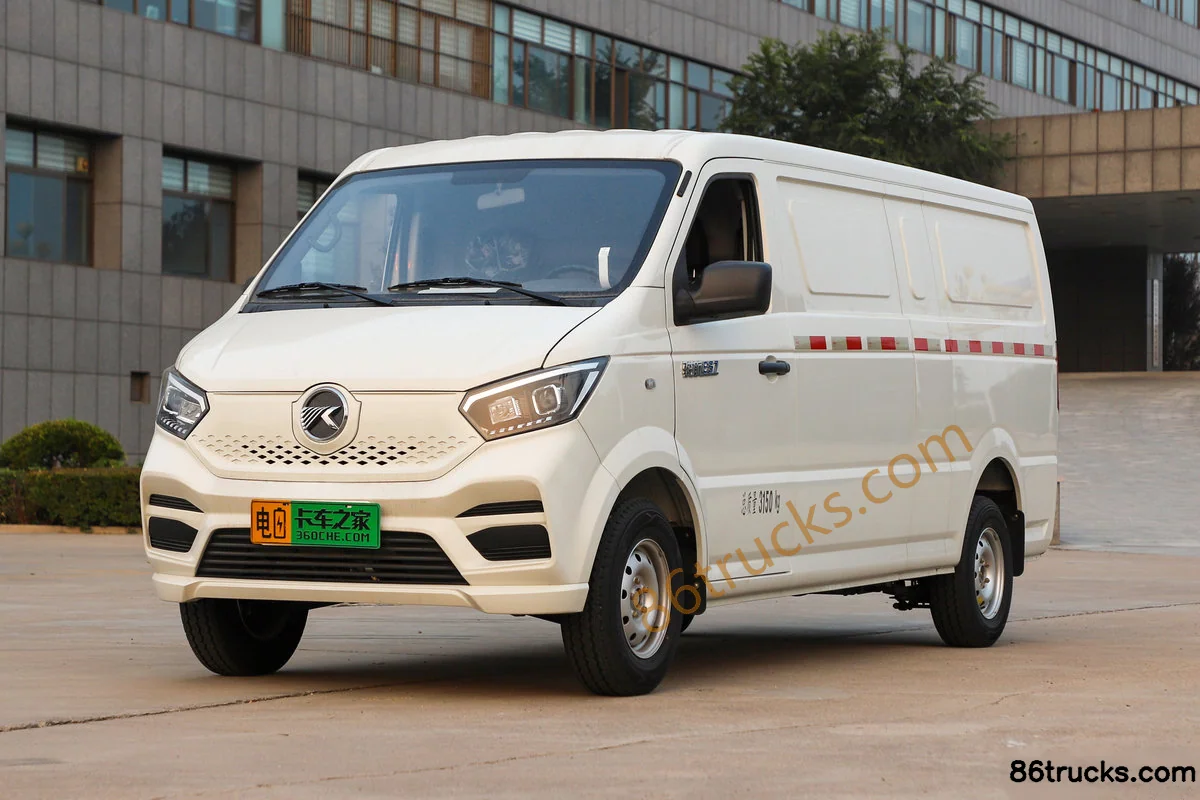

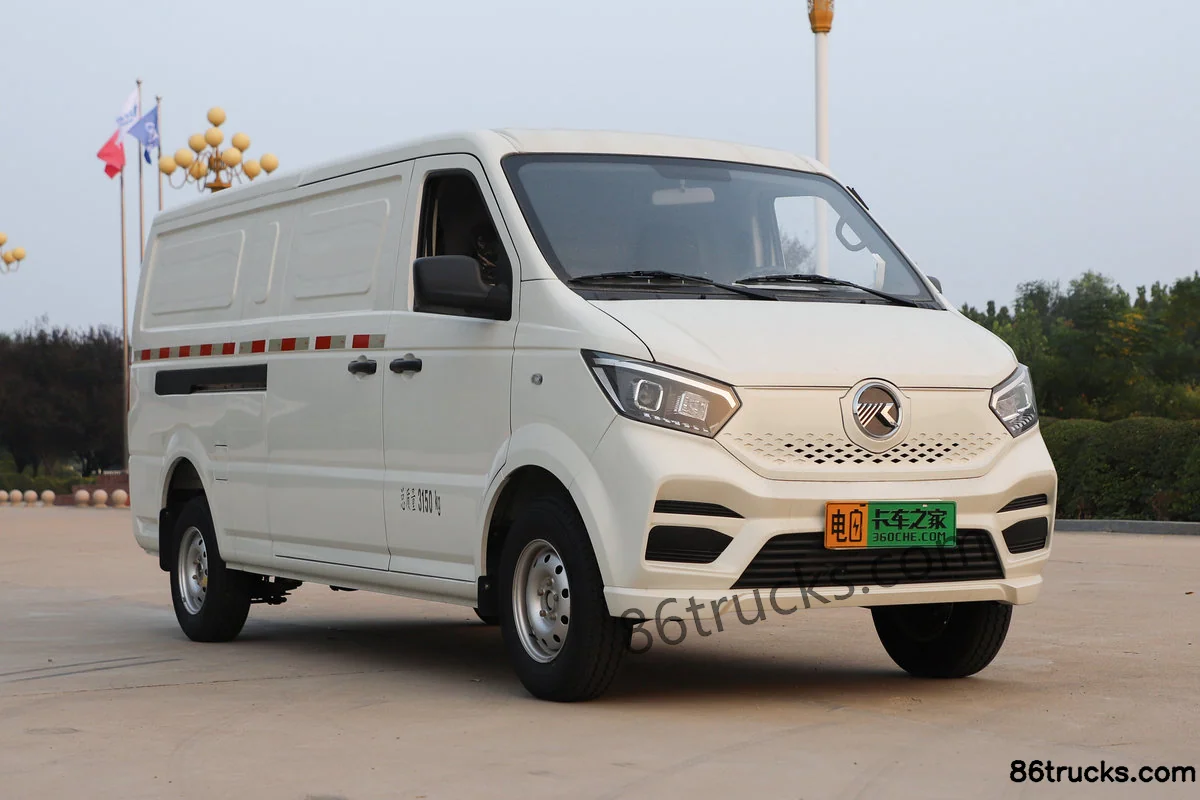

Exterior3

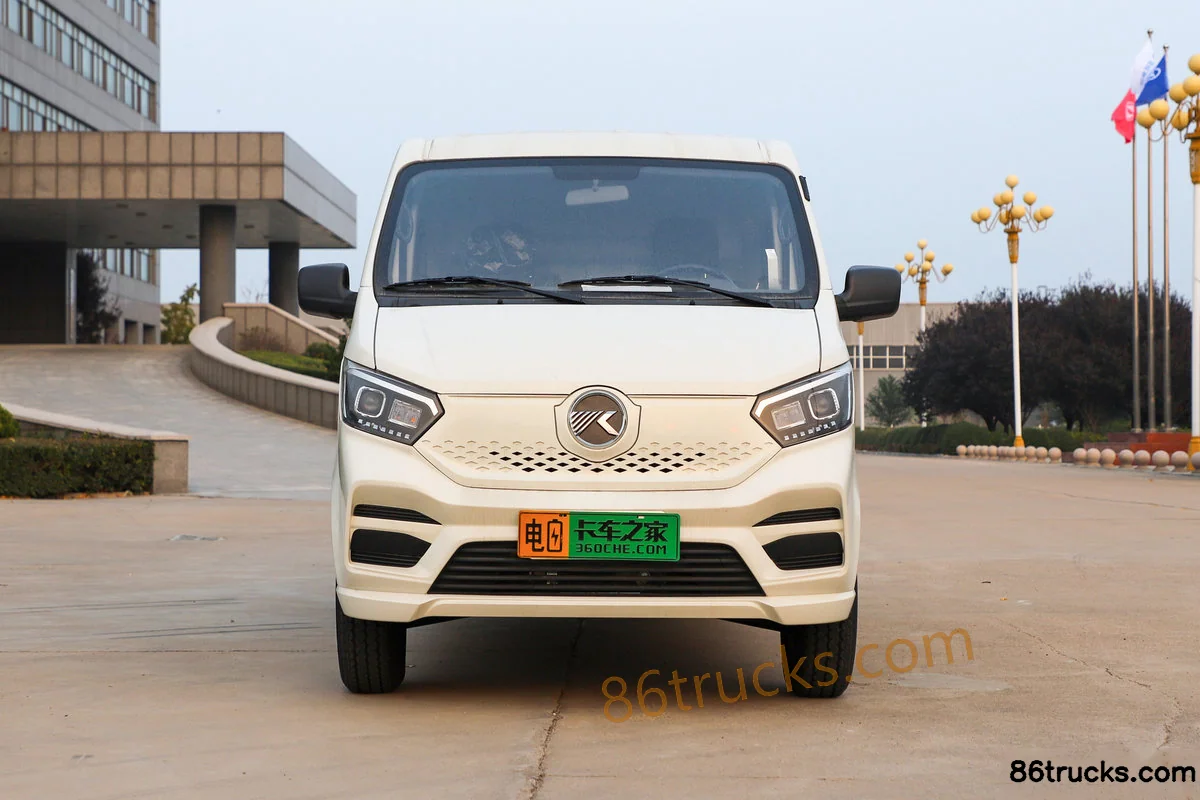

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Exterior (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Exterior (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Exterior (3) | 86Trucks

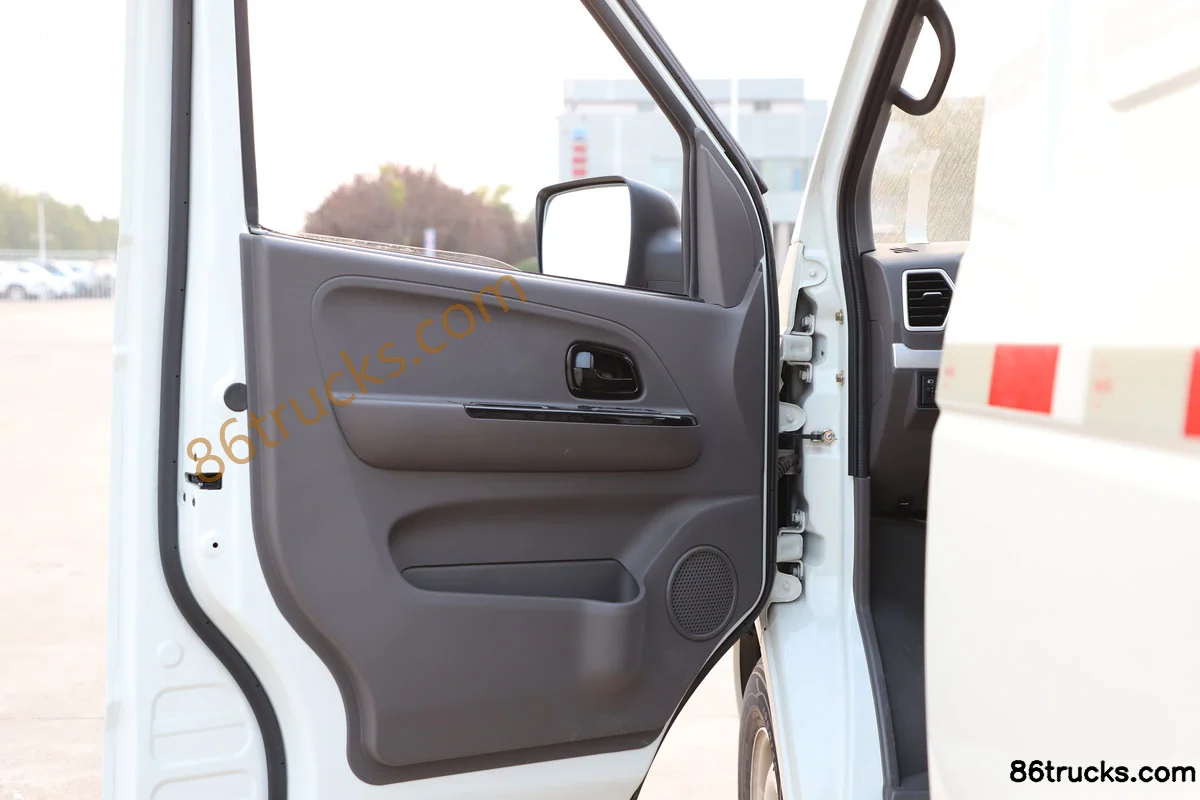

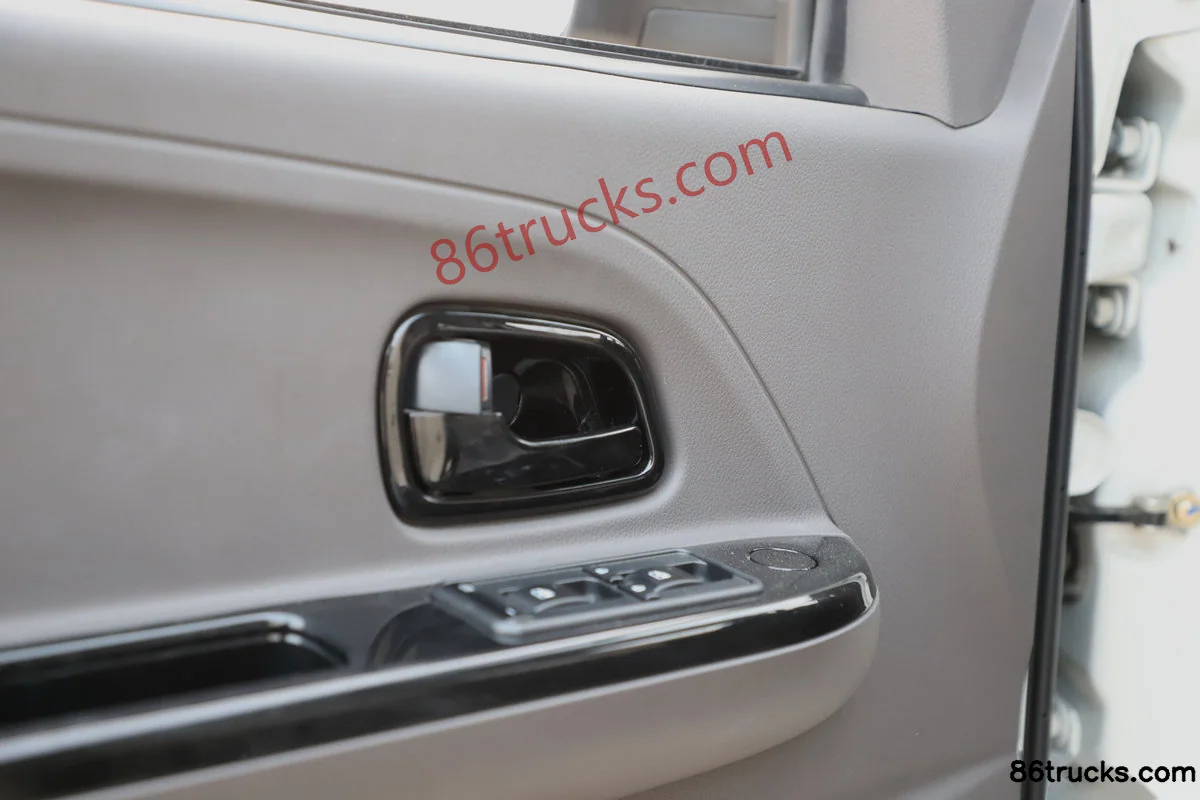

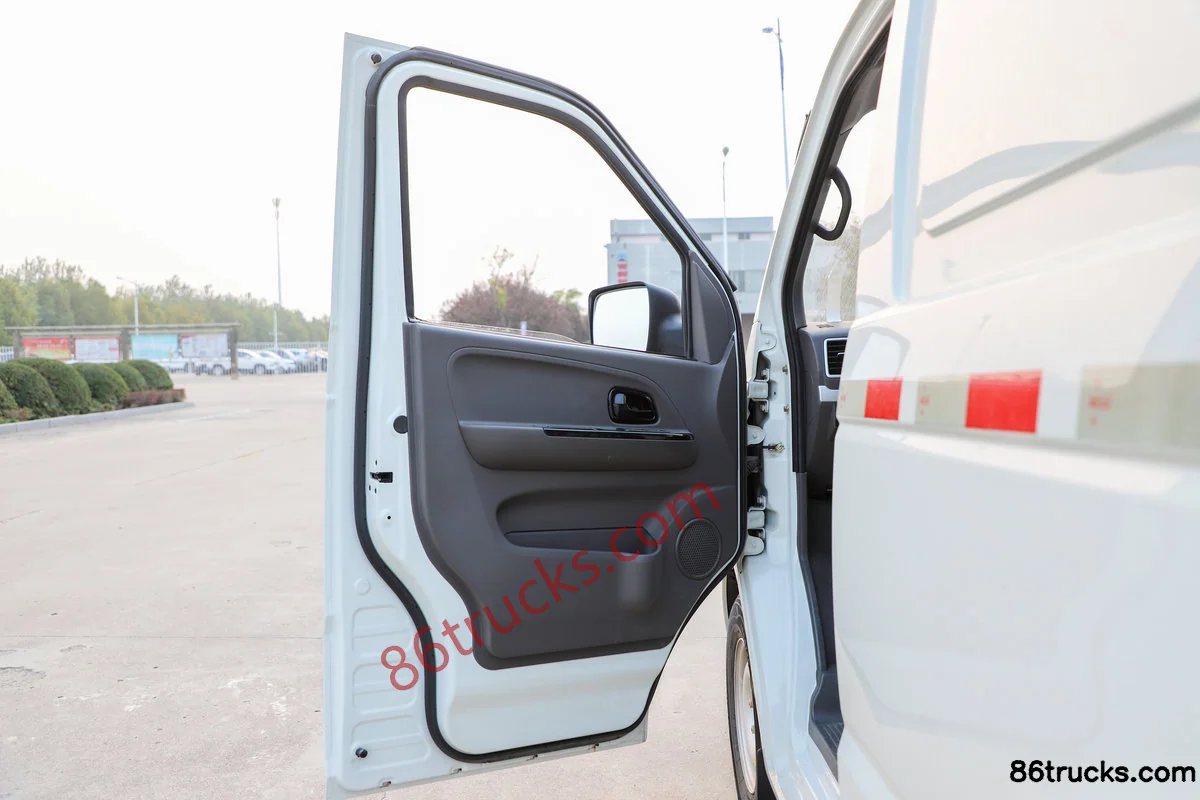

Cab3

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Cab (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Cab (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Cab (3) | 86Trucks

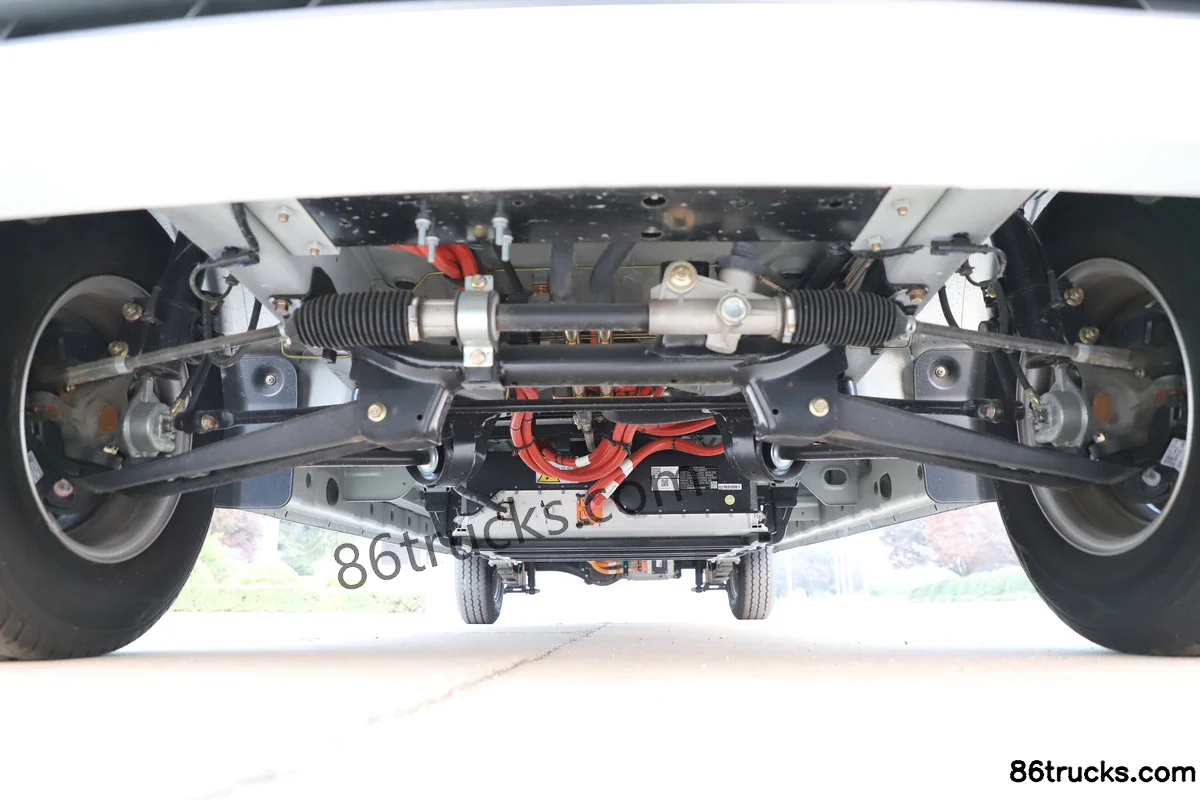

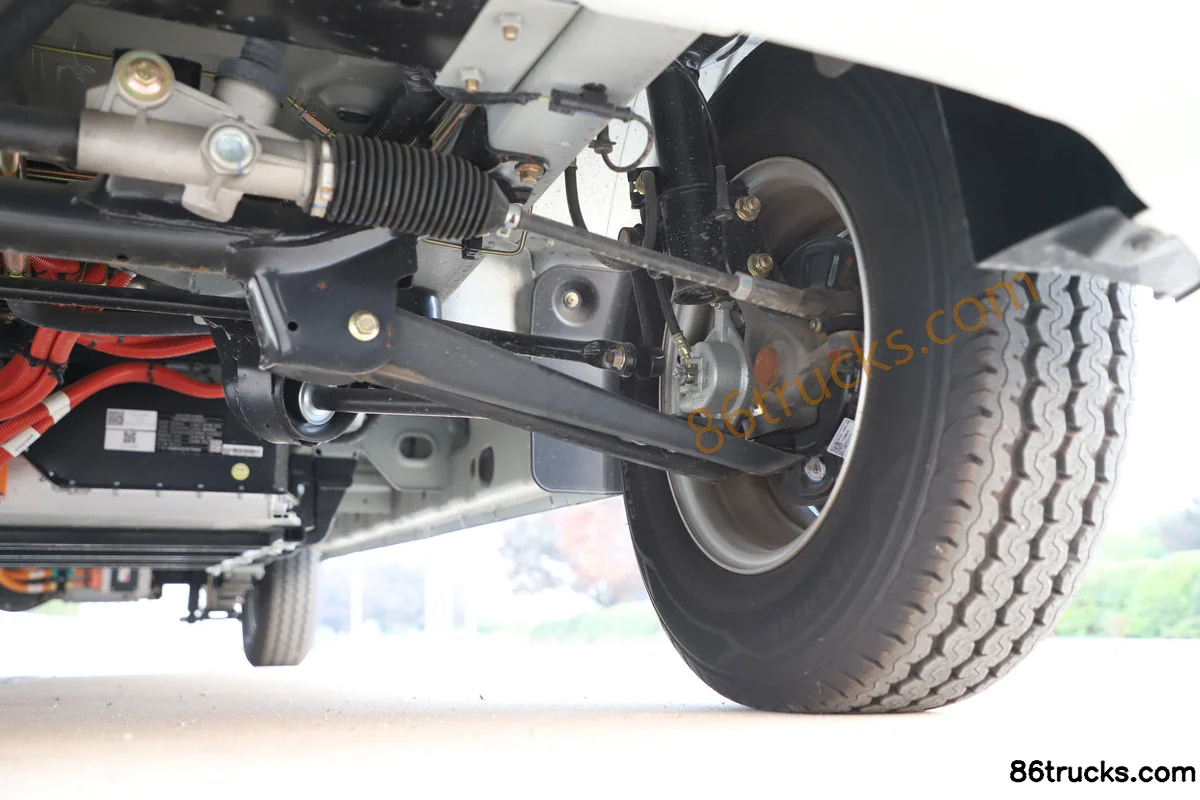

Chassis3

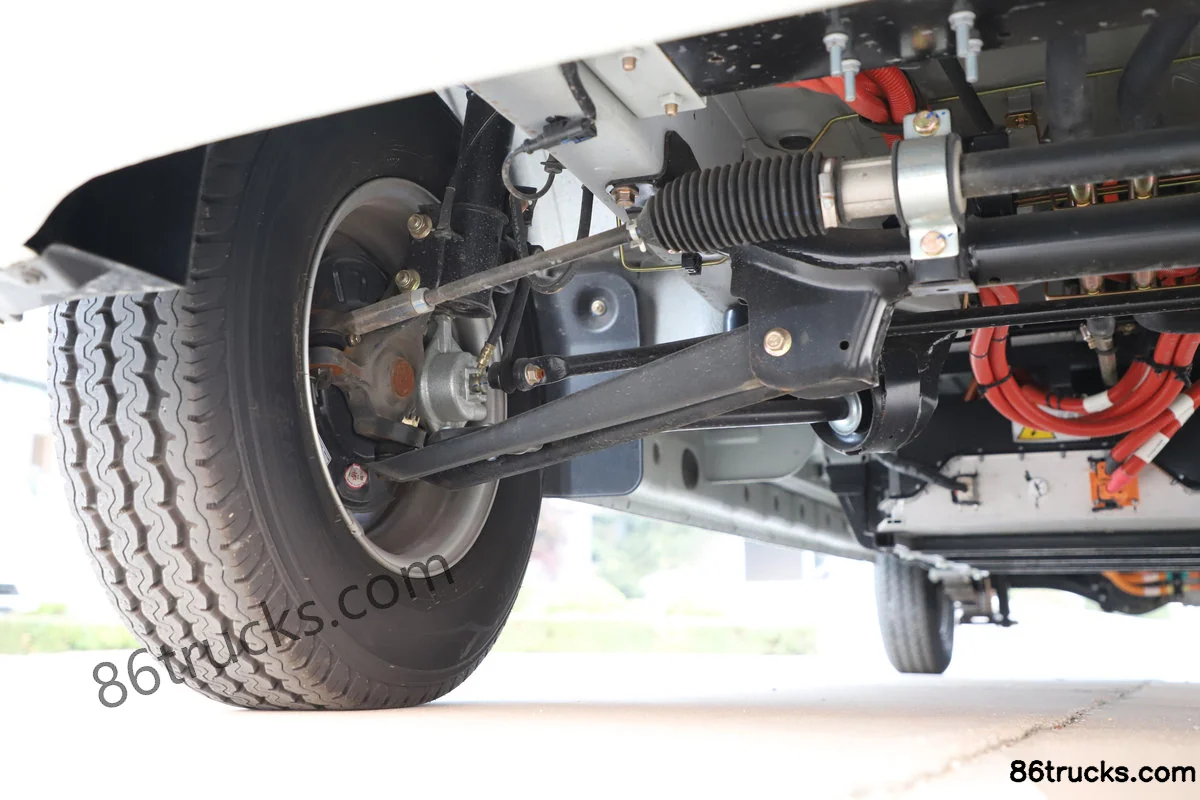

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Chassis (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Chassis (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Chassis (3) | 86Trucks

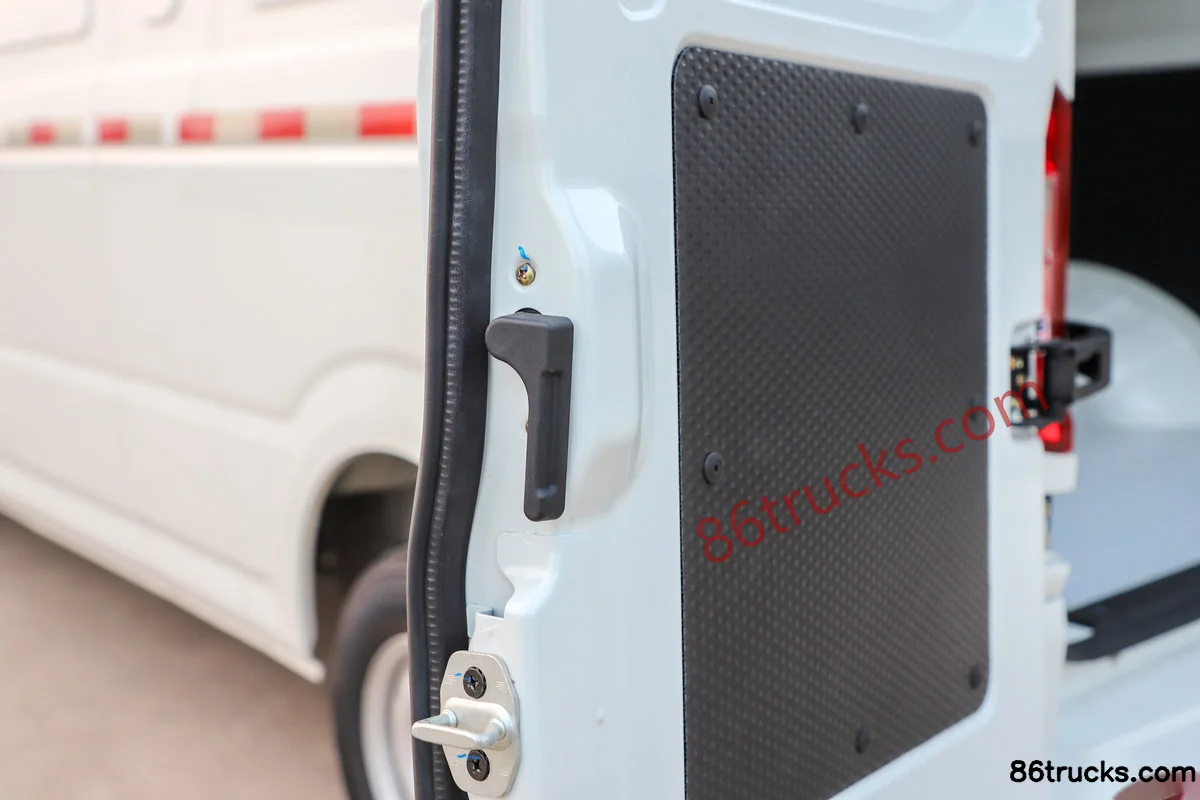

Cargo Box3

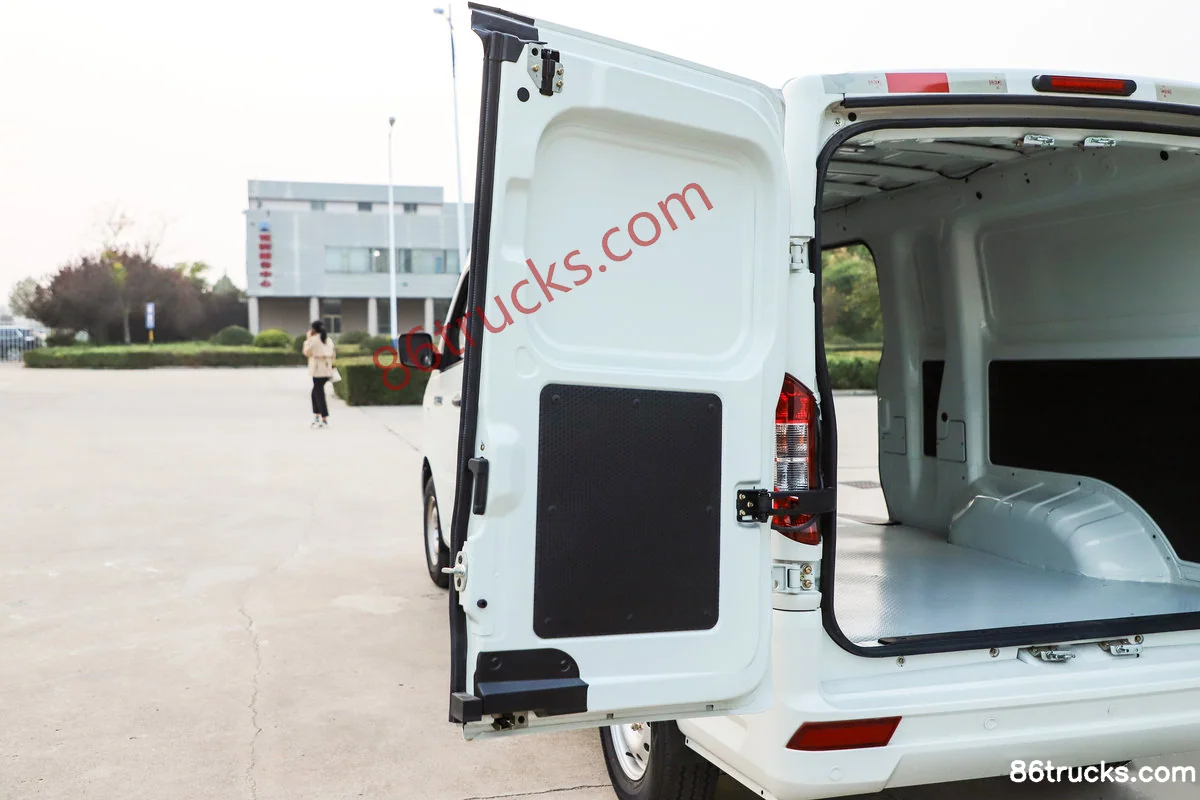

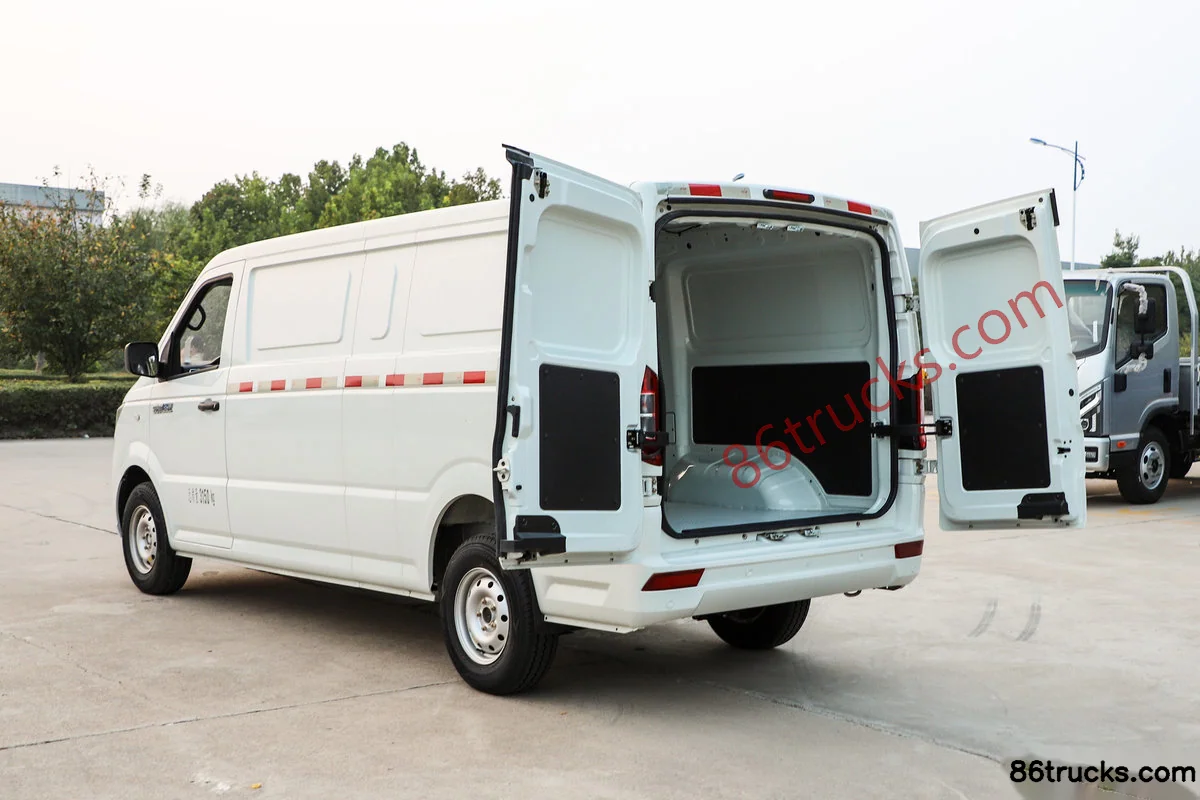

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Cargo Box (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Cargo Box (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh, and what does it include?

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh export reference is about From $28,722; MSRP is ¥20.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh suited for?

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh differ from other variants in the same series?

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh belongs to Kama Junhang ES7 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
