Ouyang Jude 13m Van Semi-Trailer

Export reference
From $15,278
MSRP ¥11M CNY
Cab width:: 2.55m
suspension:: -/2040,-/2180,-/2300mm
Fifth Wheel Pin:: 90#
Design load capacity:: 32.2ton
Cab height:: 4m
Number of wheels:: 12
Axle Brand: Fuwa, Huajin, BPW
Curb Weight: 7.8ton
Cab length: 13m
Tire brand: Double Coin, Chaoyang

Overview

The Ouyang Jude 13m Van Semi-Trailer is a van semi-trailer featuring Fuwa, Huajin, BPW-axle setup, 7.8ton GVW, 13m length and 32.2ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 32.2ton
Cab length: 13m
Cab width: 2.55m
Cab height: 4m
Curb Weight: 7.8ton
Chassis Specs
Axle Brand: Fuwa, Huajin, BPW
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Number of wheels: 12
suspension: -/2040,-/2180,-/2300mm
Parts & accessories
Fifth Wheel Pin: 90#
Outrigger: Fuhua
Spare Tire Carrier:
ABS: Kemi
Body Parameters
Frame material: Super-strength steel
Web Plate: 8mm
upper wing panel: 10mm
Lower Wing Plate: 12mm
Side beam: 4
Cargo box parameters
Cargo box length: 12.85m
Cargo box width: 2.47m
Cargo box height: 2.6m
Other notes
Lead time for customization: 15 days
warranty period: 1 year
warranty method: Factory pickup / Door-to-door
Other: Top closed, non-openable; vehicle height vs interior height correspondence: 4000(2600mm), 3800(2400mm), 3600(2200mm), 3400(2000mm), 3200(1800mm); reflective decals on side and rear; optional side no door, one door, two door structures; optional rear panel style; optional beam irregular hole structure; optional air suspension; optional rear combination/fog lights rectangular; ABS model: CM2XL-4S/2M
Tire
Tire brand: Double Coin, Chaoyang
Tire Size: 11.00R20 12PR,12R22.5 12PR,8.25R20 16PR,275/70R22.5 16PR
Number of tires: 12pcs

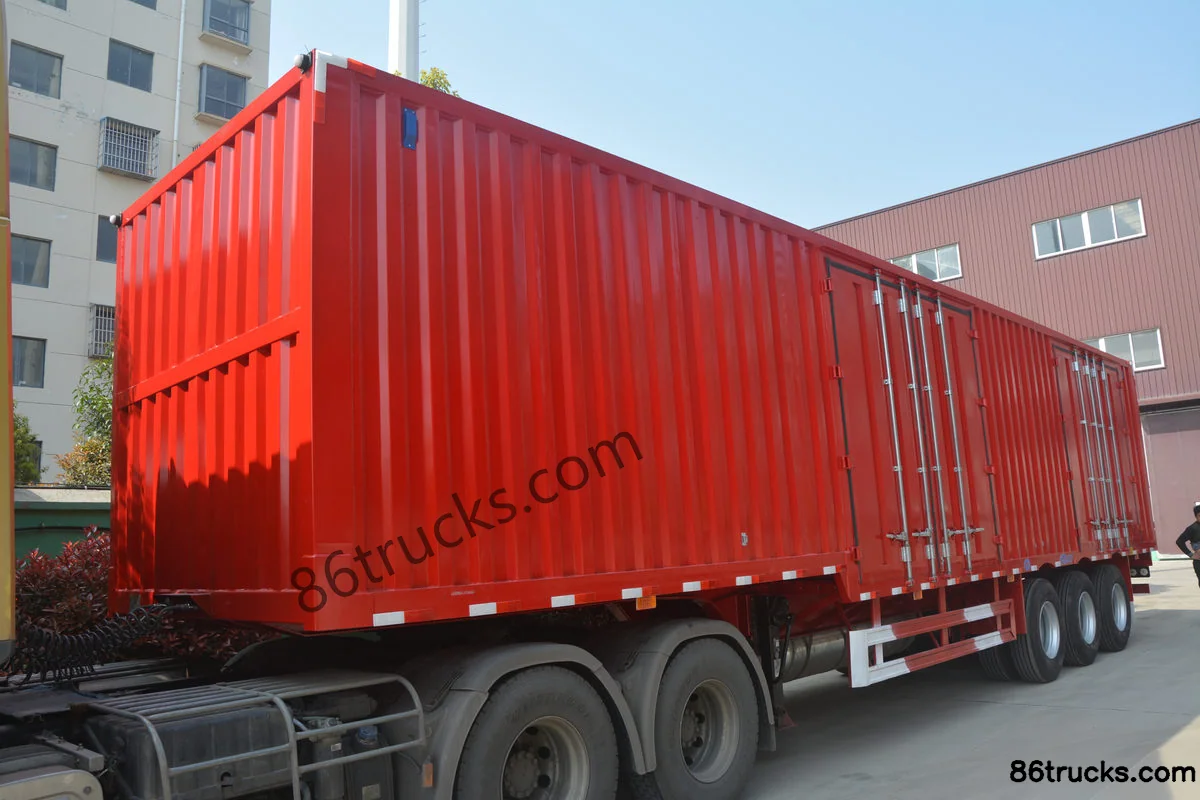

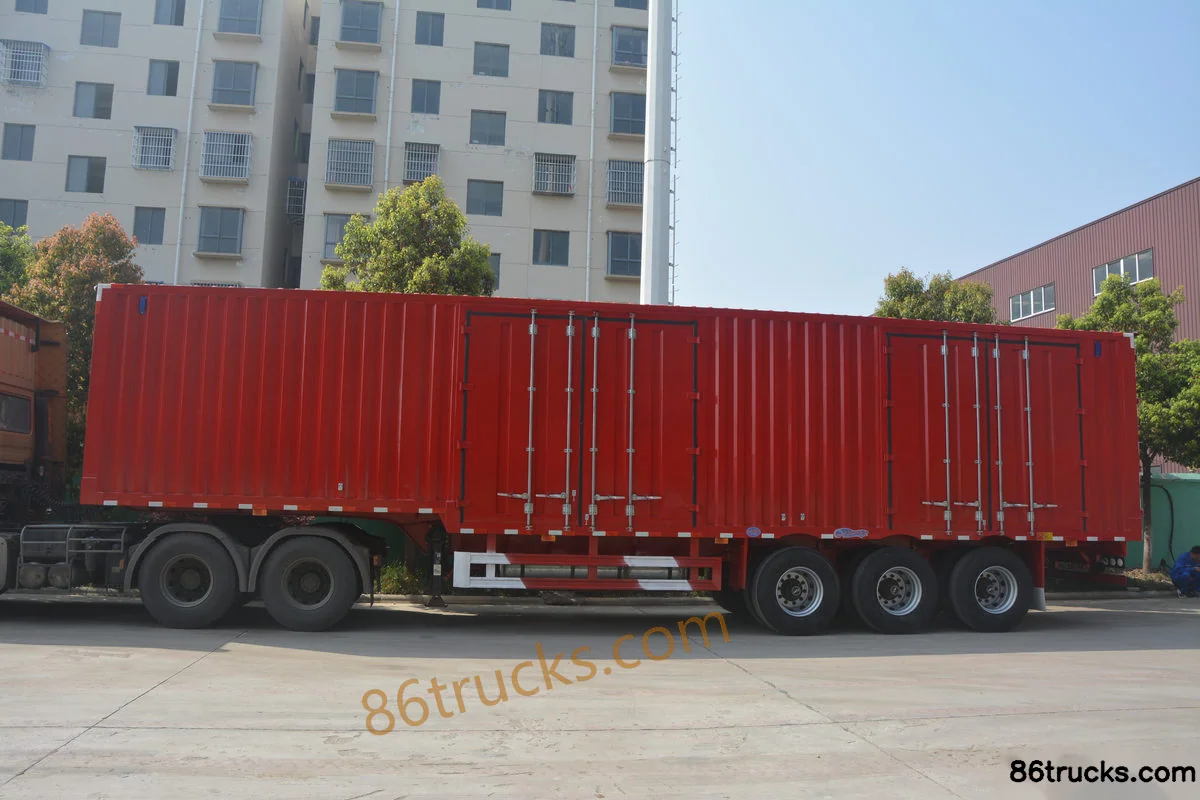

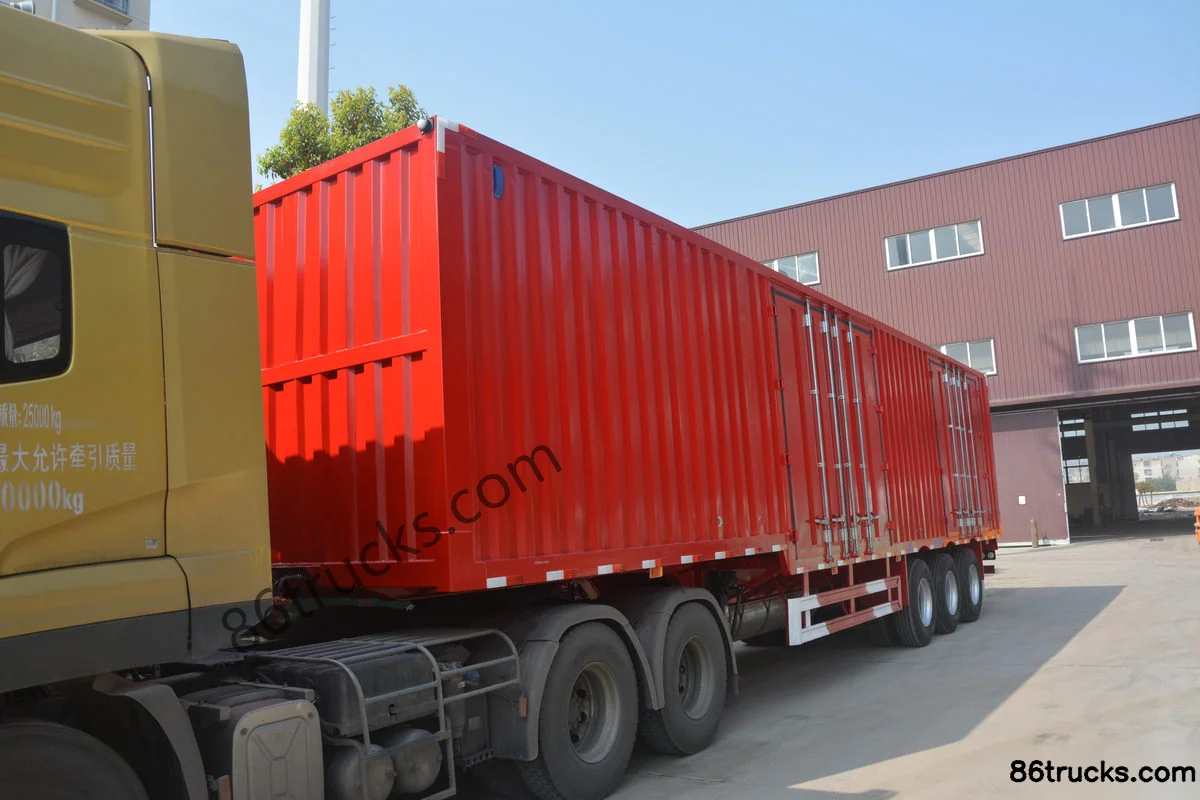

Photos

Exterior3

3 photos

FAQ

What is the export price of Ouyang Jude 13m Van Semi-Trailer, and what does it include?

Ouyang Jude 13m Van Semi-Trailer export reference is about From $15,278; MSRP is ¥11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Ouyang Jude 13m Van Semi-Trailer suited for?

Ouyang Jude 13m Van Semi-Trailer is a van semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Ouyang Jude 13m Van Semi-Trailer differ from other variants in the same series?

Ouyang Jude 13m Van Semi-Trailer belongs to Ouyang Huajun 13m Series (van semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouyang Jude 13m Van Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouyang Jude 13m Van Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
