JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 4150+1350mm
Tire Size:: 12R22.5 18PR,295/80R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 11.8L
Drive 6X4 (10 wheels)
Horsepower 510
Emission China V
Transmission ZF

Overview

The JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck is a Heavy truck featuring 6X4 (10 wheels) drive, 510 hp, 25t GVW and China V emissions. On the powertrain side, it comes with a FotonISGe5-510 engine, ZF transmission and Diesel fuel.

China V 510 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4253P14K7E33S7V
Drive type: 6X4
Wheelbase: 4150+1350mm
engine: FotonISGe5-510
transmission: ZFZF16S2531 TO
Cab length: 7.59m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2070mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 79km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISGe5-510
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China V
Max output power: 375kW
Max hp: 510Horsepower
Max torque: 2300N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZFZF16S2531TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
Fifth wheel: 90#
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 2/4
Aluminum wheels:
Suspension (front/rear): Front leaf spring + rear air bag
Tire
Tire Size: 12R22.5 18PR,295/80R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Manual
Exterior features
Air deflector:

Photos

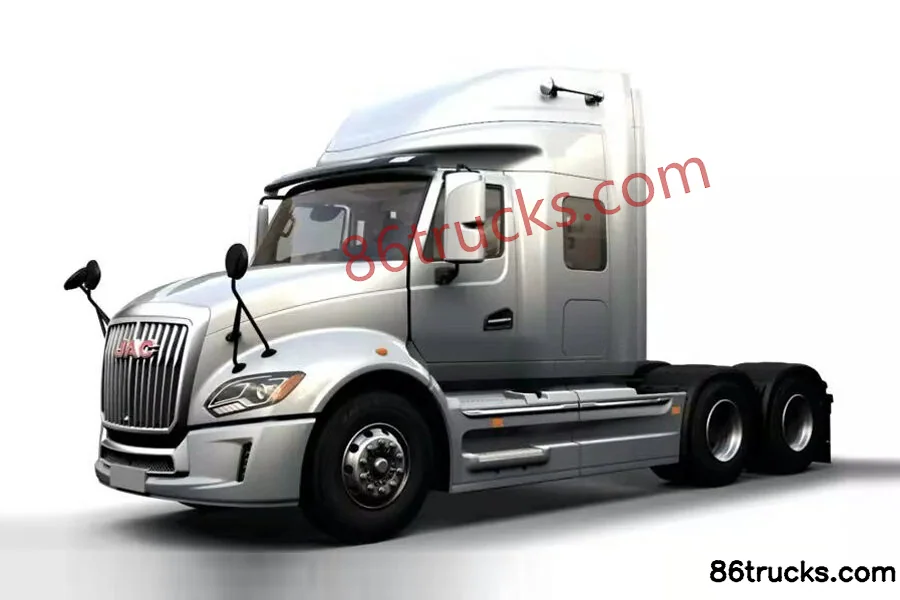

Exterior1

1 photos

FAQ

What emission standard does JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck?

Key specs of JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck: Drive: 6x4; Horsepower: 510 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck suited for?

JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck differ from other variants in the same series?

JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck belongs to JAC Kuayue V7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop V7 heavy truck 510 hp 6X4(10 wheels) long-nose tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
