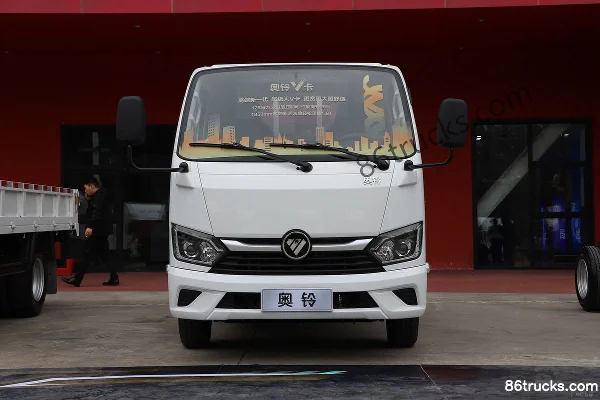

Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck)

Export reference
From $9,403
MSRP ¥6.77M CNY
Horsepower: 122
Emission: China VI
Fuel: gasoline
Engine: Dongan1.6L
Transmission: Dongan
Curb Weight:: 1.82ton
seating capacity: 2Personnel
Rated payload: 1.545ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) is a mini truck featuring 3.5m cargo length, Stake type cargo body, 2Personnel volume and 1.545t payload. On the powertrain side, it comes with a Dongan1.6L engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5031CCY4JV4-AA1
Type: stake truck
Drive type: 4X2
Wheelbase: 2700mm
Box length class: 3.5m
engine: DonganDAM16KL
transmission: DonganDAT18R
Rear Axle Ratio: 5.375
Cab length: 5.265m
Cab width: 1.9m
Cab height: 2.69m
Front track width: 1515mm
rear track: 1440mm
Curb Weight: 1.82ton
Rated payload: 1.545ton
GVWR: 3.495ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 14°
departure angle: 16°
Front/rear suspension: 1.09/1.475m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM16KL
Engine info: Dongan1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.597L
Emission standard: China VI
Max output power: 1597kW
Max hp: 122Horsepower
Max torque: 158N·m
Max torque speed: 4400rpm
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: DonganDAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.5m
Cargo box width: 1.81m
*Cargo box interior width: 1.81
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 60L
Chassis Specs
Front axle allowable load: 1300kg
Frame Dimensions: 714/760-130×50×4mm
rear axle description: 2.5t/223 single reduction drive axle
rear axle allowable load: 2195kg
Axle ratio: 5.375
Leaf spring count: 3/3
Tire
Tire Size: 175R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Electric Heated Rearview Mirror:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Halogen Headlights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck), and what does it include?

Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) export reference is about From $9,403; MSRP is ¥6.77M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck)?

Key specs of Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck): Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan1.6L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) suited for?

Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) differ from other variants in the same series?

Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck) belongs to Foton V Card (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling V Card 1.6L 122hp 4X2(6 wheels) Gasoline 3.5m Single Row Cargo Truck with Side Curtain (Mini Truck)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
