JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels)

Export reference
From $27,194
MSRP ¥19.58M CNY
Rated payload:: 1.345ton
Wheelbase:: 3100mm
Cargo box type:: stake body
Emission: China VI
Model code (announced):: HFC1030SHEV2
Type:: Cargo Trucks
Drive 4X2 (6 wheels)
Battery Brand: JAC Huating
Horsepower 120
Curb Weight: 2.02ton

Overview

The JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) is a mini truck featuring JAC Huating battery/range, 4X2 (6 wheels) drive, 1.345t payload and 3.8m cargo length. On the powertrain side, it comes with 120 hp.

China VI 120 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1030SHEV2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3100mm
Box length class: 3.8m
Cab length: 5.87m
Cab width: 1.945m
Cab height: 2.05m
Curb Weight: 2.02ton
Rated payload: 1.345ton
GVWR: 3.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Energy Type: Hybrid
electric motor
Fuel Type: Hybrid
Battery/Charging
Battery Brand: JAC Huating
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 17.28kWh
Engine parameters
Engine Model: JACHFC4GB3-3E
Number of cylinders: 4cylinder
Displacement: 1.59L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 1.85m
Cargo box height: 0.355m
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1325kg
rear axle description: 2.5T
rear axle allowable load: 2170kg
Tire
Tire Size: 185/65R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

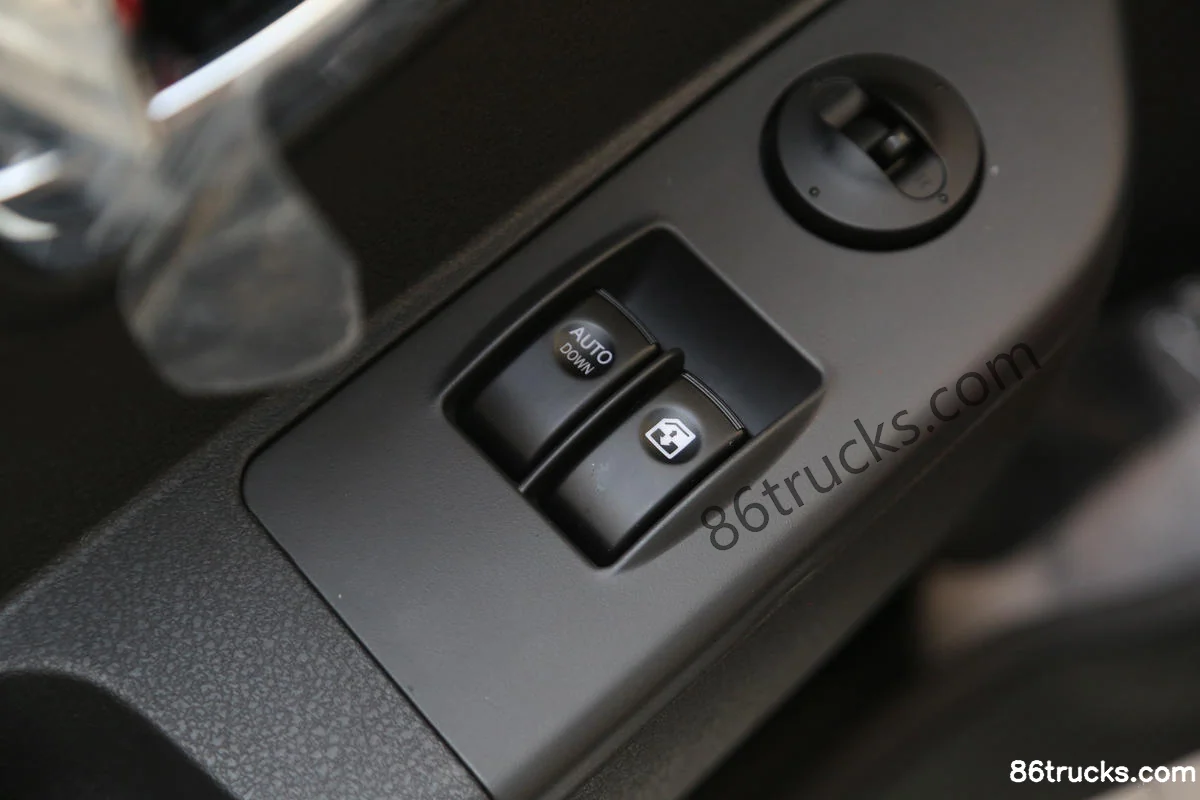

Power Windows:

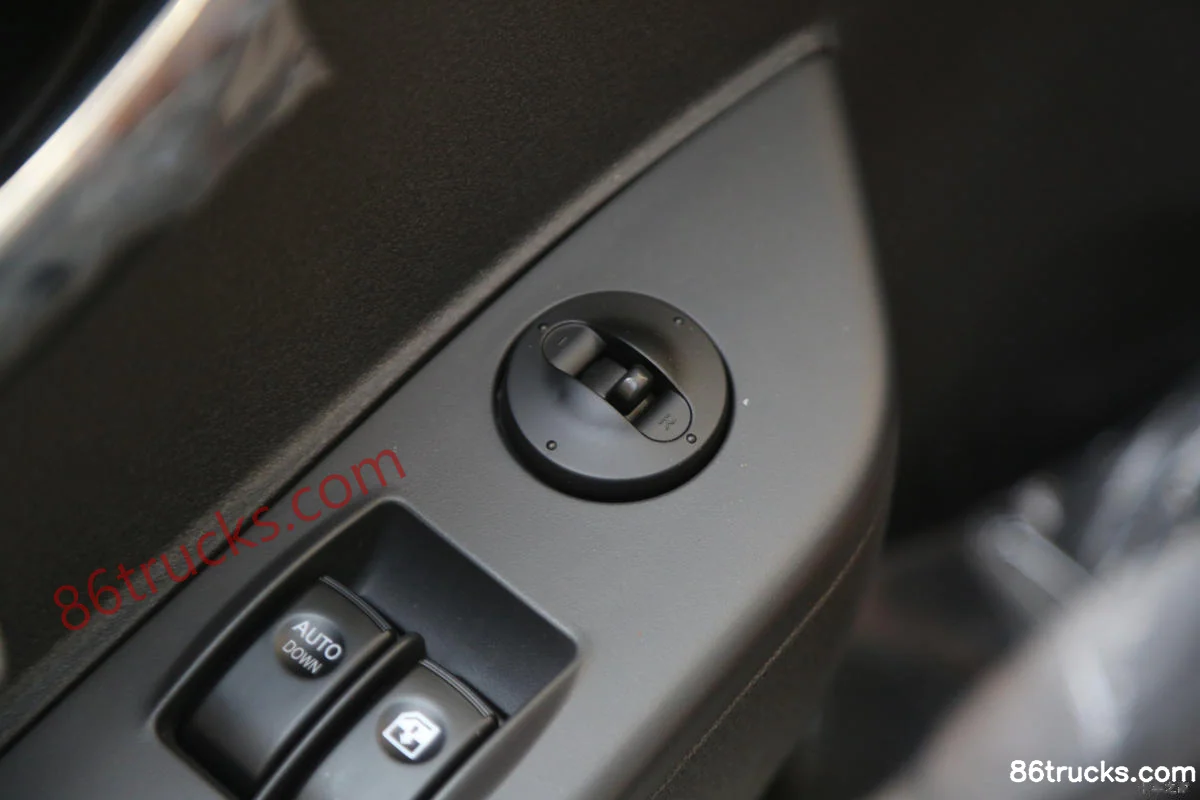

Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

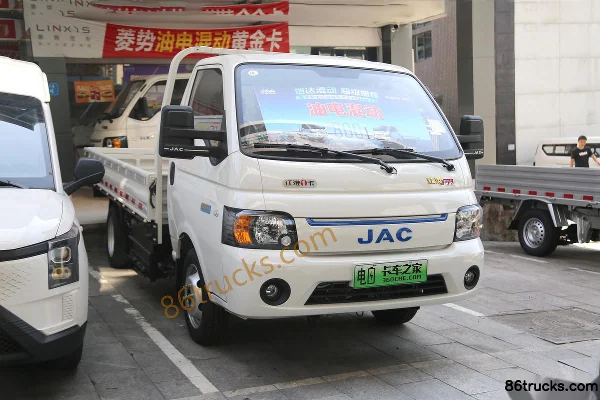

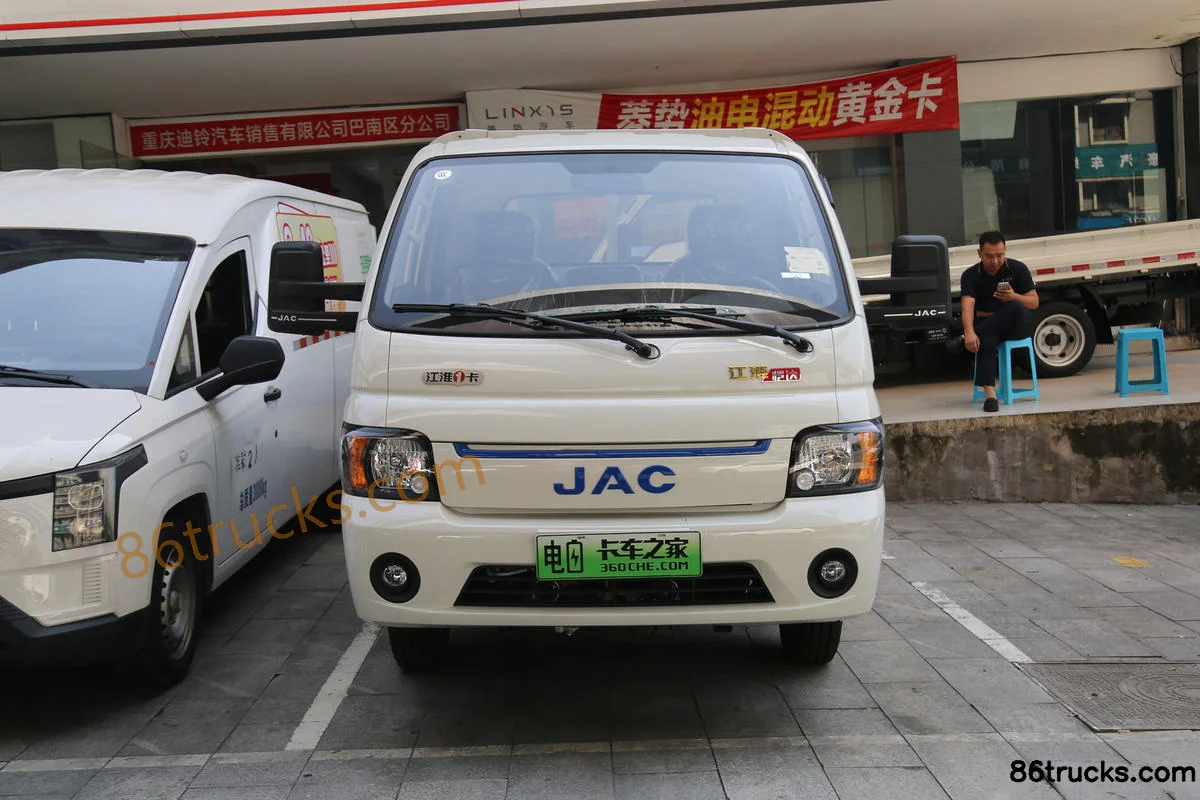

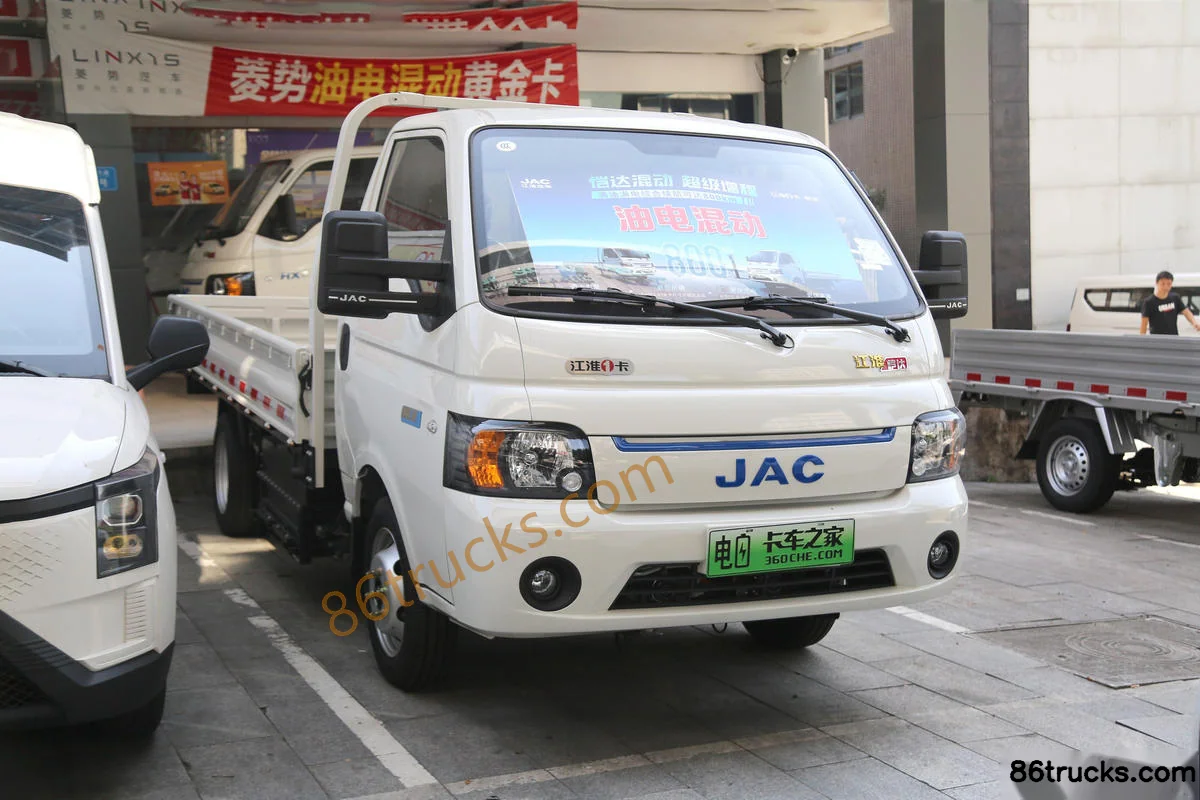

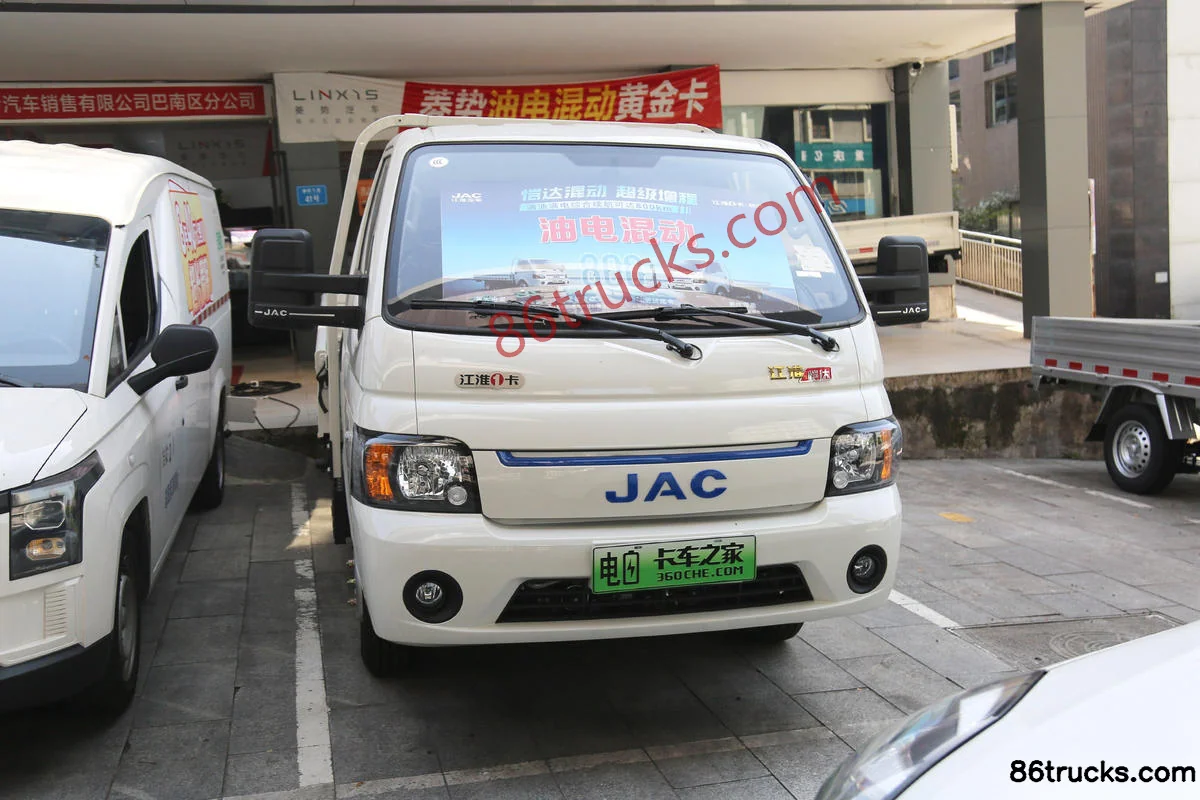

Exterior3

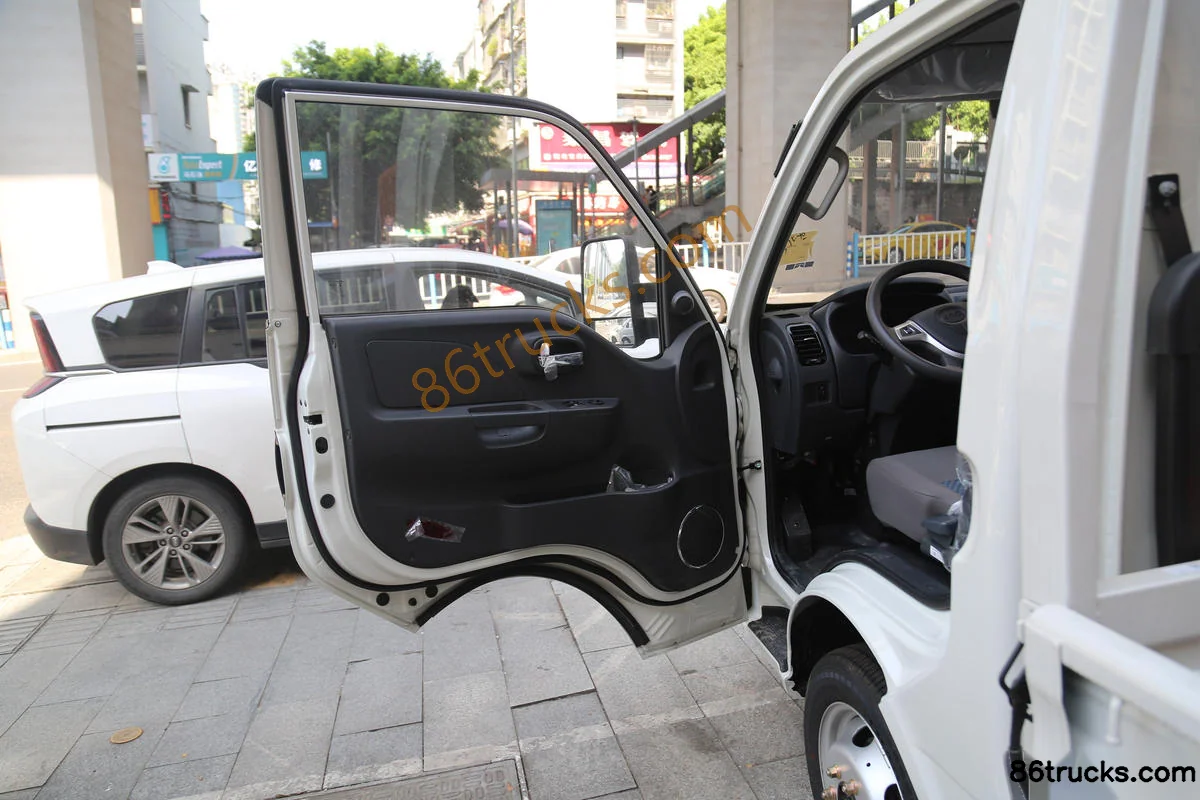

Interior3

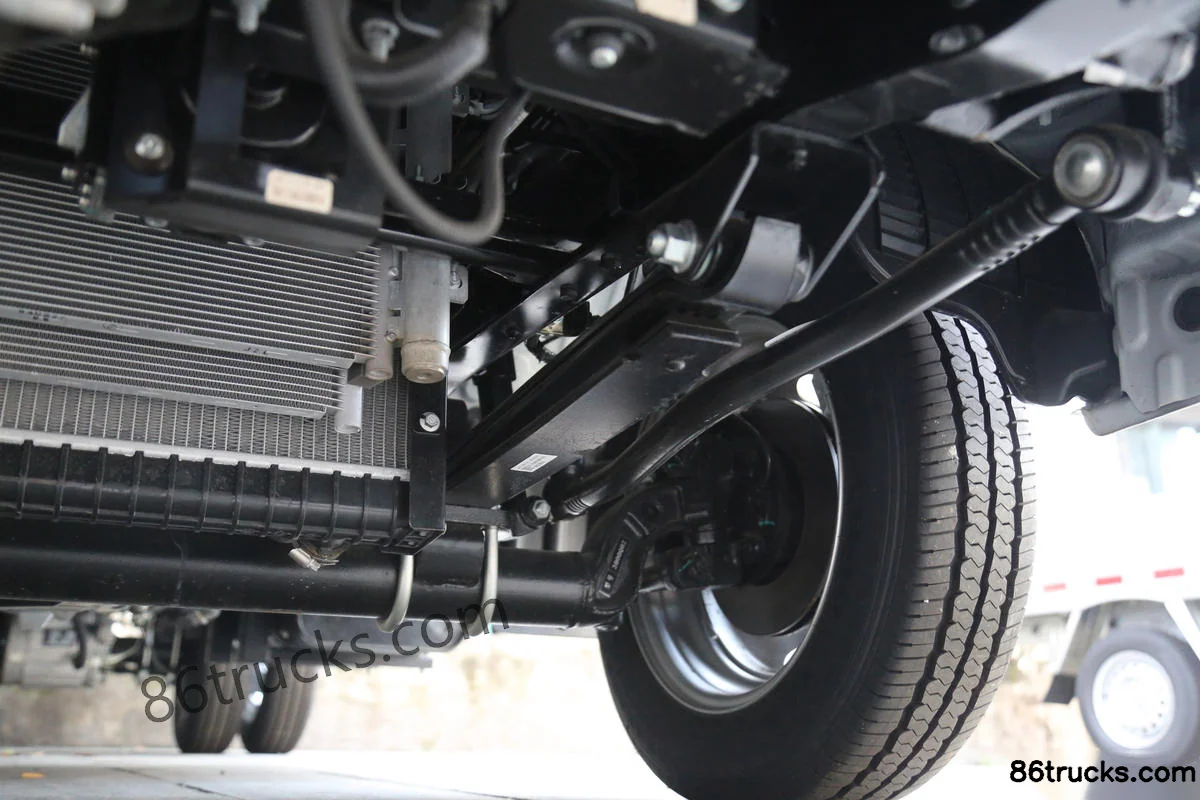

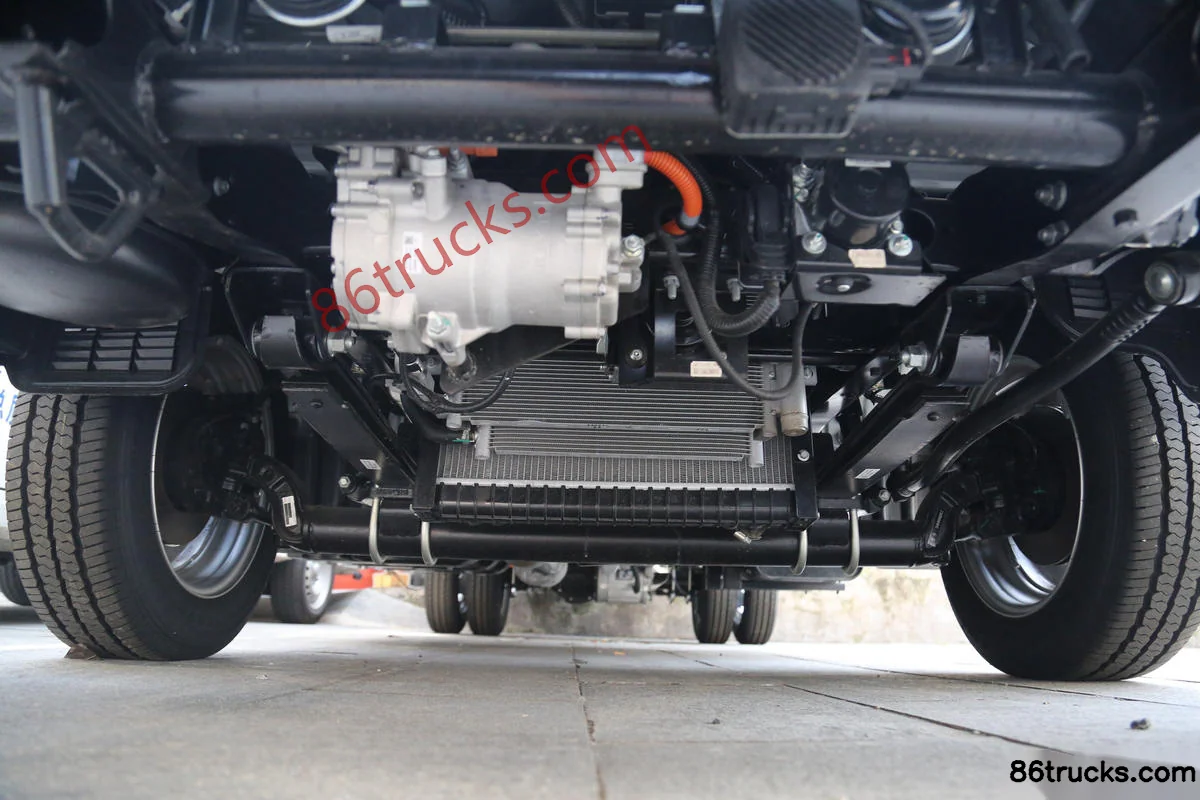

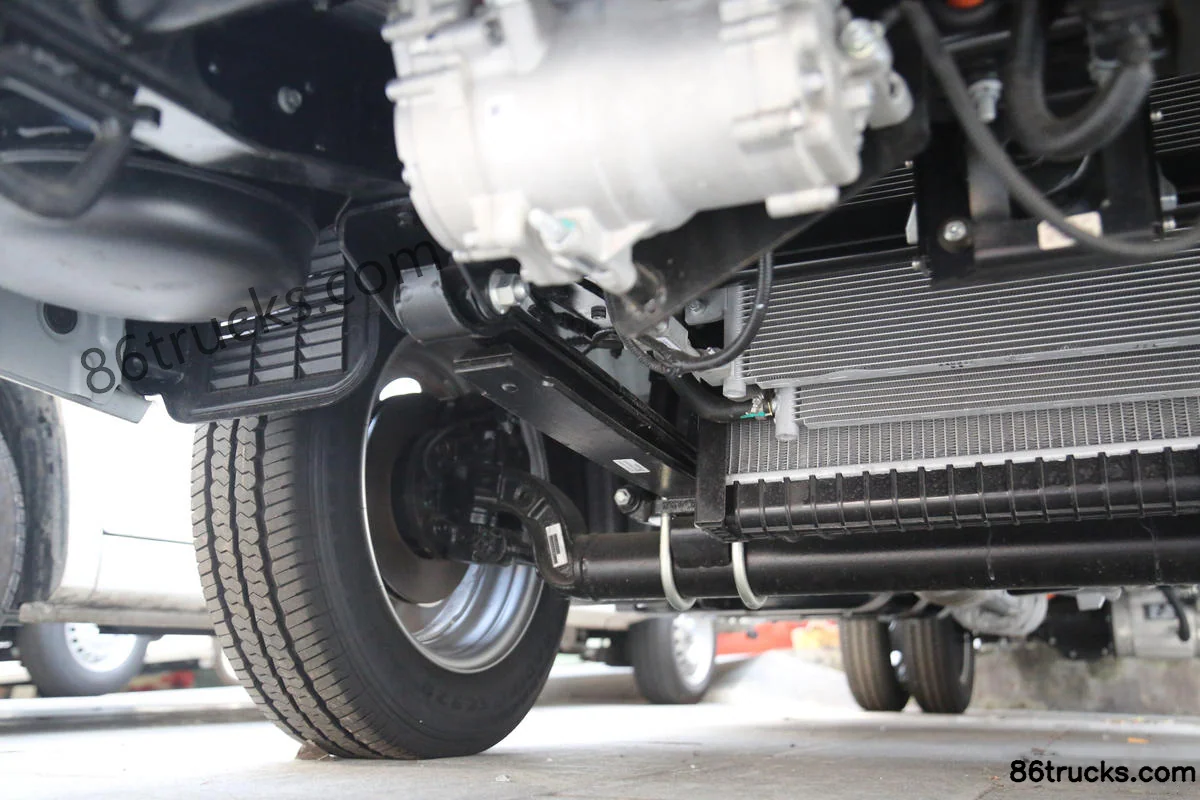

Chassis3

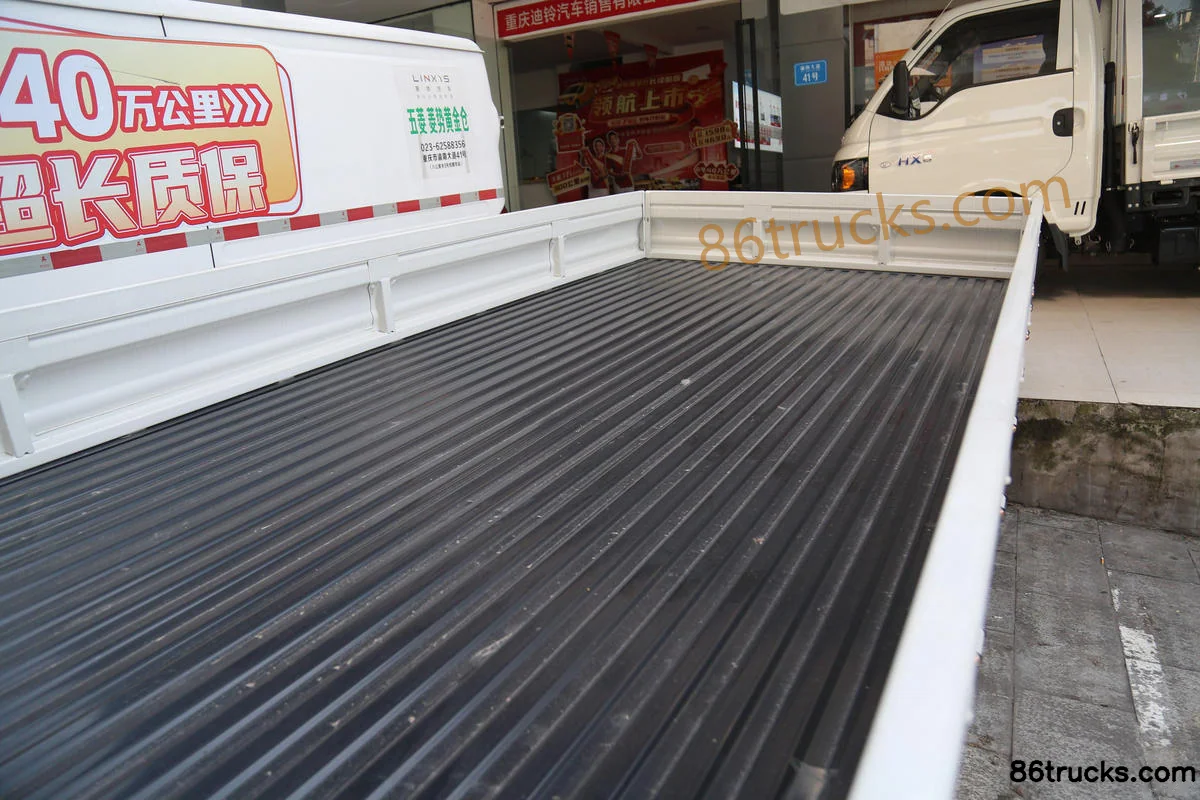

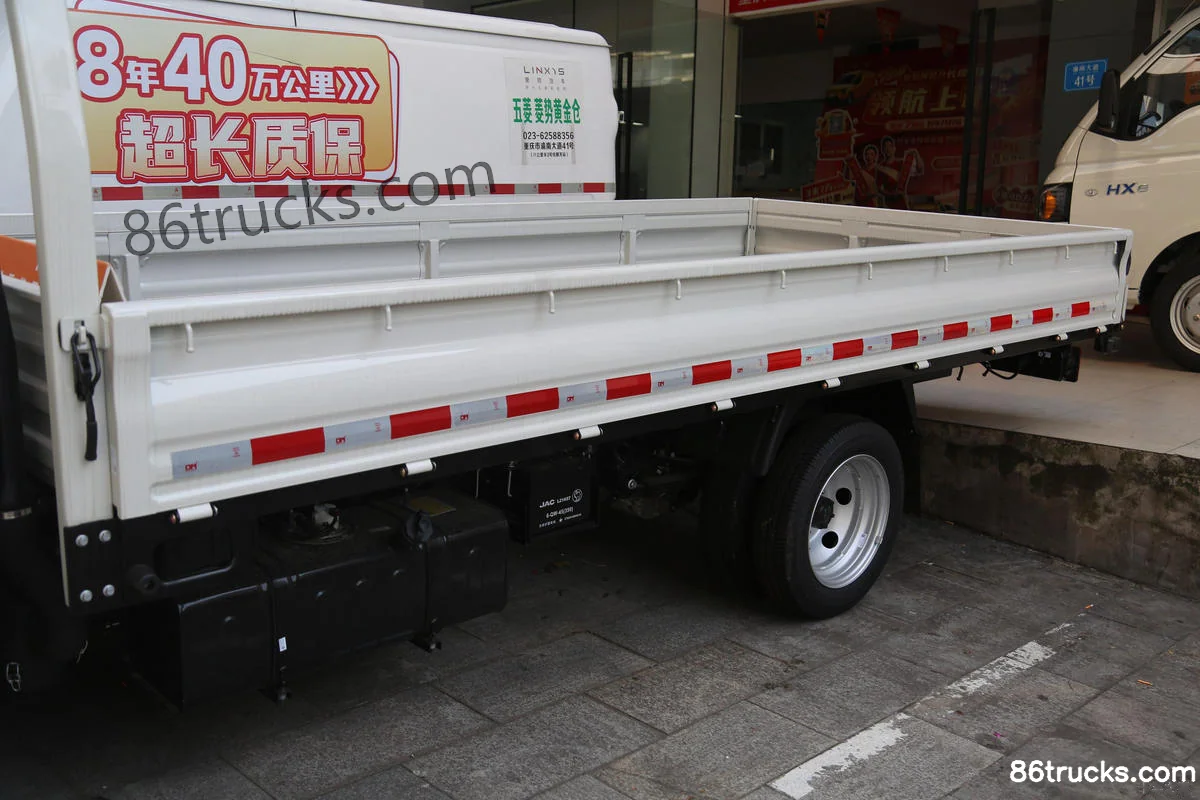

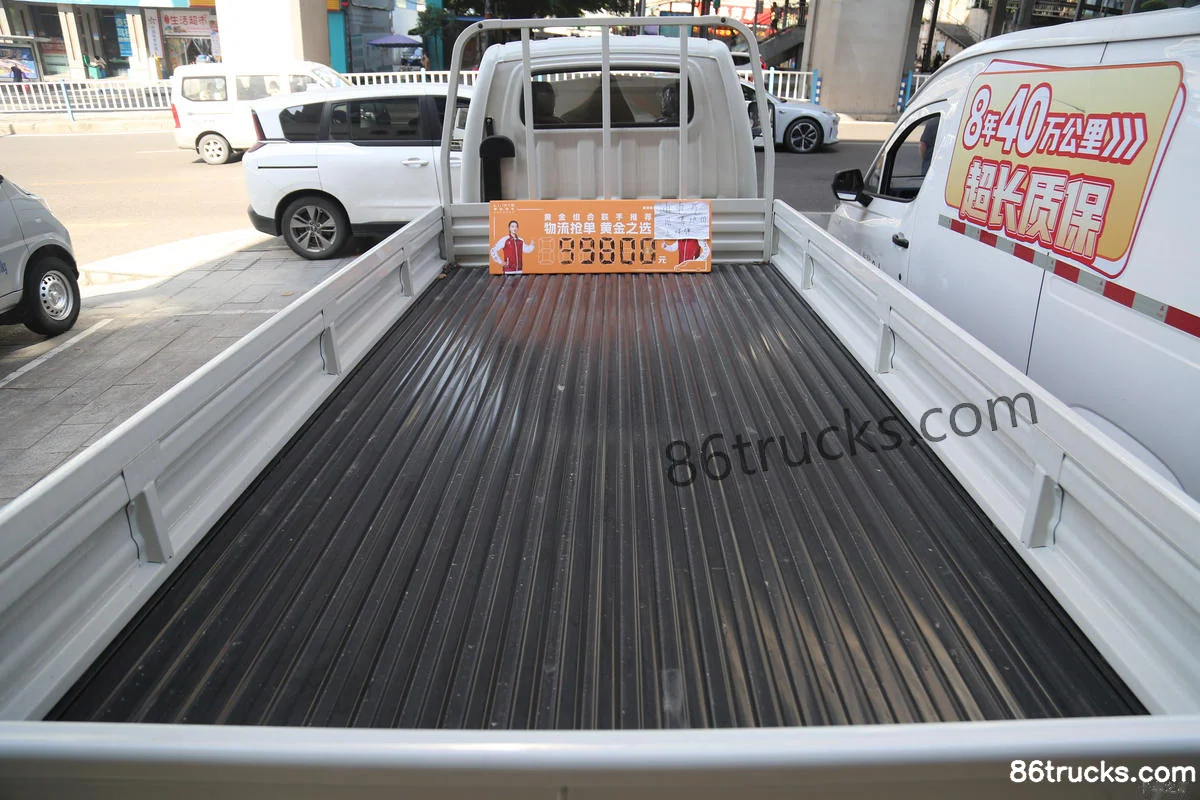

Body3

12 photos

FAQ

What is the export price of JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels), and what does it include?

JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) export reference is about From $27,194; MSRP is ¥19.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels)?

Key specs of JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 120 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) suited for?

JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels) belongs to JACEX6 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kaida HX6 3.5T 3.8m Single Row Plug-in Extended Range Hybrid Flatbed Mini Truck 17.28kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
