Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Hanma
Curb Weight:: 12.5ton
Wheelbase:: 4100+1350mm
Tire Size:: 12.00R20 16PR
Rated payload: 12.305ton
Drive 6X4 (10 wheels)
Horsepower 410
Cargo box type: Dump type

Overview

The Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis is a Heavy truck featuring 12.305t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a HanmaCM6T28.410 50 engine, 410 hp, China V emissions and Hanma transmission.

China V 410 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CZ5251ZLJSU45L
Drive type: 6X4
Wheelbase: 4100+1350mm
engine: HanmaCM6T28.410 50
transmission: Hanma9SDB2051A
Rear Axle Ratio: 5.263
Cab length: 8.8m
Cab width: 2.55m
Cab height: 3.7m
Front track width: 2065mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.305ton
GVWR: 25ton
Origin: Xingtai, Hebei
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 16°
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6T28.410 50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.813L
Emission standard: China V
Max output power: 300kW
Max hp: 410Horsepower
Max torque: 1750N·m
Max torque speed: 1100-1450rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder lean burn
Transmission Parameters
Transmission Model: Hanma9SDB2051A
Transmission Brand: Hanma
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Cab parameters
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 7T
Front axle allowable load: 7000kg
Frame Dimensions: 310(8+8)mm
rear axle description: HL300A
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.263
Leaf spring count: 9/12
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Power Windows:
Electronic Central Lock:

Photos

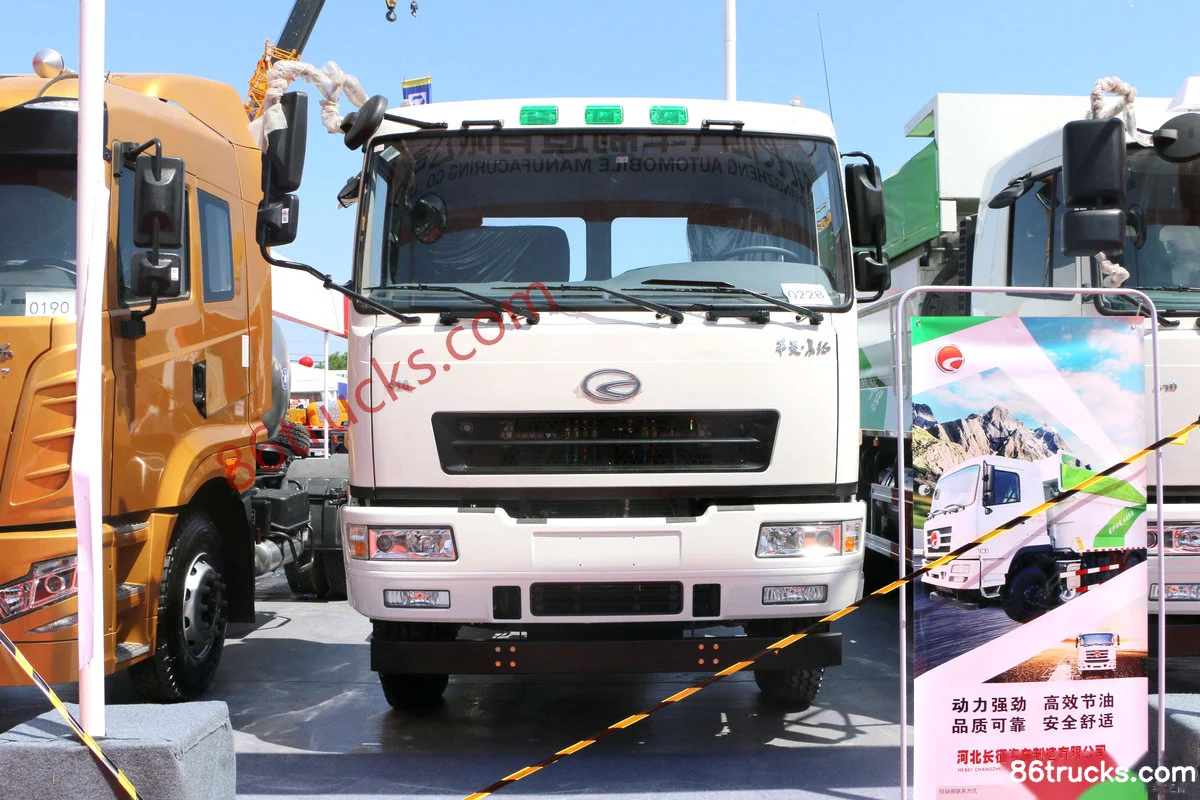

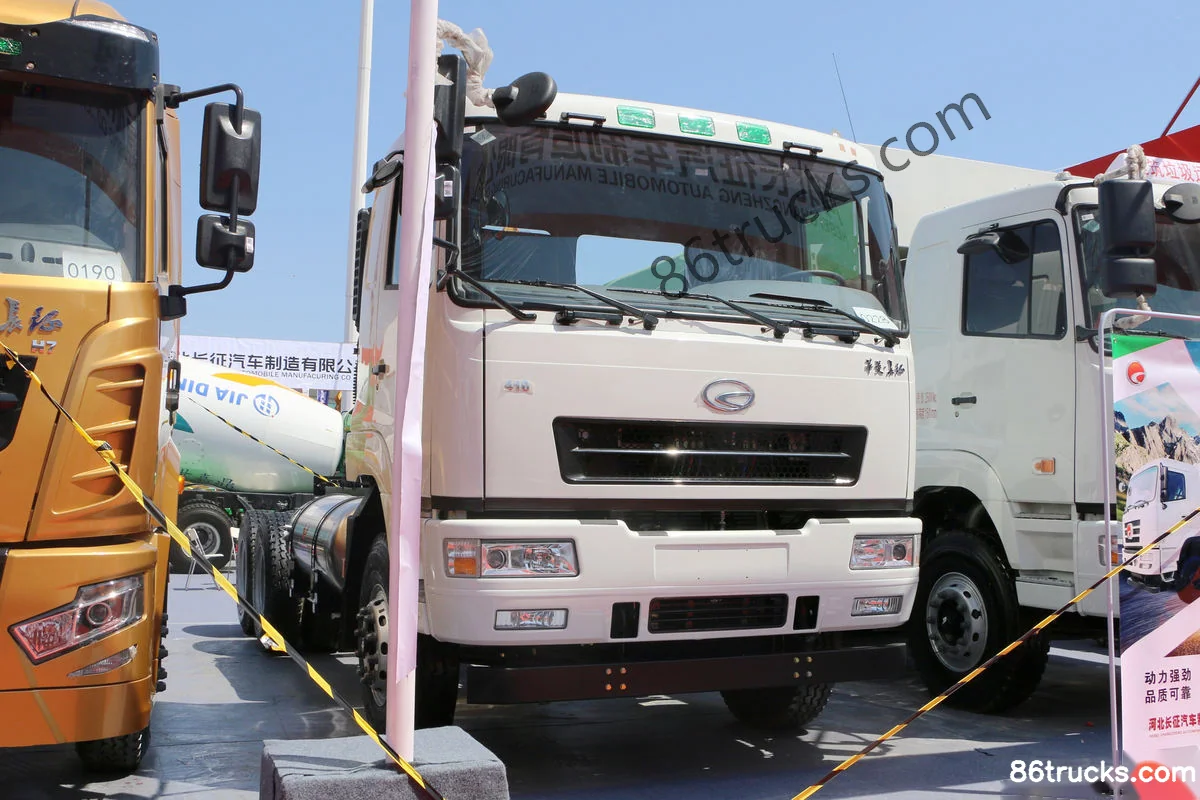

Exterior3

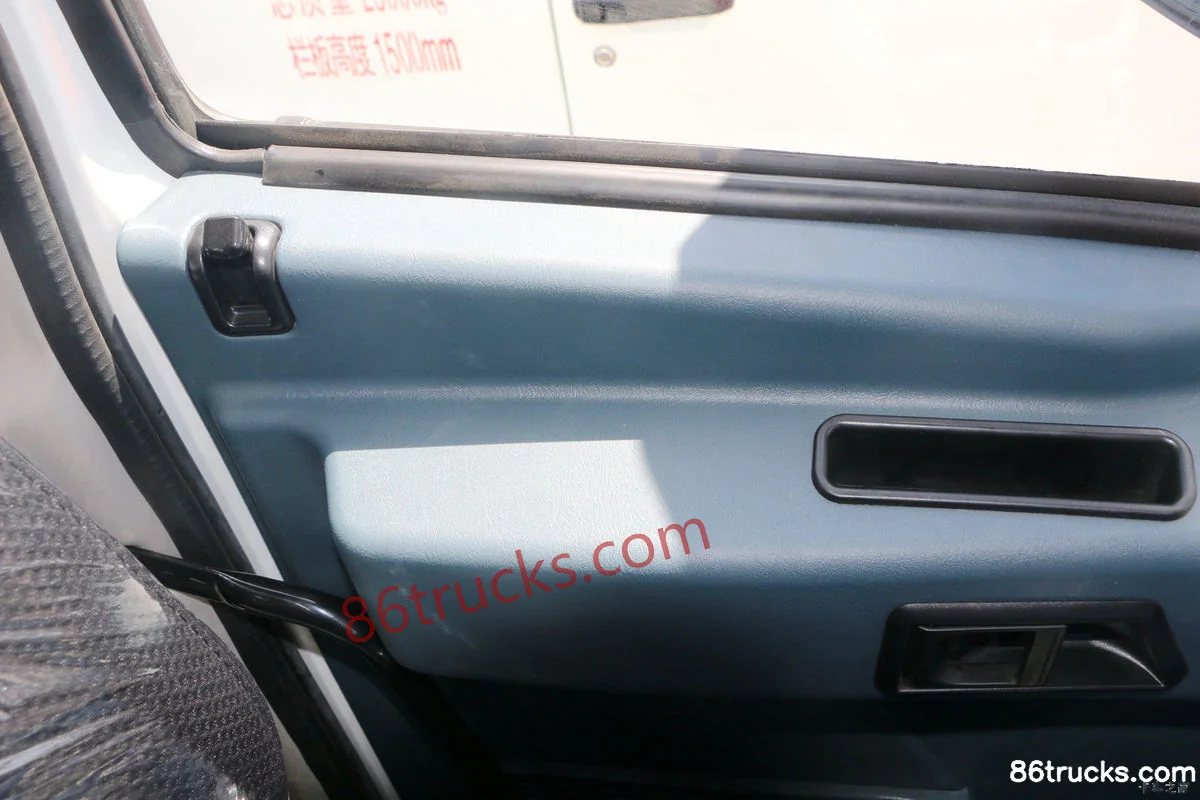

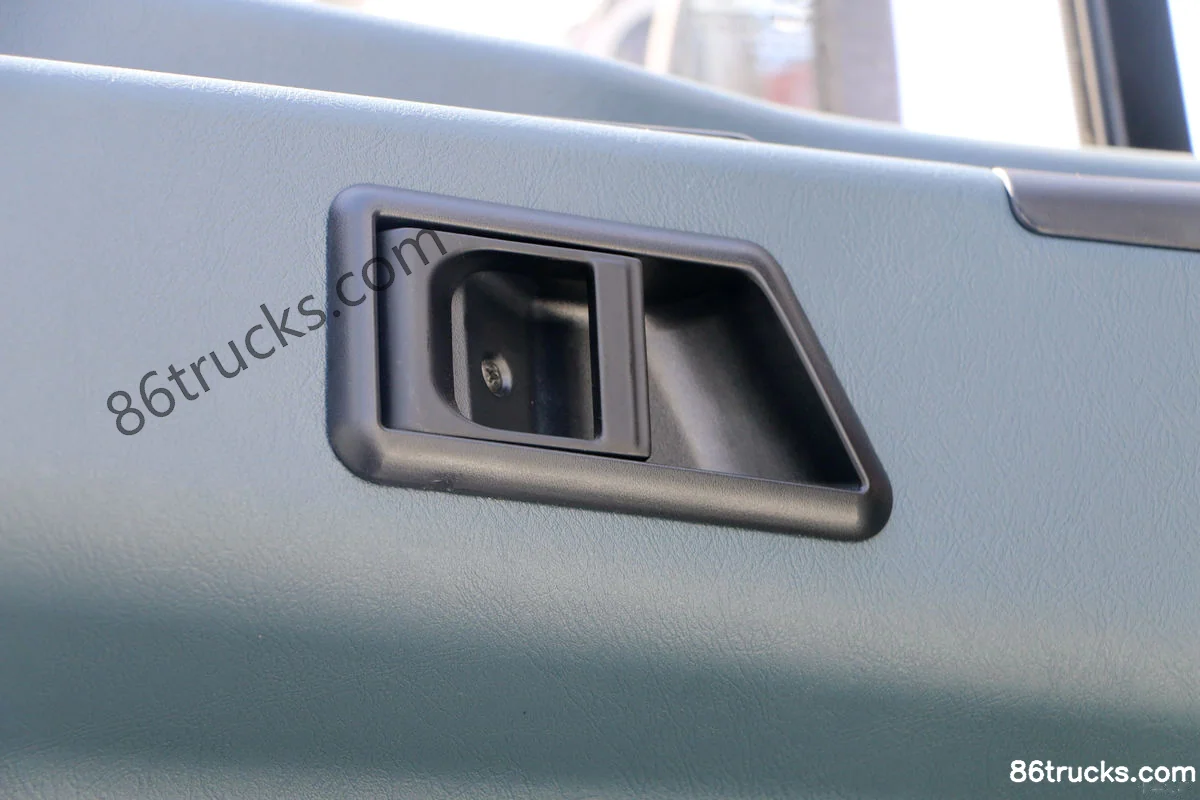

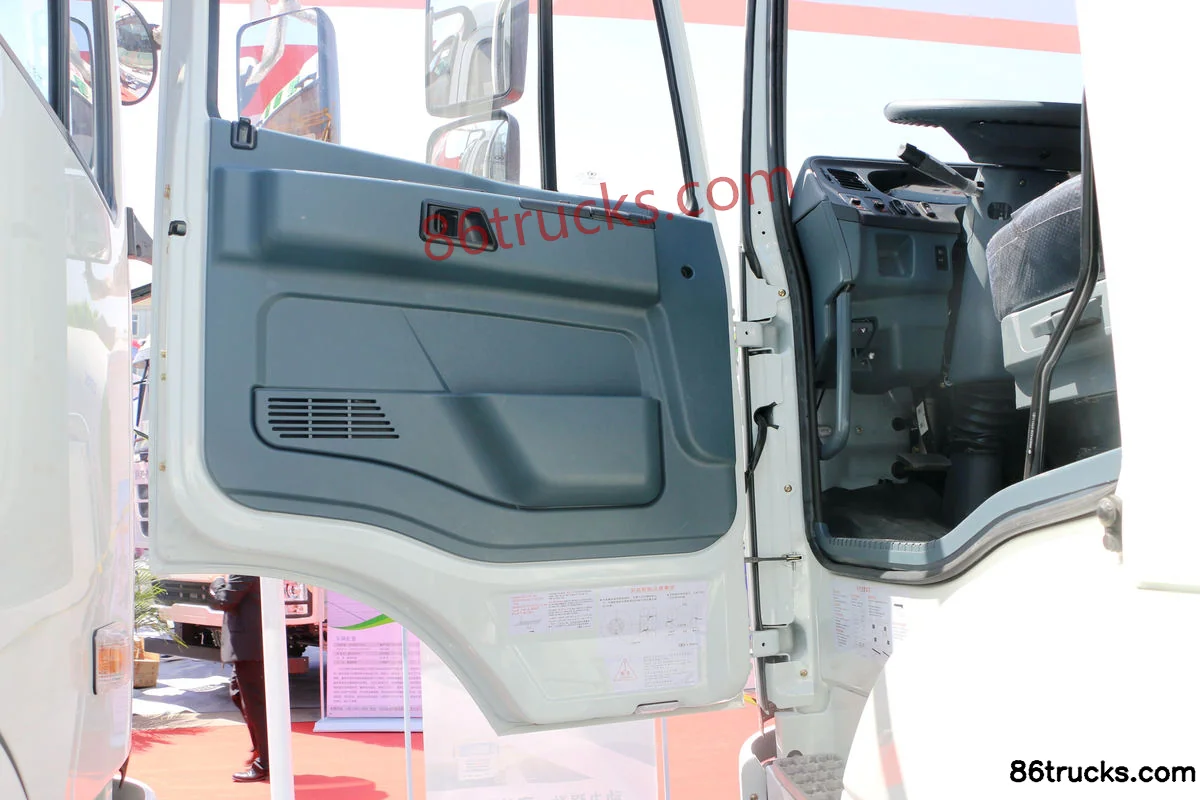

Cab3

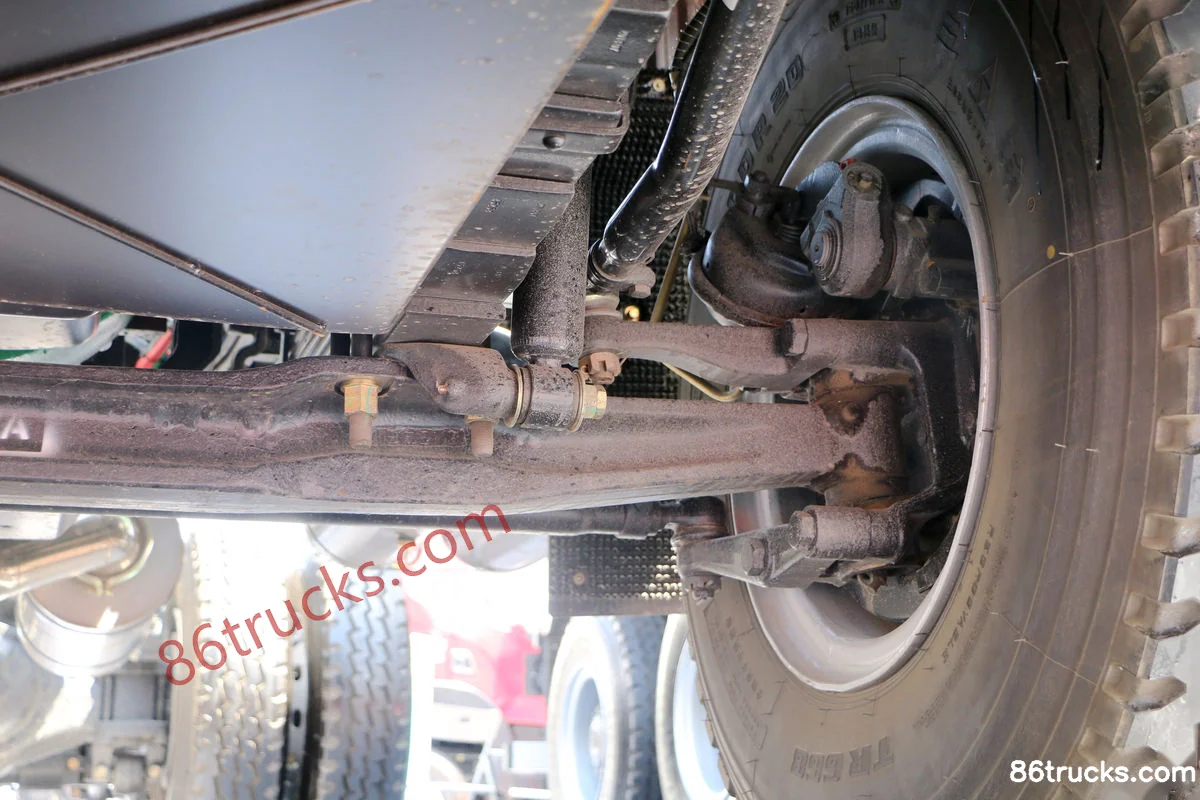

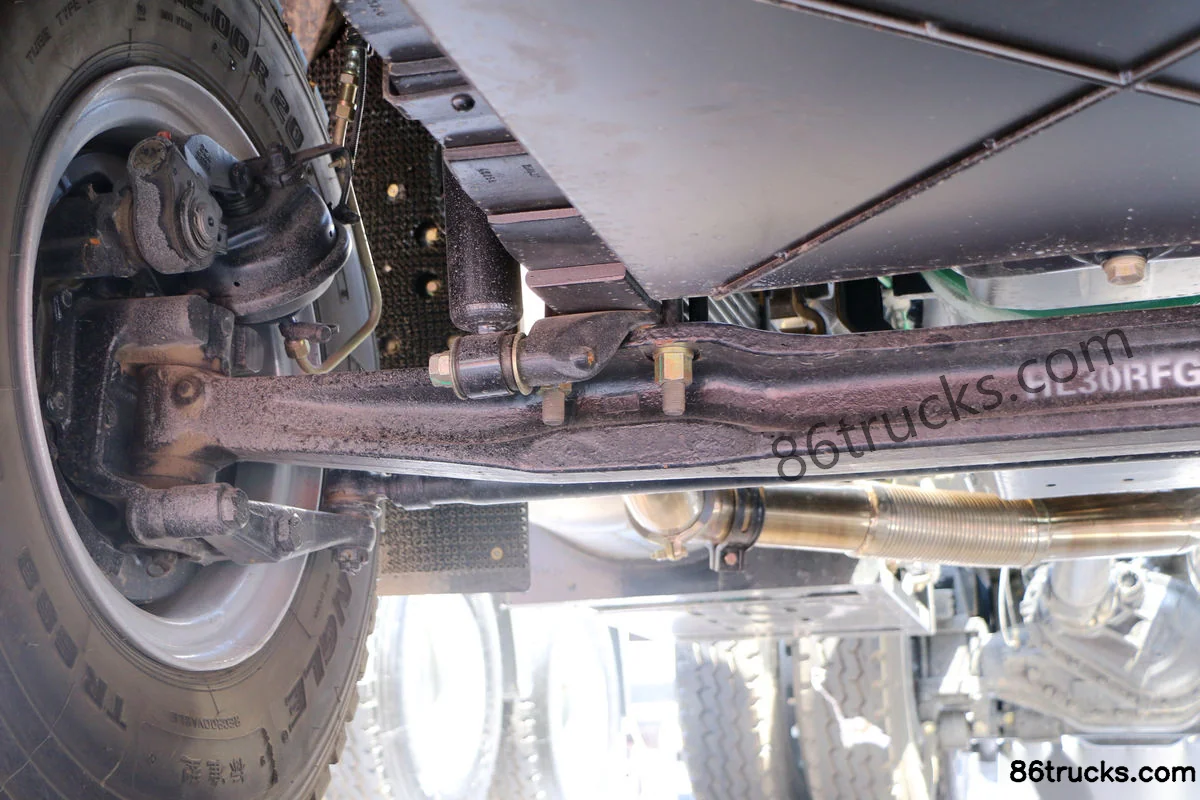

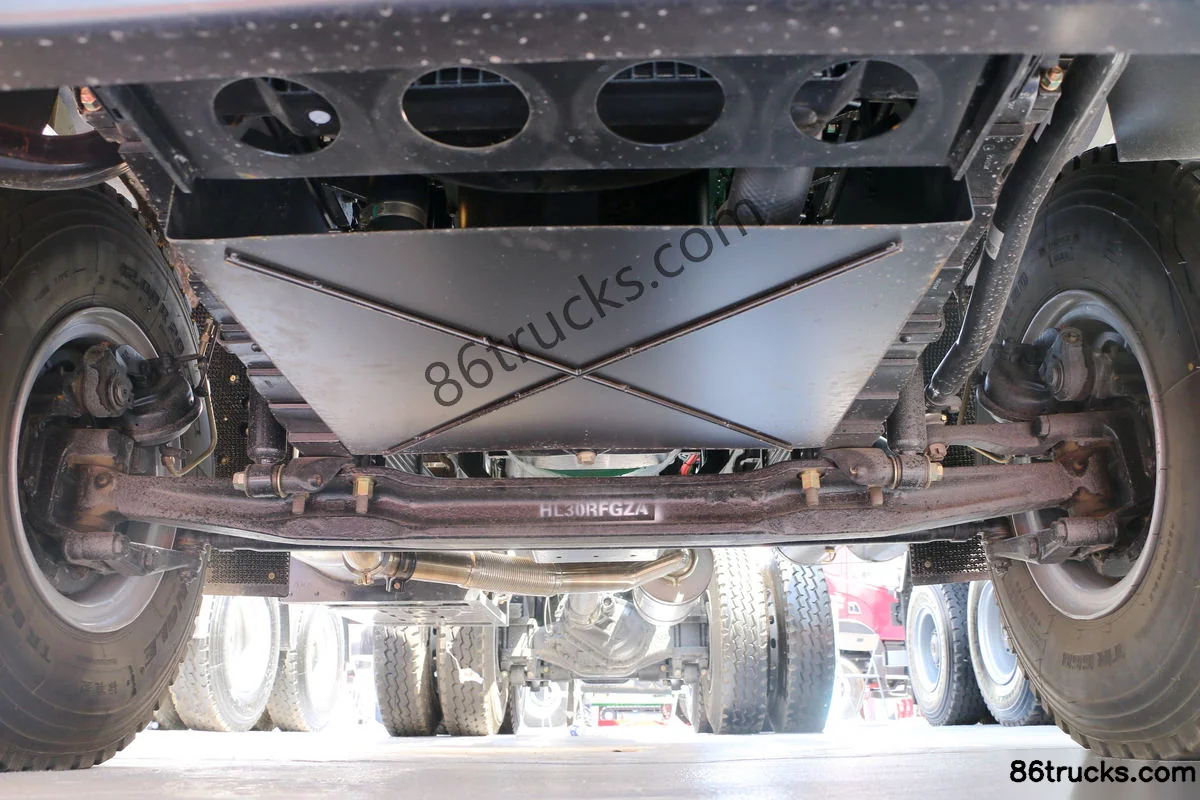

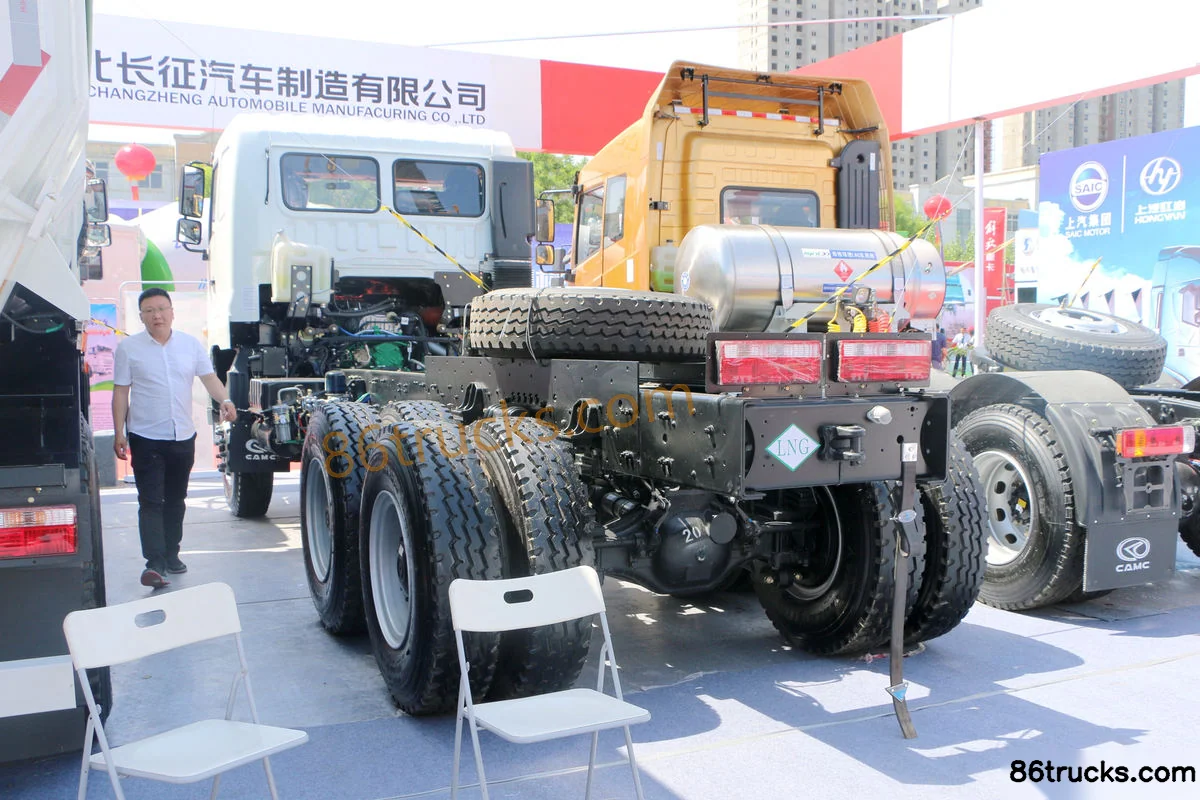

Chassis3

9 photos

FAQ

What emission standard does Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis?

Key specs of Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis: Drive: 6x4; Horsepower: 410 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis suited for?

Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis differ from other variants in the same series?

Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis belongs to Changzheng Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Changzheng Auto 410 hp 6X4(10 wheels) 5.8m LNG Dump Refuse Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
