Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck

Export reference
From $32,819
MSRP ¥23.63M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Fukang 4.5
Transmission: Fast Gear
Curb Weight:: 8.325ton
seating capacity: 2Personnel
Rated payload: 9.545ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck is a Medium-duty truck featuring 9.78m cargo length, Van body cargo body, 2Personnel volume and 9.545t payload. On the powertrain side, it comes with a Fukang 4.5 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5186XXY-2M
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7300mm
Box length class: 9.8m
engine: FotonF4.5NS6B220
transmission: Fast GearF8JZ95MM
Rear Axle Ratio: 4.333
Cab length: 12m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 8.325ton
Rated payload: 9.545ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Remarks: Optional 600L aluminum alloy fuel tank, 4.875/4.333 ratio, electric hydraulic cab tilting.
Front/rear suspension: 1.32/3.43m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF4.5NS6B220
Engine info: Fukang 4.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast GearF8JZ95MM
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.78m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.45
Cab parameters
Cab: Sleeper cab with raised roof
Cab width: 2200mm
Cab tilting: Manual
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat

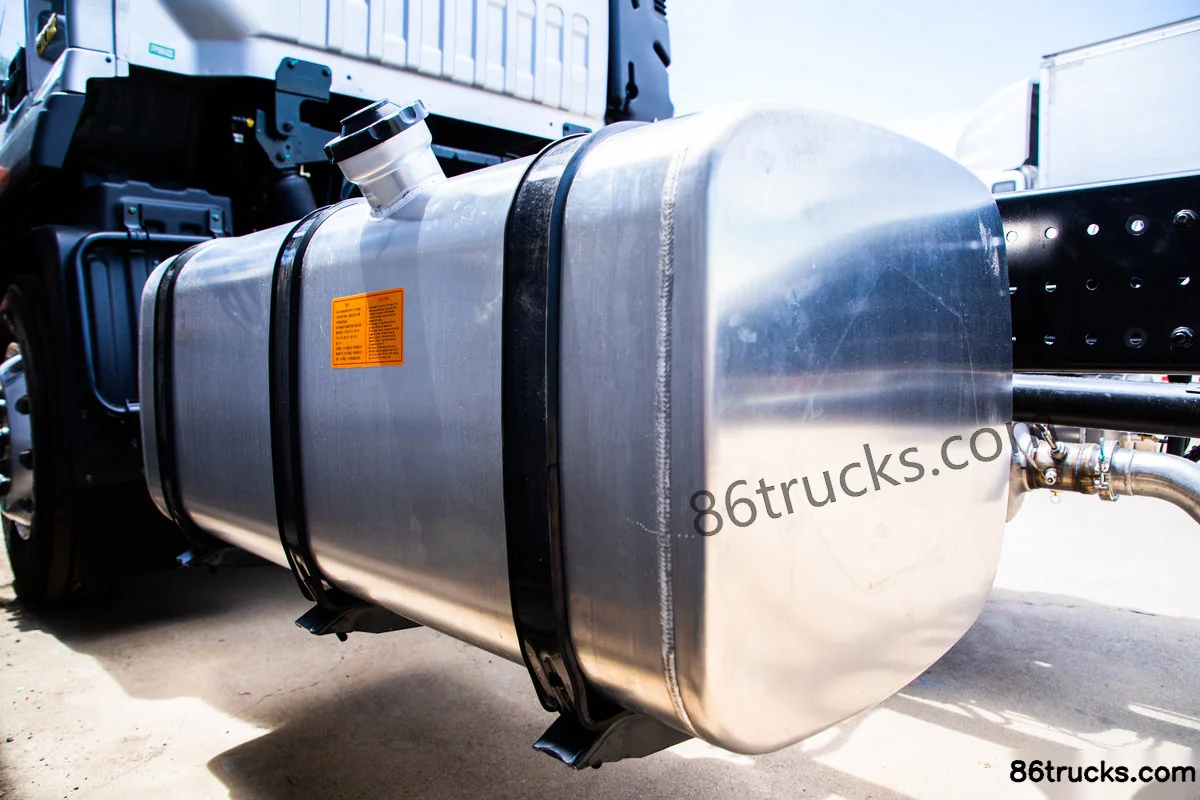

fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 450L
Chassis Specs
Front axle description: 5.5T front axle
Front axle allowable load: 6500kg
Frame Dimensions: 250-height frame with longitudinal beam sectionmm
rear axle description: 9T
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/4+3
Aluminum wheels:
Tire
Tire Size: 11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
automatic slack adjuster:
interior configuration

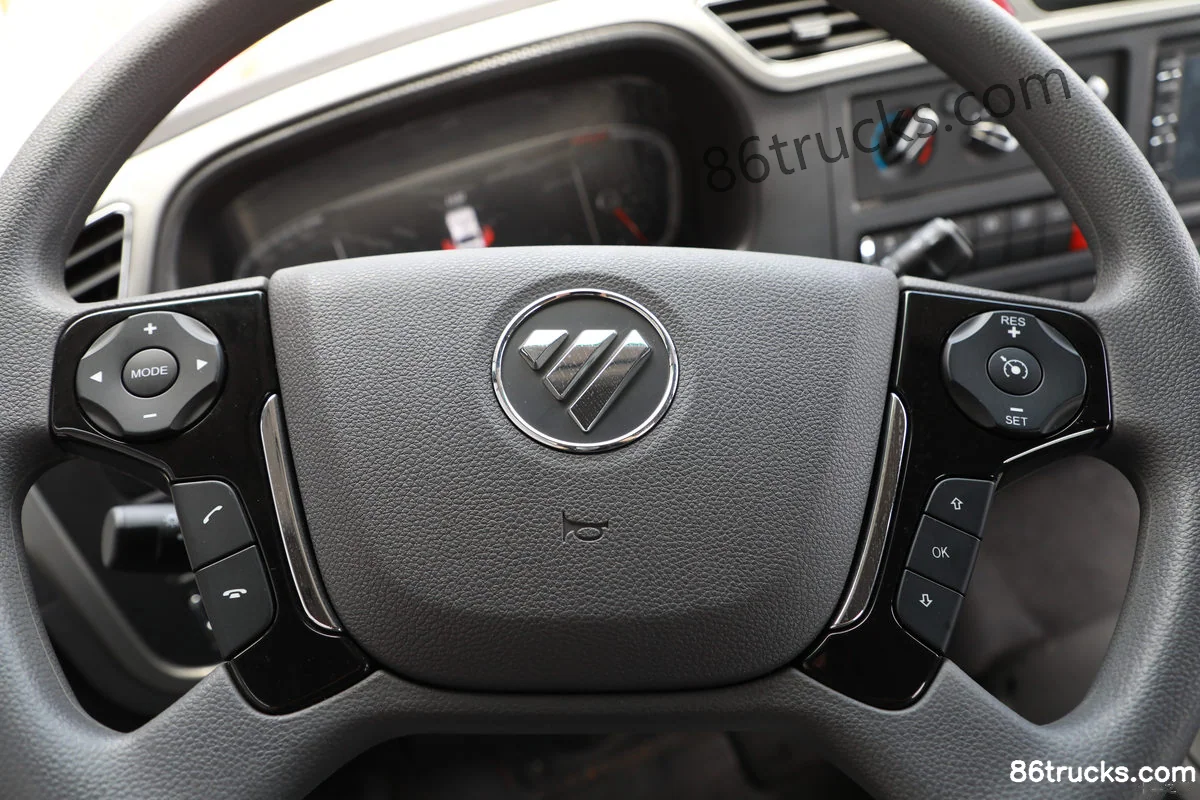

Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Standard drum brake, optional disc brake
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

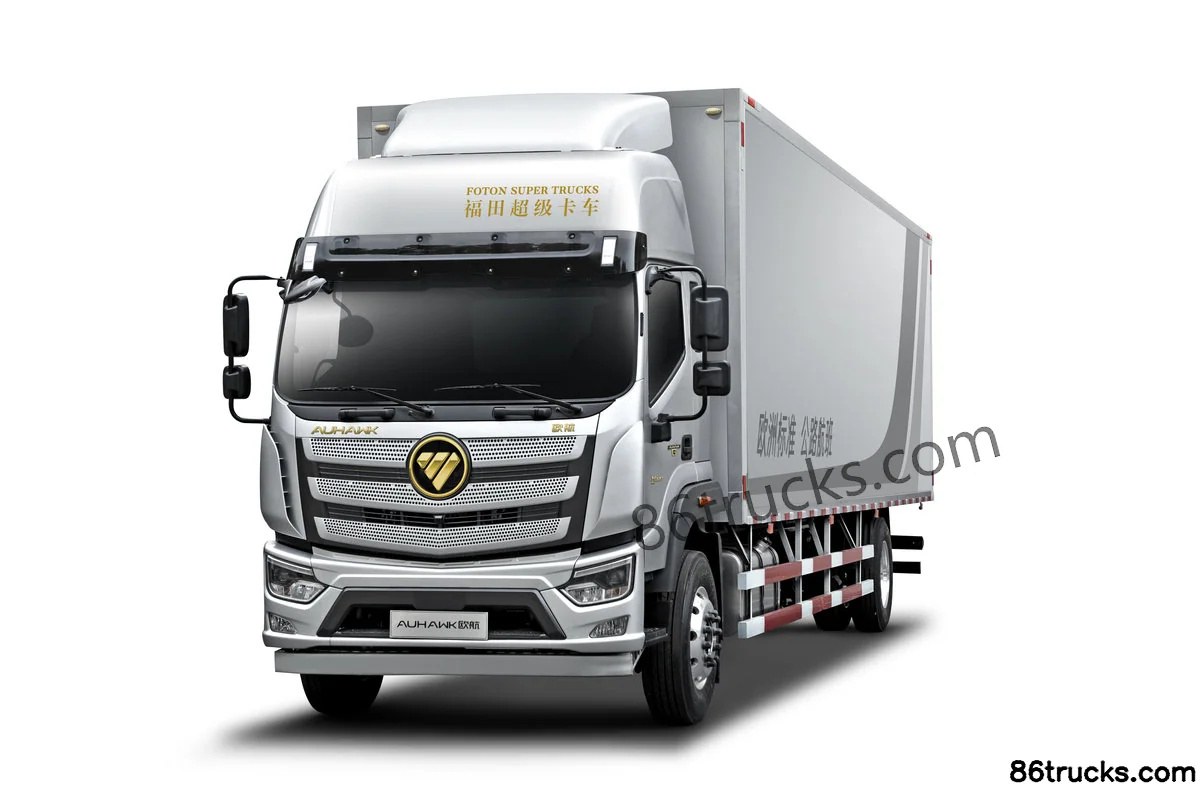

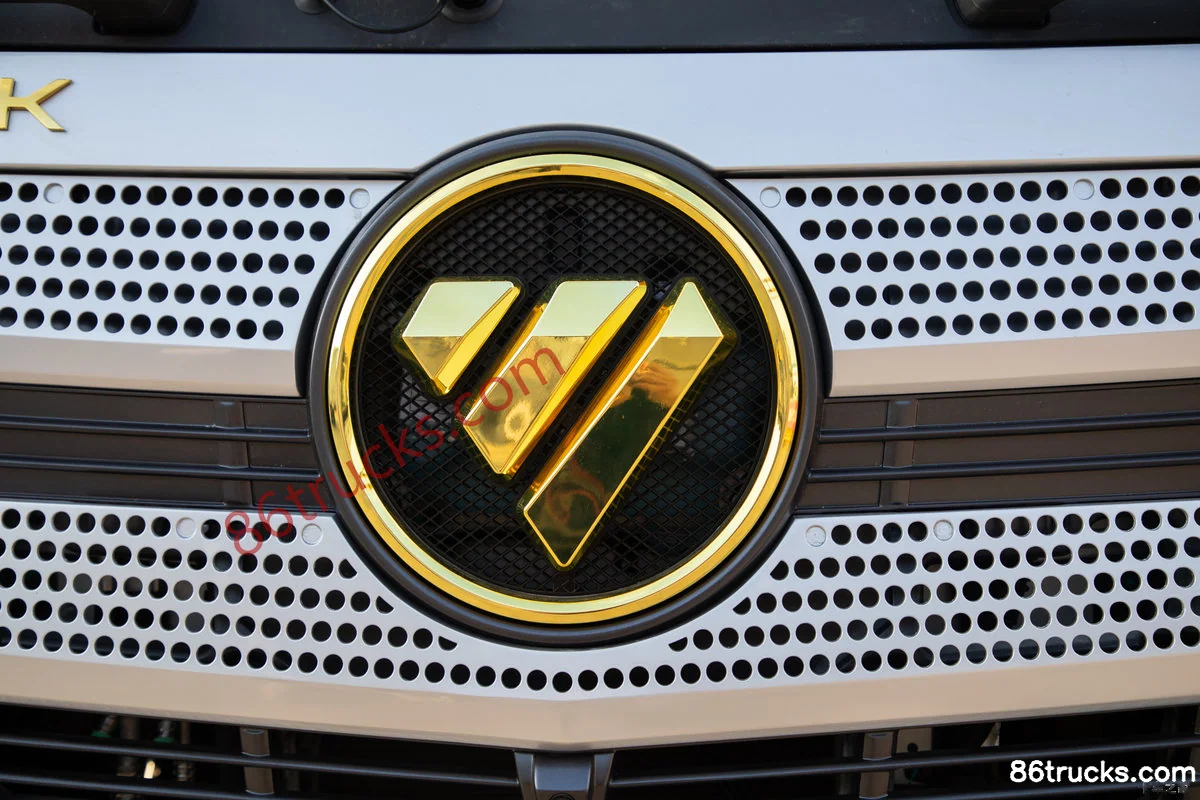

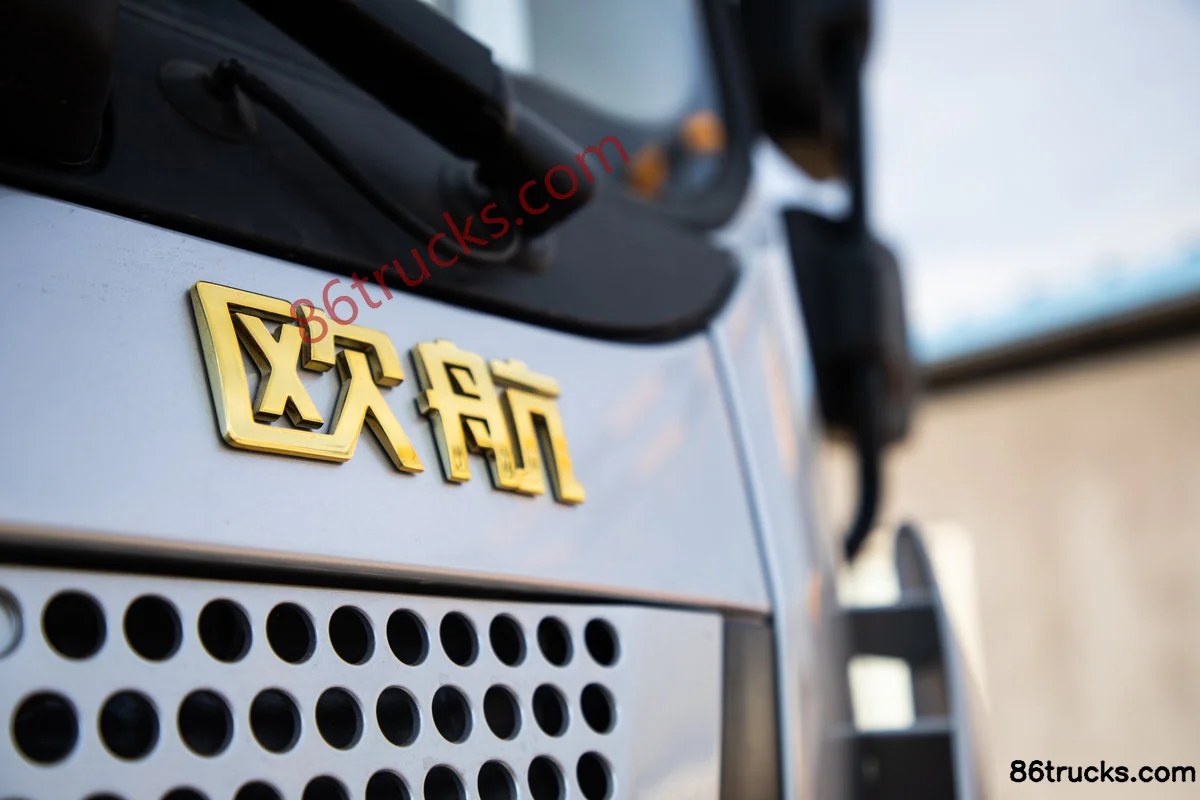

Exterior3

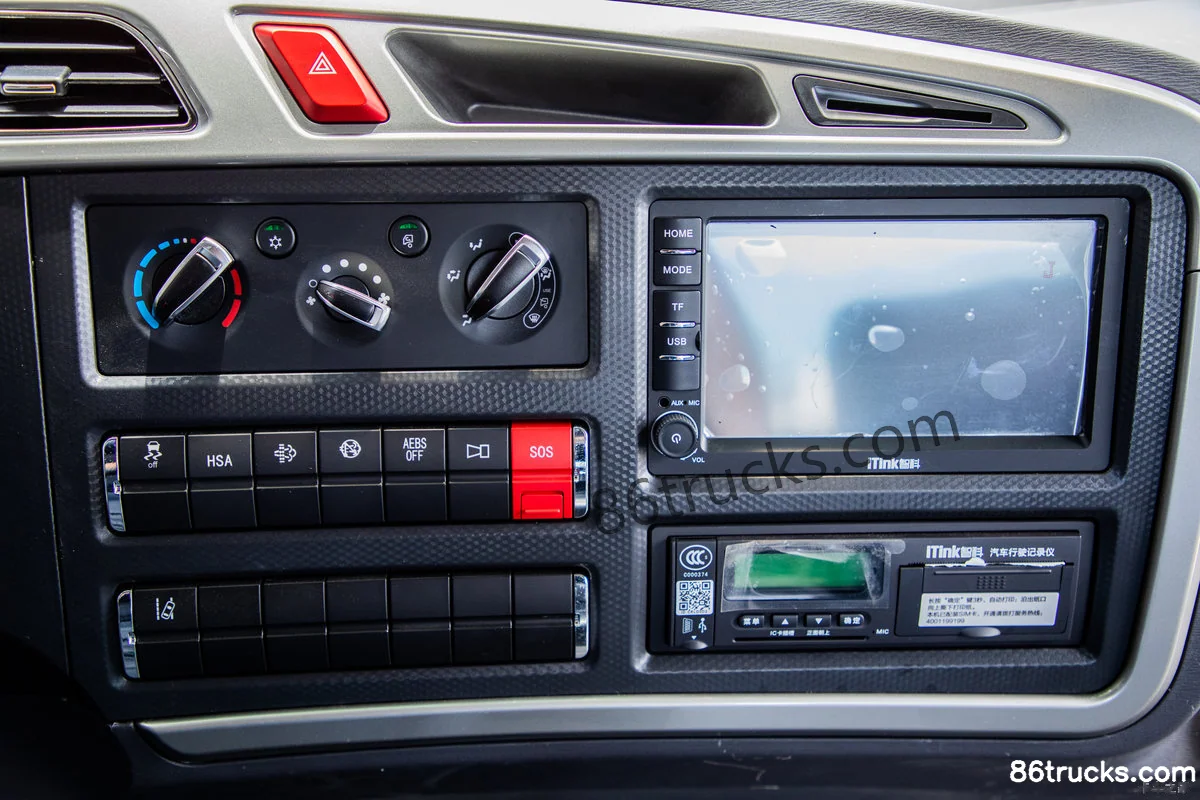

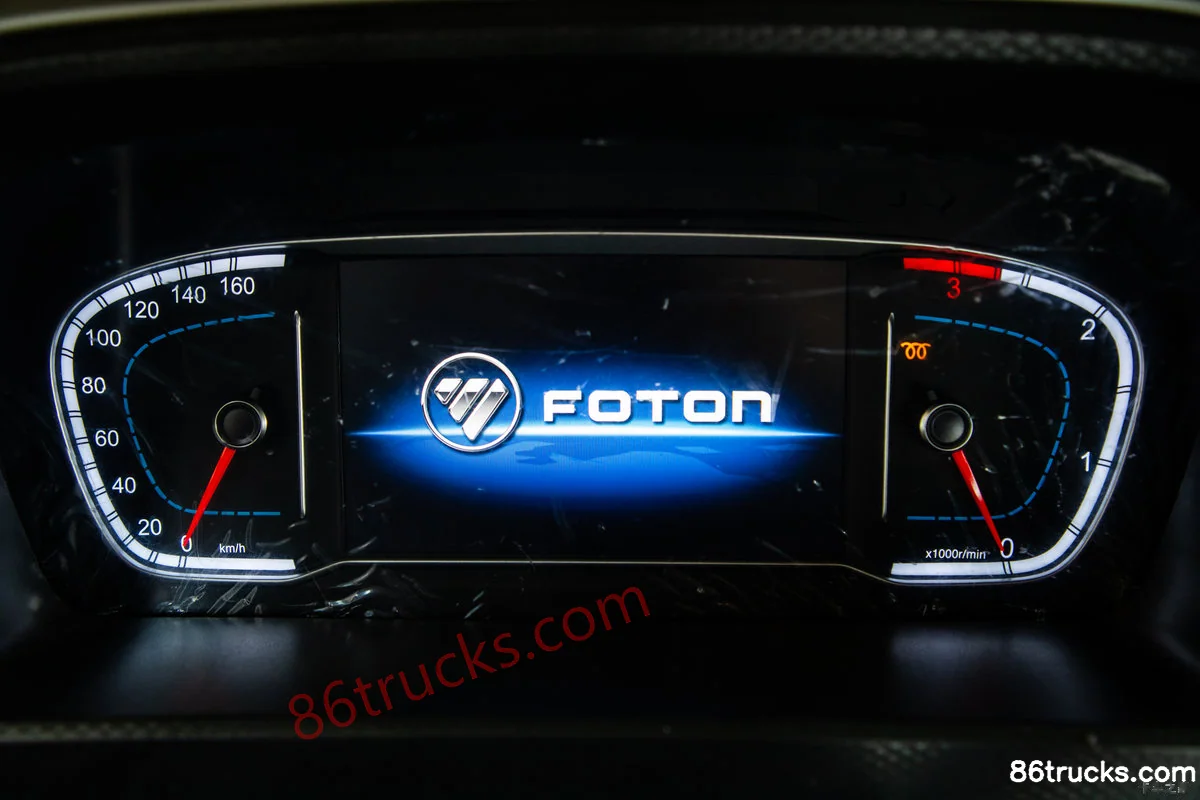

Cab3

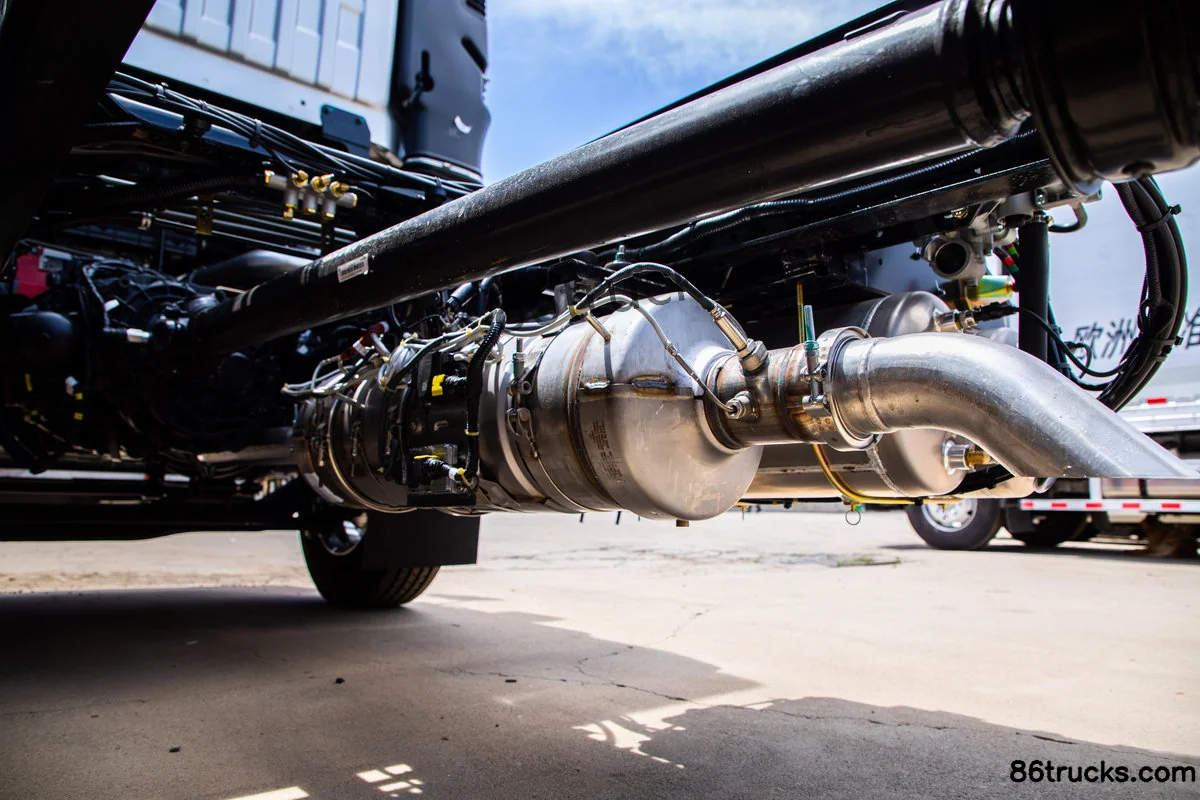

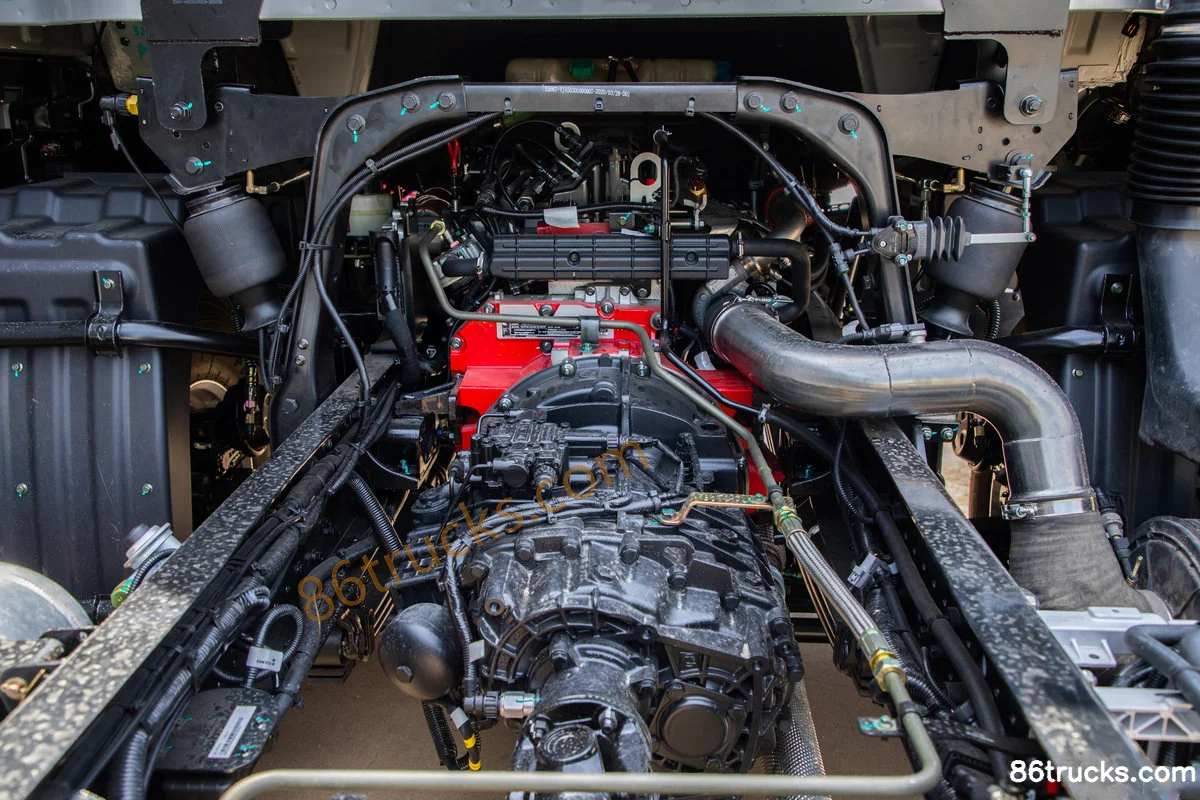

Chassis3

9 photos

FAQ

What is the export price of Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck, and what does it include?

Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck export reference is about From $32,819; MSRP is ¥23.63M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck?

Key specs of Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 4.5; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck suited for?

Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck differ from other variants in the same series?

Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck belongs to Foton Auhang R Pro Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman R Pro Series 220 hp 4X2(6 wheels) 9.78m AMT Automatic Transmission Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
