JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand)

Export reference
From $55,556
MSRP ¥40M CNY
Fuel: Diesel
Curb Weight:: 13.8ton
Wheelbase:: 1800+3200+1350mm
Tire Size:: 12R22.5
Cab dimensions:: 10.3×2.5×3.99m
Truck Type:: concrete mixer truck
Rated payload: 17.07ton
Drive 8X4 (12 wheels)
Horsepower 290
Emission China V

Overview

The CIMC Ruijiang JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) is a concrete mixer truck featuring 17.07t payload, 13.8ton GVW, 8X4 (12 wheels) drive and Flat roof cab. On the powertrain side, it comes with 290 hp, China V emissions and Diesel fuel.

China V 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3×2.5×3.99m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Hefei, Anhui
Front/rear track width: Front track: 2040/2040mm; Rear track: 1880/1880
Wheelbase: 1800+3200+1350mm
Curb Weight: 13.8ton
Rated payload: 17.07ton
Max. speed: 85km/h
Front/rear suspension: 1.495/2.455m
Body Parameters
Mixing drum capacity: 7.75m³
Vehicle certification code: WL5311GJBHFC32
Body Brand: Ruijiang
Others: Oil pump/motor brand: Interpump; optional mudguard. Side and rear guard materials are both Q235, connection method is bolted; rear guard ground clearance is 400mm, rear guard cross-section dimensions (mm): 120×50; motor PVL, imported hydraulic parts, curb weight 13.6T, factory AC, air suspension seat, central door lock, reducer PMP or TOP
Engine parameters
Engine Model: YuchaiYC6A290-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.52L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Chassis Specs
Chassis Series: GallopK3
Chassis Model: HFC3311P2K3H32S2V
rear axle description: 153
Axle ratio: 4.875
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD120
Cab parameters
Cab: Flat roof
Tire
Tire Size: 12R22.5
Number of tires: 12pcs

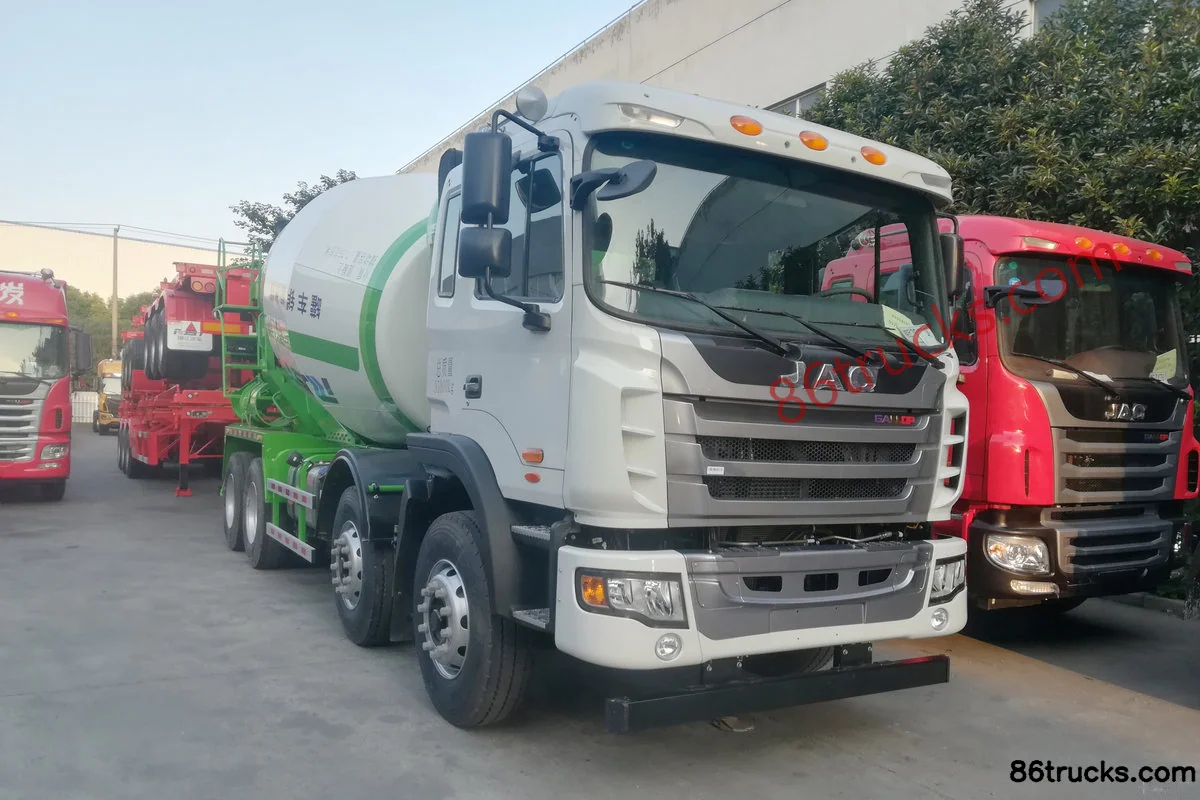

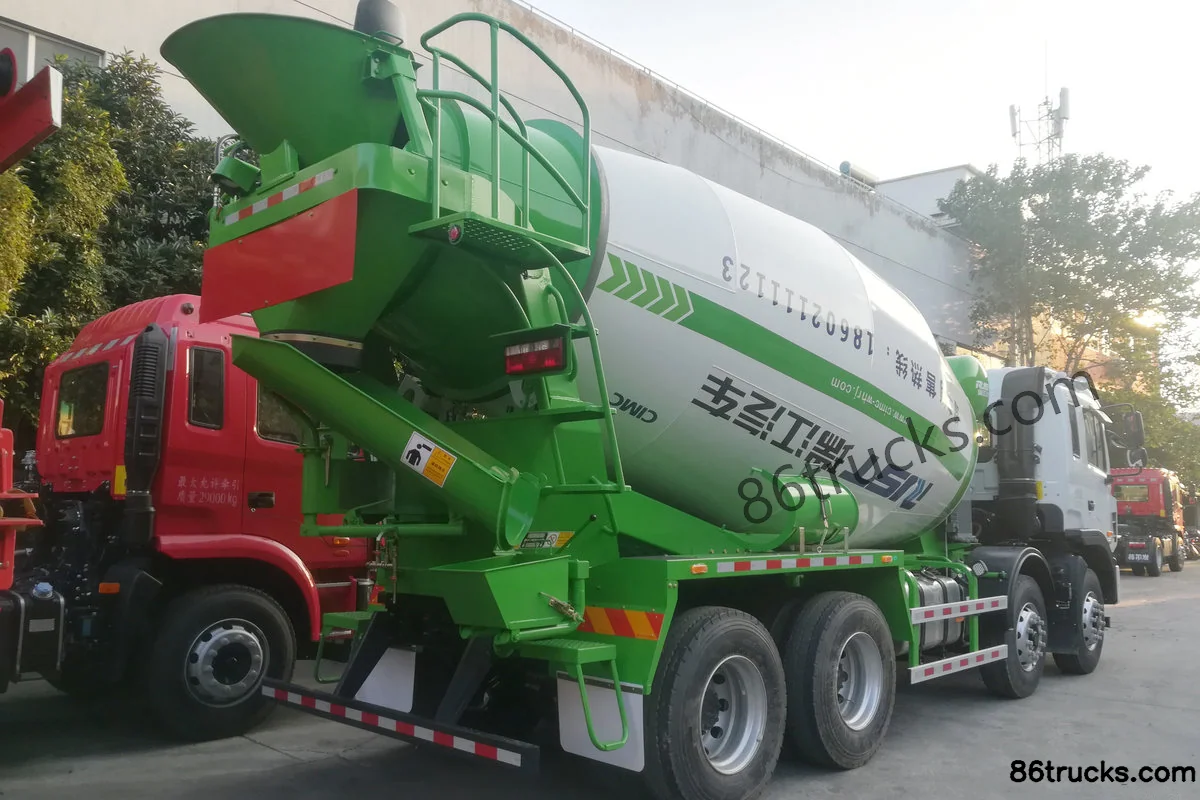

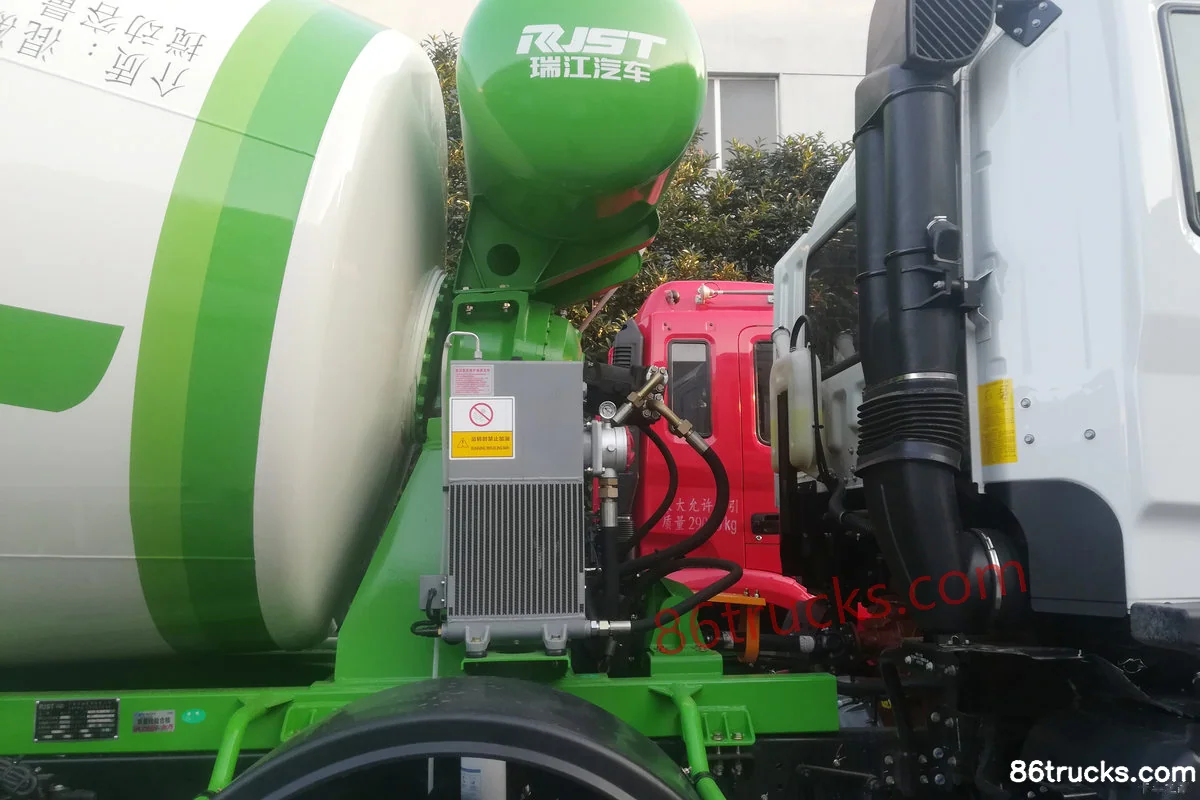

Photos

Exterior3

Cab1

4 photos

FAQ

What is the export price of JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand), and what does it include?

JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) export reference is about From $55,556; MSRP is ¥40M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand)?

Key specs of JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand): Drive: 8x4; Horsepower: 290 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) suited for?

JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) differ from other variants in the same series?

JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand) belongs to CIMC Ruijiang JAC Gallop chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 290hp 8X4(12 wheels) 7.75m³ concrete mixer truck (Ruijiang brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
