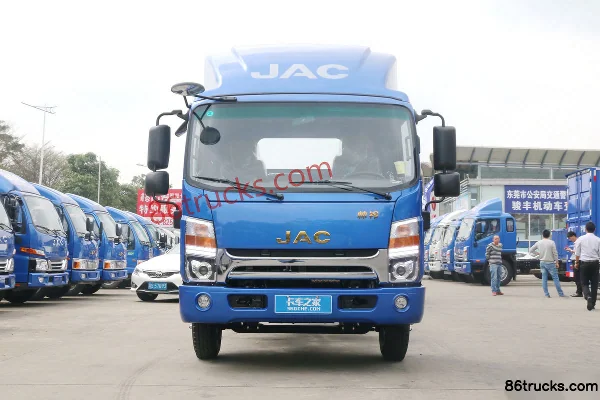

JAC New Shuailing H330 152 hp 4X2(6 wheels) 3.85m half-cab flatbed light truck

Export reference
MSRP N/A
Horsepower: 152
Emission: China V
Fuel: Diesel
Engine: Ruijete 493
Transmission: Lu'an
Curb Weight:: 3.31ton
seating capacity: 3Personnel
Rated payload: 4.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC New Shuailing H330 152 hp 4X2(6 wheels) 3.85m half-cab flatbed light truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 4.495t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Ruijete 493 engine, 152 hp, 4X2 (6 wheels) drive and China V emissions.

China V 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1080P71K1C2V-1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: JACHFC4DE1-1D
transmission: Lu'an LC6T42
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.42m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 3.31ton
Rated payload: 4.495ton
GVWR: 8ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 11.6°
market segment: Building materials, agricultural products
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DE1-1D
Engine info: Ruijete 493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.746L
Emission standard: China V
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 355N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged
Transmission Parameters
Transmission Model: Lu'an LC6T42
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.08m
Cargo box height: 0.4m
*Cargo box interior width: 2.0799999237061
Cab parameters
Cab: Wide body
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 2870kg
rear axle allowable load: 5130kg
Axle ratio: 4.875
Leaf spring count: 8/7+6
Tire
Tire Size: 7.50R16LT 14PR,7.50-16LT 14PR
Number of tires: 6pcs
Control configuration
ABS:
