Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck

Export reference
From $11,542
MSRP ¥8.31M CNY
Horsepower: 110
Emission: China IV
Fuel: Diesel
Engine: Foton493
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck is a Light Truck featuring 4.23m cargo length, stake body cargo body, 2Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Foton493 engine, 110 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR1043H16D
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Foton4J28TC
transmission: WLYWLY6T100
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2m
Cab height: 2.34m
Front track width: 1609mm
rear track: 1485mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
market segment: Building materials, agricultural products
Remarks: Standard basic configuration: adjustable collapsible energy-absorbing steering column, exhaust brake, load-sensing proportioning valve, power steering, clutch booster, electric radio with MP3, A/C, 5.571 rear axle, spring brake, air dryer. Optional: radial tires, 4.875 rear axle, central drum parking brake, 2050 drop-side cargo body.
Front/rear suspension: 1.125/1.51m
Version:
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC
Engine info: Foton493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3600rpm
Engine Type: Inline, vertical, water-cooled
Transmission Parameters
Transmission Model: WLYWLY6T100
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.23m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1981kg
rear axle allowable load: 2514kg
Axle ratio: 4.875
Leaf spring count: 9/6+4
Tire
Tire Size: 7.00-16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

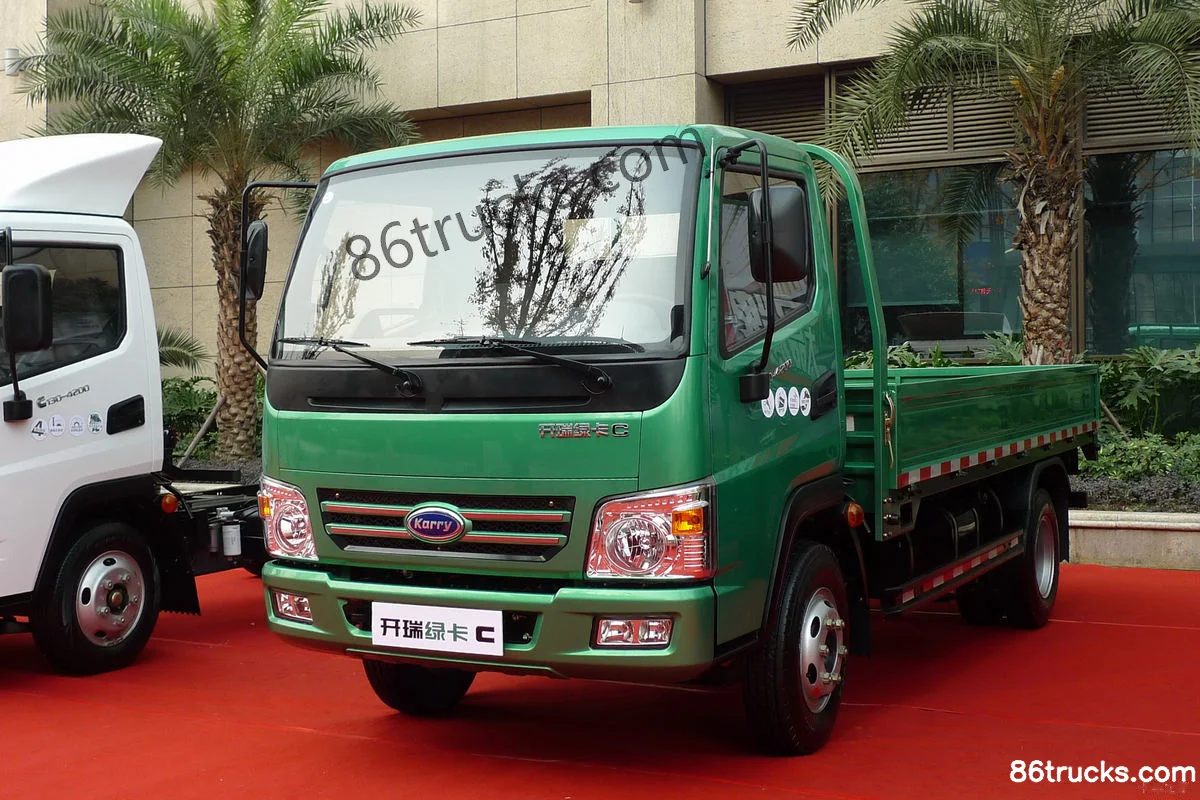

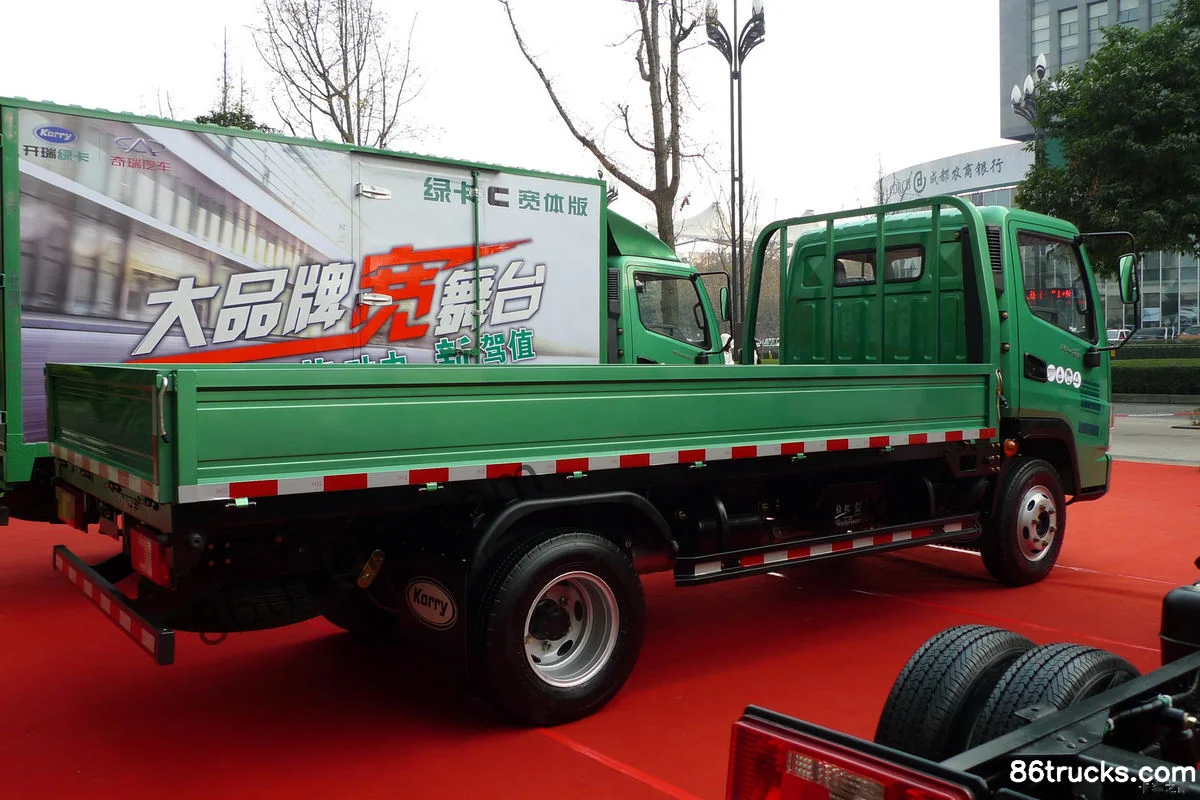

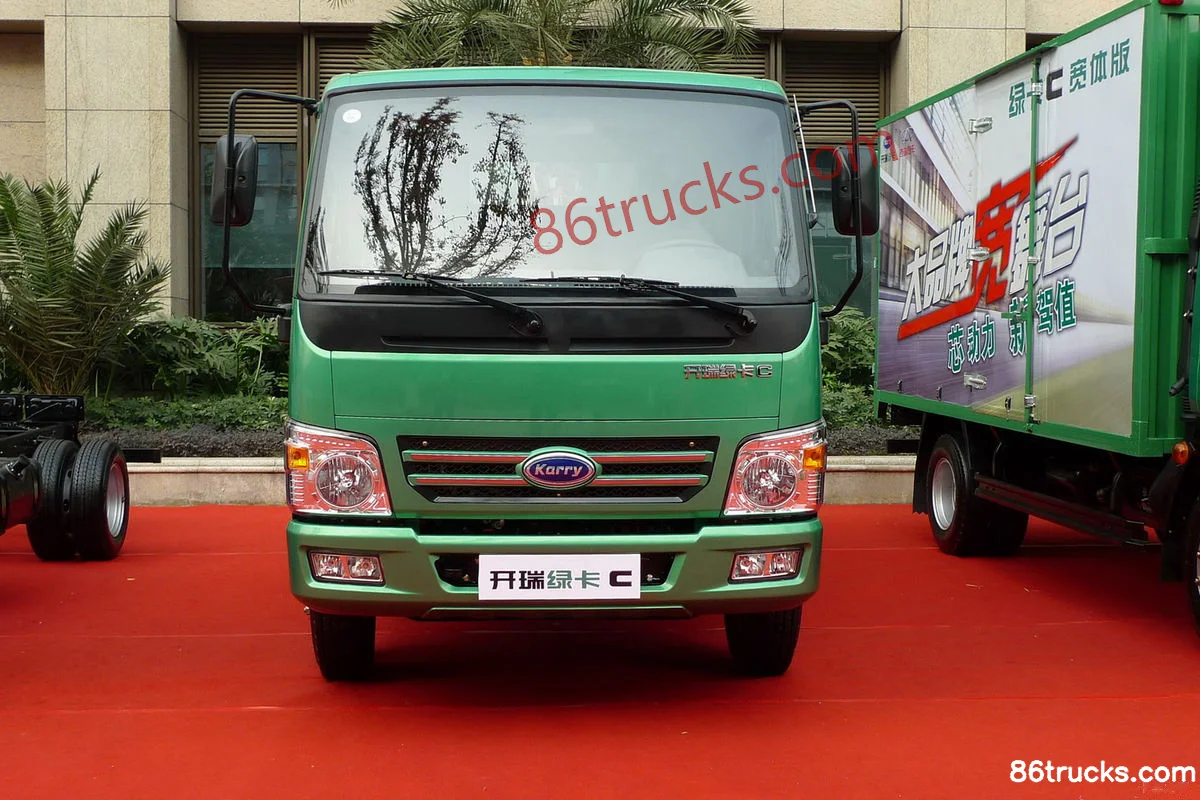

Exterior3

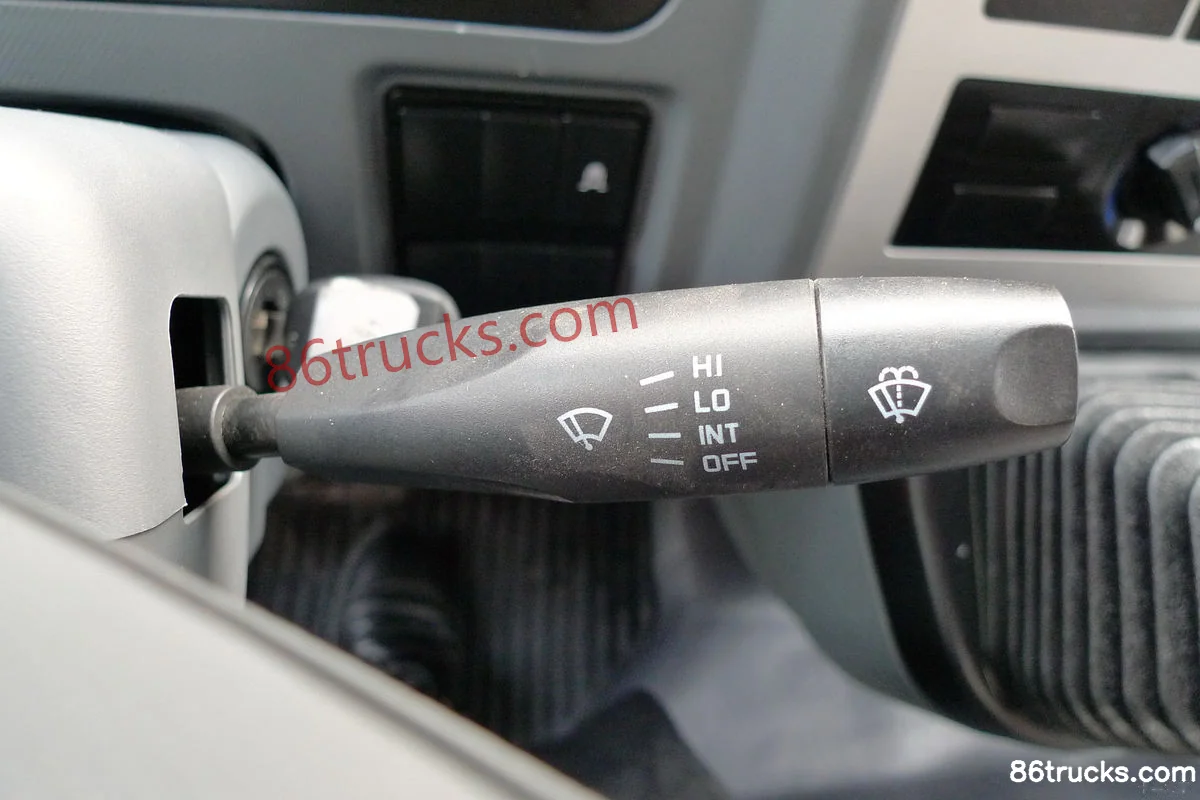

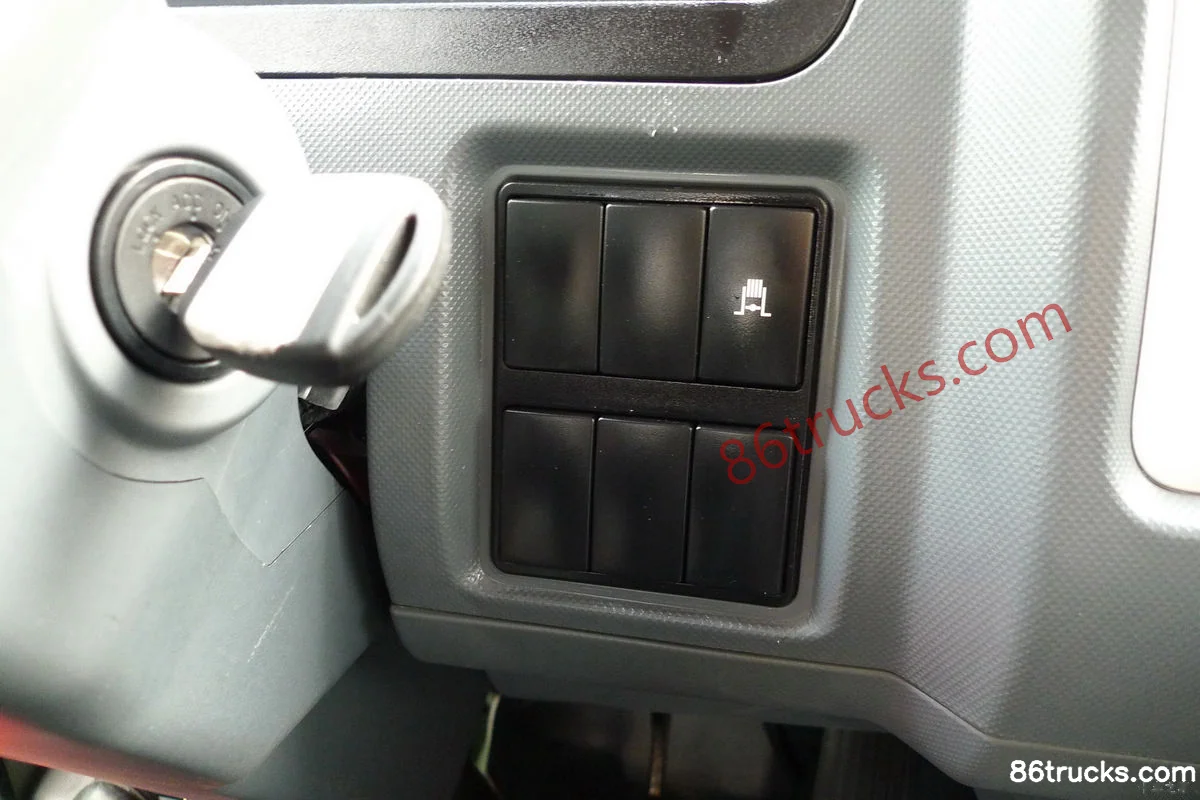

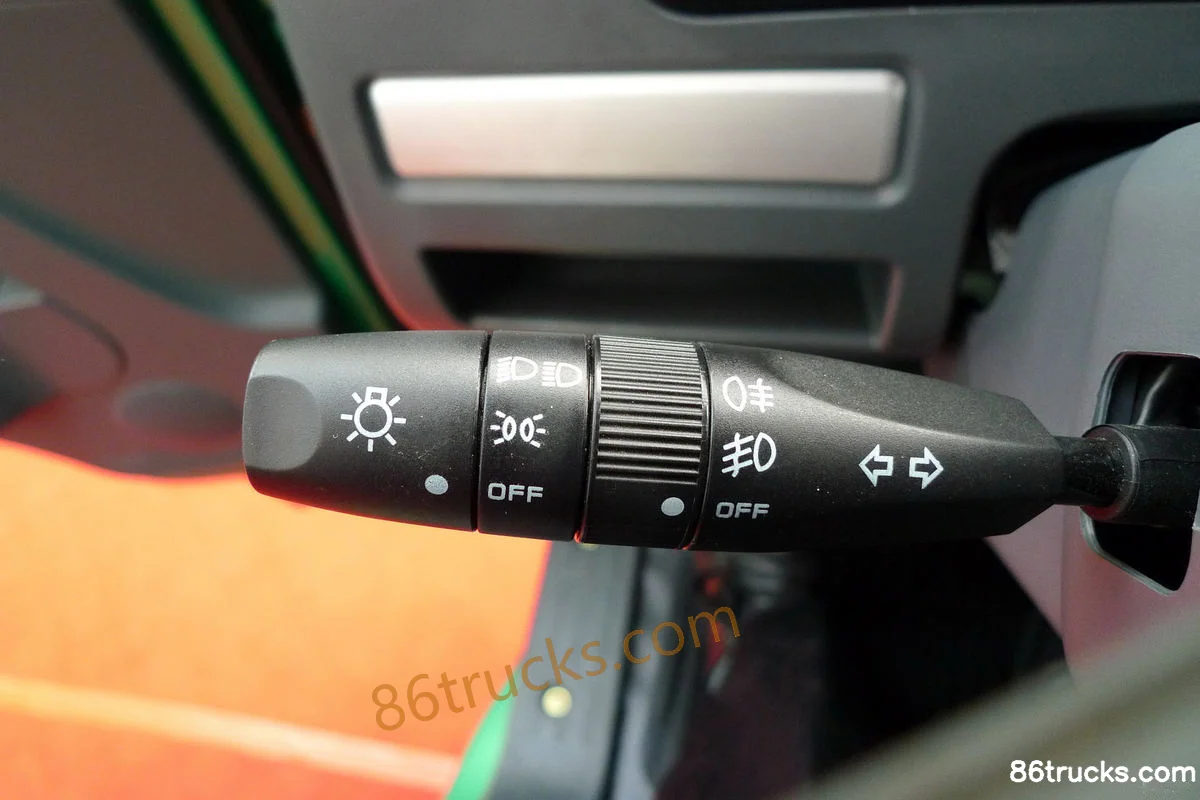

Cab3

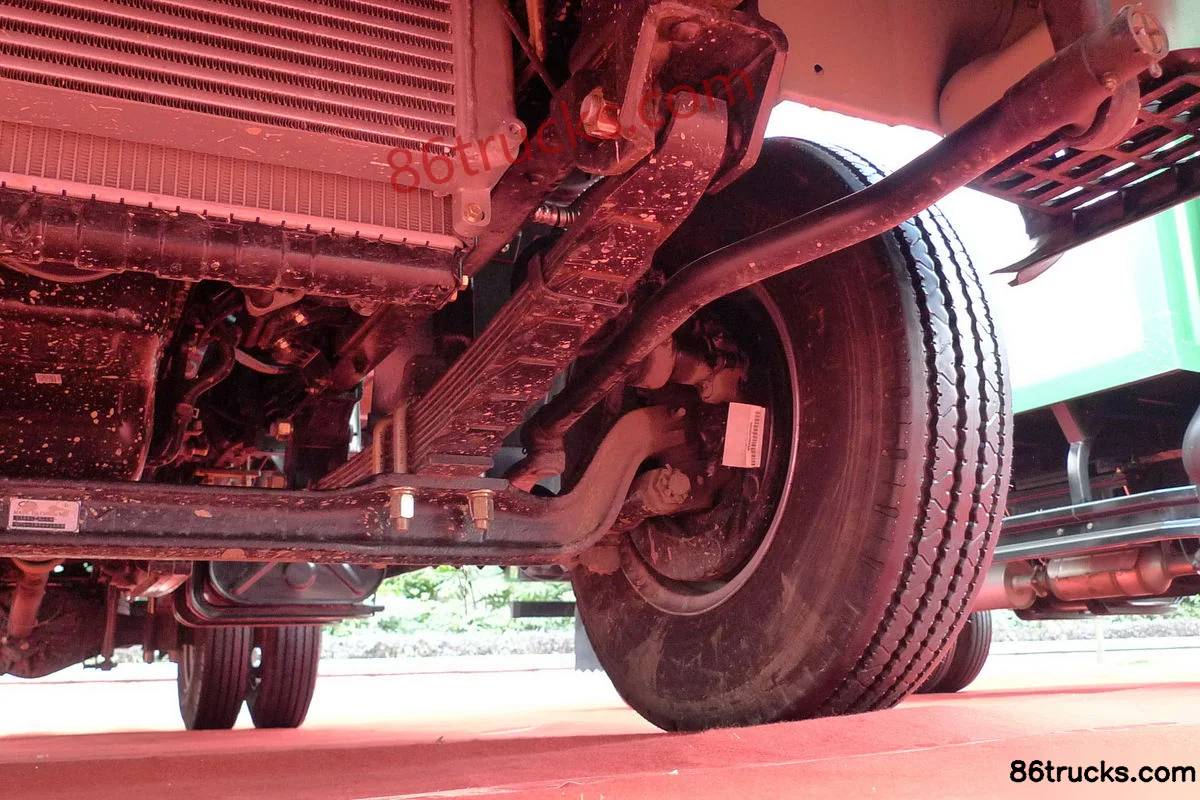

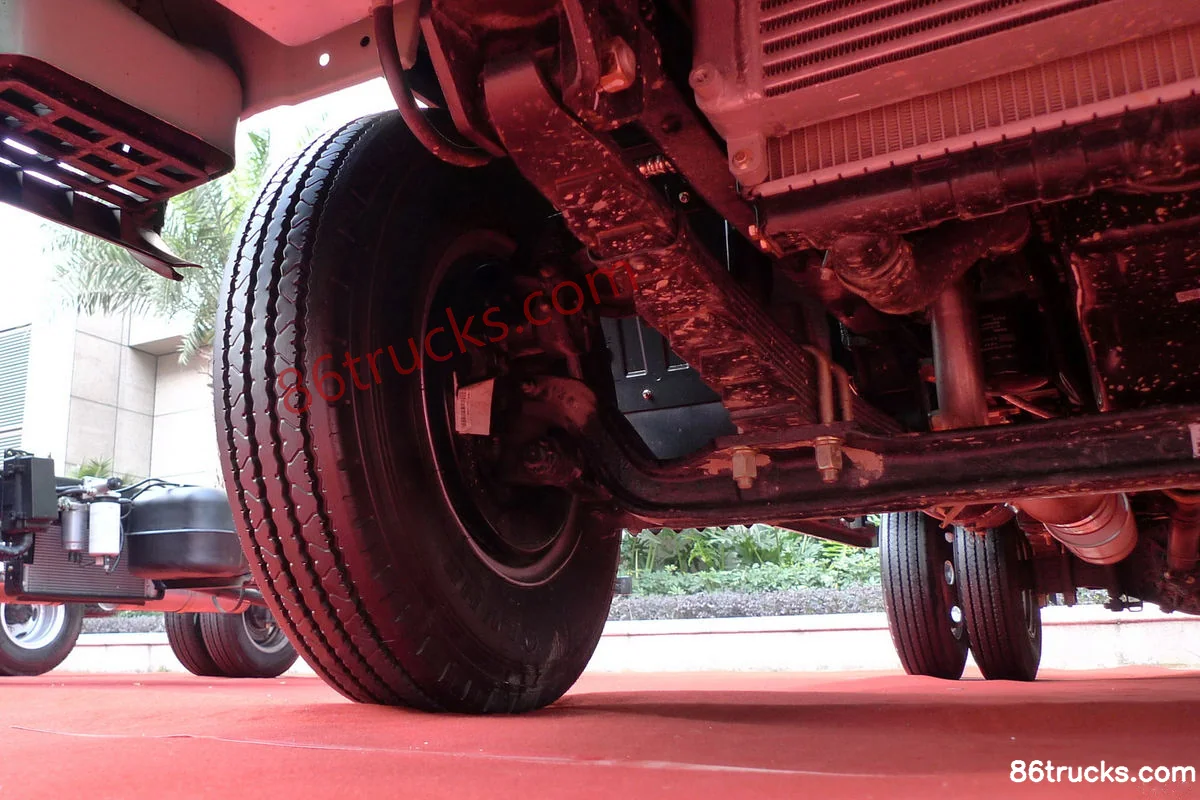

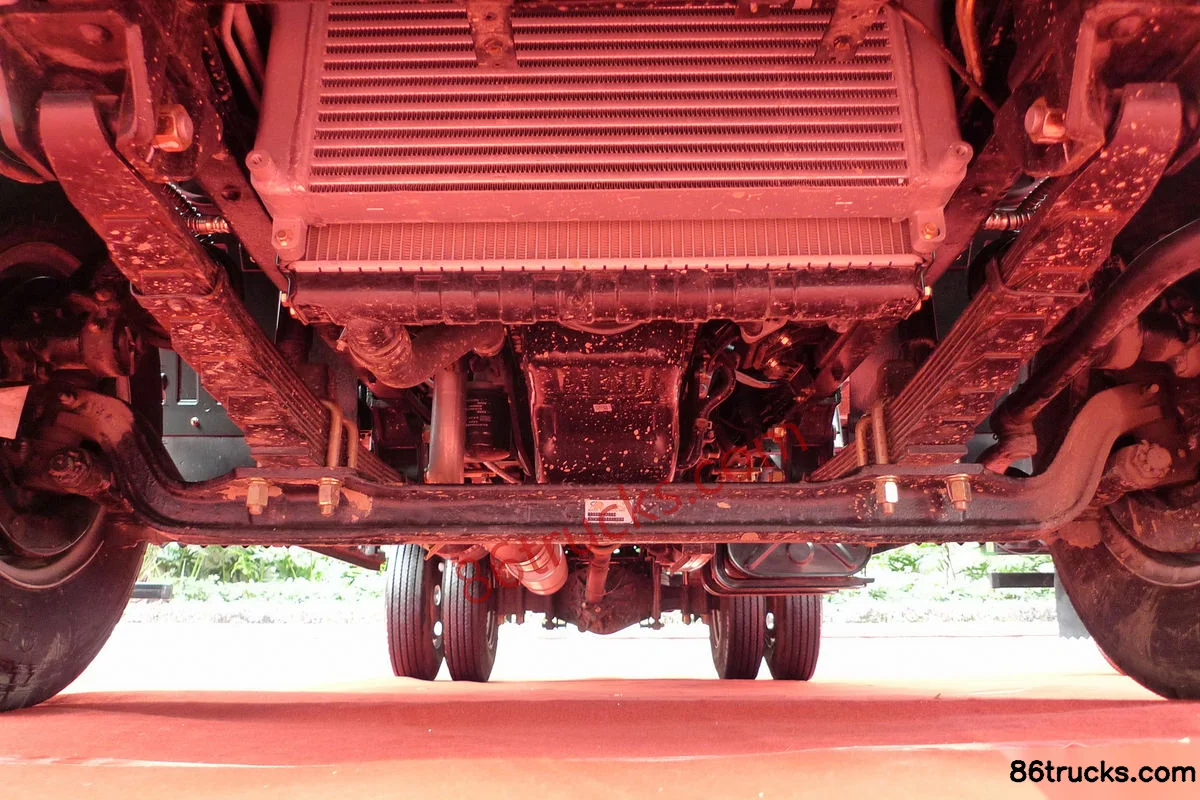

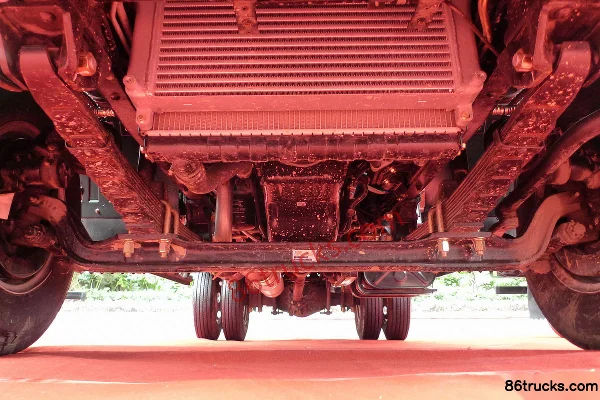

Chassis3

9 photos

FAQ

What is the export price of Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck, and what does it include?

Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck export reference is about From $11,542; MSRP is ¥8.31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck?

Key specs of Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China IV; Fuel: Diesel; Engine: Foton493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck suited for?

Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck differ from other variants in the same series?

Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck belongs to Karry Green Card C Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Green Card C Medium Body Standard Type 110 hp 4X2(6 wheels) 4.23m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
