SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck

Export reference
From $33,194
MSRP ¥23.9M CNY
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 3600mm
Tire Size:: 315/80R22.5 18PR
rear axle allowable load:: 11500kg
Displacement:: 8.709L
Drive 4X2 (6 wheels)
Horsepower 290
Emission China IV
Transmission Fast Gear

Overview

The SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 290 hp, 18t GVW and China IV emissions. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanC9 290 C4(F2CE3681K*P) engine, Fast Gear transmission and Diesel fuel.

China IV 290 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4185HMG361
Drive type: 4X2
Wheelbase: 3600mm
engine: SAIC Fiat Powertrain HongyanC9 290 C4(F2CE3681K*P)
transmission: Fast Gear10JSD140A
Rear Axle Ratio: 4.111
Cab length: 6.03m
Cab width: 2.5m
Cab height: 3.713m
Front track width: 2006mm
Gross Trailer Weight: 35ton
rear track: 1800mm
Curb Weight: 6.8ton
GVWR: 18ton
Max. speed: 95km/h
Origin: Chongqing
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanC9 290 C4(F2CE3681K*P)
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.709L
Emission standard: China IV
Max output power: 216kW
Max hp: 290Horsepower
Max torque: 1250N·m
Max torque speed: 1100-1700rpm
Rated speed: 2100rpm
Transmission Parameters
Transmission Model: Fast Gear10JSD140A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
rear axle description: 457 axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3+2
Tire
Tire Size: 315/80R22.5 18PR
Number of tires: 6pcs

Photos

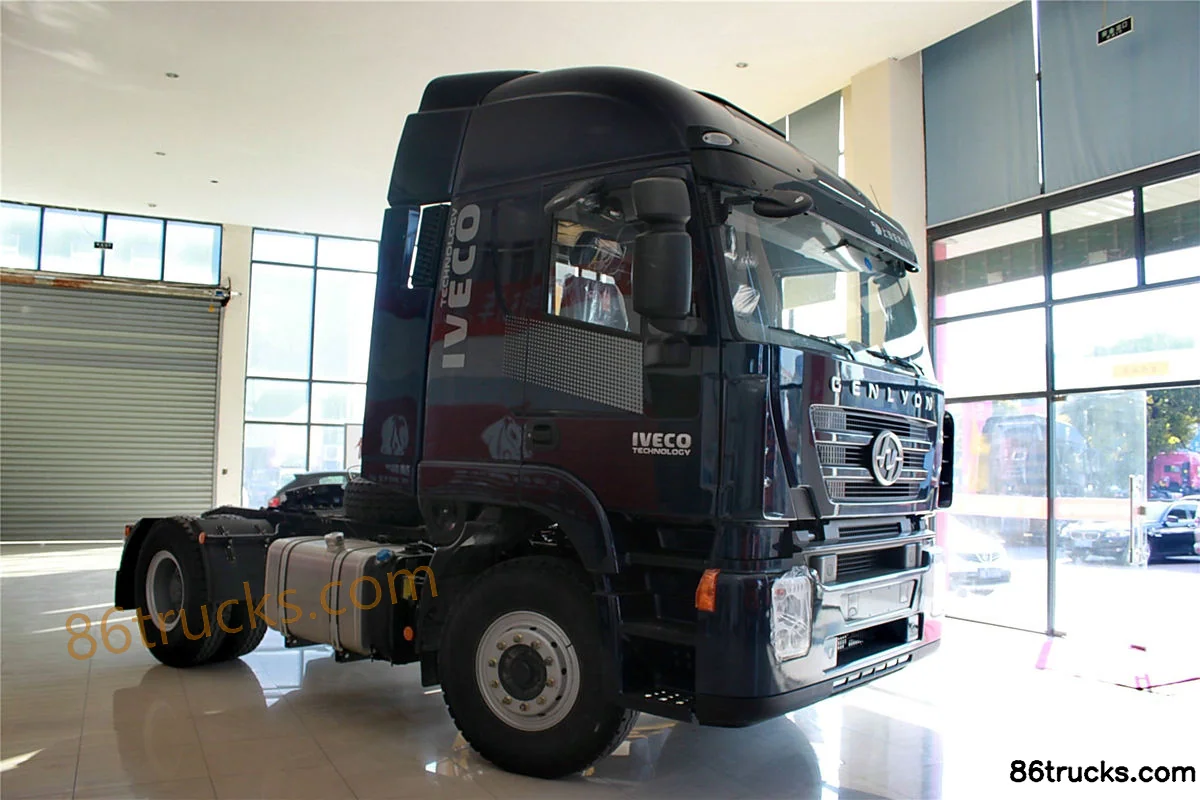

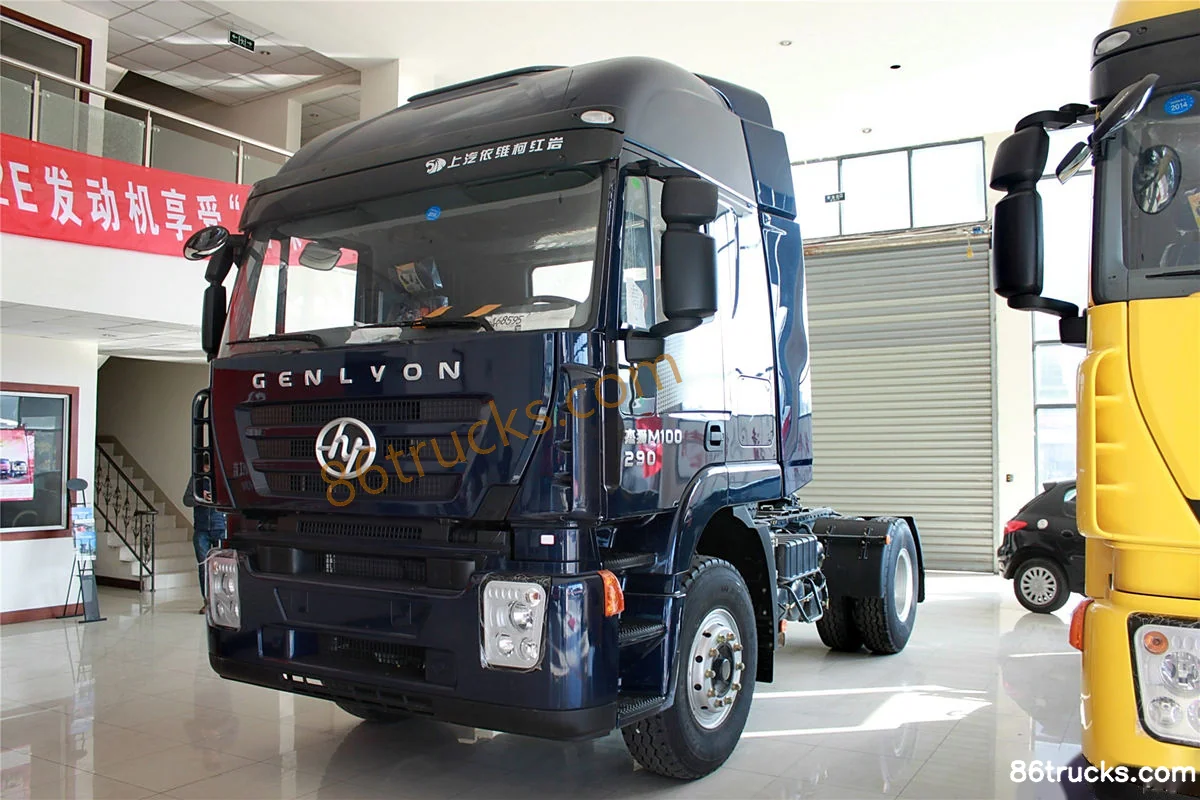

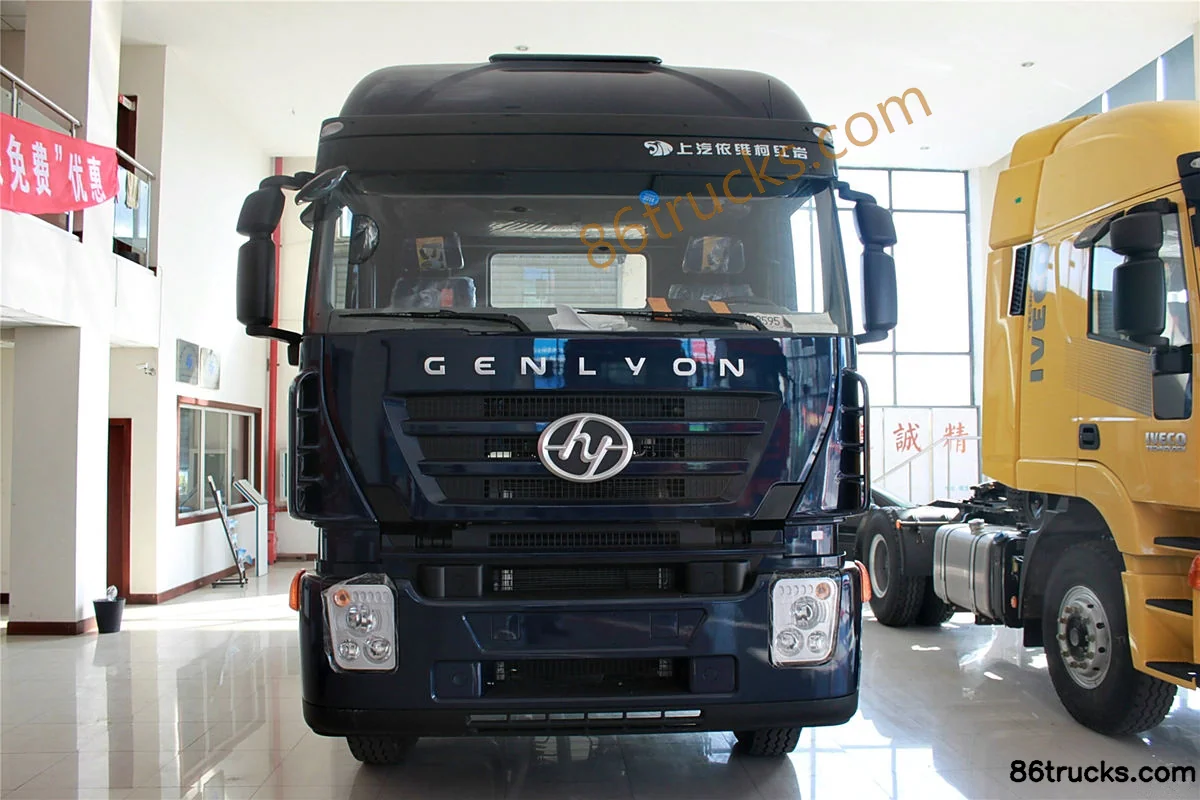

Exterior3

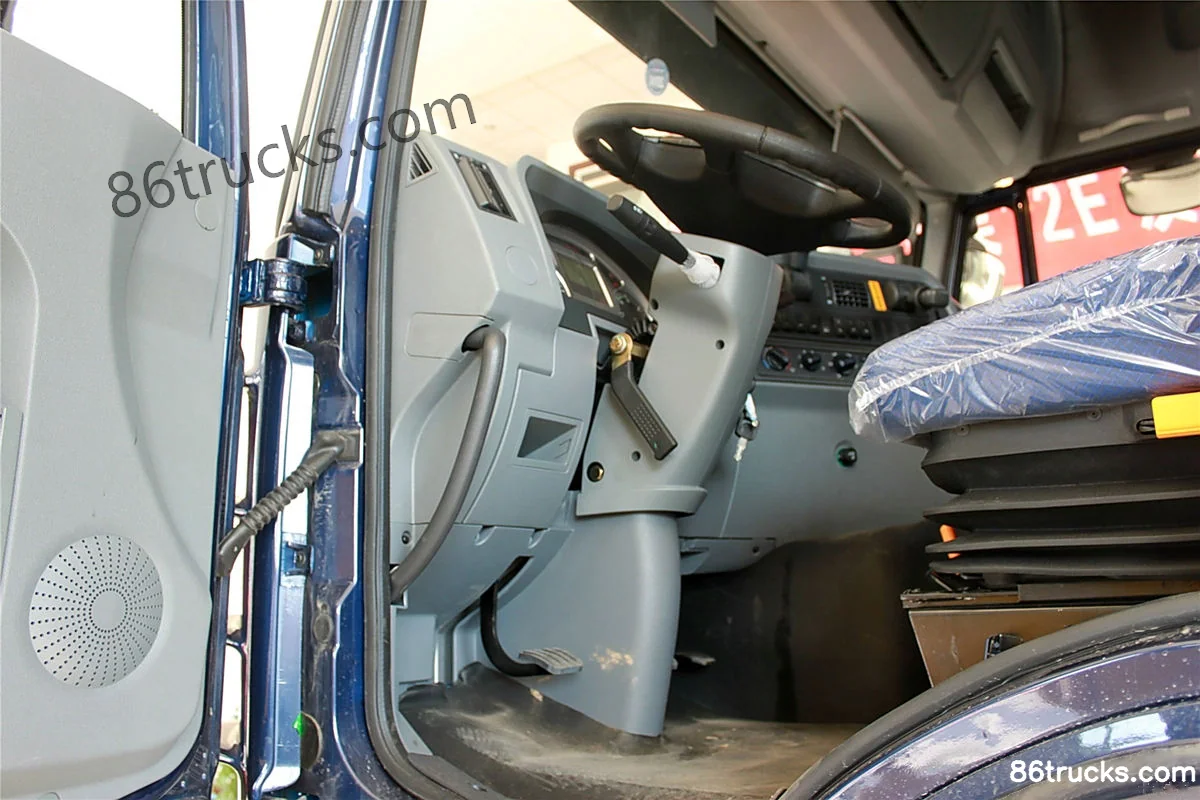

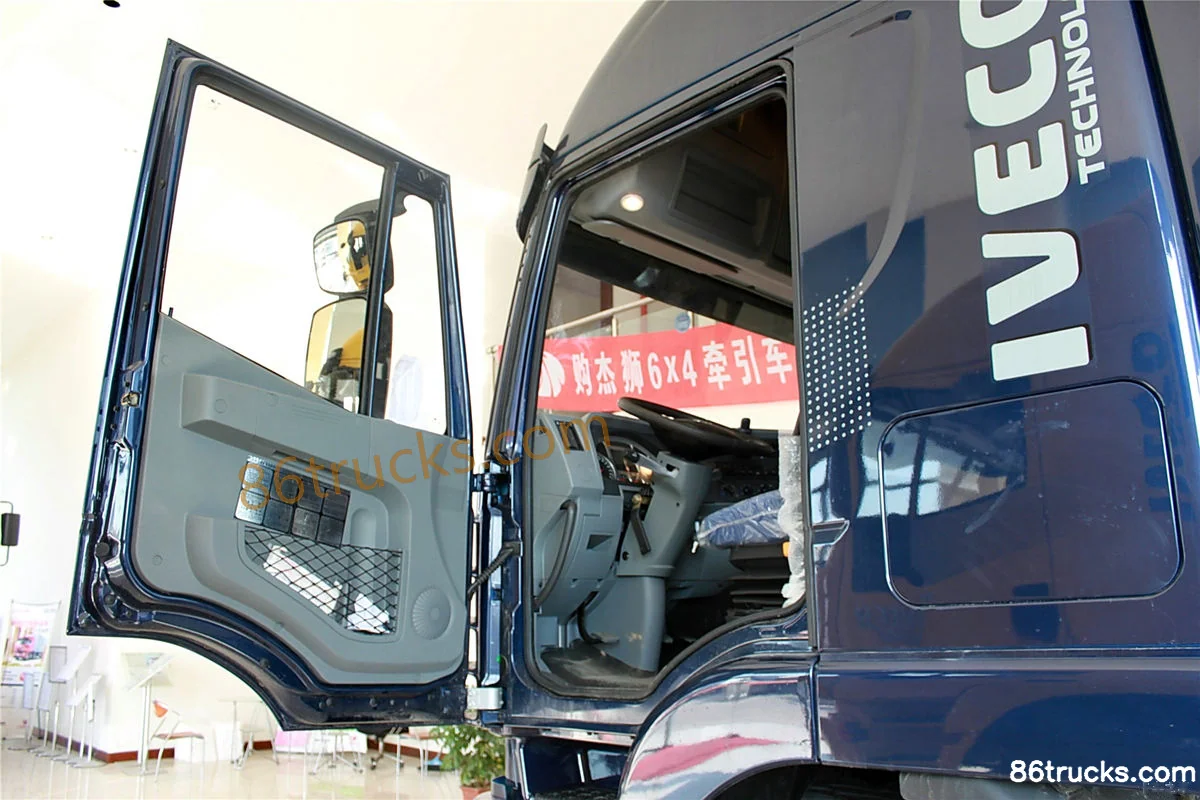

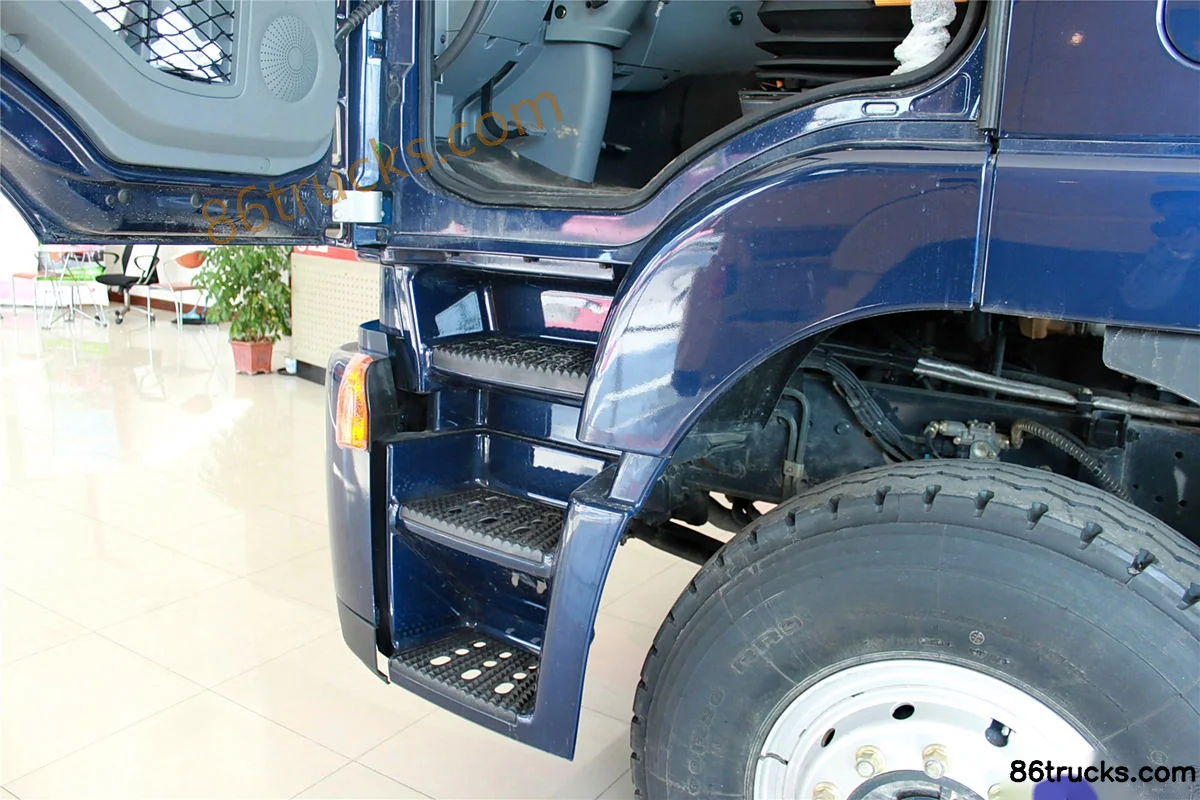

Cab3

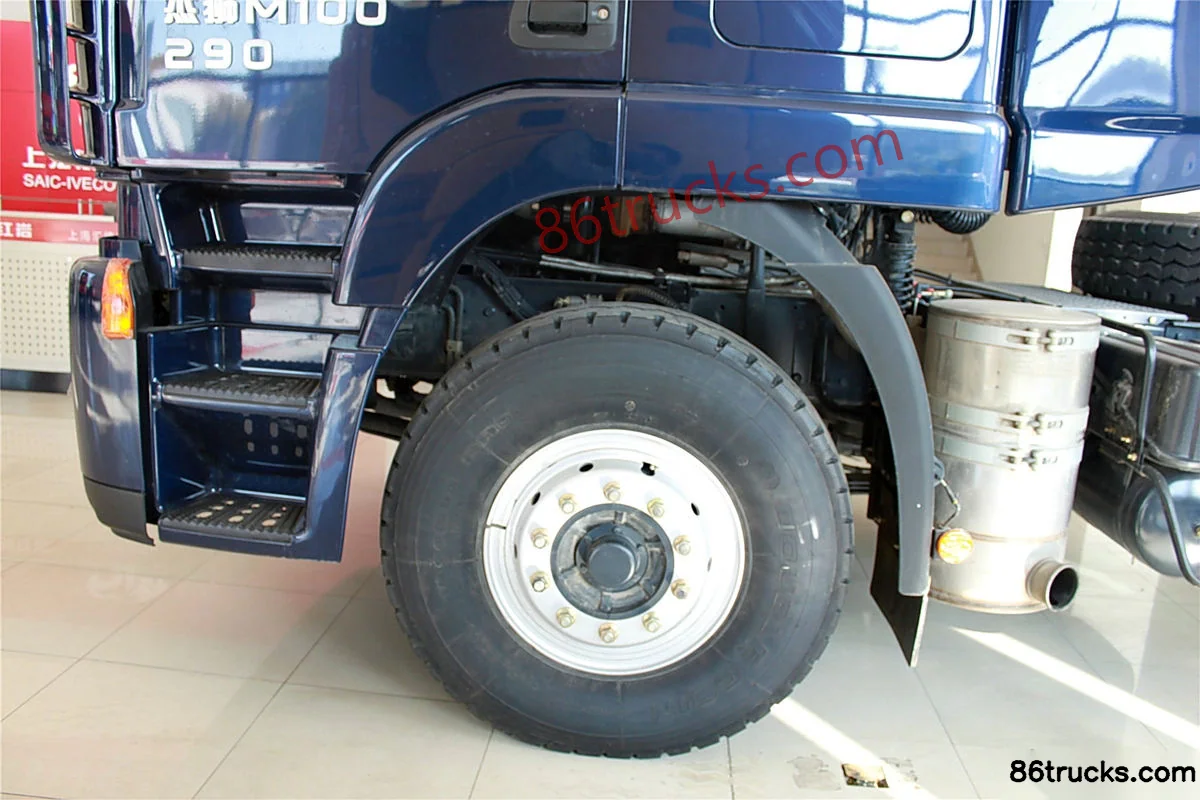

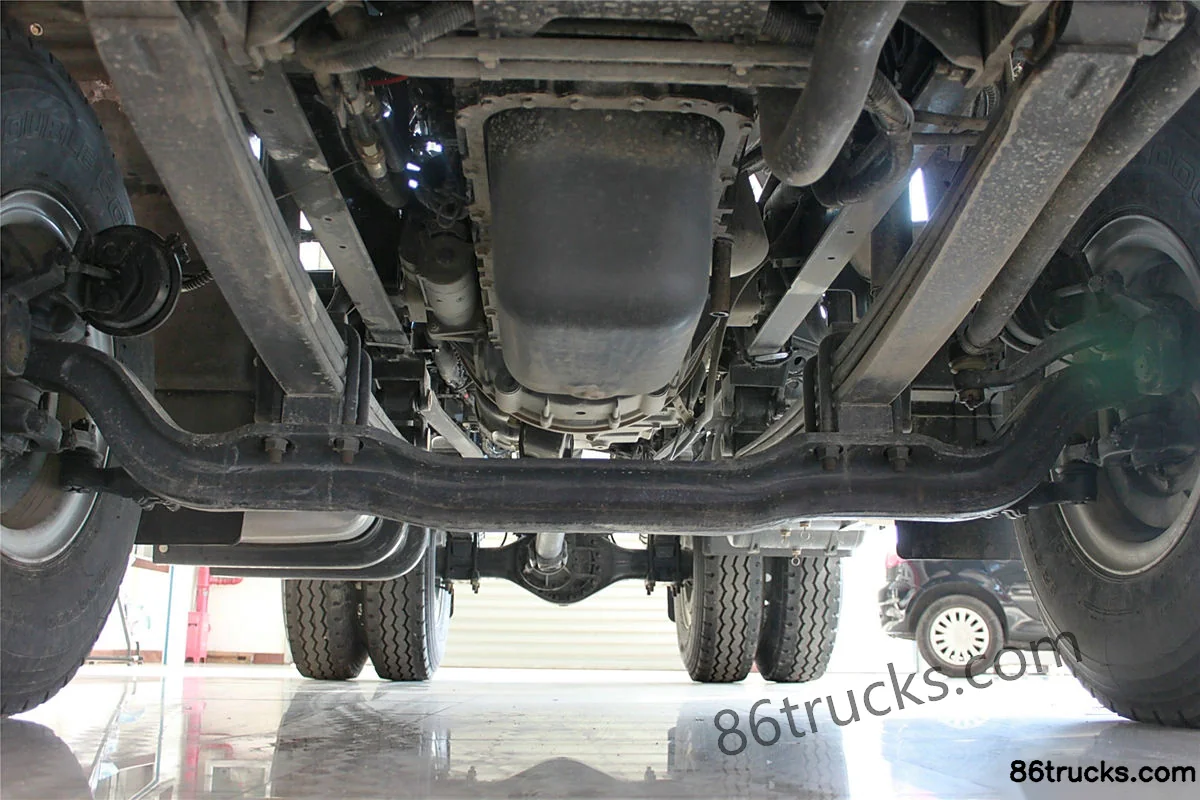

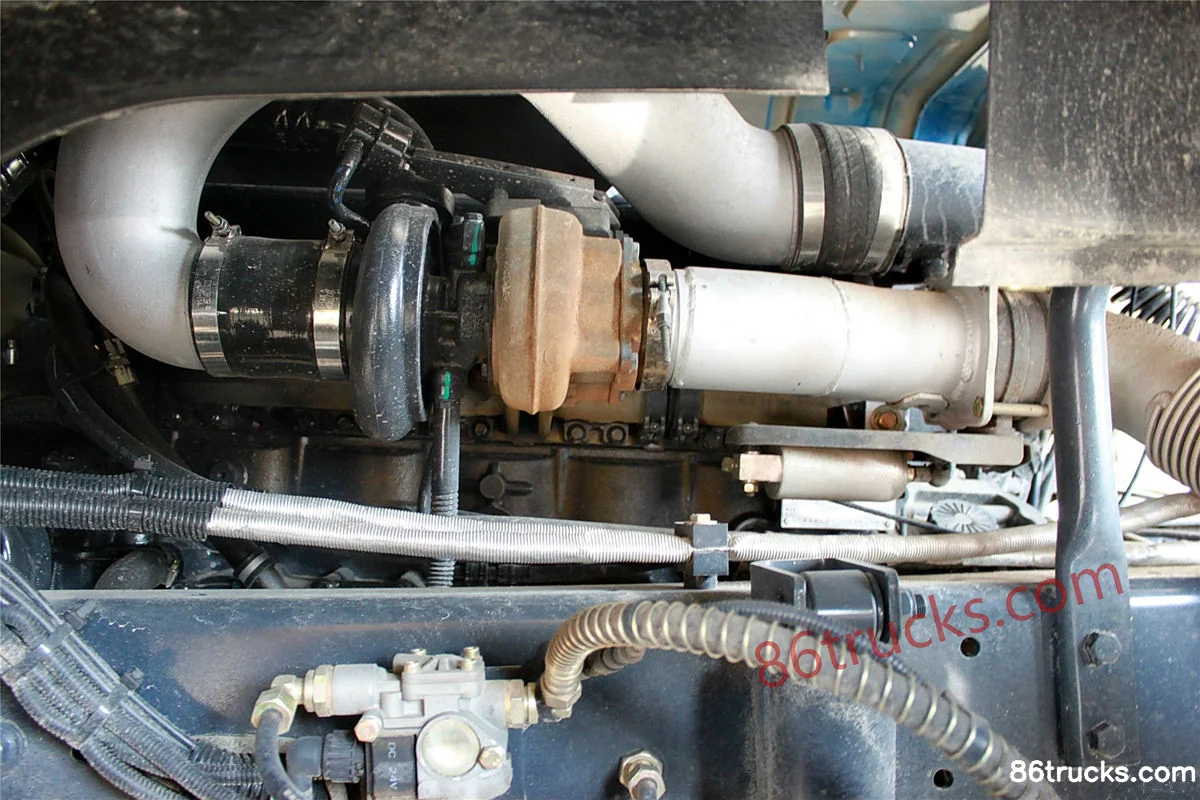

Chassis3

9 photos

FAQ

What is the export price of SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck, and what does it include?

SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck export reference is about From $33,194; MSRP is ¥23.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck?

Key specs of SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck suited for?

SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon M100 Heavy Truck 290hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
