Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck

Export reference
From $6,667
MSRP ¥4.8M CNY
Horsepower: 102
Emission: China V
Fuel: gasoline
Engine: Xinchen Gasoline 1.5L
Transmission: Mengwo
Curb Weight:: 1.49ton
seating capacity: 5Personnel
Rated payload: 1.68ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck is a mini truck featuring 2.8m cargo length, stake body cargo body, 5Personnel volume and 1.68t payload. On the powertrain side, it comes with a Xinchen Gasoline 1.5L engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW1032S2M5Q
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 2.8m
engine: Xinchen Power4A15
transmission: Mengwo 5-speed
Rear Axle Ratio: 5.375
Cab length: 5.74m
Cab width: 1.85m
Cab height: 2.07m
Front track width: 1400mm
rear track: 1310mm
Curb Weight: 1.49ton
Rated payload: 1.68ton
GVWR: 3.495ton
Max. speed: 100km/h
Origin: Chengdu, Sichuan
tonnage class: mini truck
Approach angle: 38°
departure angle: 15°
Front/rear suspension: 0.66/1.58m
Energy Type: gasoline
Engine parameters
Engine Brand: Xinchen Power
Engine Model: Xinchen Power4A15
Engine info: Xinchen Gasoline 1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.495L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 120N·m
Transmission Parameters
Transmission Model: Mengwo 5-speed
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.8m
Cargo box width: 1.75m
Cargo box height: 0.4m
*Cargo box interior width: 1.75
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1350kg
rear axle allowable load: 2145kg
Axle ratio: 5.375
Leaf spring count: 5/7
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs

Photos

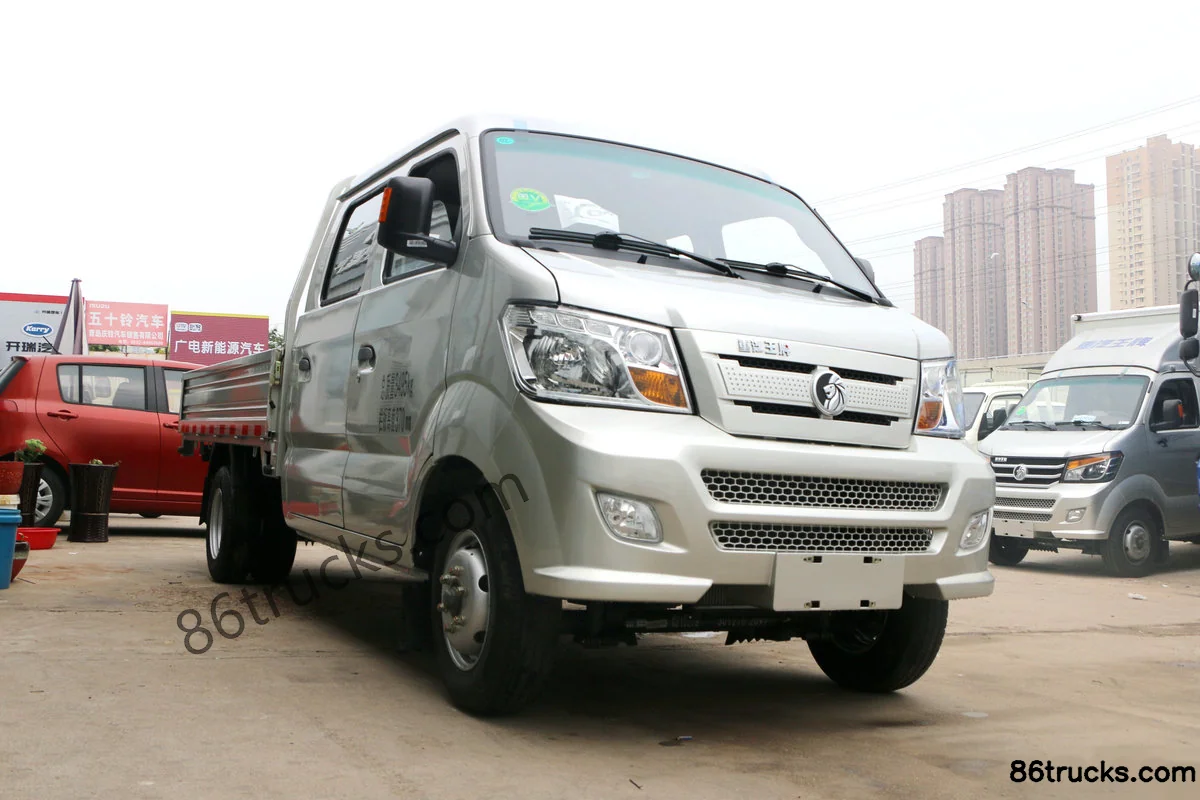

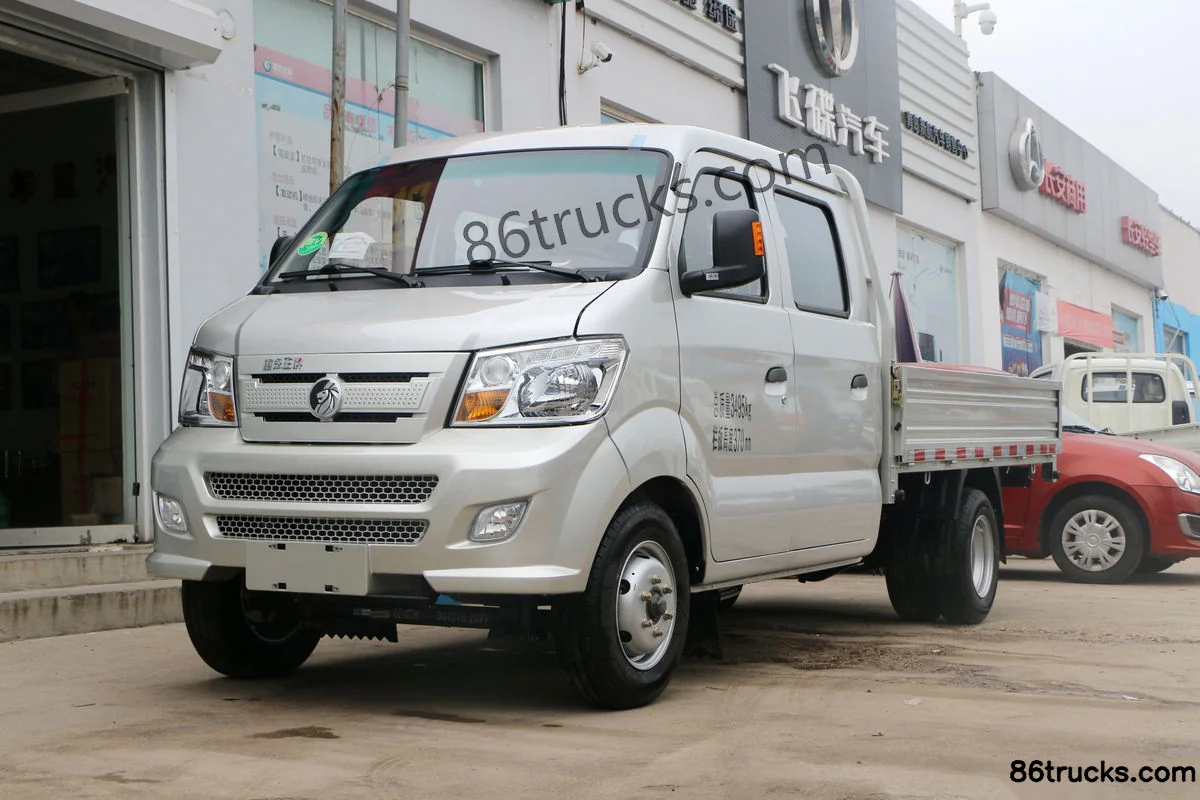

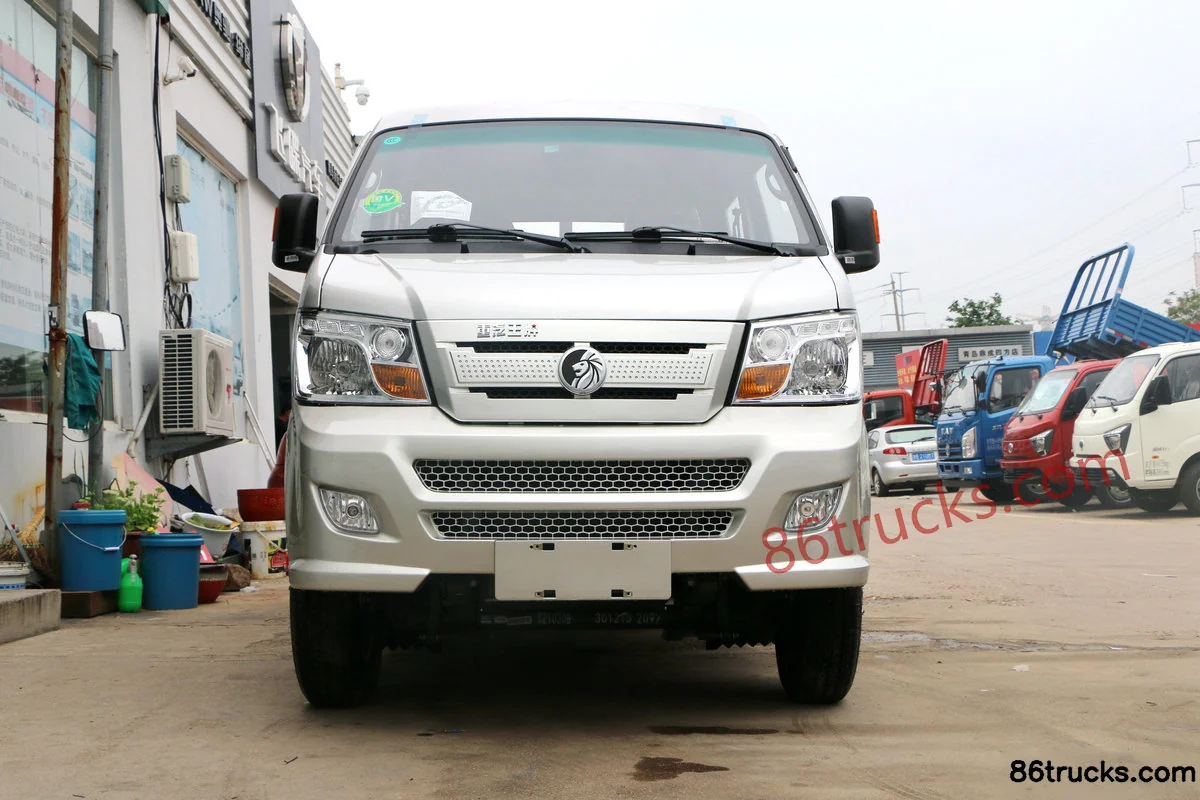

Exterior3

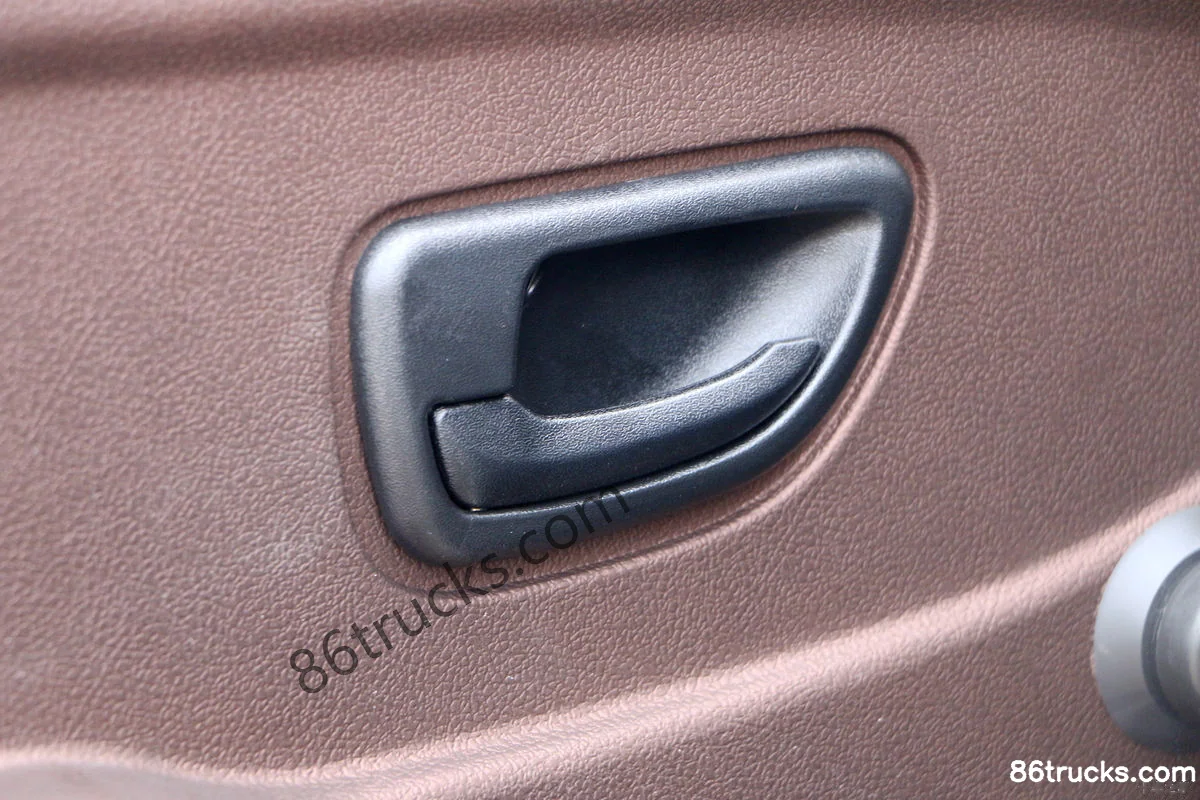

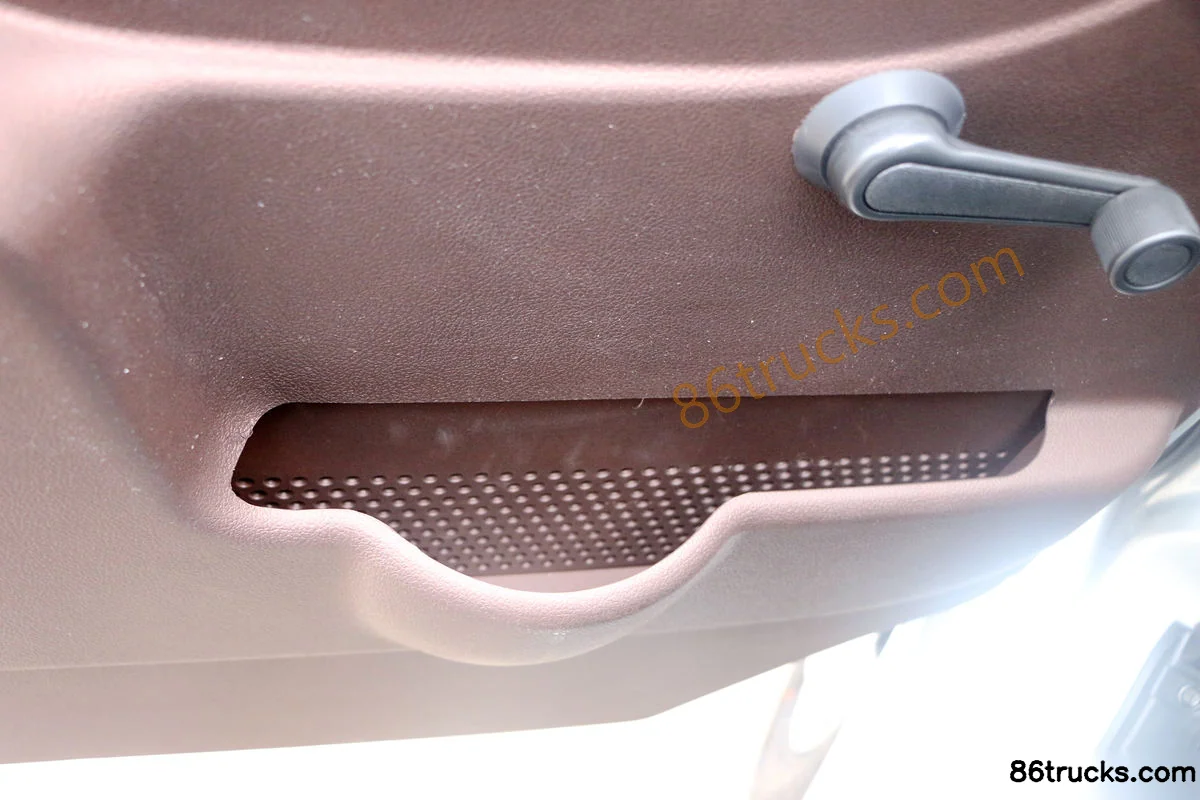

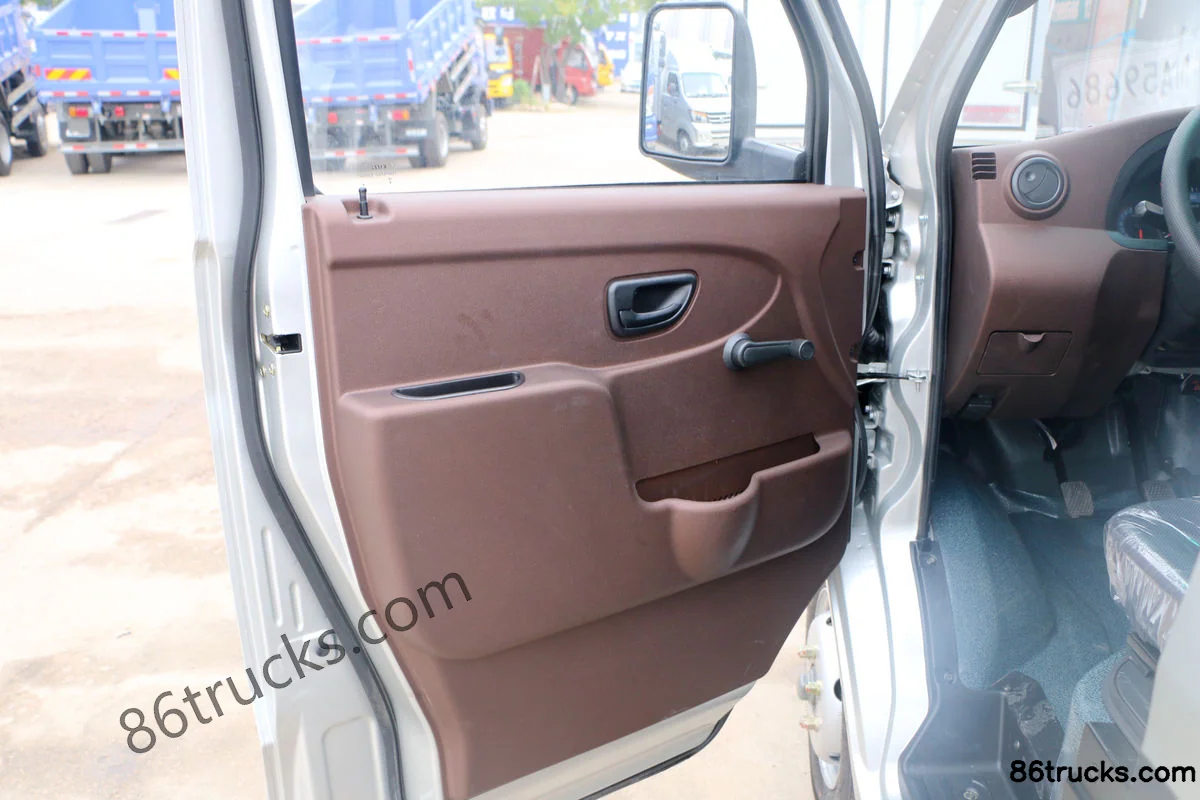

Cab3

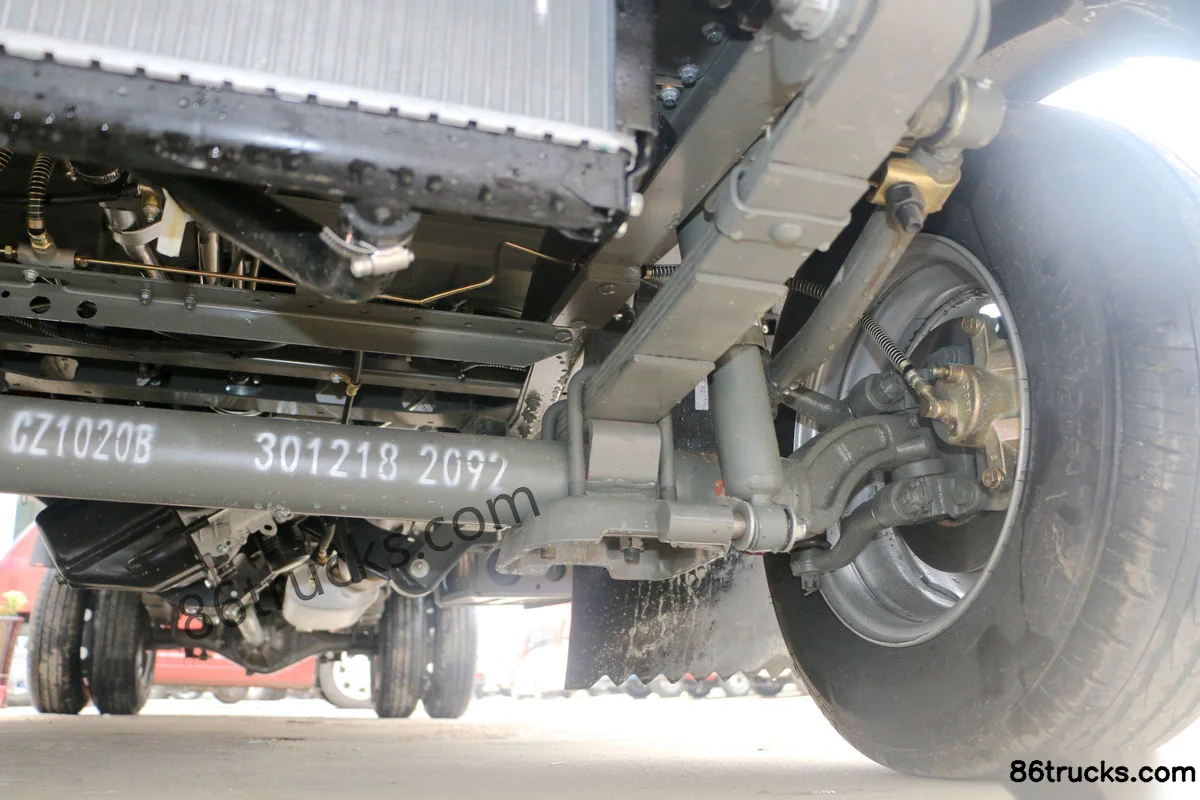

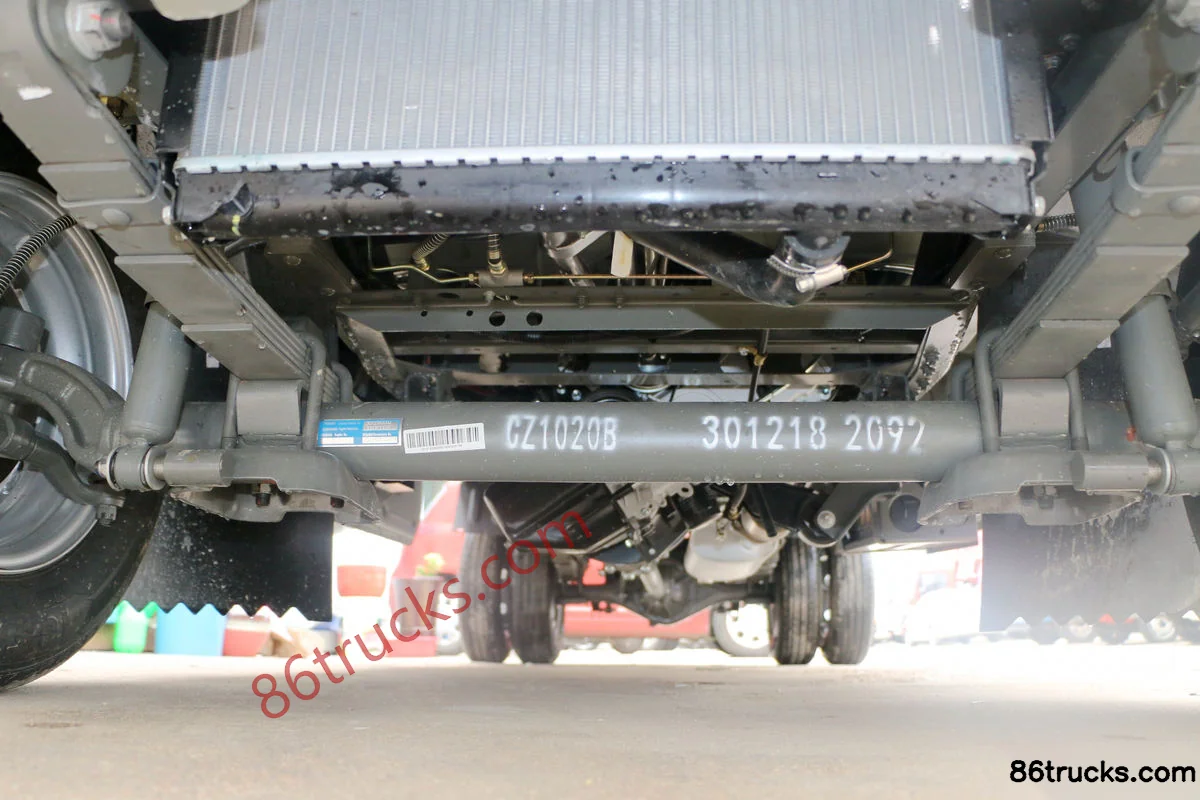

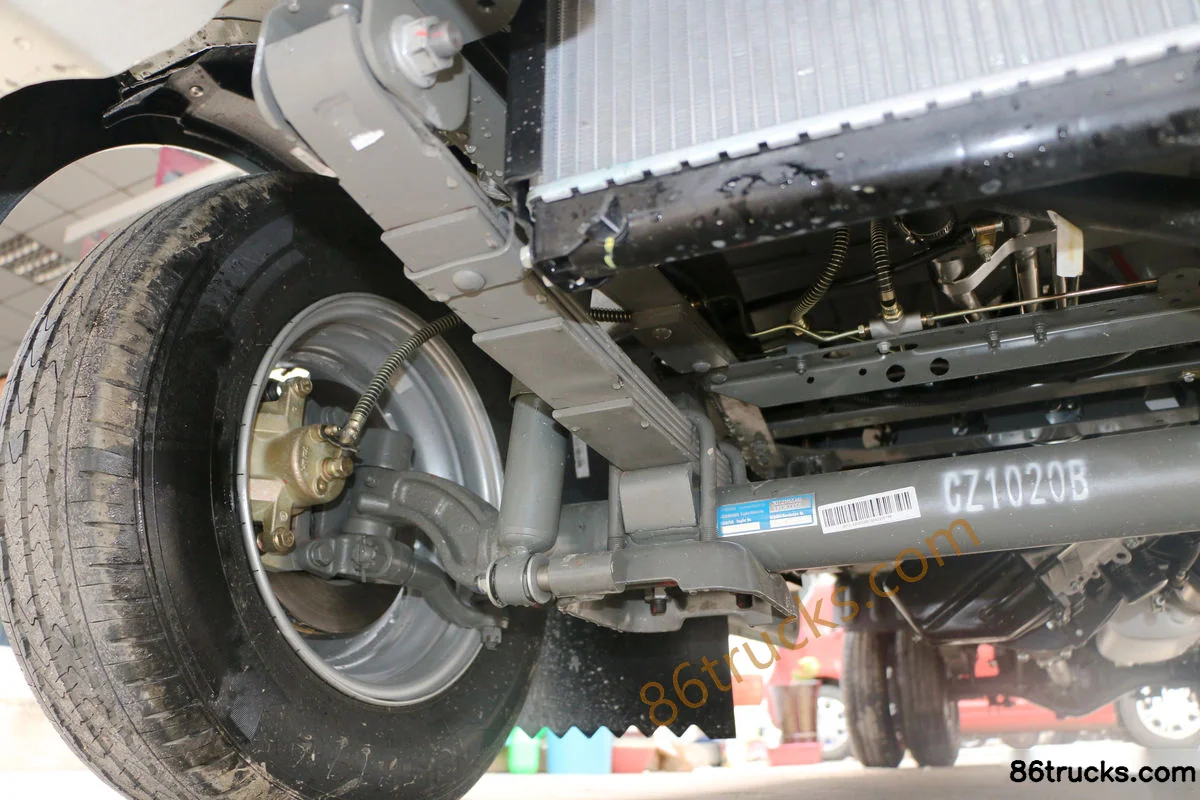

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck, and what does it include?

Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck export reference is about From $6,667; MSRP is ¥4.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck?

Key specs of Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: gasoline; Engine: Xinchen Gasoline 1.5L; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck suited for?

Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck differ from other variants in the same series?

Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck belongs to Sinotruk Wangpai W1 micro truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W1 1.5L 102hp 4X2(6 wheels) Gasoline 2.8m Double Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
