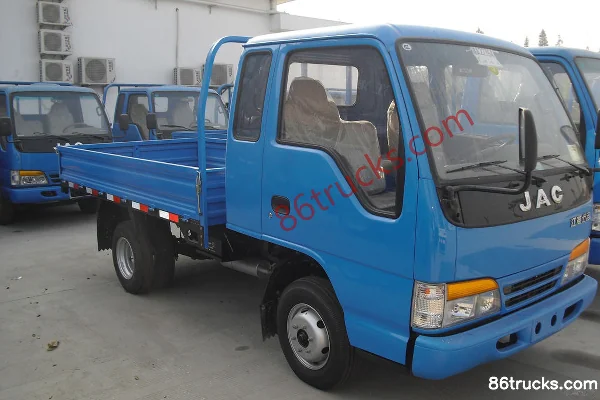

JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck

Export reference
From $6,250
MSRP ¥4.5M CNY
Horsepower: 65
Emission: China II/Euro II
Fuel: Diesel
Engine: Quanchai485
Transmission: Lu'an
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck is a Light Truck featuring 3.37m cargo length, stake body cargo body, 3Personnel volume and 1.795t payload. On the powertrain side, it comes with a Quanchai485 engine, 65 hp, 4X2 (6 wheels) drive and China II/Euro II emissions.

China II/Euro II 65 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1040KR1T
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.4m
engine: QuanchaiN485ZLQ
transmission: Lu'an MSC-5S
Cab length: 5.39m
Cab width: 1.95m
Cab height: 2.18m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2.565ton
Rated payload: 1.795ton
GVWR: 4.49ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Remarks: Optional cab
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiN485ZLQ
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.156L
Emission standard: China II/Euro II
Max output power: 48kW
Max hp: 65Horsepower
Max torque: 172N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder, vertical, direct injection, forced water cooling, 4-stroke, turbocharged intercooled
Transmission Parameters
Transmission Model: Lu'an MSC-5S
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.37m
Cargo box width: 1.81m
Cargo box height: 0.37m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 2600
Leaf spring count: 3/5+3,5/5+3,9/5+3
Tire
Tire Size: 6.50-15
Number of tires: 6pcs

Photos

0 photos

FAQ

What is the export price of JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck, and what does it include?

JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck export reference is about From $6,250; MSRP is ¥4.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck?

Key specs of JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck: Drive: 4x2; Horsepower: 65 hp; Emission: China II/Euro II; Fuel: Diesel; Engine: Quanchai485; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck suited for?

JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck differ from other variants in the same series?

JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck belongs to JAC Haoyun light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 65 hp 4X2(6 wheels) 3.4m Crew Cab Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
