Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.04ton
Wheelbase:: 1950+3350mm
Tire Size:: 10.00R20
Rated payload: 12.755ton
Drive 6X2 (8 wheels)
Horsepower 200
Cargo box type: Rear-dump body

Overview

The Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis is a Medium-duty truck featuring 12.755t payload, 24.99t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA200-50 engine, 200 hp, China V emissions and Fast Gear transmission.

China V 200 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3250M3CB
Drive type: 6X2
Wheelbase: 1950+3350mm
engine: YuchaiYC6JA200-50
transmission: Fast Gear8JS118
Rear Axle Ratio: 5.286
Cab length: 8.395m
Cab width: 2.495m
Cab height: 3.1m
Front track width: 2040/2040mm
rear track: 1860mm
Curb Weight: 12.04ton
Rated payload: 12.755ton
GVWR: 24.99ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA200-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS118
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.2m
Cab parameters
Cab suspension: Front mechanical, rear air suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Front axle allowable load: 6995/6995kg
Frame Dimensions: 264(6+4)mm
rear axle description: 457 stamped-welded
rear axle allowable load: 11000kg
Axle ratio: 5.286
Leaf spring count: 10/10/12+9
Suspension (front/rear): Leaf spring
clutch: Φ395
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

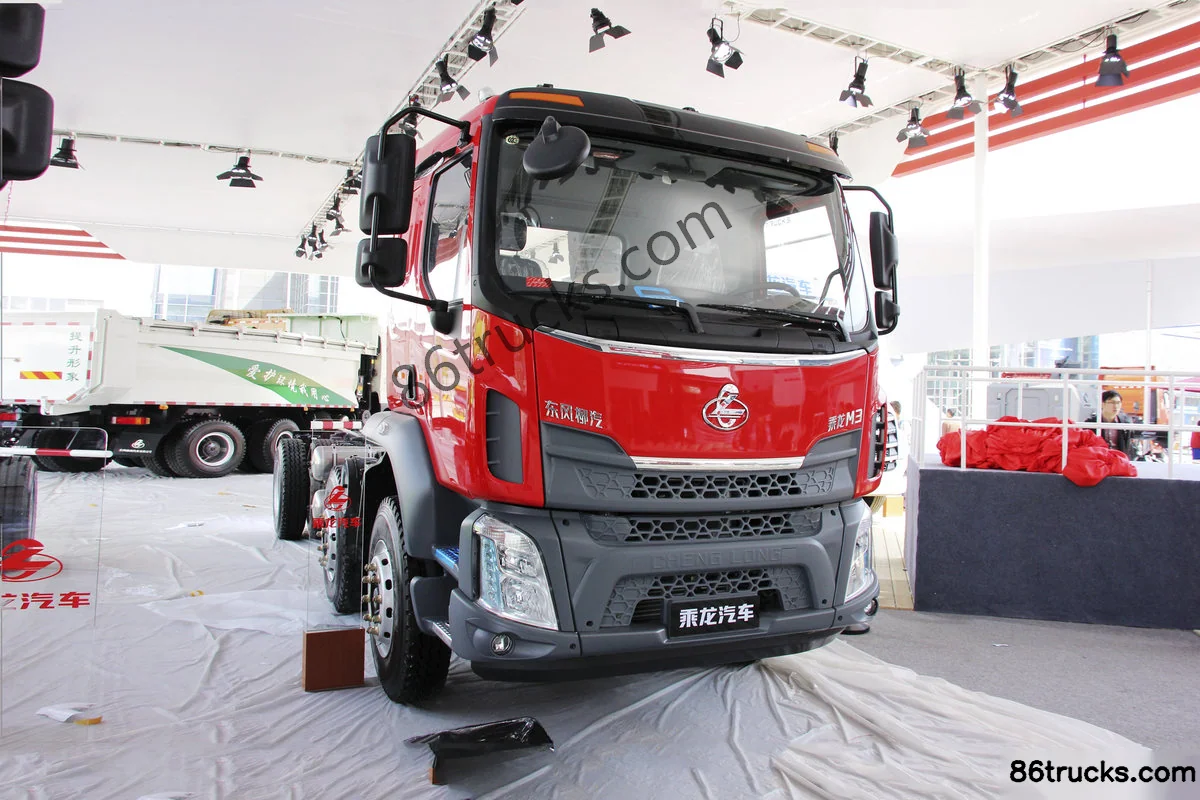

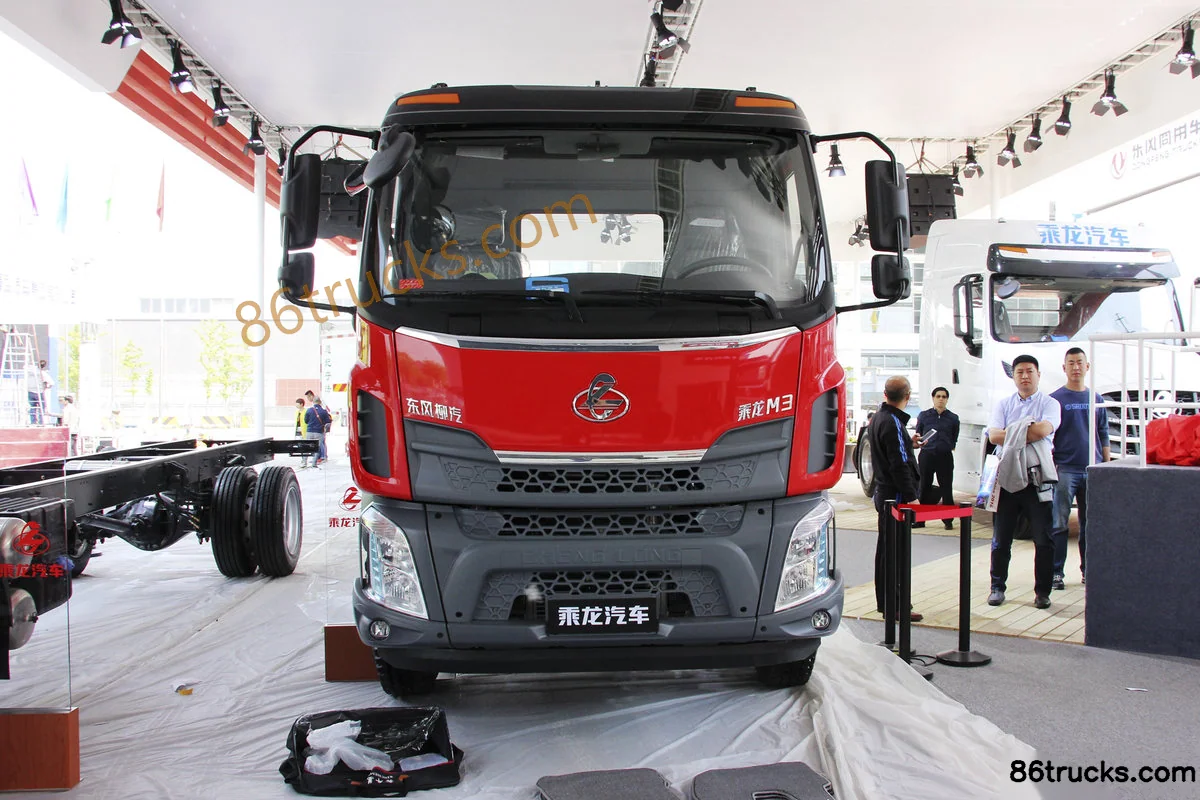

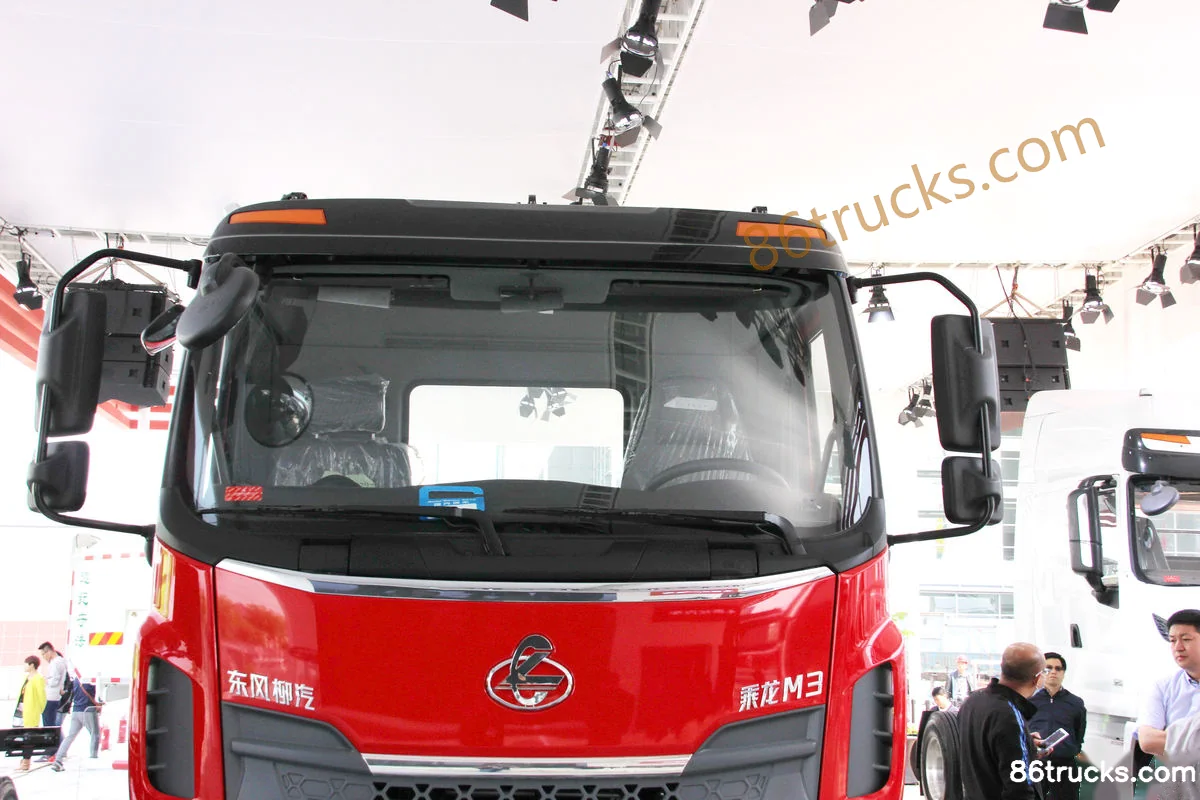

Photos

Exterior3

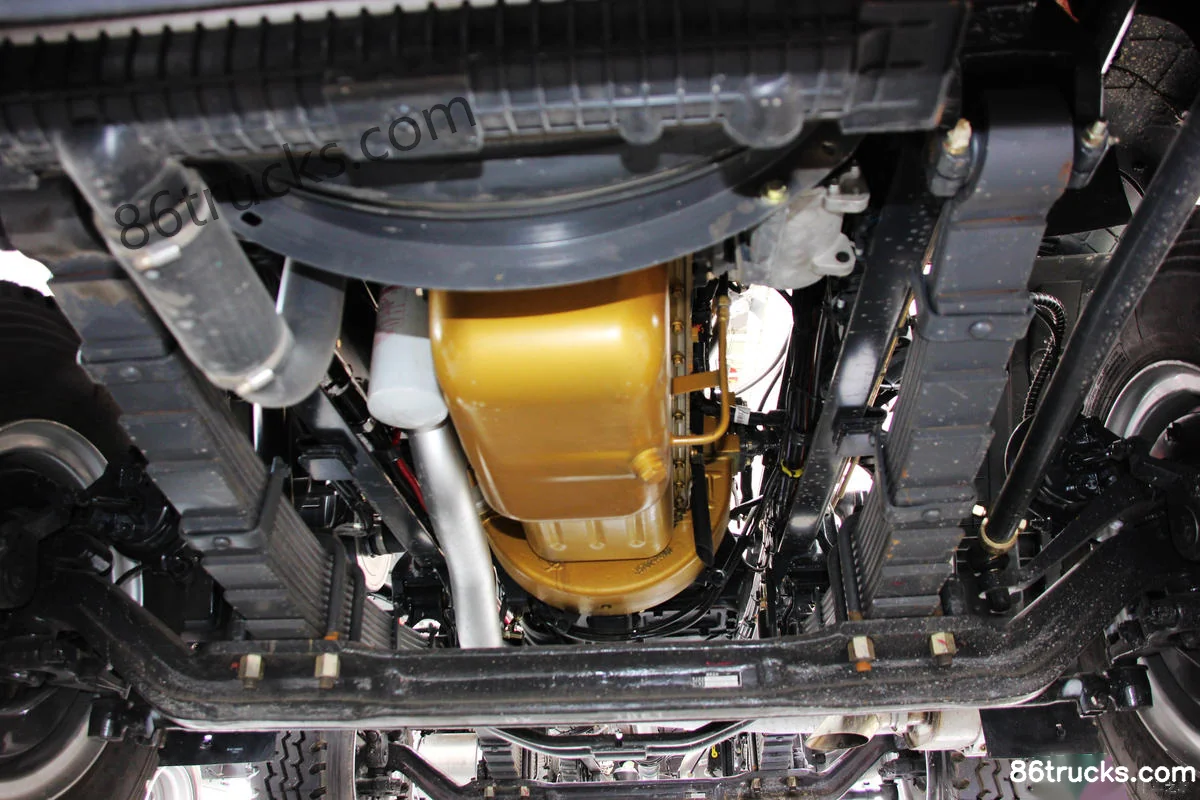

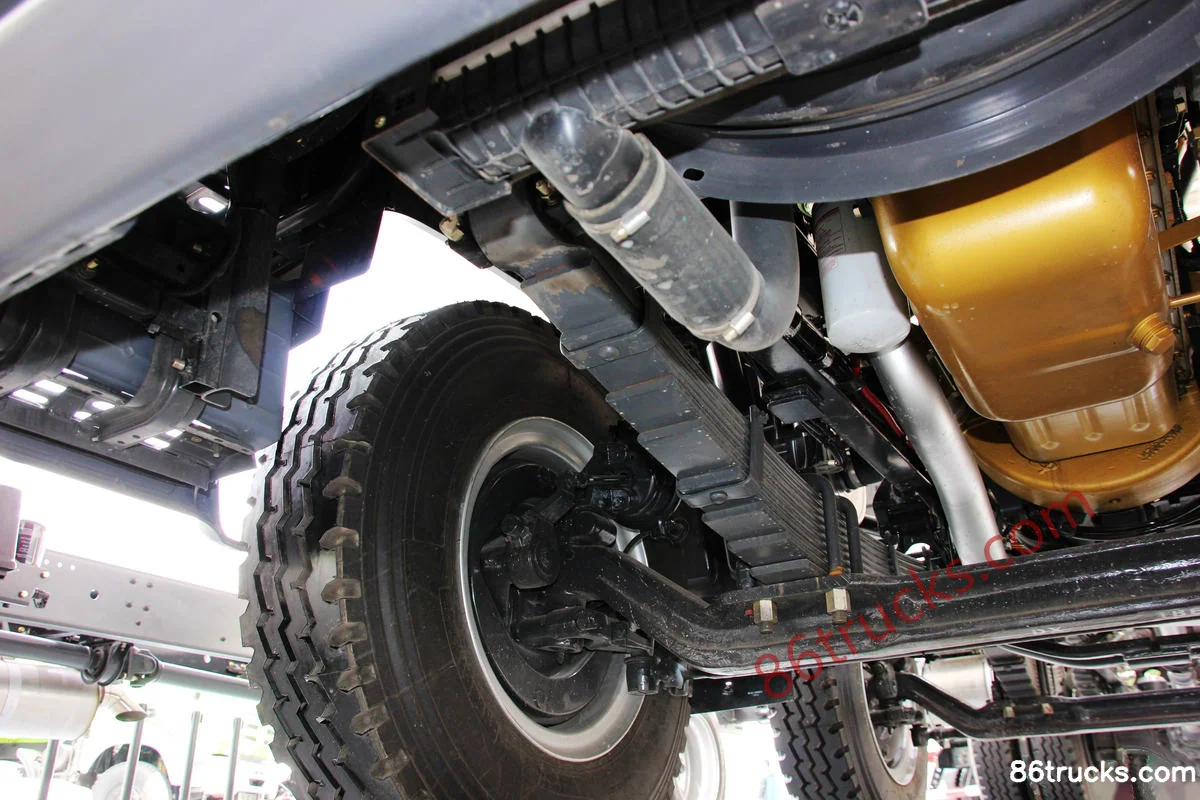

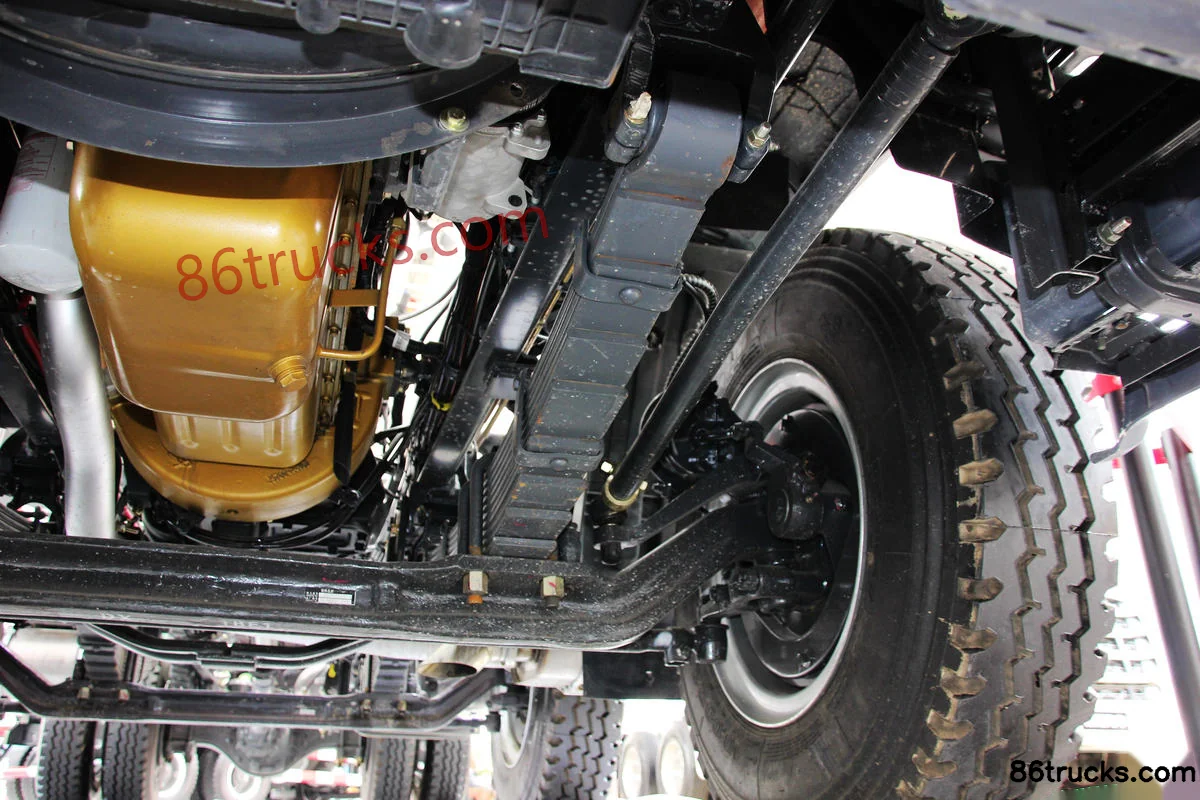

Chassis3

6 photos

FAQ

What emission standard does Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis?

Key specs of Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis: Drive: 6x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis suited for?

Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis belongs to Dongfeng New Chenglong M3 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3B 200 hp 6X2(8 wheels) 5.6m Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
