Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dongfeng 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.975ton
seating capacity: 3Personnel
Rated payload: 11.83ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis is a Medium-duty truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 11.83t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dongfeng 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH1180BX1JV
Type: Chassis
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: DongfengEQH180-52
transmission: Fast Gear8JS85E
Cab length: 9m
Cab width: 2.55m
Cab height: 2.86m
Front track width: 1815mm
rear track: 1800mm
Curb Weight: 5.975ton
Rated payload: 11.83ton
GVWR: 18ton
Max. speed: 98km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 11°
market segment: Building materials, agricultural products
Front/rear suspension: 1.43/2.57m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengEQH180-52
Engine info: Dongfeng 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.752L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1600rpm
Rated speed: 2400rpm
Engine Type: Compression ignition, inline four-cylinder
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 8T
rear axle allowable load: 11500kg
Leaf spring count: 11/11+10,8/10+8,3/4+3

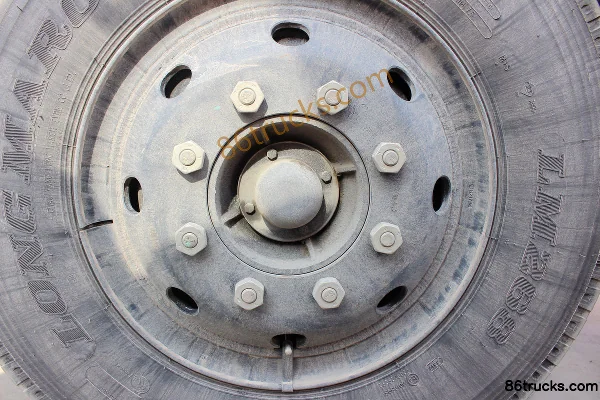

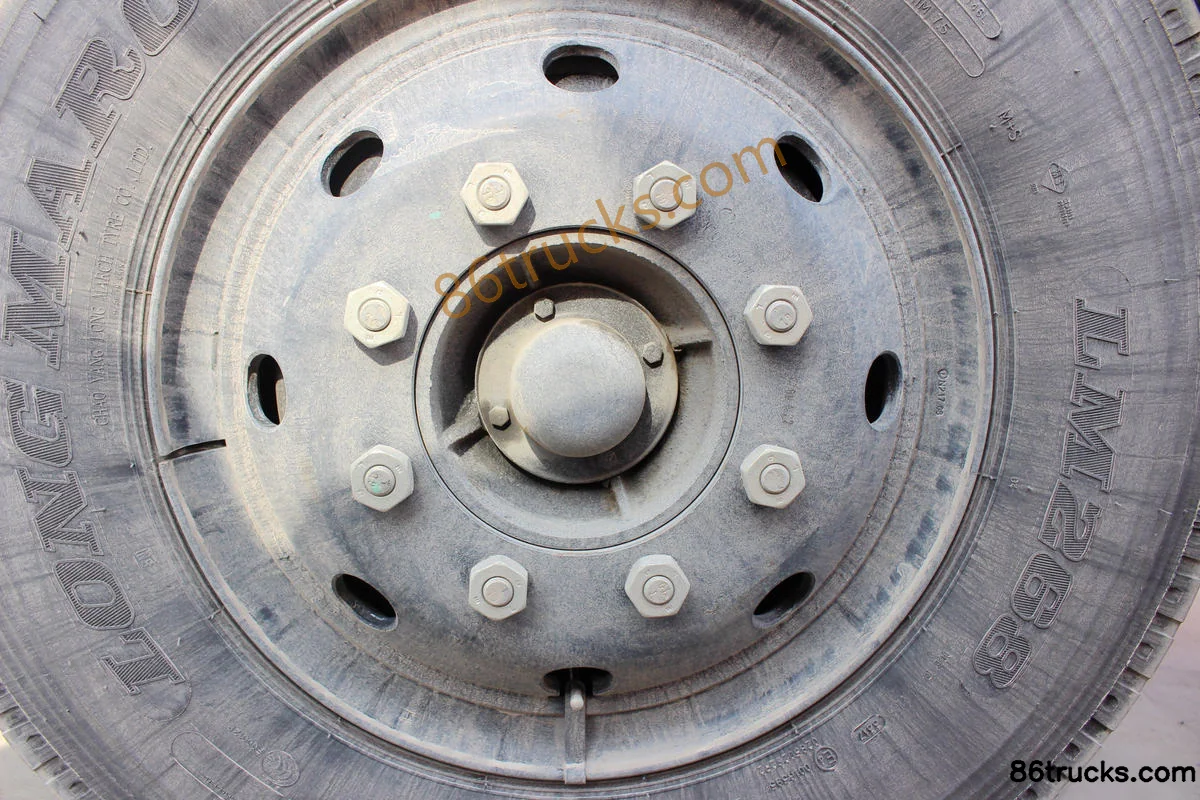

Tire

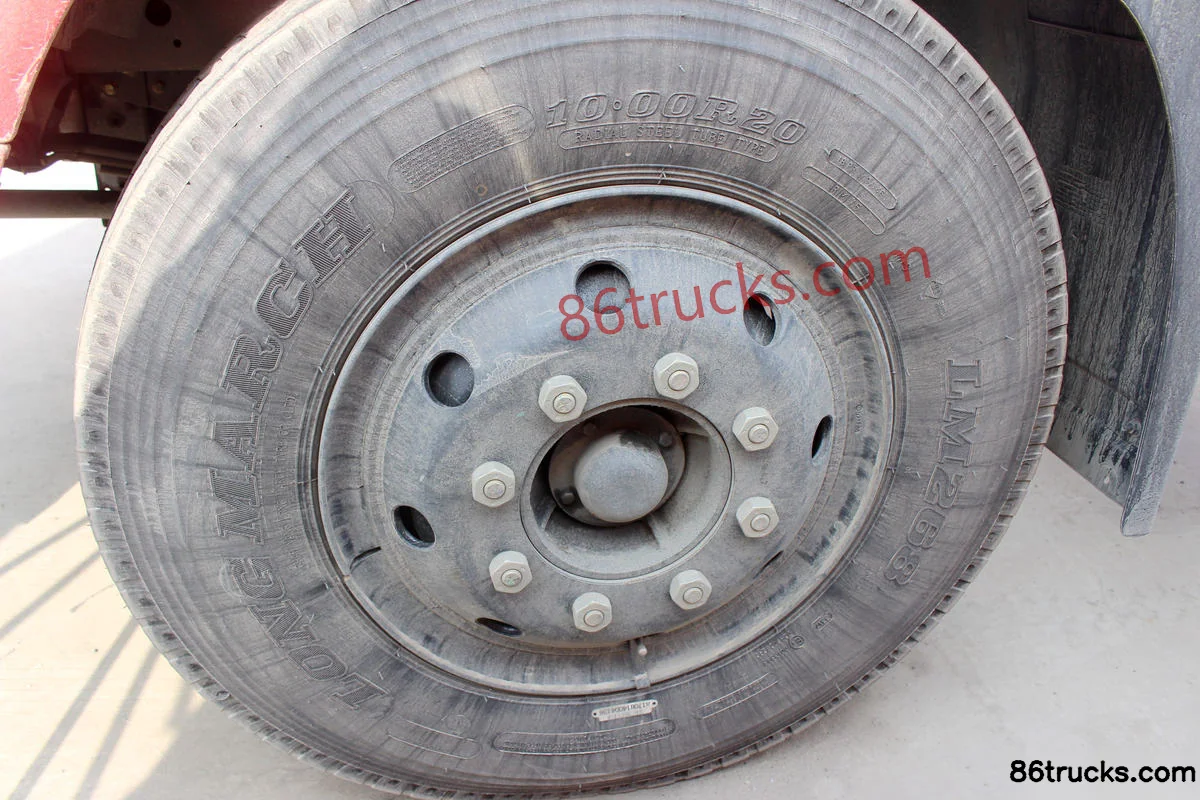

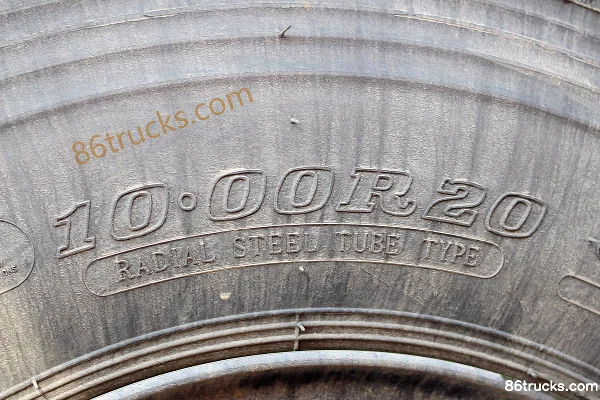

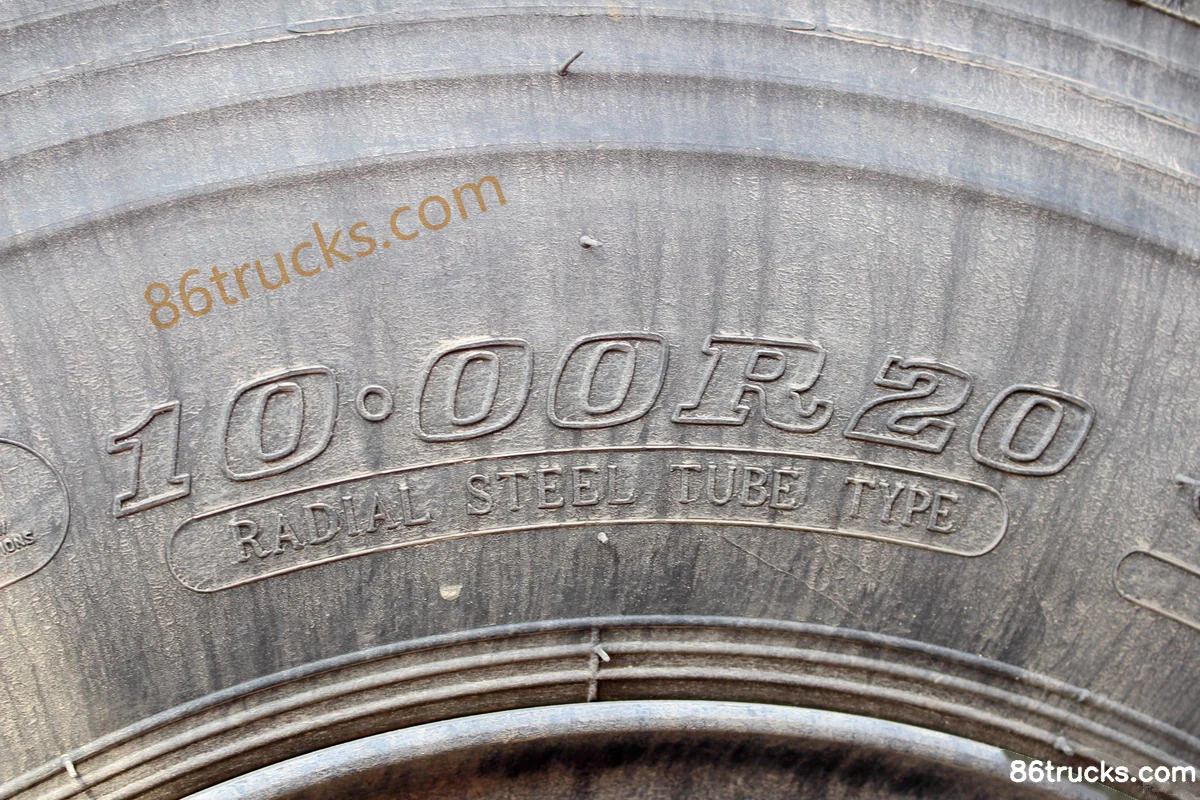

Tire Size: 295/80R22.5,10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

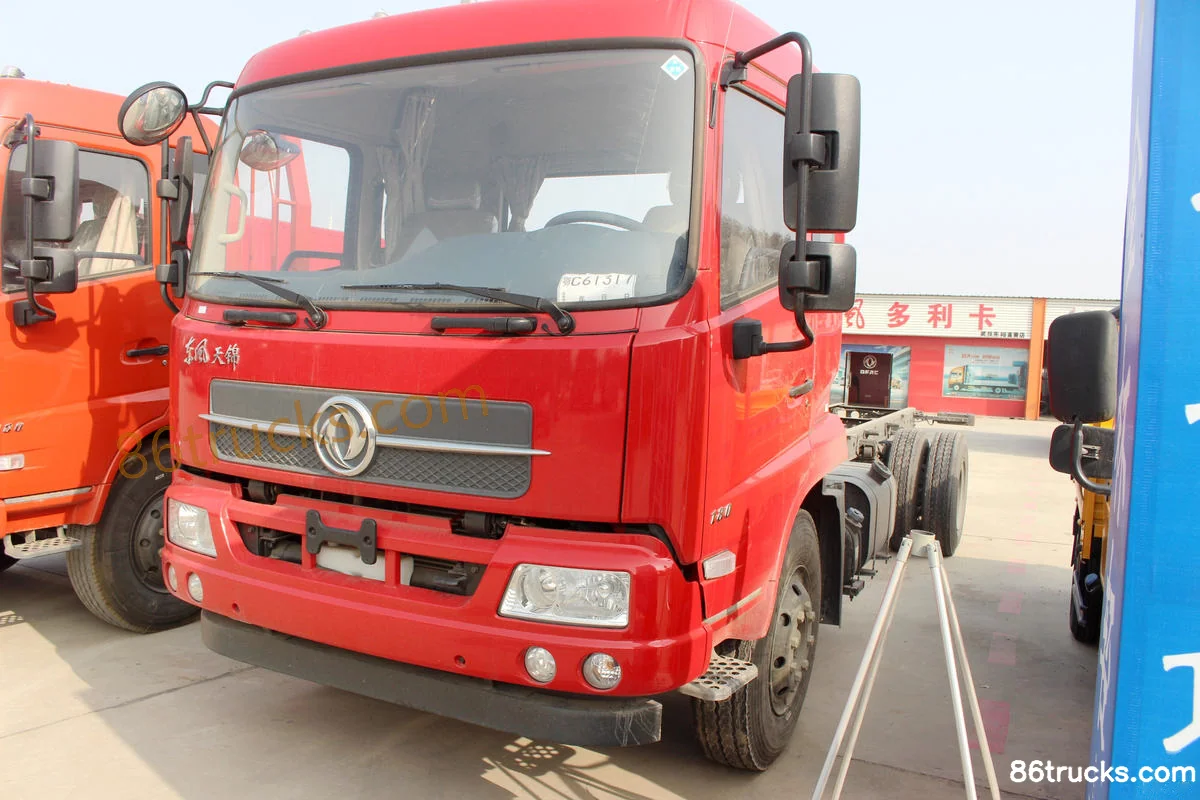

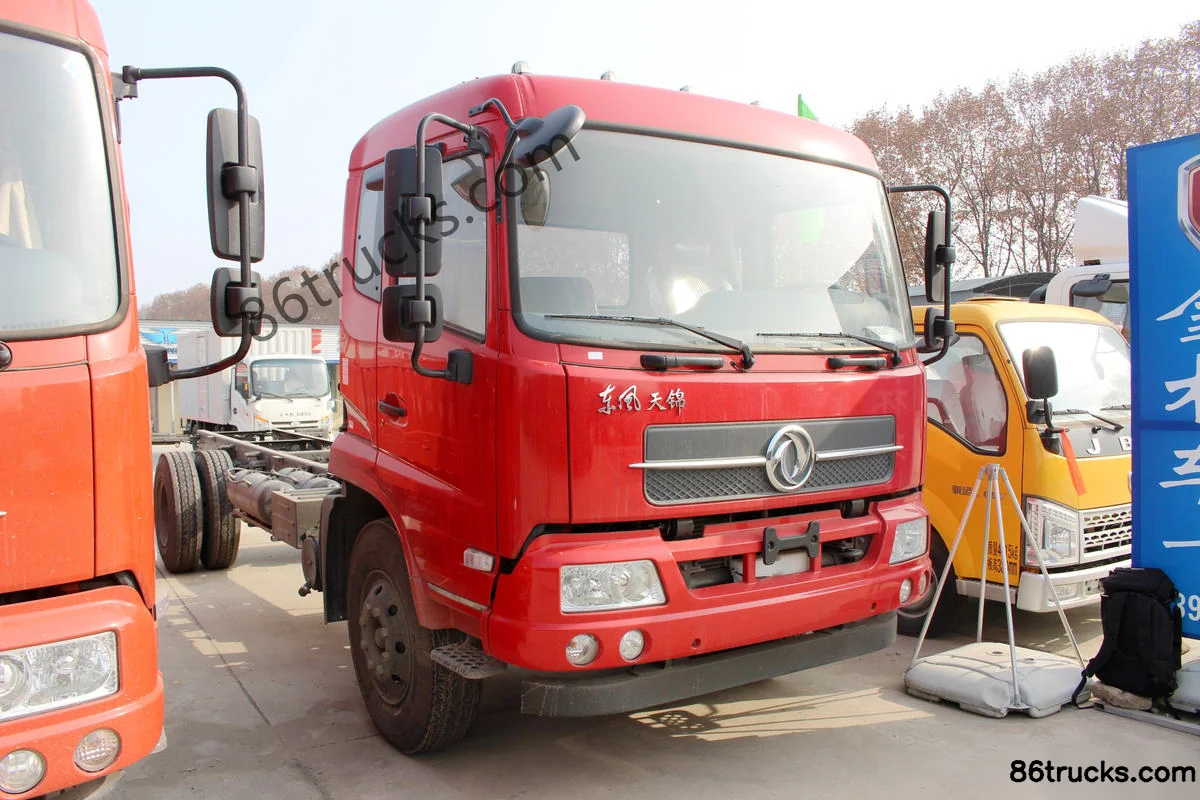

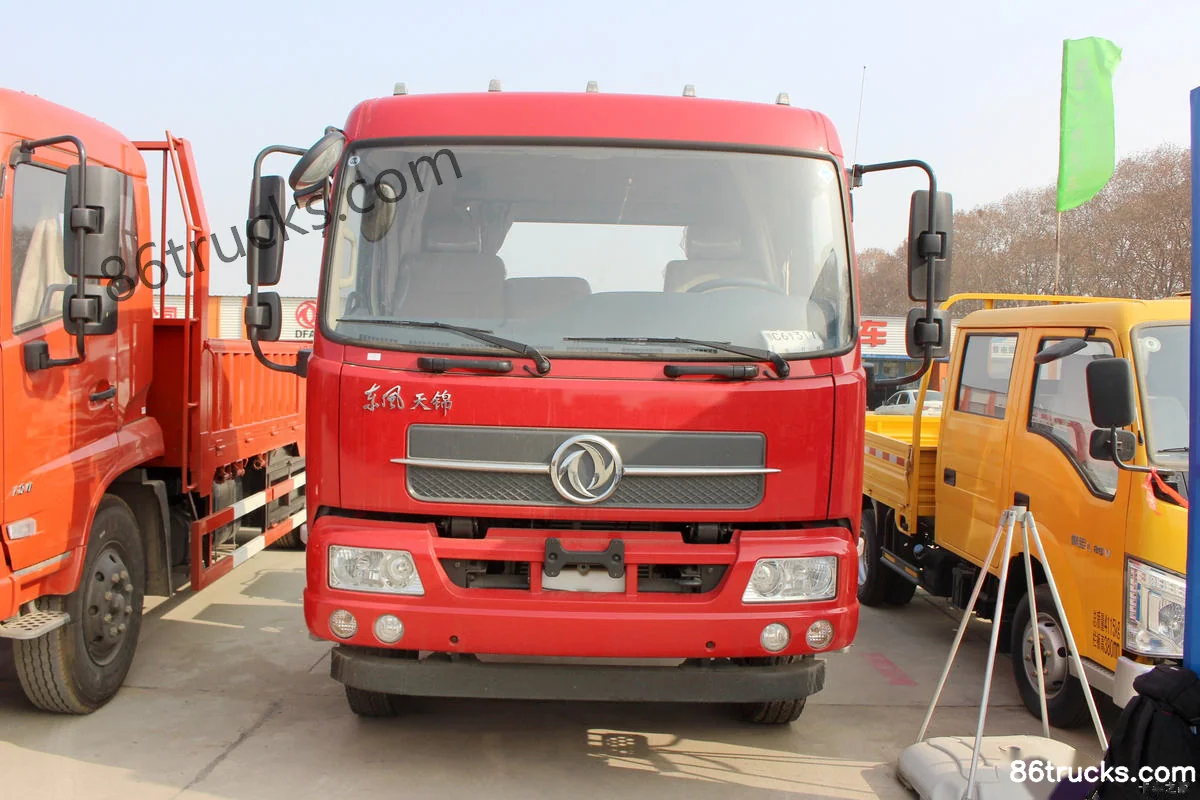

Exterior3

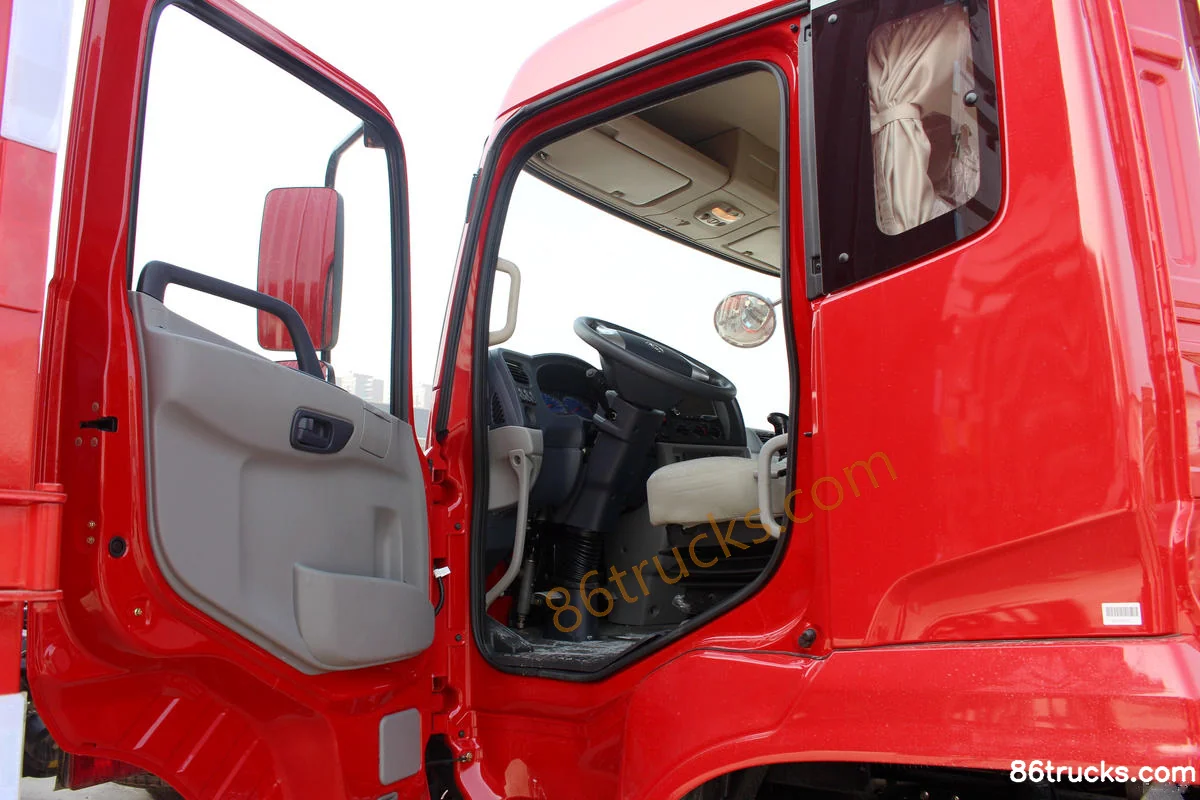

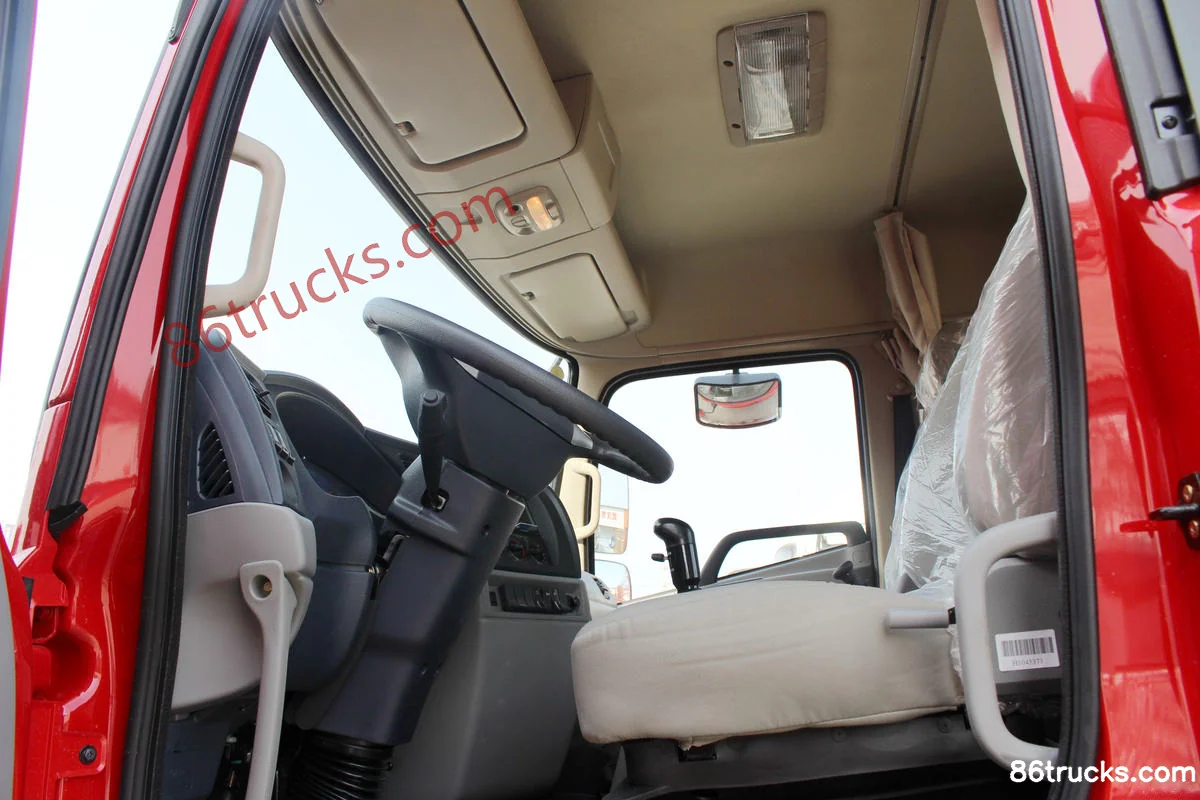

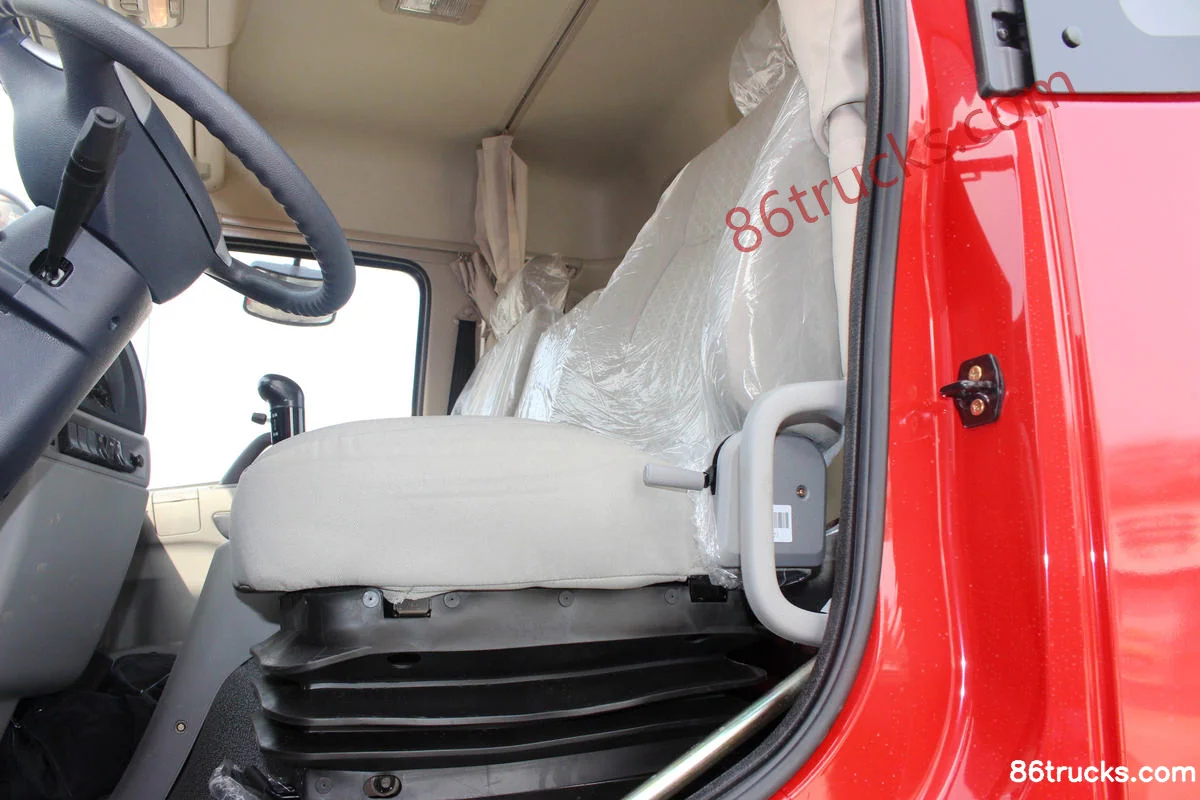

Cab3

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dongfeng 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 6.75m Semi-row Flatbed Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
