King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh

Export reference
From $24,417
MSRP ¥17.58M CNY
Wheelbase:: 2890mm
Cargo Box Height:: 1.345
Model code (announced):: NJL5038XXYEV4
Cab length:: 5.2m
GVWR:: 3.36ton
Max. speed:: 100km/h
CLTC range: 245km
Motor 1 Brand: King Long
Curb Weight: 1.85ton
Rated payload: 1.185ton

Overview

The King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh is a Electric Panel Van featuring 245km battery/range, King Long motor, 1.185t payload and 1.345 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJL5038XXYEV4
Wheelbase: 2890mm
Cab length: 5.2m
Cab width: 1.7m
Cab height: 1.98m
CLTC range: 245km
Curb Weight: 1.85ton
Rated payload: 1.185ton
GVWR: 3.36ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: TZ220XS030
Max torque: 300N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 80kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery capacity: 53.47kWh
Chassis Specs
Front suspension type: Leaf spring
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Body parameters
Max body depth: 1.96
Max body width: 1.545
Cargo Box Height: 1.345
Door Parameters
Number of Doors: 4
side door type: Single-side manual center sliding door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT 10PR
Rear Wheel Specification: 195/70R15LT 10PR
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Seat material: Fabric
Reverse Camera:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:

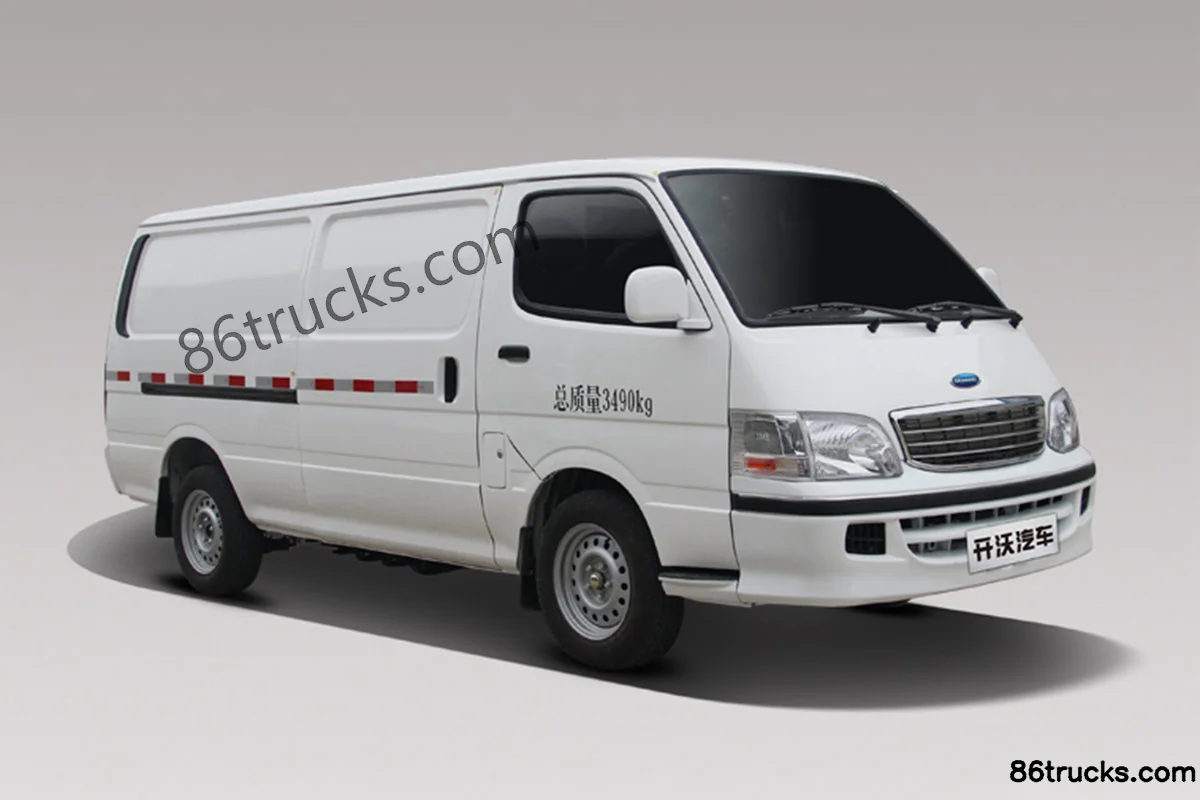

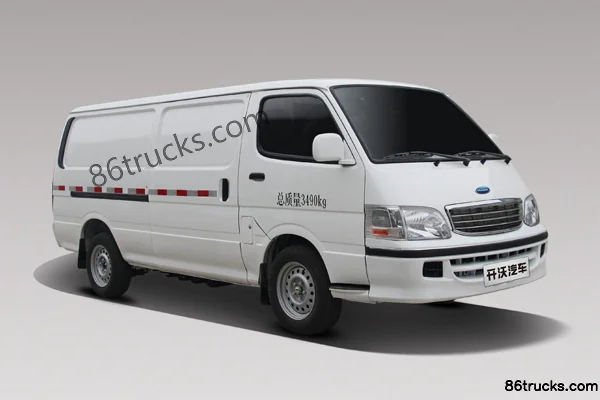

Photos

Exterior1

1 photos

FAQ

What is the export price of King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh, and what does it include?

King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh export reference is about From $24,417; MSRP is ¥17.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh suited for?

King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh differ from other variants in the same series?

King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh belongs to King Long Skyworth D10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Kaiwo D10 3.4T 2-Seat 5.2m Pure Electric Van 50.23kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
