SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 3600mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 6500kg
Displacement:: 7.8L
Drive 4X2 (6 wheels)
Horsepower 340
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 340 hp, 18t GVW and China V emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP8.340E51 engine, Fast Gear transmission and Diesel fuel.

China V 340 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4180MB1B
Drive type: 4X2
Wheelbase: 3600mm
engine: WeichaiWP8.340E51
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 4.625
Cab length: 6.12m
Cab width: 2.55m
Cab height: 3.91m
Front track width: 2011mm
Gross Trailer Weight: 35ton
rear track: 1860mm
Curb Weight: 6.8ton
GVWR: 18ton
Max. speed: 105km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Port transport
Remarks: Extended high-roof cab with top side deflectors, highway-use bumper, three-piece integrated mudguards, Tianxingjian Zhiya Edition, ABS, telescopic shift shaft, 165Ah maintenance-free battery, fifth wheel height 1290±20mm, lightweight rims, lowered rear crossmember and approach ramp, 300W inverter
Version: Standard Container Version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.340E51
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.8L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1700rpm
Rated speed: 2100rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: MAN5.5T
Fifth wheel: Low 50
Front axle allowable load: 6500kg
Frame Dimensions: 850×270(8+5)mm

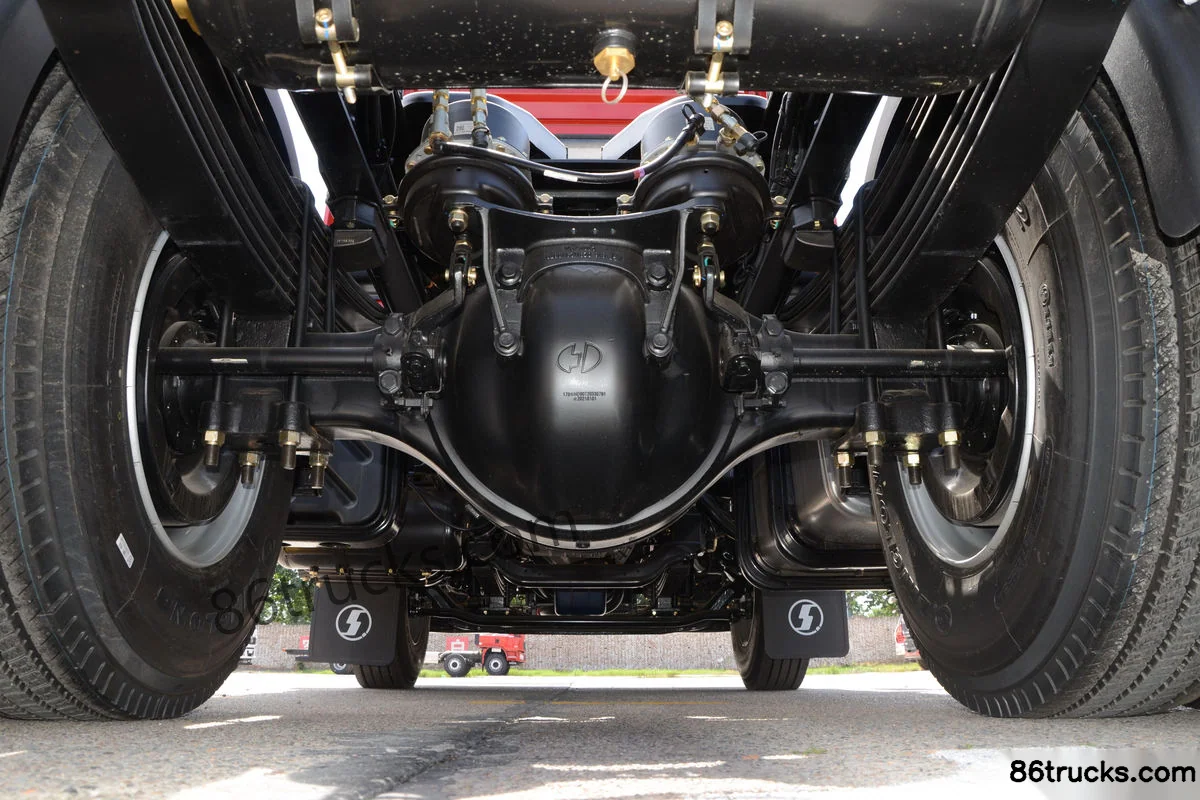

rear axle description: 13T MAN single reduction
rear axle allowable load: 11500kg
Axle ratio: 4.625
Leaf spring count: 3/4+3
Suspension (front/rear): Front and rear leaf springs (few)
Tire
Tire Size: 12R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic

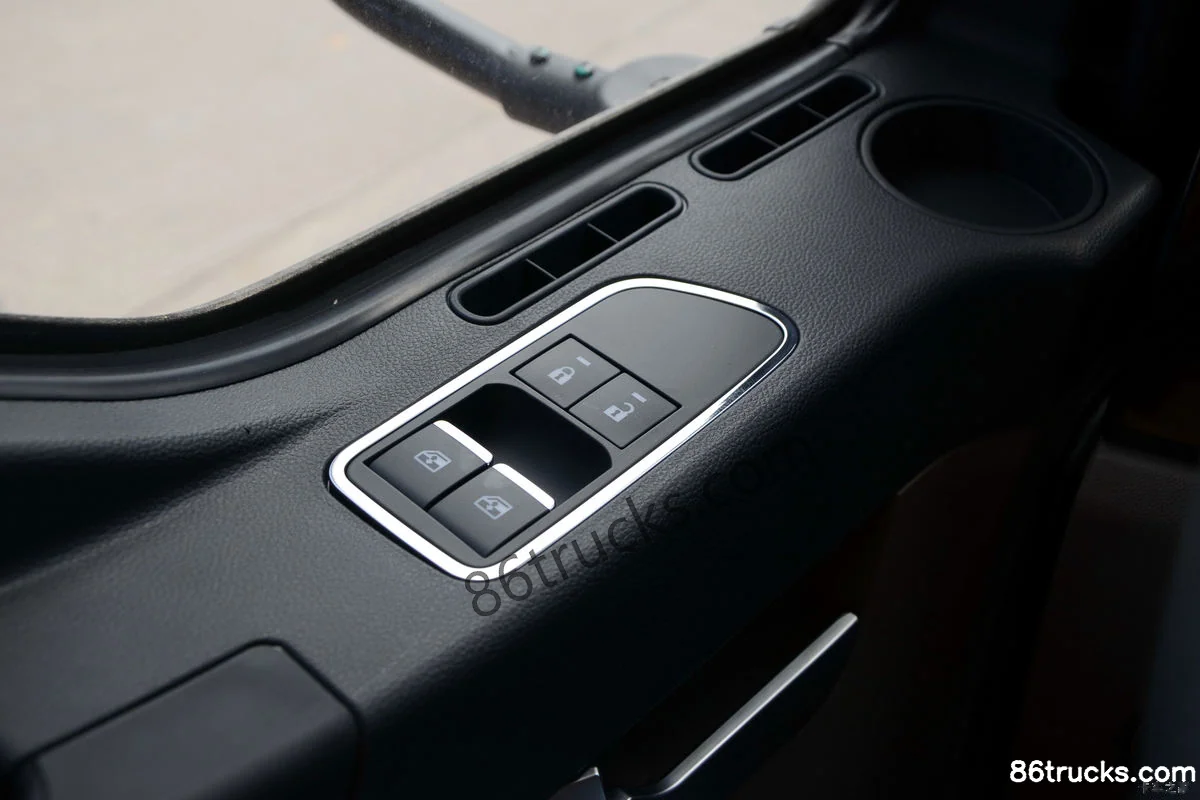

Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:

Photos

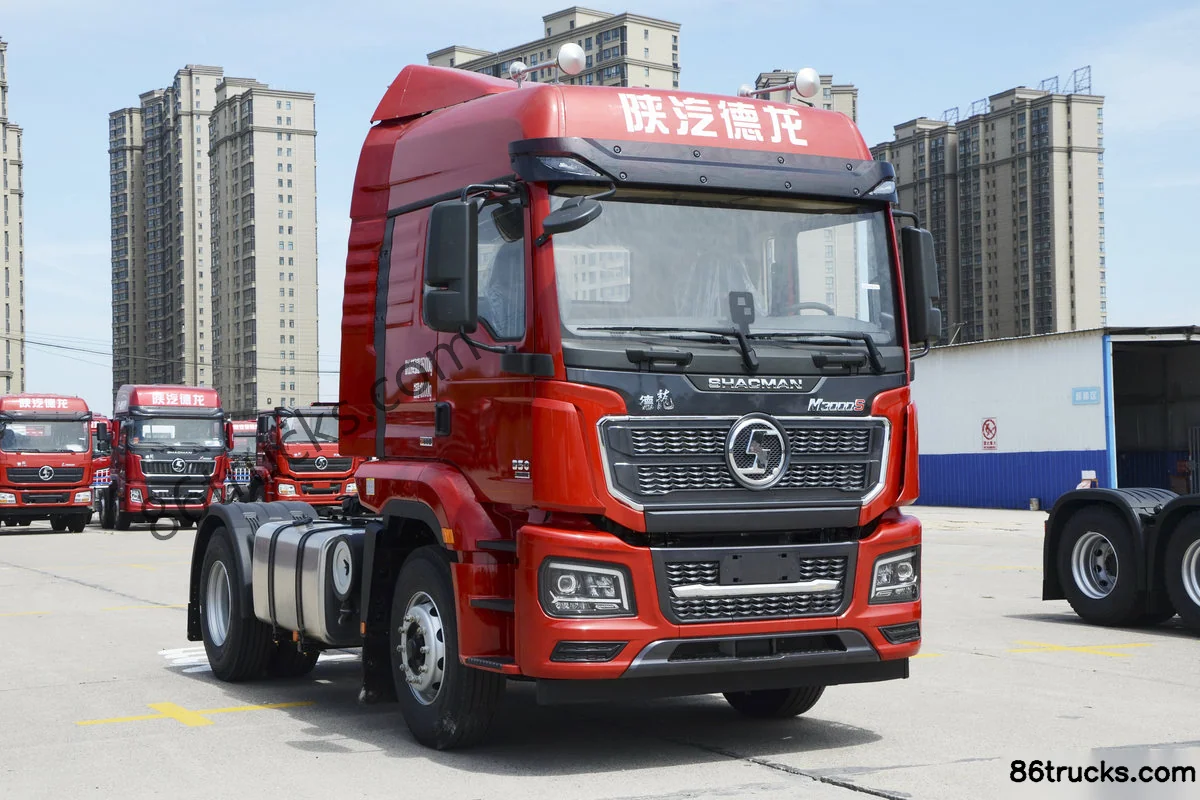

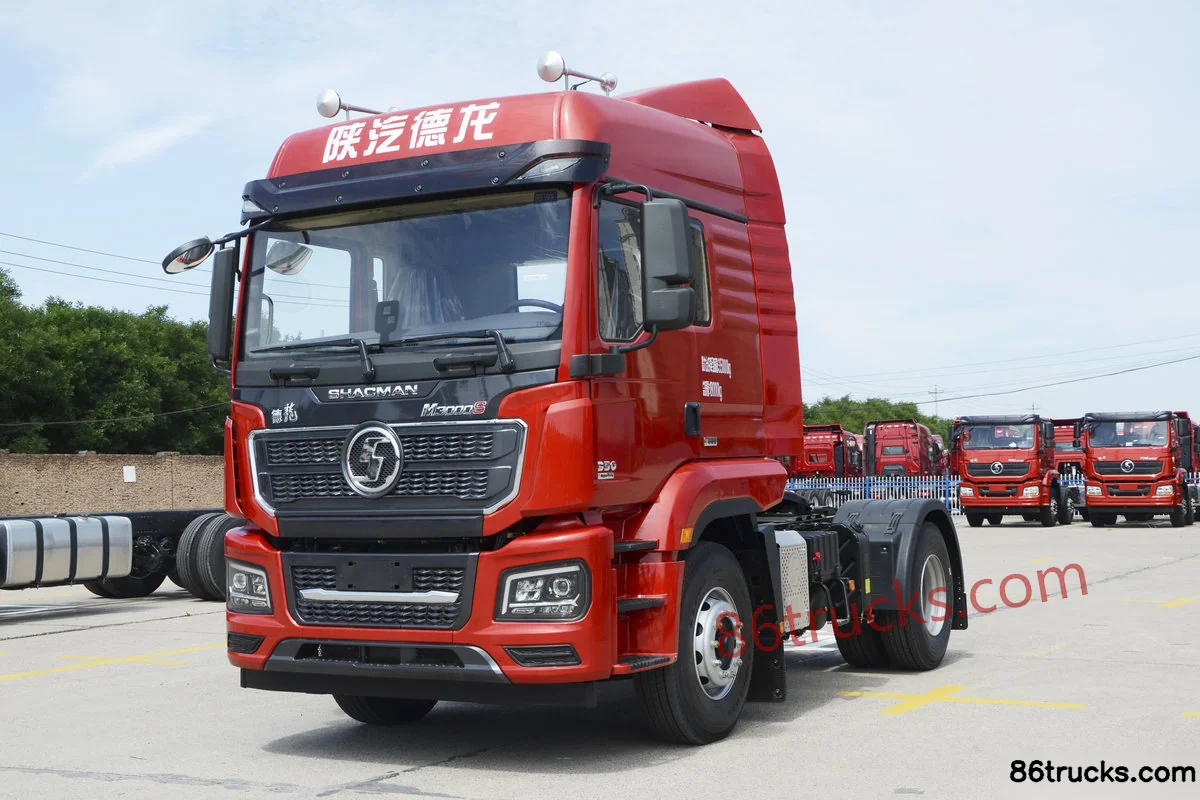

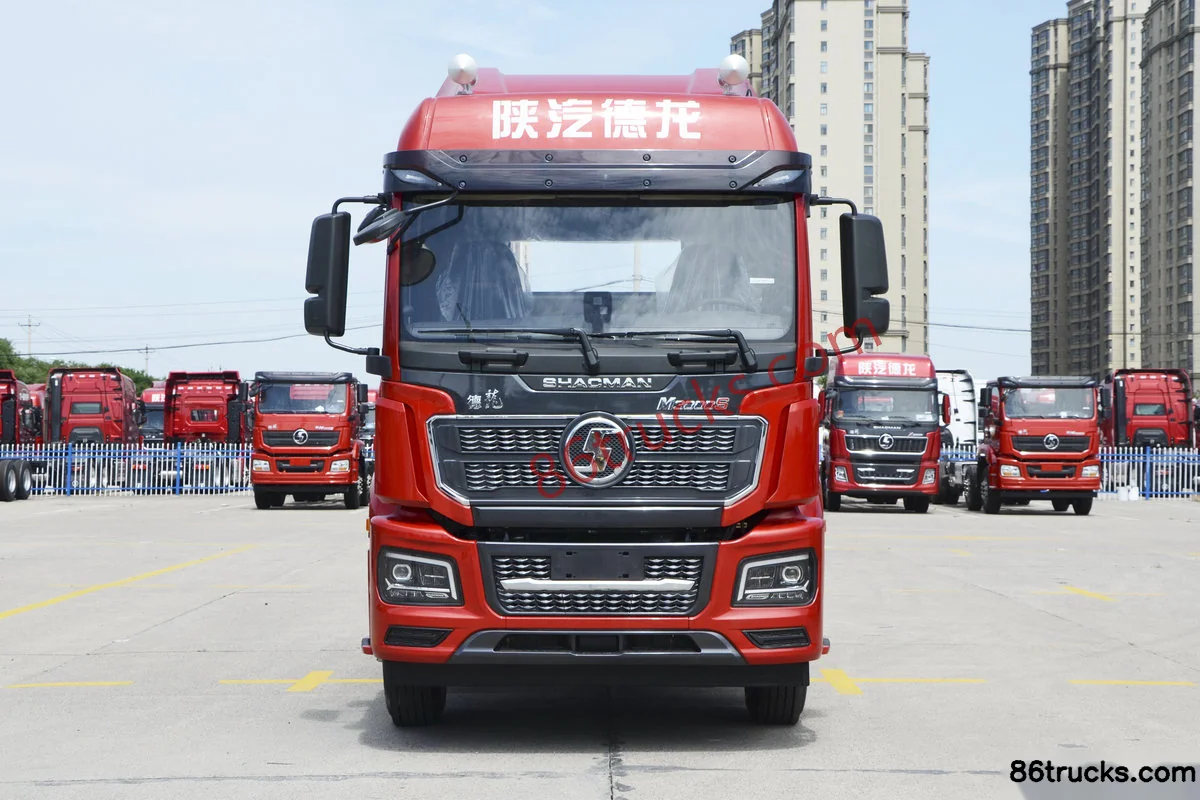

Exterior3

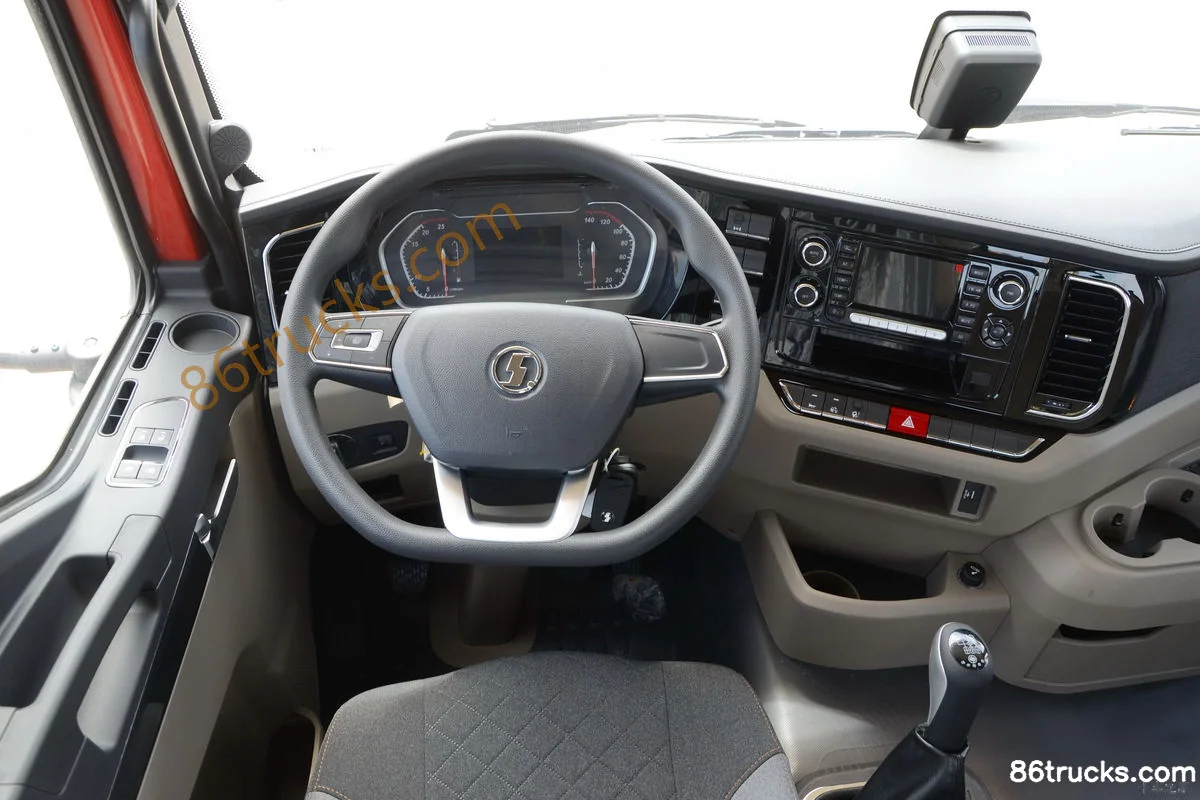

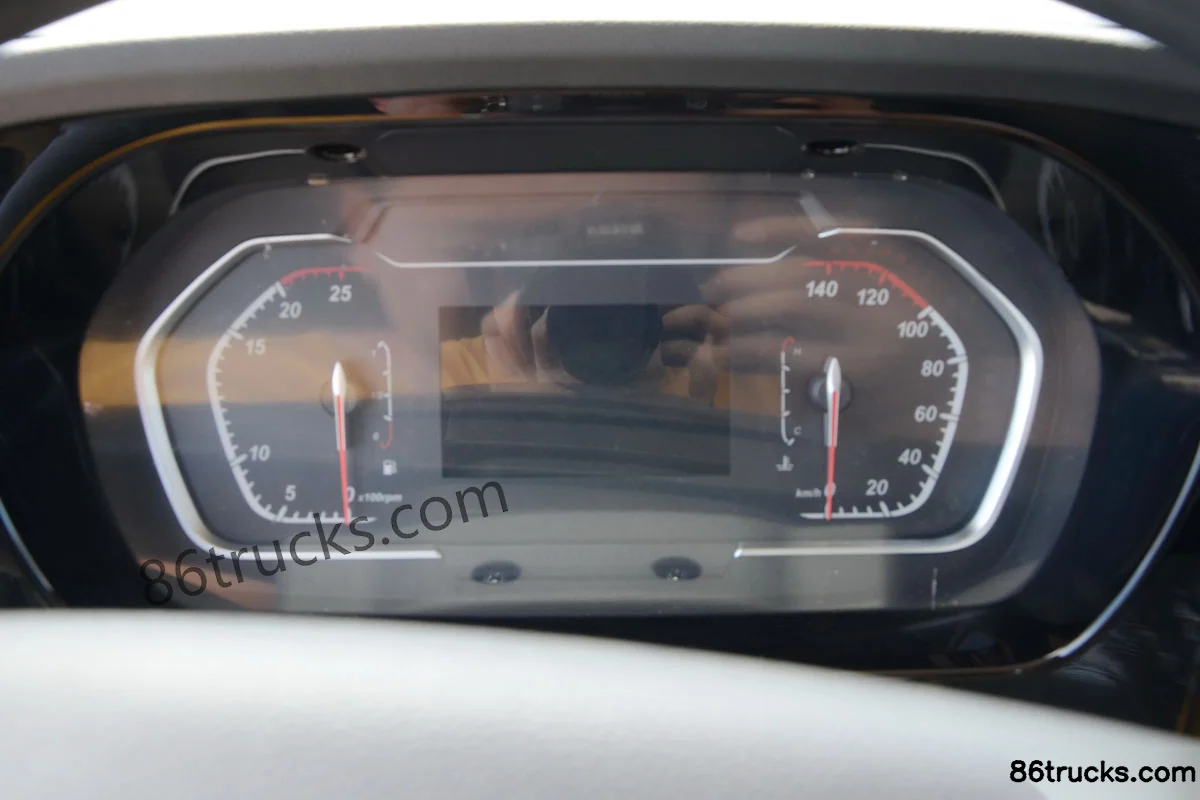

Cab3

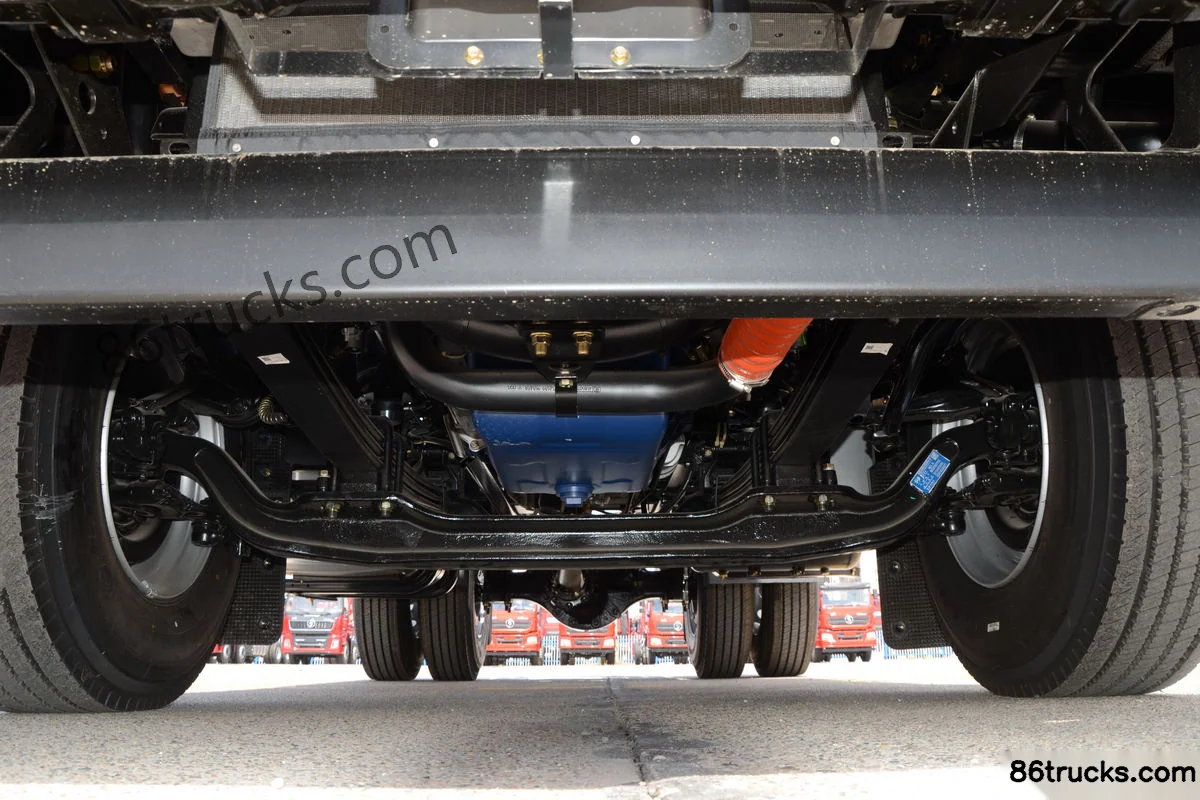

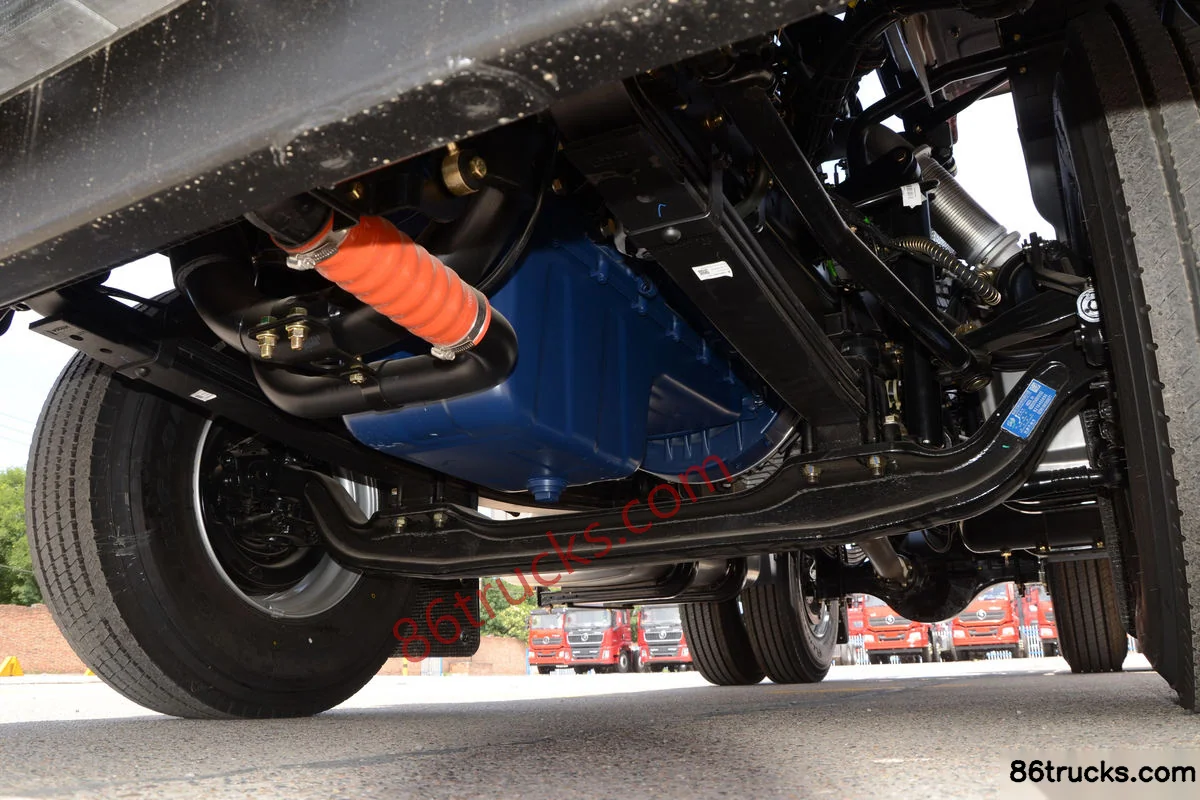

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck?

Key specs of SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck suited for?

SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck belongs to SHACMAN Delong M3000S (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000S Standard Container Edition 340 hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.
