SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck

Export reference
From $53,069
MSRP ¥38.21M CNY
Horsepower: 460
Emission: China VI
Fuel: Diesel
Engine: SAIC Fiat Powertrain Hongyan11L
Transmission: Fast Gear
Curb Weight:: 15.5ton
seating capacity: 2Personnel
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 2Personnel volume and 15.37t payload. On the powertrain side, it comes with a SAIC Fiat Powertrain Hongyan11L engine, 460 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 460 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ5317CCYSV11446H
Type: stake truck
Drive type: 8X4
Wheelbase: 2000+4400+1400mm
Box length class: 9.6m
engine: SAIC Fiat Powertrain HongyanF3GCE611A*M
transmission: Fast Gear12JSDX220TA-B
Rear Axle Ratio: 4.111
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2020/2020mm
rear track: 1858/1858mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 18°
Front/rear suspension: 1.46/2.74m
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF3GCE611A*M
Engine info: SAIC Fiat Powertrain Hongyan11L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.12L
Emission standard: China VI
Max output power: 338kW
Max hp: 460Horsepower
Max torque: 2100N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, turbocharged, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear12JSDX220TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: High-roof double bunk
Cab suspension: Four-point air suspension
Cab width: 2500mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 800L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.111
Leaf spring count: 9/9/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Bluetooth / hands-free calling:
LCD instrument cluster:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

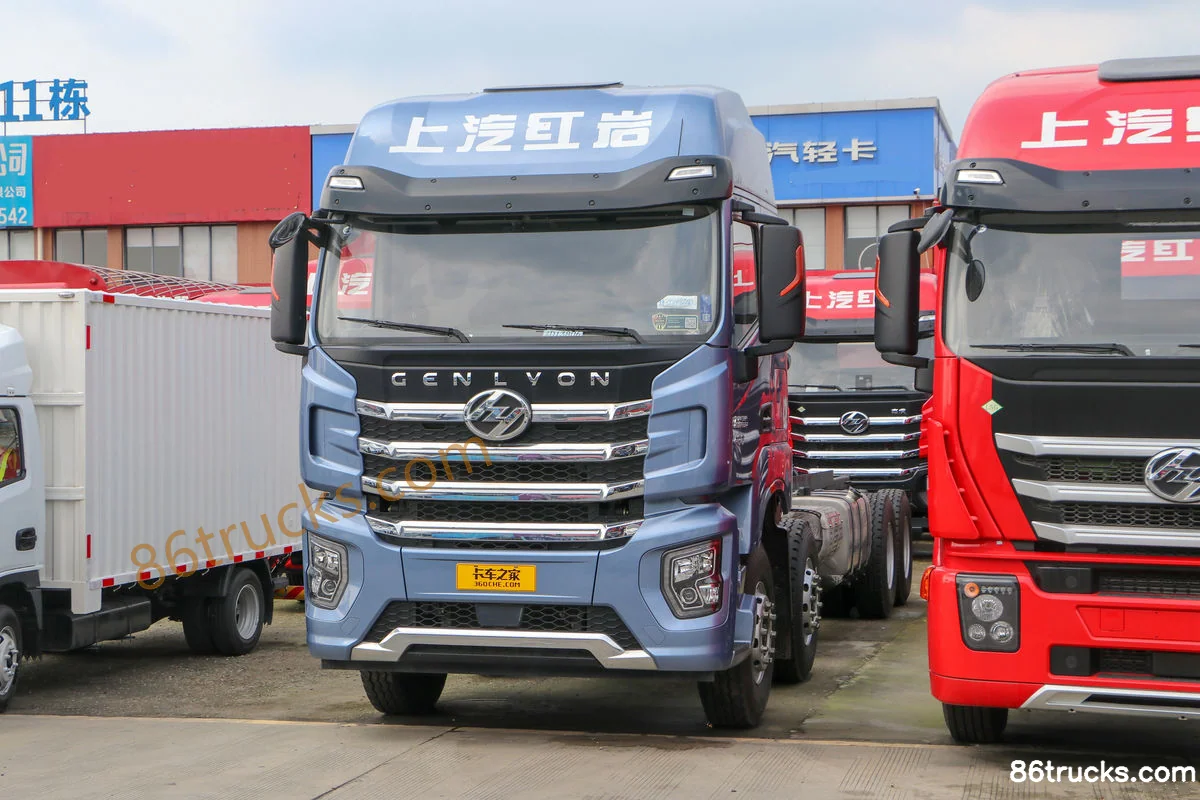

Photos

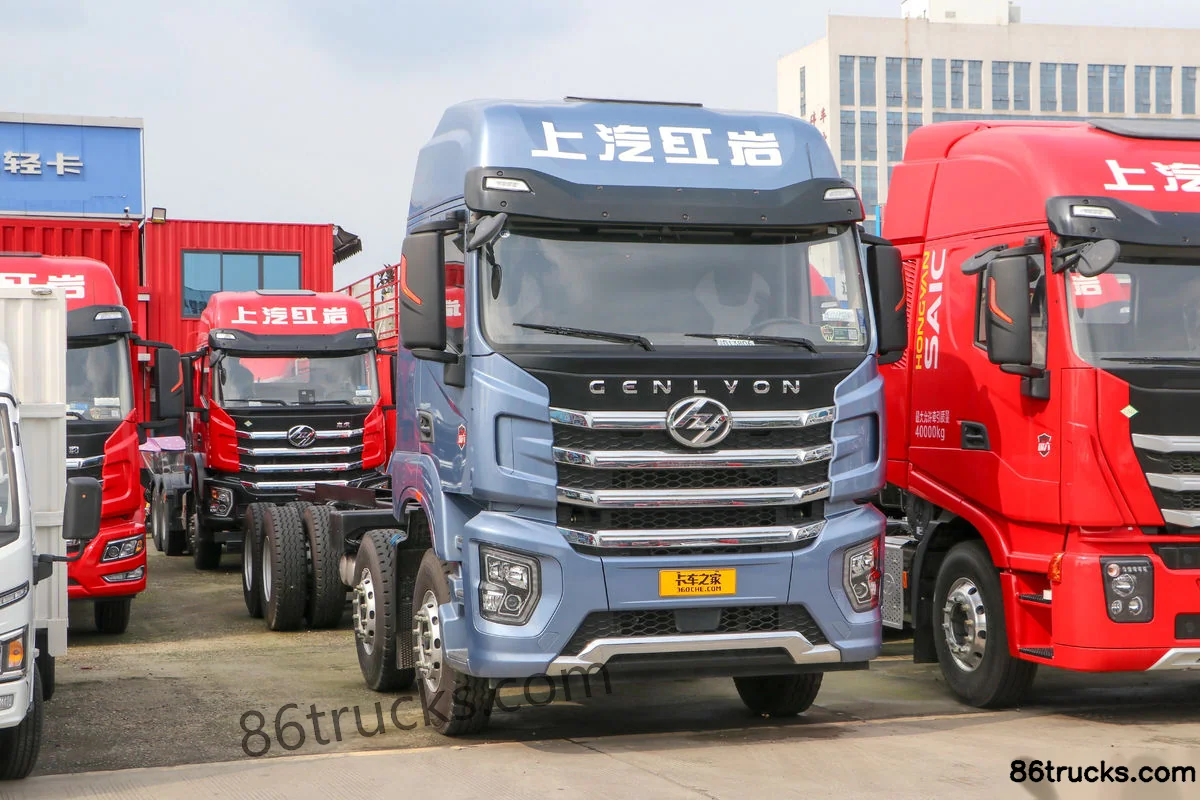

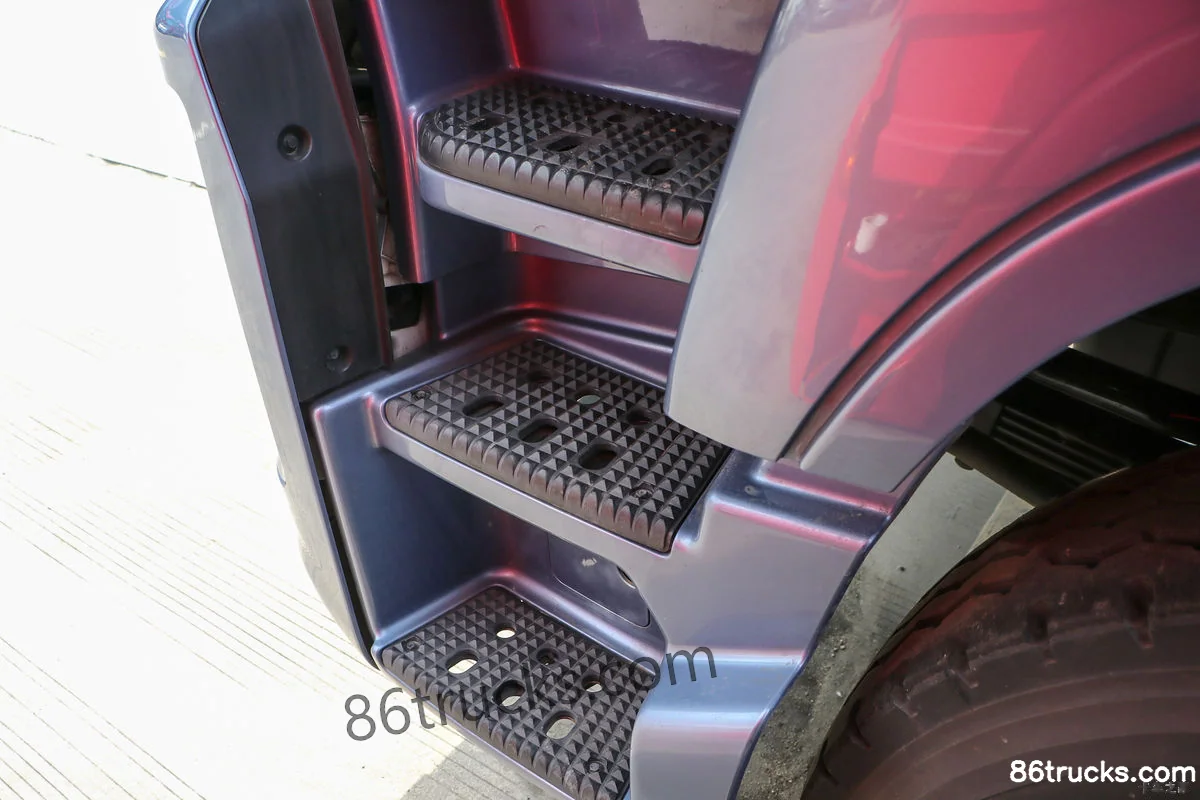

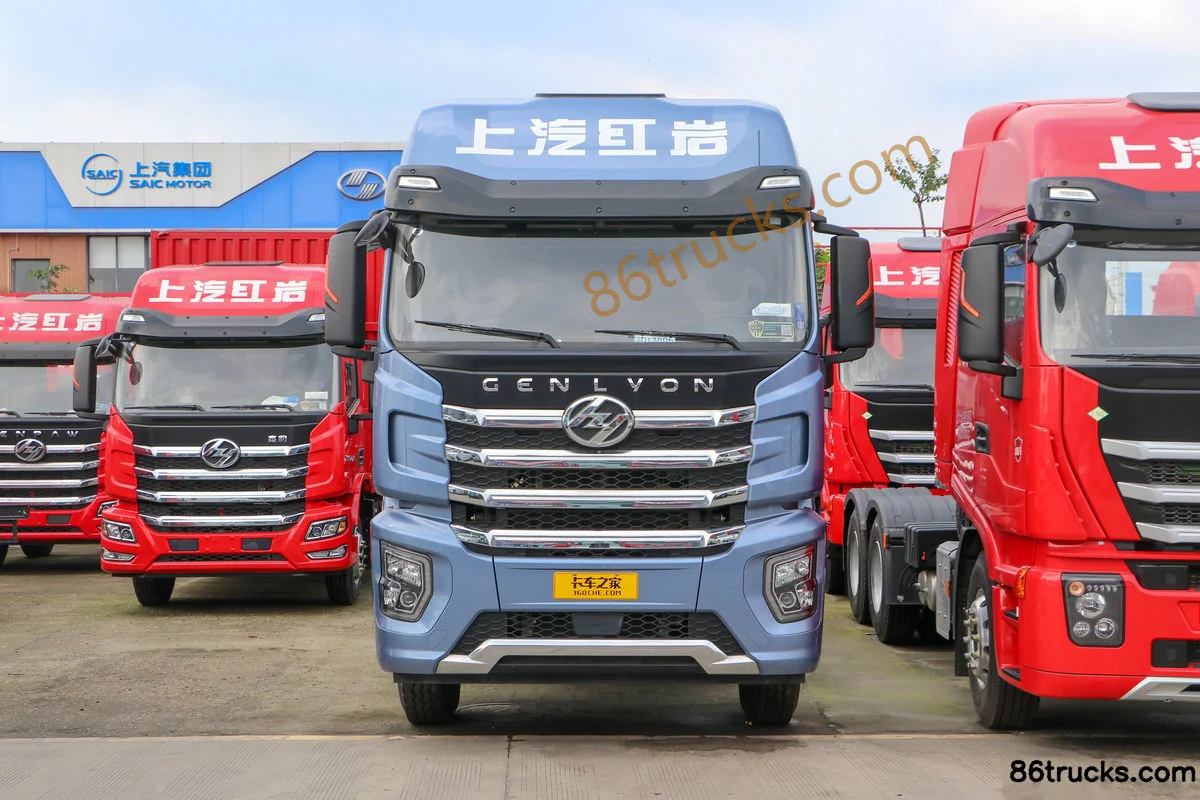

Exterior3

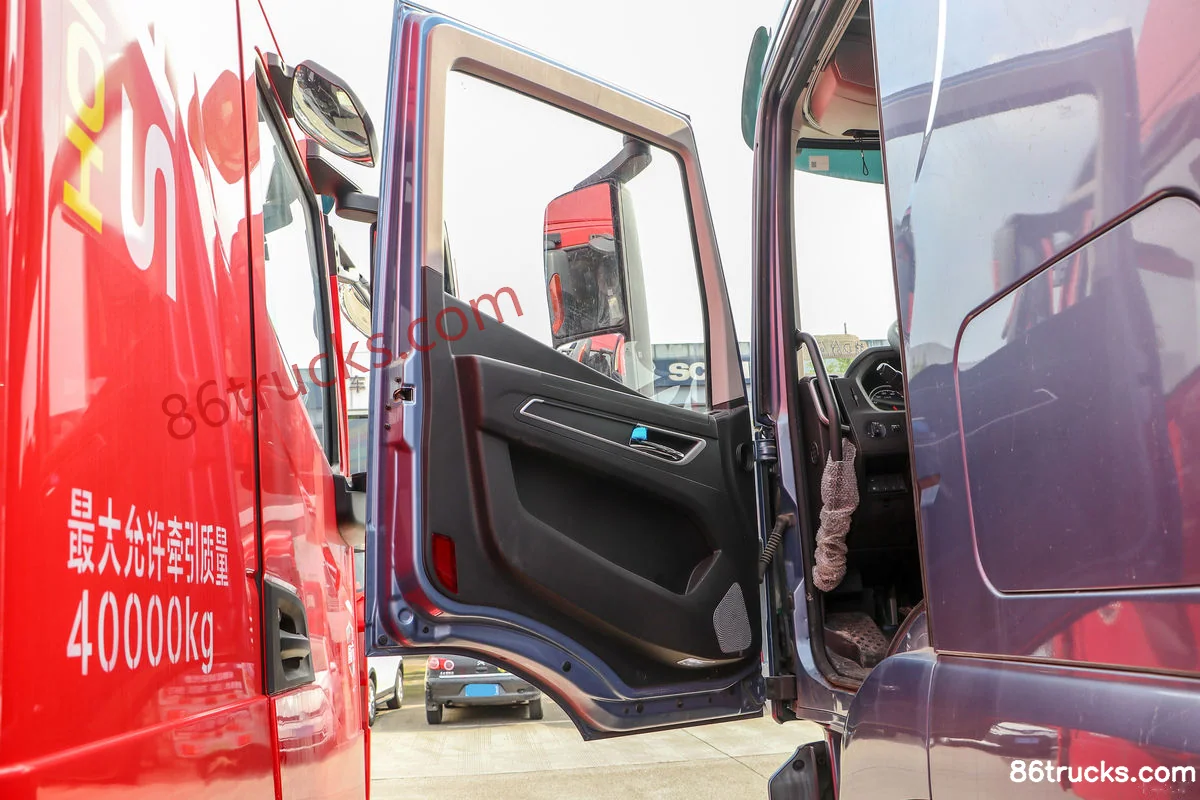

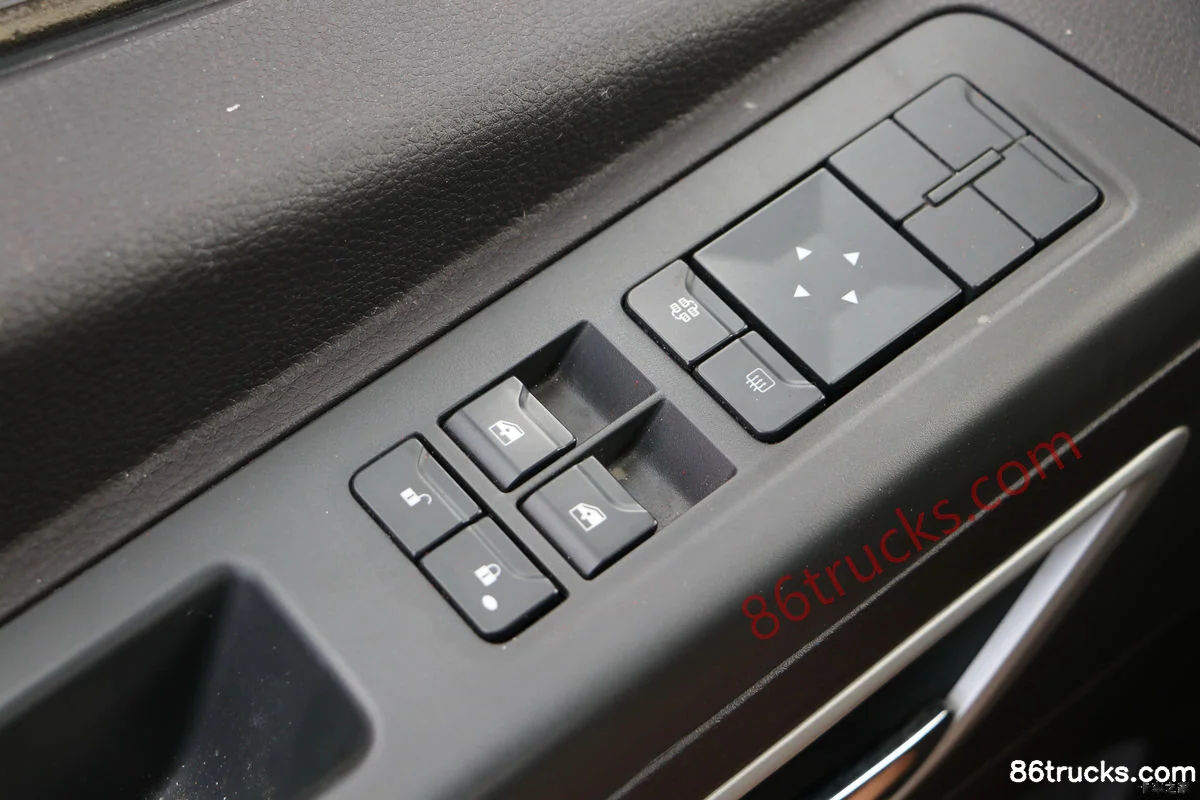

Cab3

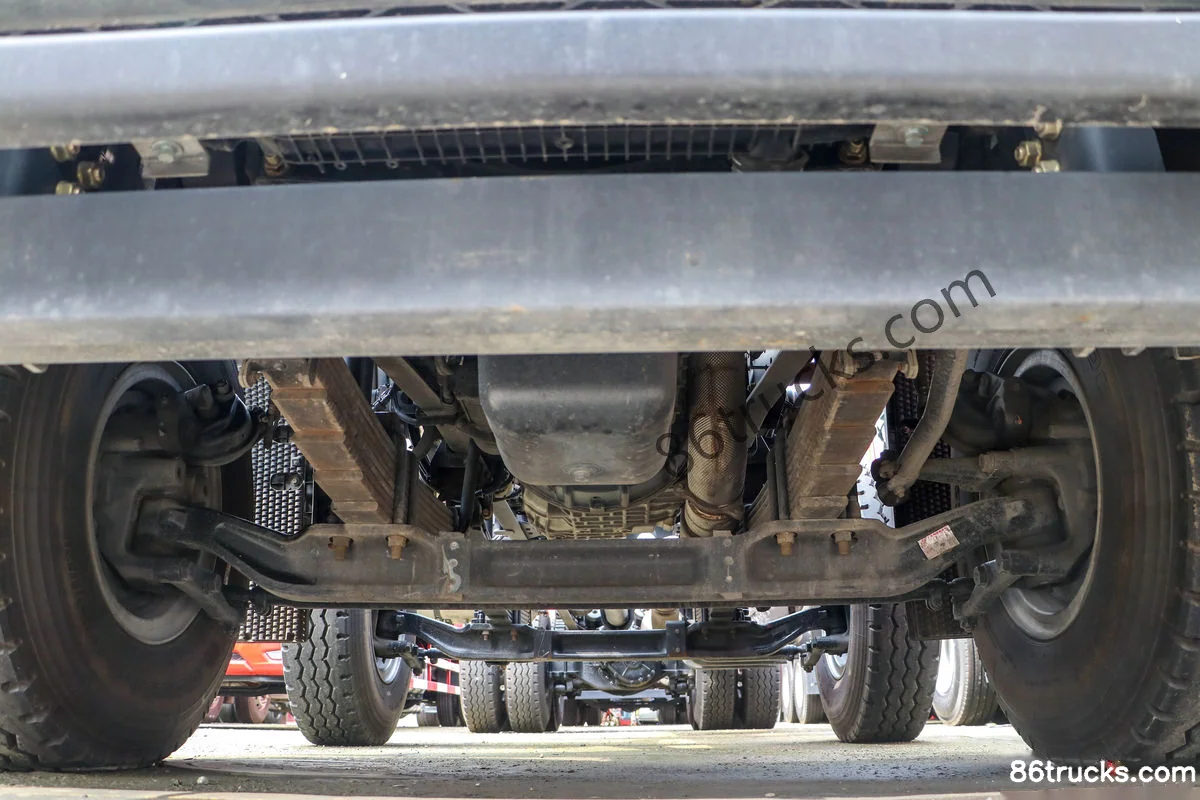

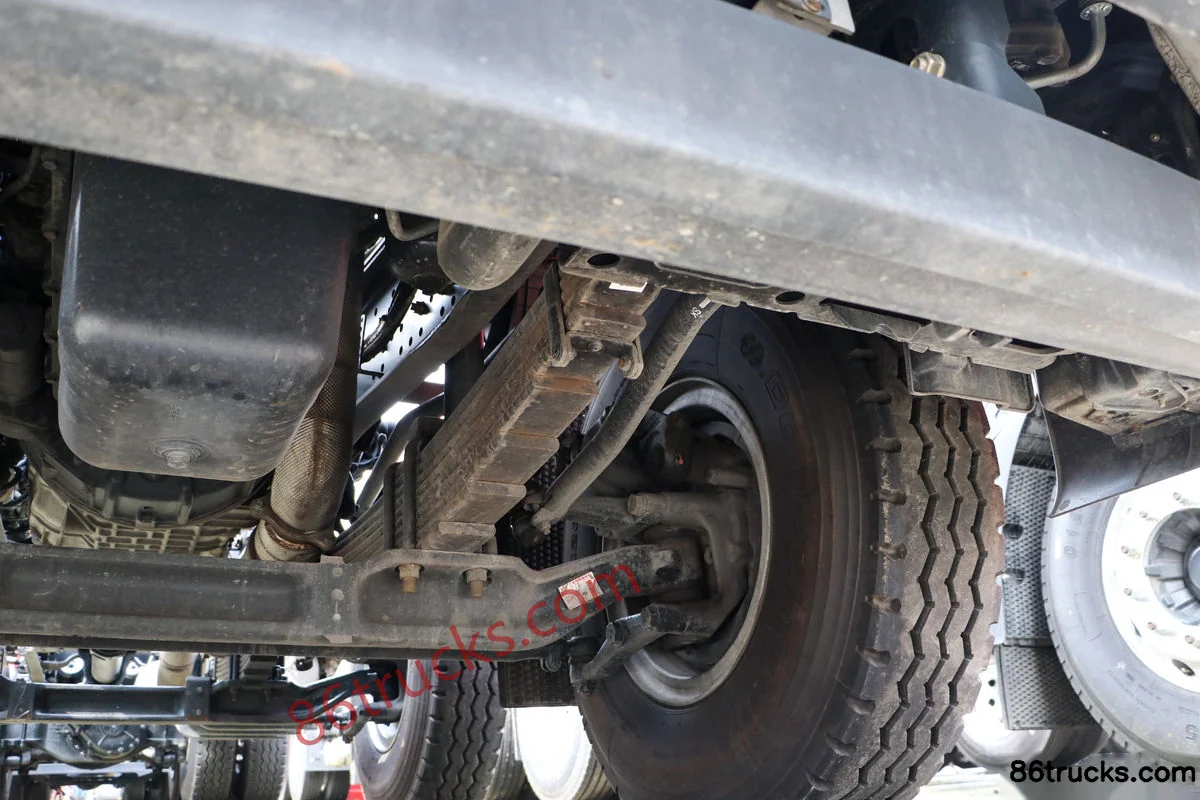

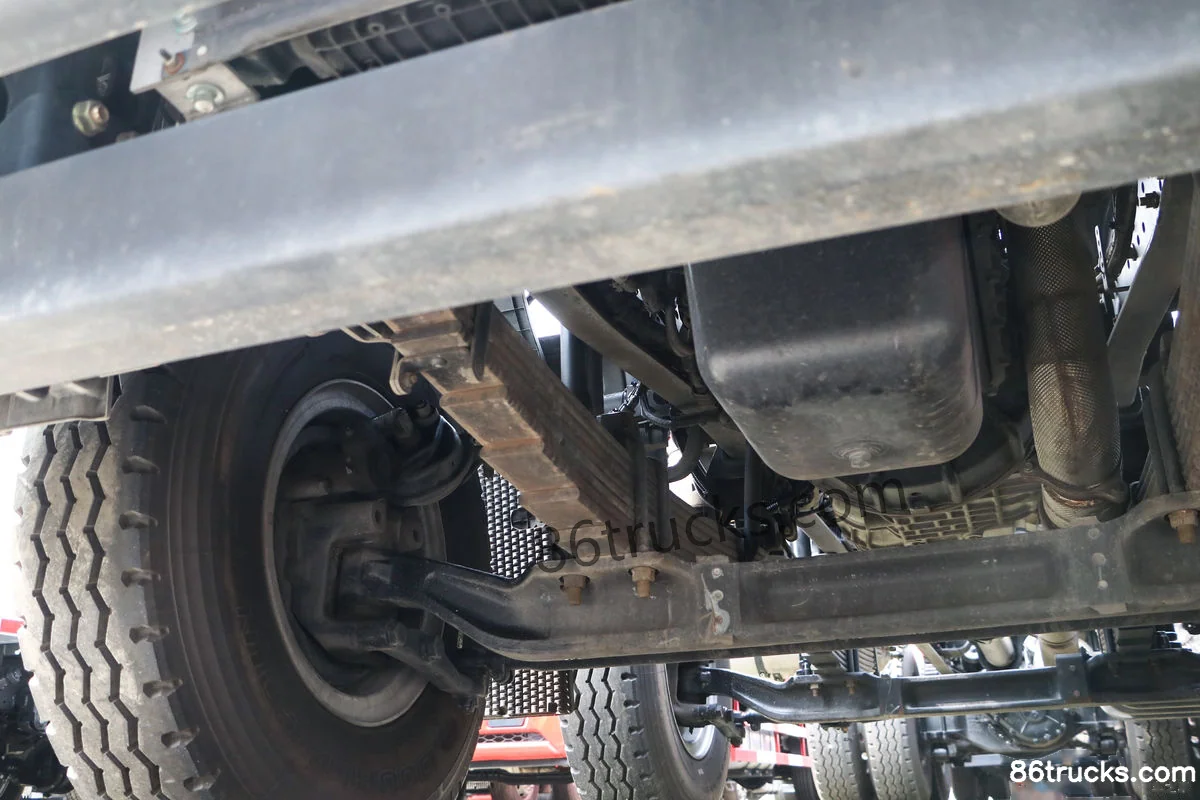

Chassis3

9 photos

FAQ

What is the export price of SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck, and what does it include?

SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck export reference is about From $53,069; MSRP is ¥38.21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck?

Key specs of SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck: Drive: 8x4; Horsepower: 460 hp; Emission: China VI; Fuel: Diesel; Engine: SAIC Fiat Powertrain Hongyan11L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck suited for?

SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck differ from other variants in the same series?

SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck belongs to SAIC Hongyan Genlyon H6 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon H6 460 hp 8X4(12 wheels) 9.6m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
