Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.995ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: KMC5042XXYEVA33D
Type:: Chassis
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 225km
Motor 1 Brand: Zhongke Shenjiang
Curb Weight: 3.305ton

Overview

The Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels) is a Light Truck featuring 225km battery/range, Zhongke Shenjiang motor, 4X2 (6 wheels) drive and 0.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5042XXYEVA33D
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.24m
Cab height: 3m
CLTC range: 225km
Curb Weight: 3.305ton
Rated payload: 0.995ton
GVWR: 4.495ton
Max. speed: 80km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Zhongke Shenjiang
Motor 1 Model: SJ075300A-2103
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 75kW
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.235m
Cargo box width: 2.1m
Cargo box height: 1.9m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1610kg
rear axle allowable load: 2885kg
Tire
Tire Size: 7.00-16LT 8PR,7.00R16LT 8PR
Control configuration
ABS:

Photos

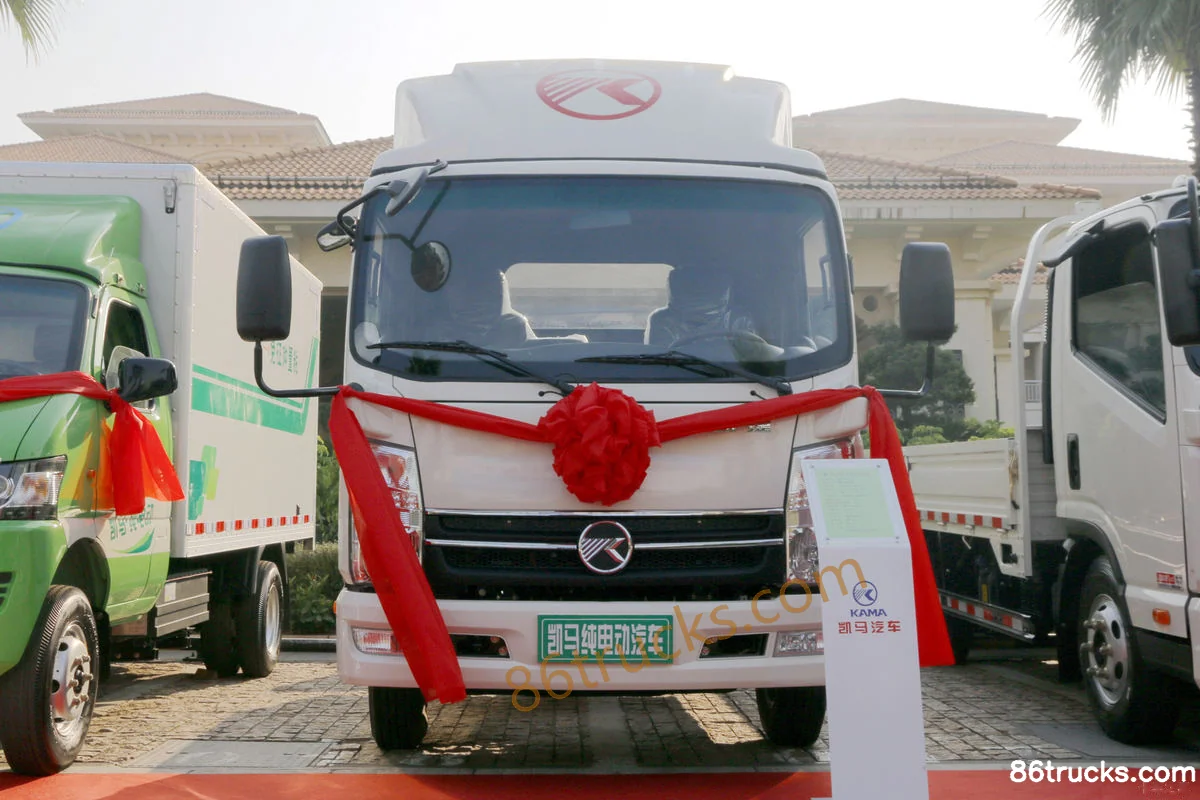

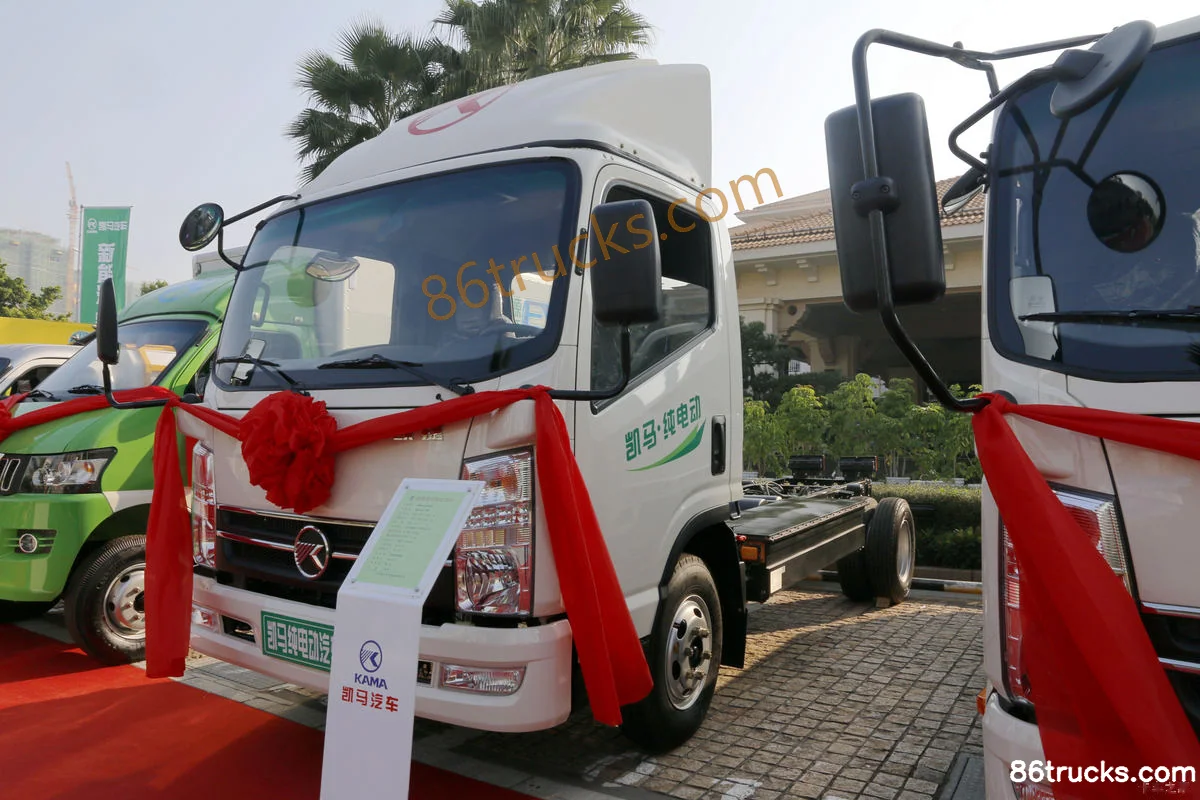

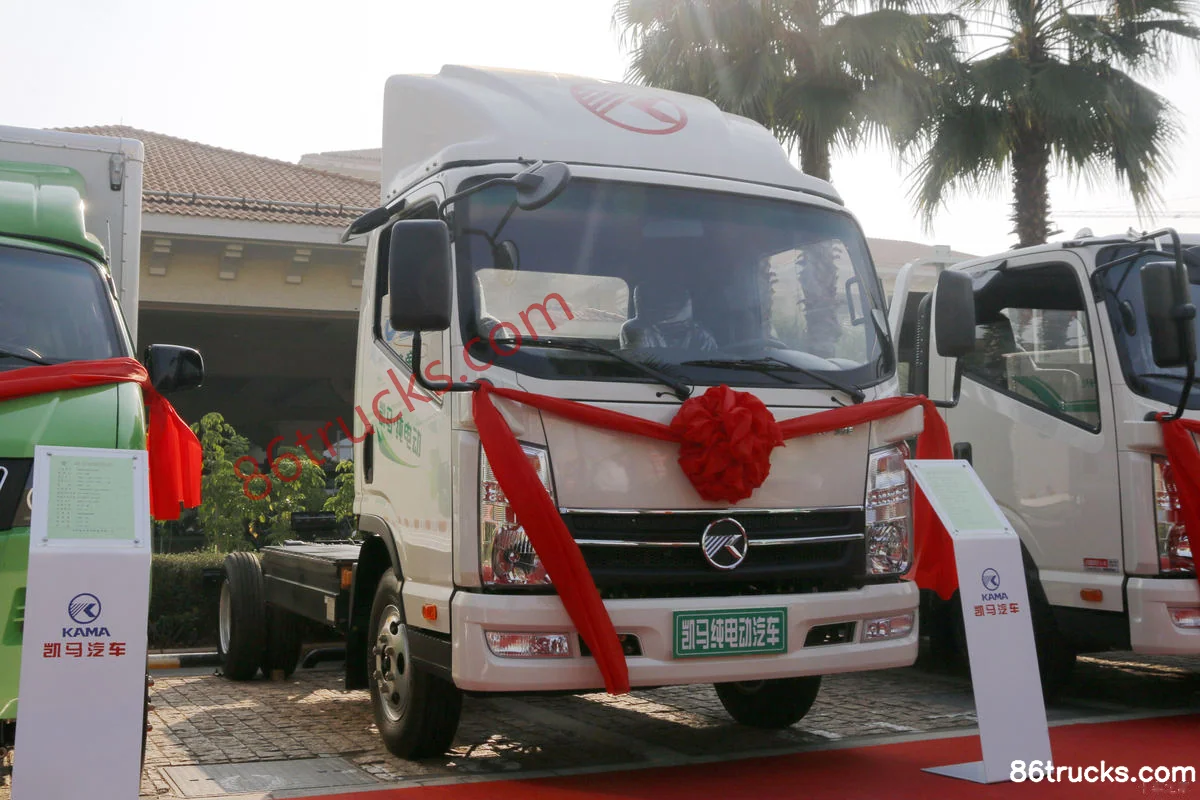

Exterior3

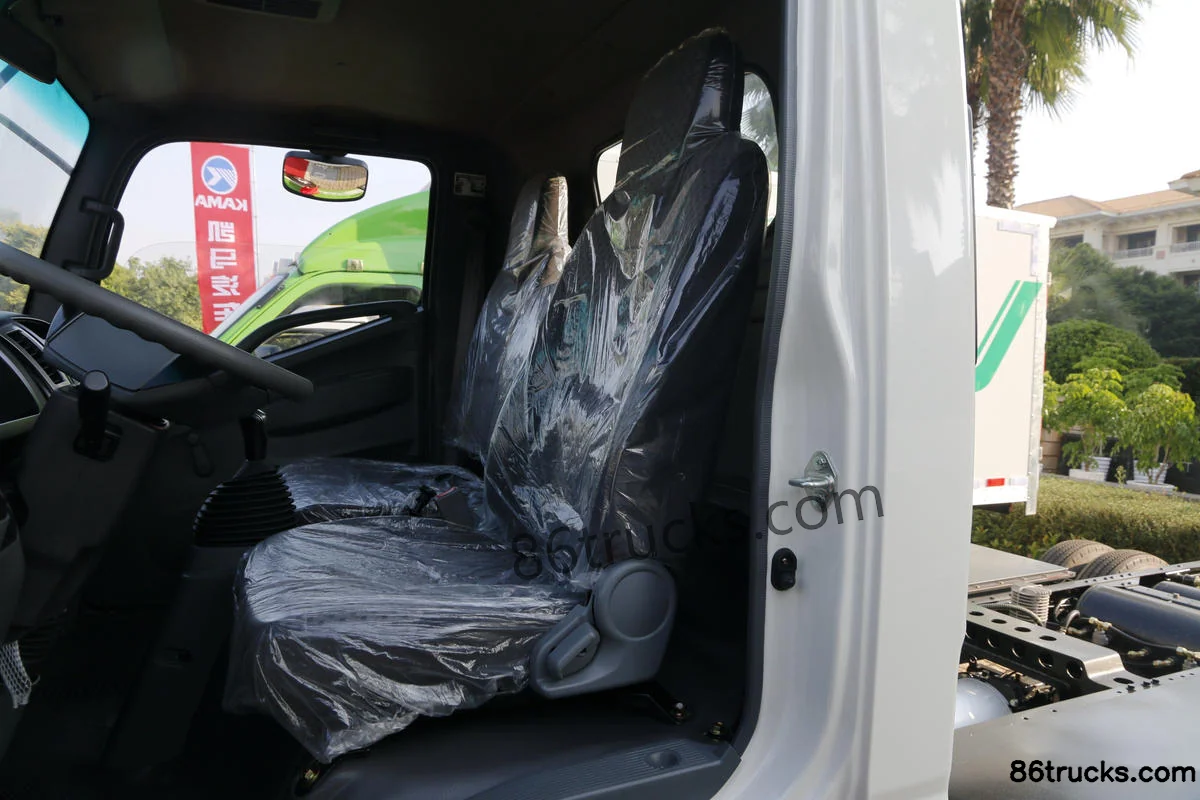

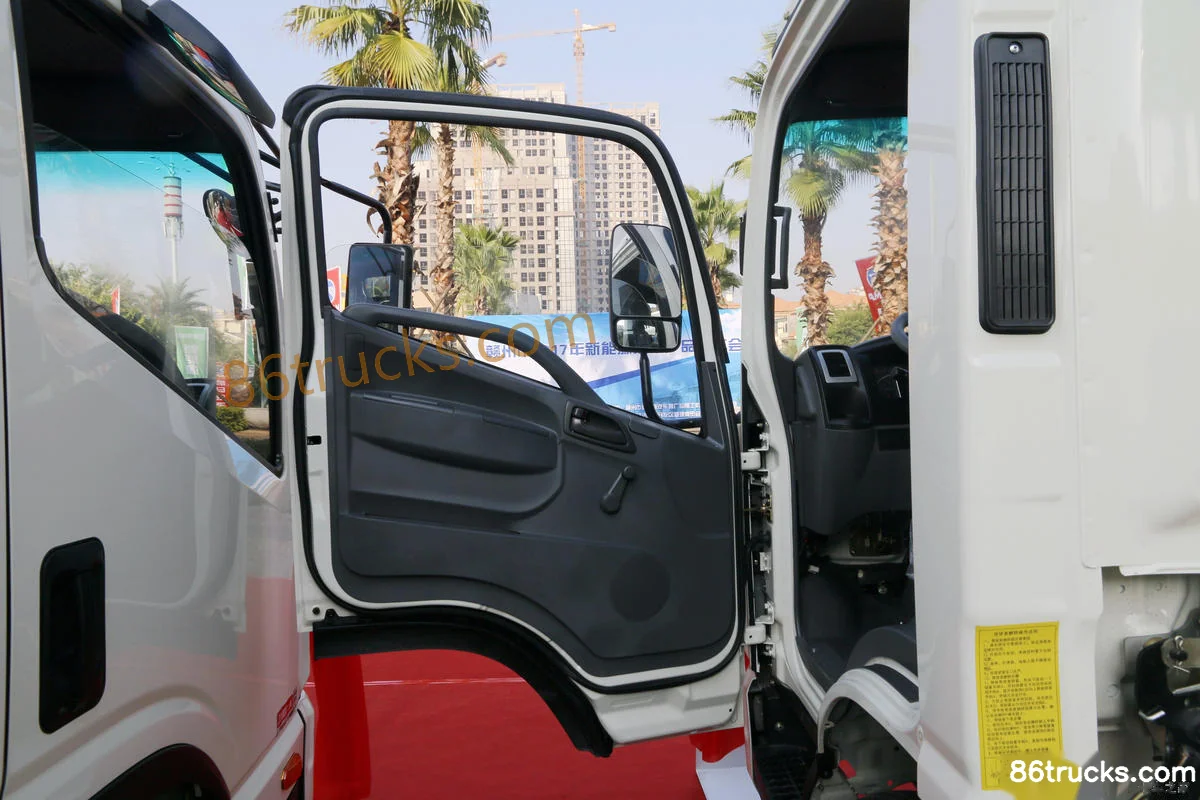

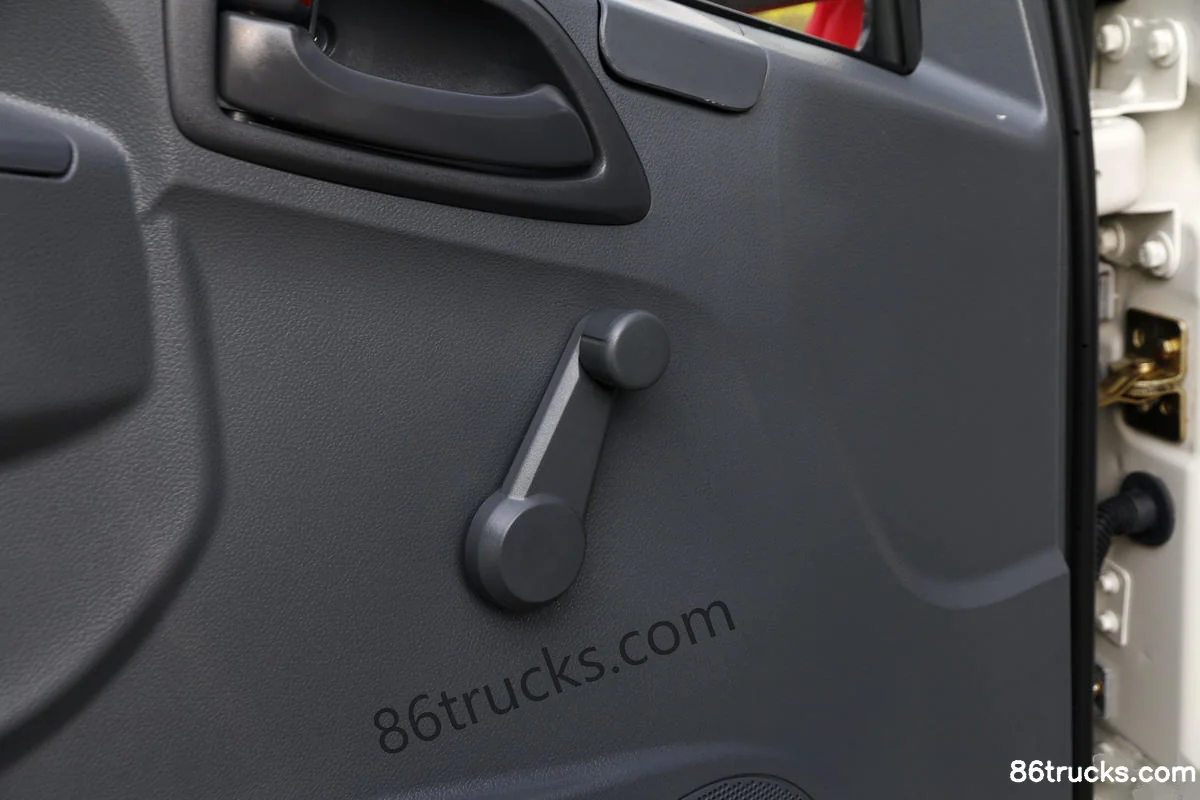

Interior3

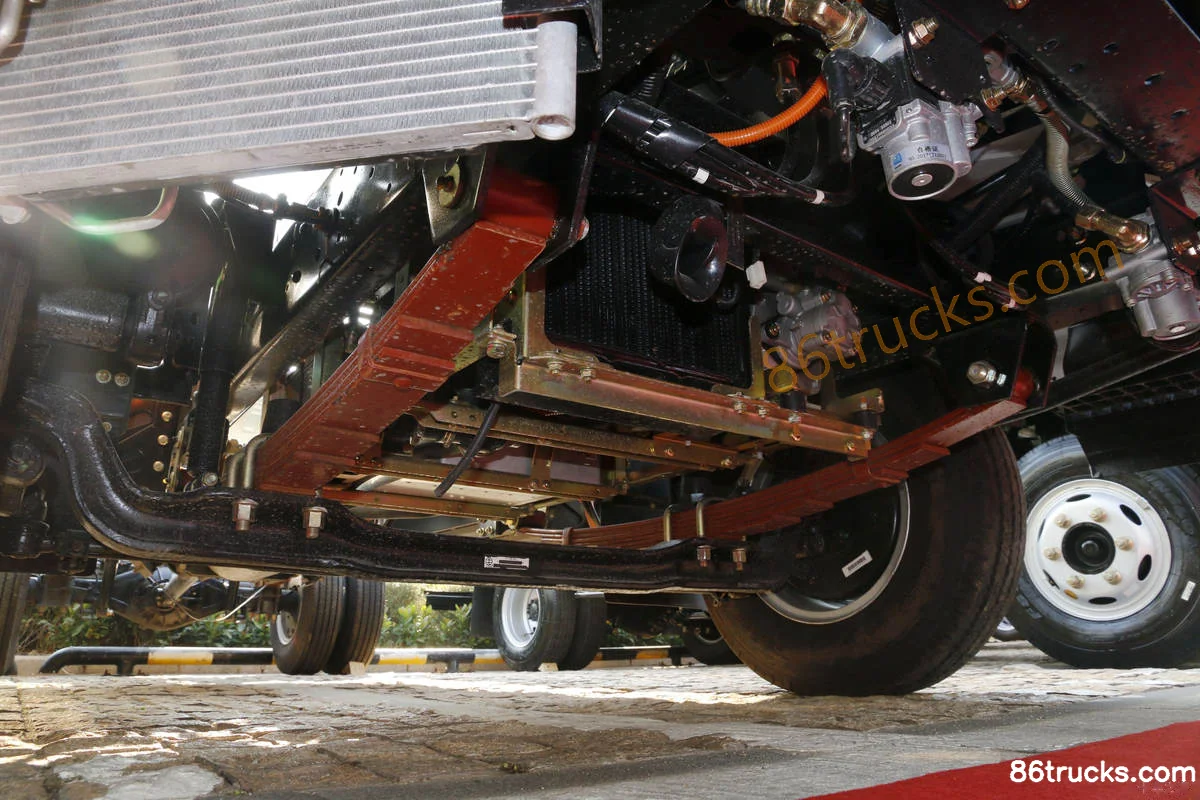

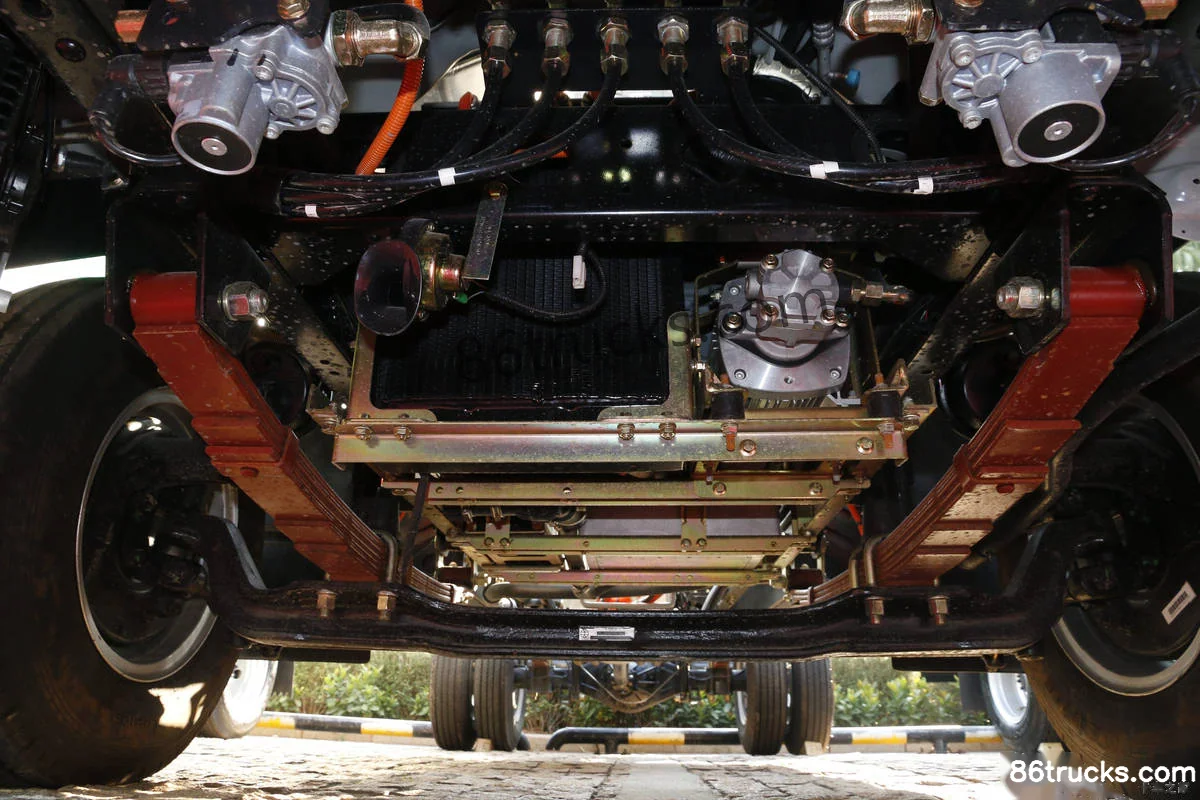

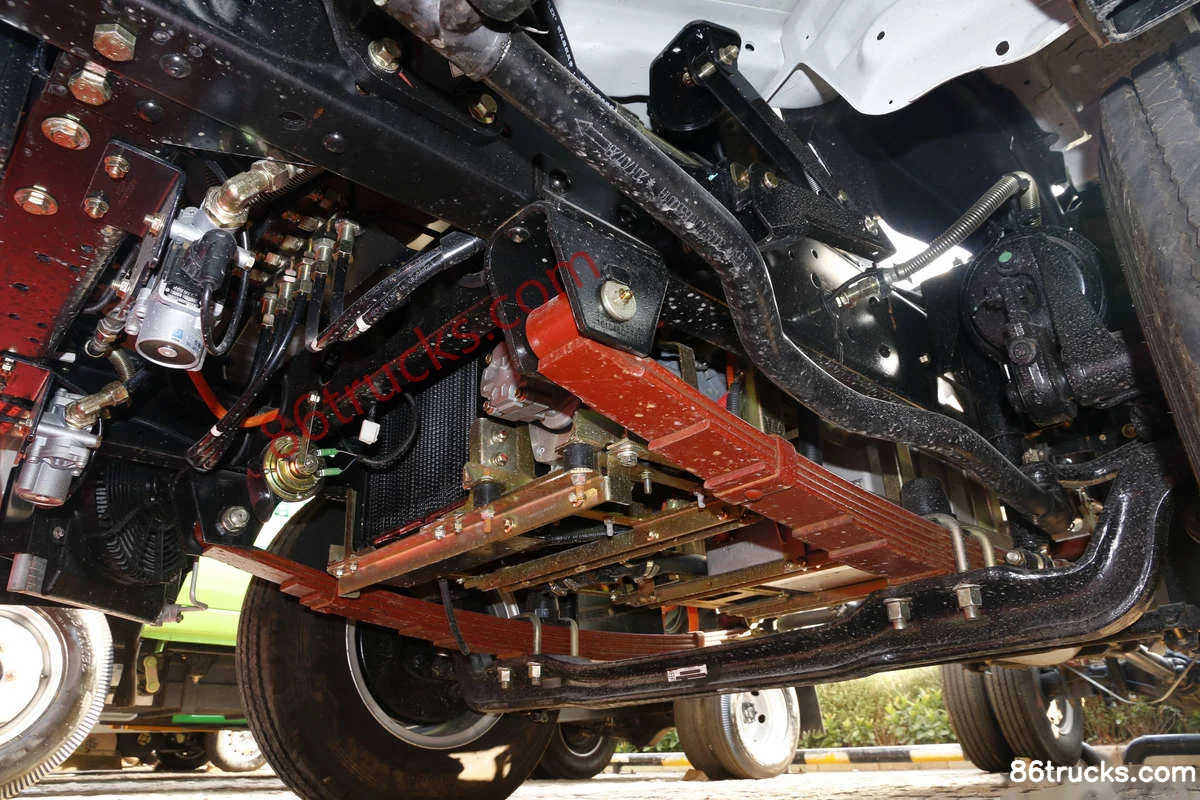

Chassis3

9 photos

FAQ

What are the key specs of Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels)?

Key specs of Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels) suited for?

Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels) differ from other variants in the same series?

Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels) belongs to Kama Kaijie M1 light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie 4.5T 4.24m Single Row Electric Van Light Truck Chassis 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
