FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed)

Export reference
From $20,139
MSRP ¥14.5M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3300mm
Tire Size:: 7.00-16 8PR,7.00R16 8PR,7.50-16 6PR,7.50R16 6PR,8.25-16 6PR,8.25R16 6PR
Cab dimensions:: 5.998×2.46×3.48m
Rated payload: 1.1ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.13×2.3×2.3m
Horsepower 160

Overview

The FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) is a Refrigerated Truck featuring 4.13×2.3×2.3m cargo body, 1.1t payload, Single Row cab and 3300mm wheelbase. On the powertrain side, it comes with 160 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.998×2.46×3.48m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3300mm
Vehicle origin: Qingdao, Shandong
Front track width: 1706mm
rear track: 1658mm
Curb Weight: 3.2ton
Rated payload: 1.1ton
Max. speed: 110km/h
Front/rear suspension: 1.15/1.548m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: WeichaiWP4.1Q160E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China V
Max output power: 115kW
Max hp: 160Horsepower
Max torque: 520N·m
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Cargo box parameters
Cargo box dimensions: 4.13×2.3×2.3m
Cargo box width: 2.3m
Cargo box height: 2.3m
Body Parameters
Vehicle certification code: CA5044XLCP40K2L1E5A84
Body Brand: FAW Jiefang
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: Hu V
Chassis Model: CA1044P40K2L1BE5A84
rear axle description: 1058 rear axle
Axle ratio: 4.875
Leaf spring count: 7/10+3,3/3+4,3/10+4,3/4+4,7/10+4
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLY6TS40
Cab parameters
Cab: Single Row
Tire
Tire Size: 7.00-16 8PR,7.00R16 8PR,7.50-16 6PR,7.50R16 6PR,8.25-16 6PR,8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake:
Brake Type: Air brake
Exhaust brake:
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
Rescue service:

Photos

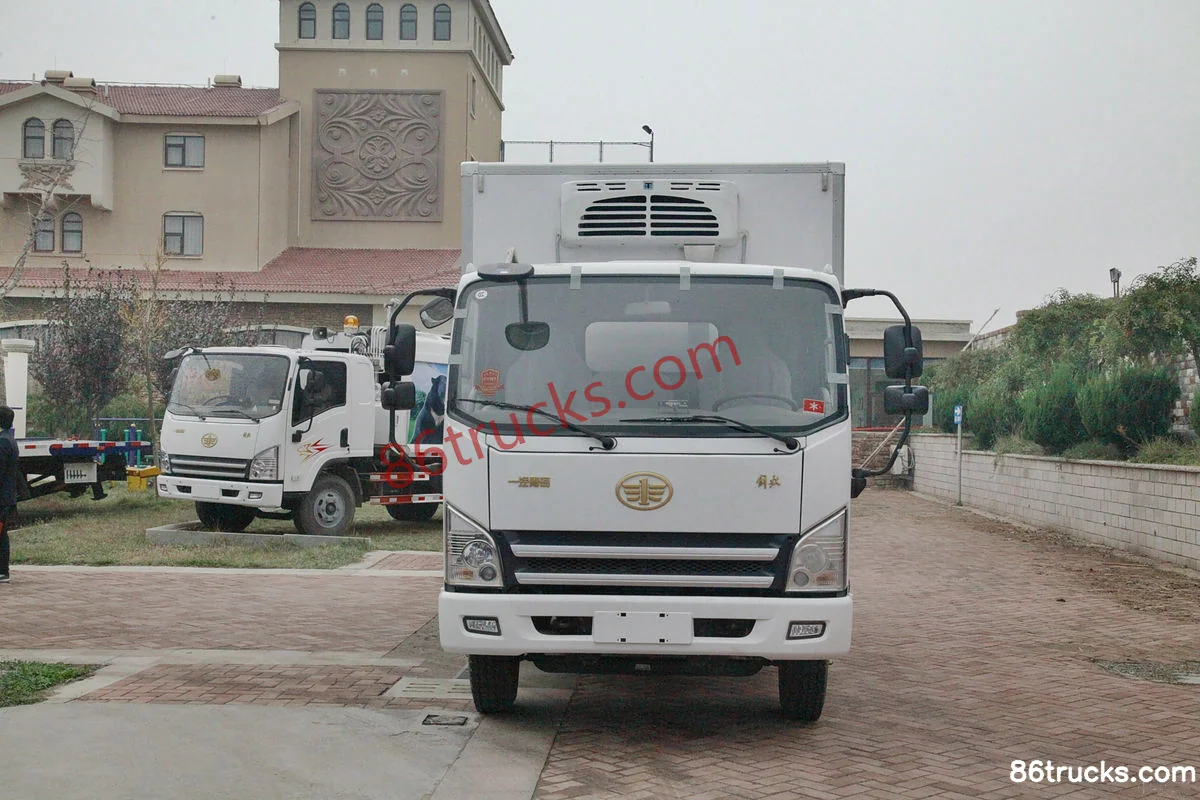

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed), and what does it include?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) export reference is about From $20,139; MSRP is ¥14.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed)?

Key specs of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) suited for?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) differ from other variants in the same series?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed) belongs to FAW Jiefang Hu V Light-duty Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 160hp 4X2(6 wheels) 4.13m refrigerated truck (WLY6-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
