Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Weichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 9.105ton
seating capacity: 3Personnel
Rated payload: 15.7ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck is a Medium-duty truck featuring 9.6m cargo length, Van body cargo body, 3Personnel volume and 15.7t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Weichai 6-cylinder engine, 220 hp, 6X2 (8 wheels) drive and China V emissions.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC5252XXYD659N
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1800+5500mm
Box length class: 9.6m
engine: WeichaiWP6.220E50
transmission: Fast Gear8JS85E-C
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1940/1940mm
rear track: 1860mm
Curb Weight: 9.105ton
Rated payload: 15.7ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Wuhu, Anhui
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 13°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Front/rear suspension: 1.45/2.25m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6.220E50
Engine info: Weichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.75L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled, electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle allowable load: 11500kg
Leaf spring count: 9/9/10+6
Tire
Tire Size: 12R22.5
Number of tires: 8pcs

Photos

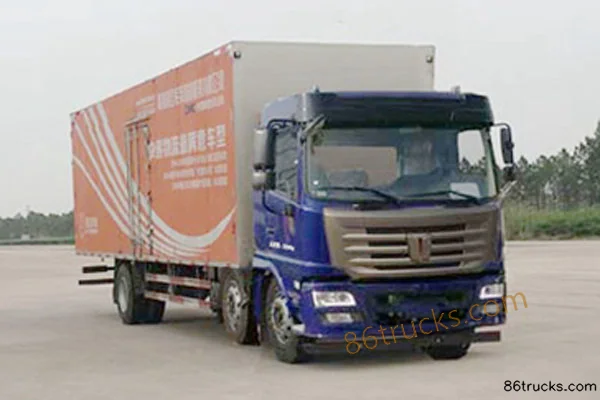

Exterior1

1 photos

FAQ

What emission standard does Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Key specs of Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Weichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck suited for?

Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck differ from other variants in the same series?

Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck belongs to Union Truck N-Series (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck N220 Medium Truck 220hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
