FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 8ton
Wheelbase:: 4700mm
Tire Size:: 10.00R20
Cab dimensions:: 8.555×2.46×3.795m
Rated payload: 9.87ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 5.8×2.3×2.3m
Horsepower 220

Overview

The FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck is a Refrigerated Truck featuring 5.8×2.3×2.3m cargo body, 9.87t payload, 8.555×2.46×3.795m cab and 4700mm wheelbase. On the powertrain side, it comes with 220 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.555×2.46×3.795m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Qingdao, Chengdu
Wheelbase: 4700mm
Front track width: 1914mm
rear track: 1860mm
Curb Weight: 8ton
Rated payload: 9.87ton
Max. speed: 110km/h
Front/rear suspension: 1.332/2.123m
Energy Type: Diesel
Engine parameters
Engine Model: WeichaiWP4.6NQ220E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Rated speed: 2300rpm
Engine Type: Common Rail+SCR
Cargo box parameters
Cargo box dimensions: 5.8×2.3×2.3m
Cargo box width: 2.3m
Cargo box height: 2.3m
Body Parameters
Vehicle certification code: CA5180XLCPK62L5E5A85
Body Brand: FAW Jiefang
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: Lin VH
Chassis Model: CA1180PK62L5BE5A85
Front axle description: 9T
Frame Dimensions: 865*237*75*7mm
rear axle description: 385DH axle
Axle ratio: 4.333
Leaf spring count: 7/7+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS75C
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

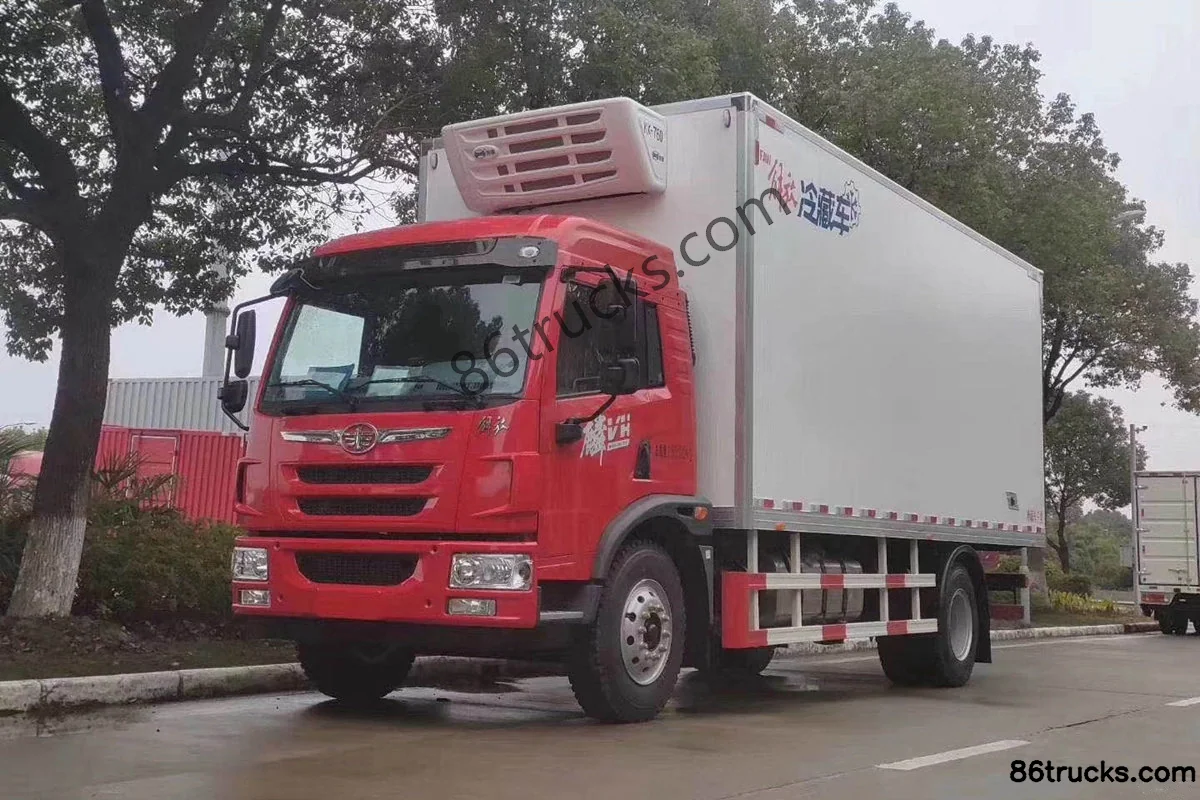

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck?

Key specs of FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck suited for?

FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck differ from other variants in the same series?

FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck belongs to FAW Jiefang Lin VH medium-duty truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Lin VH 220hp 4X2(6 wheels) 5.8m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
