Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 1760+4150mm
Tire Size:: 10.00R20
Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck exterior
View more photos (12)
Rated payload: 15.305ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Side-dump tipper.

Overview

The Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck is a Heavy truck featuring 15.305t payload, 24.5t GVW, Side-dump tipper. cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): EQ3240GLV2
Drive type: 6X2
Wheelbase: 1760+4150mm
engine: YuchaiYC4EG220-50
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.33
Cab length: 9.53m
Cab width: 2.45m
Cab height: 2.65m
Front track width: 1810/1810mm
rear track: 1650mm
Curb Weight: 9ton
Rated payload: 15.305ton
GVWR: 24.5ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 12°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Side-dump tipper.
Cargo box type: Side-dump tipper.
Cargo box length: 7.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab width: 2080mm
Driver seat type: air suspension seat

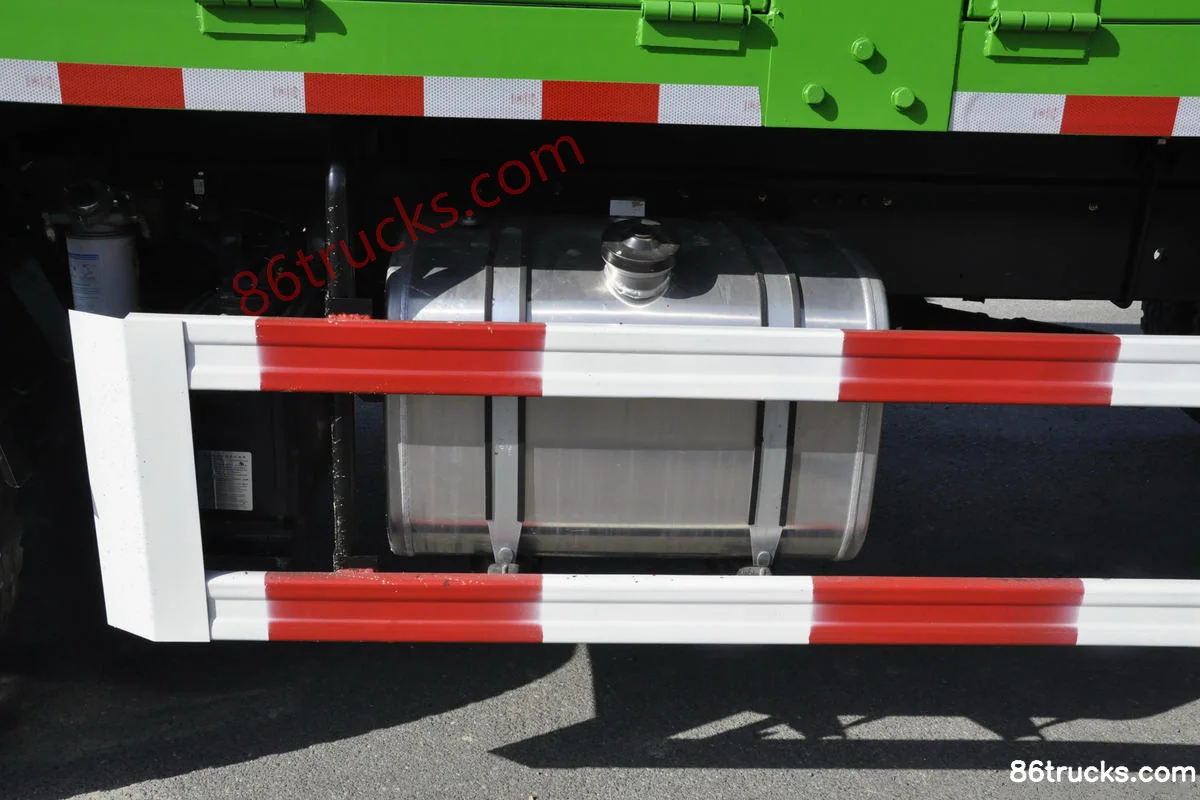

fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 220L
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 860/800*250*80*（8+5）mm
rear axle description: 13T
rear axle allowable load: 11500kg
Axle ratio: 6.33
Leaf spring count: 9/9/10+8
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:
interior configuration

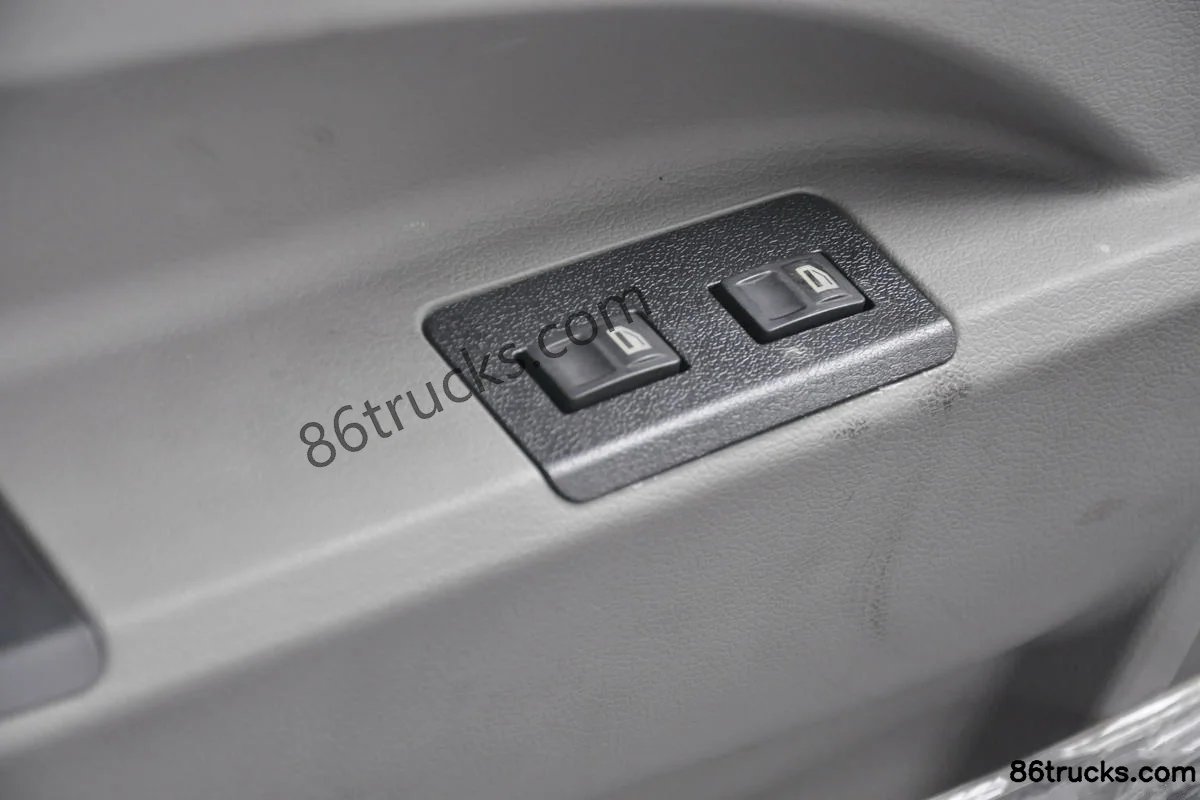

Power Windows:
Multimedia features
GPS/Beidou driving recorder:

Photos

Exterior3

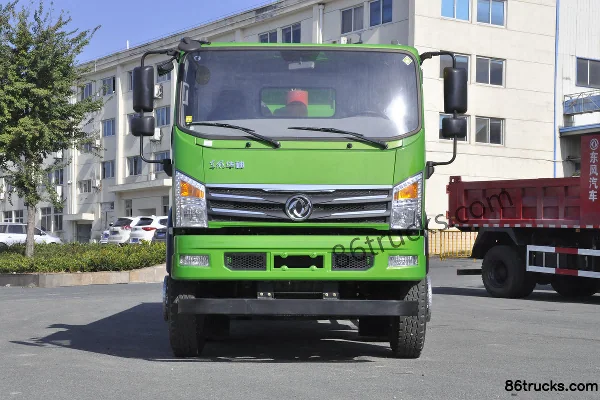

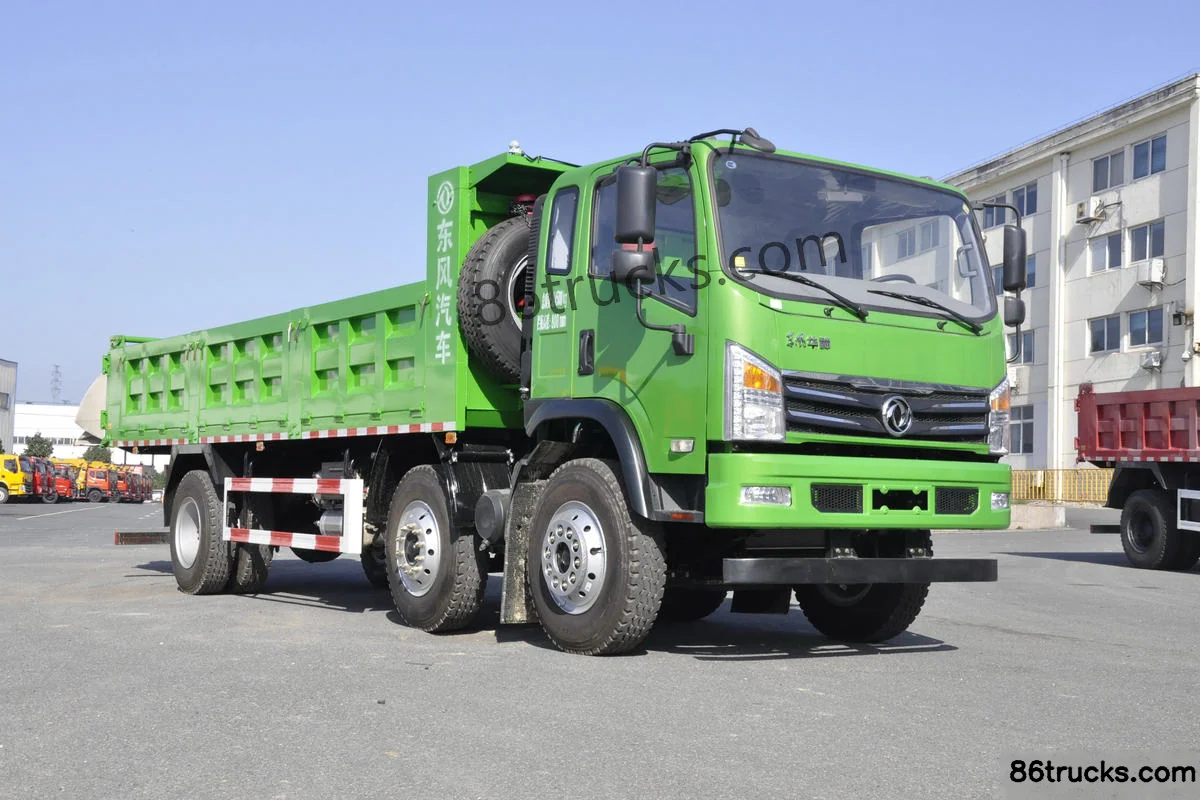

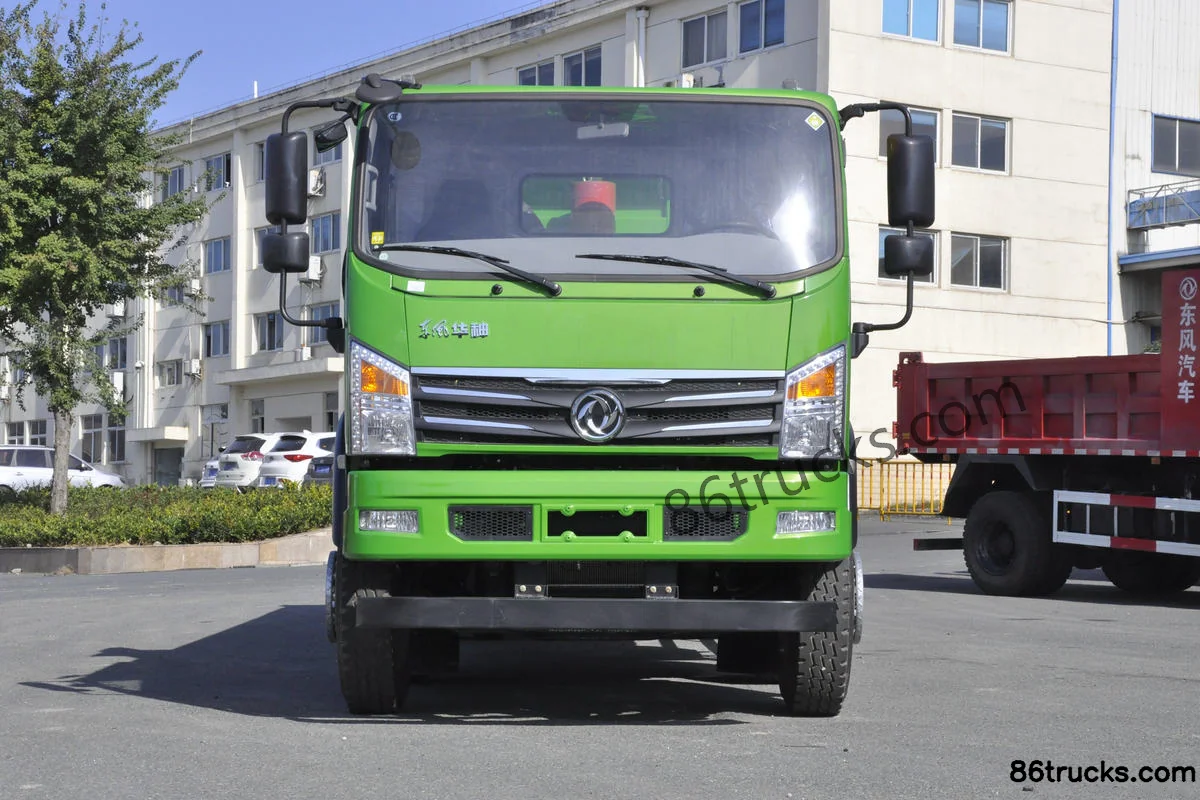

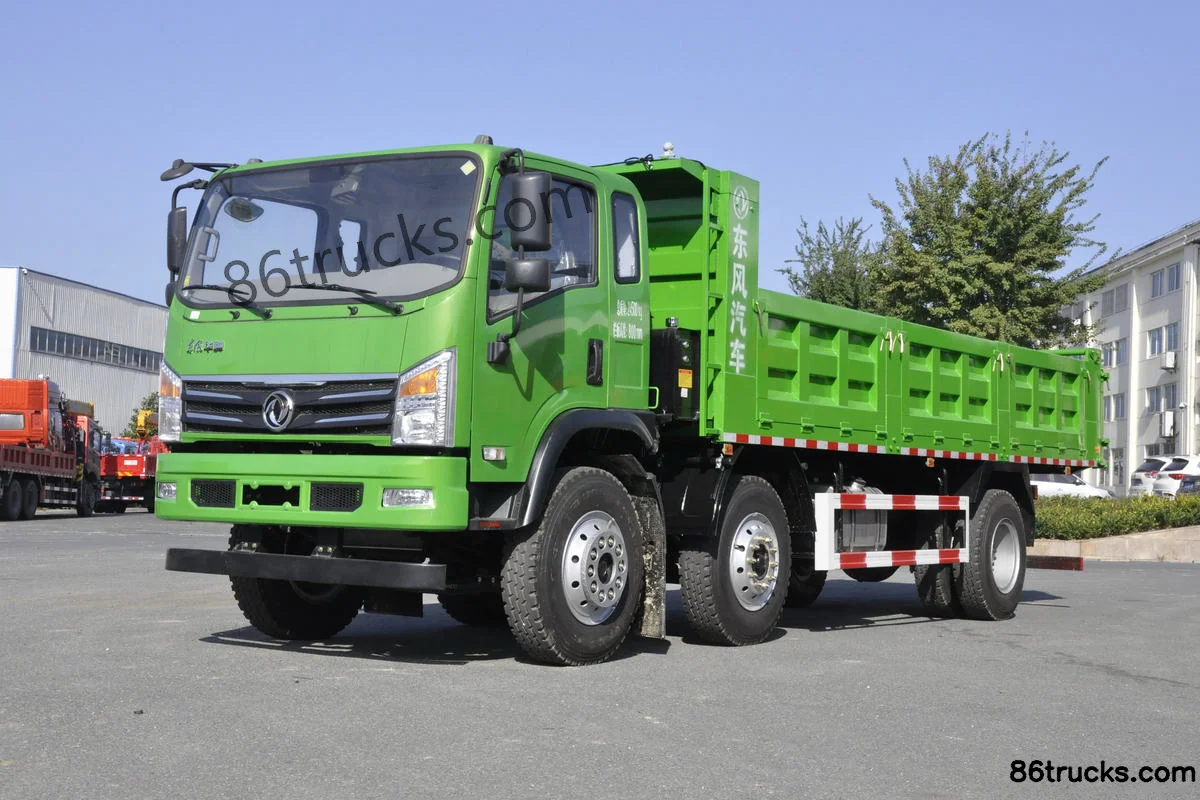

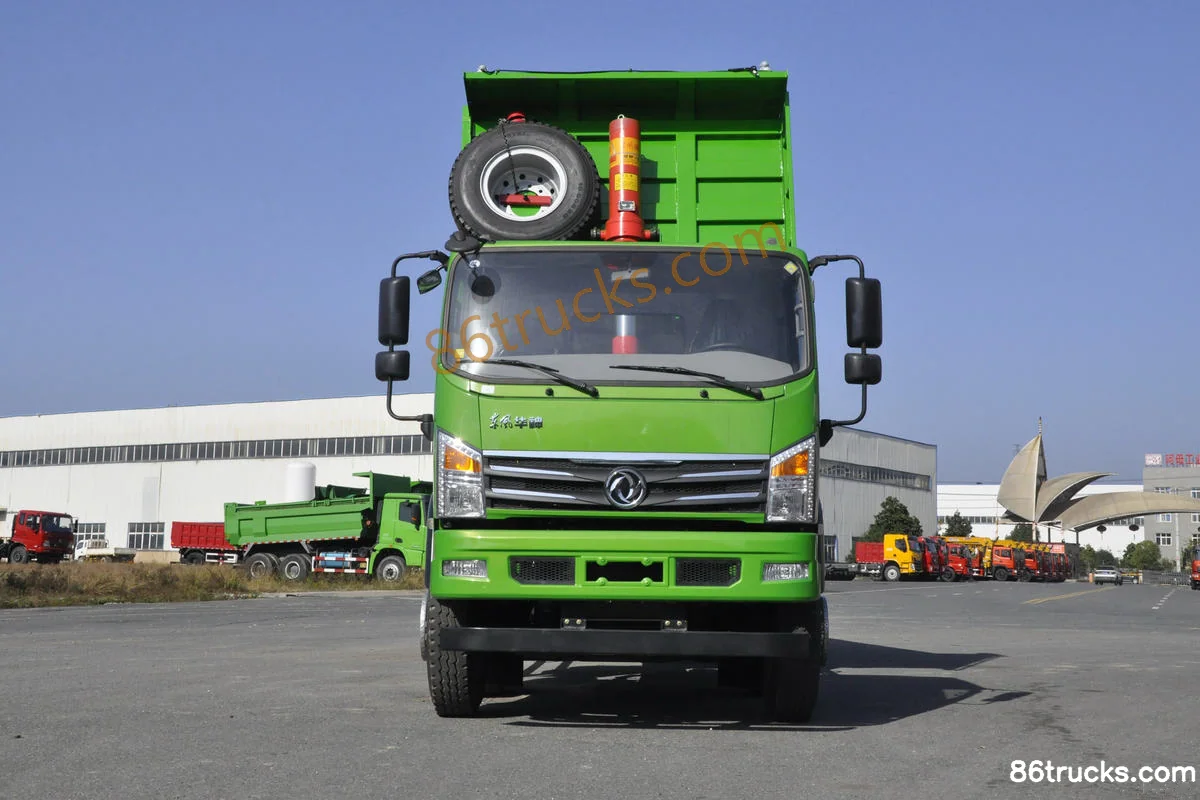

Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Exterior (1) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Exterior (2) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Exterior (3) | 86Trucks

Cab3

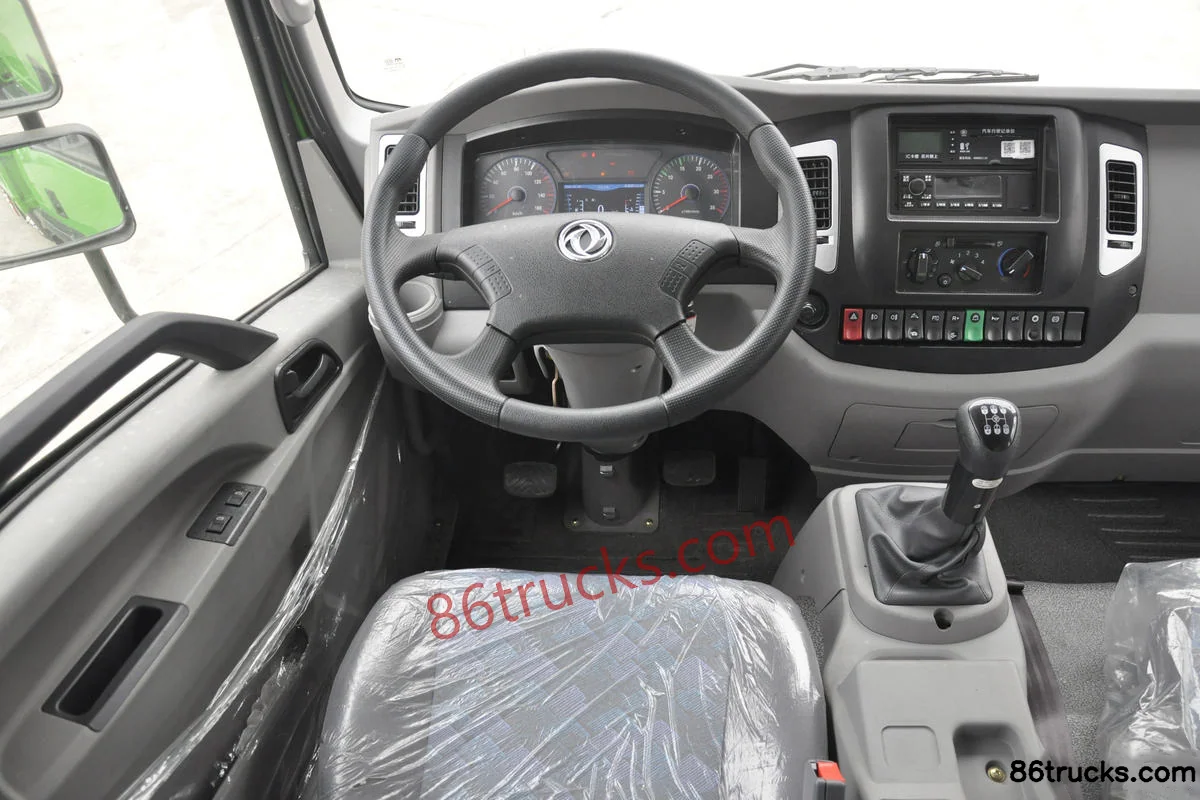

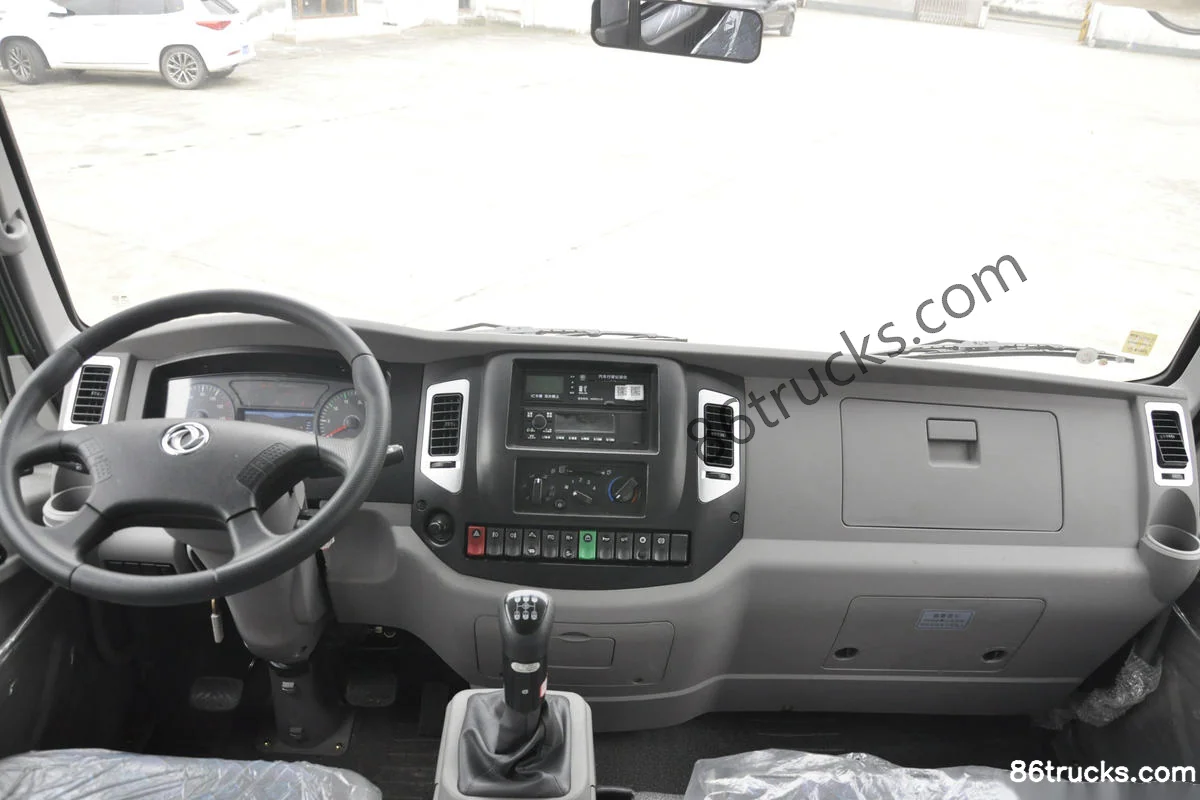

Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Cab (1) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Cab (2) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Cab (3) | 86Trucks

Chassis3

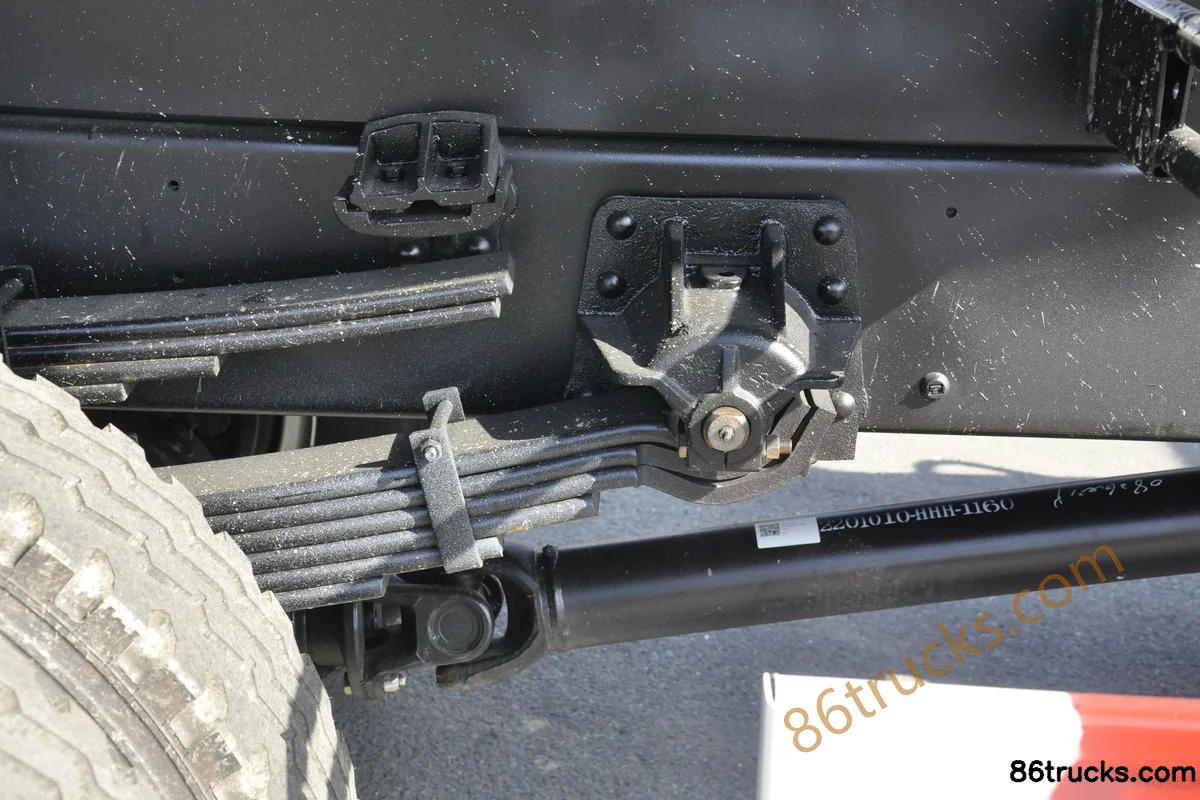

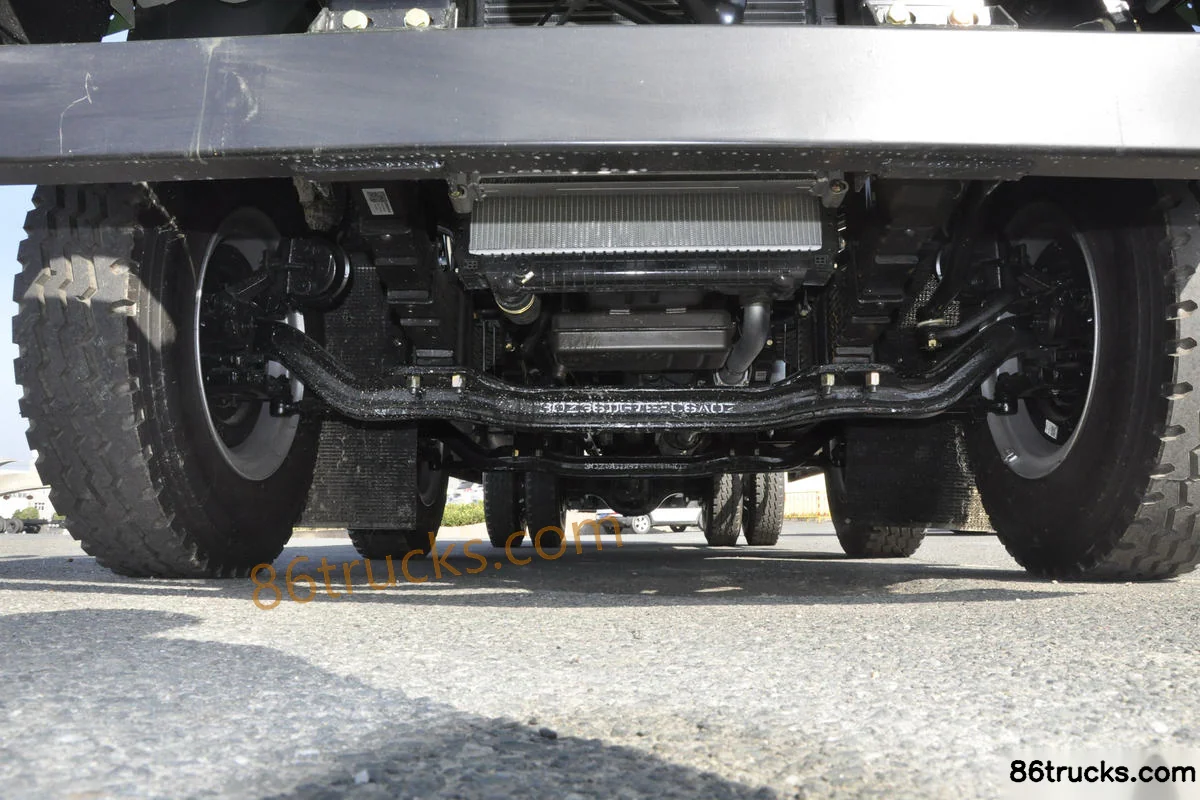

Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Chassis (1) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Chassis (2) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Chassis (3) | 86Trucks

Body3

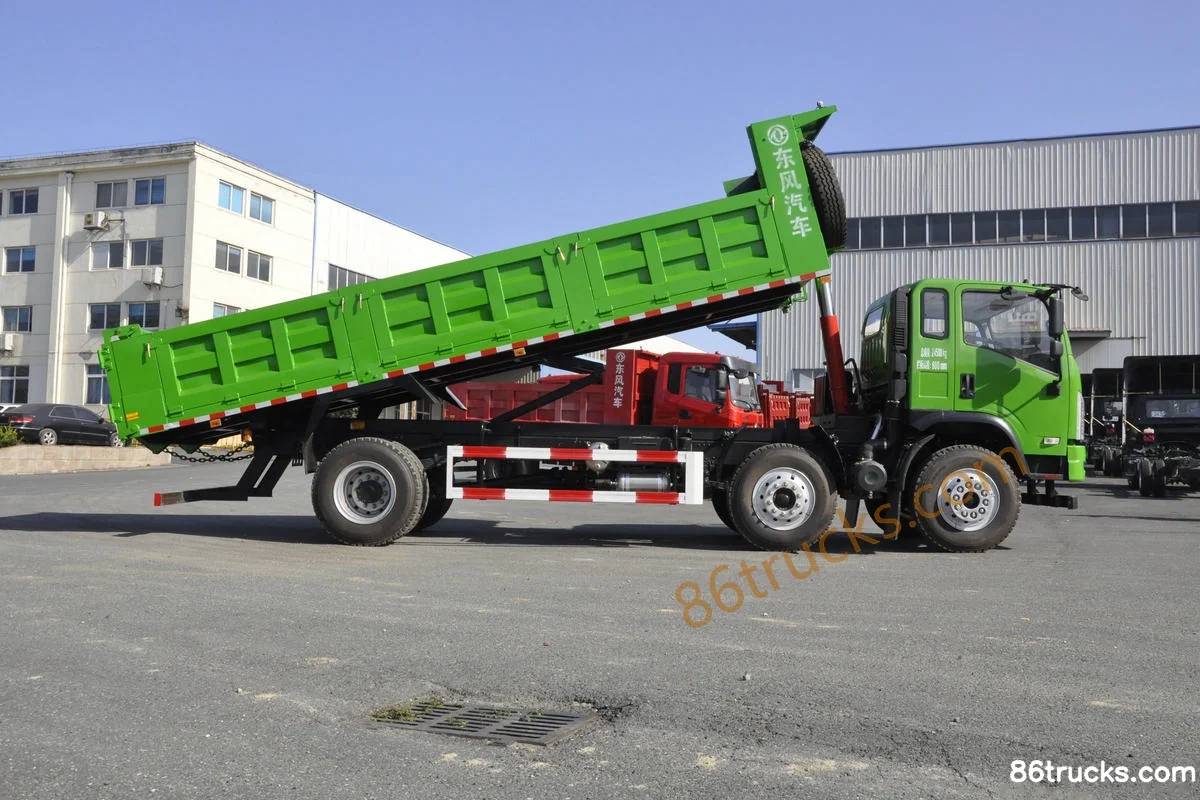

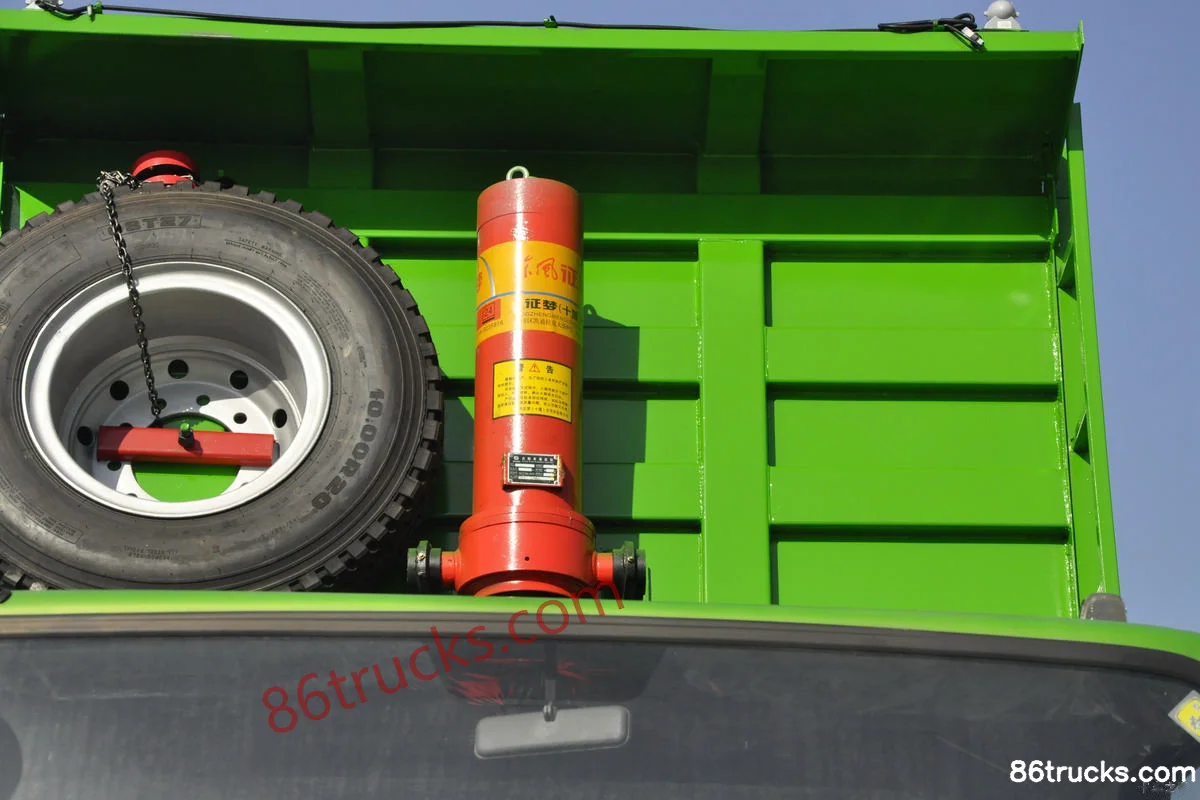

Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Body (1) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Body (2) | 86Trucks Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck?

Key specs of Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck suited for?

Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck differ from other variants in the same series?

Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck belongs to DongfengD912 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng D912 220hp 6X2(8 wheels) 7.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
