SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck

Export reference
From $21,736
MSRP ¥15.65M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D30
Transmission: Fast Gear
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck is a Light Truck featuring 4.15m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5040CCYNP5331
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: Yunnei PowerD30TCIE4
transmission: Fast GearC6J45T
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.5m
Cab height: 3.05m
Front track width: 1680mm
rear track: 1555mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Baoji, Shaanxi
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
market segment: Urban Distribution
Front/rear suspension: 1.2/1.495m
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE4
Engine info: Yunnei Dewei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 450N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: Fast GearC6J45T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.43m
*Cargo box interior width: 2.4300000667572
Cab parameters
Cab: Xuande X9
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.5T
Front axle allowable load: 1500kg
Frame Dimensions: 800x192/6 single-layermm
rear axle description: 4.2T
rear axle allowable load: 2995kg
Axle ratio: 4.33
Leaf spring count: 2/2+1
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

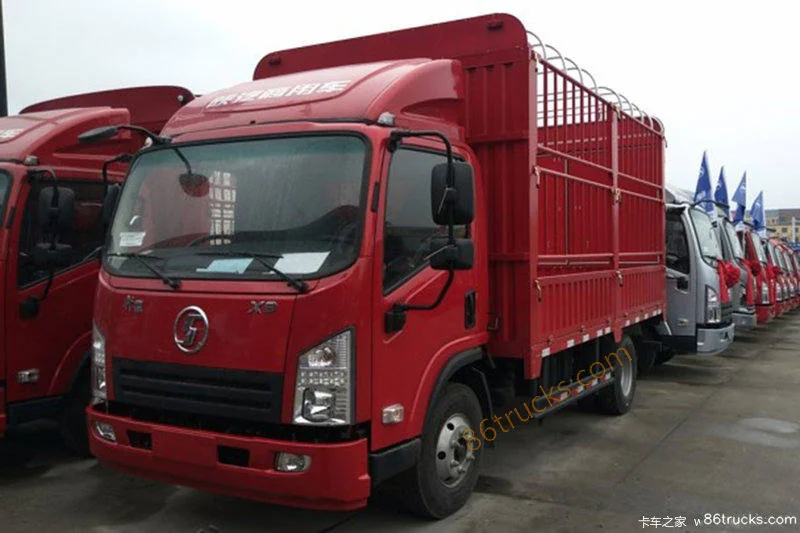

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck export reference is about From $21,736; MSRP is ¥15.65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck?

Key specs of SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D30; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck suited for?

SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck belongs to SHACMAN Xuande X9 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X9 Composite Edition 156hp 4X2(6 wheels) 4.15m single-row stake light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
