Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis

Export reference
From $20,597
MSRP ¥14.83M CNY
Emission: China V
Fuel: Diesel
Engine: SDEC 4-cylinder
Transmission: WLY
Curb Weight:: 4.2ton
Wheelbase:: 5200mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 180

Overview

The Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis is a Medium-duty truck featuring Chassis cargo body, 3Personnel volume and 5200mm wheelbase. On the powertrain side, it comes with a SDEC 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH1132ZQDDWZ
Type: Chassis
Drive type: 4X2
Wheelbase: 5200mm
engine: SDECSC4H180Q5
transmission: WLYWLY6G120
Cab length: 8.93m
Cab width: 2.254m
Cab height: 2.496m
Front track width: 1750mm
rear track: 1740mm
Curb Weight: 4.2ton
GVWR: 13.49ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 17°
Remarks: Standard MP3, wide-angle rearview mirror, dual battery 12V; optional front disc brake, front stabilizer bar, radio+MP3+CD
Front/rear suspension: 1.21/2.52m
Energy Type: Diesel
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC4H180Q5
Engine info: SDEC 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.295L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 660N·m
Max torque speed: 1900rpm
Rated speed: 2300rpm
Engine Type: Inline, electronic control system
Transmission Parameters
Transmission Model: WLYWLY6G120
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab width: 2050mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 4T
Front axle allowable load: 4770kg
Frame Dimensions: 230×75×(6+5)mm
rear axle description: 7T
rear axle allowable load: 8720kg
Leaf spring count: 9/9+8
Suspension (front/rear): Leaf spring

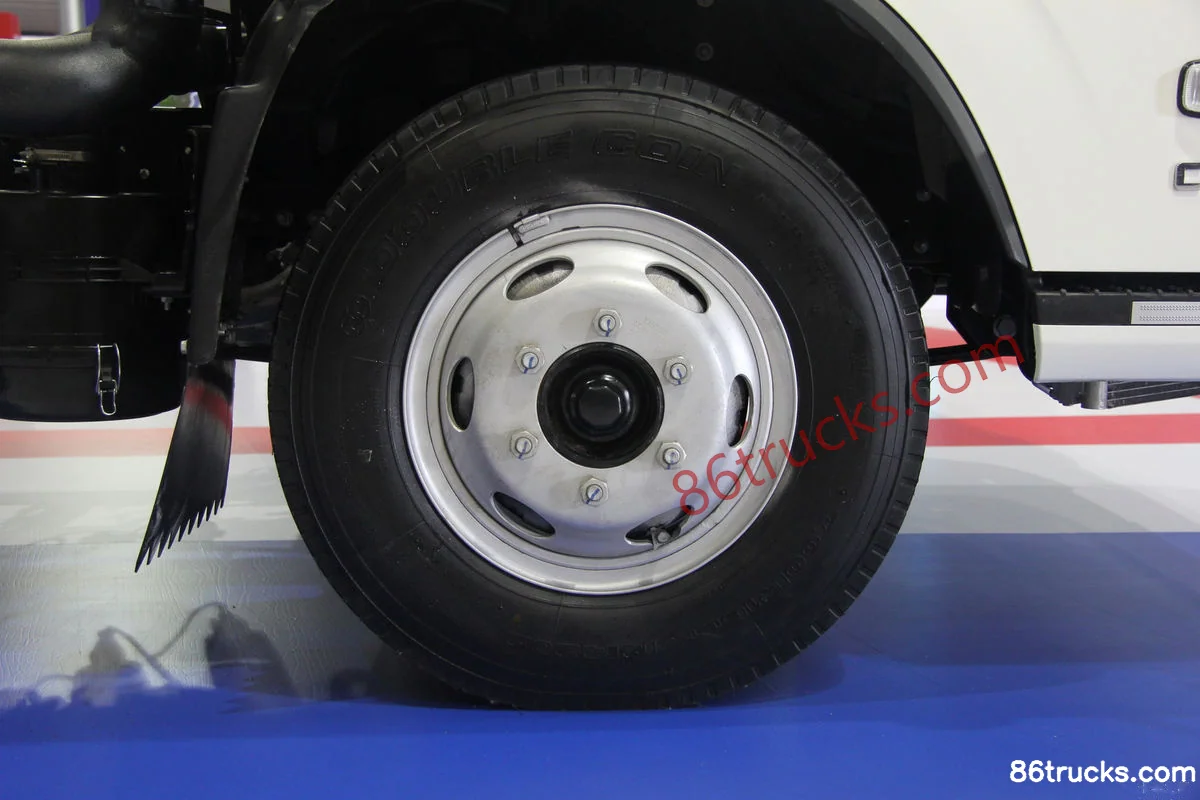

Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Independent Heater:
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

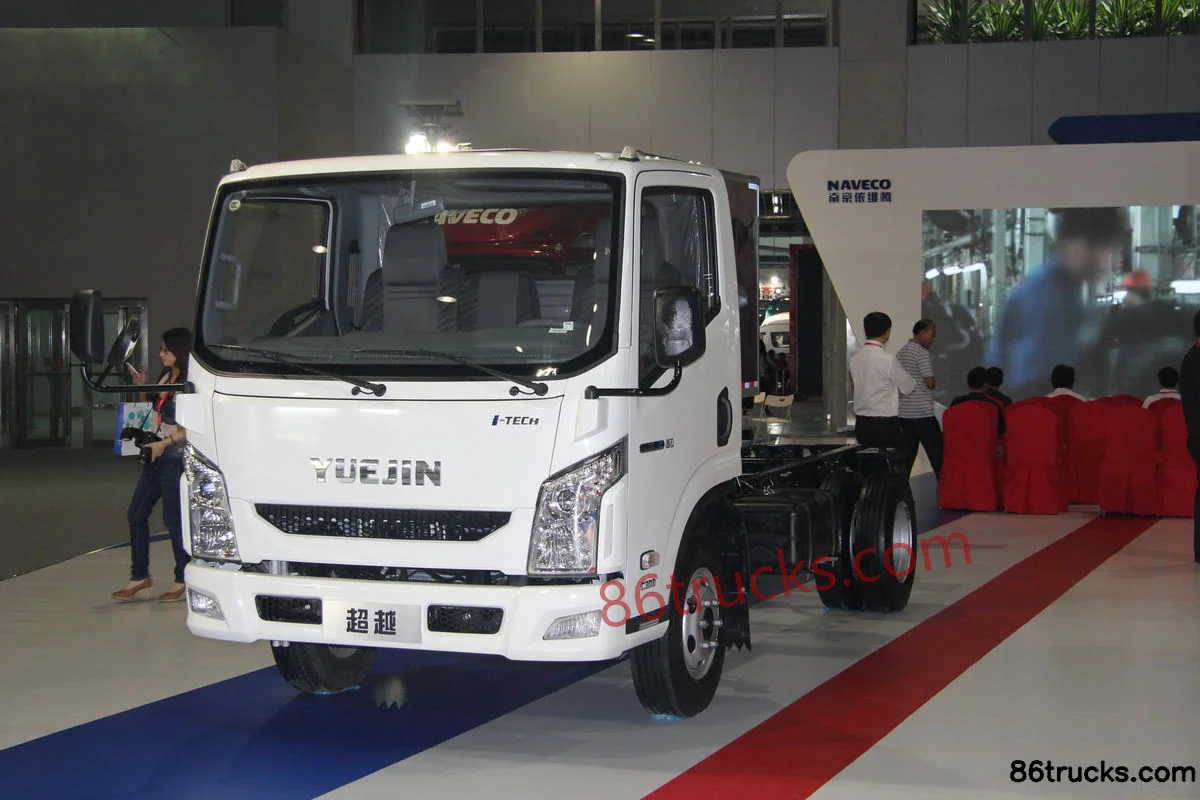

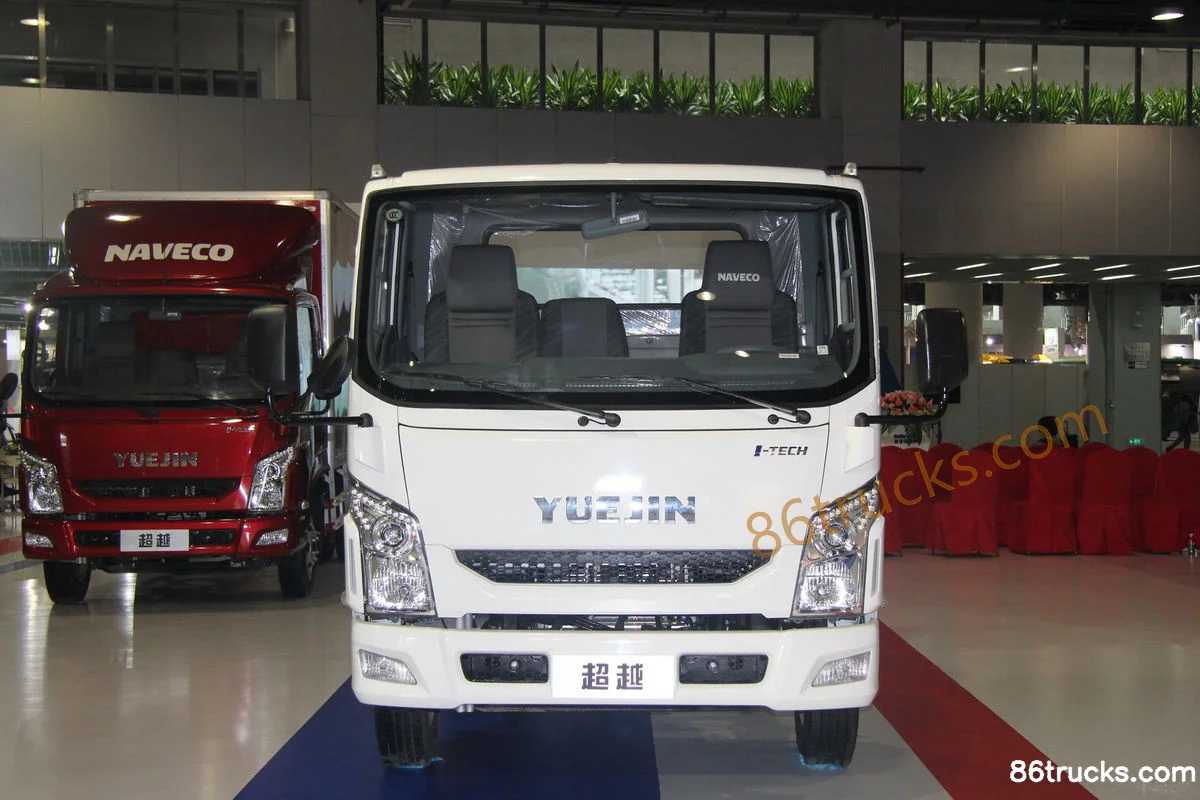

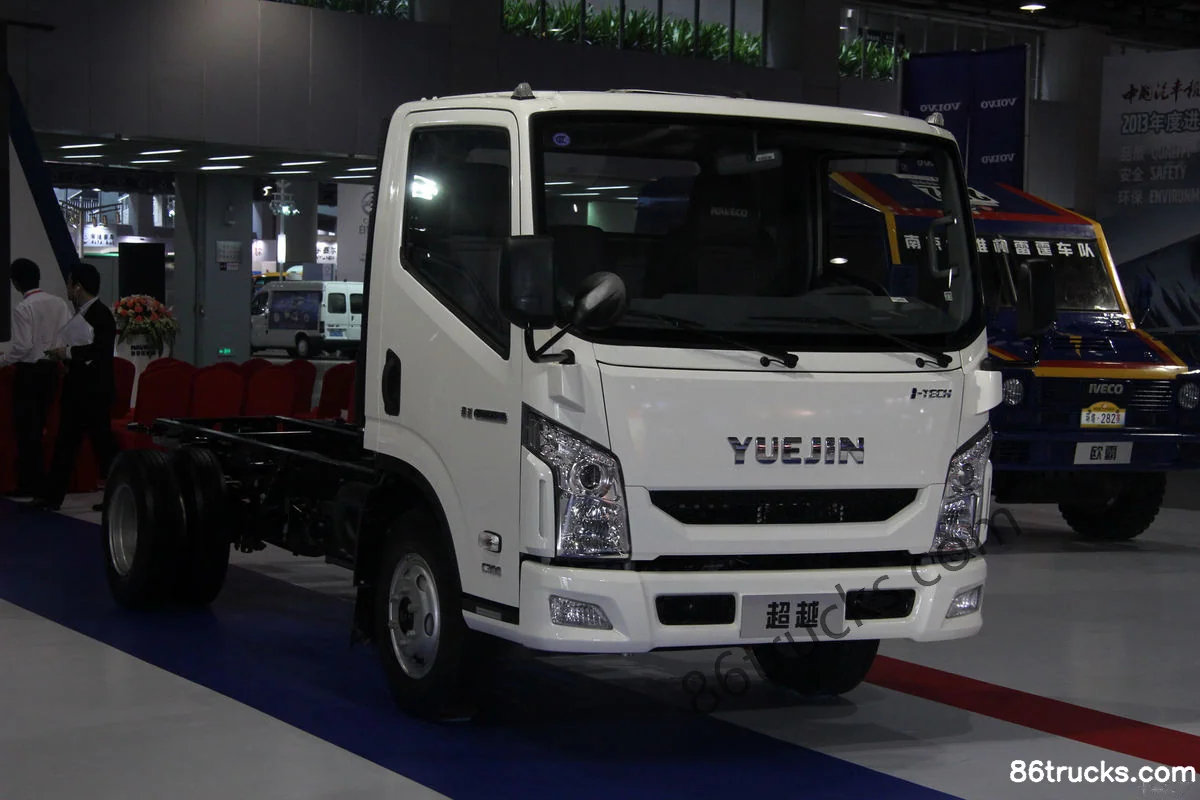

Exterior3

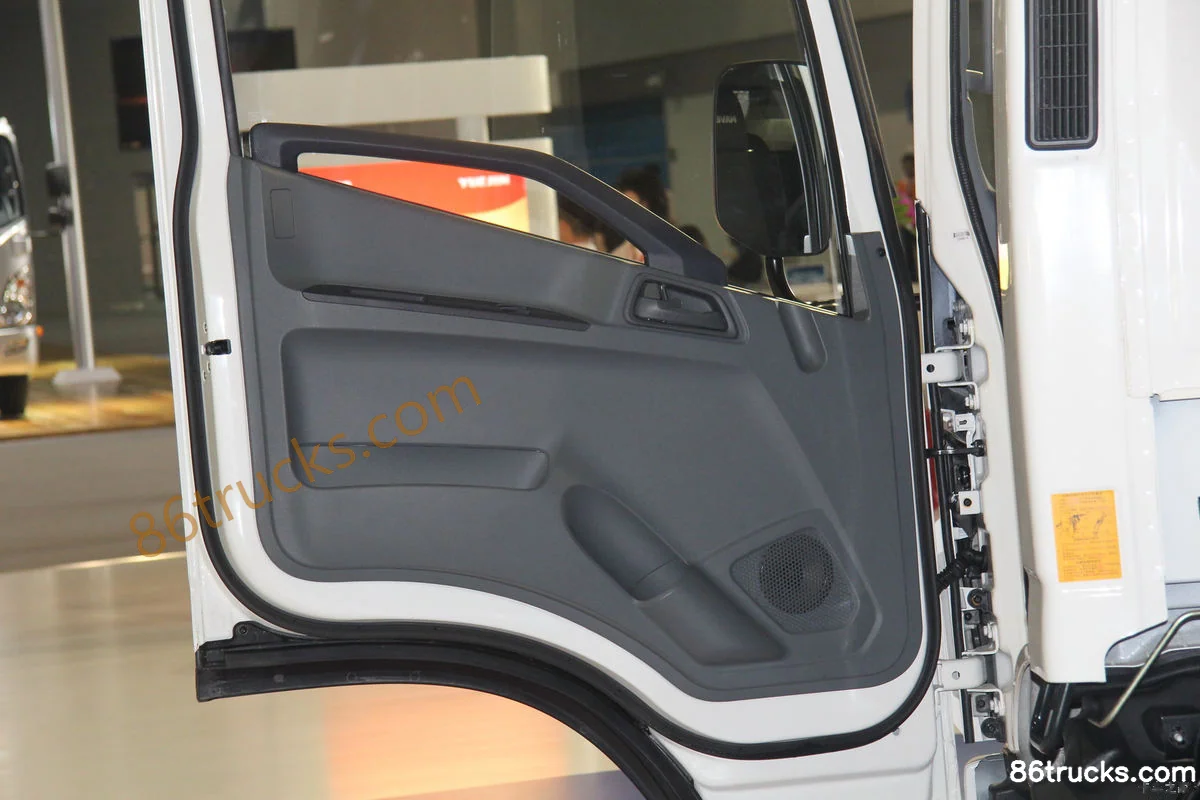

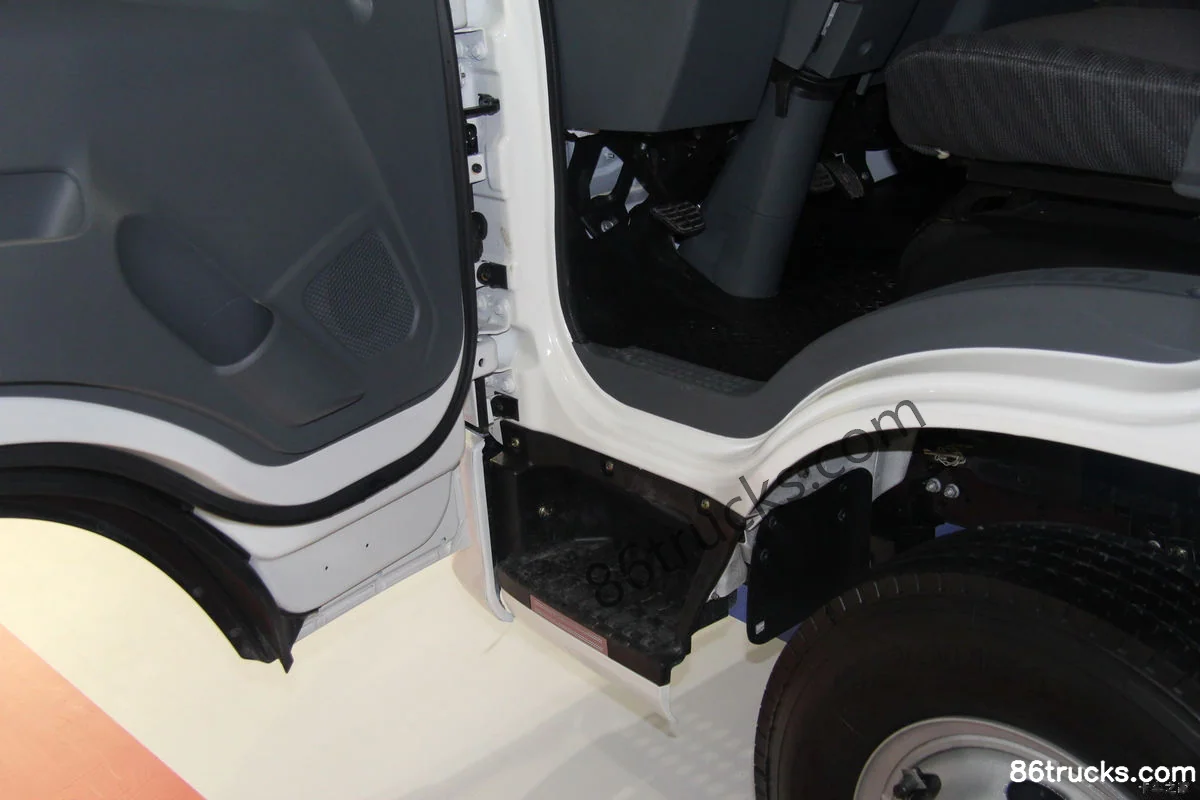

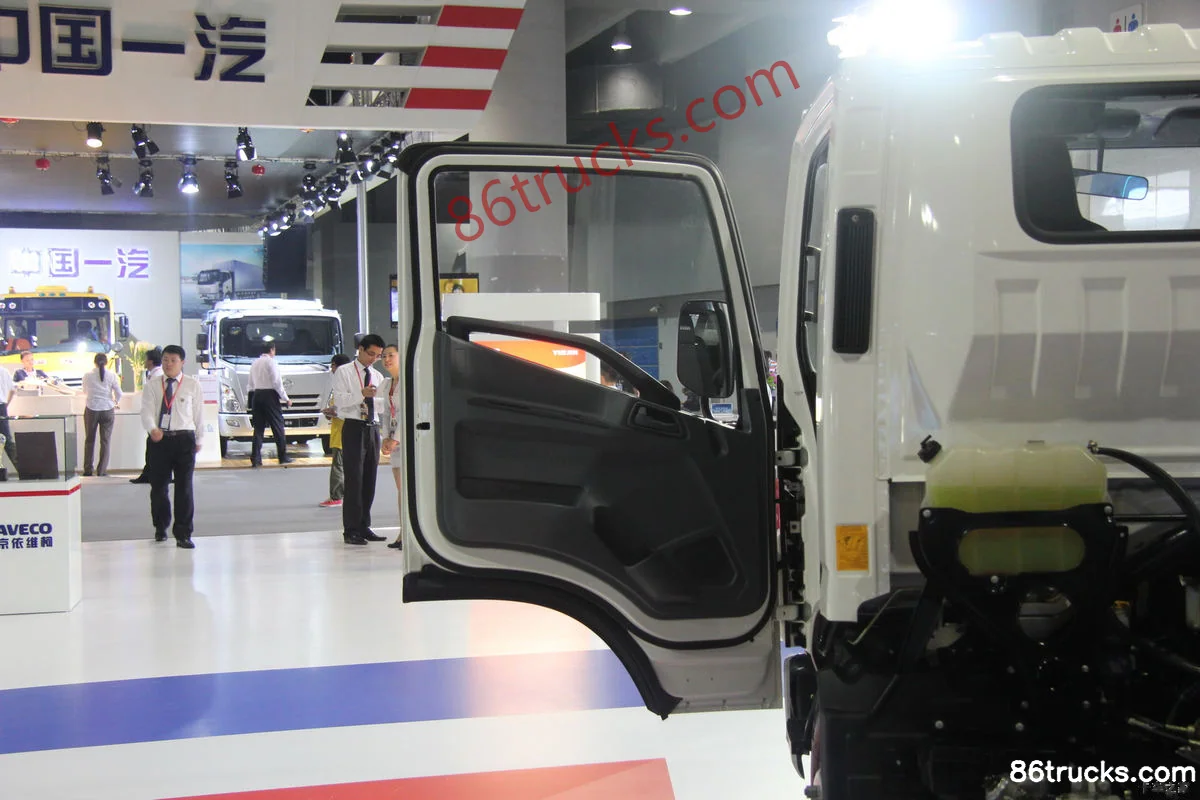

Cab3

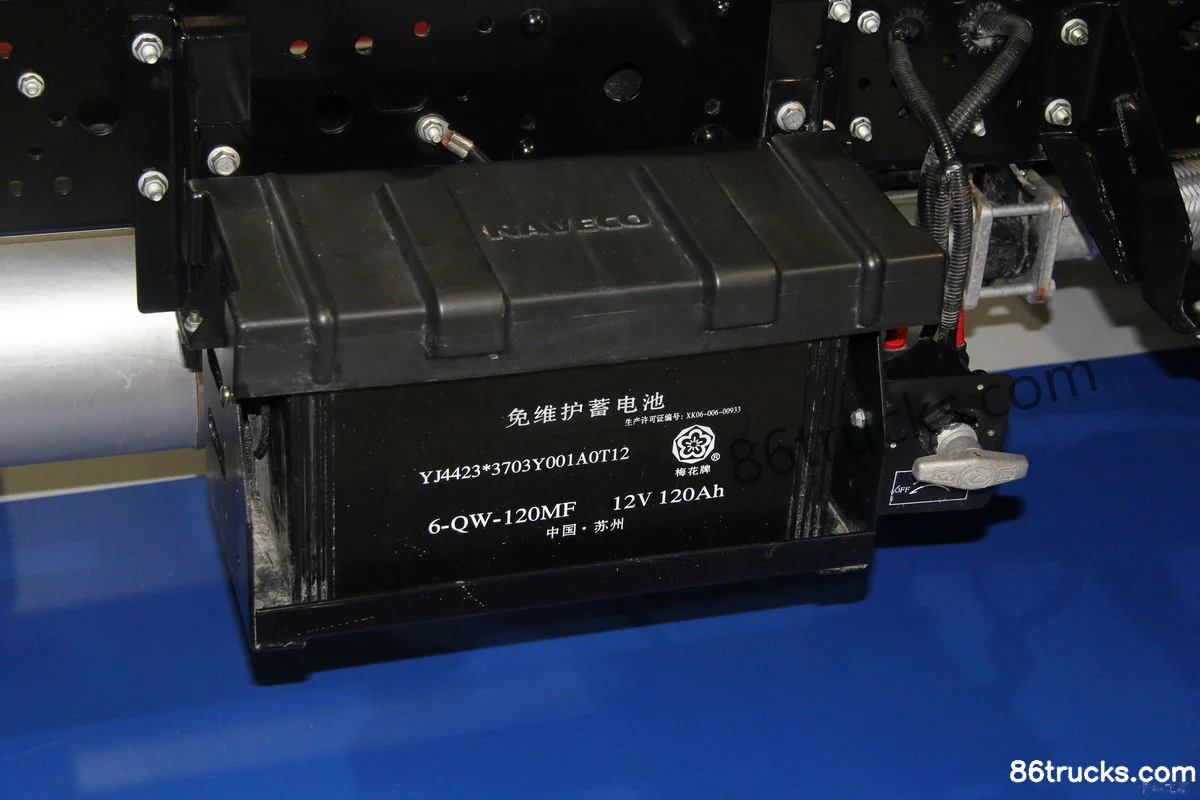

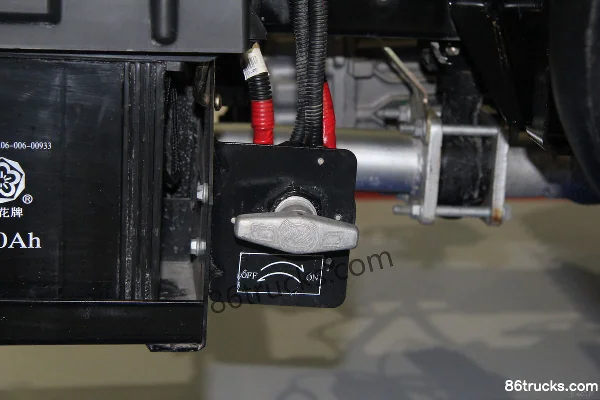

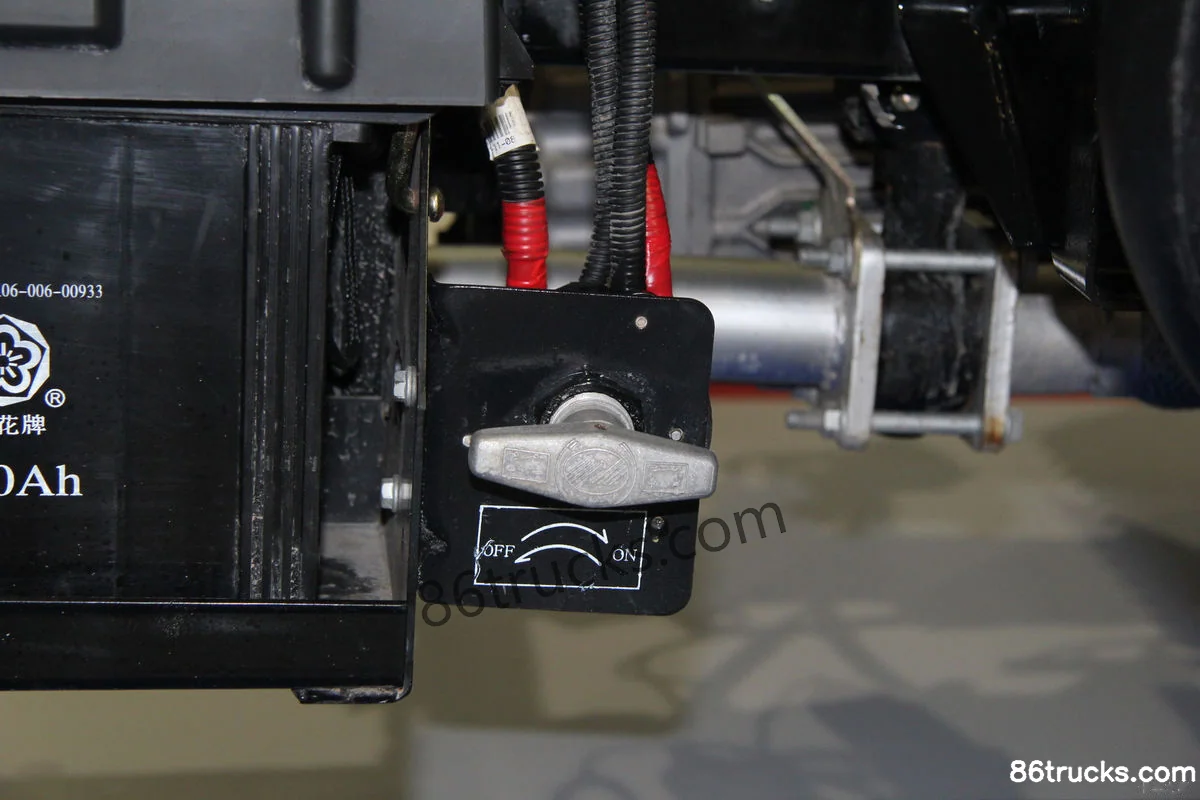

Chassis3

9 photos

FAQ

What is the export price of Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis, and what does it include?

Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis export reference is about From $20,597; MSRP is ¥14.83M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis?

Key specs of Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: SDEC 4-cylinder; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis suited for?

Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis differ from other variants in the same series?

Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis belongs to Yuejin Chaoyue C Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C500-52 180hp 4X2(6 wheels) Day Cab Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
