FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear)

Export reference
From $36,736
MSRP ¥26.45M CNY
Fuel: Diesel
Gross Trailer Weight:: 38.355ton
Wheelbase:: 1900+2450mm
Tire Size:: 12R22.5-16PR
Front axle allowable load:: 5250/5250kg
Displacement:: 8.6L
Drive 6X2 (8 wheels)
Horsepower 350
Emission China IV
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) is a Heavy truck featuring 6X2 (8 wheels) drive, 350 hp, 22t GVW and China IV emissions. On the powertrain side, it comes with a XichaiCA6DL2-35E4U2 engine, Fast Gear transmission and Diesel fuel.

China IV 350 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4227P1K15T3E4A80
Drive type: 6X2
Wheelbase: 1900+2450mm
engine: XichaiCA6DL2-35E4U2
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.111
Cab length: 6.675m
Cab width: 2.49m
Cab height: 2.93m
Front track width: 1942/1942mm
Gross Trailer Weight: 38.355ton
rear track: 1847mm
Curb Weight: 7.45ton
GVWR: 22ton
Max. speed: 102km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E4U2
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6L
Emission standard: China IV
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1500rpm
Rated speed: 2100rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 450L
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Chassis Specs
Suspension type: Leaf spring
Front axle description: A5S
Front axle allowable load: 5250/5250kg
Frame Dimensions: 280*90*(8+5)mm
rear axle description: 485 stamped-welded axle (with diff lock)
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/4+3
Suspension (front/rear): Leaf spring
Tire
Tire Size: 12R22.5-16PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:

Photos

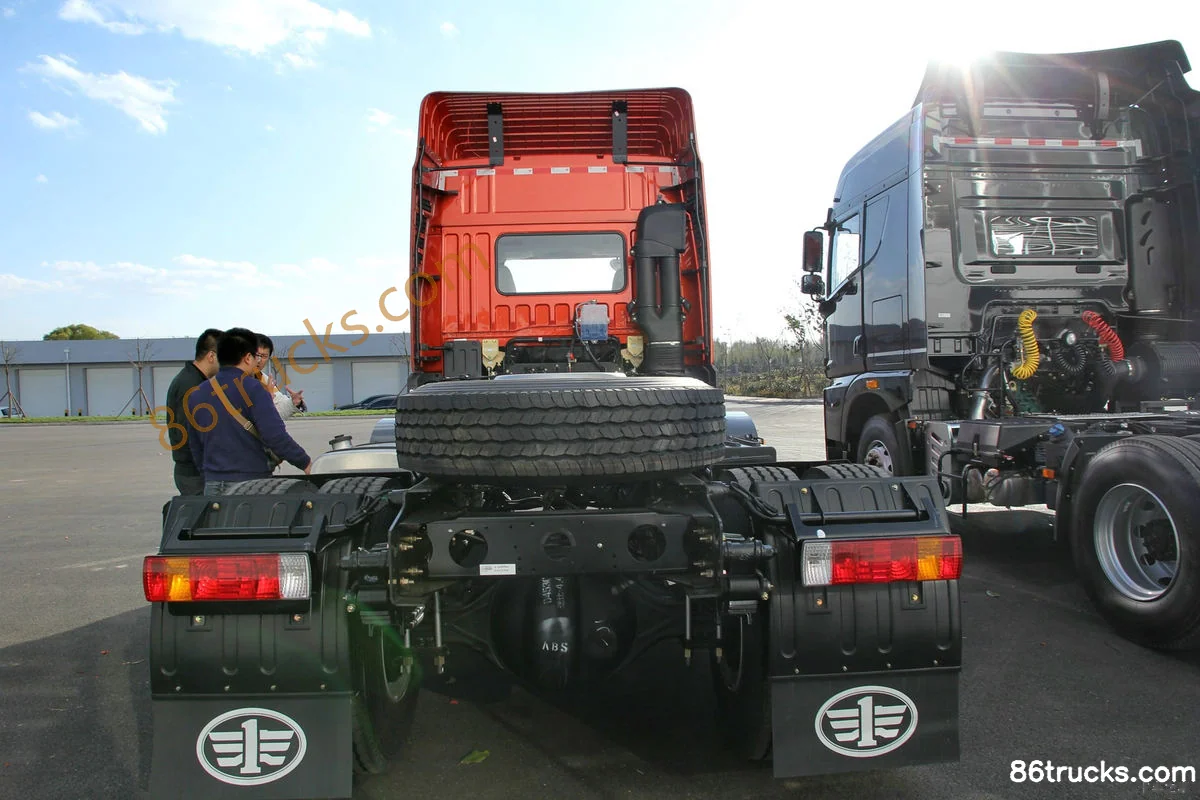

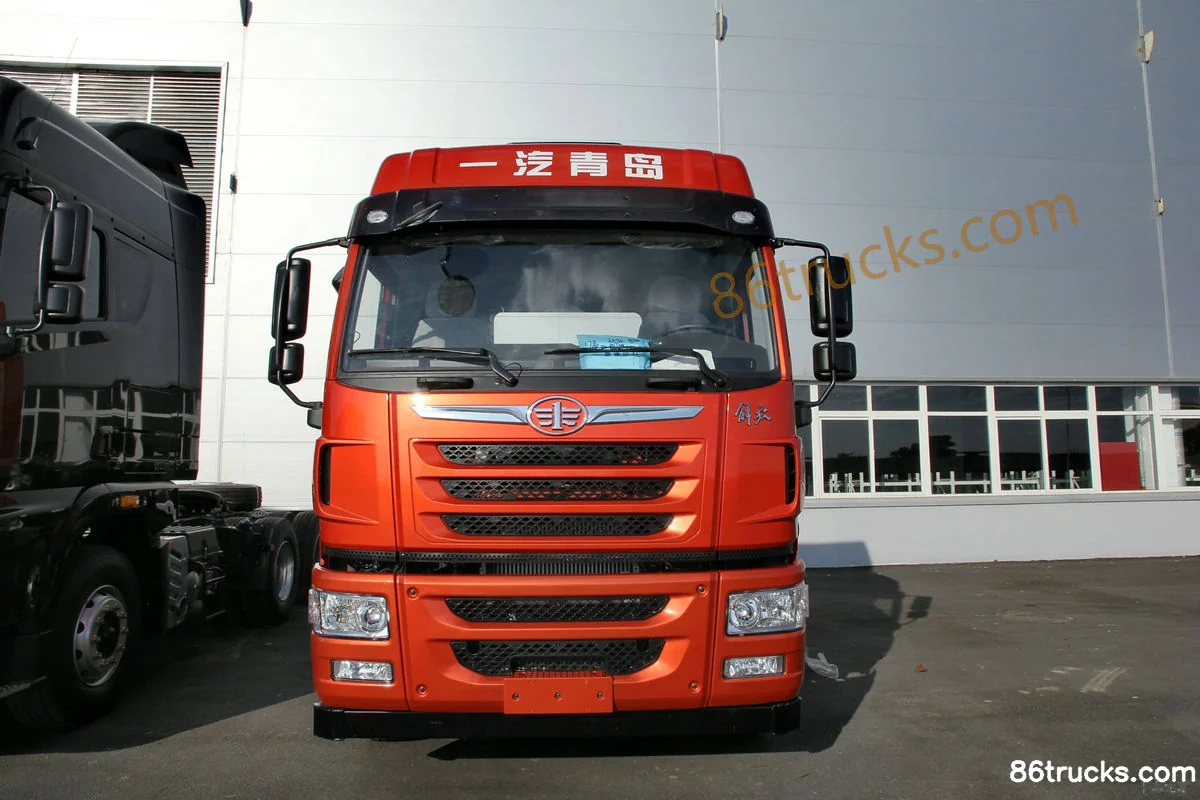

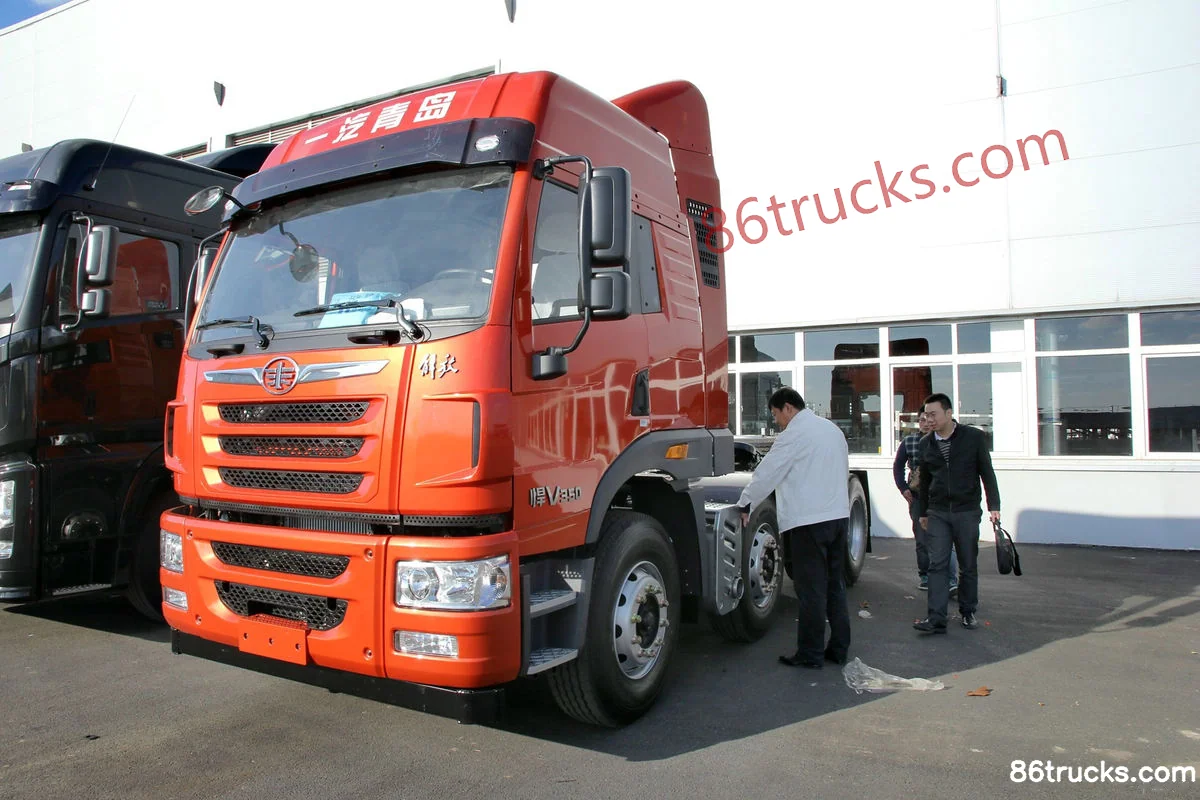

Exterior3

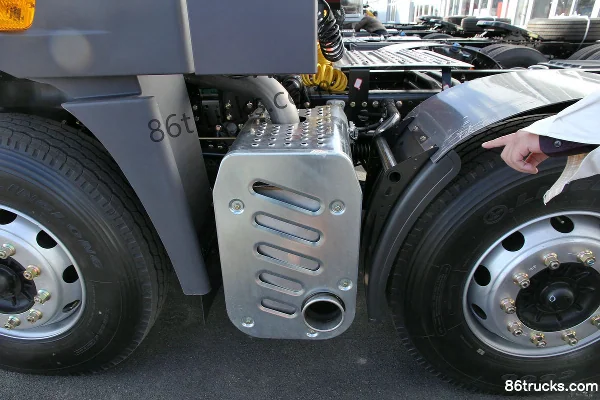

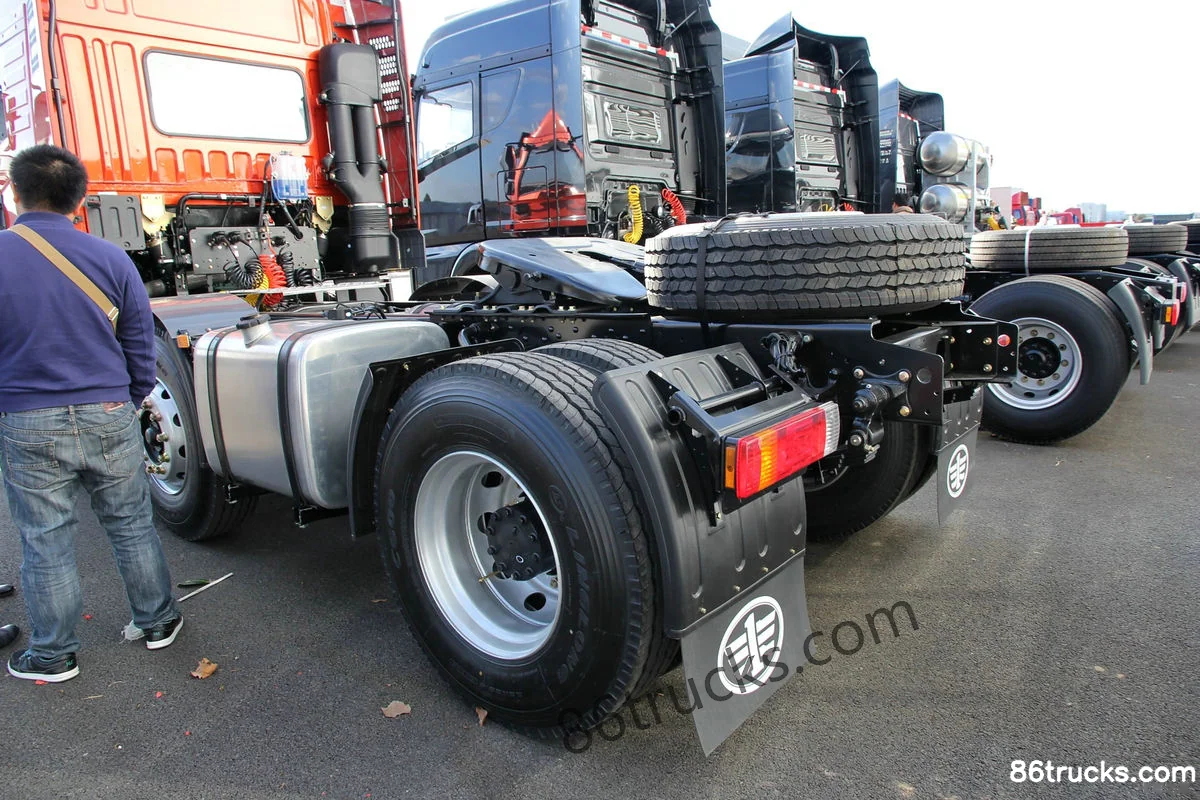

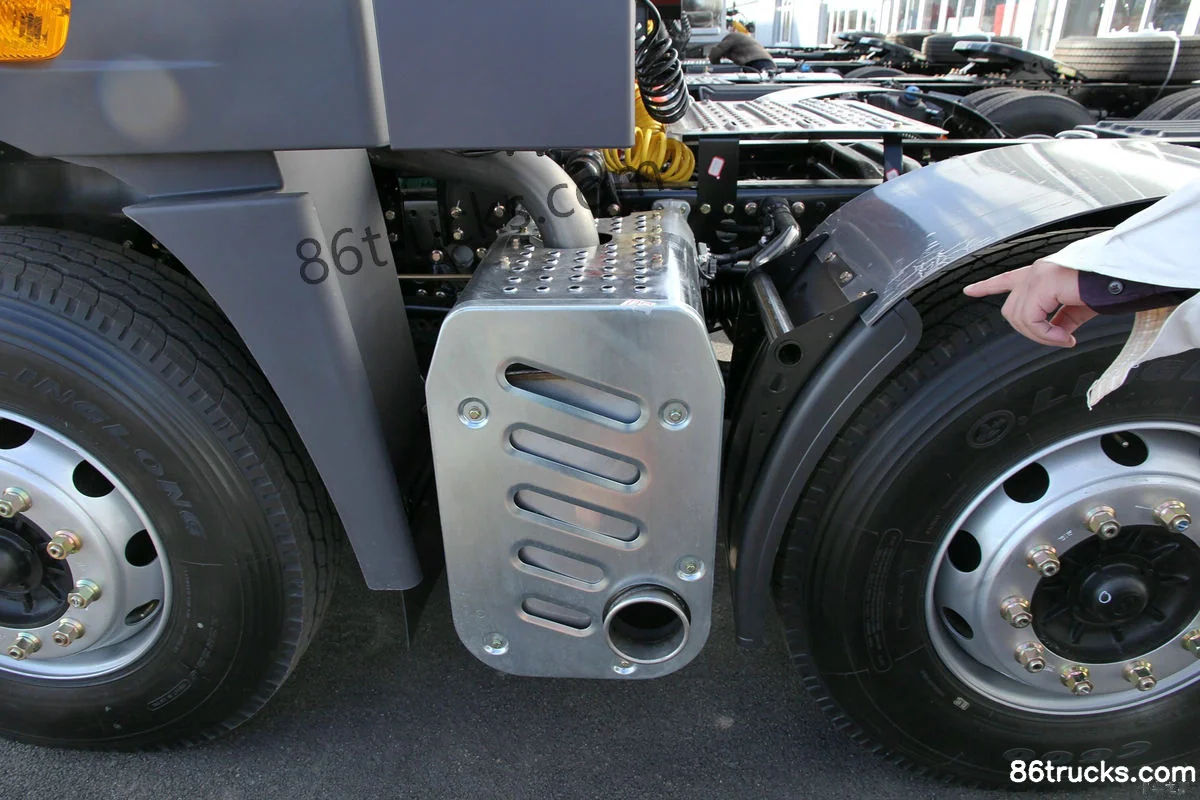

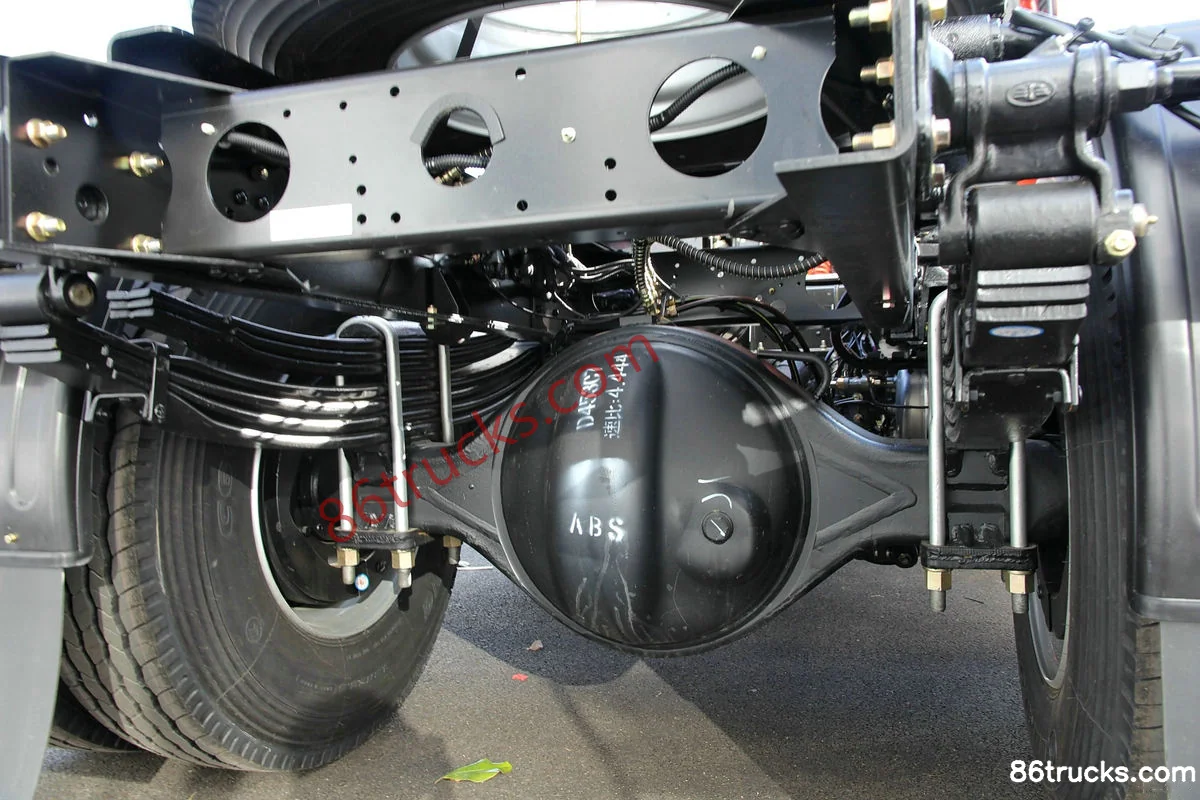

Chassis3

6 photos

FAQ

What is the export price of FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear), and what does it include?

FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) export reference is about From $36,736; MSRP is ¥26.45M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear)?

Key specs of FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear): Drive: 6x2; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) suited for?

FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) differ from other variants in the same series?

FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear) belongs to FAW Jiefang Qingdao HanV heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck (Fast Gear)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
