Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck

Export reference
From $17,208
MSRP ¥12.39M CNY
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: Isuzu4KH1
Transmission: Isuzu
Curb Weight:: 3.1ton
seating capacity: 3Personnel
Rated payload: 4ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck is a Light Truck featuring 4.17m cargo length, Van body cargo body, 3Personnel volume and 4t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Isuzu4KH1 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5071XXYA5HA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Qingling Isuzu4KH1CN5HS
transmission: IsuzuMSB-5SM
Rear Axle Ratio: 6.142
Cab length: 5.995m
Cab width: 2.16m
Cab height: 3.1m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 3.1ton
Rated payload: 4ton
GVWR: 7.295ton
Max. speed: 110km/h
Origin: Chongqing
tonnage class: Light Truck
Approach angle: 20°
departure angle: 21°
market segment: Urban Distribution
Remarks: Standard configuration: heavy-duty front and rear axles, steering indicator lights, reflective markings, tilting cab, maintenance-free battery. Optional: skirt-type rear underrun protection, single/double side doors, CD player, metallic paint cab
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu4KH1CN5HS
Engine info: Isuzu4KH1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 290N·m
Max torque speed: 1500rpm
Rated speed: 3400rpm
Transmission Parameters
Transmission Model: IsuzuMSB-5SM
Transmission Brand: Isuzu
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.17m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 2575kg
rear axle allowable load: 4720kg
Axle ratio: 6.142
Leaf spring count: 3/3+2
Tire
Tire Size: 7.00R16 14PR
Tire Type: Radial tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Exterior features
Air deflector:
Service brake
Exhaust brake:

Photos

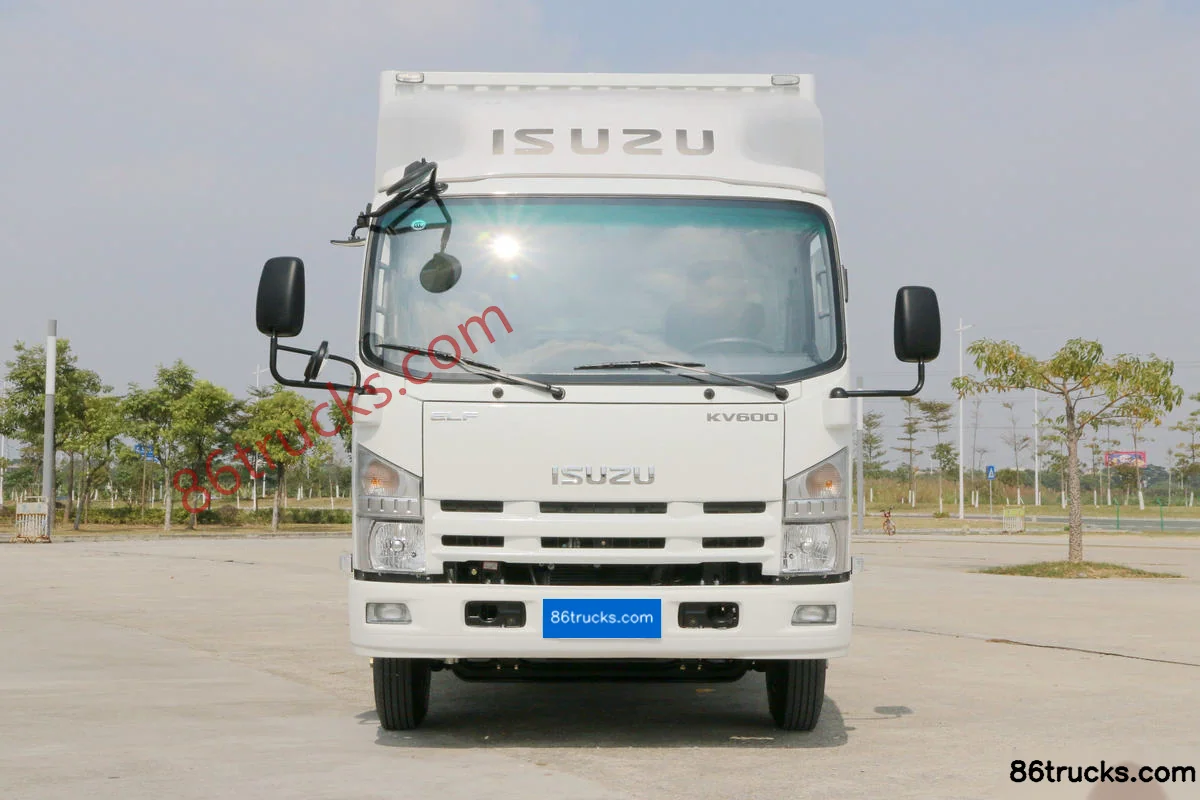

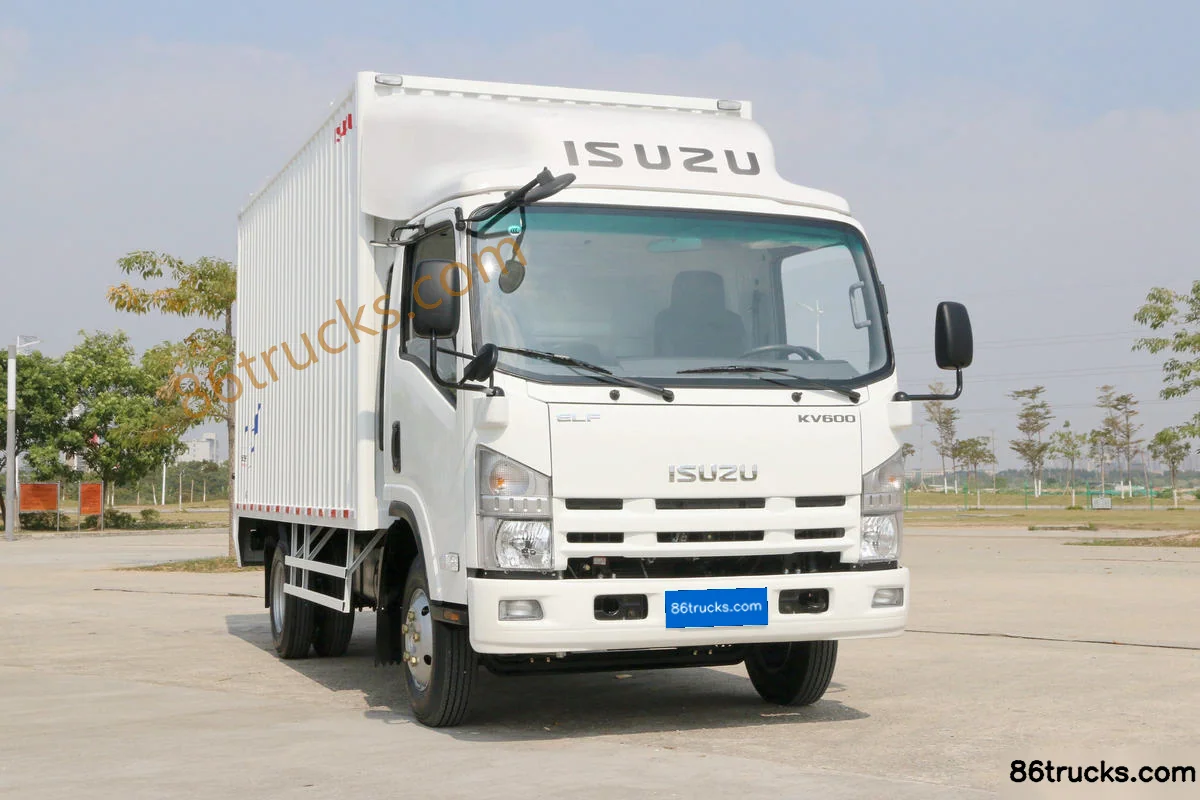

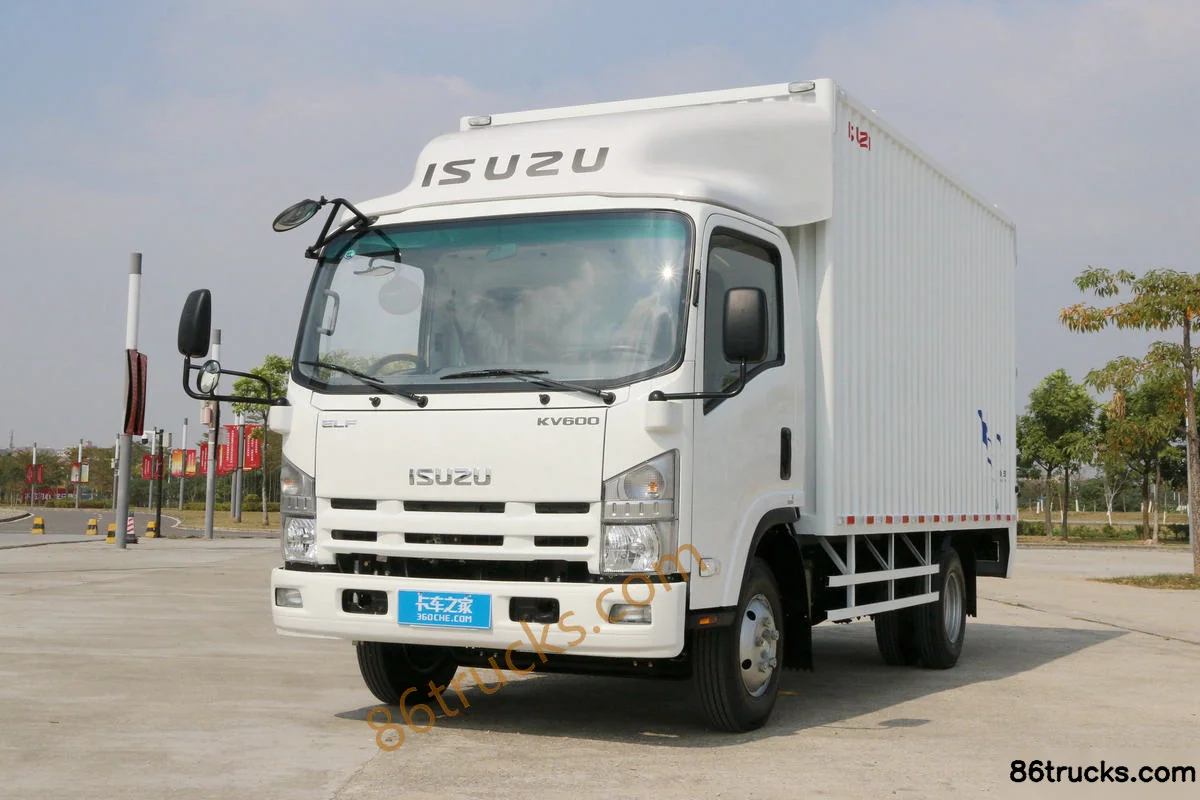

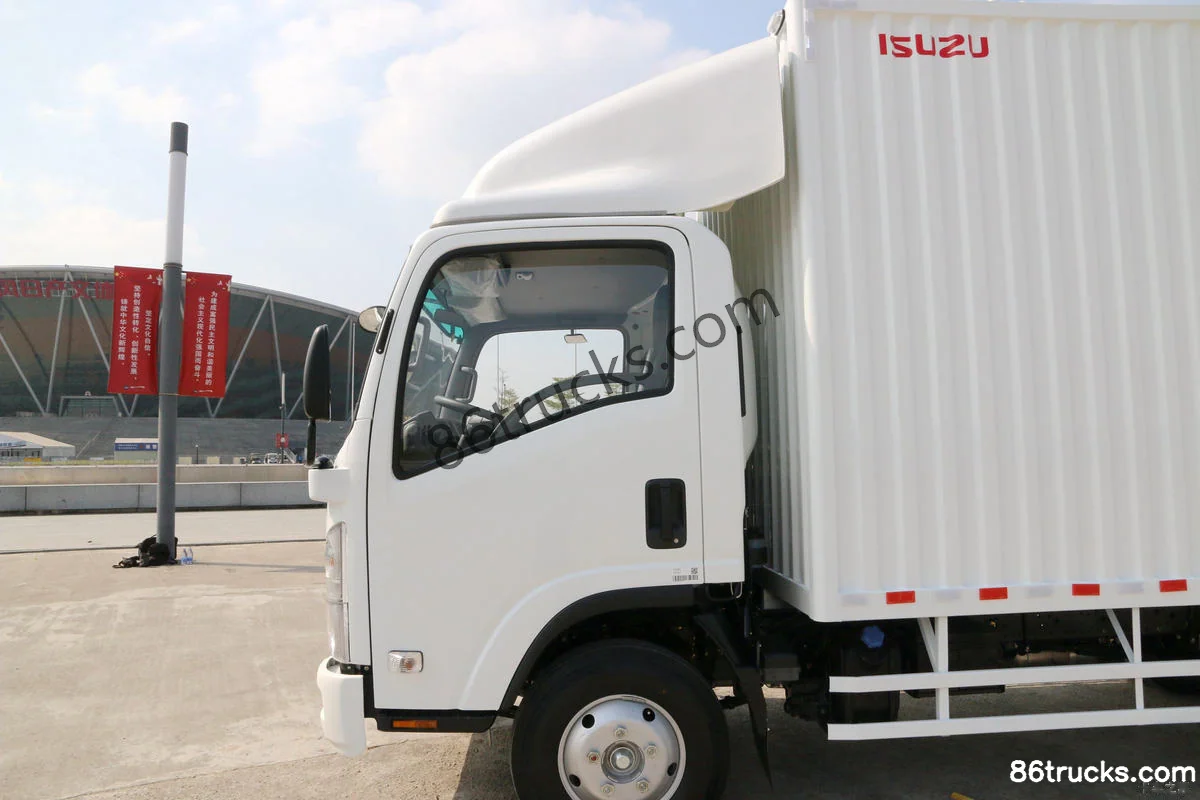

Exterior3

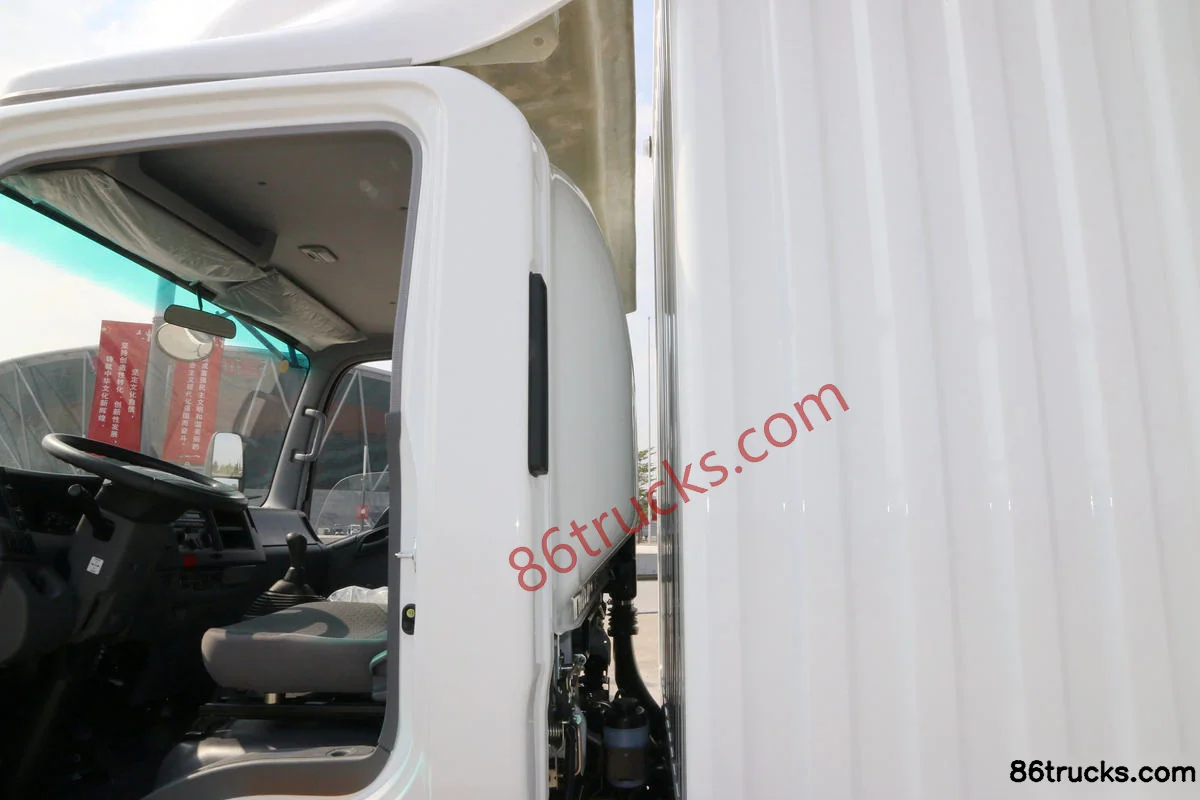

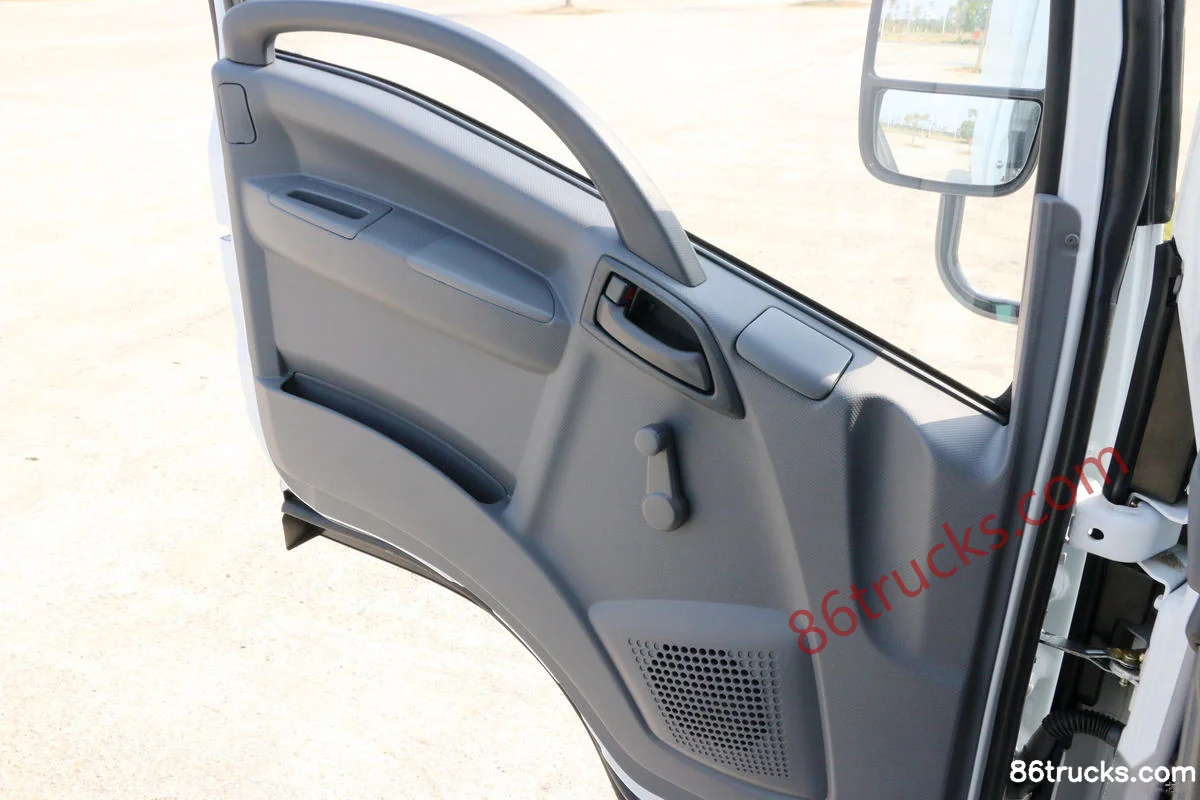

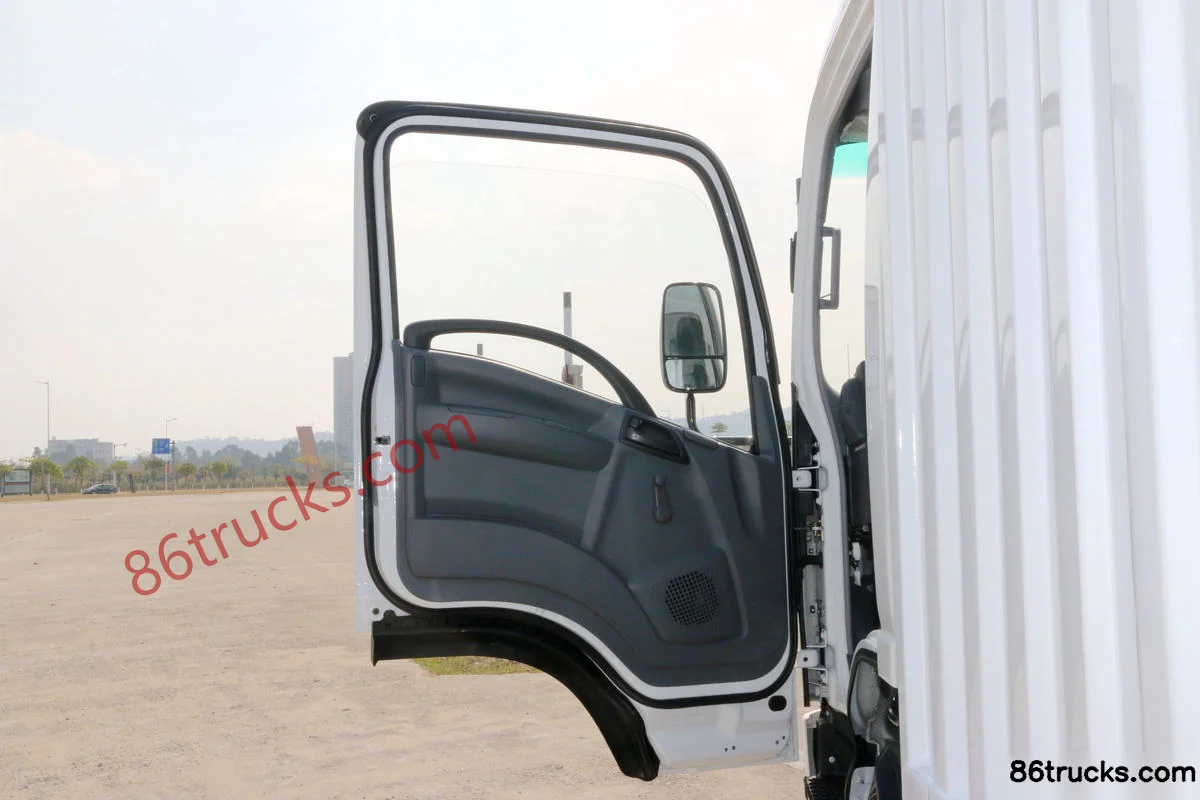

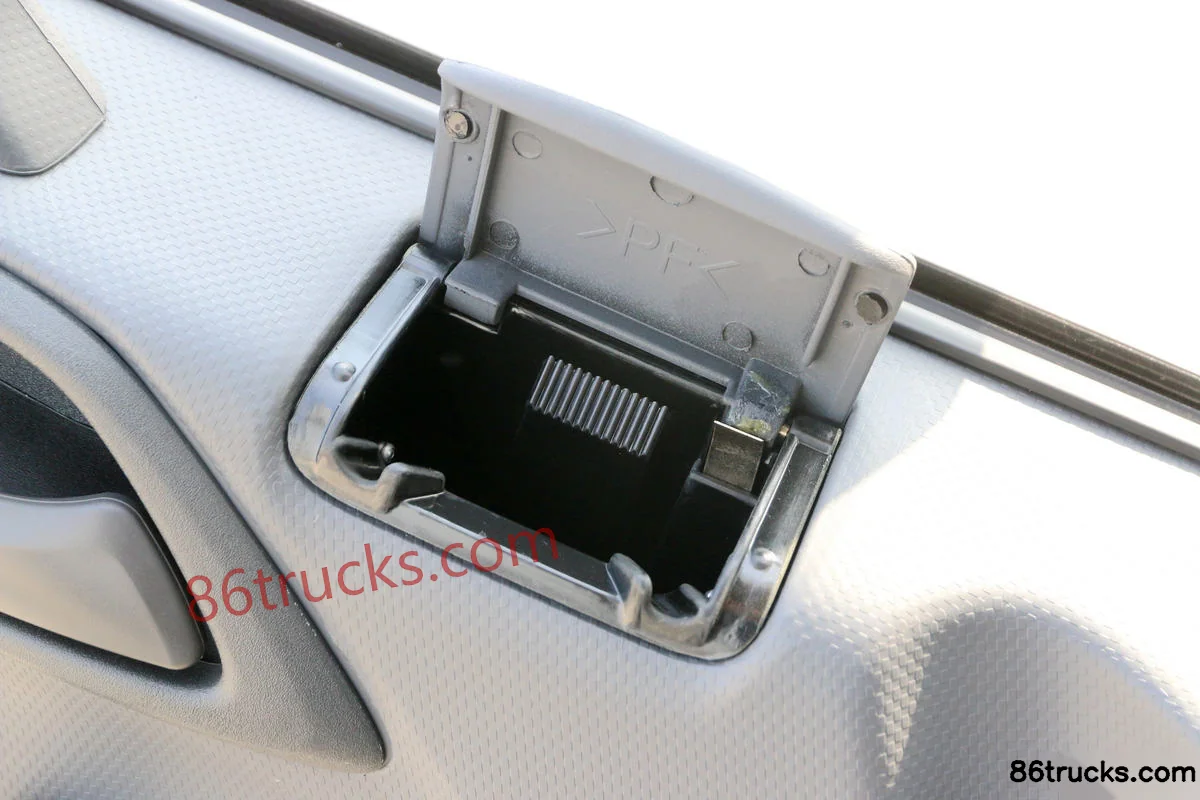

Cab3

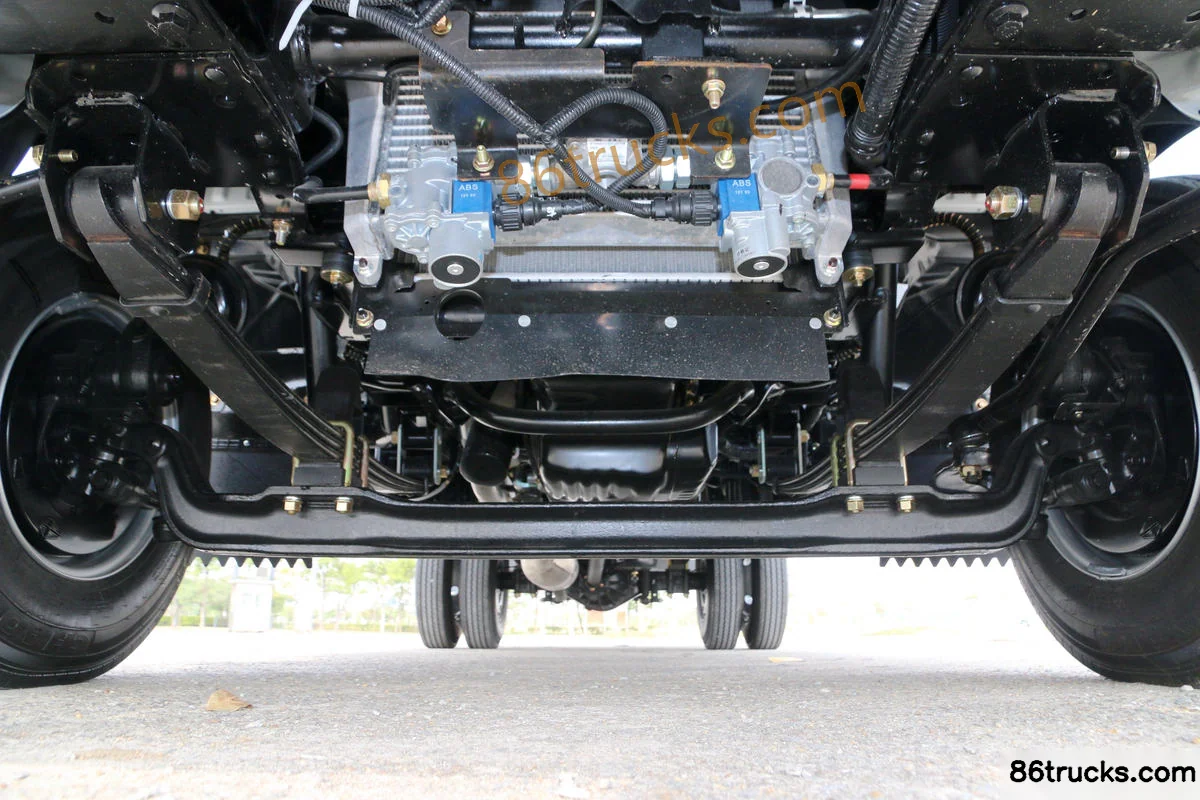

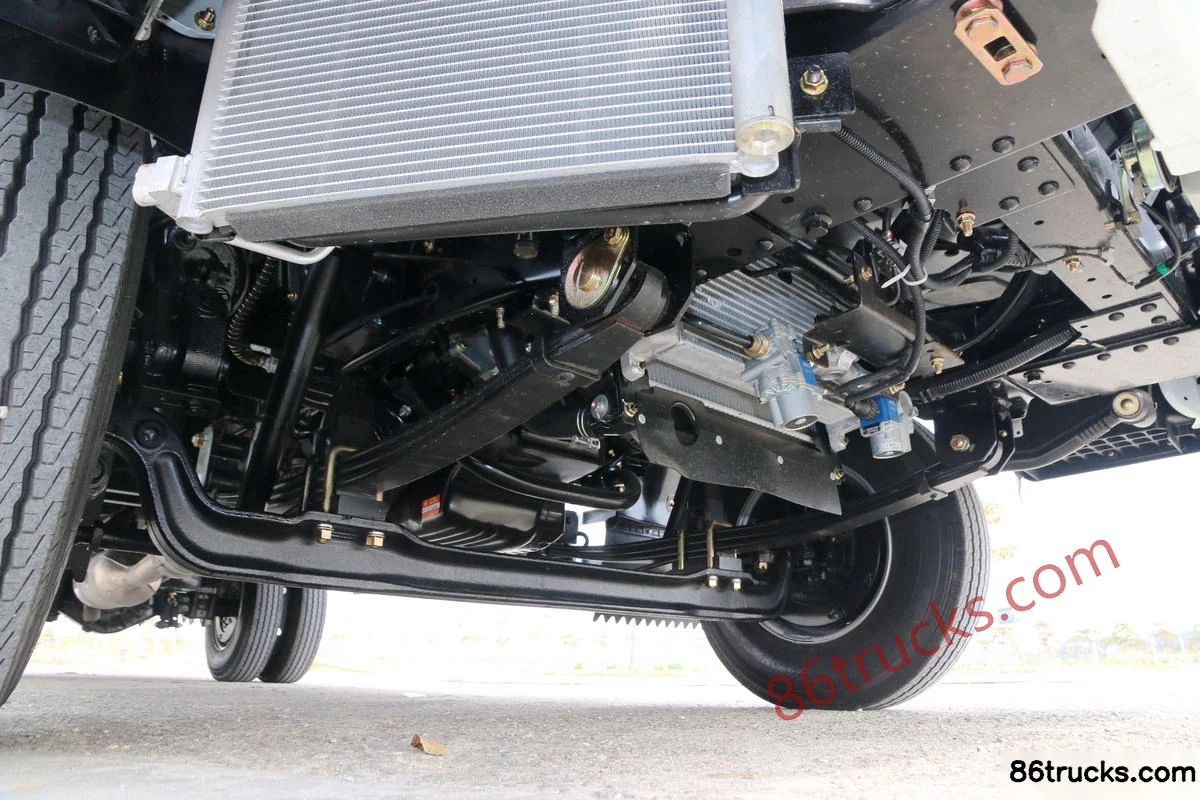

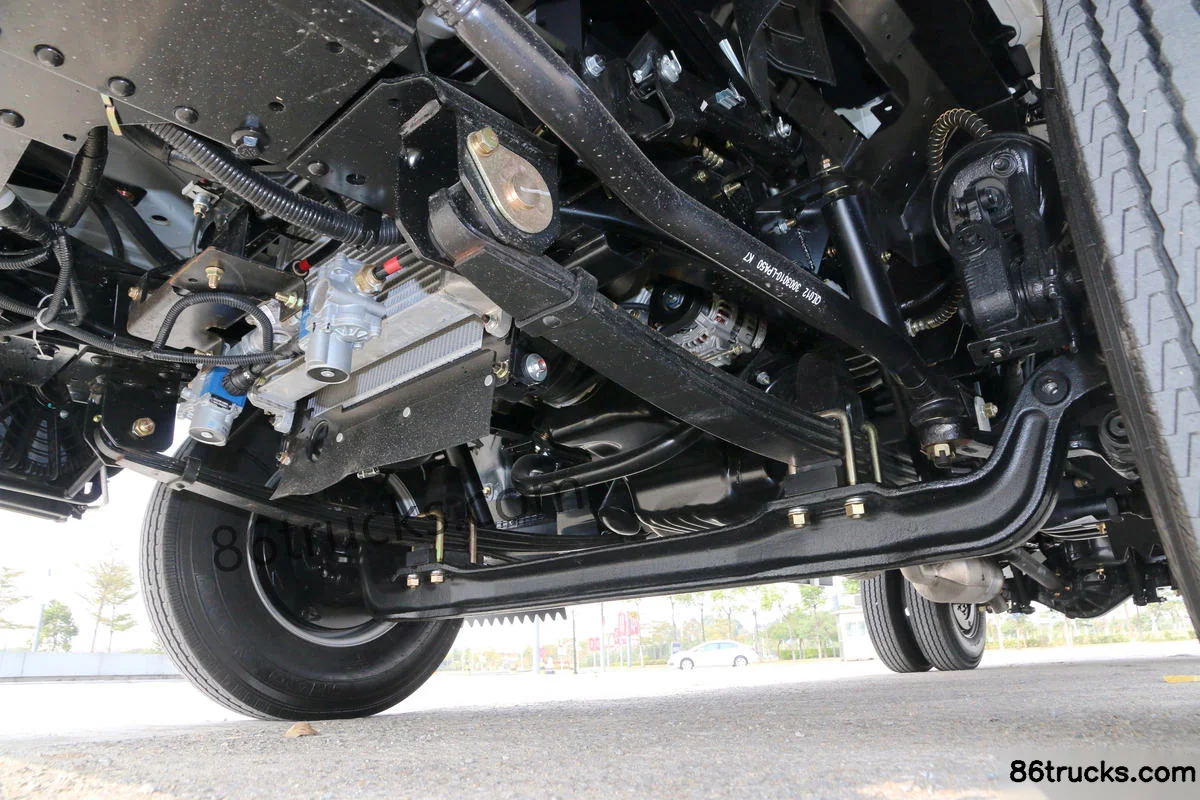

Chassis3

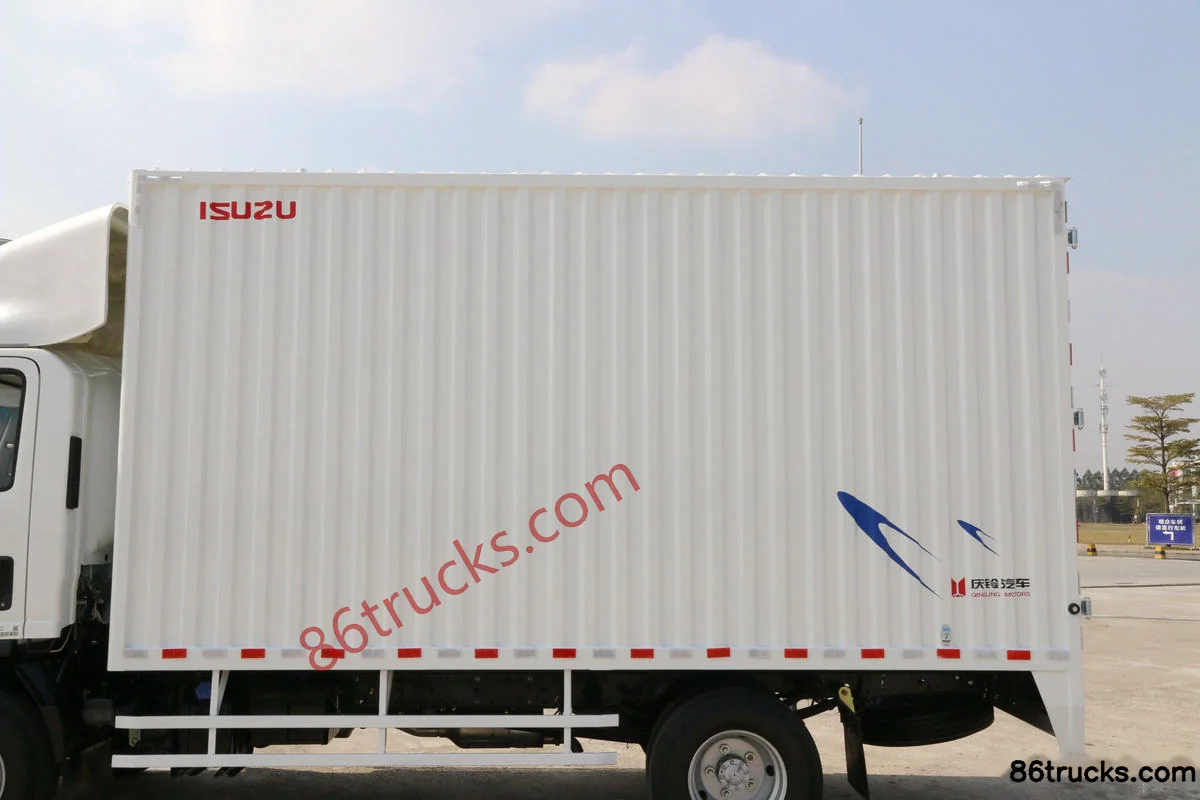

Body3

Official Photos1

13 photos

FAQ

What is the export price of Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck, and what does it include?

Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck export reference is about From $17,208; MSRP is ¥12.39M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck?

Key specs of Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu4KH1; Transmission: Isuzu. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck suited for?

Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck differ from other variants in the same series?

Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck belongs to Qingling IsuzuKV600 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV600 130hp 4X2(6 wheels) 4.17m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
