Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Fast Gear
Curb Weight:: 7.43ton
seating capacity: 3Personnel
Rated payload: 6.865ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck is a Medium-duty truck featuring 7.5m cargo length, Van body cargo body, 3Personnel volume and 6.865t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL5140XXYB5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5600mm
Box length class: 7.5m
engine: DongfengISB180 50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.56
Cab length: 9.995m
Cab width: 2.5m
Cab height: 3.76m
Front track width: 1880mm
rear track: 1860mm
Curb Weight: 7.43ton
Rated payload: 6.865ton
GVWR: 14.49ton
Max. speed: 98km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle:
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.44/2.955m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB180 50
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.5m
Cargo box width: 2.3m
Cargo box height: 2.4m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 4.5T front axle
Front axle allowable load: 5050kg
rear axle description: 9T single reduction rear axle
rear axle allowable load: 9440kg
Axle ratio: 4.56
Leaf spring count: 8/10+8,10/11+10
clutch: Φ395
Tire
Tire Size: 10.00-20 14PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

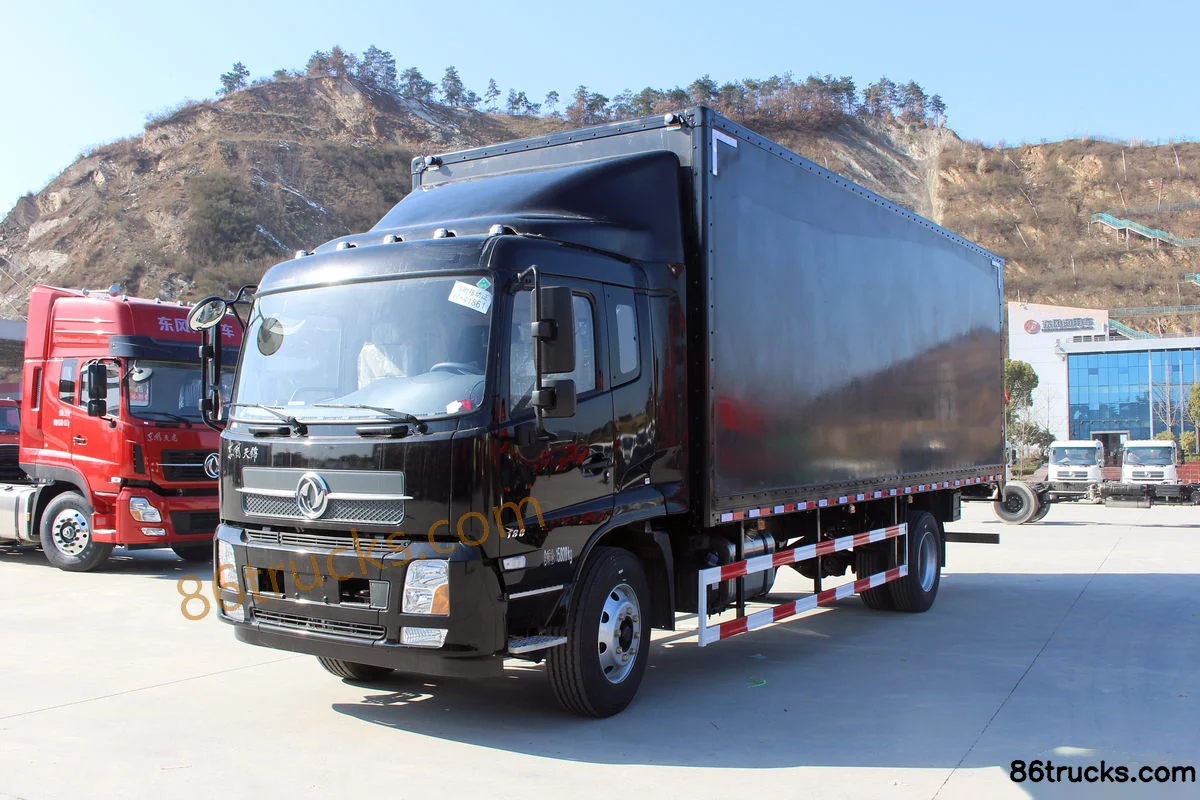

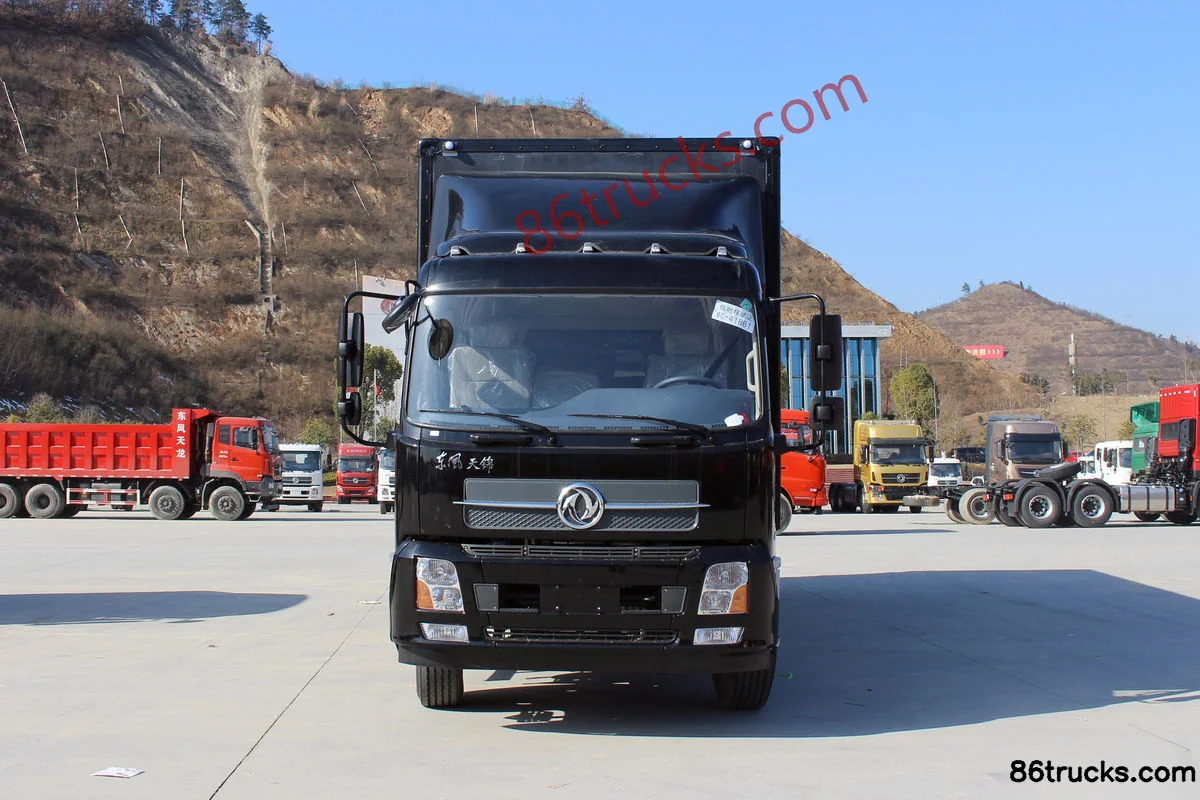

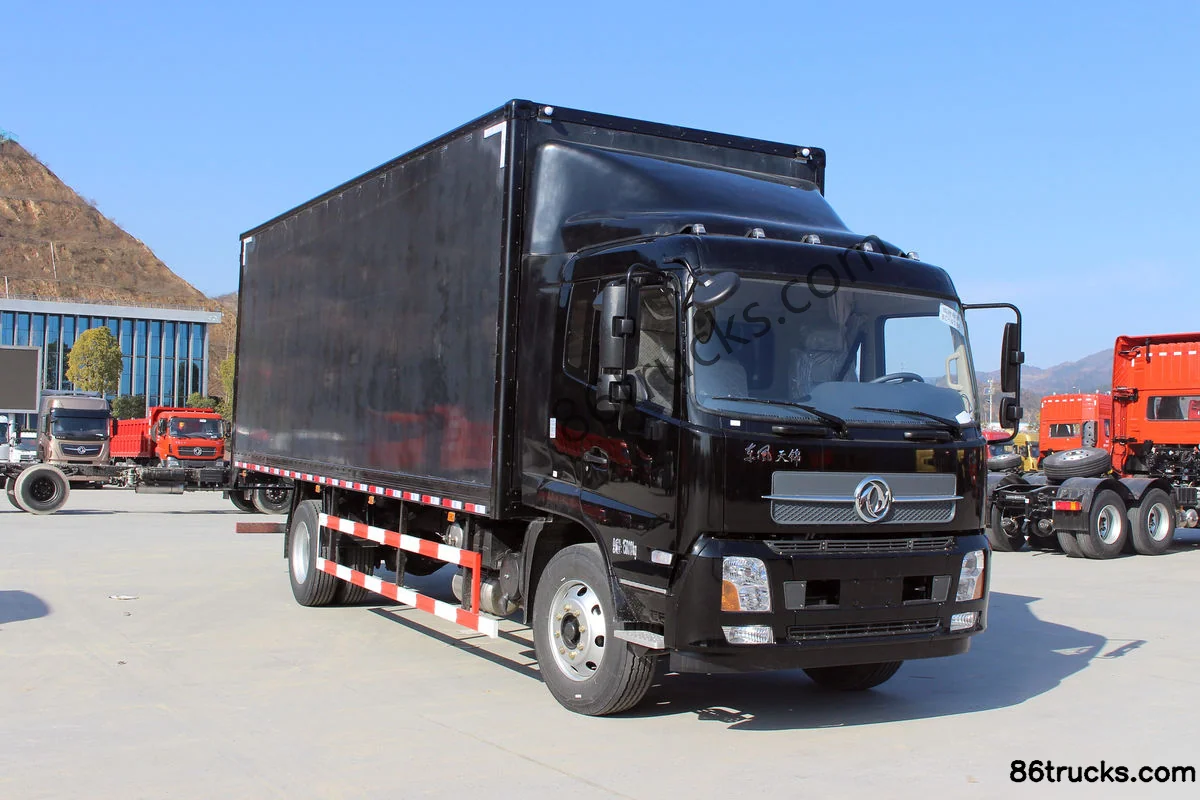

Exterior3

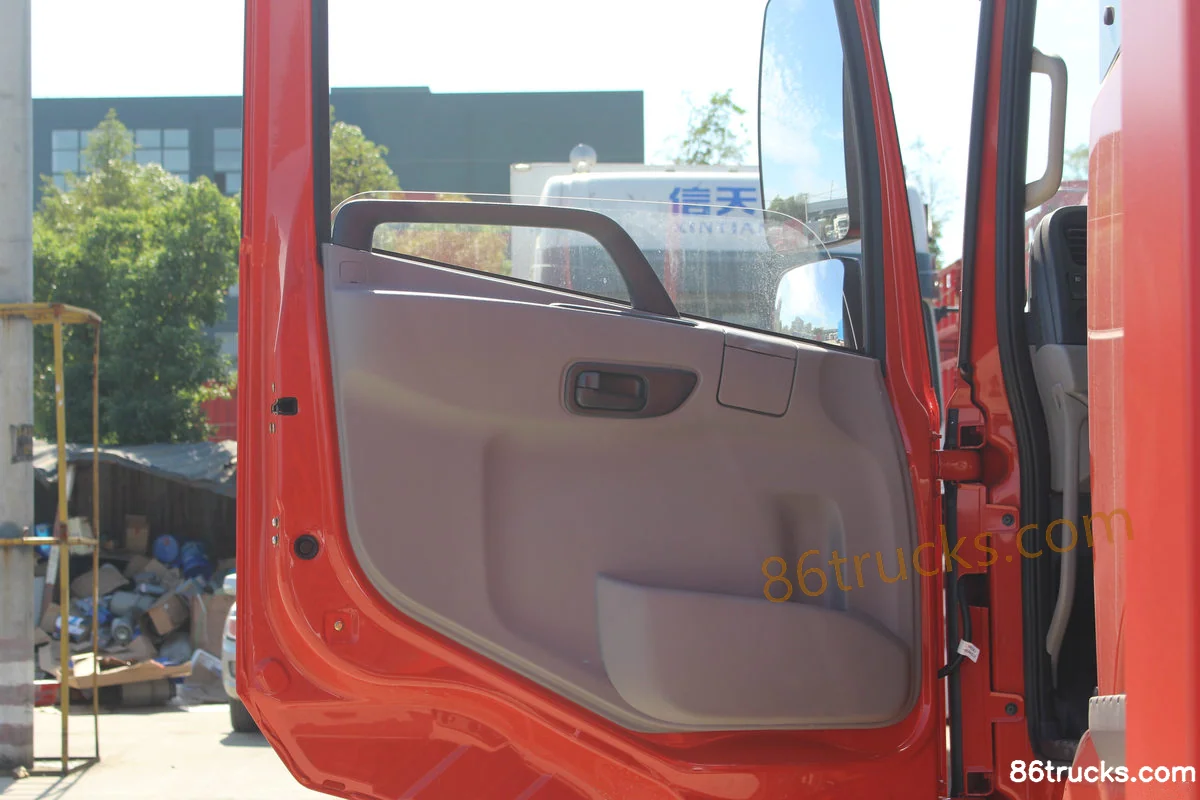

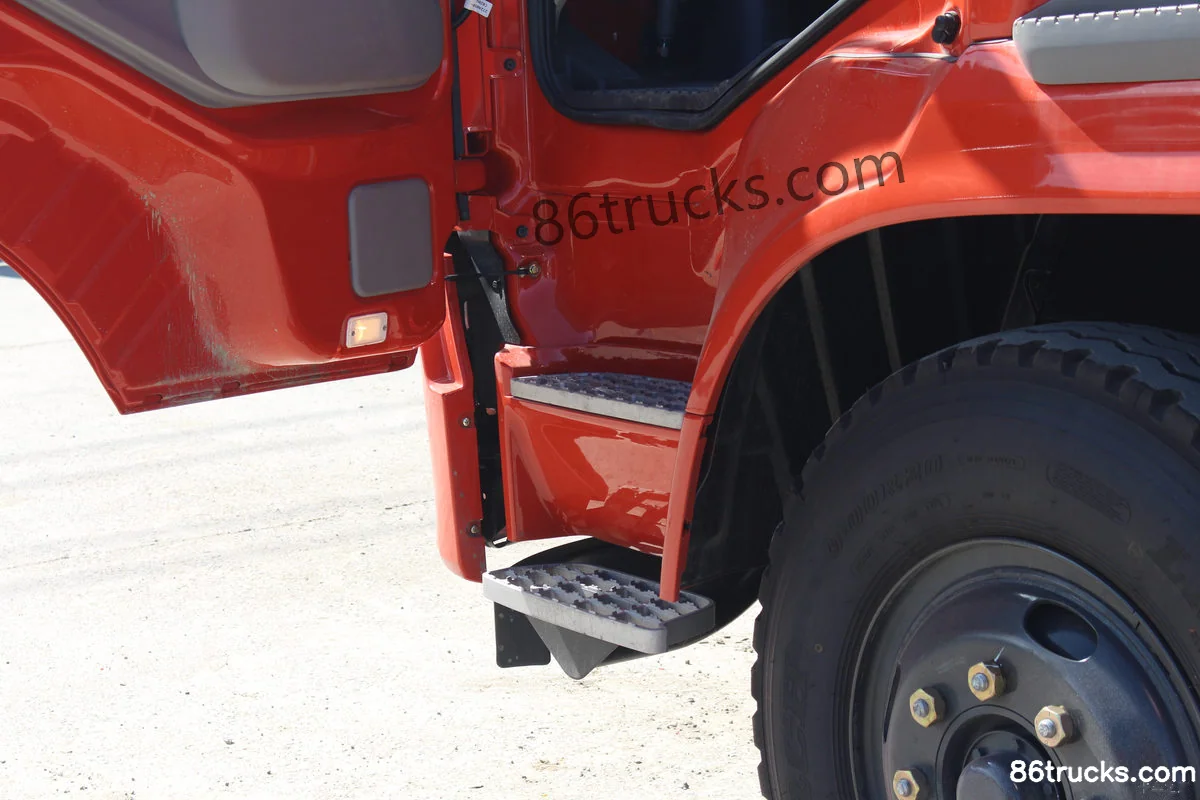

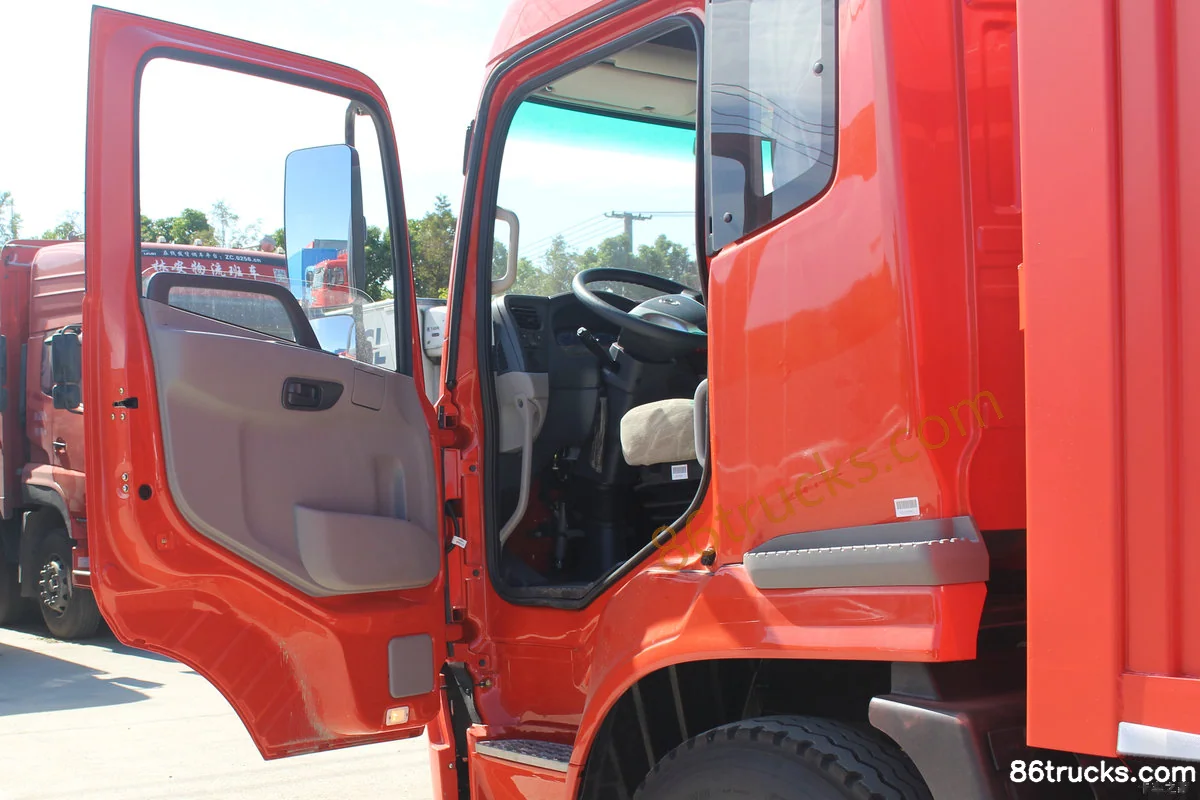

Cab3

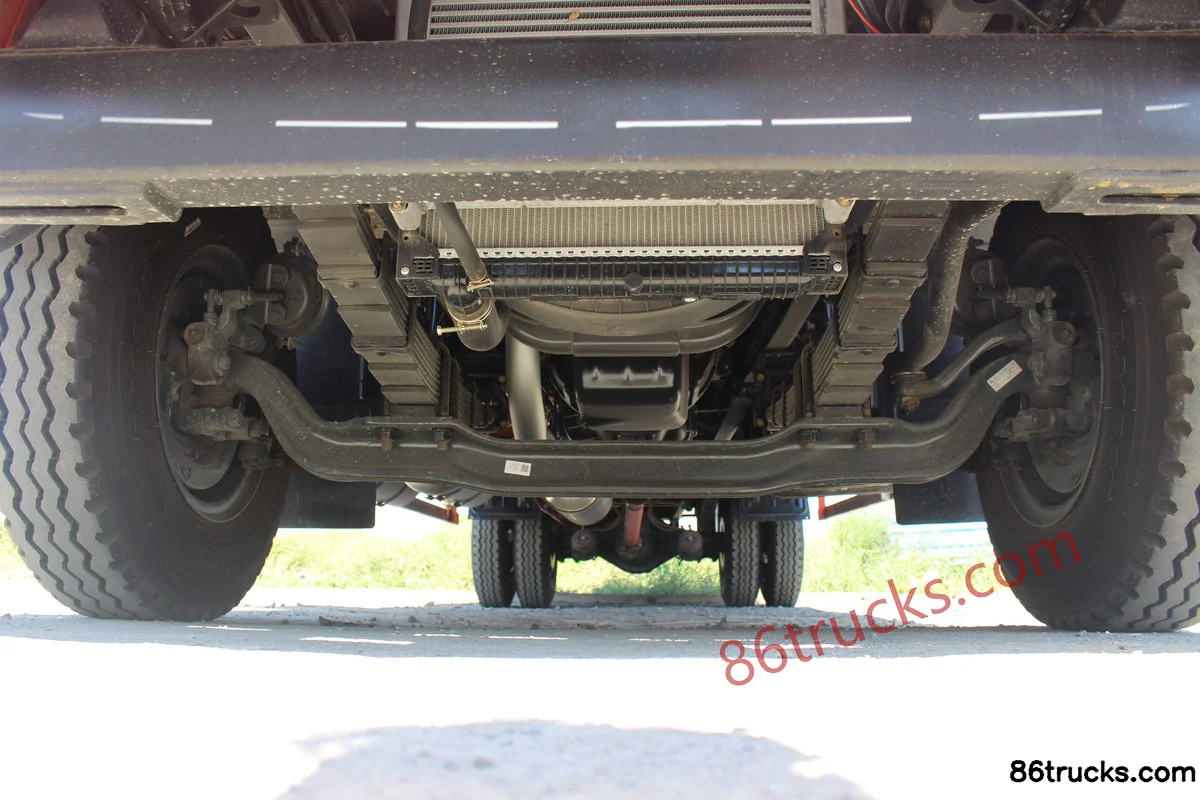

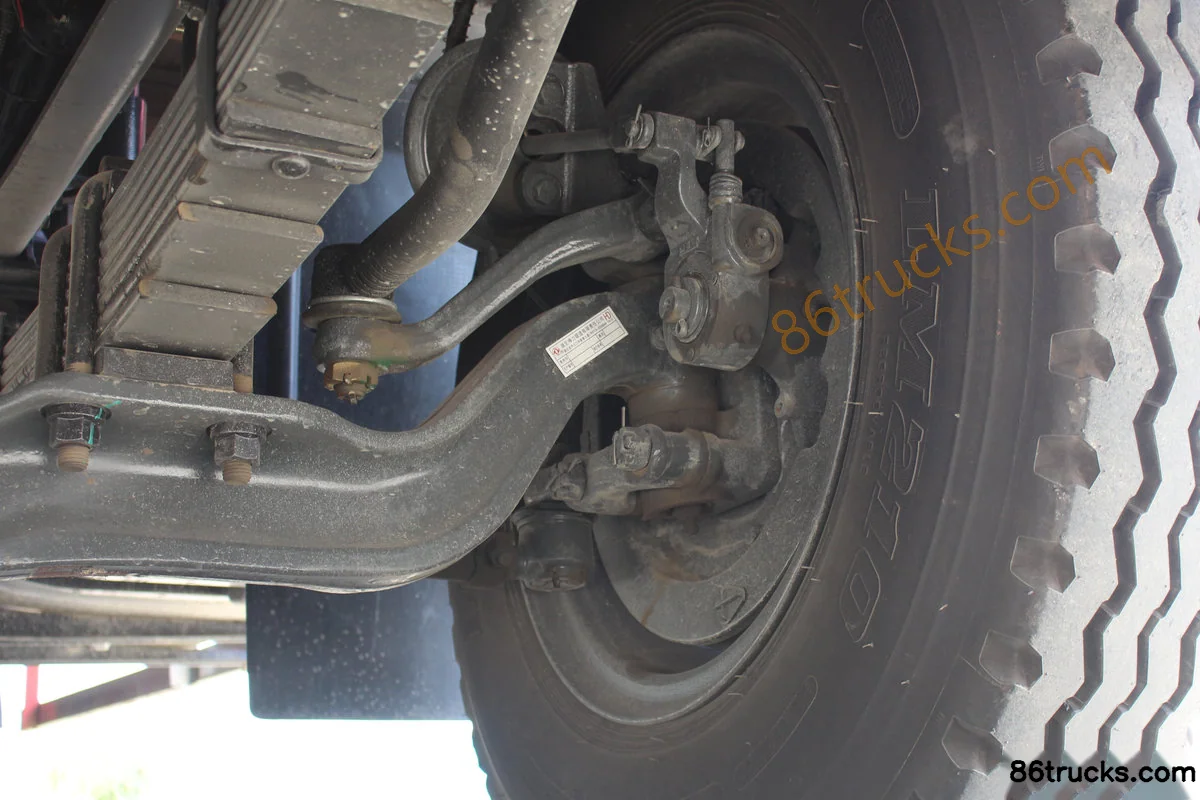

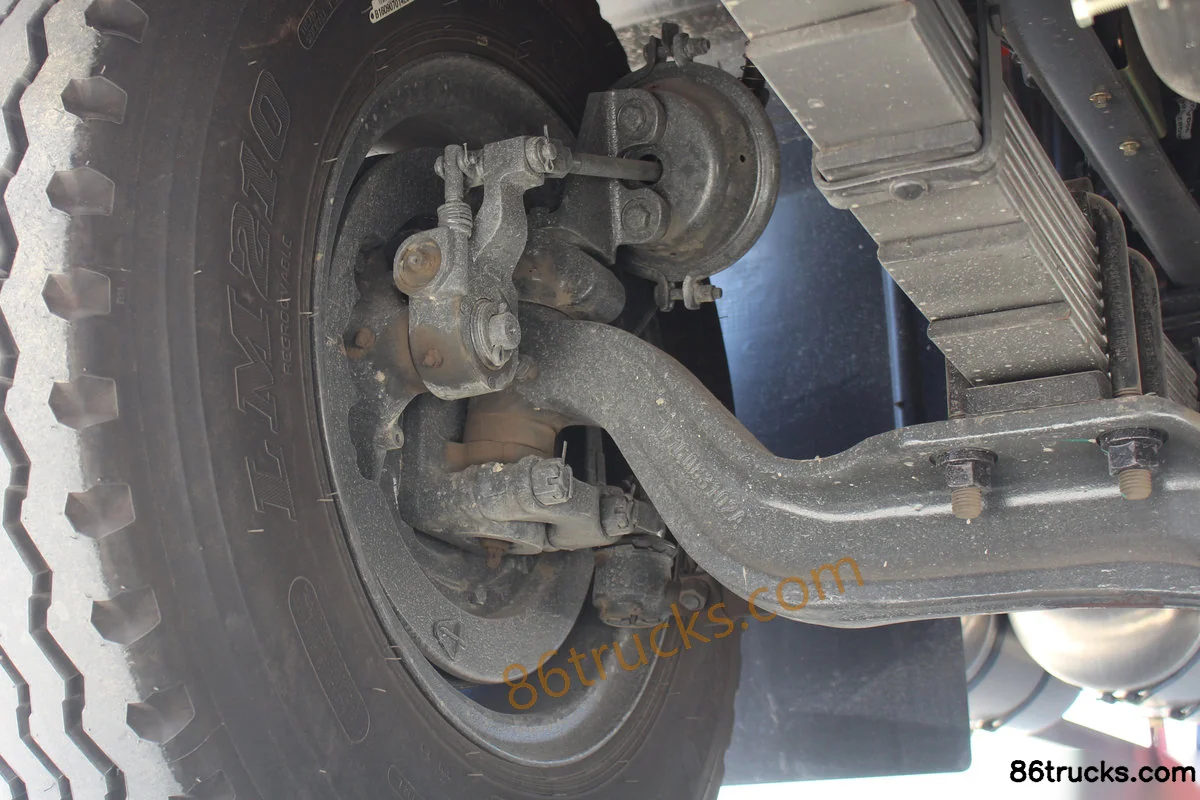

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.5m Sleeper Cab Box Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
