Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 460
Emission: China V
Fuel: Diesel
Engine: WeichaiWP12
Transmission: Fast Gear
Curb Weight:: 12.785ton
seating capacity: 2Personnel
Rated payload: 18.085ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 2Personnel volume and 18.085t payload. Its segment focus covers General dry cargo, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP12 engine, 460 hp, 8X4 (12 wheels) drive and China V emissions.

China V 460 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ1312H7FB
Type: Chassis
Drive type: 8X4
Wheelbase: 1950+4500+1350mm
Box length class: 9.6m
engine: WeichaiWP12.460E50
transmission: Fast Gear12JSD200TA
Rear Axle Ratio: 3.7
Cab length: 12m
Cab width: 2.55m
Cab height: 3.68m
Front track width: 2080/2080mm
rear track: 1860/1860mm
Curb Weight: 12.785ton
Rated payload: 18.085ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 11°
market segment: General dry cargo
Remarks: engine brake, domestic steering gear, electronically controlled silicone oil fan, WABCO valves
Front/rear suspension: 1.512/2.688m
Version: 2019 model
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.460E50
Engine info: WeichaiWP12
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China V
Max output power: 338kW
Max hp: 460Horsepower
Max torque: 2110N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 0.8m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: H73D
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 800L
Chassis Specs
Front axle description: 2×5.5T front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 282(8)mm
rear axle description: 2*440 rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
clutch: Φ430
Tire
Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Parking brake: parking brake
smart configuration
Cruise control (CCS):

Photos

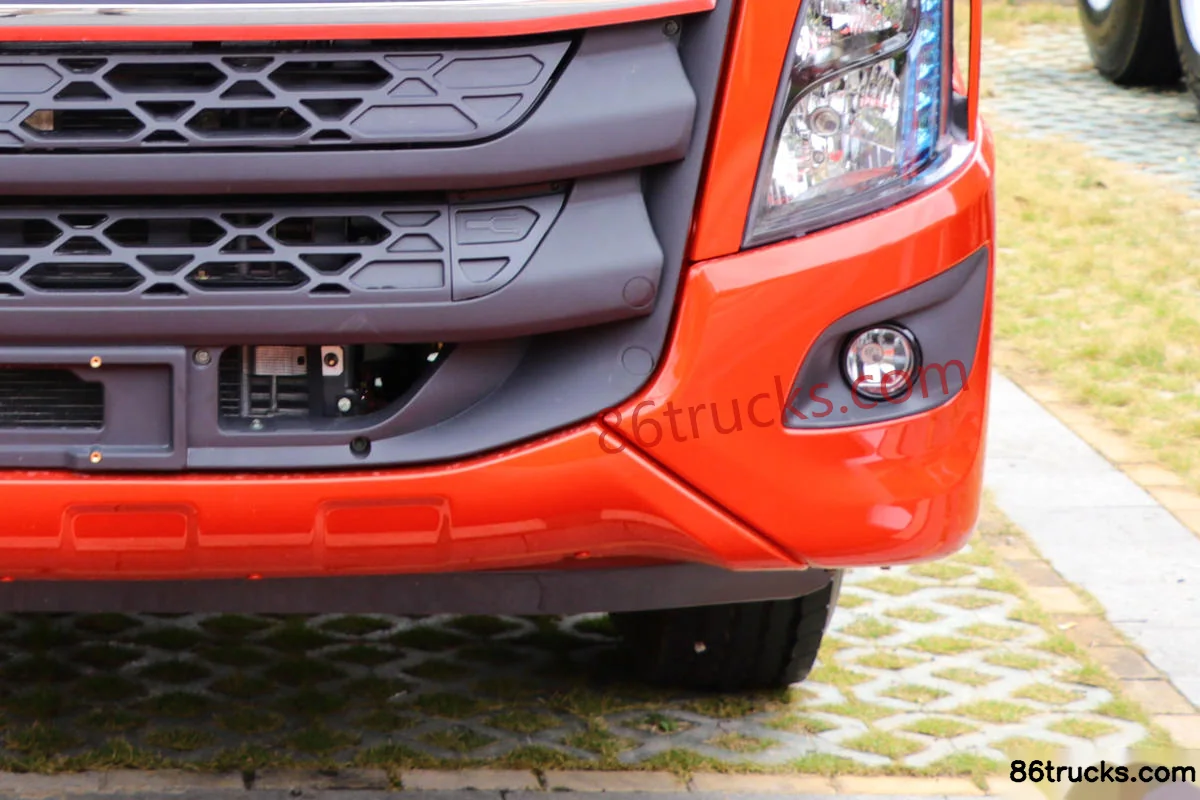

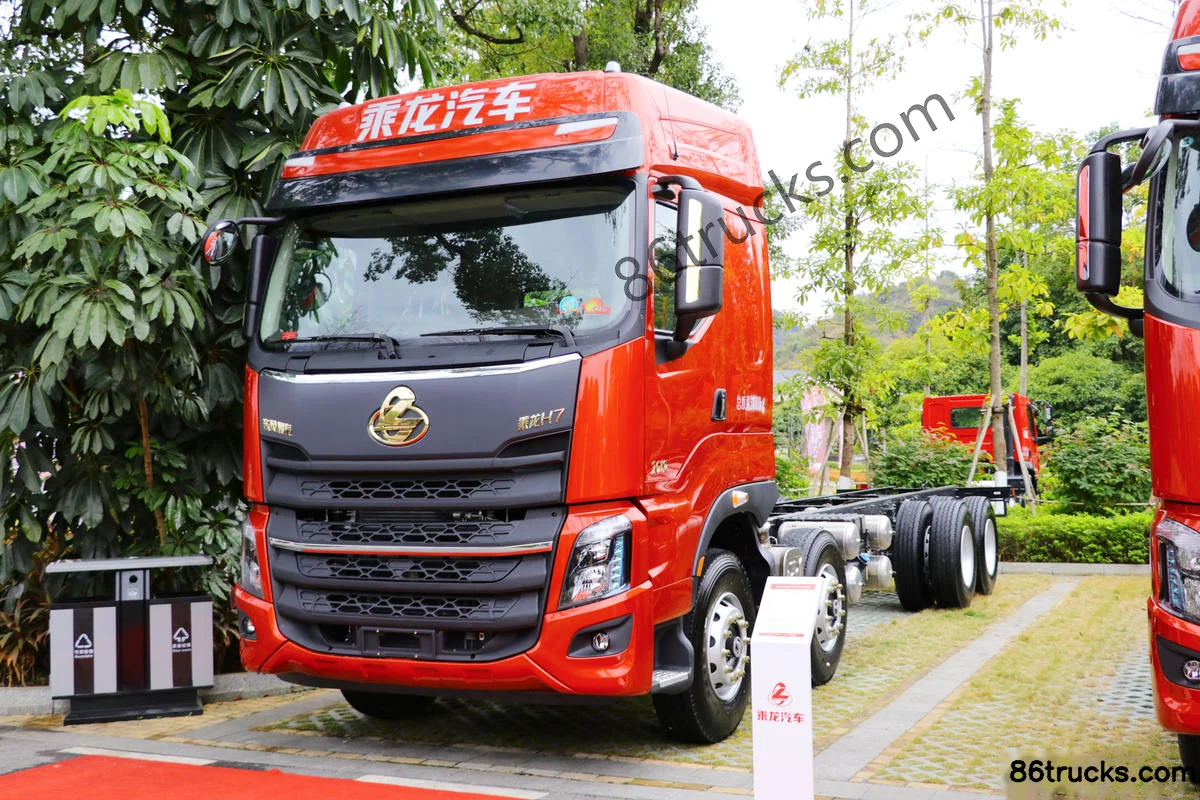

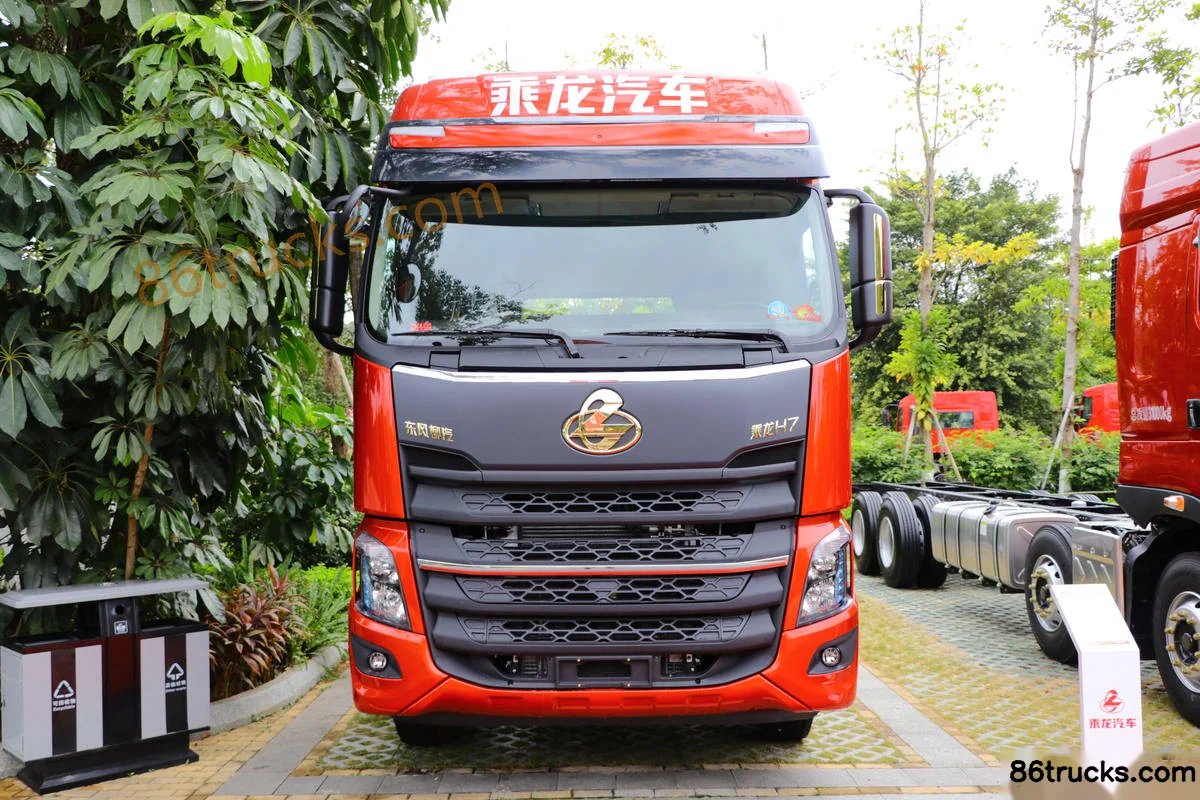

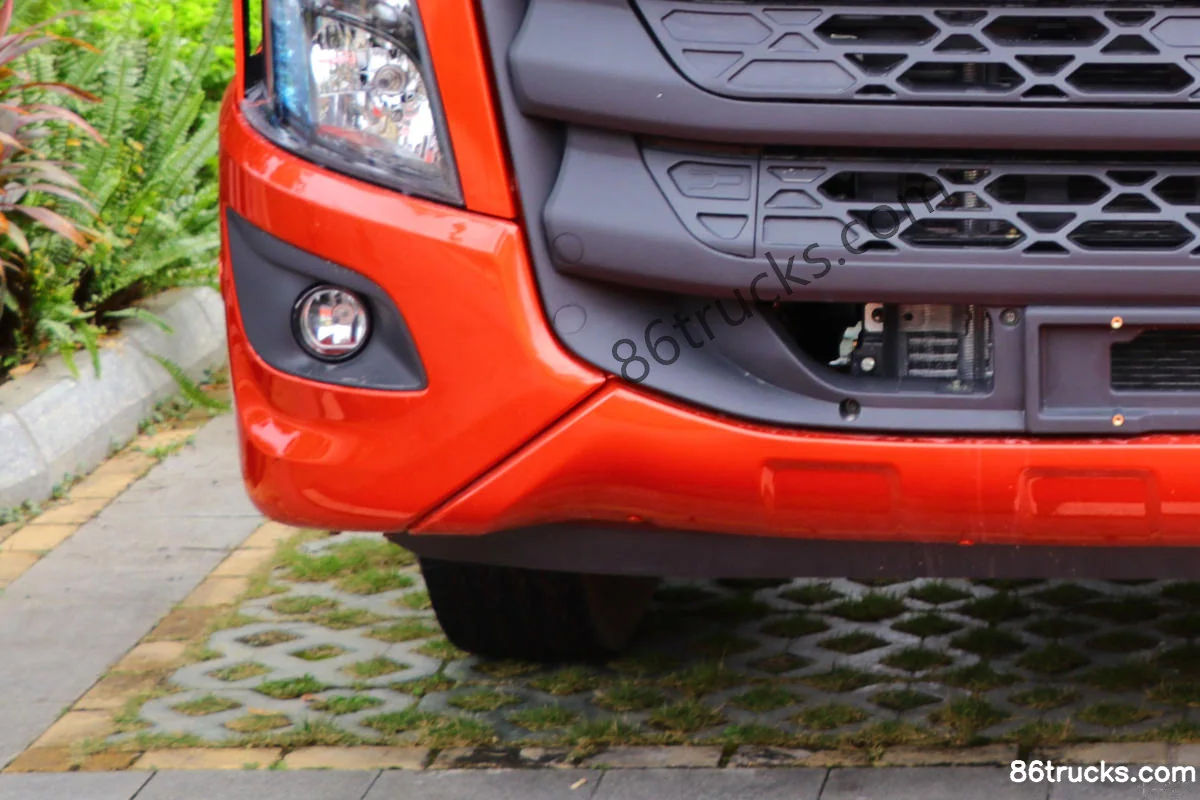

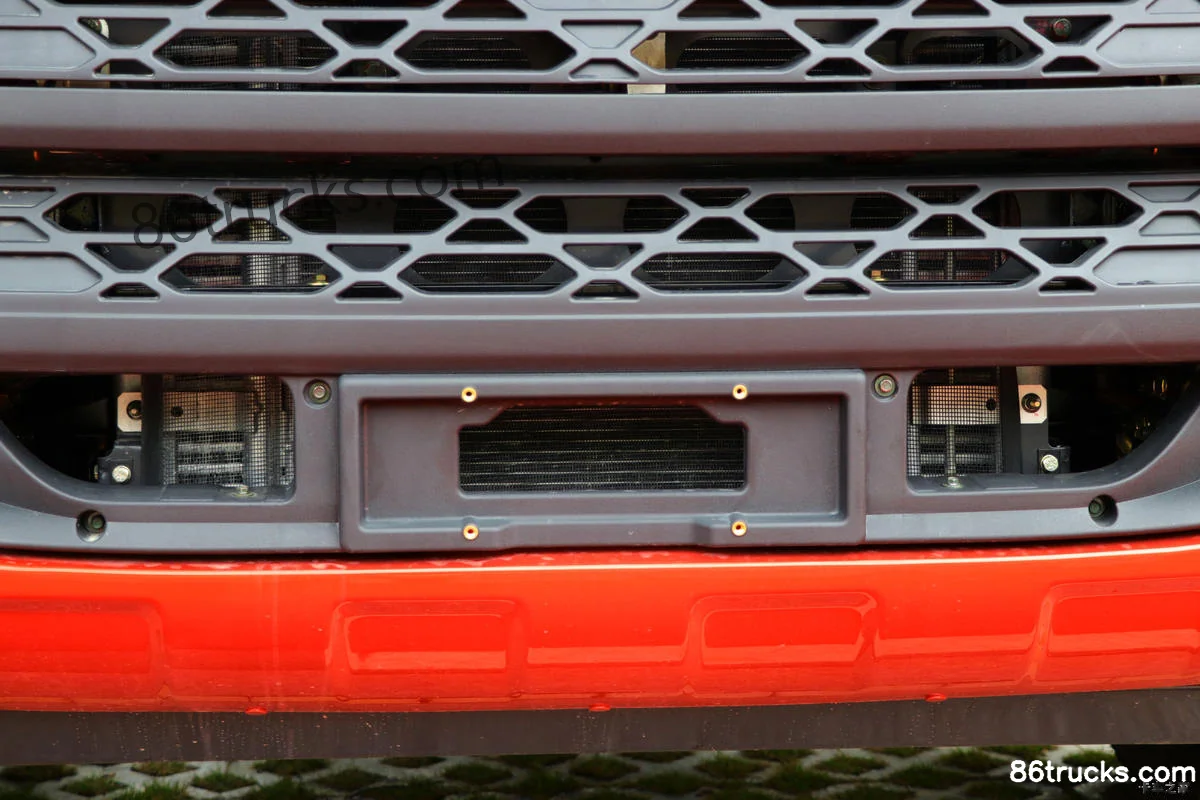

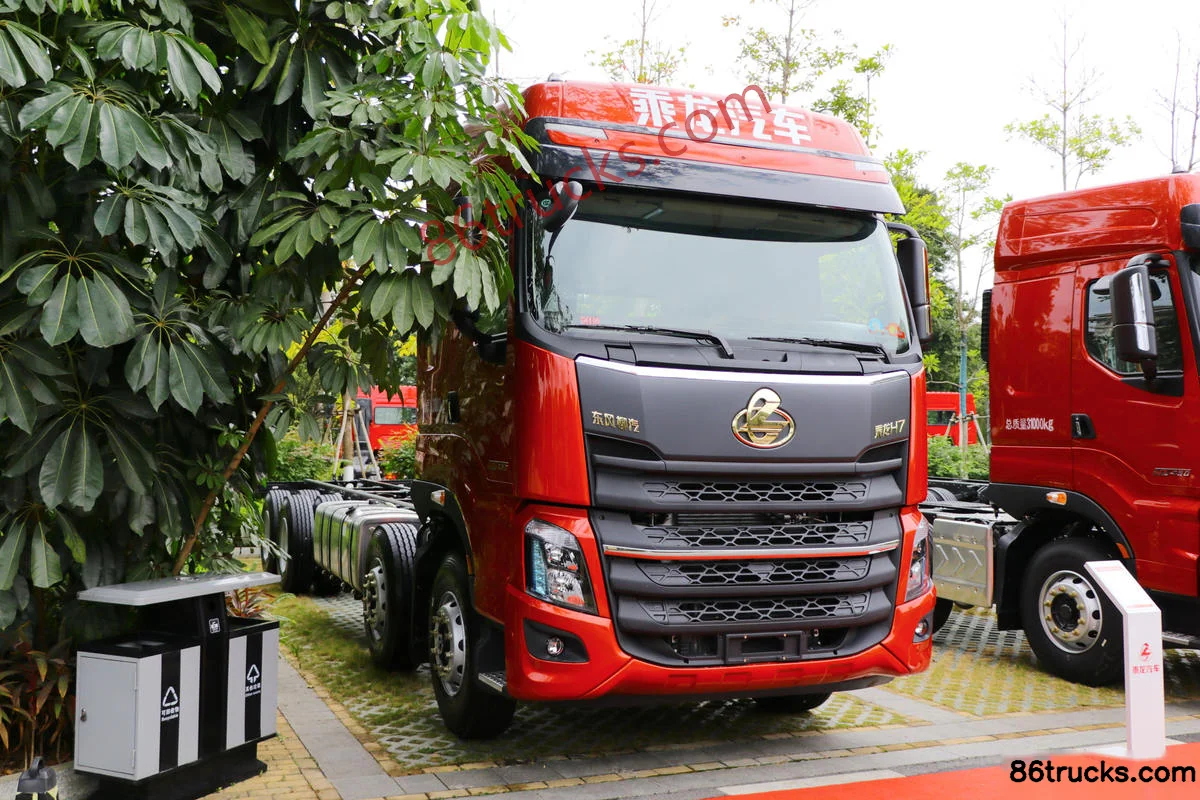

Exterior3

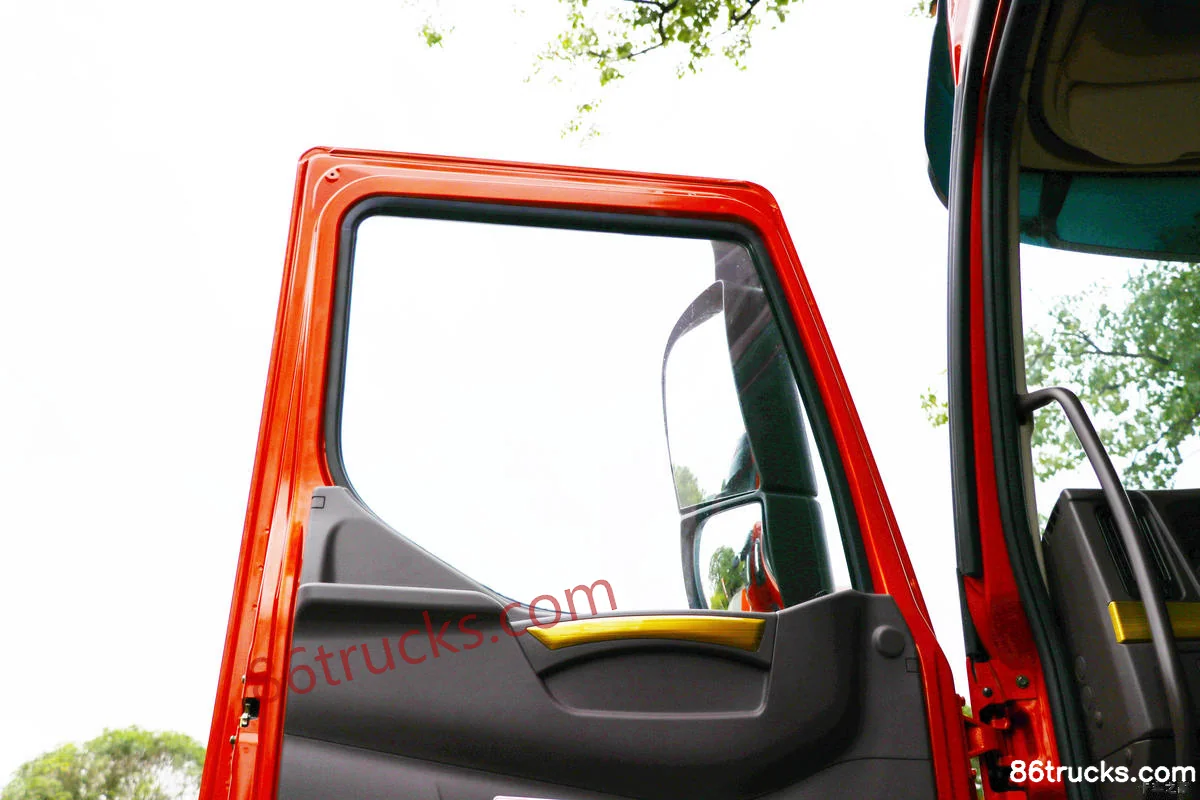

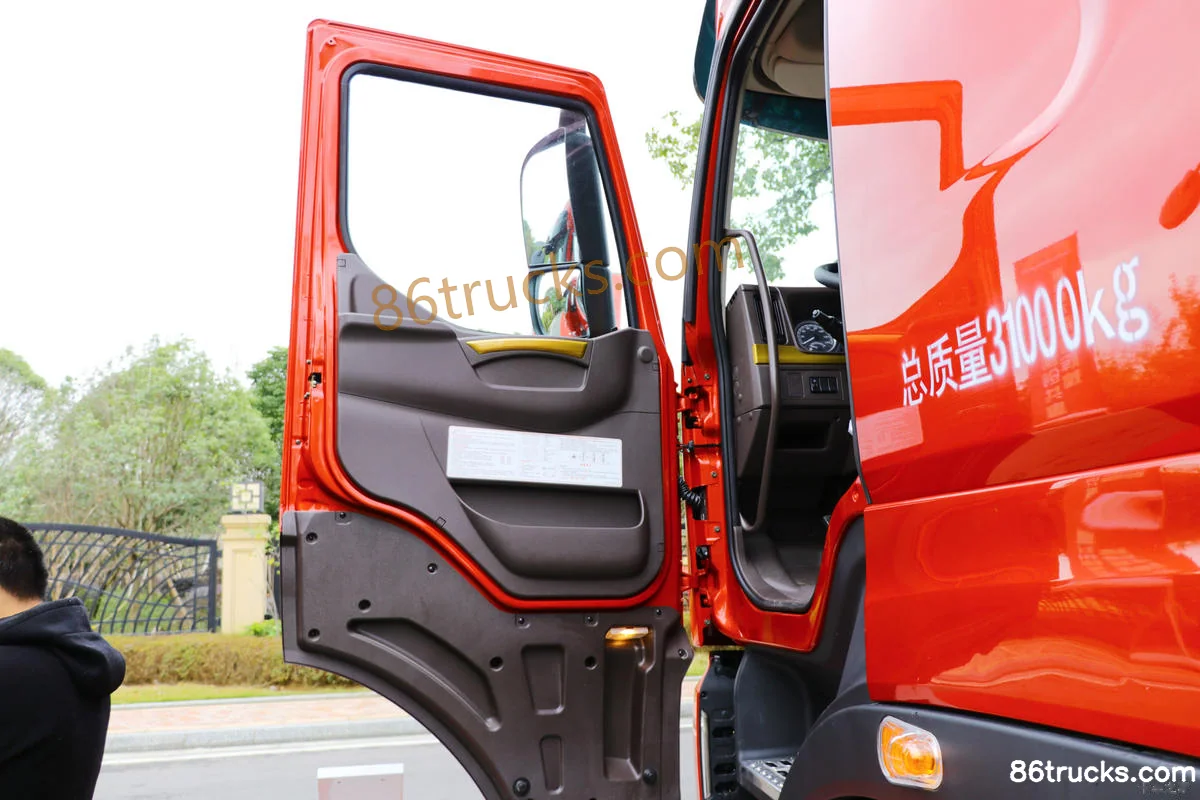

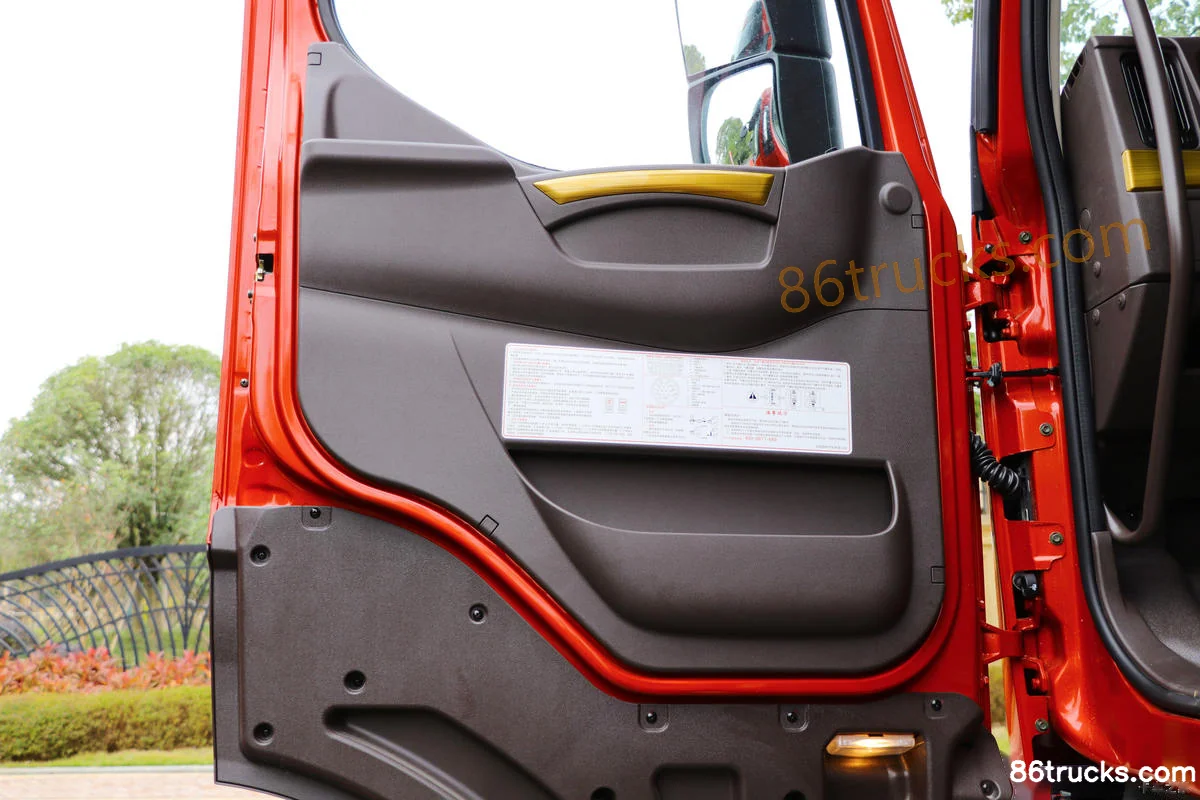

Cab3

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis?

Key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis: Drive: 8x4; Horsepower: 460 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP12; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis suited for?

Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis belongs to Dongfeng Chenglong H7 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 Heavy Truck 2019 Model 460 hp 8X4(12 wheels) 9.6m Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
