Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive)

Export reference
MSRP N/A
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Dongfeng
Curb Weight:: 6.4ton
seating capacity: 3Personnel
Rated payload: 5.9ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive) is a Medium-duty truck featuring 7.65m cargo length, Van body cargo body, 3Personnel volume and 5.9t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 180 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL5120XXYB9
Type: Chassis
Drive type: 4X2
Wheelbase: 5600mm
Box length class: 7.7m
engine: DongfengISB180 40
transmission: DongfengDF6S900
Rear Axle Ratio: 4.56
Cab length: 10m
Cab width: 2.5m
Cab height: 3.56m
Front track width: 1880mm
rear track: 1860mm
Curb Weight: 6.4ton
Rated payload: 5.9ton
GVWR: 12.495ton
Max. speed: 100km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle:
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.430/2.97m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB180 40
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, electronically controlled common rail
Transmission Parameters
Transmission Model: DongfengDF6S900
Transmission Brand: Dongfeng
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.65m
Cargo box width: 2.4m
Cargo box height: 2.2m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Chassis Specs
Front axle allowable load: 4200kg
rear axle description: single reduction
rear axle allowable load: 8295kg
Axle ratio: 4.56
Leaf spring count: 7/9+6
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

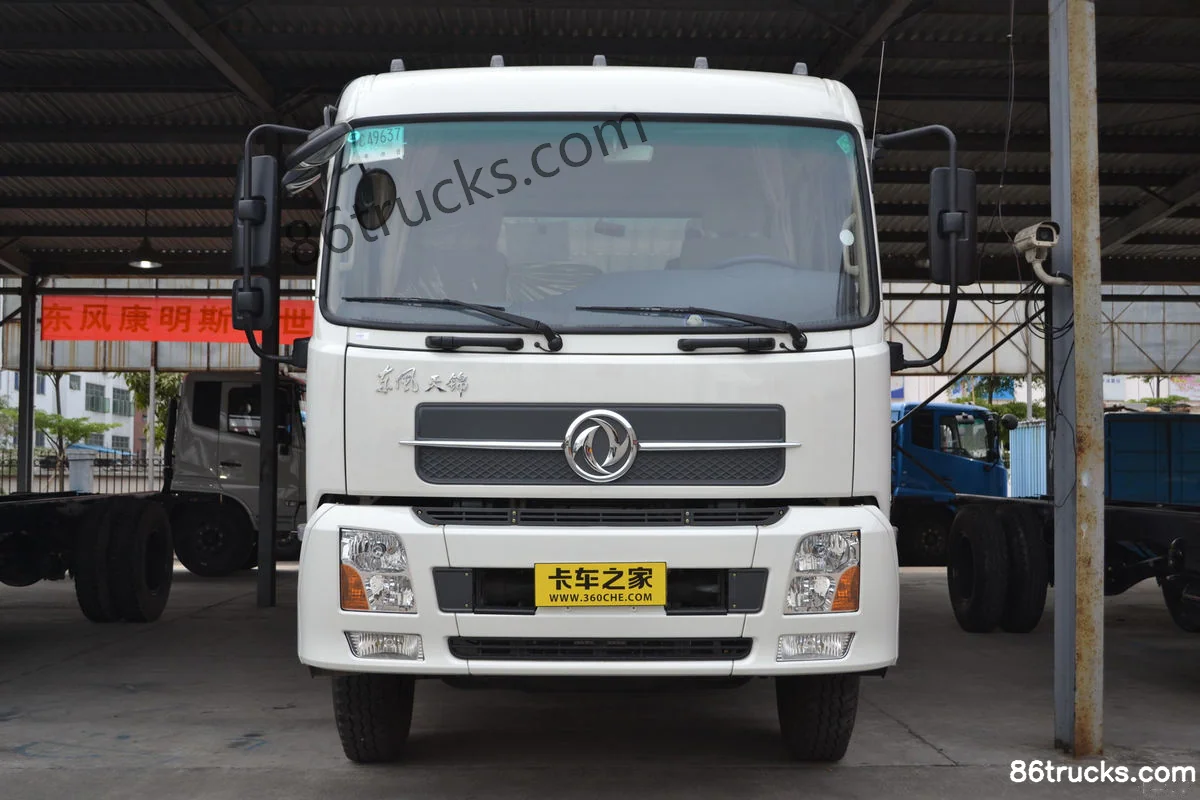

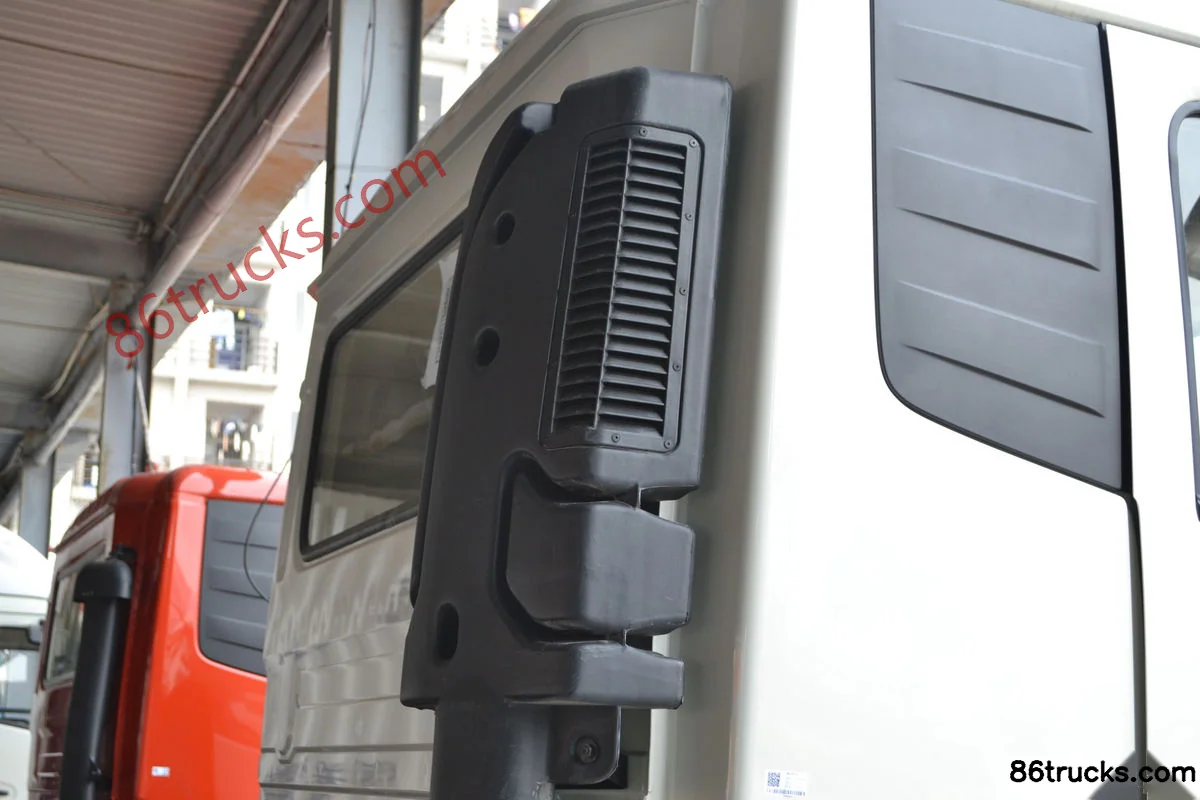

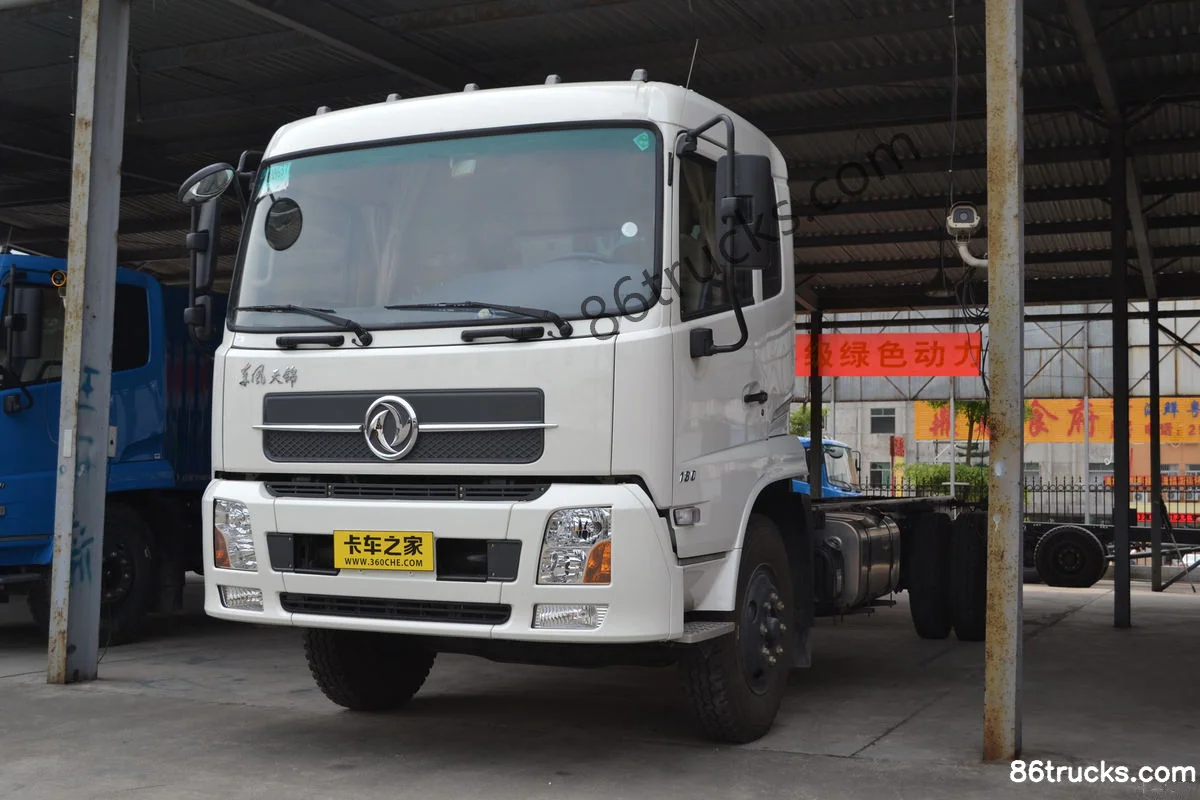

Exterior3

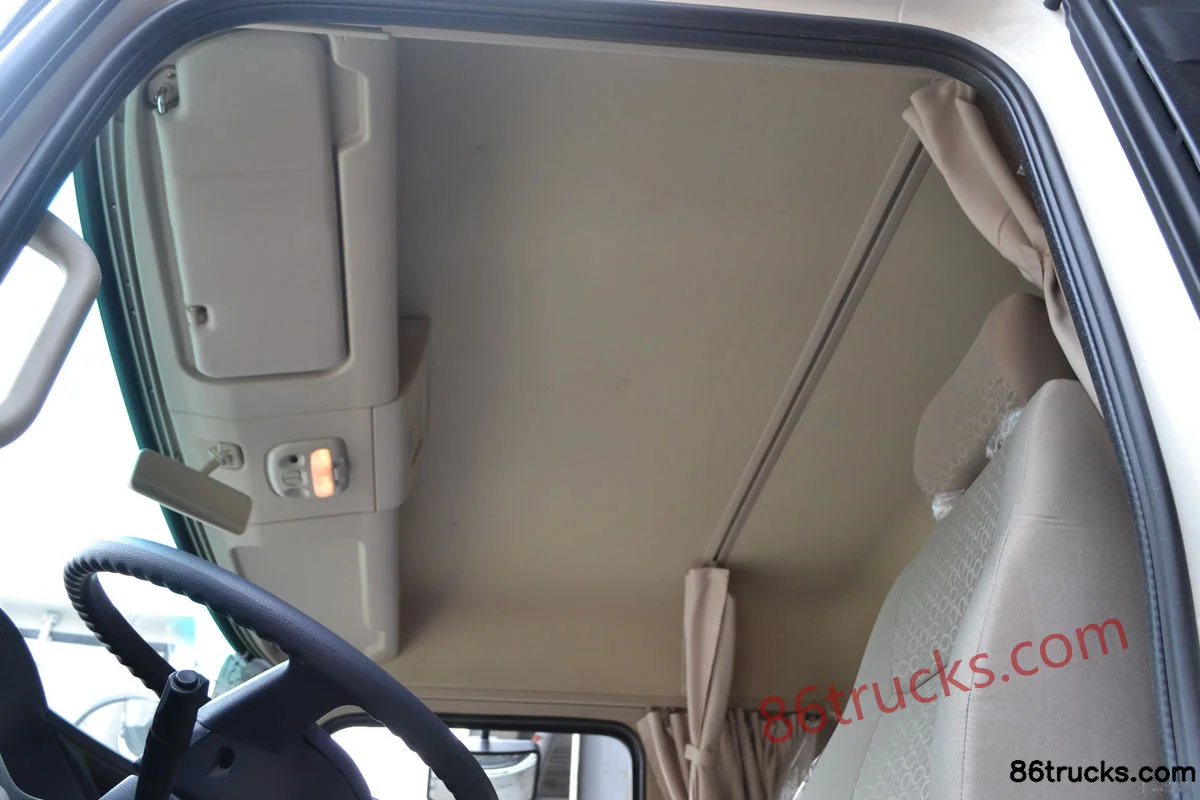

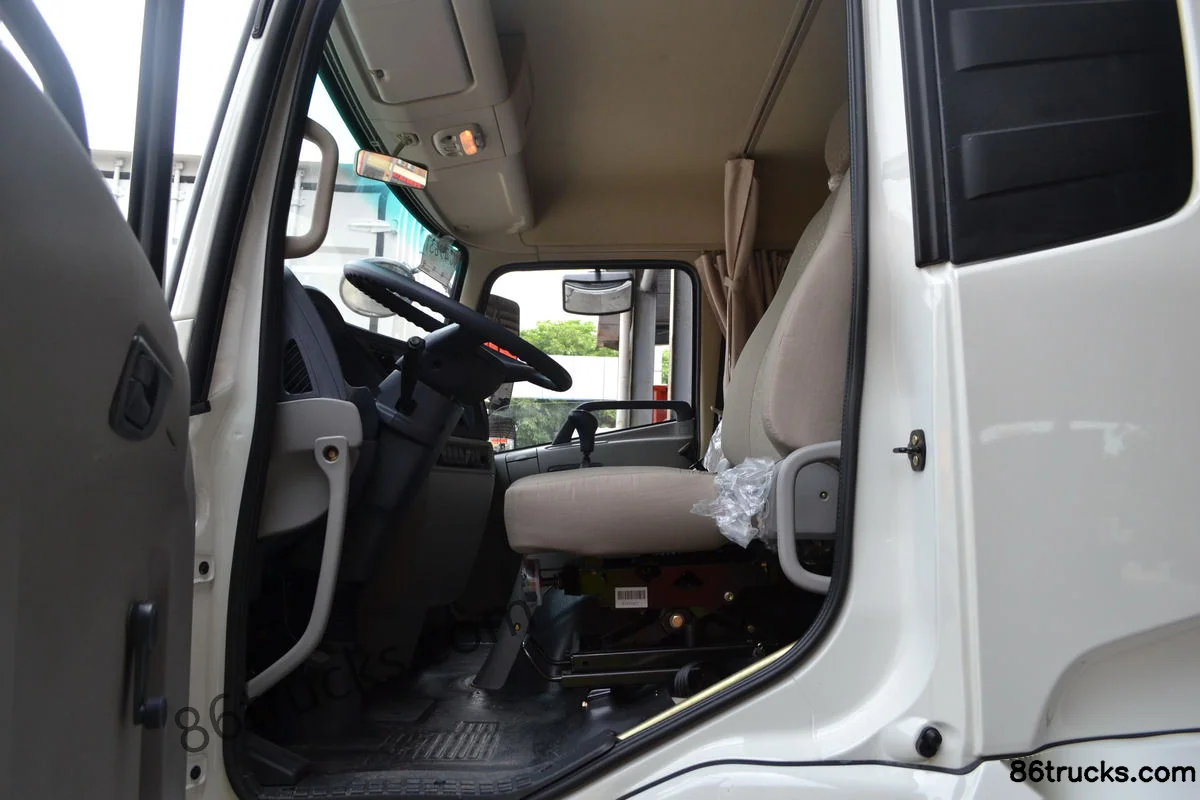

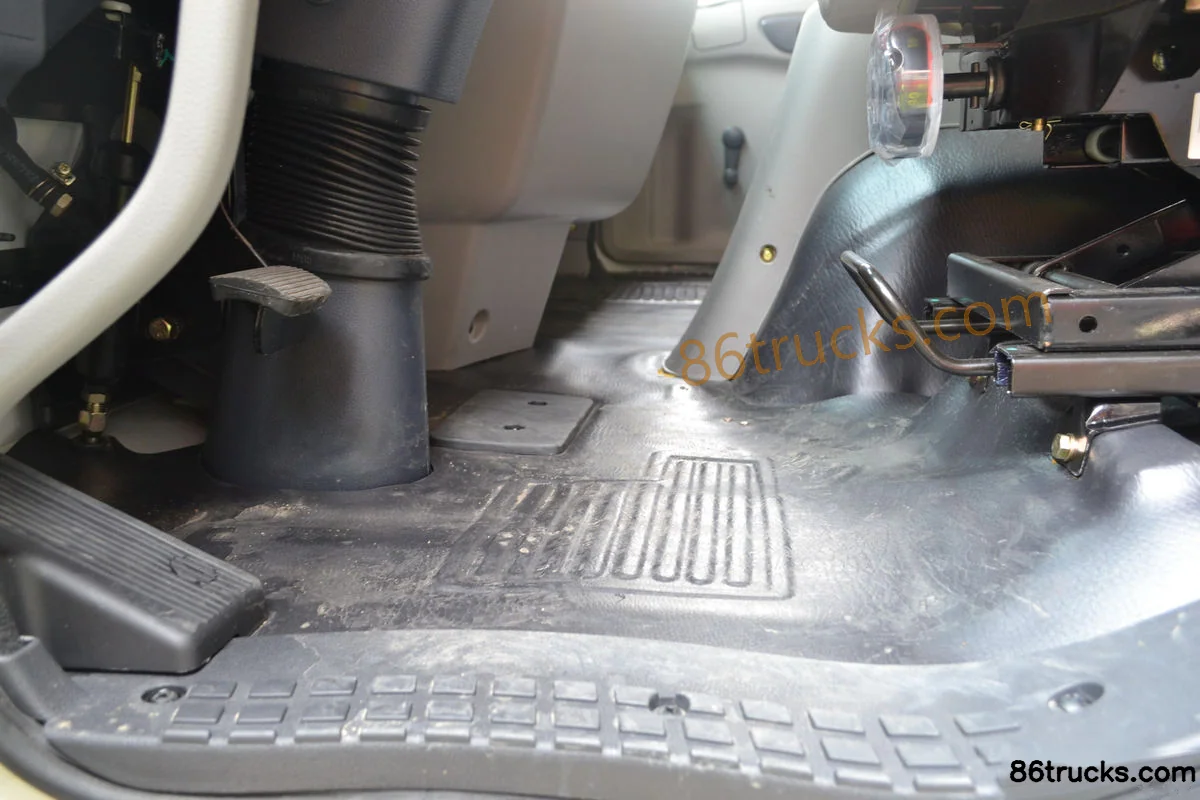

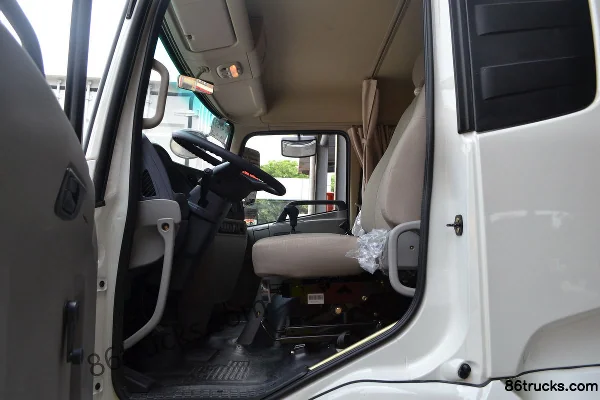

Cab3

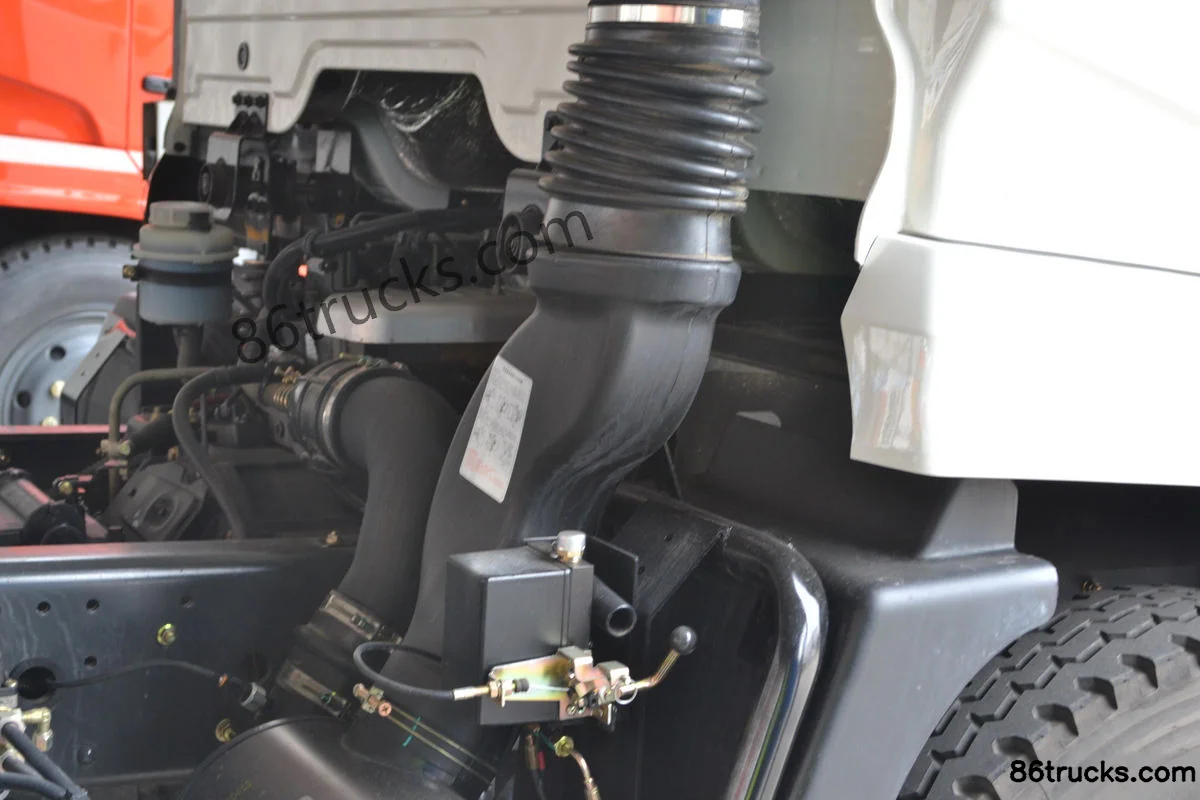

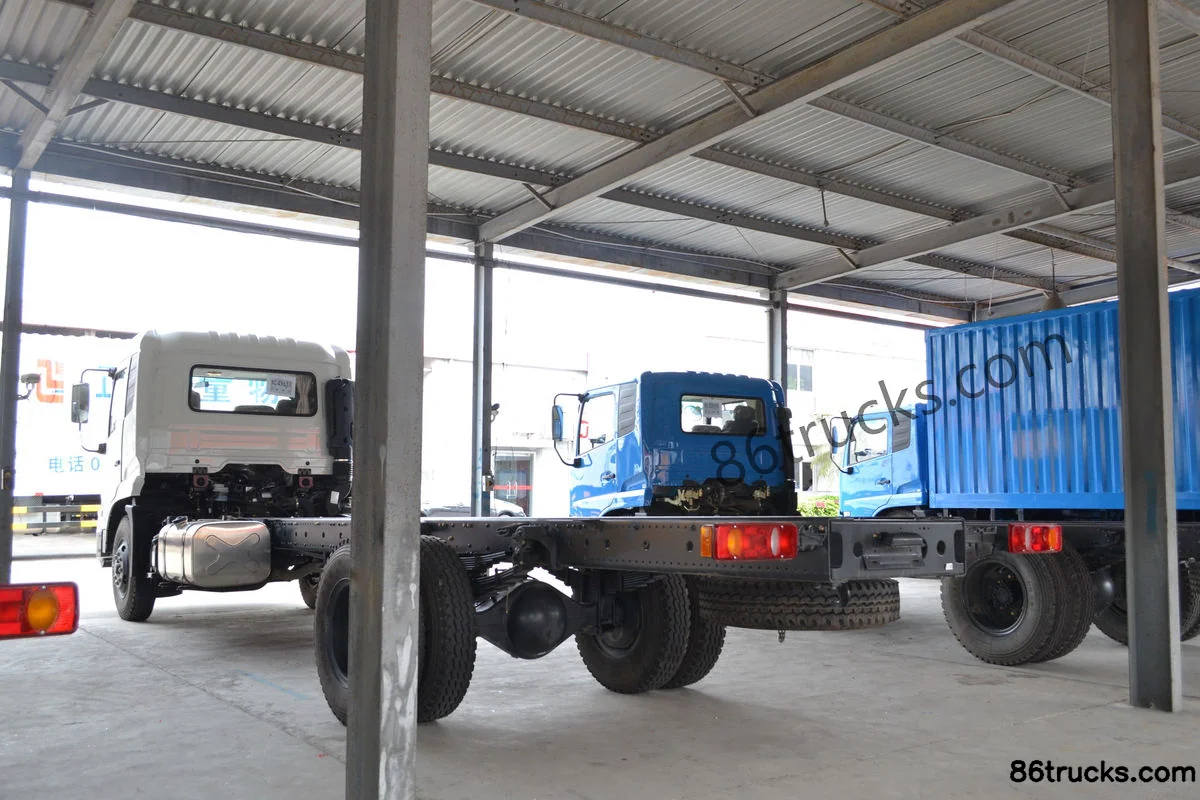

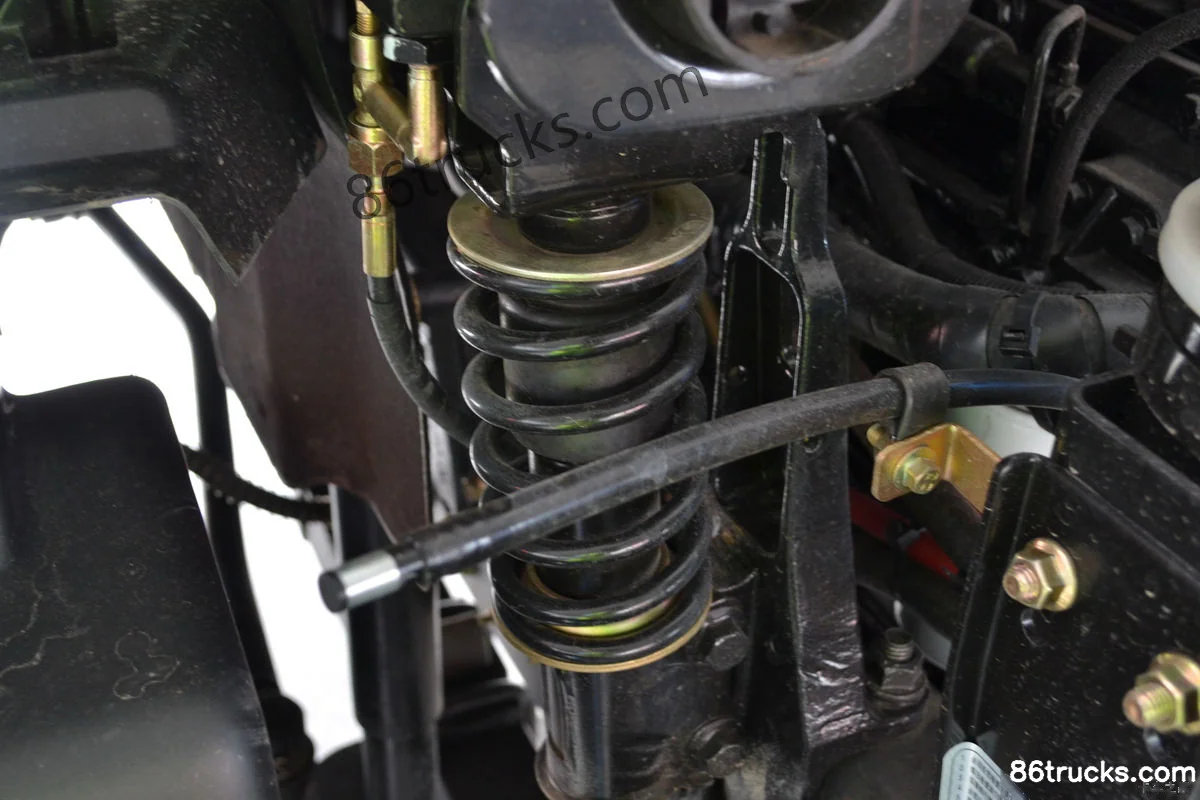

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive)?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive): Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Dongfeng. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive) suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive) belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 7.7m Van Cargo Truck Chassis (Overdrive)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
